PTW UNIDOS webline User manual

Service Manual
UNIDOSwebline
D776.133.0/1
2006-06 Se/Sa

UNIDOSwebline
Contents
2 D776.133.0/1
Contents
1 For Your Safety 3
2 Spare Parts List 3
3 Regularly Maintenance 4
3.1 Checkups (Function tests) 4
3.2 Constancy Test 5
3.3 Maintenance 5
3.4 Further Tests 6
3.5 System Information 6
4 Troubleshooting 7
5 Functional units 7
5.1 Front panel unit 7
5.2 Measuring Module 8
5.3 Main Board 9
6 Service Software 10

UNIDOSwebline
For your safety
D776.133.0/1 3
1 For Your Safety
CAUTION
This document is a supplement to the
UNIDOSwebline user manual and is valid only in
conjunction with that manual.
The safety statements appearing in the indi-
cated user manual are applicable and must be
observed.
WARNING
In addition to these safety statements, please
note that devices connected to the interfaces
described in this manual must fulfill the re-
quirements of the IEC standard 60950.
PTW-FREIBURG
Physikalisch Technische Werkstätten
Dr. Pychlau GmbH
Lörracher Str. 7
79115 FREIBURG
GERMANY
Phone: [phone]
Fax: [phone]
[email protected]
www.ptw.de
2 Spare Parts List
The following spare parts are available for the
UNIDOSwebline:
Description PTW ID No. or
Order Designation
Desiccator cartridge L137004
O-ring for desiccator car-
tridge L612037
Cover for desiccator car-
tridge L603024
Fuse set for mains opera-
tion 2 x L251013
Set of rechargeable batter-
ies 6 x L389026

UNIDOSwebline
Regularly Maintenance
4 D776.133.0/1
3 Regularly Maintenance
3.1 Checkups (Function tests)
The following checkups have to be executed regu-
larly according to the recommendation or the na-
tionally valid laws / rules.
Test
Interval Recommendation Comment
Visual inspection of the device
and the cables
daily and after
breaks (over
several hours)
strongly recom-
mended
Current offset + zeroing daily and after
breaks (over
several hours)
strongly recom-
mended repeat after each changing of the detector
Detector test daily and after
breaks (over
several hours),
after changing
the detector
recommended HV check at detector
Check desiccator
weekly recommended
Safety inspections
annually acc. law refer to national laws / rules
Inspections of measurement
technique
2 years acc. law refer to national laws / rules
To execute the tests correctly, please observe the
instructions given in the corresponding sections of
the user manual of the UNIDOSwebline.
Safety inspections must only be handled by per-
sons who are trained in the use of such equipment
and are capable of applying it properly. The opera-
tor must be trained in the use of the device.
The UNIDOSwebline must be inspected at regular
intervals according to national regulations at PTW-
Freiburg or a qualified calibration laboratory.
Safety inspections and inspections of measurement
technique must also be performed after repairs or
after each influence which may have changed the
behavior of the device.
National valid laws or rules may regulate shorter
intervals.

UNIDOSwebline
Regularly Maintenance
D776.133.0/1 5
3.2 Constancy Test
The following tests should be executed regularly.
They make it possible to recognize slow alterations
of the characteristics of device or detector.
Test
Interval Accessories
Comment
Detector test
weekly - HV check at detector; only range Low
Device test
weekly - checks device only; only range Low
Long term stability
weekly UNITEST check HV and all 3 measuring ranges; no complete function test
Long term stability
monthly check device no complete function test
To execute the tests correctly, please observe the
instructions given in the corresponding sections of
the user manual of the UNIDOSwebline.
The test results have to be recorded from the first
start of operation in order to be able to make state-
ments about a change. Addionally for detector
tests: the record has to be separate for each detec-
tor.
The checkup of the device can be performed most
extensive with an UNITEST (refer to the user man-
ual of the UNITEST).
A complete function test can take place however
only through a inspection of measurement tech-
nique.
3.3 Maintenance
Description
Interval Comment
Cleaning + care
if required
Rechargeable battery
- handling –
max. 3 month discharge and charge NiMH batteries
Changing fuses
if required
To execute the tests correctly, please observe the
instructions given in the corresponding sections of
the user manual of the UNIDOSwebline.

UNIDOSwebline
Regularly Maintenance
6 D776.133.0/1
3.4 Further Tests
Ethernet-interface
The Ethernet interface can be checked using the
VNC Viewer.
TRIP Output
The function of the TRIP OUTPUT can be checked
as follows: set up the threshold and apply a signal
which exceeds the threshold (e.g. using an
UNITEST).
To execute the tests correctly, please observe the
instructions given in the corresponding sections of
the user manual of the UNIDOSwebline.
3.5 System Information
Information about the version of firmware and
hardware and the status of supply voltages of the
device can be read out via service e-mail (refer to
corresponding sections of user manual UNI-
DOSwebline).
The device monitors the supply voltages continu-
ously (Note: These information can be read out only
via service e-mail.)
Example: answer e-mail on a service e-mail at
[email protected]:
UNIDOS webline SERVICE 2006-02-01 12:04:09
System information
Device name: UNIDOS webline
Type number: T10021
Serial number: 5
Hardware revision: A02
Firmware: 1.12-1
Calibration date:
Next calibration:
CPUBoard SerNr.: 0
CPUBoard Rev.: A01
Measuring Unit
Firmware: 1.00-9
Serial number: 1
Calibration: 1
Last Zeroing: 2006-02-01 12:03:12
Power Supply
Firmware: 1.01
Serial number: 0
Calibration: 1
Main: 12.017V, OK
12V: 12.004V, OK
5V: 4.991V, OK
3.3V: 3.294V, OK
Bat: 11.133V
Battery State: 0
Battery Level: 0
System-Internals
StandbyState: 0
System Flags: 0
Debug Flags: 0
Storetime: 2006-02-01 11:04
MB_BootCounter: 100
MB_ErrorBits: 0
MB_ControlWord: 0
MB_AccessErrCnt0: 0
MB_AccessErrCnt1: 0
MB_AccessErrCnt2: 0
MB_AccessErrCnt3: 0
MU_Ready: 100
MU_ErrorBits: 0
MV ErrorCounter: 0
MV ErrorCntTotal: 0
AllCorrectionsOff: 0
StabilizationTimeLeft: 0
SpurTrapCounter: 0
MbComMultipleTelegrams: 0
PSinfo: 4
DB Error:: 0
INET_State: 0
UDP_State: 0
TCP Error: 0
E-Task Error: 0
E-Task Time: 0
E-Task Data: 0

UNIDOSwebline
Troubleshooting
D776.133.0/1 7
4 Troubleshooting
The instruction manual of UNIDOSwebline describes
the procedures to apply, if problems occur during
the operation of the device or error messages are
shown on the display. The particular sections are:
10.1 Error Messages on the Display
10.2 Checking the Measured Value
10.3 Problems Operating the UNIDOSwebline
5 Functional units
Opening of the device and working at the device
must be performed only by PTW-Freiburg or by
persons authorized by PTW-Freiburg.
WARNUNG
Shock Hazard – Dangerous voltages become
touchable with the opening of the device. For
the connecting systems BNT and TNC: the en-
tire enclosure of the measuring module is on
the potential of the high voltage. In order to
switch off the device safely, it must be turned off
and separated from the power line. Moreover,
all connection cables must be disconnected in
order to prevent contact to external voltages. At
last the rechargeable batteries must be re-
moved.
5.1 Front panel unit
CCFL Inverter for
backlight Plastic foil keyboard
and navigation knob
TFT Display Main CPU board
Power I/O
Figure 1: Front panel unit
The front panel unit is a compact unit which con-
tains and connects the subunits shown above.
The main CPU executes the firmware of the device
with all aspects like graphic user interface, display
control, presentation of measured values, commu-
nication with interfaces, etc. The main CPU stores
all device settings, detector data and also the re-
sults of system tests.

UNIDOSwebline
Functional units
8 D776.133.0/1
In case of exchanging the front panel unit all these
data have to be saved first and later on entered into
the new front panel unit by means of the service
software.
The main CPU contains also the real-time clock
and the associated back-up battery.
5.2 Measuring Module
DC DC
ADC µController
EEPROM
Internal
HV
Input
External HV Power
Serial I/O
Control
Desiccator
HV source selection HV polarity
Electrical Isolation
Amplifier
HV (to detector)
HV measurement

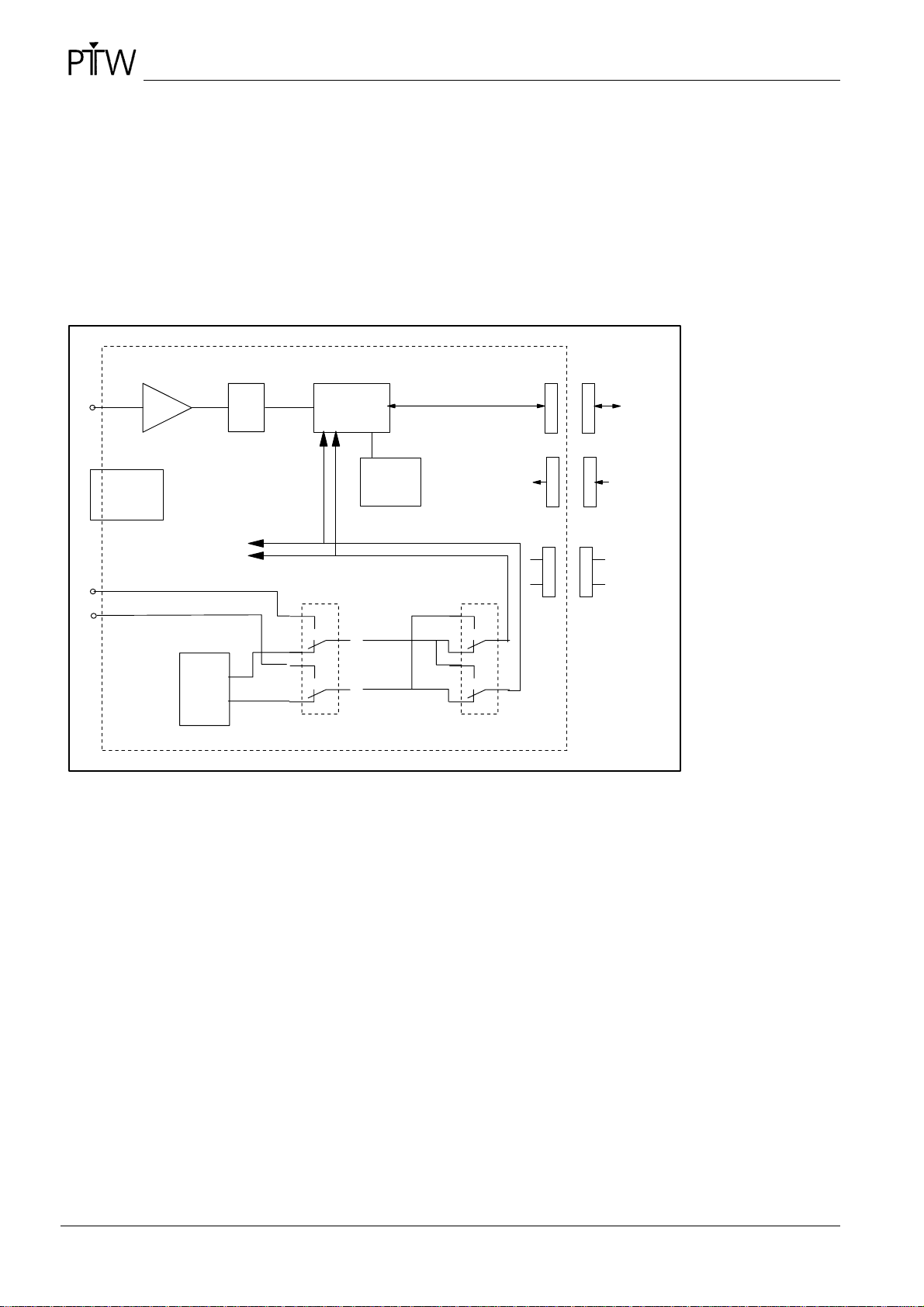

Figure 2: Measuring module
The measuring module is designed as an inde-
pendent unit and can be exchanged with another
one of the same connecting system.
It stores all relevant amplifier data like calibration
factors and zeroing results as well as calibration
factors for measuring high voltage. With older edi-
tions of the measuring module, only the internal HV
can be measured and monitored.
Since the results of the system tests are stored in
the main CPU, these data are however no more
comparable after a replacement of the measuring
module.

UNIDOSwebline
Functional units
D776.133.0/1 9
5.3 Main Board
Mains
Connector &
Filter
Rechargeable
batteries
Charge
control
Power
supply
units
Voltages
measurement
Relay
Wide
range
AC / DC
Supply voltages
Host I/O (SERIAL)
Ethernet
TRIP Output
Electrical Isolation
Rear panel

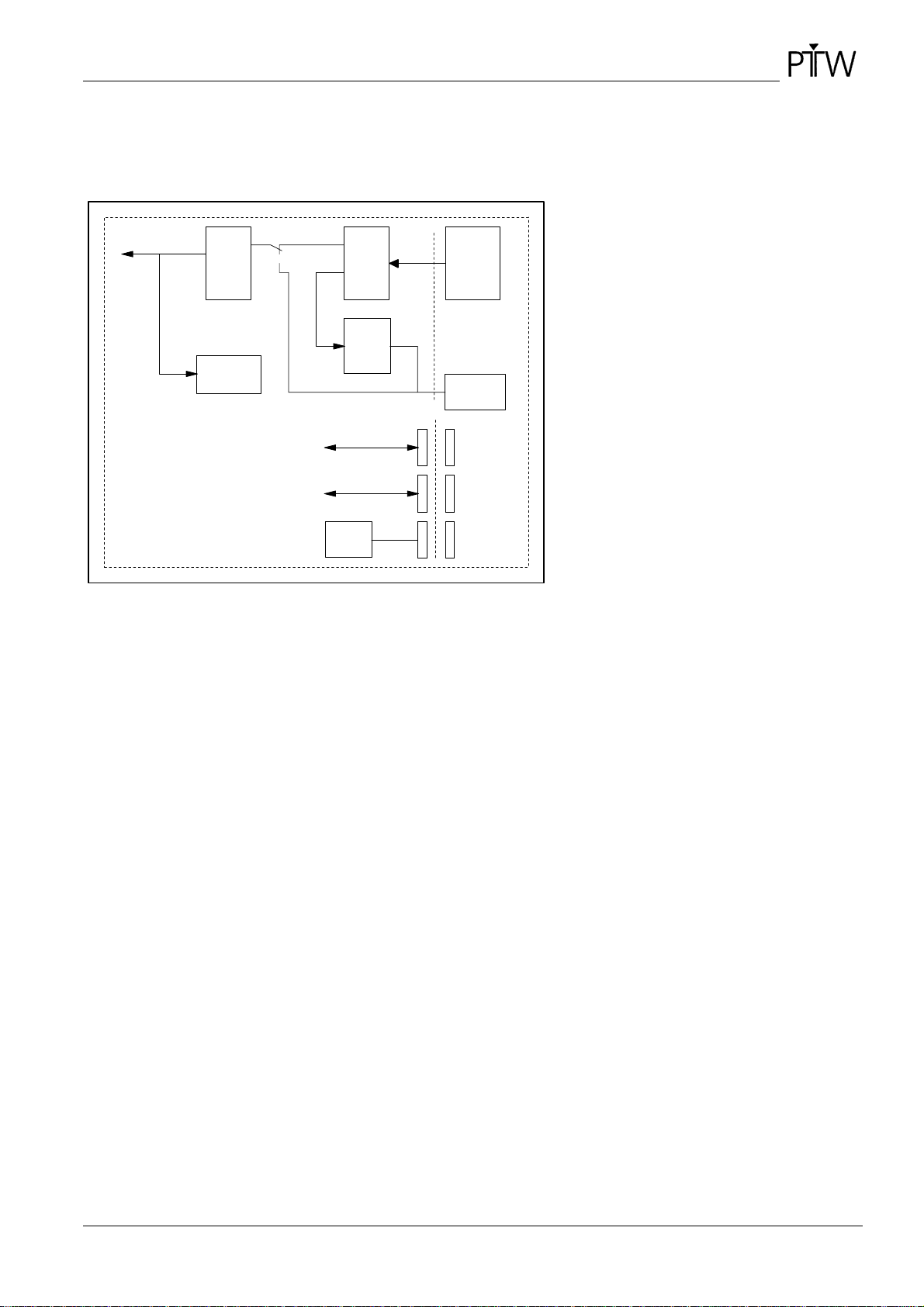

Figure 3: Main board
The main board contains the individual subunits for
generation and monitoring of the supply voltages as
well as for charging the rechargeable batteries. It
fulfills connection functions beside that. Its name
originates from its physical size and implies in no
way, that it houses the main CPU.
The calibration factors for measuring of the supply
voltage are stored in the main board.
The results of the voltage monitoring can be read
out via service e-mail. It is not necessary to execute
measurements inside the device.

UNIDOSwebline
Service Software
10 D776.133.0/1
6 Service Software
The service software has to fulfill three tasks:
−Backup of the device settings as well as the
detector data base to a connected PC
−Update of the device firmware
−Restore of the device settings as well as the
detector data base
If a firmware update from PTW-Freiburg is released
for the UNIDOSwebline, the user can update the firm-
ware version on the newest version by means of
this software.
The software uses exclusively the RS232 interface
for communications.
A firmware update over the Ethernet interface is not
possible.
The software will probably be available in June
2006.
