Puloon SiriUs-I User manual

1/ 141
SiriUs-I User Manual
Operating Manual
HW Maintenance Manual
© 1997-2020 PULOON Technology, Inc. All Rights Reserved.

2/ 141
Operating Manual
Table of Contents
1. Introduction ................................................................................................................................................................6
1.1 Menu Composition & User Authorization........................................................................................................... 7
2. Detail Menu by Functions ..........................................................................................................................................8
2.1 ATM Initial Setting Menu ....................................................................................................................................13

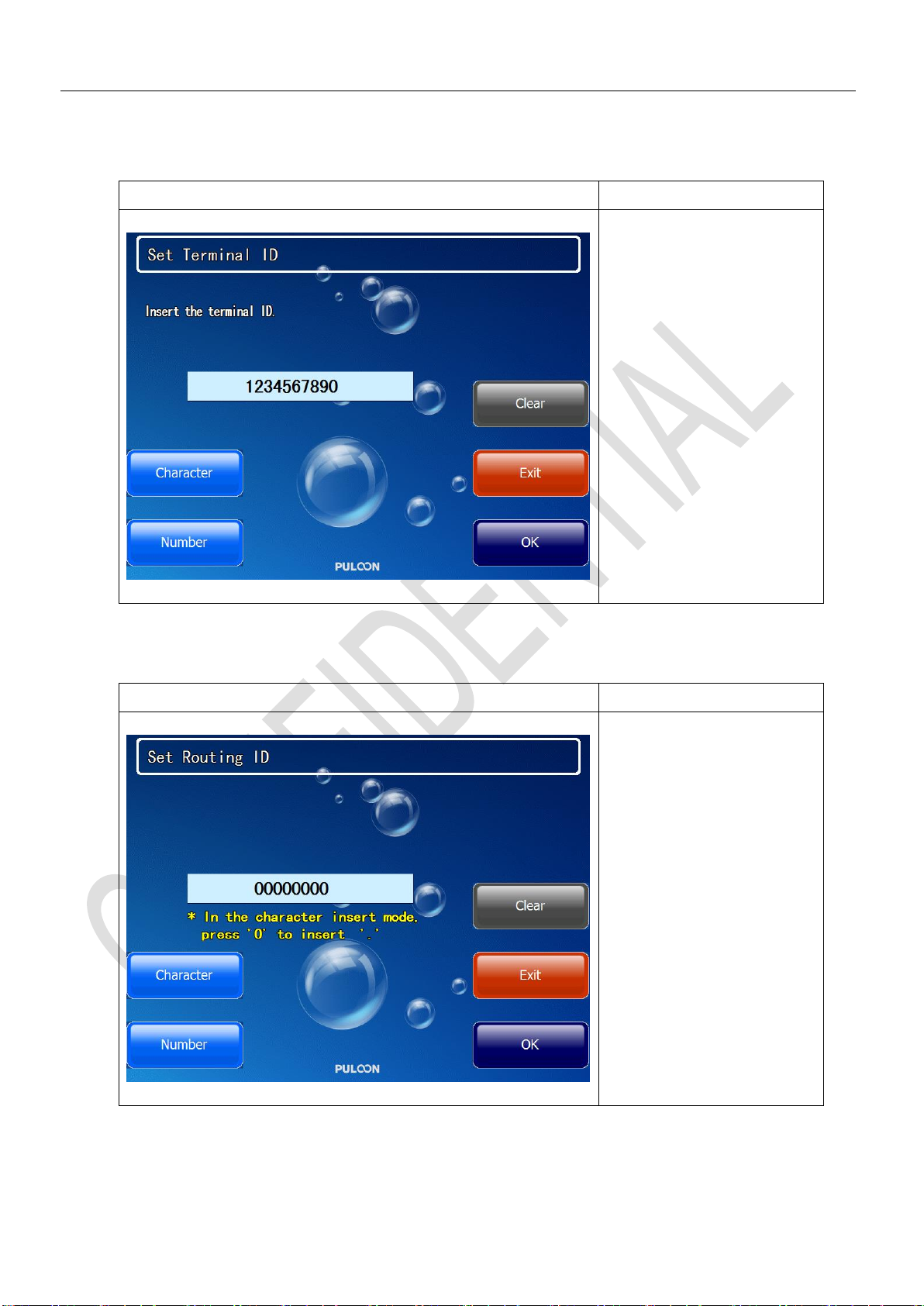

2.1.1 Terminal ID .......................................................................................................................................................13
2.1.2 Routing ID ........................................................................................................................................................13
2.1.3 ATM Serial No ..................................................................................................................................................14
2.1.4 Denomination ..................................................................................................................................................14
2.1.4.1 Denomination List.........................................................................................................................................15
2.1.4.2 Cassette Setting ............................................................................................................................................16
2.1.5 Receipt Printer Type .........................................................................................................................................16
2.1.6 Card Reader Type .............................................................................................................................................17
2.1.7 CDM Type.........................................................................................................................................................17
2.1.8 Switching (Processor) Company......................................................................................................................18
2.1.9 Nation...............................................................................................................................................................18
2.1.10 Language .......................................................................................................................................................19
2.1.11 Communication Type.....................................................................................................................................19
2.1.12 ADA................................................................................................................................................................20
2.1.12.1 ADA Permit .................................................................................................................................................20
2.1.13 Data/Time ......................................................................................................................................................21
2.1.13.1 Data/Time Set .............................................................................................................................................22
2.1.13.2 Sync Host Time ...........................................................................................................................................22
2.1.14 Change Password ..........................................................................................................................................23
2.1.14.1 Change Host Password ..............................................................................................................................23
2.1.14.2 Change System Password ..........................................................................................................................23
2.1.14.3 Customer Password....................................................................................................................................24
2.1.14.4 EPP Password..............................................................................................................................................24
2.2 Cash Register / Settlement Setting Menu ..........................................................................................................27
2.2.1 Add Cash..........................................................................................................................................................27
2.2.2 Settlement........................................................................................................................................................28
2.3 Transaction Setting Menu ...................................................................................................................................30
2.3.1 Select Receipt...................................................................................................................................................30
2.3.2 Out of Paper.....................................................................................................................................................30
2.3.3 Check Balance ..................................................................................................................................................31
2.3.4 Balance Display ................................................................................................................................................31
2.3.5 Idle Display .......................................................................................................................................................32

3/ 141
2.3.5.1 Count Image .................................................................................................................................................32
2.3.5.2 Display Time ..................................................................................................................................................33
2.3.5.3 Image Upload ...............................................................................................................................................33
2.3.6 EMV..................................................................................................................................................................34
2.3.6.1 Fallback Option .............................................................................................................................................34
2.3.6.2 Common AID Selection ................................................................................................................................35
2.3.6.3 Magnetic Stripe Permit .................................................................................................................................35
2.3.6.4 BIN Option ....................................................................................................................................................36
2.3.6.4.1 Enable/Disable checking Default BIN........................................................................................................36
2.3.6.4.2 Editing Default BIN List..............................................................................................................................37
2.3.6.4.3 Uploading Default BIN List File..................................................................................................................37
2.3.6.4.4 Enable/Disable checking Extra BIN List.....................................................................................................38
2.3.6.4.5 Searching Extra BIN ...................................................................................................................................38
2.3.6.4.6 Uploading Extra BIN List File .....................................................................................................................39
2.3.7 Amount Range.................................................................................................................................................39
2.3.7.1 Cash Range Set.............................................................................................................................................40
2.3.7.2 Amount Range Display.................................................................................................................................40
2.3.8 Surcharge .........................................................................................................................................................41
2.3.8.1 Surcharge Set................................................................................................................................................41
2.3.8.3 Surcharge Amount .......................................................................................................................................42
2.3.8.4 Surcharge Percent.........................................................................................................................................43
2.3.8.5 Surcharge Use...............................................................................................................................................43
2.3.8.6 BIN List ..........................................................................................................................................................44
2.3.8.6.1 BIN List Enable/Disable..............................................................................................................................44
2.3.8.6.2 BIN List Set .................................................................................................................................................45
2.3.8.6.3 BIN List File Upload....................................................................................................................................45
2.3.9 Coupon.............................................................................................................................................................46
2.3.9.1 Coupon Message..........................................................................................................................................46
2.3.9.2 Coupon Frequency .......................................................................................................................................47
2.3.10 Max Amount..................................................................................................................................................47
2.3.11 Fast Cash ........................................................................................................................................................48
2.3.12 Welcome Message.........................................................................................................................................48
2.3.13 Background Image Upload............................................................................................................................49
2.3.14 SW Download................................................................................................................................................50
2.3.15 Reboot Time...................................................................................................................................................50
2.3.16 Change Text Color .........................................................................................................................................51
2.3.17 Config Copy ...................................................................................................................................................51
2.3.18 Bill.Dat Copy...................................................................................................................................................52
2.3.19 Status Monitoring..........................................................................................................................................52
2.3.20 Use 12-Digit ...................................................................................................................................................53
2.3.21 Printer Option ................................................................................................................................................53
2.3.22 Set Screen Timer ............................................................................................................................................54
2.3.23 Monitoring .....................................................................................................................................................54
2.3.23.1 RMS Server..................................................................................................................................................55

4/ 141
2.3.23.2 Connecting Test ..........................................................................................................................................55
2.3.23.3 Manage Account ........................................................................................................................................56
2.3.23.4 Set Interval ..................................................................................................................................................57
2.3.23.5 Emergency Reset ........................................................................................................................................57
2.4 Communication Setting Menu ...........................................................................................................................58

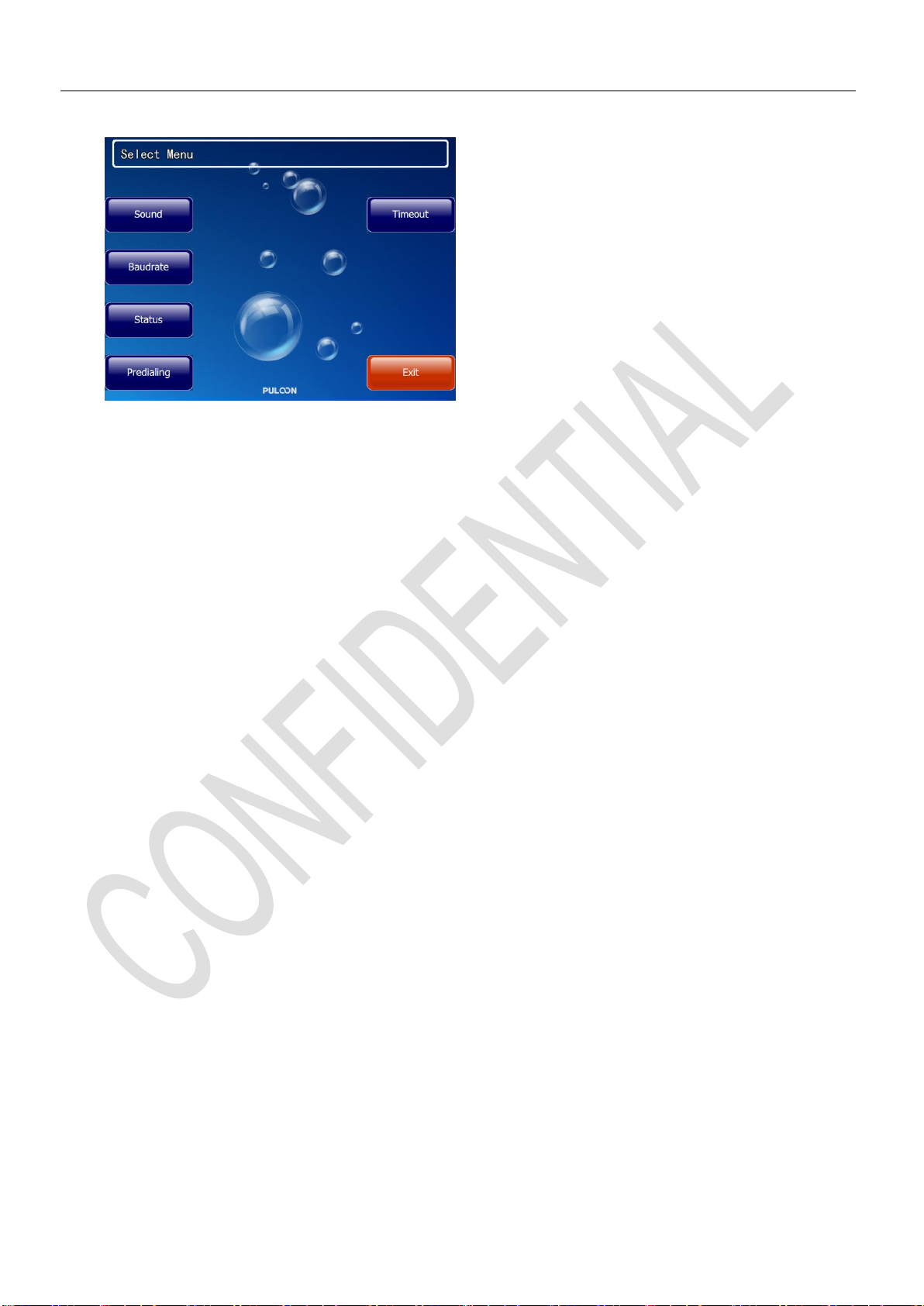

2.4.1 Modem Set.......................................................................................................................................................58
2.4.1.1 Sound............................................................................................................................................................58
2.4.1.2 Baudrate........................................................................................................................................................59
2.4.1.3 Status ............................................................................................................................................................59
2.4.1.4 Predialing ......................................................................................................................................................60
2.4.1.5 Timeout.........................................................................................................................................................60
2.4.1.5.1 View Timeout ............................................................................................................................................61
2.4.1.5.2 Dial Timeout ..............................................................................................................................................61
2.4.1.5.3 ENQ Timeout .............................................................................................................................................62
2.4.1.5.4 ACK Timeout .............................................................................................................................................62
2.4.1.5.5 STX Timeout ..............................................................................................................................................63
2.4.1.5.6 ETX Timeout ..............................................................................................................................................63
2.4.1.5.7 EOT Timeout..............................................................................................................................................64
2.4.2 Phone No. ........................................................................................................................................................64
2.4.3 Redundancy Server ..........................................................................................................................................65
2.4.4 TCPIP Set ..........................................................................................................................................................65
2.4.4.1 Server URL or IP ............................................................................................................................................66
2.4.4.2 ATM IP...........................................................................................................................................................68
2.4.4.3 TCP/IP Option................................................................................................................................................68
2.4.4.3.1 TCP Length.................................................................................................................................................69
2.4.4.3.2 TCP Type.....................................................................................................................................................69
2.4.4.4 TCP/IP Timeout .............................................................................................................................................70
2.4.4.4.1 View Timeout ............................................................................................................................................70
2.4.4.4.2 Session Timeout.........................................................................................................................................71
2.4.4.4.3 Send Timeout ............................................................................................................................................71
2.4.4.4.4 Receive Timeout ........................................................................................................................................72
2.4.4.4.5 ETX Timeout ..............................................................................................................................................72
2.4.4.5 DHCP.............................................................................................................................................................73
2.4.4.6 SSL/TLS ..........................................................................................................................................................73
2.4.4.7 URL Option....................................................................................................................................................74
2.4.5 Message Type...................................................................................................................................................74
2.4.6 ENQ Check .......................................................................................................................................................75
2.4.7 EOT Check........................................................................................................................................................75
2.5 Master Key Setting Menu ...................................................................................................................................76
2.5.1 Master A...........................................................................................................................................................76
2.5.2 Master B ...........................................................................................................................................................77
2.6 Electronic Journal Operation and Error List Menu.............................................................................................78
2.6.1 E-Journal...........................................................................................................................................................78
2.6.1.1 View All .........................................................................................................................................................78

5/ 141
2.6.1.2 Search by Date..............................................................................................................................................80
2.6.1.3 Save Specific Month Data ............................................................................................................................81
2.6.1.4 Search by Sequence Number .......................................................................................................................83
2.6.2 Error View ........................................................................................................................................................84
2.6.3 Error Detail .......................................................................................................................................................84
2.6.3.1 View All .........................................................................................................................................................85
2.6.3.2 Search ...........................................................................................................................................................86
2.7 System Mode Menu ............................................................................................................................................88
2.7.1 Version..............................................................................................................................................................88
2.7.2 Setup Print........................................................................................................................................................88
2.7.3 EJ Delete...........................................................................................................................................................89
2.7.4 Printer Test .......................................................................................................................................................89
2.7.5 CDM Test ..........................................................................................................................................................90
2.7.6 MS C/R Test ......................................................................................................................................................90
2.7.7 Key Test ............................................................................................................................................................91
2.7.8 Modem Test .....................................................................................................................................................91
2.7.9 TCP/IP Test ........................................................................................................................................................92
2.7.10 IC C/R Test ......................................................................................................................................................92
2.8 ETC .......................................................................................................................................................................93
2.8.1 Initialize / Reset ................................................................................................................................................93
2.8.2 Select CDM Type ..............................................................................................................................................93

6/ 141
1. Introduction
[Maintenance mode] can be entered from transaction or error standby by using keypad,
pressing ‘Clear’, ‘Enter’, ‘1’, ‘2’, ‘3’.
▶Inserting Password to enter Maintenance Mode
Screen
Contents
Insert default password ‘333333’
to enter.

7/ 141
1.1 Menu Composition & User Authorization
Some settings of [Maintenance mode] function may be limited by user authority.
Menu composition and user authorization are as follows by chart 1.1.
Chart 1.1 Maintenance mode Menu Composition and User Authorization
(M: Master Mode, S: System Mode, T: Teller Mode)
No
Maintenance Mode
Authorization
Main
Sub1
Explanation
M
S
T
1
Customer Setup
E-Journal
Transaction, error, status, journal download, print, save
O
O
O
Add Cash
Cash register and initialization
O
O
O
Settlement
Day close and initialization
O
O
O
Password
Teller password resetting
O
O
O
Coupon
Coupon function setting
O
O
O
Setup Print
Print ATM setting value
O
O
O
Max Amount
Max dispense amount per transaction setting
O
O
O
Date/Time
ATM time setting
O
O
O
EMV
EMV setup
O
O
O
Amount Range
Function to display the range of dispense amount
specified on Transaction standby screen
O
O
O
Surcharge
Fee setting
O
O
O
2
System Setup
Version
Check, print of ATM version
O
O
X
Setup Print
Print setting values
O
O
X
Password
System Password re-setting
O
O
X
EJ Delete
Electronic journal initialization
O
O
X
Diagnostics
device test
O
O
X
Error View
Check, print of Error information
O
O
X
Error Detail
Detailed Error information check
O
O
X
3
Host Setup
Terminal ID
Terminal number setting
O
X
X
Phone No
Host phone number setting
O
X
X
Routing ID
Routing ID setting
O
X
X
Password
Master password setting
O
X
X
Monitoring
RMS Monitoring setting
O
X
X
Key Management
password key information setting
O
X
X
4
Cash Menu
Max Amount
Max amount per transaction amount setting
O
X
X
Denomination
Denominations setting
O
X
X
Fast Cash
Fast cash option amount setting
O
X
X
5
Configuration
Welcome Message
Transaction standby screen wording setting
O
X
X
Date/Time
ATM time setting
O
X
X
Setup ATM
device type, transaction button setting
O
X
X
Modem Set
Modem information setting
(displayed during modem transfer)
O
X
X
TCPIP Set
TCPIP setting (displayed during TCPIP transfer)
O
X
X
ATM Serial No.
ATM Serial No setting
O
X
X
6
Device Reset
ATM device initialization
O
O
O
Depending on authority, there are three kinds of default password like below table.
This can be changed in the Maintenance mode.
Authority
Default Password
Customer
111111 (6 digit)
System
222222 (6 digit)
Host
333333 (6 digit)

8/ 141
2. Detail Menu by Functions
◎[CORD ONLY] The 5 minutes timer will be activated when the switching company is “DNS” and the
lower vault door is closed.
◎ [ALL] The 5 minutes timer will be activated when the “Screen Timer” option is enabled and the lower
vault door is closed. If the switching company is “DNS”, the option button is hidden and the option
is disabled.
▶Operation Main of Maintenance Mode
◎‘Customer Setup’and ‘Device Reset’ buttons will be shown by the customer setup password.
◎ ‘Customer Setup’, ‘System Setup’ and ‘Device Reset’ buttons will be shown by the system setup
password.
◎All buttons will be shown by the host setup password.
◎Some system information will be shown : Error Code, Date/Time, AP Version, Serial Number,
Terminal ID, Switching Name, Routing ID, Bill Count #1~3
▶Customer Setup
◎Sub name is shown at the right-top corner.

9/ 141
▶System Setup
◎Sub name is shown at the right-top corner.
▶Host Setup
◎Sub name is shown at the right-top corner.
◎If the network setting is Modem, ‘Phone No’ button will be shown.

10 / 141
▶Cash Menu
◎Sub name is shown at the right-top corner.
▶Transaction Setup
◎Sub name is shown at the right-top corner.
◎If the network setting is TCP/IP, the “TCPIP Set’ button will be shown.
If not, ‘Modem Set’ button will be shown.
▶ Setup ATM Menu
◎If the switching company is “DNS”, the Screen Timer button will be hidden.

11 / 141
▶ TCPIP Set Menu

12 / 141
▶ Modem Set Menu

13 / 141
2.1 ATM Initial Setting Menu
2.1.1 Terminal ID
◎Location : Host Setup Terminal ID
Screen
Contents
Setting the assigned
Terminal ID
1. Use ‘Clear’, ‘Character’
and ‘Number’ buttons to
enter the ID.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving.
2.1.2 Routing ID
◎ Location : Host Setup Routing ID
Screen
Contents
Setting the obtained Routing
ID from Processor.
1. Use ‘Clear’, ‘Character’
and ‘Number’ buttons to
enter the ID.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving.

14 / 141
2.1.3 ATM Serial No
◎ Location : Transaction Setup ATM Serial No.
Screen
Contents
Setting the assigned ATM
Serial Number.
1. Use ‘Clear’, ‘Character’
and ‘Number’ buttons to
enter the number.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving.
2.1.4 Denomination
◎ Location : Cash Menu Denomination
Screen
Contents
Setting the denomination
A Warning message will be
displayed if the lower vault
door is closed

15 / 141
Screen
Contents
Press ‘Denom List’ button to
change denomination lists.
Press ‘Cassette’ button to
change the denomination of
each cassette.
2.1.4.1 Denomination List
◎ Location : Cash Menu Denomination Denom List
Screen
Contents
1. Choose the menu
corresponds to number of
denomination by ‘Next’
button.
2. Set denom value for the
amount of each
denomination.
3. Press ‘OK’ button to save
and exit.
4. Press ‘Exit’ button to exit
without saving
[Note] In case of
ECDM-300(6K) dispenser,
the value of denomination
MUST be set with Dip SW of
each boxes. (Please refer to
ECDM-300 manual)

16 / 141
2.1.4.2 Cassette Setting
◎ Location : Cash Menu Denomination Cassette
Screen
Contents
1. Choose the cassette to
change the denomination.
2. Set the denom value.
3. Press ‘OK’ button to save
and exit.
4. Press ‘Exit’ button to exit
without saving
2.1.5 Receipt Printer Type
◎ Location : Transaction Setup Setup ATM Printer Type
Screen
Contents
Setting the printer type
1. Choose the printer type
supported by the ATM.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving

17 / 141
2.1.6 Card Reader Type
◎ Location : Transaction Setup Setup ATM Card Reader Type
Screen
Contents
Setting the card reader type
1. Choose the card reader
type supported by the
ATM. ‘1’ is default.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving
2.1.7 CDM Type
◎ Location : Transaction Setup Setup ATM CDM Type
Screen
Contents
Setting the CDM Type
1. Choose the Dispenser type
supported by the ATM.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving

18 / 141
2.1.8 Switching (Processor) Company
◎ Location : Transaction Setup Setup ATM Switching Company
Screen
Contents
Setting the switching
company
1. Choose the processor from
the list for transaction.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving
2.1.9 Nation
◎ Location : Transaction Setup Setup ATM Nation
Screen
Contents
Setting the nation
1. Select the country ATM is
being operated.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving

19 / 141
2.1.10 Language
◎ Location : Transaction Setup Language
Screen
Contents
Setting the language
1. Select language(s) to use.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving
* Currently, English is default
and Spanish is option.
2.1.11 Communication Type
◎ Location : Transaction Setup Setup ATM Next Communication Type
Screen
Contents
Setting the communication
type
1. Choose the
communication type.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving

20 / 141
2.1.12 ADA
◎ Location : Transaction Setup Setup ATM Next ADA
Screen
Contents
If a hardware ADA board is
supplied, ‘H/W ADA Permit’
button will be shown.
SIriUs-I : H/W & S/W ADA
SiriUs-II : S/W ADA only
2.1.12.1 ADA Permit
◎ Location : Transaction Setup Setup ATM Next ADA S/W ADA Permit
Screen
Contents
Setting the usage of SW
ADA
1. Enable/Disable ADA
status.
2. Press ‘OK’ button to save
and exit.
3. Press ‘Exit’ button to exit
without saving
