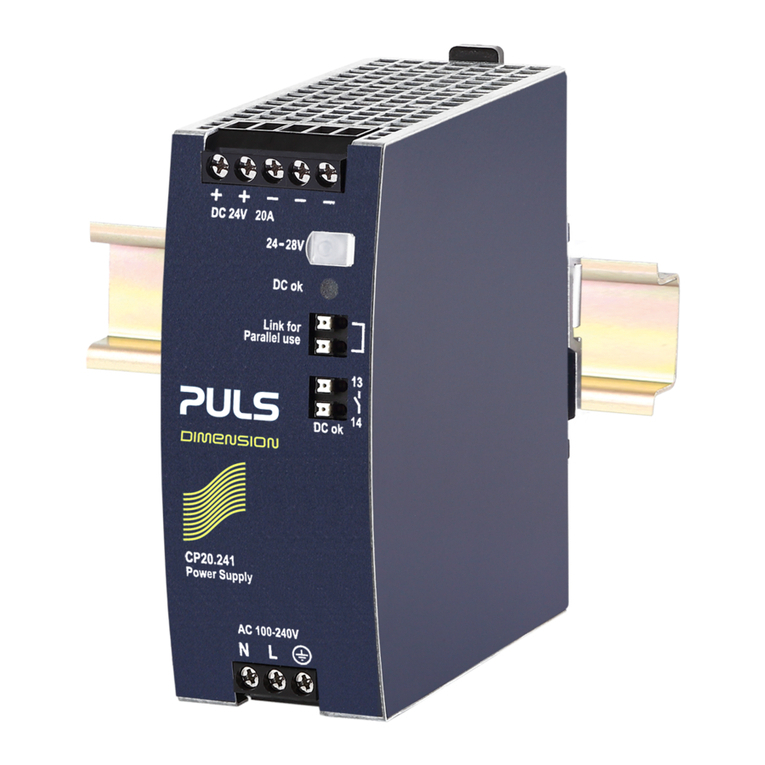

Puls Dimension CP Series User manual

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
1/31
P R E L I M I N A R Y
REDUNDANCY POWER SUPPLY
AC 100-240V Wide-range Input
Width only 39mm
Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy
Efficiency up to 94.7%
20% Output Power Reserves
Safe HiccupPLUS Overload Mode
Easy Fuse Breaking – 3 times nominal current for 12ms
Active Power Factor Correction (PFC)
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
DC-OK Relay Contact
Current Sharing Feature Included
3 Year Warranty
GENERAL DESCRIPTION
The Dimension CP-Series are cost optimized power
supplies without compromising quality, reliability and
performance. The most outstanding features of the
CP10.241–R1/-R2/-R3 units are the high efficiency,
electronic inrush current limitation, active PFC, wide
operational temperature range and the extraordinary
small size. The units include a decoupling MOSFET for
building 1+1 or n+1 redundant power supply systems.
These redundancy power supplies come with three
connection terminal options; screw terminals, spring-
clamp terminals or plug connector terminals which
allows replacement on an active application.
CP10.242-R2 version feature an enhanced DC input
voltage range.
With high immunity to transients and power surges, low
electromagnetic emission, a DC-OK signal contact for
remote monitoring, and a large international approval
package, makes this unit suitable for nearly every
application.
SHORT-FORM DATA
Output voltage DC 24V 0%/+6%
Adjustment range -
Output current 12A Below +45°C ambient
10A At +60°C ambient
7.5A At +70°C ambient
Derate linearely between +45°C and +70°C
AC Input voltage AC 100-240V -15%/+10%
Mains frequency 50-60Hz ±6%
AC Input current 2.17 / 1.14A At 120 / 230Vac
Power factor 0.99 / 0.97 At 120 / 230Vac
Input voltage DC DC 110-150V±20% For CP10.241-Rx
DC 110-300V±20% For CP10.242-R2
Input current DC 2.35A / 0.84A At 110 / 300Vdc
AC Inrush current 6 / 9Apk At 120 / 230Vac
Efficiency 93.0 / 94.7% At 120 / 230Vac
Losses 18.1 / 13.4W At 120 / 230Vac
Hold-up time 37 / 37ms At 120 / 230Vac
Temperature range -25°C to +70°C
Size (w x h x d) 39x124x117mm Without DIN-rail and
plug connectors
Weight 600g / 1.32lb
ORDER NUMBERS
Power Supplies
CP10.241-R1 With quick-connect spring-clamp
terminals
CP10.241-R2 With hot swappable plug
connectors (preferred item)
CP10.241-R3 With screw terminals
CP10.242-R2 Enhanced DC-Input
Mechanical Accessory
ZM4.WALL Wall/panel mount bracket
ZM12.SIDE Side mount bracket
MARKINGS
For details or a complete approval list see section 20.

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
2/31
P R E L I M I N A R Y
INDEX
Page Page
1. Intended Use .......................................................4
2. Installation Requirements...................................4
3. AC-Input...............................................................5
4. DC-Input...............................................................6
5. Input Inrush Current ...........................................7
6. Output .................................................................8
7. Hold-up Time.......................................................9
8. DC-OK Relay Contact ........................................10
9. Efficiency and Power Losses..............................11
10. Lifetime Expectancy ..........................................12
11. MTBF ..................................................................12
12. Functional Diagram...........................................13
13. Terminals and Wiring........................................14
14. Replacing Units while the System is Running..15
15. Front Side and User Elements...........................16
16. EMC....................................................................17
17. Environment ......................................................18
18. Safety and Protection Features ........................19
19. Dielectric Strength ............................................20
20. Approvals.......................................................... 21
21. Other Fulfilled Standards ................................. 21
22. Physical Dimensions and Weight ..................... 22
23. Accessories ........................................................ 23
23.1. ZM4.WALL – Wall/Panel Mount Bracket .23
23.2. ZM12.SIDE - Side Mounting Bracket........24
24. Application Notes............................................. 25
24.1. Peak Current Capability ...........................25
24.2. Adjusting the Output Voltage.................26
24.3. Charging of Batteries ...............................27
24.4. Output Circuit Breakers............................27
24.5. Series Operation .......................................28
24.6. Parallel Use to Increase Output Power....28
24.7. Parallel Use for Redundancy ....................29
24.8. Operation on Two Phases ........................30
24.9. Use in a Tightly Sealed Enclosure ............30
24.10. Mounting Orientations ............................31
The information given in this document is correct to the best of our knowledge and experience at the time of
publication. If not expressly agreed otherwise, this information does not represent a warranty in the legal sense of the
word. As the state of our knowledge and experience is constantly changing, the information in this data sheet is
subject to revision. We therefore kindly ask you to always use the latest issue of this document.
No part of this document may be reproduced or utilized in any form without our prior permission in writing.

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
3/31
P R E L I M I N A R Y
TERMINOLOGY AND ABREVIATIONS
PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol .
Earth, Ground This document uses the term “earth” which is the same as the U.S. term “ground”.
T.B.D. To be defined, value or description will follow later.
AC 230V A figure displayed with the AC or DC before the value represents a nominal voltage with
standard tolerances (usually ±15%) included.
E.g.: DC 12V describes a 12V battery disregarding whether it is full (13.7V) or flat (10V)
230Vac A figure with the unit (Vac) at the end is a momentary figure without any additional
tolerances included.
50Hz vs. 60Hz As long as not otherwise stated, AC 230V parameters are valid at 50Hz mains frequency.
may A key word indicating flexibility of choice with no implied preference.
shall A key word indicating a mandatory requirement.
should A key word indicating flexibility of choice with a strongly preferred implementation.
1+1 Redundancy Use of two identical power supplies in parallel to provide continued operation following most
failures in a single power supply. The two power supply outputs should be isolated from each
other by utilizing diodes or other switching arrangements. E.g. two 10A power supplies are
needed to achieve a 10A
redundant system.
N+1 Redundancy Use of three or more identical
power supplies in parallel to
provide continued operation
following most failures in a
single power supply. All power
supply outputs should be
isolated from each other by
utilizing diodes or other
switching arrangements.
E.g.: To achieve a 40A redundant system, five 10A power supplies are needed in a N+1
redundant system.
N+1
Redundancy
1+1
Redundancy
AC
DC
CP10-Rx
Load
+
-
AC
DC
CP10-Rx
AC
DC
CP10-Rx
AC
DC
CP10-Rx
AC
DC
CP10-Rx
AC
DC
AC
DC
AC
DC
CP10-Rx CP10-Rx CP10-Rx
Load
+
-

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
4/31
P R E L I M I N A R Y
1. INTENDED USE
This device is designed for installation in an enclosure and is intended for the general professional use such as in
industrial control, office, communication, and instrumentation equipment.
Do not use this power supply in equipment, where malfunction may cause severe personal injury or threaten human
life.
2. INSTALLATION REQUIREMENTS
WARNING Risk of electrical shock, fire, personal injury or death.
- Do not use the power supply without proper grounding (Protective Earth). Use the terminal on the input block for
earth connection and not one of the screws on the housing.
- Turn power off before working on the device. Protect against inadvertent re-powering.
- Make sure that the wiring is correct by following all local and national codes.
- Do not modify or repair the unit.
- Do not open the unit as high voltages are present inside.
- Use caution to prevent any foreign objects from entering the housing.
- Do not use in wet locations or in areas where moisture or condensation can be expected.
- Do not touch during power-on, and immediately after power-off. Hot surfaces may cause burns.
Obey the following installation requirements:
- This device may only be installed and put into operation by qualified personnel.
- Install the device in an enclosure providing protection against electrical, mechanical and fire hazards.
- The device is designed for use in pollution degree 2 areas in controlled environments.
- The enclosure of the device provides a degree of protection of IP20 according to IEC 60529.
- Mount the unit on a DIN-rail so that the input terminals are located on the bottom of the unit. For other mounting
orientations see de-rating requirements in this document.
- The device is designed for convection cooling and does not require an external fan. Do not obstruct airflow and do
not cover ventilation grid (e.g. cable conduits) by more than 15%!
- Keep the following installation clearances: 40mm on top, 20mm on the bottom, 5mm on the left and right sides are
recommended when the device is loaded permanently with more than 50% of the rated power. Increase this
clearance to 15mm in case the adjacent device is a heat source (Example: another power supply).
- Make sure that the wiring is correct by following all local and national codes. Use appropriate copper cables that are
designed for a minimum operating temperature of 60°C for ambient temperatures up to +45°C, 75°C for ambient
temperatures up to +60°C and 90°C for ambient temperatures up to +70°C. Ensure that all strands of a stranded wire
enter the terminal connection. Check also local codes and local requirements. In some countries local regulations
might apply.
- This device does not contain serviceable parts. The tripping of an internal fuse is caused by an internal defect. If
damage or malfunction should occur during installation or operation, immediately turn power off and send the
device to the factory for inspection.
- The device is designed, tested and approved for branch circuits up to up to 30A (UL) or 32A (IEC) without additional
protection device. If an external fuse is utilized, do not use circuit breakers smaller than 10A B- or C-Characteristic to
avoid a nuisance tripping of the circuit breaker.
- A disconnecting means shall be provided for the input of the power supply.

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
5/31
P R E L I M I N A R Y
3. AC-INPUT
The device is suitable to be supplied from TN-, TT- and IT mains networks with AC voltage. For suitable DC supply
voltages see chapter 4.
AC input Nom. AC 100-240V
AC input range Min. 85-264Vac Continuous operation
Min. 264-300Vac For maximal 500ms (occasional)
Allowed voltage L or N to earth Max. 300Vac Continuous, according to IEC 60664-1
Input frequency Nom. 50–60Hz ±6%
Turn-on voltage Typ. 80Vac Steady-state value, see Fig. 3-1
Shut-down voltage Typ. 70Vac Steady-state value, see Fig. 3-1
Typ. 55Vac Dynamic value (max. 250ms)
External input protection See recommendations in chapter 2.
AC 100V AC 120V AC 230V
Input current Typ. 2.63A 2.17A 1.14A At 10A, see Fig. 3-3
Power factor Typ. 0.99 0.99 0.97 At 10A, see Fig. 3-4
Crest factor Typ. 1.5 1.5 1.65 At 10A, The crest factor is the
mathematical ratio of the peak
value to RMS value of the input
current waveform.
Start-up delay Typ. 300ms 290ms 240ms See Fig. 3-2
Rise time Typ. 30ms 30ms 30ms At 10A const. current load, 0mF
load capacitance, see Fig. 3-2
Typ. 75ms 75ms 75ms At 10A const. current load, 20mF
load capacitance,, see Fig. 3-2
Turn-on overshoot Max. 200mV 200mV 200mV See Fig. 3-2
Fig. 3-1 Input voltage range Fig. 3-2 Turn-on behavior, definitions
Turn-on
85V
Rated
input range
max.
500ms
V
IN
P
OUT
300Vac264V
Shut-down
Start-up
delay Rise Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
Fig. 3-3 Input current vs. output current Fig. 3-4 Power factor vs. output current
24A
24681012141618
0
1
2
3
4
5
6A
Input Current, typ.
a) 100Vac
b) 120Vac
c) 230Vac
b
a
c
Output Current
Power Factor, typ.
2 4 6 8 1012141618 24A
0.75
0.8
0.85
0.9
0.95
1.0
20 22
20 22
a) 100Vac
b) 120Vac
c) 230Vac
a, b
c
Output Current

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
6/31
P R E L I M I N A R Y
4. DC-INPUT
The device is suitable to be supplied from a DC input voltage. Use a battery or a similar DC source. A supply from the
intermediate DC-bus of a frequency converter is not recommended and can cause a malfunction or damage the unit.
Connect +pole to L, –pole to N and the PE terminal to an earth wire or to the machine ground.
DC input Nom. DC 110-150V ±20% for CP10.241-Rx
Nom. DC 110-300V ±20% for CP10.242-R2
DC input range Min. 88-180Vdc Continuous operation for CP10.241-Rx
88-360Vdc Continuous operation for CP10.242-R2
DC input current Typ. 2.35A At 110Vdc and 10A load current
Typ. 0.84A At 300Vdc and 10A load current
Allowed Voltage (+) or (-) input
to Earth
Max. 360Vdc Continuous according to IEC 60664-1
Turn-on voltage Typ. 80Vdc Steady state value
Shut-down voltage Typ. 70Vdc Steady state value
Typ. 55Vdc Dynamic value (max. 250ms)
Fig. 4-1 Wiring for DC Input
+
-
Load
L
PE
+
-
Power Supply
AC
DC
Battery
N

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
7/31
P R E L I M I N A R Y
5. INPUT INRUSH CURRENT
An active inrush limitation circuit (NTCs, which are bypassed by a relay contact) limits the input inrush current after
turn-on of the input voltage.
The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on.
AC 100V AC 120V AC 230V
Inrush current Max. 11Apeak 7Apeak 11Apeak At 40°C, cold start
Typ. 9Apeak 6Apeak 6Apeak At 25°C, cold start
Typ. 9Apeak 6Apeak 9Apeak At 40°C, cold start
Inrush energy Max. 0.1A²s 0.1A²s 0.4A²s At 40°C, cold start
Fig. 5-1 Typical turn-on behaviour at nominal
load, 120Vac input and 25°C ambient
Fig. 5-2 Typical turn-on behaviour at nominal
load, 230Vac input and 25°C ambient
50ms/DIV
Input current
2A/DIV
Input voltage
250V/DIV
6A
50ms/DIV
Input current
2A/DIV
Input voltage
500V/DIV
Output voltage 20V/DIV Output voltage 20V/DIV
6A

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
8/31
P R E L I M I N A R Y
6. OUTPUT
The output provides a SELV/PELV/ES1 rated voltage, which is galvanically isolated from the input voltage. The output
of the devices includes a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems.
The device is designed to supply any kind of loads, including capacitive and inductive loads. If extreme large
capacitors, such as EDLCs (electric double layer capacitors or “UltraCaps”) with a capacitance larger than 1.5F are
connected to the output, the unit might charge the capacitor in the HiccupPLUS mode.
The device is featured with a “soft output regulation characteristic” in order to achieve current share between
multiple devices when they are connected in parallel. The “soft output regulation characteristic” regulates the output
voltage in such a manner that the voltage at no load is approx. 4% higher than at nominal load.
Output voltage Nom. DC 24V 23.8 - 25.2V
Adjustment range See chapter 24.2
Factory settings typ. 24.1V ±0.2%, at 10A, cold unit (results to typ. 23.9V±0.2% at
12A and typ. 25.1V±0.2% at no load)
Line regulation Max. 10mV 85-300Vac
Load regulation Typ. 1000mV Static value, 0A Æ10A; see Fig. 6-1
Ripple and noise voltage Max. 50mVpp 20Hz to 20MHz, 50Ohm
Output current Nom. 12A1) Below 45°C ambient temperature, see Fig. 17-1
Nom. 10A At 60°C ambient temperature, see Fig. 17-1
Nom. 7.5A At 70°C ambient temperature, see Fig. 17-1
Fuse breaking current2) Typ. 30A Up to 12ms once every five seconds, see Fig. 6-3.
Overload protection Included Electronically protected against overload, no-load
and short-circuits. In case of a protection event,
audible noise may occur.
Overload behaviour Continuous current Output voltage >13Vdc, see Fig. 6-1
Intermitted current3) Output voltage <13Vdc, see Fig. 6-1
Overload/ short-circuit current Max. 15.5A Continuous current, see Fig. 6-1
Typ. 14A Intermitted current peak value for typ. 2s
Load impedance 10mOhm, see Fig. 6-2.
Discharge current of output capacitors is not included.
Max. 5A Intermitted current average value (R.M.S.)
Load impedance 10mOhm, see Fig. 6-2.
Output capacitance Typ. 4 400μF Included inside the power supply
Back-feeding loads Max. 35V The unit is resistant and does not show
malfunctioning when a load feeds back voltage to
the power supply. It does not matter whether the
power supply is on or off. The absorbing energy can
be calculated according to the built-in large sized
output capacitor.
1) This current is also available for temperatures up to +70°C with a duty cycle of 10% and/ or not longer than 1 minute every 10 minutes.
2) The fuse braking current is an enhanced transient current which helps to start heavy loads or to trip fuses on faulty output branches. The
output voltage stays above 20V. See chapter 24.1 for additional measurements.
3) At heavy overloads (when output voltage falls below 13V), the power supply delivers continuous output current for 2s. After this, the
output is switched off for approx. 18s before a new start attempt is automatically performed. This cycle is repeated as long as the overload
exists. If the overload has been cleared, the device will operate normally. See Fig. 6-2.

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
9/31
P R E L I M I N A R Y
Fig. 6-1 Output voltage vs. output current, typ. Fig. 6-2 Short-circuit on output, HiccupPLUS mode, typ.
Output Voltage
0
4
8
12
28V
16
20
24
0 12.5 20A7.52.5 5 10 15 17.5
A
B
A: continuous current
B: intermitted current
Output
Current
Output
Current
0
14A
18s 18s
18s 2s 2s
2s
t
Short -circuit Normal
operation
Normal
operation
Fig. 6-3 Dynamic overcurrent capability, typ.
Output Voltage (dynamic behavior, < 12ms)
0
4
8
12
28V
16
20
24
050A2010 30 405 15253545
Output
Current
7. HOLD-UP TIME
AC 100V AC 120V AC 230V
Hold-up Time Typ. 73ms 73ms 73ms At 5A, see Fig. 7-1
Min. 55ms 55ms 55ms At 5A, see Fig. 7-1
Typ. 37ms 37ms 37ms At 10A, see Fig. 7-1
Min. 28ms 28ms 28ms At 10A, see Fig. 7-1
Fig. 7-1 Hold-up time vs. input voltage Fig. 7-2 Shut-down behavior, definitions
0
10
20
30
40
80ms
90 120 155 190 230Vac
Input Voltage
50
60
Hold-up Time
a) At 5A typ.
b) At 5A min.
70
a
c) At 10A typ.
d) At 10A min.
b
c
d
- 5%
Zero Transition
Output
Voltage
Input
Voltage
Hold-up Time

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
10/31
P R E L I M I N A R Y
8. DC-OK RELAY CONTACT
This feature monitors the output voltage of the power supply in front of the decoupling device (see also chapter 12).
Contact closes As soon as the output voltage reaches typically 22Vdc.
Contact opens As soon as the output voltage dips below 22Vdc.
Short dips will be extended to a signal length of 100ms. Dips shorter than 1ms will be ignored.
Switching hysteresis 1V
Contact ratings Maximal 60Vdc 0.3A, 30Vdc 1A, 30Vac 0.5A, resistive load
Minimal permissible load: 1mA at 5Vdc
Isolation voltage See dielectric strength table in chapter 19.
Fig. 8-1 DC-ok relay contact behavior
100ms
22Vdc
<
1ms
open openclosed closed
>
1...4ms

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
11/31
P R E L I M I N A R Y
9. EFFICIENCY AND POWER LOSSES
AC 100V AC 120V AC 230V
Efficiency Typ. 92.2% 93.0% 94.7% At 10A
Typ. 91.9% 92.8% 94.6% At 12A (Power Boost)
Average efficiency*) Typ. 91.8% 92.4% 93.9% At 25% at 2.5A, 25% at 5A,
25% at 7.5A. 25% at 10A
Power losses Typ. 4W 3.7W 2.9W At 0A
Typ. 11.3W 10.7W 8.6W At 5A
Typ. 20.3W 18.1W 13.4W At 10A
Typ. 25.4W 22.3W 16.4W At 12A (Power Boost)
*) The average efficiency is an assumption for a typical application where the power supply is loaded with 25% of the nominal load for 25%
of the time, 50% of the nominal load for another 25% of the time, 75% of the nominal load for another 25% of the time and with 100%
of the nominal load for the rest of the time.
Fig. 9-1 Efficiency vs. output current, typ Fig. 9-2 Losses vs. output current, typ.
Efficiency
234567 910 12A
89
90
91
92
93
94
95%
Output Current
811
(a)
(b)
(c)
(a) 100Vac
(b) 120Vac
(c) 230Vac
Power Losses
01 34 67 12A
5
10
15
20
0
30W
910
25
Output Current
(a)
(b)
(c)
(a) 100Vac
(b) 120Vac
(c) 230Vac
2 5 8 11
Fig. 9-3 Efficiency vs. input voltage at 10A,
typ.
Fig. 9-4 Losses vs. input voltage at 10A, typ.
Efficiency
120 180 230 264Vac
89
90
91
92
Input Voltage
93
94
95%
100
Power Losses
120 180 230 264Vac
12
14
16
18
Input Voltage
20
22
24W
100

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
12/31
P R E L I M I N A R Y
10. LIFETIME EXPECTANCY
The Lifetime expectancy shown in the table indicates the minimum operating hours (service life) and is determined by
the lifetime expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specified in operational hours and
is calculated according to the capacitor’s manufacturer specification. The manufacturer of the electrolytic capacitors
only guarantees a maximum life of up to 15 years (131 400h). Any number exceeding this value is a calculated
theoretical lifetime which can be used to compare devices.
AC 100V AC 120V AC 230V
Lifetime expectancy 143 000h 153 000h 188 000h At 5A and 40°C
405 000h 434 000h 531 000h At 5A and 25°C
66 000h 78 000h 109 000h At 10A and 40°C
188 000h 220 000h 307 000h At 10A and 25°C
37 000h 47 000h 71 000h At 12A and 40°C
105 000h 132 000h 200 000h At 12A and 25°C
11. MTBF
MTBF stands for Mean Time Between Failure, which is calculated according to statistical device failures, and indicates
reliability of a device. It is the statistical representation of the likelihood of a unit to fail and does not necessarily
represent the life of a product.
The MTBF figure is a statistical representation of the likelihood of a device to fail. A MTBF figure of e.g. 1 000 000h
means that statistically one unit will fail every 100 hours if 10 000 units are installed in the field. However, it can not
be determined if the failed unit has been running for 50 000h or only for 100h.
For these types of units the MTTF (Mean Time To Failure) value is the same value as the MTBF value.
AC 100V AC 120V AC 230V
MTBF SN 29500, IEC 61709 535 000h 556 000h 641 000h At 10A and 40°C
972 000h 1 006 000h 1 138 000h At 10A and 25°C
MTBF MIL HDBK 217F 205 000h 208 000h 232 000h At 10A and 40°C;
Ground Benign GB40
279 000h 283 000h 318 000h At 10A and 25°C;
Ground Benign GB25
45 000h 46 000h 53 000h At 10A and 40°C;
Ground Fixed GF40
58 000h 59 000h 63 000h At 10A and 25°C;
Ground Fixed GF25

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
13/31
P R E L I M I N A R Y
12. FUNCTIONAL DIAGRAM
Fig. 12-1 Functional diagram CP10.241-R1 and CP10.241-R3
Output
Over-
Voltage
Protection
PFC
Converter
Power
Converter
Output
Filter
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input Rectifier
Active Inrush Limiter
L
N
Decoupling
+
+
-
-
-
Output
Voltage
Regulator
Output
Voltage
Monitor
V
OUT
DC-ok
Contact
DC-ok
LED
DC-ok
Relay
Fig. 12-2 Functional diagram CP10.241-R2, CP10.242-R2
+
-
Output
Over-
Voltage
Protection
PFC
Converter
Power
Converter
Output
Filter
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input Rectifier
Active Inrush Limiter
L
N
Decoupling
Output
Voltage
Regulator
Output
Voltage
Monitor
V
OUT
DC-ok
Contact
DC-ok
LED
DC-ok
Relay

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
14/31
P R E L I M I N A R Y
13. TERMINALS AND WIRING
The terminals are IP20 Finger safe constructed and suitable for field- and factory wiring.
CP10.241-R1 Input Output DC-OK-Signal
Type Quick-connect spring-
clamp termination
Quick-connect spring-
clamp termination
Push-in termination
Solid wire Max. 6mm2Max. 6mm2Max. 1.5mm2
Stranded wire Max. 4mm2Max. 4mm2Max. 1.5mm2
American Wire Gauge AWG 20-10 AWG 20-10 AWG 24-16
Max. wire diameter (including ferrules) 2.8mm 2.8mm 1.6mm
Wire stripping length 10mm / 0.4inch 10mm / 0.4inch 7mm / 0.28inch
Screwdriver 3 mm slotted to open
the spring
CP10.241-R2, CP10.242-R2 Input Output DC-OK-Signal
Type Plug connector with
screw termination
Plug connector with
screw termination
Plug connector with
screw termination
Solid wire Max. 4mm2Max. 4mm2Max. 1.5mm2
Stranded wire Max. 2.5mm2Max. 2.5mm2Max. 1.5mm2
American Wire Gauge AWG 20-12 AWG 20-12 AWG 26-14
Max. wire diameter (including ferrules) 2.4mm 2.4mm 1.8mm
Recommended tightening torque Max. 0.5Nm, 4.5lb-in Max. 0.5Nm, 4.5lb-in Max. 0.8Nm, 7lb-in
Wire stripping length 7mm / 0.28inch 7mm / 0.28inch 6mm / 0.24inch
Screwdriver 3.5mm slotted or cross-
head No 2
3.5mm slotted or cross-
head No 2
3.5mm slotted
Do not unplug the
connectors more often
than 20 times in total
Do not unplug the
connectors more often
than 20 times in total
Do not unplug the
connectors more often
than 20 times in total
CP10.241-R3 Input Output DC-OK-Signal
Type Screw termination Screw termination Push-in termination
Solid wire Max. 6mm2Max. 6mm2Max. 1.5mm2
Stranded wire Max. 4mm2Max. 4mm2Max. 1.5mm2
American Wire Gauge AWG 20-10 AWG 20-10 AWG 24-16
Max. wire diameter (including ferrules) 2.8mm 2.8mm 1.6mm
Recommended tightening torque Max. 1Nm, 9lb-in Max. 1Nm, 9lb-in -
Wire stripping length 7mm / 0.28inch 7mm / 0.28inch 7mm / 0.28inch
Screwdriver 3.5mm slotted or cross-
head No 2
3.5mm slotted or cross-
head No 2
3mm slotted to open
the spring
Instructions for wiring:
a) Use appropriate copper cables that are designed for minimum operating temperatures of:
60°C for ambient up to 45°C, 75°C for ambient up to 60°C and 90°C for ambient up to 70°C minimum.
b) Follow national installation codes and installation regulations!
c) Ensure that all strands of a stranded wire enter the terminal connection!
d) Unused terminal compartments should be securely tightened.
e) Ferrules are allowed and recommended.

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
15/31
P R E L I M I N A R Y
14. REPLACING UNITS WHILE THE SYSTEM IS RUNNING
This feature is available only for the CP10.241-R2 and CP10.242-R2 units, which are equipped with hot-swappable plug
connectors.
Fig. 14-1 Replacing the power supply or redundancy module while the system is running
Load
I I
L
N
PE
1a
L N PE
+
-
CP10.241-R2
Power Supply
DC-OK
DC-
OK
Output 24V 10A
Input
L N PE
+
-
CP10.241-R2
Power Supply
DC-OK
DC-
OK
Output 24V 10A
Input
1b
2a
3a 3b
2b
Replacement instructions (Example for left power supply):
-Switch-off circuit breaker (1a).
-Remove plug (2a).
-Remove plug (3a). The plug prevents the cables from shorting.
-Change power supply.
-Put the plug (3a) back in.
-Put the plug (2a) back in.
-Turn-on the circuit breaker (1a).
-The circuit is redundant again.
To replace the right power supply, repeat the process above using (1b), (2b) and (3b).

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
16/31
P R E L I M I N A R Y
15. FRONT SIDE AND USER ELEMENTS
Fig. 15-1 Front side
CP10.241-R1
Fig. 15-2 Front side
CP10.241-R2
CP10.242-R2
Fig. 15-3 Front side
CP10.241-R3
AInput Terminals
N, L Line input
PE (Protective Earth) input
BOutput Terminals
+ Positive output
–Negative (return) output
COutput voltage potentiometer
See chapter 24.2.
DDC-OK LED (green)
On, when the output voltage is above
22V.
EDC-OK Relay Contact
The DC-OK relay contact is
synchronized with the DC-OK LED.
See chapter 8for details.

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
17/31
P R E L I M I N A R Y
16. EMC
The EMC behavior of the device is designed for applications in industrial environment as well as in residential,
commercial and light industry environments.
EMC Immunity According to the generic standards EN 61000-6-1 and EN 61000-6-2
Electrostatic discharge EN 61000-4-2 Contact discharge
Air discharge
8kV
15kV
Criterion A
Criterion A
Electromagnetic RF field EN 61000-4-3 80MHz-2.7GHz 20V/m Criterion A
Fast transients (Burst) EN 61000-4-4 Input lines
Output lines
DC-OK signal (coupling clamp)
4kV
2kV
2kV
Criterion A
Criterion A
Criterion A
Surge voltage on input EN 61000-4-5 L ÆN
L ÆPE, N ÆPE
2kV
4kV
Criterion A
Criterion A
Surge voltage on output EN 61000-4-5 + Æ-
+ / - ÆPE
1kV
2kV
Criterion A
Criterion A
Surge voltage on Signals EN 61000-4-5 DC-OK signal ÆPE 1kV Criterion A
Conducted disturbance EN 61000-4-6 0.15-80MHz 20V Criterion A
Mains voltage dips EN 61000-4-11 0% of 100Vac
40% of 100Vac
70% of 100Vac
0% of 200Vac
40% of 200Vac
70% of 200Vac
0Vac, 20ms
40Vac, 200ms
70Vac, 500ms
0Vac, 20ms
80Vac, 200ms
140Vac, 500ms
Criterion A
Criterion C
Criterion A
Criterion A
Criterion A
Criterion A
Voltage interruptions EN 61000-4-11 0% of 200Vac (=0V) 5000ms Criterion C
Voltage sags SEMI F47 0706 Dips on the input voltage according to SEMI F47 standard
80% of 120Vac (96Vac)
70% of 120Vac (84Vac)
50% of 120Vac (60Vac)
1000ms
500ms
200ms
Criterion A
Criterion A
Criterion A
Powerful transients VDE 0160 Over entire load range 750V, 0.3ms Criterion A
Criterions:
A: Power supply shows normal operation behavior within the defined limits.
C: Temporary loss of function is possible. Device may shut-down and restarts by itself. No damage or hazards for the power supply will occur.
EMC Emission According to the generic standards EN 61000-6-3 and EN 61000-6-4
Conducted emission
input lines
EN 55011, EN 55015, EN 55022, FCC Part
15, CISPR 11, CISPR 22
Class B
Conducted emission
output lines
IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Limits for DC power ports according to EN
61000-6-3 are fulfilled
Radiated emission EN 55011, EN 55022 Class B
Harmonic input current EN 61000-3-2 Class A fulfilled between 0A and 12A load
Class C fulfilled between 6A and 12A load
Voltage fluctuations, flicker EN 61000-3-3 Fulfilled, tested with constant current
loads, non pulsing
This device complies with FCC Part 15 rules.
Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Switching Frequencies
PFC converter 100kHz Fixed frequency
Main converter 84-140kHz Output load dependent
Auxiliary converter 60kHz Fixed frequency

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
18/31
P R E L I M I N A R Y
17. ENVIRONMENT
Operational temperature -25°C to +70°C (-13°F to 158°F) Operational temperature is the same as the ambient
or surrounding temperature and is defined as the air
temperature 2cm below the unit.
Storage temperature -40°C to +85°C (-40°F to 185°F) For storage and transportation
Output de-rating 1) 0.13A/°C
0.25A/°C
0.63A/1000m or 5°C/1000m
0.38A/-5kPa or 3°C/-5kPa
Between +45°C and +60°C (113°F to 140°F)
Between +60°C and +70°C (140°F to 158°F)
For altitudes >2000m (6560ft), see Fig. 17-2
For atmospheric pressures <80kPa, see Fig. 17-2
Humidity 5 to 95% r.h. According to IEC 60068-2-30
Do not energize while condensation is present.
Atmospheric pressure 110-47kPa See see Fig. 17-2 for details
Altitude Up to 6000m (20 000ft) See see Fig. 17-2 for details
Over-voltage category III According to IEC 60664-1 for altitudes up to 2000m
II According to IEC 60664-1, for altitudes between 2000
and 6000m and atmospheric pressures from 80-47kPa.
Degree of pollution 2 According to IEC 60664-1, not conductive
Vibration sinusoidal 2-17.8Hz: ±1.6mm;
17.8-500Hz: 2g
2 hours / axis
According to IEC 60068-2-6
Shock 2) 30g 6ms, 20g 11ms
3 bumps per direction, 18
bumps in total
According to IEC 60068-2-27
LABS compatibility As a rule, only non-silicon precipitating materials are used. The unit conforms to the
LABS criteria and is suitable for use in paint shops.
Corrosive gases Tested according to ISA-71.04-1985, Severity Level G3 and IEC 60068-2-60 Test Ke
Method 4 for a service life of minimum 10years in these environments.
Audible noise Some audible noise may be emitted from the power supply during no load, overload or
short circuit.
1) The de-rating is not hardware controlled. The customer has to take this into consideration to stay below the de-rated current limits in order
not to overload the unit.
2) Shock and vibration is tested in combination with DIN-Rails according to EN 60715 with a height of 15mm and a thickness of 1.3mm and
standard orientation.
Fig. 17-1 Output current vs. ambient temp. Fig. 17-2 Output current vs. altitude
Allowed Output Current
0
-25 0 20 40 70°C
2A
4A
6A
8A
10A
12A
60
A
B
A... continuous
B... short term (max. 5s)
2000m 4000m 6000m
2A
4A
6A
8A
10A
12A
Altitude
Allowed Output Current
B
C
A...Tamb<60°C
B...Tamb<50°C
C...Tamb<45°C
D...Shortterm
A
D
AP
*)
80kPa 62kPa 47kPa110kPa
0m
Ambient Temperature
*) Atmospheric pressure

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
19/31
P R E L I M I N A R Y
18. SAFETY AND PROTECTION FEATURES
Isolation resistance Min. 500MOhm At delivered condition between input and output,
measured with 500Vdc
Min. 500MOhm At delivered condition between input and PE,
measured with 500Vdc
Min. 500MOhm At delivered condition between output and PE,
measured with 500Vdc
Min. 500MOhm At delivered condition between output and DC-OK
contacts, measured with 500Vdc
PE resistance Max. 0.1Ohm Resistance between PE terminal and the housing in
the area of the DIN-rail mounting bracket.
Output over-voltage protection1) Typ. 30.5Vdc
Max. 32Vdc
Class of protection I According to IEC 61140
Degree of protection IP 20 According to EN/IEC 60529
Over-temperature protection2) Included Output shut-down with automatic restart.
Input transient protection MOV (Metal Oxide Varistor)
For protection values see chapter 16 (EMC).
Internal input fuse Included Not user replaceable slow-blow high-braking
capacity fuse
Touch current (leakage current) Typ. 0.14mA / 0.36mA At 100Vac, 50Hz, TN-,TT-mains / IT-mains
Typ. 0.20mA / 0.50mA At 120Vac, 60Hz, TN-,TT-mains / IT-mains
Typ. 0.33mA / 0.86mA At 230Vac, 50Hz, TN-,TT-mains / IT-mains
Max. 0.18mA / 0.43mA At 110Vac, 50Hz, TN-,TT-mains / IT-mains
Max. 0.26mA / 0.61mA At 132Vac, 60Hz, TN-,TT-mains / IT-mains
Max. 0.44mA / 1.05mA At 264Vac, 50Hz, TN-,TT-mains / IT-mains
1) In case of an internal defect, a redundant circuit limits the maximum output voltage. The output shuts down and automatically attempts to
restart.
2) Temperature sensors are installed on critical components inside the unit and turn the unit off in safety critical situations, which can happen
e.g. when ambient temperature is too high, ventilation is obstructed or the de-rating requirements are not followed. There is no correlation
between the operating temperature and turn-off temperature since this is dependent on input voltage, load and installation methods.

CP10.241-R1, CP10.241-R2,
CP10.241-R3,CP10.242-R2
CP-Series 24V, 10A, 240W, SINGLE PHASE
Feb. 2018 / CP10.241-R2 Rev0.3-EN - All values are typical figures specified at 230Vac, 50Hz input voltage, 24V, 10A output
load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
20/31
P R E L I M I N A R Y
19. DIELECTRIC STRENGTH
The output voltage is floating and has no ohmic connection to the ground. Type and routine tests are conducted by
the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the
voltage with a slow ramp (2s up and 2s down). Connect all input-terminals together as well as all output poles before
conducting the test. When testing, set the cut-off current settings to the value in the table below.
Fig. 19-1 Dielectric strength
A B C D
Type test 60s 2500Vac 4000Vac 1000Vac 500Vac
Routine test 5s 2500Vac 2500Vac 500Vac 500Vac
Field test 5s 2000Vac 2000Vac 500Vac 500Vac
Cut-off current setting
for field test > 10mA > 10mA > 20mA > 1mA
AD
C
B
B
*)
N
L
Input DC-ok
Earth, PE Output
-
+
It is recommend that either the + pole, the – pole or any other part
of the output circuit shall be connected to the earth/ground system.
This helps to avoid situations in which a load starts unexpectedly or
can not be switched off when unnoticed earth faults occur.
B*) When testing input to DC-OK ensure that the maximal voltage between DC-OK and the output is not exceeded (column D). We
recommend connecting DC-OK pins and the output pins together when performing the test.
