Pulsar PRC42 Owner's manual

Rotary Cutter
Owners/Operators Manual
Models
48 - 60 - 66 - 66HD - 72LD - 72HD - 84HD
`
M K Martin Enterprise Inc
3950 Steffler Rd
Elmira On Ca N3B 2Z3
Tel [phone]
1-855-664-2752
Fax [phone]
e-mail [e-mail]
rev:13-1

Pulsar Cutter
Warranty
Introduction
Safety
Operation
Sign Off
Parts List 42-60
Parts List 66-72
Parts List 74
Gearbox 205
Gearbox 140
PTO #4
PTO #5
Bolt torque

Pulsar Cutter
Please read and understand this manual before using or allowing others to use this equipment.
Warranty and Limitation of Liability
All equipment is sold subject to mutual agreement that is warranted by M M Martin Enterprise
Inc.(hereafter called the company) to before of any defects of material and workmanship. But the
company shall not be liable for special, indirect or consequential damage of any kind under this
contract or otherwise. The company's liability shall be limited exclusively to replacing or
repairing without charge at its factory or elsewhere, at its discretion, any material, or
workmanship defects which become apparent within one year from the date of purchase. This
will allow you to do one complete season of using the equipment, regardless of what time of the
year you purchased the equipment.
The company will have no liability for damages of any kind. The buyer by the acceptance of the
equipment will assume all liability for any damages which may be the result from the use or
misuse by the employees or others.
Warranty coverage is null and void if any unauthorized repairs of alterations are performed to
this equipment.
This Warranty does not cover Rental/Commercial or Industrial use of this equipment. This
equipment is rated as agricultural.
Warranty is also null and void unless this warranty Registration is completely filled out and is on
file at M K Martin Enterprise Inc
For your Record
Purchase Date Y20___ M__
Model # _________________
Serial # __________________
Pleas cut at dotted line and return this registration form to the company via Mail, Fax or e-mail
----------------------------------------------------------------------------------------------------------------------------------------
M K Martin Enterprise Inc
3950 Steffler Rd Elmira On Ca
N3B 2Z3
Purchase Date Y20___ M ___
Model # _________________
Serial # _________________
Name of Purchaser
Name ______________________________
Address ____________________________
___________________________________
___________________________________
Postal Code/Zip Code ________________
M K Martin Enterprise Inc
3950 Steffler Rd Elmira On Ca
N3B 2Z3
Tel [phone]
1-855-664-2752
Fax [phone]
[e-mail]
Pulsar
1

Introduction
Congratulations on your choice of the Pulsar Rotary Cutter to complement your operation. This
equipment has been designed and manufactured to meet the needs of a discerning industry for
the efficient cutting of grass.
Safe, efficient and trouble free operation of your rotary cutter requires that you and anyone else
who will operate or maintain the machine, reads and understand the Safety Operation,
Maintenance and Trouble Shooting information within the operator's manual.
This manual covers the Models 42", 48", 60", 66", 72" and84". Differences are covered and
explained where appropriate.
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call
your Dealer if you need assistance, information or additional copies of the material.
Operator Orientation: The directions left, right, front and rear, as mentioned throughout
this manual are seen form the driver's seat and facing the direction of travel.
Warranty
This product is warranted to be free from defects in material and workmanship for a period of
one year from the date of original purchase if for personal use; 90 days for commercial or rental
purposes.
This warranty does not cover damages, defects and failure in the product which result from
alteration, accident, misuse, neglect, installation of attachments not provided with the produce or
improper maintenance.
Your sole remedy under this warranty shall be repair as set forth above.
the Manufacturer shall not be liable for consequential damages resulting from breach of this
warranty, or any implied warranty.
2

Safety
YOU are responsible for the SAFE
operation and maintenance of your Rotary-
Cutter. YOU must ensure that you and
anyone else who is going to operate,
maintain or work around the Cutter be
familiar with the operating and maintenance
procedure contained in this manual. This
manual will take you step-by-step through
your working day, and alerts you to all good
safety practices they should be adhered to
while operating the Cutter.
Remember, YOU are the key to safety!
Good safety practices not only protect you
but also the people around you. Make these
practices a working part of your safety
program. Be certain the EVERYONE
operating this equipment is familiar with the
recommended operation and maintenance,
procedures and follows all safety
precautions. Most accidents can be
prevented. Do not risk injury or death by
ignoring good safety practices.
-Rotary cutter owners must give operating
instructions to operators or employees
before allowing them to operate the Cutter
and at least annually thereafter per OSHA
(Occupational Safety and Health
Administration) regulation 1928.57
-The most important safety device on this
equipment is a SAFE operator. It is the
operator's responsibility to read and
understand ALL Safety and Operating
instructions in the manual and to follow
these. All Accidents can be avoided.
-A person who has not read and understood
all operating and safety instructions is not
qualified to operate the machine. An
untrained operation operator exposes
himself and bystanders to possible serious
injury himself and bystanders to possible
injury or death.
-Do not modify the equipment in any way.
Unauthorized modification may impair the
function and/or safety and could affect the
life of the equipment.
General Safety
1. Read and understand the Operator's
Manual and all safety signs before
operating, maintaining, adjusting or
unplugging the cutter.
2. Have a first-aid kit available for use
should the need arise and know how to use
it.
3. Have a fire extinguisher available for use
should the need arise and know how to use
it.
4. Wear appropriate protective gear. This list
includes but is not limited to:
- A hard hat
- Rubber boots
- Protective goggles
- Neoprene gloves
- Water repellent clothing
- Respirator or filter mask
5. Install and secure all guards before
starting
6. Do not allow riders
7. Wear suitable ear protection for long
exposure to excessive noise.
8. Place controls in neutral, stop the tractor
engine, set park brake, remove ignition key
and wait for all moving parts to stop before
servicing, adjusting, repairing or
unplugging.
9. Clear the area or people, especially small
children before starting the unit.
10. Review safety related items annually
with all personnel who will be operating or
maintaining the Cutter.
-Think Safety! Work Safely!-
3

Operating Safety
1. Read and understand the operator's
manual and all safety signs before operation,
servicing, adjusting. repairing or
unplugging.
2. Do not allow riders.
3. Install and secure all guards and shields
before starting or operating.
4. Keep hands, feet, hair and clothing away
from moving parts.
5. Place all controls in neutral, stop tractor
engine, set park brake, remove ignition key
and wait for all moving parts to stop before
servicing, adjusting, repairing or
unplugging.
6. Place all tractor and machine controls in
neutral before starting.
7. Never start or operate machine unless
sitting on tractor seat.
8. Do not operate machine inside a building
unless there is adequate ventilation.
9. Clear the area of bystanders, especially
small children, before starting.
10. Stay away from PTO shaft and machine
when engaging PTO. Keep others away.
11. Clean reflectors, SMV and lights before
transporting.
12 . Use hazard flashers on tractor when
transporting.
13. Do not put hands or feet under machine
while tractor engine or machine is running.
14. Do not operate cutter in raised position
15. Objects can be thrown out from under
machine with sufficient force to severely
injure people. stay away from machine when
it is running. Keep others away.
16. Always know what you are cutting.
Never operate cutter in an area that has
hidden obstacles. Remove sticks, stones,
wire or other objects from working area
before starting.
17. Review safety instructions with all
operators annually.
Maintenance Safety
1. Follow ALL the operating, maintenance
and safety information in this manual.
2. Support the machine with blocks or safety
stands when changing tires or working
beneath it.
3. Follow good shop
practices.
- Keep service area
clean and dry
- Be sure electrical
outlets and tools are
properly grounded
- Use adequate light
for the job at hand
4. Use only tools and hoists of sufficient
capacity for the job
5. Never work on blades or under the
machine unless the tractor engine is off and
the driveline is disconnected.
6. Wear Kevlar® or leather gloves when
handling sharp knives.
7. Make sure all guards are in place and
properly secured when maintenance work is
completed.
8. Never wear ill-fitting, baggy or frayed
clothing when working around or on any of
the drive system components.
9. Keep hands, feet, hair and clothing away
from moving or rotating parts.
10. Clear the area of bystanders, especially
small children, when carrying out any
maintenance and repairs or making
adjustments.
4

Transport Safety
1. Make sure you are in compliance with all
local regulations regarding transporting
equipment on public roads and highways.
2. Make sure the SMV (slow Moving
Vehicle) emblem and all lights and
reflectors that are required by the local
highway and transport authorities are in
place, are clean and can be seen clearly by
overtaking and oncoming traffic.
3. Do not allow anyone to ride on the cutter
or tractor during transport.
4. Do not exceed 20mph (32 km/h). Reduce
speed on rough roads and surfaces.
5. Use retainers on the mounting pins before
transporting.
6. Always use hazard flashers on the tractor
when transporting unless prohibited by law.
Storage Safety
1. Store the unit in an area away from
human activity
2. Do not permit children to play on or
around the stored machine
3. Store the unit in a dry, level area. Support
the base with planks if required.
5

Operation
To The New Operator or Owner
This Rotary cutter is designed to cut a
variety of grasses and other ground covers.
Rotational power to the blades is provided
by the tractor PTO. Be familiar with the
machine before starting.
It is the responsibility of the owner or
operator to read this manual and to train
all other operators before they start
working with machine. Follow all safety
instructions exactly. Safety is everyone
business. By following recommended
procedures, a safe working environment
is provided for the operator, bystanders
and the area around the worksite.
Untrained operators are not qualified to
operate the machine.
Many features incorporated into this
machine are the result of suggestions made
by customers like you. Read this manual
carefully to learn how to set it to provide
maximum field efficiency. By following the
operating instructions in conjunction with a
good maintenance program, your Cutter will
provide many years of trouble-free service.
Operating Safety
1. Read and understand the Operator's
Manual and all safe
ty signs before
operating, servicing, adjusting, repairing
and or unplugging.
2. Do not allow riders
3. Install and secure all guards and shields
before starting or operating
4. Keep hands, feet, hair and clothing away
from moving parts.
5. Place all controls in neutral, stop tractor
engine, set park brake, remove ignition key
and wait for all moving parts to stop before
servicing, adjusting, repairing or
unplugging.
6. Place all tractor and machine controls in
neutral before starting.
7.Never start or operate machine unless
sitting on the tractor seat.
8. Do not operate machine inside a building
unless there is adequate ventilation.
9. Clear the area of bystanders especially
small children, before starting.
10. Stay away from PTO shaft and machine
when engaging PTO. Keep others away.
11. Clean reflectors, SMV and lights before
transporting.
12. Use hazard flashers on tractor when
transporting
13. Do not put hands or feet under machine
while tractor engine or machine is running.
14. Do not operate Cutter in the raised
position
15. Objects can be thrown out from under
machine with sufficient force to severely
injure people. Stay away from machine
when it is running. Keep others away.
16. Always know what you are cutting.
Remove sticks, stones, wire or other objects
from working area before starting.
17. Review safety instructions with
operators annually
6

Machine Break-in
Although there are no operational
restrictions on the cutter when used for the
first time, it is recommended that the
following mechanical items be checked
A After operating for 1/2 hour or after
cutting 2 acres:
1. Check all nuts, bolts and other fasteners.
Tighten to their specified torque level.
2. Tighten blade lock bolts to their specified
torque levels.
3. Check that the blades are in good
condition and swing freely.
4. Check the oil level in the gearbox. Add as
required.
5. Check that the PTO driveline shields turn
freely
6. Lubricate all grease points.
BAfter operating for 5 hours and 10 hours
1. Repeat items 1 through 5 of section A
2. Then go to the regular service schedule
as defined on page 15
Pre-Operation Checklist
Efficient and safe operation of the Rotary
Cutter requires that each operator reads and
understands the operating procedures and all
related safety precautions outline in this
section. A pre-operation checklist is
provided for the operator. It is important for
both the personal safety and maintaining the
good mechanical condition of the Cutter that
this checklist is followed.
Before operating the machine and each time
thereafter, the following areas should be
checked off:
1. Lubricate the machine per the schedule
outlined in the Service and Maintenance
section on page 15.
2. Check that the machine is properly
attached to the tractor. Be sure retainers are
used on the mounting pins.
3. Check the oil level in the gearbox. Add as
required.
4. Check that the PTO driveline turns freely
and that the driveline can telescope easily
5. Check the blades. Be sure they are not
damaged or broken and swing freely on their
mount. Inspect for wear. Repair or replace
as required.
6. Check for entangled material in all
rotating parts. Remove this material.
7. Install and secure all guards, doors and
covers before starting.
7

Equipment Matching
To insure the safe and reliable operation of
the Cutter, it is necessary to use a tractor
with the correct specifications. Use the
following list as a guide in selecting a tractor
to use on the machine.
1. Horsepower
Use Table 1 as a guide in selecting the
tractor horsepower appropriate for your
width of machine.
Increase the power level by 25% when
operating in hilly, soft or wet conditions.
2. Tire Configuration
It is recommended that the tires be set so the
machine always covers the tracks. In this
way the machine will always cut where the
tractor has driven.
3. 3 Point Hitch
The Cutter is equipped with Category 1&2
Quick Hitch and Cat 1and 2 free link.
Install the lift arm blocks or shorten the stop
chains to place the arms into the non-sway
configuration. Refer to the tractor manual
for details.
4. Load Sensing Hydraulics (3 point
models only)
Many newer tractors are equipped with
"Load Sensing" hydraulics. It is the
responsibility or the operator to set the
tractor hydraulic system to provide "float"
on the 3 point hitch. Refer to the tractor
manual. The float feature will allow the
machine to follow the ground contours
during operation.
Table 1 : Horsepower vs Width
5. PTO Shaft:
The tractor must have a 1 3/8 inch 6 spline
540 RPM PTO shaft to fit driveline shaft
supplied with the machine. Do not use shaft
adaptors or operate at any other speed.
Model Width Horsepower
40" 3.3 feet 20
(1m)
48" 4 feet 25
(1.3m)
60" 5 feet 30
(1.5m)
72" 6 feet 35
(1.8)
84" 7 feet 40
(2.1m)
8

Driveline dimension
A PTO driveline is supplied with the
machine. To accommodate the variety of 3
point hitch geometry available today, the
driveline can be too long for some machines
and must be cut. It is very important that the
driveline be free to telescope but not bottom
out when going through its working range. If
the driveline bottoms out, the bearings on
the machine and the tractor PTO shaft will
be overloaded and fail in a short time.
When Cutting The Driveline Follow this
procedure:
1. Clear the area of bystanders, especially
small children.
2. Attach the Cutter to the tractor (see next
page, Attaching/Unhooking) but do not
attach the driveline
3. Raise the machine until the input shaft is
level with the tractor PTO shaft.
4. Measure the dimension the locking
groove on the tractor PTO shaft to the
groove of the Cutter input shaft.
5. Measure the same points on the
compressed driveline. (pin to pin)
6. If the compressed driveline dimension
exceeds the machine dimension, the
driveline will have to be cut.
7. Pull the driveline apart and cut 1/2 of the
dimension determined in step 5, plus 1/2"
from each end.
8. Be sure to use a hacksaw to cut 1/2 from
each end of the separated shaft. Cut both the
plastic tube and the metal cores.
9. Use a file to remove burrs from the edges
that were cut.
10. Assemble the two ends of the shaft
11. Make sure that the shaft can telescope
freely. If it does not, separate the two parts
and inspect for burrs or cuttings on the shaft
ends, be sure it telescopes freely before
installing.
12. Make sure the plastic covering shield is
free to rotate on the shaft before installing
on the machine.
9

Attaching / Unhooking
The Cutter should always be located on a
level, dry area that is free of debris and other
foreign objects. When attaching the machine
to a tractor, follow this procedure.
1. Clear the area of bystanders, especially
small children.
2. Be sure the tractor 3 point hitch is in the
Category 1 configuration and the lift arms
are in the non-sway configuration (see
tractor manual)
3. Make sure there is enough room and
clearance to safely backup to the machine.
4. Attach the PTO driveline to the Cutter if it
was removed for storage (See Assembly)
5. While backing up, align the lift arm balls
with the mounting pins on the Cutter.
Note
It may be necessary to add weight to
the 3 point hitch to lower the lift
arms.
6. Stop tractor, set park brake, remove
ignition key and wait for all moving parts to
stop before dismounting.
7. Align the left lower link arm with the
mounting pin.
8. Slide the ball over the pin and install the
retainer
9. Use the screw jack on the lift arm to align
the ball with the pin.
10. Slide the ball over the mounting pin and
install the retainer
11. Level the frame, using the screw jack.
12. Remove retainer and pin from the mast
top.
13. Align top link using the turnbuckle
14. Insert pin and install retainer.
15. Set the mast using the turnbuckle and
leave slack in the chain.
16. Attach the PTO driveline:
a. Check that the driveline does not bottom
out when going through working angles.
(Refer to page 9)
b. Attach the driveline to the tractor by
retracting the locking pin, slide the yoke
over the shaft and push on the yoke until the
lock pin clicks into position. Pull on the
yoke to be sure it is locked in position.
c. Attach the anchor chain on the driveline
shield to the frame.
17. Use the 3 point hitch to raise the
machine
18. Reverse the above procedure when
unhooking from the tractor.
10

Set the Machine:
a. Level the frame:
i. Use the screw jack on the right lift arm to
level the frame from side to side.
ii. Use the turnbuckle on the top link to
leave slack in the chain. This will allow the
machine to follow the contour of the ground.
iii. Set the 3 point hitch so deck is the same
distance in the front and back.
b. Height
Use the adjustment on the trailing wheel to
set the height of the deck.
Use lower hole for longer cutting and upper
hole for shorter cutting.
Align the unit with the working
area
Start the machine:
a. Run the engine at low idle
b. Slowly engage the PTO control to start
the machine.
c. Slowly bring the engine to the rated PTO
speed. Never exceed rated speed.
d. Lower the machine to the ground and
proceed down the field.
Wheel Settings
This Shows 3 holes (later versions have 2
holes)
Stopping the Machine:
a. Slowly decrease the engine speed to a low
idle.
b. Disengage PTO clutch slowly.
Warning
---------------------------------------
Never operate Cutter in the
raised position! Caution
--------------------------------------
Place all controls in neutral, lower
machine, stop the engine, set park
brake, remove ignition key and wait
for all moving parts to stop before
dismounting
11

Ground Speed:
Travel speed can vary between 1 and 4 mph
(1.5 and 6 km/h) depending on the grass and
terrain conditions. It is the responsibility of
the operator to note the condition of the job
being done and set the speed to obtain a
quality cutting job and maintain control of
the machine.
The speed can be increased if a good job is
being done.
Decrease the speed it you are producing a
ragged cut or leaving patches uncut.
Operating Hints:
a. although it is best to cut when it is dry, the
Mower works in wet conditions as well.
However the operator will have to travel
slower to do the same quality cutting. It will
also be necessary to clean the machine more
frequently to prevent caking and clogging of
the blade area.
b. The cutter should always be operated at
the rated speed of 540 RPM. The cutting
action is generated by the speed of the blade
tip. When the speed drops below a certain
rate (slowing of the input speed or RPM),
the blades start to tear the material rather
than cut it and will give a "ragged" looking
cut.
c. Vary ground speed by changing gears in
the tractor transmission rather then
changing the throttle setting. Forward travel
speeds can range from 1 to 4 mph (1.5 to 6
km/h), depending on the terrain, grass or
length, moisture level. It is the operator's
responsibility to determine and operate the
machine at a safe speed at all times.
d. If the grass is tall, cut it twice to obtain
the best results. This allows the unit to cut
less material on each pass.
e. When mowing a new area for the first
time, always set the cutter to cut high to
clear unknown obstructions, if none are
found, the cutter can be set lower for the
second pass.
f. Never cut grass shorter than recommended
for your weather conditions. short grass is
less able to with stand hot and dry
conditions. It is better to cut more frequently
at a longer length than to cut too short.
g. The blades will need sharpening when
you see that the grass has not been cut
evenly or it looks like the grass has been
ripped off.
h. always reduce ground speed when cutting
around obstructions or close quarters.
i. The mower should always be operated
with its wheels riding on the ground and not
normally lifted for turns or corners. If lifted
it should be dropped back on the ground as
soon as the maneuvering is done..
j. The Mower has three blades under the
frame that are turning at a high rate of speed.
With this speed the blades can pick up
objects on the ground and expel them out
under the frame or out the discharge areas. It
is extremely important the operator be aware
that objects can be expelled this way and
never point the discharge areas toward
people, animals or property. These expelled
objects are moving fast enough to damage
property. It is better to stop cutting when
there are bystanders especially children, than
to take the chance of injury.
Caution
----------------------------
Never exceed PTO speed of
540 RPM!
12

Transporting
When transporting the machine, review and
follow these instructions.
1. Be sure bystanders are clear of machine.
2. Be sure that the machine is securely
attached to the tractor and all retainer pins
are installed.
3. Clean the SMV emblem, lights and
reflectors. Be sure they are working.
4. Be sure you are in compliance with all
applicable lighting and marking regulations
when transporting. Check with your local
authorities.
5. Be sure your machine can clearly be seen
by overtaking and oncoming traffic.
6. Keep to the right and yield the right-of-
way to allow faster traffic to pass. Drive on
the road shoulder if permitted by law.
7. Do not allow riders.
8. Always use hazard flashers on the tractor
when transporting unless prohibited by law.
9. Use pilot vehicles front and rear when
transporting during times of limited
visibility.
10. Never transport the machine faster than
20 mph (32km/h). The ratio of tractor
weight to mower weight plays an important
role in defining acceptable travel speed.
Table 2 summarizes the recommended travel
speed to weight ratio.
Table 2 Speed vs. Weight Ratio
Transport Safety
1. Make sure you are in compliance with
all local regulations regarding
transporting equipment on public roads
and highways.
2. Make sure the SMV (Slow Moving
Vehicle) emblem and all the lights and
reflectors that are required by the local
highway and transport authorities are in
place, are clean and can be seen clearly
all overtaking and oncoming traffic.
3. do not allow anyone to ride on the
Cutter or tractor during transport.
4. Do not exceed 20 mph (32km/h).
Reduce speeds on rough roads and
surfaces.
5. Use retainers on mounting pins before
transporting.
6. Always use hazard flashers on the
tractor when transporting unless
prohibited by law.
Road Speed
Up to 20mph
(32km/h)
Up to 10 mph
(16km/h)
Do Not tow
Weight of full
equipped or loaded
implement(s) relative
to weight of towing
machine
1 to 1, or less
2 to 1, or less
More than 2 to 1
13

Service and Maintenance
Service
Fluids and Lubricants
1. Hydraulic Oil
Use a standard hydraulic oil for all operating
conditions. (If used)
2. Gear box Oil
Use a SAE 85W90 gear oil for all operating
conditions.
Gear Box Capacity; 1US quart (0.85 liter)
3. Storing Lubricants:
Your machine can operate at top efficiency
only if clean lubricants are used. Use clean
containers to handle all lubricants. store
them in an area protected from dust,
moisture, and other contaminants.
Greasing
Use maintenance checklist provided to keep
a record for all scheduled maintenance.
1. Use hand-held grease gun for all greasing.
2. Wipe grease fitting with clean cloth
before greasing, to avoid injecting dirt and
grit.
3. Replace and repair broken fittings
immediately.
4. If fittings will not take grease, remove
and clean thoroughly. Also clean lubricant
passageway. Replace fitting if necessary.
Maintenance Safety
1. Follow ALL the operating,
maintenance and safety information in
the manual
2. Support the machine with blocks or
safety stands when changing tires or
working beneath it.
3. Follow good shop practices
- Keep service area clean and dry
- Be sure electrical outlets and tools are
properly grounded
- Use adequate light for the job at hand
4. Use tools, jacks and hoists of
sufficient capacity for the job.
5. Never work on blades or under the
machine unless the tractor engine is off
and the driveline is disconnected.
6. Wear heavy canvas or leather gloves
when handling sharp blades.
7. Make sure all guards are in place and
properly secured when maintenance
work is completed.
8. Never wear ill-
fitting, baggy or
frayed clothing when working around
or on any of the drive system
components.
9. Keep hands, feet , hair and clothing
away from moving or rotating parts.
10. Clear the area of bystanders,
especially smal
l children, when
carrying out any maintenance and
repairs or making adjustments.
14

Servicing Intervals
The period recommended is based on
normal operating conditions. Severe or
unusual conditions may require more
frequent lubrication or oil changes.

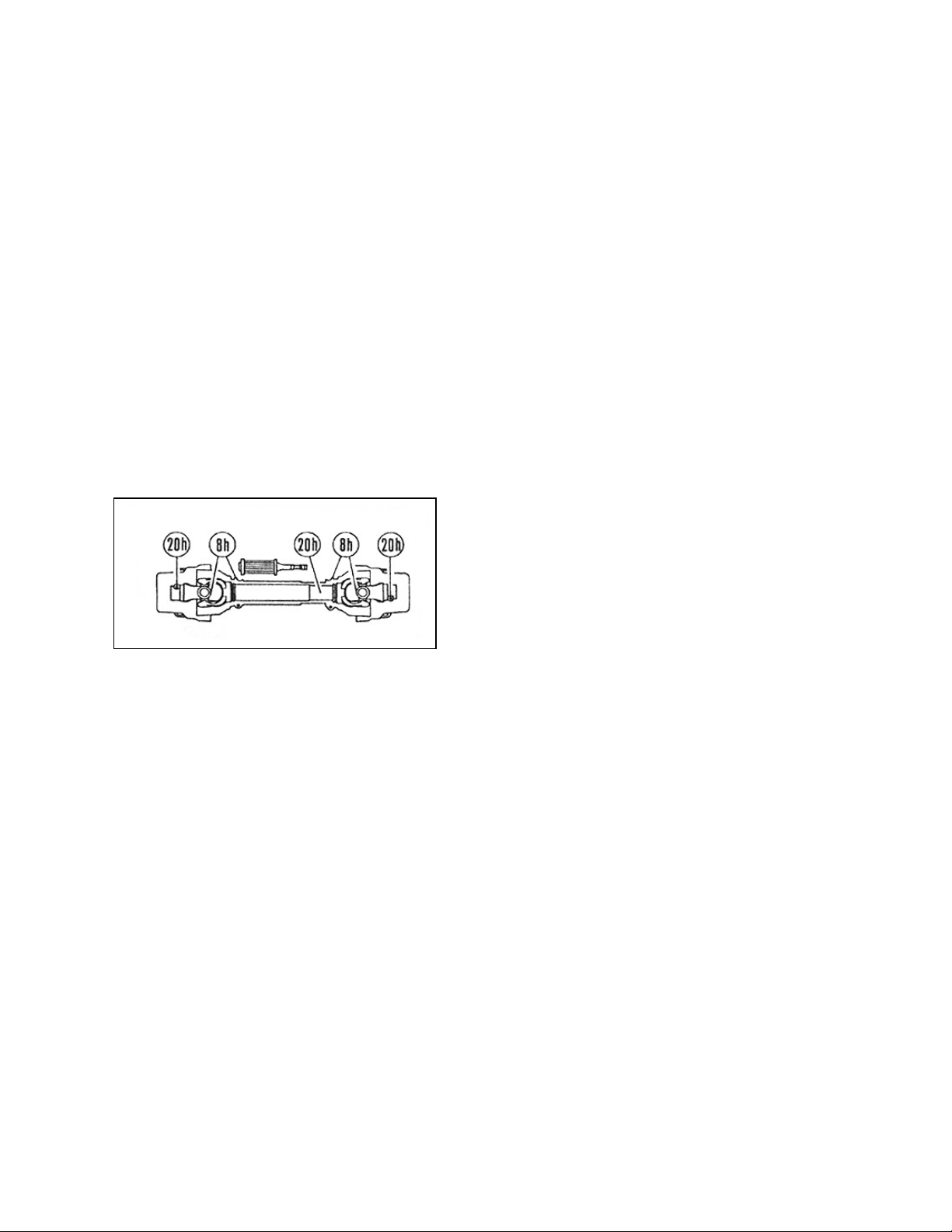

8 Hours or Daily
1. Lubricate PTO driveline (4 locations)
2. Lubricate Castor Shaft (4 Location)
20 Hours
1. Lubricate PTO driveline (3 locations)
PTO Driveline
40 Hours
1. Check gearbox oil level. Add as required.
2. Lubricate wheels (4 location)
Annually
1. Wash Machine
Maintenance
By following a careful service and
maintenance program for your machine, you
will enjoy many years operation.
Wheel Height
When setting the height of the wheel, follow
this procedure.
1. Clear area of bystanders, especially
children.
2. Raise the 3 point hitch or lift with a hoist
until the wheels are far enough off the
ground to remove the castor.
3. Stop engine, set park brake, remove
ignition key and wait for all moving parts to
stop before dismounting
4. Place large blocks or safety stands under
deck to support the machine.
5. Remove the lynch pin on castor shaft and
lower the castor until it is out of the socket.
7. Tighten the bolt to the specified torque.
8. Remove the blocks or safety stands
15

Sign-Off Form
M. K. Martin Enterprise Inc. follows the general Safety Standards specified by the American
Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety
Administration (OSHA). Anyone who will be operating and/or maintaining the Cutter must read
and clearly understand ALL Safety Operating and Maintenance presented in his manual.
Do not operate or allow anyone else to operate this equipment until such information has been
reviewed. annually review this information before the season start-up.
Make these reviews of SAFETY and OPERATION annually as a standard practice for all your
equipment. We feel that an untrained operator is unqualified to operate this machine.
A sign-off sheet is provided for your record keeping to show that all personnel who will be
working with the equipment have read and understood the information in the operator's manual
and have been instructed in the operation of the equipment.
SIGN-OFF FORM
Date
Employees Signature
Employers Signature
16

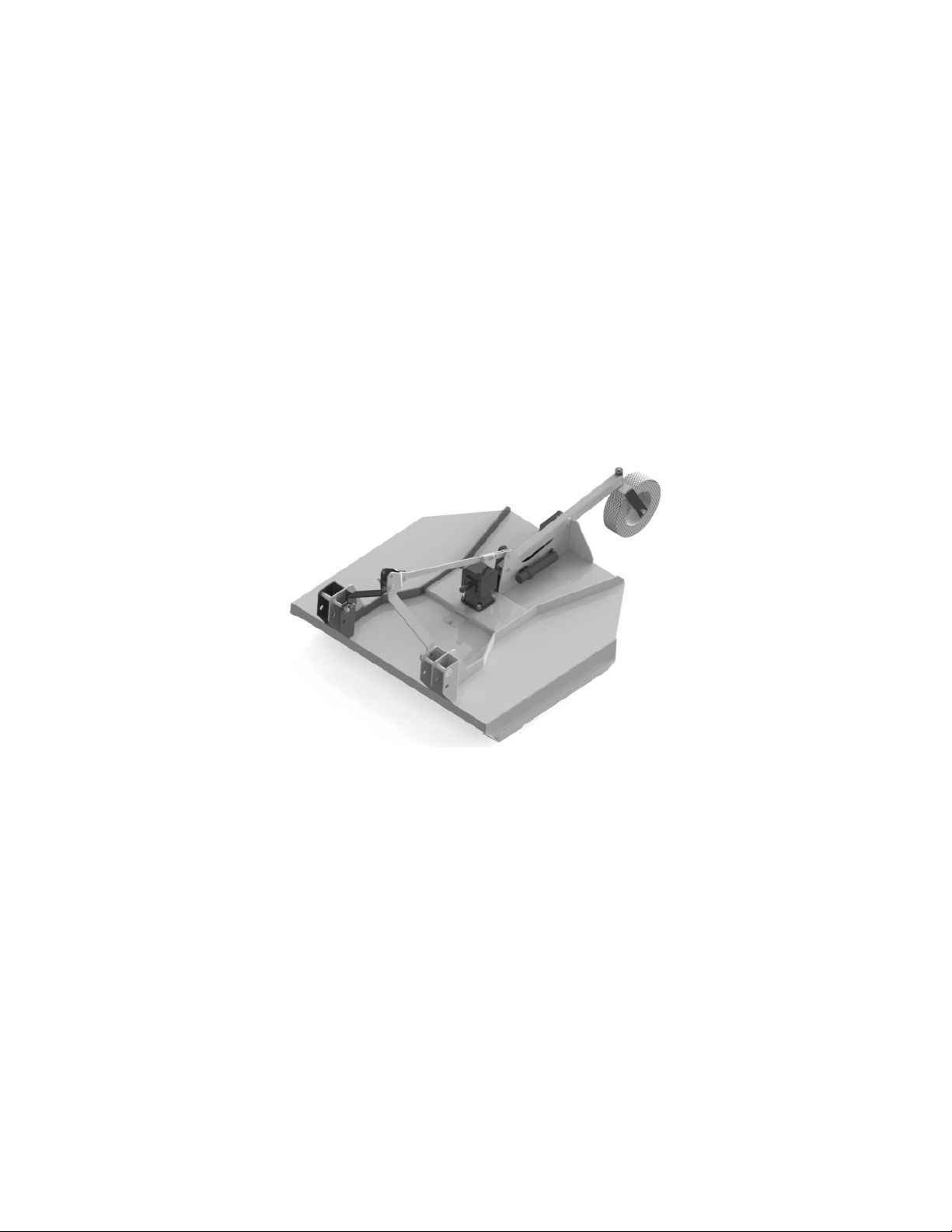

Pulsar Cutter 42-48-60
Parts
Item#
Description
Model PRC42
Model PRC48
Model PRC60
Req
1
Main Deck
512-22903
512-22847
512-22639
1
2
Blade
512-422041
512-482041
512-602041
2
3
Blade Bolt c/w n, w,
512-602042
512-602042
512-602042
2
4
Blade Bar
512-421039
512-481039
512-481039
1
5
Carr Bolt 1/2x1 3/4 c/w fw, ln
OL
OL
OL
2
6
Left "A" Frame
512-22867
512-22867
512-22867
1
Right "A" Frame
512-22881
512-22881
512-22881
1
7
Bushing
512-22868
512-22868
512-22868
6
8
PTO Complete
512-482223
512-482223
512-602223
1
9
Bolt 3/4x4 c/w ln
OL
OL
OL
1
10
Spacer
512-50702
512-50702
512-50702
1
11
Lynch Pin 7/16
OL
OL
OL
2
12
Hitch Pin
512-22920
512-22920
512-22920
2
13
Bolt 1/2x2 c/w ln
OL
OL
OL
1
14
Link Bar Upper
512-50713
512-50711
512-50709
1
15
Link Bar Lower
512-50707
512-50707
512-50707
1
17
