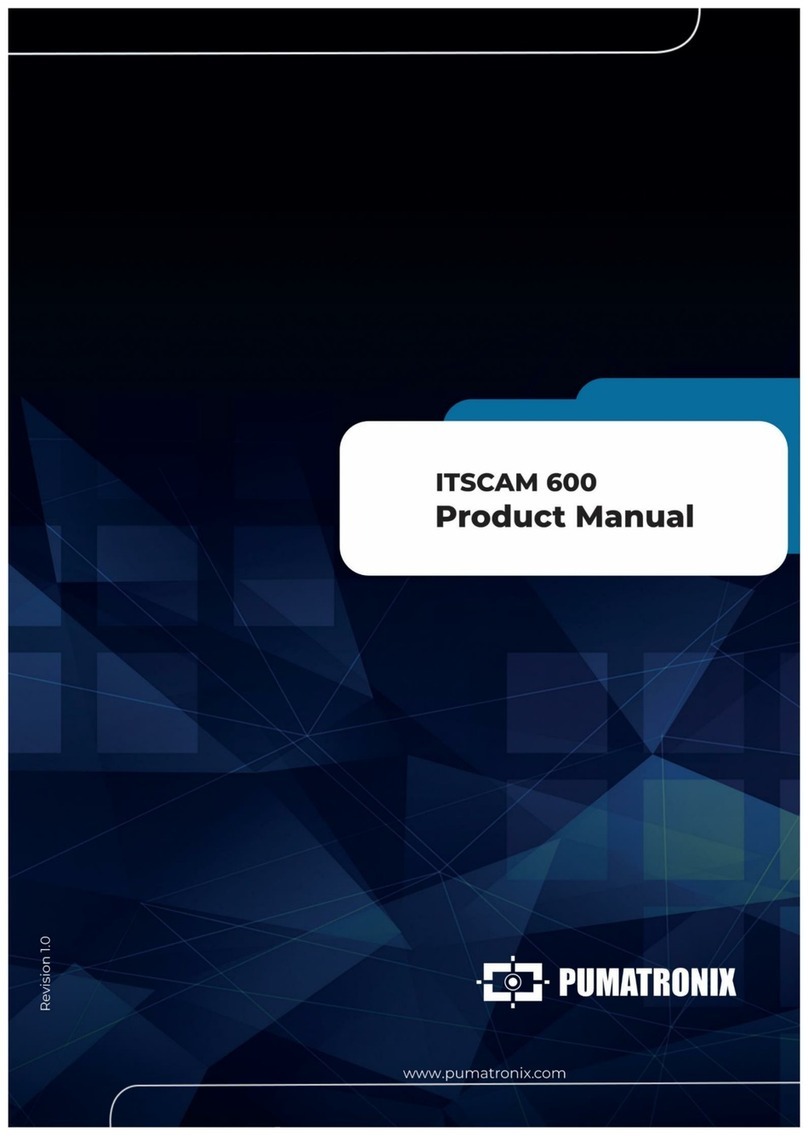

PUMATRONIX ITSCAM 600 User manual

This equipment can have lenses included, which are
sensitive to mechanical impacts such as falls and extreme
vibrations.
06/30/2022
Revision 1.0
Acrylic
display
Lens not
included
2 Ethernet
Connectors
3G/4G Connector
GPS ConnectorWi-fi Connector
1. Use the Ethernet connector to connect ITSCAM 600 to the local network
and optionally for power:
Oxidation Risk: The electrical and signal connections
made for ITSCAM 600 bundle and data network cable
must be protected in a terminal box or similar structure to
avoid oxidation of the connections and unwanted liquids
infiltration into the bundle.
3. Check the indication of connection operation through the LEDs of the
Ethernet connector used.
4. Check the installation if the LEDs are not indicating that the connection
is in operation.
5. Connect the available antennas to the respective SMA connectors
named 3G/4G, Wi-Fi and GPS .
2. Use cable with RJ-45 connector following T568A standard pinout:
* Only for ITSCAM 600 CS AD IOT (S06L0W1AJP) and ITSCAM 600 LM AD
IOT (S06L5W1AJP) models.
TIA-568A standard pinout:

MICROFIT CONNECTOR
TERMINAL AND
COLOR
SIGNAL
1 Green + White
RX RS-232
2 Purple + White
TX RS-232
3 Black + White
GND RS-232
4 Purple
A RS-485
5 White
B RS-485
6 Brown + White
GND RS-485
6. Make the connections of the RS-232 Serial Port signals at terminals 1 to
3 of the Microfit Connector, considering the respective colors and signals
detailed in the table:
7. Check the signals from terminals 4, 5 and 6 and the respective colors to
connect the RS-485 Serial Port interface.
16-way Microfit Connector
When using an illuminator in conjunction with ITSCAM
600, check the product specifications for the minimum
and maximum distances that must be observed in relation
to the position of the object to be illuminated.
Refer to the technical information of the illuminator
device for correct electrical connections.
9. Connect the ITSLUX illuminator to the same DC Power source used for
powering ITSCAM 600 device and considering the colors of the signals to be
used in the connection:
ITSLUX
+-
DC Power
8. Make the input or output signals connections at the terminals 7 to 14 of
the Microfit Connector, configurable through the interface. The terminals
signals and their colors are detailed in the table:
MICROFIT CONNECTOR
TERMINAL E COR
SINAL
7 Gray
I/O 4 +
8 Black
I/O 4 -
9 Red + White
I/O 3 +
10 Blue + White
I/O 3 -
11 Green
I/O 2 +
12 Blue
I/O 2 -
13 Orange
I/O 1 +
14 Yellow
I/O 1 -
*Set as Input the signal received from equipment for physical trigger, such
as inductive loop or an optical barrier, for example.
*Set as Output the signal sent to an illuminator or to equipment you want
to control, such as barriers or gates.
This equipment must be supplied with a direct current (DC)
source with a voltage of 12 VDC or 24 VDC. Do not connect
any of the inputs directly to the mains (AC)!
11. Make the power connections with the Microfit Connector, at terminals
15 and 16, using the supplied bundle and considering the colors respective
to the V+ and GND signals:
10. Use a 12 VDC or 24 VDC power supply
16-way Microfit
Connector
V+
GND
+-
DC Power
12. Connect ITSCAM 600 to an auxiliary device disconnected from the local
network where the equipment will be installed, using an Ethernet cable:
Ethernet
IP
192.168.0.254
User
admin
Password
1234
13. Access ITSCAM 600 interface in a Google Chrome browser (version 85
or higher) with standard factory data:
14. Access the Equipment > Network menú in the Ethernet tab.
15. Modify in the corresponding interface (ETH-1 ou ETH-2) the default IP
address 192.168.0.254 with netmask 255.255.255.0, considering values
diferent from those that cause conflicts in the existing network:
Values that cause conflict
IP Address
Netmask
192.168.254.x
255.255.255.0
192.168.x.x
255.255.0.0
192.x.x.x
255.0.0.0
0.0.0.0
17. Check the connection and network settings after restarting ITSCAM
600 device.
16. Click Apply to validate the changes and wait for the automatic restart of
the equipment
ITSCAM 600 Maintenance IP (192.168.254.254) is used to
recover the connection in extraordinary situations of loss
of the primary IP. For this reason, when manually
configuring the equipment network interface (Ethernet),
values diferent from the maintenance IP must be applied.
19. Repeat steps 12-17 in case of loss of connection or IP address conflict.
20. Access with the maintenance IP address 192.168.254.254, if any
network conflict occurs.
18. Disconnect ITSCAM 600 from the auxiliary device and connect the
equipment to the network of the final installation.
135
15
246
16
GNDA
RX
B
TX GND
06/30/2022
Revision 1.0

24. Reassemble the fastener following the sequence indicated in the
image, if it detaches from the housing of ITSCAM 600:
Rail for moving
the Fastener
D
ITSCAM 600 must be used with a Protection Box specific
for use in outdoor environments, to protect the
equipment against bad weather.
Fastening points
21. Select an existing pole or gantry that allows to position ITSCAM 600 to
capture two-lane images, according to the ideal equipment position in
relation to the monitored road indicated in the installation diagram:
* D for ITSCAM 600 CS Mount models = variable.
* D for ITSCAM 600 LM (motorized lens) models = 10 to 37 meters.
Line parallel to the ground
D
Maximum
According to the place
45°
22. Secure ITSCAM 600 considering the minimum height limits specified
for the location. The linear distance D from the vehicles' crossing point varies
according to the estimated range of the lens model. Refer to the Product
Manual for more information.
30. Tilt the device on the bracket respecting the vertical angle of 45°
between the center of the lens and a line parallel to the ground. Under these
conditions, the distance D varies according to the models indicated:
When using an illuminator in conjunction with ITSCAM
600, check the product specifications for the minimum
and maximum distance that must be observed for
effective illumination.
Installation Location: In cases where it is not possible to
meet the installation specifications, it is recommended to
consult Pumatronix's Technical Support.
27. Perform the NETWORK INTERFACE PARAMETERIZATION (Steps 12 to
20).
31. Access the web interface of the device with the data registered in the
NETWORK INTERFACE PARAMETERIZATION.
32. View the frame through the Live Feed floating window, which allows
Zoom and Focus control when enabling the option. The suggested framing
for two tracks in the image is the display of the ends of the road.
33. Use the Autofocus function when the ITSCAM 600 model has
motorized lenses or adjust Zoom and Focus by accessing the Image >
Profiles menu at Lens tab, until the characters become clear in the image
viewed.
28. Disconnect the ITSCAM 600 from the auxiliary device and connect to
the network of the final installation.
26. Connect the ITSCAM 600 device to a power supply (Steps 10 and 11).
29. Position ITSCAM 600 with little horizontal inclination, so that the
vehicle license plate is aligned with the horizontal in the image and following
the steps indicated in POSITIONING OF ITSCAM 600 ON ROAD.
Rosca para
parafuso 1/4"
Orifício Ø4mm
para pino guia
28mm
14mm
23. Move the Fastener on the rail, loosen the screws slightly enough for the
assembly to slide down the rail:
25. Secure the ITSCAM 600 to the desired surface using two screws with a
diameter of ¼” and the guide pin.
34. Tilt the bracket with the equipment until the best adjustment of the
frame, respecting the maximum limit angle of 45° for vertical inclination,
avoiding significant deformations in the images.
06/30/2022
Revision 1.0

Pumatronix guarantees the product against any defect in material or
manufacturing process for a period of 1 year from the date of issue of
the invoice, provided that, at the discretion of its authorized
technicians, a defect is found under normal conditions of use.
The replacement of defective parts and the performance of services
resulting from this Warranty will only be carried out at the Authorized
Technical Assistance of Pumatronix or a third party expressly indicated
by it, where the product must be delivered for repair.
This Warranty will only be valid if the product is accompanied by a
Maintenance Form duly completed and without erasures and
accompanied by an Invoice.
In compliance with the General Law on Data Protection (LGPD) - Law
No. 13,709, of August 14, 2018, this product has programmable
functions for capturing and processing images that may infringe the
LGPD when used, together with other equipment, to capture personal
data.
Pumatronix is not responsible for the finalities, use and treatment of
the images captured, and the control of the information and forms of
operation of the product are the exclusive decision of the user or
purchaser of the product.
1) Use of software/hardware not compatible with the specifications in
the Manual;
2) Connecting the product to the power grid outside the standards
established in the product manual and installations that present
excessive voltage variation;
3) Infiltration of liquids from opening/closing of the product;
4) Damage caused by natural agents (electric discharge, flood, sea
fog, excessive exposure to climate variations, among other factors) or
excessive exposure to heat (beyond the limits established in the
Manual);
5) Use of the product in environments subject to corrosive gases, with
excessive humidity and/or dust;
6) Show signs of tampering with safety seals;
7) Show signs of opening and modification made by the customer in
places of the product not authorized by Pumatronix;
8) Damage caused by accidents/falls/vandalism;
9) Display adulterated and/or removed serial number;
10) Damage resulting from transportation and packaging of the
product by the customer in conditions incompatible with it;
11) Bad use and in disagreement with the Instruction Manual.
Perform the safety measures during the upgrade process:
* Keep the ITSCAM 600 device inactive during the upgrade
process, ensuring that it is not requested by any service or other
equipment on the network in which it is installed;
* Keep the ITSCAM 600 device always turned while performing
the update by taking steps to prevent it from restarting or shutting
down.
* Request the firmware file by completing the form provided in the
Technical Support menu at Pumatronix website.
* Access the step-by-step installation of firmware updates in the Product
Manual, which can be done through the web interface or Pumatronix
software.
* For more information access the product
manual at www.pumatronix.com.br.
[phone] – 3173 | [e-mail]
37. Use Live Feed during Perspective and Zoom and Focus correction.
39. Enable the Region of Interest and drag polygon vertices to delimit the
region of the search for vehicle plates in the image.
40. Enable the Grid Height view with value of 25 for Zoom and Focus fine
tuning. Plate's characters are at the optimal reading size when they fall into
place at that time.
41. Repeat steps 30 to 40 until the license plate image is obtained with the
best framing and sharpness of characters.
38. Adjust the settings for OCR processing by the device by going to the
Equipment > Recognition menu at tab Jidosha.
35. Disable the Automatic Iris for a better result (if the ITSCAM 600 model
displays this functionality) in the Image > Profiles menu on the Exposure tab.
36. Consider adjusting the Perspective through the image inclination and
rotation angles by going to Equipment > Recognition, Jidosha tab, if the
equipment inclination with the bracket has reached the limit of 45º, as
indicated.
06/30/2022
Revision 1.0
