Pure Acoustics SBW-1022 User manual

5.1CH Home theater system wireless Soundbar
with Dolby Audio technology
SBW-1022
User Manual

W
Thank you for purchasing the SBW-1022 Soundbar. Please read this user manual carefully and keep for future reference.
arning
Caution:
To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus
to rain or moisture. No user-serviceable parts inside.
Refer servicing to qualified personnel only
The lightning flash within an equilateral triangle is intended to alert you to the presence
of uninsulated dangerous voltage within the product’s enclosure that may be of
sufficient magnitude to constitute an electric shock to a person or persons.
Important! This symbol alerts you to read and observe important warnings and
instructions on the unit or in this manual.
Notice:
This appliance is not intended for use by persons (including children) with reduced physical sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
1. To prevent possible hearing damage, do not listen at high
volume levels for long time periods or a sudden high volume level.
2. Never use the device unsupervised! Switch off the device whenever you are not using it, even if
not using it only for a short while.
3. The appliance is not intended to be operated by means of an external timer or separate remote
control system.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
5. Before operating this system, check the voltage of this system to see if it is identical to the
voltage of your local power supply.
Important Safety Instruction
1

6. The unit should not be impeded by covering the ventilation opening with items such as
newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at
least 5 cm of space on each side of the unit.
7. The apparatus must not be exposed to dripping or splashing liquid, no objects filled with liquids such
as vases, should be placed on the apparatus.
8. To prevent fire or shock hazard, do not expose this equipment to direct heat, rain, moisture
or dust.
9. Do not position this unit near any water sources e.g. taps, bathtubs, washing machines or
swimming pools. Ensure that you place the unit on a dry, stable surface.
10. Do not place this unit close to a strong magnetic field.
11. Do not place the unit on a amplifier or receiver.
12. Do not place this unit in a damp area as the moisture will affect the life of electric components.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe
with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull
on the cord.
15. Depending on the electromagnetic waves used by a television broadcast, if a TV is turned on
near this unit while it is also on, lines might appear on the LED TV. Neither this unit nor the TV is
malfunctioning. If you see such lines, keep this unit well away from the TV set.
16. The mains plug is used to disconnect the device, the disconnected device should remain
readily operable.
Important Safety Instructions
1. Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings.
2. Do not use this apparatus near water.
3. Clean only with dry cloth.
4. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
5. Do not install near any heat sources such as radiators, heaters, stoves, or other apparatus
(including amplifiers) that produce heat.
6. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles or at the point where they exit from the apparatus.
7. Only use attachments/accessories specified by the manufacturer.
8. Unplug this apparatus during lightning storms or when unused for long periods of time.
2

9. Refer all servicing to qualified service personal. Servicing is required when the apparatus has
been damage in any way, for example, when the power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
10. The AC plug is used to disconnect the device, the disconnected device should remain readily
operable. In order to disconnect the apparatus from the AC power completely, the AC plug must be
removed from the AC outlet completely.
Preparation for Use
Unpacking and Set Up
•Remove the Sound bar from the carton and remove all packing material from the Sound bar. Save
the packing material, if possible, in case the Sound bar ever needs to be serviced or transported.
The original carton and packing material is the only safe way to pack your Sound bar to protect it
from damage in transit.
•Remove any descriptive labels or stickers on the front or top of the cabinet. Do not remove any
labels or stickers from the back or bottom of the cabinet.
•Place your Sound bar on a level surface such as a table, desk or shelf, convenient to an AC outlet,
out of direct sunlight, and away from sources of excess heat, dirt, dust, moisture, humidity, or
vibration.
•Unwind the Line cord connecting the AC adapter and extend it to its full length.
Protect Your Furniture
This model is equipped with non-skid rubber 'feet' to prevent the product from moving when you
operate the controls. These 'feet' are made from non-migrating rubber material specially formulated
to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture
polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and leave
marks or a rubber residue on the furniture. To prevent any damage to your furniture we strongly
recommend that you purchase small self-adhesive felt pads, available at hardware stores and home
improvement center everywhere, and apply these pads to the bottom of the rubber 'feet' before you
place the unit.
3

Important Notes
• Safety and operating instruction manual should be retained for future reference.
• The apparatus should not be exposed to dripping, splashing or placed in a humid atmosphere
such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiate too much heat -Blocking ventilation or in a dusty
area.
• Areas where there is constant vibration.
• Humid or moist places.
• Do not place near candles or other flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the sound bar is plugged to power outlet.
• For safety reasons, do not remove any covers or attempt to gain access to the inside of the
product. Refer any servicing to qualified personnel.
• Do not attempt to remove any screws, or open the casing of the unit; there are no user
serviceable parts inside. Refer all servicing to qualified service personnel.
Power source:
This soundbar is designed to operate in AC 110-240V 50/60Hz
4

5

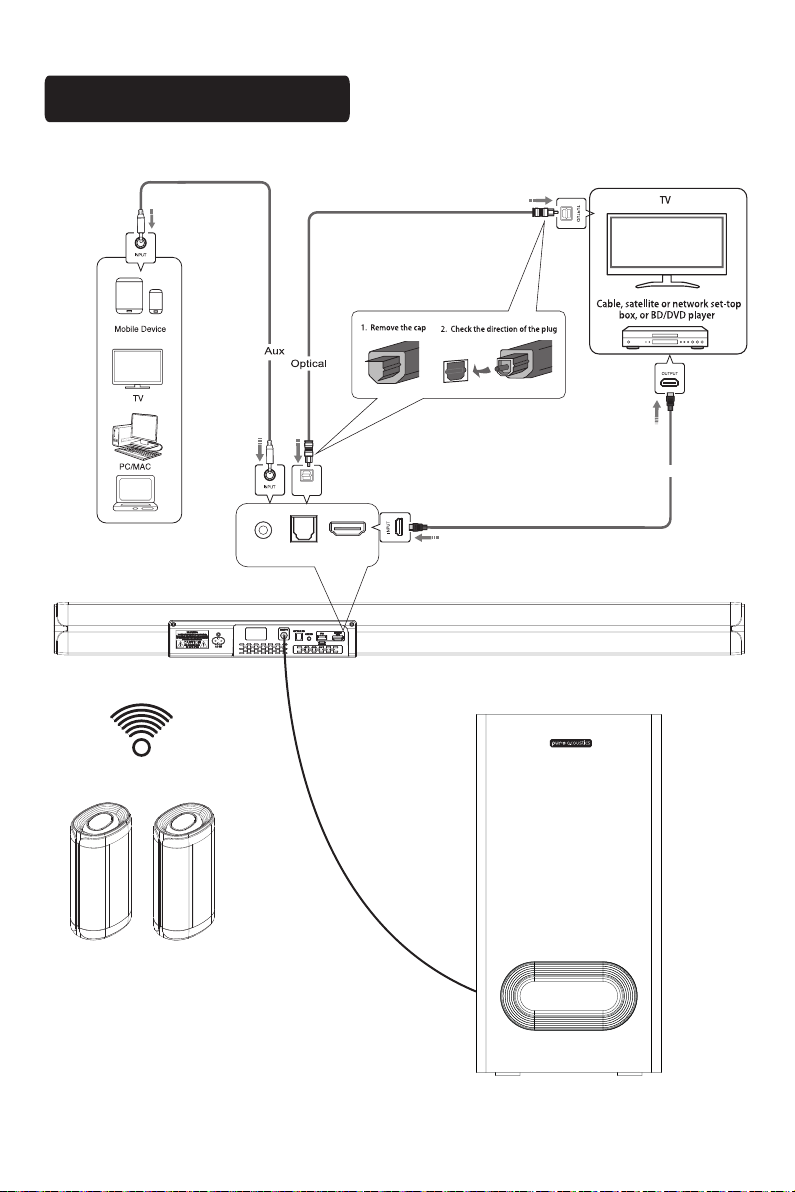

Product Diagram
8888
10 11 12
LED DISPLAY
LINE IN(AUX)
AC IN
OPTICAL
SUB OUT
FOR UPDATE
press in short time for exchange L/R channel: Surround channel (SL OR SR) switch
button (wireless surround Channel is fixed, when end user's power socket position
isn't matched,pls press switch button from bottom of surround speaker to exchange
channel position.）
Press in long time for surround speaker pair with soundbar.
HDMI(ARC)
Power/Standby
VOL+
USB
Wireless Surround SL or SR out (wireless surround
Channel is fixed, when end user's power socket position
isn't matched, please press switch button from bottom
of surround speaker to exchange channel position.)
Wireless surround SL channel LED light
Wireless surround SR channel LED light
DC IN
FOR UPDATE ONLY
(FOR SOFTWARE UPGRADE ONLY)
LED indicator: Indicates the pairing between soundbar
and wireless surround speaker
VOL-
10
11
12
INPUT

Place on a flat Surface
Place the sound bar horizontally on a flat surface such as a TV unit or shelves and align it centrally
with the TV screen. Allow some space between the speaker and the wall. Don’t place inside a
cabinet or an a walled shelf. Follow this guidance for best sound output and good airflow around the
sound bar.
Positioning the Sound Bar

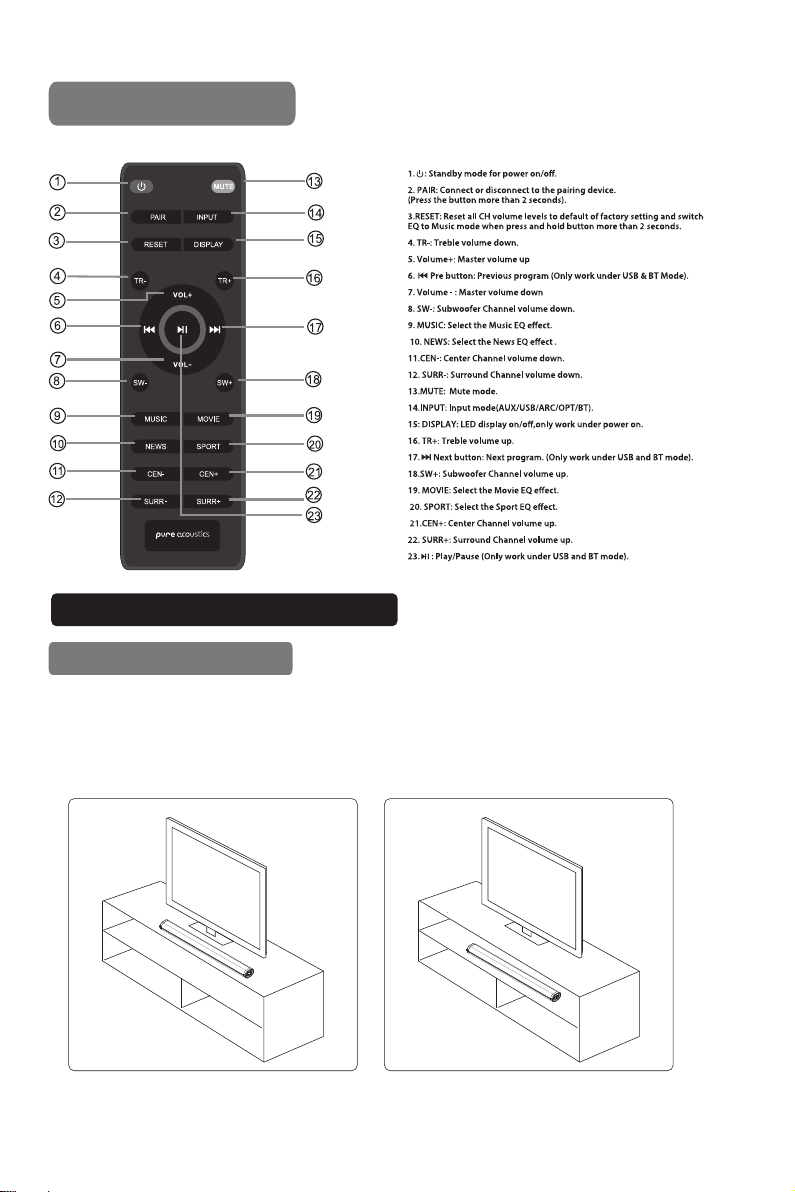

Remote Control
×√
6

Mount on the wall
WARNING: If you don’t feel confident to correctly and securely wall-mount the sound bar, Seek the
assistance of an experienced person of professional.
Install the speaker on a vertical, fast, reinforced area of wall. For plaster walls, it is recommended to
screw into wall studs for greater security. For optimum performance, allow at least 25mm/1’’distance
between the sound bar and the TV.
25mm / 1”
25mm / 1”
7

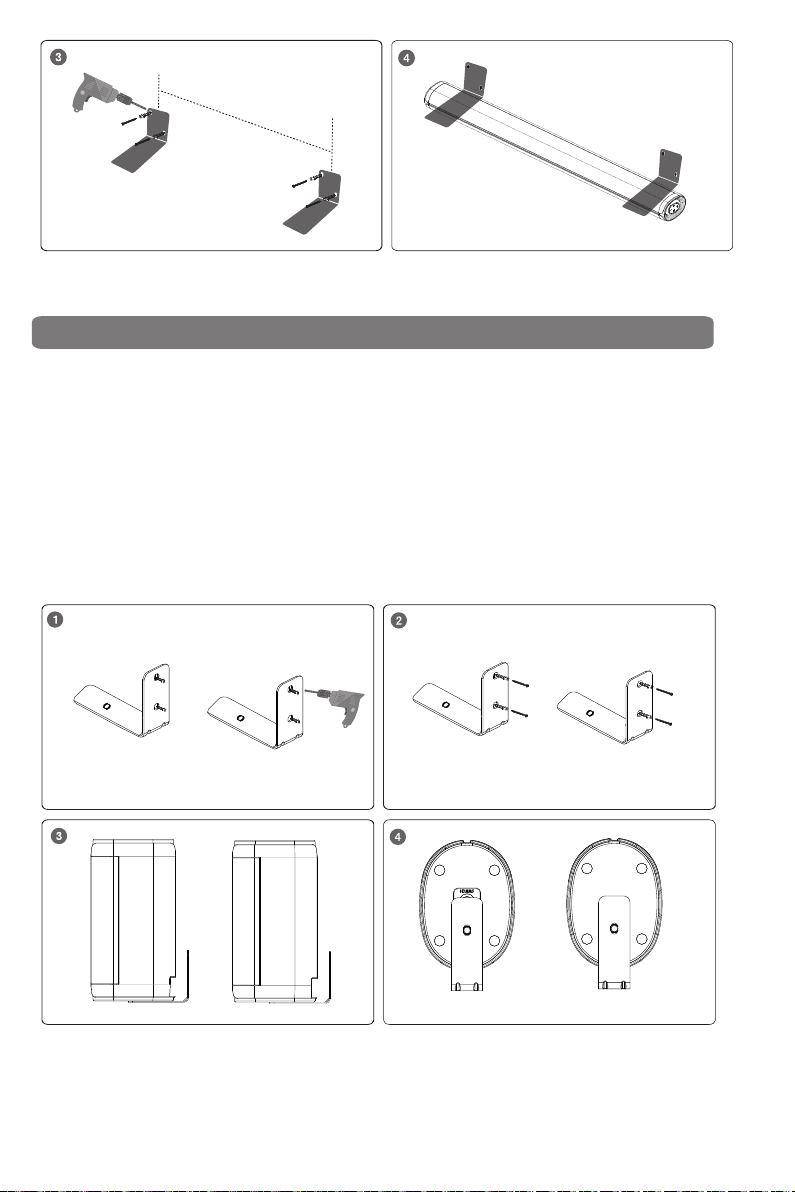

Follow below steps to mount the sound bar on the wall
1. Open 4 holes in the wall referring to iron bracket for wall mounting, the spacing of the holes in the wall is
corresponding to the distance between sound bar pads.
2. Fix the plastic anchor in the 4 holes of the wall mounting bracket.
3. Fix the screws on the plastic anchor and tighten the screws to ensure that the wall mounting
bracket will not shake.
4. After fastening the screws, Put the sound bar pads into the extension of the wall mounting bracket.

8
Follow below steps to mount the surround speaker on the wall
1. Open 4 holes on the wall. For the distance between the 2 holes, pls refer to the soundbar bracket wall mounting.
2. Fasten the plastic anchors in the 4 holes of the wall mount bracket.
3. Then attach the provided screws to the plastic anchors and tighten the screws to ensure that the wall
mount bracket does not shaking.
4. Place the surround sepakers on bracket with the corresponding holes at the bottom, then fix the provided
screws in the bottom of the bracket and the holes of the surround speakers, then tighten the screws.

5. Plug the power cord of sound bar into a wall outlet, it will automatically enter standby mode.
6. Short-press the “STANDBY” button on sound bar or on remote controller to turn on the sound bar
7. To turn off, press and hold the “STANDBY” button for 2 seconds, then unplug from wall outlet.
Setting the Soundbar
Powering On/Off
OPERATE INSTRUCTIONS
1.Plug in the power cord and the display will light up (Standby mode)
2. Switch on the sound bar by pressing “STANDBY” button on sound bar or on remote controller.
After switching on, the default input mode will appear on display.
3. Input modes can be changed by pressing the “INPUT” button on sound bar or on remote controller.
4:Below are input mode names appearing in the soundbar display:
9
-Bluetooth Pairing mode, -AUX mode, -Optical mode, -ARC mode, -USB mode,
Pair up with the surround
1. Plug the soundbar into the main socket and press "POWER/STANDBY" to turn on the soundbar,
then press" "INPUT" on the soundbar to switch to the bluetooth (BT) mode.
2. Power on rear surrond speakers. The blue LED indicator on the surround will blink slowly which indicates
entering into pairing mode between soundbar and the wireless surround.
3. Then long press the “switch button” on the bottom of the rear surround for around 2.5 seconds. The blue indicator
blinks quickly for waiting for the soundbar and rear surround to automatically pair.
4. After about 20-30 seconds, the blue indicator of the rear surrounds changes to steady on. The soundbar and rear
surround are matched successfully automatically.
5. The devices will be able to pair automatically after the initial successful pair, even if they are switched off and on.
6. If you want to pair your wireless surround with another soundbar, please repeat step 1 to step 4 above. Ensure that
the soundbar you want to pair with the surround are within range turned on and any other pairing devices are switched
off or on standby.
Remark:
1. If the wireless surround speaker is turned on, but the sound bar is in standby mode or turned off (no power),
the flashing blue indicator light of the wireless surround speaker will become red and stay on after about 5 minutes,
which means that wireless surround speaker enter into the standby state.
2. In order to avoid receiving wireless signal interference, when you are playing this wireless sound bar system,
please keep this wireless sound bar system from your other wireless devices and 2.4GHz devices at a proper distance.
3. The maximum connection distance between wireless surround and Sound bar: within 10 meters in the open space.

Playing Audio via BT Connection
1 Turn on the sound bar and then short-press the “INPUT” button on sound bar or remote controller to switch it to
BT mode and LED display on the sound bar will flicker in the Bluetooth pairing mode.
2. Activate the pairing function on your phone or other compatible device and select
“Pure-1022 ” by BT connection.
3. When successfully paired, you will hear a tone and LED display will turn on “ ”and stop flickering. Then music
that you selected can be played on the sound bar.
4. The remote controller includes BT mode playback controls.
.
Notes:
• If your pairing device switched off or manual disconnected, the sound bar will automatically enter pairing mode.
• If the connected device is switched off or manual disconnected, the sound bar will automatically
enter pairing successfully connected device will be re-established once you re-enter wireless
range(10 meters). to connect to other devices, repeat the above pairing steps
• There is no automatic shutdown in pairing mode. The sound bar will remain in pairing mode even if
no device is paired, so switch off if not in use
Playing Audio via USB Port
The sound bar automatically switches to USB input mode with the LED display when a USB flash drive is
inserted (this mode isn't selectable on the sound bar or remote control unless a USB flash drive is connected).
1. Ensure that your USB flash drive contains MP3 audio files (other file types not supported)
2. Connect the USB flash drive to the USB port on the sound bar (or your own USB extension cable
connected to the USB port); music will automatically play
3. The remote control includes USB input mode playback controls
10

11
Using the Soundbar
ARC
wireless signal

12
HDMI (ARC) Mode
1. The soundbar supports HDMI (ARC) with audio return channel (ARC). You can hear the TV audio through your
soundbar by using a single HDMI (ARC) cable. But on condition that your TV is ARC compliant.
2. Using a high speed HDMI (ARC) cable, connect the HDMI (ARC) connector on the soundbar to the
HDMI (ARC) connector on the TV. The HDMI (ARC) connector on the TV might be labeled differently. For
details, see the user manual of your TV.
3. When HDMI (ARC) is connected, TV sound setting in “sound output” mode should be set as <external Dolby or Auto mode>,
in addition, digital audio output mode should be set as <automatic> or <decoded output as Dolby>. When the
HDMI (ARC) cable is connected, the TV digital audio output is set as Dolby or Auto mode. Then start playing music on the TV.
4. Press “INPUT” button on the remote control or on soundbar to select - HDMI (ARC) mode.
Different TV might be different setting, please refer to your TV User Manual.
5. Use the volume buttons to adjust the volume to your requirements.
6. You can also change the audio settings by using the relevant buttons on the remote control.
1. When connecting a device such as a TV/Set-top box/DVD/ game console with HDMI (ARC) cable, set the audio
output mode of the device to
Dolby or Auto mode <digital HDMI (ARC) output>.
2. The TV is connected to a HDMI (ARC) port with sound bar. Different TVs might have different setup menus,
but the operation approach is the same.
3. If needs to connect set-up box meanwhile, please firstly connect the HDMI (ARC) connector and paired to the
soundbar. Then connect the set-top box.
Optical Mode
-Remove the cap of optical cable (keep the cap for the future use); check the direction of the plug. Connect the soundbar
and TV with the optical cable.
-Use this mode to play music from a TV with optical digital output on the sound bar. In TV sound settings, select the soundbar
optical connection (output for audio). When the optical cable is connected, the TV audio output is set to Dolby or Auto mode.
-The TV must have an optical digital output. Use the optical cable to make the connection as follows:
1. Connect the optical cable to the optical digital output of your TV.
2. Connect the optical cable to the optical digital input of your soundbar.
3. Switch on the TV set and the soundbar. Set the connected TV to “Dolby or Auto mode”.
4. Start playing on the TV.
5. Press “INPUT” button on the remote control or on the soundbar to select - OPTICAL mode.
6. Use the volume buttons to adjust the volume to your requirements.
7. You can also change the audio settings by using the relevant buttons on the remote control.
1. When connecting a device such as a TV/Set-top box/ DVD/ game console with optical cable, set the audio output
mode of the device to Dolby or Auto mode (digital optical output).
2. Do not bend the optical cable, otherwise the cable inside will be damaged.
Audio input(Aux)Connection
Note:
For some computers, you may need to access the audio control panel to manually set the soundbar as
shown steps on above.
1. Firstly connect the soundbar to your PC, laptop, smart-phone, TV, or other audio devices by using an AUX cable
provided. Make sure that these devices have both AUX IN and AUX OUT terminals.
2. Then press the INPUT button on remote control or soundbar to switch the soundbar to Aux mode,
once the soundbar is connected in Aux mode, the screen will display " ” . And the music on your connected
device will play. Playback can only be controlled on your connected device.

13
Another input source is selected.
The mute function is activated.
The volume of sound bar or TV/other device
is adjusted too low.
The power cable of the unit is not
connected properly.
Input jacks on a playback device are connected.
There is no sound
output from sound
bar.
Signals that the sound bar cannot playback
when being input.
The sound is distorted
or echoed. TV volume is not muted. If you play audio from TV through the sound bar, make sure that the TV is muted.
The volume decreases
when the unit is turned
on.
The automatic volume adjustment function is
activated. To prevent excessive loudness, the
unit automatically controlls its volume within
a certain level when the unit is turned on.
Turn up the volume as required.
A device cannot
connect the sound
bar or the unit cannot
be connected to a
Bluetooth device.
Bluetooth function of the device is not activated,
not paired or connected correctly.
A device emitting electromagnetic waves
(such as a microwave oven, a wireless
device and so on) may be placed nearby.
Do not use this unit near devices that emit
electromagnetic waves.
Restart the sound bar and try pairing again. You have
not enabled the Bluetooth function of the device; see
the user manual of the device on how to enable the
function and correctly connected the device. The sound
bar is already connected with another Bluetooth device.
Disconnect the connected device, and then try again.
The unit is out of the operating range. Use the remote control within the operating range.
The batteries are weak. Replace with new batteries.
The remote control sensor of the sound bar
is exposed to direct sunlight or strong lighting.
Adjust the lighting angle or reposition the sound bar.
Make sure our product cannot be used in sunlight.
The unit cannot be
operated by using
the remote control.
The TV cannot be
operated by using the
TV’s remote control.
The unit is blocking the TV’s remote
control sensor.
Position the unit so that it does not obstruct the TV’s
remote control sensor.
When sound bar and TV or other devices are
connected by an audio cable through TV (ARC)
port output, Select the correct audio input and
output. Make sure the digital audio output setting
on the playback device to PCM format. Since the
output format of our sound bar is PCM, if it is used,
the decoding format of TV or other devices will be
adjusted to PCM state.
Make sure that the power cable of the unit is
connected to an AC wall outlet securely.
Connect the input jack on the sound bar and
the output jack on the playback device.
Select an appropriate input source.
Cancel the mute function.
Increase the volume level on sound bar or
by remote control or on TV.
PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION
Noise is heard. The sound bar is too close to another
digital or high-frequency device. Move those devices away from the sound bar.
Bluetooth is not selected as the input source.
Select Bluetooth as the input source.
The unit is connected to a different Bluetooth
device.
The unit is too far away from the Bluetooth device.
Un-pair the Bluetooth device that is currently connected
and pair with the desired Bluetooth device.
Move the Bluetooth device closer to this unit.
The Bluetooth device that you are using
may not support the protocol. Use a Bluetooth device that supports the protocol.
The connection profile registered in the
Bluetooth device may not be functioning
correctly for some reason.
Delete the connection profile in the Bluetooth
device and then connect the Bluetooth device to
this unit.

14
PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION
Sound quality of audio
play from a connected
Bluetooth device is
poor and connection
is not stable.
The Bluetooth reception is poor.
Move the device closer to the sound bar,
or remove any obstacle between the device and
the sound bar.
The volume on the Bluetooth device may
be too low.
Raise the volume on the Bluetooth device.
Bluetooth is not selected as the input source. Select the Bluetooth as the input source.
Playback on the device has not been performed. Perform playback on the device.
The sound output on the Bluetooth
device may not be set to this unit.
Select this unit as the output device on
the Bluetooth device.
The connection to the Bluetooth device
was cut off. Connect with the Bluetooth device one more time.
Move the Bluetooth device near this unit.
The unit may be too far away from the
Bluetooth device.
Do not use this unit near device that emit
electromagnetic waves.
1. Make sure that the user connected TV and
sound bar by a 19-core HD ARC cable.
2. The sound bar and TV are connected through
TV (ARC) port output; make sure that the TV is
ARC compliant.
3. Set the TV to HDMI ARC (CEC).
Set the audio output mode of TV to PCM format.
(Or refer to your TV user manual)
A device emitting electromagnetic waves
(such as a microwave oven, a wireless
device and so on) may be placed nearby.
Incorrect HDMI cable is used causing no
signal to be sent to soundbar.
Incorrect input mode is selected.
No sound can be heard
or sound breaks
(Bluetooth mode)
There is no sound from
sound bar -
HDMI TV (ARC) Mode
1.Replace the OPTICAL cable with a new one
to connect.
2. Set your TV audio output to PCM format.
(Pls refer to your TV user manual)
OPTICAL cable might be damaged and no
signal is received by the soundbar due to
a failed connection and incorrect operation
mode selected.
There is no sound from
sound bar
(OPTICAL Mode)
Make sure that USB flash drive contains MP3 files
because other file types are not supported.
Switch the input mode once again, then
playback again.
USB file type is not support & Sound bar
doesn’t switch to USB input mode
automatically when USB is inserted.
There is no sound from
sound bar (USB mode)
1. Turn off sound bar and surround satellites by
removing the AC plug from the socket.
2. Make sure that sound bar and surround satellites
are connected to the electricity power at the same
time，and switch on sound bar and surround
satellites again.
Connection is not correct between
surround satellites and sound bar.
Disconnected between
surround satellites
and sound bar
There is no sound
output from rear
active speaker
There is no sound
output from rear
passive speaker
Inverse channel
from R to L
Noise is happened
from rear speakers BT connecting or poor signal.
1:disconnect & connect with soundbar again
2: power off and on for soundbar and rear
active speaker again.
Speaker position confusion. Press R/L switch button from active rear speaker
Power input or pair connecting issue.
Cable connecting issue. Check again connected cable between active
rear speaker
1: Check the adaptor input
2: Pair again with soundbar

Specifications
Features:
Wireless BT/USB/OPT/ LINE IN(AUX)/HDMI ( ARC)
Remote control
Wall Mountable
LED Display
Volume/Media Control
16.51cm Subwoofer
5.1 Channel Soundbar
Dolby Audio
Dual Wireless Rear Satellites
Output Power Subwoofer - 150 watts
Soundbar - 225 watts
Satellites - 75 watts x 2
Total - 525 watts
Driver Size Subwoofer - 16.51 cm x 1
Soundbar - (5.8cm x 9cm) x 3
Satellites - (5.2cm x 7.5cm) x 2
Impedance: Subwoofer - 4
Soundbar - 8
Satellites - 8
Line input 3.5mm, Optical IN, HDMI (ARC)
Max supported memory size (USB) 32GB
Product Dimension (W x D x H) Subwoofer: 190 x 306 x 367mm
Soundbar: 960 x 100 x73mm
Satellites：73 x 100 x 190mm
