Pure Power Tools PP3000R User manual

OPERATOR’S MANUAL
PP3000R

2
INTRODUCTION
4 Using the Operator’s Manual
4 Identication Numbers
SAFETY
5 Safety Warnings
5 Hazard Symbols
6 Safety Information
8 Connection to Home Power Supply
DESCRIPTION
10 Description
11 Control Panel
CONTROL FUNCTION
12 3-in-1 switch knob
12 Oil warning light (red)
13 Overload indicator light (red)
13 AC pilot light (green)
14 DC protector
14 Engine smart control (ESC)
15 Fuel tank cap
15 Fuel tank cap air vent knob
15 Ground (Earth) terminal
PREPARATION
16 Fuel
16 Engine oil
17 Pre-operation check
OPERATION
19 Starting the engine
20 Stopping the engine
21 Alternating Current (AC) connection
21 Battery Charging
23 Application range
TABLE OF CONTENTS

3
MAINTENANCE
25 Maintenance
27 Spark plug inspection
28 Carburetor adjustment
28 Engine oil replacement
29 Air lter
30 Mufer screen and spark Arrester
31 Fuel tank lter
31 Fuel lter
STORAGE
32 Drain the fuel
33 Engine
TROUBLESHOOTING
32 Engine won’t start
34 Generator won’t produce power
34 Specications
35 Wiring
PARALLEL FUNCTION
36 Parallel function instructions
WARRANTY
37 Emissions Warranty Statement
TABLE OF CONTENTS

4
USING THE OPERATOR’S MANUAL
The operating manual is an important part of your generator. It should
be read thoroughly before initial use, and referred to often to make
sure adequate safety and service concerns are being addressed.
Reading the operator’s manual thoroughly will help avoid any personal
injury or damage to your machine. By knowing how best to operate
this machine you will be better positioned to show others who may
also operate the unit.
This manual contains information for the complete range of
generators, and was written to take you from the safety requirements
to the operating functions of your machine. You can refer back to
the manual at any time to help troubleshoot any specic operating
functions, so store it with the machine at all times.
Attention: Read through the complete manual
prior to the initial use of your generator.
INTRODUCTION
RECORD IDENTIFICATION NUMBERS
If you need to contact an Authorized Dealer or Customer Service line
(1-866-770-1711) for information on servicing, always provide the
product model and identication numbers.
You will need to locate the model and serial number for the machine
and record the information in the places provided below.
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identication Numbers
Model Number:
Serial Number:

5
The safety alert symbol ( ) is used with a signal word (DANGER,
CAUTION, WARNING), a pictorial and/or a safety message to alert
you to hazards.
DANGER you WILL be KILLED or SERIOUSLY HURT if you don’t
follow instructions.
WARNING you CAN be KILLED or SERIOUSLY HURT if you don’t
follow instructions.
CAUTION you CAN be HURT if you don’t follow instructions
NOTICE your generator or other property could be damaged if you
don’t follow instructions.
Save these Instructions
Safety Warnings
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
Hazard Symbols and Meanings
SAFETY
explosion
kickback read manual
fire electric shock
toxic fumes

6
SAFETY INFORMATION
Read and understand this owner’s manual before operating your
generator. It will help you avoid accidents if you get familiar with your
generator’s safe operation procedures.
WARNING
Generator exhaust contains carbon monoxide, a
poisonous gas that can kill you.
You CANNOT smell or see this gas.
• Use the generator outdoors, away from open windows, vents, or
doors that could allow the carbon monoxide gas to come indoors.
Keep the generator at least 1 meter (3 feet) away from any
structure or building during use.
• NEVER use a generator indoors, including in homes, garages,
basements, crawl spaces, and other enclosed or partially-
enclosed areas, even with ventilation. Opening doors and
windows or using fans will not prevent carbon monoxide build-up
in the home.
• NEVER use a generator in enclosed or partially-enclosed
spaces. Generators can produce high levels of carbon monoxide
very quickly. When you use a portable generator, remember that
you cannot smell or see carbon monoxide. Even if you can’t smell
exhaust fumes, you may still be exposed to carbon monoxide.
• NEVER operate the generator in an explosive atmosphere, near
combustible materials or where ventilation is not sufcient to carry
away exhaust fumes. Exhaust fumes can cause serious injury or
death.
• If you start to feel sick, dizzy, or weak while using a generator, get
to fresh air RIGHT AWAY. DO NOT DELAY. The carbon monoxide
from generators can rapidly lead to full incapacitation and death.
• If you experience serious symptoms, get medical attention
immediately. Inform medical staff that carbon monoxide poisoning
is suspected. If you experienced symptoms while indoors, have
someone call the re department to determine when it is safe to
re-enter the building.
SAFETY

7
WARNING
Fuel and its vapors are extremely ammable and
explosive.
Fire or explosion can cause severe burns or death.
WHEN ADDING OR DRAINING FUEL
• Observe all safety regulations for the safe handling of fuel.
Handle fuel in safety containers. If the container does not have a
spout, use a funnel.
• Do not overll the fuel tank, leave room for the fuel to expand.
• Do not rell fuel tank while the engine is running. Before refueling
the generator, turn it off and let it cool down. Gasoline spilled on
hot engine parts could ignite.
• Fill the tank only on an area of bare ground. While fueling the
tank, keep heat, sparks and open ame away. Carefully clean up
any spilled fuel before starting engine.
• Always ll fuel tank in an area with plenty of ventilation to avoid
inhaling dangerous fumes.
• NEVER store fuel for your generator in the home. Gasoline,
propane, kerosene, and other ammable liquids should be stored
outside of living areas in properly-labeled, non-glass safety
containers. Do not store them near a fuel-burning appliance, such
as a natural gas water heater in a garage. If the fuel is spilled or
the container is not sealed properly, invisible vapors from the fuel
can travel along the ground and can be ignited by the appliance’s
pilot light or by arcing from electric switches in the appliance.
SAFETY
WARNING
THERE IS A PERMANENT CONDUCTOR BETWEEN THE
GENERATOR (STATOR WINDING) AND THE FRAME.

8
SAFETY

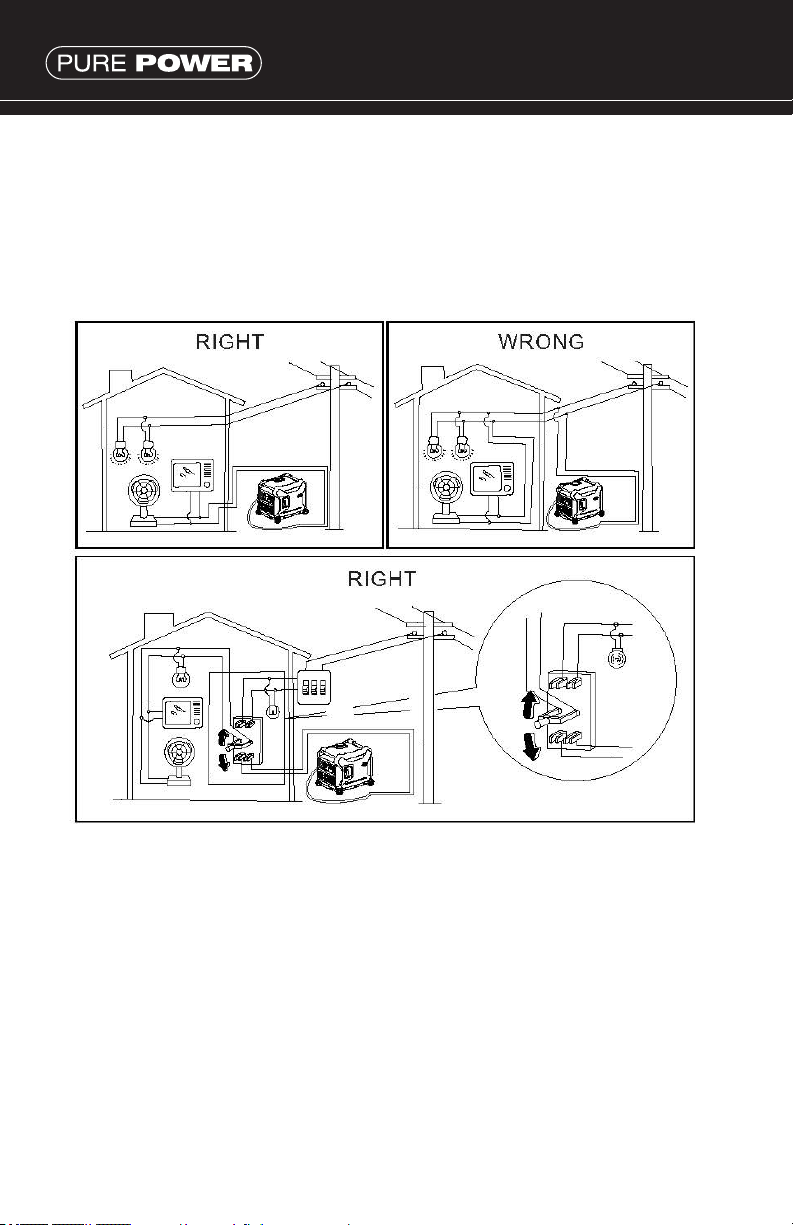

CONNECTION TO A HOME POWER SUPPLY
If the generator is to be used as standby home power supply the
connection is to be performed by a qualied electrician. When loads
are connected to the generator, carefully check whether electrical
connections are safe and reliable. Any improper connection may
cause damage to the generator or cause a re.
• Keep generator at least 3ft (1m) away from buildings or other
structures.
• Only operate generators in a dry, well ventilated area.
• Keep exhaust pipe clear of foreign objects.
• Keep generator away from open ame. No Smoking!
• Keep generator on a stable and level surface.
• Do not block generator air vents with paper or other material.
• Do not place any heavy objects on the generator.
THE GENERATOR (STATOR WINDING) IS ISOLATED FROM THE
FRAME AND FROM THE AC RECEPTACLE GROUND PIN.
ELECTRICAL DEVICES THAT REQUIRE A GROUNDED
RECEPTACLE PIN CONNECTION WILL NOT FUNCTION IF THE
RECEPTACLE GROUND PIN IS NOT FUNCTIONAL.

9
SAFETY
DANGER
Do not use indoors.
DANGER
Keep the machine clean and avoid spilling combus-
tibles including gasoline on it.
WARNING
Do not use in a wet condition.
WARNING
• Turn the generator “OFF” when adding fuel.
• Keep children and pets away from the area of operation. Do not
place ammable objects close to the exhaust when generator
operation. Keep it at least 1m away from inammables.
• The generating set must not be connected to other power
sources, such as the power company supply main. Protection
against electrical shock depends on circuit breaker specially
matched to the generating set. Due to high mechanical stresses
only, tough rubber sheathed exible cable (in accordance with
ICE 245 or the equivalent should be used. When using extension
lines or mobile distribution networks the total length of lines for
a cross section of 1.5 mm should not exceed 60 m; for a cross
section of 2.5 mm this should not exceed 100 m. Electrical
equipment (including lines and plug connections) should not be
defective.
• Utilize safe proper grounding. Use the ground wire with enough
electric ux. Ground wire diameter: 0.12mm/A.
• The generator surface has high temperature, avoid scalding. Pay
attention to the warnings on the generating set.

10
DESCRIPTION
1. Carrying handle
2. Fuel tank cap air vent knob
3. Fuel tank cap
4. Control panel
5. Recoil starter
6. Oil ller cap
7. Louver
8. Mufer
9. Spark plug maintenance cover
DESCRIPTION

11

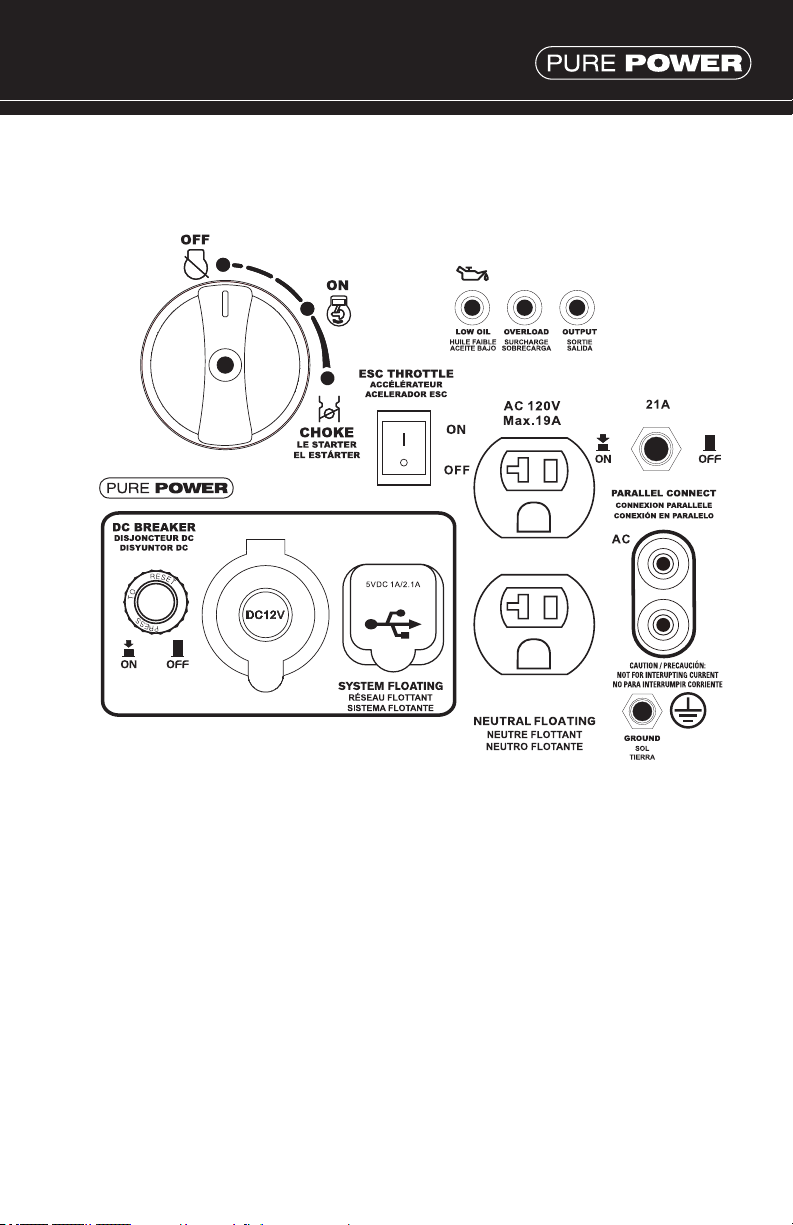

CONTROL PANEL
CONTROL PANEL
DESCRIPTION

12

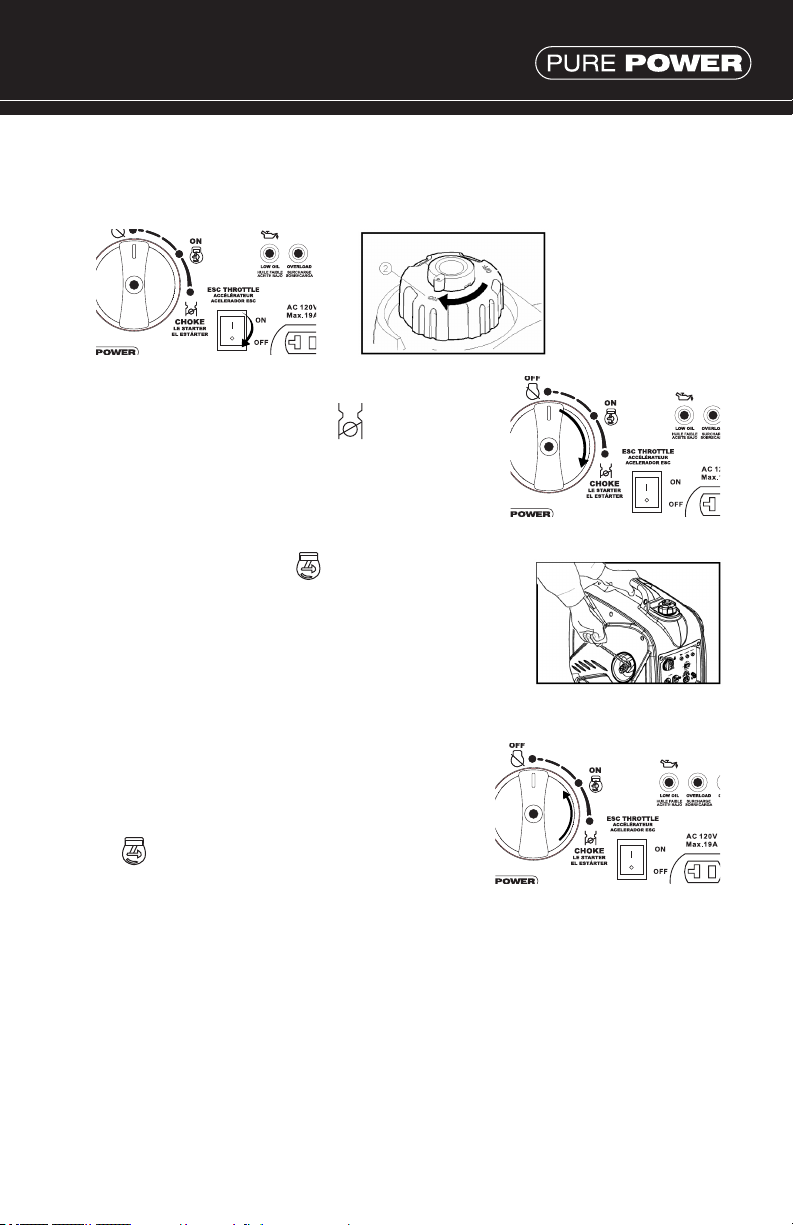

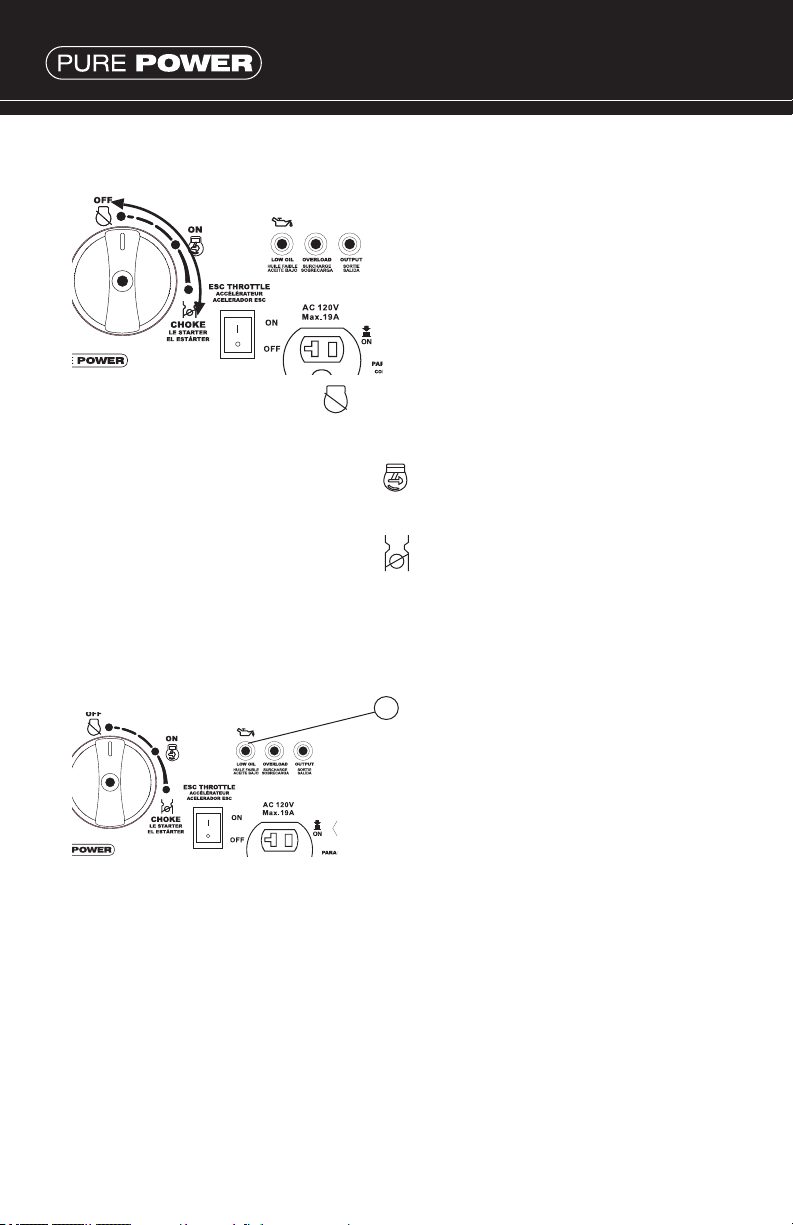

3-IN-1 SWITCH KNOB
(1) Engine switch\fuel valve “OFF”
Ignition circuit and Fuel is currently switched OFF. The engine will
not run.
(2) Engine switch\fuel valve\choke “ON”
Ignition circuit, Fuel, and Choke are ON. The engine can be
started.
(3) Engine switch\fuel valve\choke “CHOKE”
Ignition circuit and Fuel are ON. Choke is switched off. The engine
can be started ONLY if it is already warmed up.
OIL WARNING LIGHT (RED)
When the oil level falls below the lower level, the oil warning light (1)
comes on and then the engine stops automatically. Unless you rell
with oil, the engine will not start again.
TIP: If the engine stalls or does not start, turn the engine switch to
“ON” and then pull the recoil starter. If the oil warning light ickers for a
few seconds, the engine oil is insufcient. Add oil and restart.
CONTROL FUNCTION
1

13

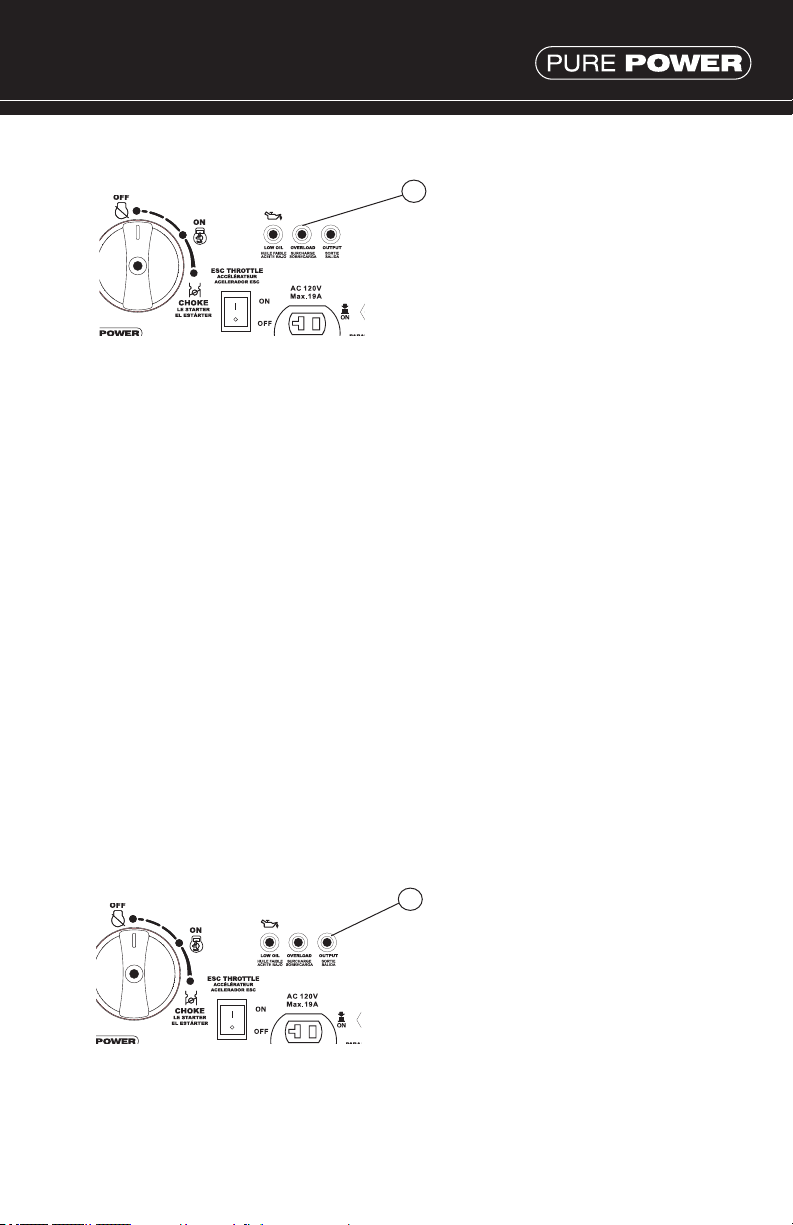

OVERLOAD INDICATOR LIGHT (RED)
The overload indicator light (1) comes on when an overload of a
connected electrical device is detected, the inverter control unit
overheats, or the AC output voltage rises. Then, the AC protector will
trip, stopping power generation in order to protect the generator and
any connected electric devices. The AC pilot light (Green) will go off
and the overload indicator light (Red) will stay on, but the engine will
not stop running.
When the overload indicator light comes on and power generation
stops, proceed as follows:
1. Turn off any connected electric devices and stop the engine.
2. Reduce the total wattage of connected electric devices within the
rated output.
3. Check for blockages in the cooling air inlet and around the control
unit. If any blockages are found, remove.
4. After checking, restart the engine.
TIP: The overload indicator light may come on for a few seconds at
rst when using electric devices that require a large starting current,
such as a compressor or a submergible pump. However, this is not a
malfunction.
AC PILOT LIGHT (GREEN)
The AC pilot light (1) comes on when the engine starts and produces
power.
CONTROL FUNCTION
1
1

14
DC PROTECTOR
The DC protector turns to “OFF” (2) automatically when electric device
being connected to the generator is operating and current above the
rated ows. To use this equipment again, turn on DC protector by
pressing its button to “ON” (1)
(1) “ON”
Direct current is output.
(2) “OFF”
Direct current is not output.
CAUTION
• Reduce the load of the connected electric device below the
specied rated output of the generator if the DC protector turns
off. If the DC protector turns off again, stop using the device
immediately and consult our company authorized dealer.
ENGINE SMART CONTROL (ESC)
(1) “ON”
When the ESC switch is turned to “ON”, the economy control unit
controls the engine speed according to the connected load. The
results are better fuel consumption and less noise.
(2) “OFF”
When the ESC switch is turned to“OFF”, the engine runs at the rated
r/min(4500r/min) regard-less of whether is a load connected or not.
TIP: The ESC must be turned to“OFF”when using electric devices
that require a large starting current, such as a compressor of a
submergible pump.
CONTROL FUNCTION

15

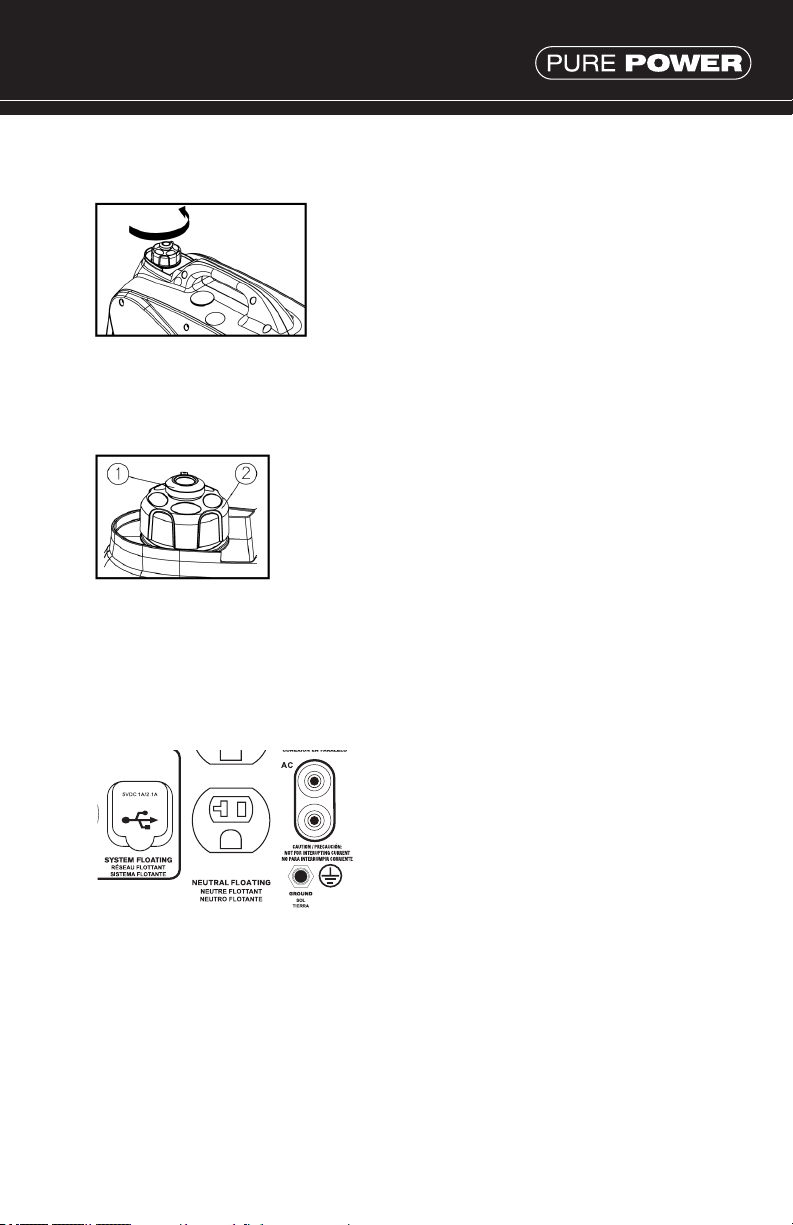

FUEL TANK CAP
Remove the fuel tank cap by turning it counterclockwise.
FUEL TANK CAP AIR VENT KNOB
The fuel tank cap (2) is provided with an air vent knob to (1) stop fuel
ow. The air vent knob must be turned to “ON”. This will allow fuel to
ow to the carburetor and the engine to run. When the engine is not in
use, turn the air vent knob to “OFF” to stop fuel ow.
GROUND (EARTH) TERMINAL
Ground (Earth) terminal (1) connects the earth line for prevention
of electric shock. When the electric device is grounded, always the
ground the generator.
CONTROL FUNCTION

16

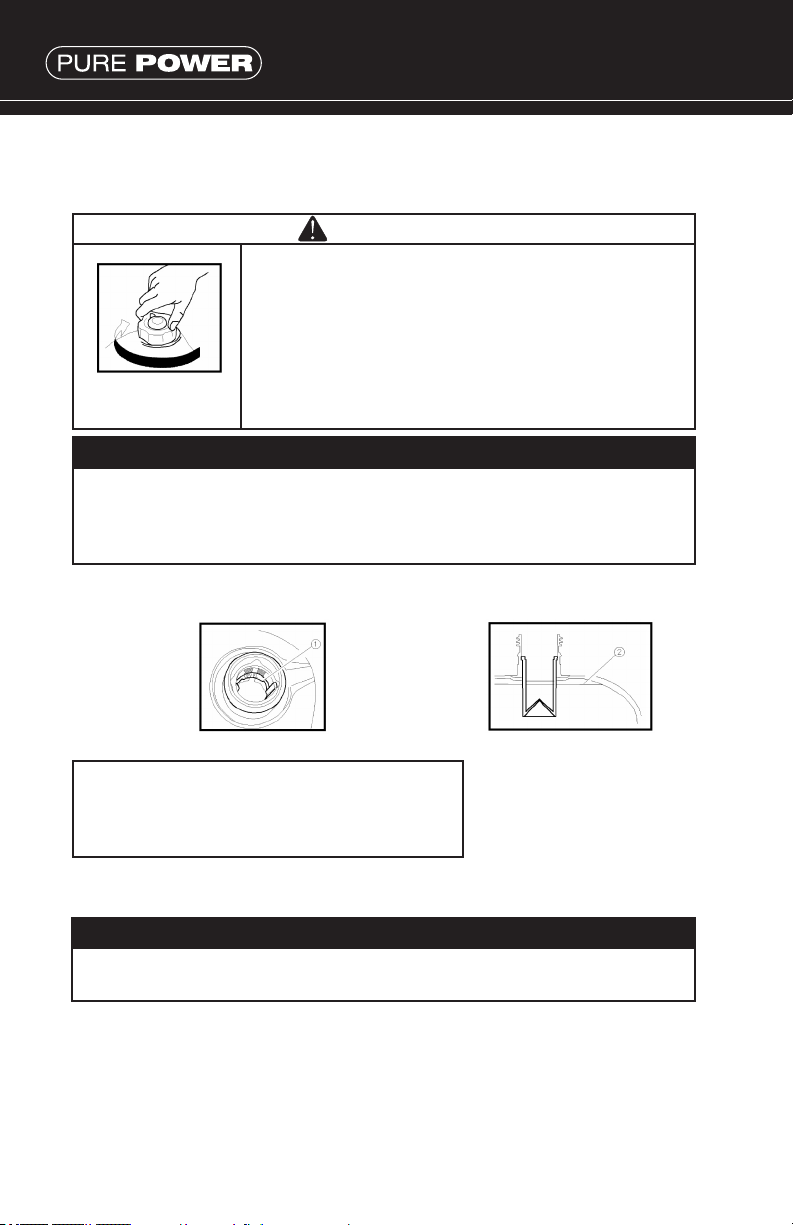

FUEL
DANGER
• Fuel is highly ammable and poisonous.
Check “SAFETY INFORMATION” carefully
before lling.
• Do not overll the fuel tank, otherwise it
may overow when the fuel warms up and
expands.
• After lling, make sure the fuel tank cap is
tightened securely.
NOTICE
• Immediately wipe off spilled fuel with a clean, dry, soft cloth, since
fuel may deteriorate painted surfaces or plastic parts.
• Use only unleaded gasoline. The use of leaded gasoline will
cause severe damage to internal engine parts.
Remove the fuel tank cap and ll the fuel into the tank up to the red
level.
(1) Red line (2) Fuel level
Recommended fuel:
Unleaded gasoline
Fuel tank capacity:
Total: 4.0L (1.06 US gal, 0.88 lmp gal)
NOTICE
• The generator has been shipped without engine oil. Do not start
the engine without lling with the sufcient engine oil.

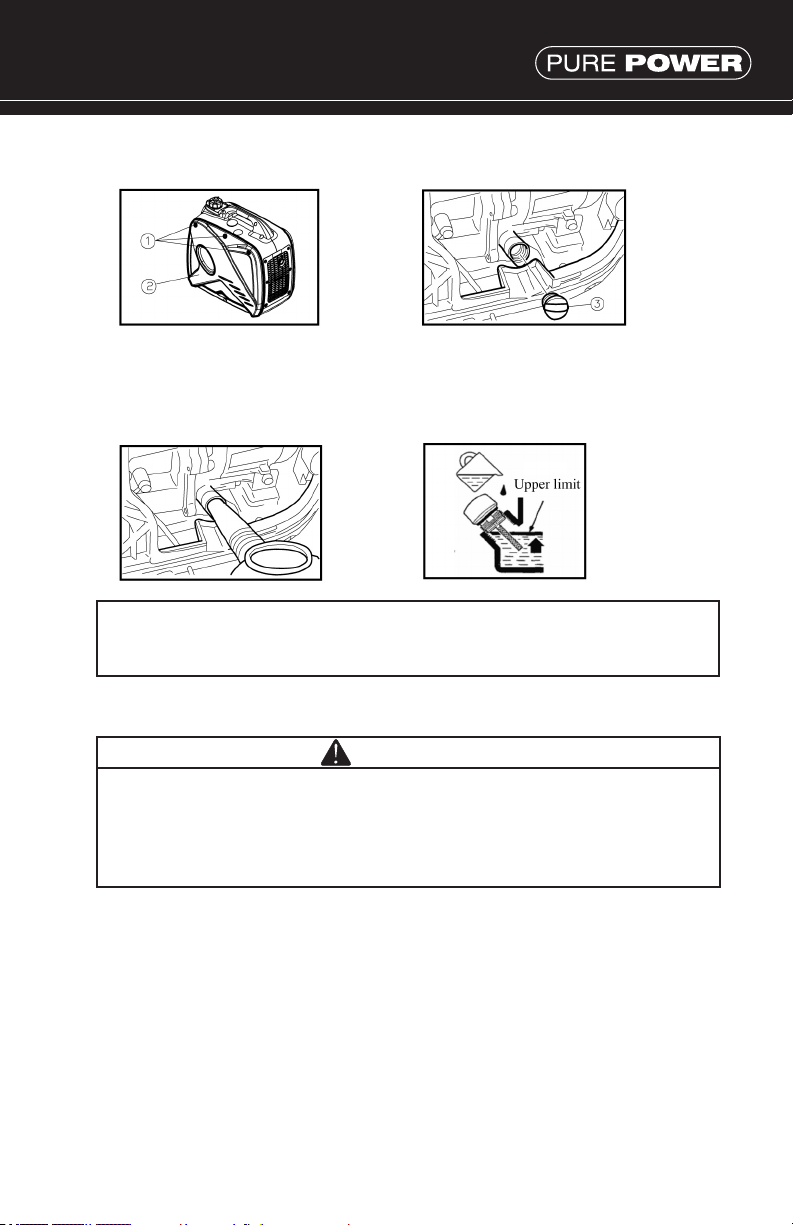

ENGINE OIL
1. Place the generator on a level surface.
2. Remove the screws (1), and then remove the cover (2).
PREPARATION

17
3. Remove the oil ller cap (3).
4. Fill the specied amount of the recommended engine oil, and then
install and tighten the oil ller cap.
5. Install the cover and tighten the screws.
Recommended engine oil: SAE SJ 15W-40
Recommended engine oil grade: API Service SE type or higher
Engine oil quantity: 450ml
PRE-OPERATION CHECK
WARNING
• If any item in the Pre-operation check is not working properly,
have it inspected and repaired before operating the generator.
• The condition of a generator is the owner’s responsibility. Vital
components can start to deteriorate quickly and unexpectedly,
even if the generator unused.
TIP: Pre-operation checks should be made each time the generator is
used.
Pre-operation check
Fuel (See page 16)
• Check fuel level in fuel tank.
• Refuel if necessary.
Engine oil
• Check oil level in engine.
• If necessary, add recommended oil to specied level.
• Check generator for oil leakage.
PREPARATION

18
WARNING
• Never operate the engine in a closed area or it may cause
unconsciousness and death within a short time. Operate the
engine in a well ventilated area.
• Before starting the engine, do not connect any electric devices.
NOTICE
• The generator has been shipped without engine oil. Do not start
the engine until lled with sufcient engine oil.
• Do not tilt the generator when adding engine oil. This could result
in overlling and damage to the engine.
TIP: The generator can be used with the rated output load at standard
atmospheric conditions.
“Standard atmospheric conditions”
Ambient temperature 25°
Barometric pressure 100kPa
Relative humidity 30%
The output of the generator varies due to change temperature, altitude
(lower air pressure at higher altitude) and humidity.
The output of the generator is reduced when the temperature, the
humidity and the altitude are higher than standard atmospheric
conditions.
Additionally, the load must be reduced when using in a conned area,
as generator cooling is affected.
PREPARATION

19
STARTING THE ENGINE
1. Turn the ESC switch to “OFF” (1).
2. Turn the air vent knob to “ON” (2).
3. Turn the 3-in-1 switch to “CHOKE” (3),
a. Ignition circuit is switched on.
b. Fuel is switched on.
c. Choke is switched off
TIP: The choke is not required to start a warm engine. Push the
choke knob in to the position “ON”.
4. Pull slowly on the recoil starter until
it is engaged, then pull it briskly.
TIP: Grasp the carrying handle rmly to prevent the generator from
falling over when pulling the recoil starter.
5. After the engine starts, warm up the
engine until the engine does not stop
when the choke knob is returned to the
“ON” position (4).
TIP: When starting the engine, with the ESC “ON”, and there is no
load on the generator:
• In ambient temperature below 0°C (32°F), the engine will run at the
rated r/min (4500r/min) for 5 minutes to warm up the engine.
• In ambient temperature below 5°C (41°F), the engine will run at the
rated r/min (4500r/min) for 3 minutes to warm up the engine.
• The ESC unit operates normally after the above time period, while
the ESC is “ON”.
OPERATION

20

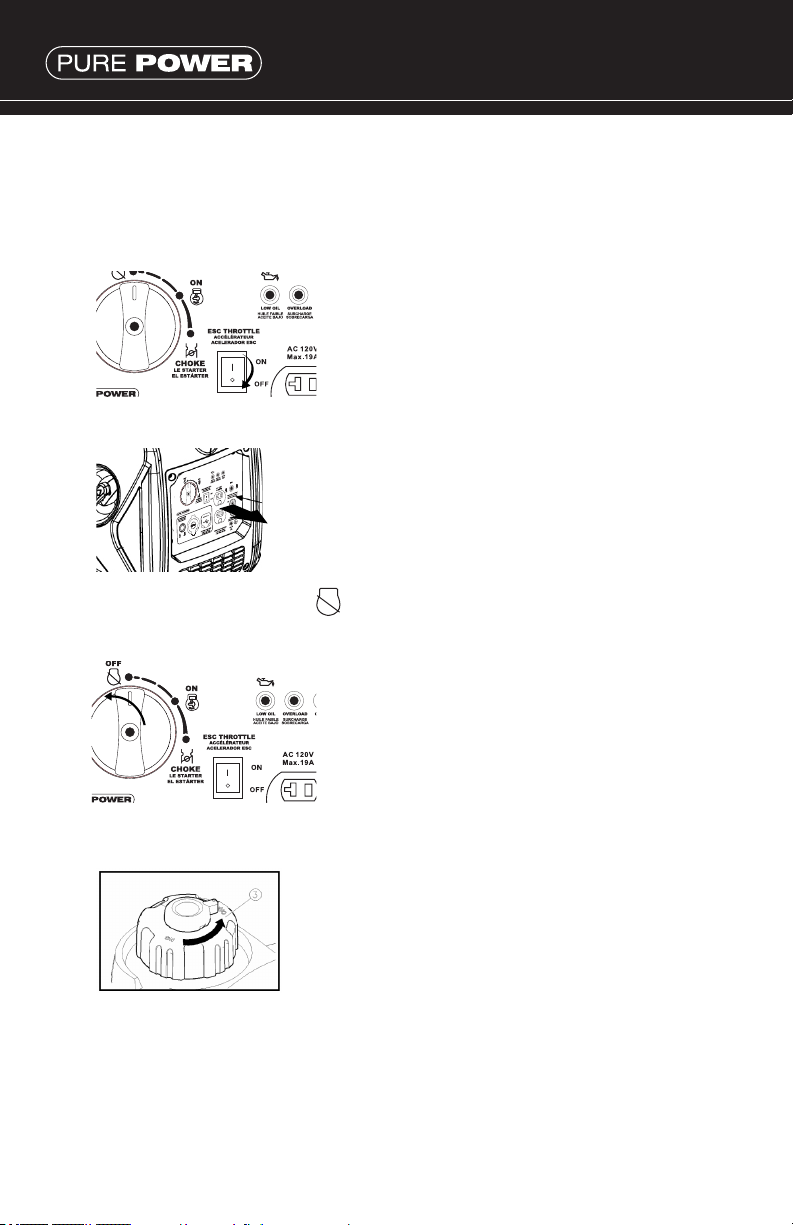

STOPPING THE ENGINE
TIP: Turn off any electric devices.
1. Turn the ESC to “OFF” (1).
2. Disconnect any electric devices.
3. Turn the 3 in 1 switch to “OFF” (2),
a. Ignition circuit is switched off.
b. Fuel is switched off.
4. Turn the fuel tank cap air vent knob to “OFF” (3) after the engine
has completely cooled down.
OPERATION
