PURE BY-UD07 User manual

Instructions for use
Gebruiksaanwijzing
Gebrauchsanweisung
Instrukcja użykowania
Naudojimo instrukcijos
ИНСТРУКЦИЯ К БЫТОВОМУ
Aromatic home diffusor
Aromatische diuser voor thuis
Aromadiusor für Ihr Zuhause
Dyfuzor zapachowy
Kvapų difuzorius namams
Ароматизатор-распылитель для бытового использования
Aromatic Home Diffuser

Aromatic Home Diffuser

4 TIMER SETTINGS 2 MIST STRENGHTS
8 LIGHT COLOURS AUTO SHUTOFF
2-IN-1 ULTRASONIC DIFFUSER & HUMIDIFIER
Diusing essential oils can help you relax, feel energised, uplift your mood,
or simply make your home smell amazing.
Our ultrasonic diuser uses high-frequency vibrations to emit a fine mist.
It’s one of the easiest ways to enjoy the aromatic benefits of Pure Essential Oils.
AROMATIC HOME DIFFUSER INSTRUCTIONS EN

Overview
USB power cable
Mist output
direction control
Buttons Rubber grip
Air outlet
Water tank
Water sensor
Mist plate
Splash guard
Max water
level marker
Power socket
Air inlet
Mist output
USB power adapter
Base
Indicator lights
Cover
AROMATIC HOME DIFFUSER INSTRUCTIONS EN

1. Turn counterclockwise to unlock
and open the cover to add water and
Pure Essential Oils.
Operating instructions
4. Put cover back and turn clockwise
to secure it.
2. Add cool water into the water
reservoir until it reaches the maxi-
mum-level indicator.
5. Use the provided USB cable
and adapter to connect the device
to power.
3. Add desired amount of Pure
Essential Oils to water reservoir
(generally 5–10 drops).
6. Press the Mist/Time button to start
the device. (Button will light up when
on.) Rotate top slightly to control and
adjust the direction of the mist.
AROMATIC HOME DIFFUSER INSTRUCTIONS EN

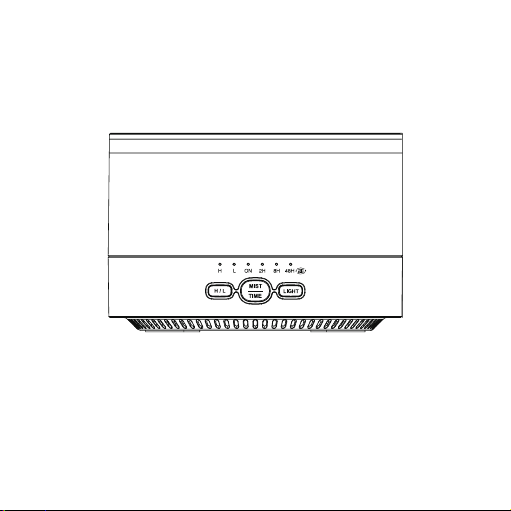

MIST/TIME button
Press the MIST/TIME button to start diusing. Press it repeatedly to change between time settings. Illuminated light will indicate
which time setting has been activated. The 48H setting activates intermittent mist: one minute on and give minutes o. Press the
MIST/TIME button once more after the 48H setting to turn the device o.
H/L button
For the best experience, use high-volume mist in larger rooms and low-volume mist in smaller rooms. The default setting is
high-volume atomisation mode. Switch between high-volume and low-volume mode by pushing the H/L button. Illuminated
light will indicate which mode has been activated. Switching between high and low mode does not change the time setting.
LIGHT button
Press the LIGHT button repeatedly to select desired light colour.
Press and hold LIGHT button for two seconds to turn lights o.
Safety precautions
Please follow the safety rules below while using the product:
Only use this diuser for the intended purpose.
Use only the USB cable and wall-plug adapter included in the package.
When cleaning the diuser, do not drain the water from the air outlet.
Do not move the product while it is operating. Unplug the diuser and empty the water tank before moving or storing.
Turn o the diuser immediately if there is any smoke or burning smell.
Do not exceed the max water level marker.
Functions
AROMATIC HOME DIFFUSER INSTRUCTIONS
1.
2.
3.
4.
5.
6.
EN

Place the diuser on a flat, stable, and solid surface out of reach of pets and children.
Refill with tap water, spring water, or distilled water.
Do not use or store the diuser in overly hot or cold environments.
. Diuser should not be operated by children unless supervised by an adult.
This product is not meant for medical purposes. DO NOT inhale the vapor directly from the mist outlet. Suitable for diusing
in the air.
Safety precautions
Before cleaning, turn o the device and unplug the adapter. When pouring out the water, it should be from the opposite side
of the air outlet.
To prevent oil build-up that aects mist output, clean the water tank and the mist plate at least twice a week with a cotton cloth
and mild cleanser. Rinse again with clean water and dry with a cloth.
Note: The use of corrosive chemicals may cause product damage.
When pouring out the water,
do not pour from the air outlet.
Pour from the opposite side.
Air outlet
AROMATIC HOME DIFFUSER INSTRUCTIONS
7.
8.
9.
10.
11.
EN

100% Satisfaction Guarantee
If a defect occurs under normal usage and within 12 months from date of purchase, it will be eligible for exchange.
Call UK 0800 032 0562* / IE 1800 558 502* and one of our friendly Wellness Representatives will be happy to assist you.
This guarantee is not valid if the defect is due to accidental damage, misuse, neglect, alteration, or any damage caused
by using other accessories not included in the package.
Product specifications
*Monday through Friday from 08:00 am until 01:00 pm freephone number for landline users. For calls from mobile phones, costs may occur.
AROMATIC HOME DIFFUSER INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Name: Aromatic Home Diuser
Model: BY-UD07
Size: 150.3 mm x 150 mm x 100.8 mm
Material: Polypropylene
Water tank capacity: 300±10 ml
Application area: 50 m²
Timed mode: continuous mode 2H/8H, intermittent mode about 48H (1 minute on, 5 minutes o)
High and low atomisation modes: two mist output modes are available
Eight light colours, product lights can be turned o individually
Automatic protection function when water reservoir is empty
Power supply: DC5V 1W
EN

Troubleshooting
Cause(s)
1. Insucient water.
2. Improper power cable connection.
Status
Startup failure/
early shutdown
Solution(s)
1. Fill water to the max water level marker.
2. Unplug the wall-plug adapter and reset carefully.
Water level exceeds the maximum
water level marker. (Mist failure but
lights are normal.)
No mist or abnormal mist 1. Ensure that the water level does not exceed the
maximum water level marker.
2. Confirm that the added water is tap water or
distilled water.
No air flow through the air outlet.
Water leakage
1. The air inlet may be blocked. Check to make sure
there is nothing blocking the inlet and that the
diuser is placed on a hard, flat surface.
2. Check the fan condition. If it is abnormal, please
call our service-hotline.
1. The cover is not closed, locked, or
installed correctly.
2. The temperature is too low or the
humidity is too high.
3. There is water overflow.
4. The splash guard is not installed
correctly.
1. Please refer to the cleaning and maintenance
instructions for cleaning.
2. Remove debris that is blocking the air inlet.
(Debris may aect the spray volume.)
1. Replace/reinstall cover.
2. Adjust the room temperature or humidity.
3. Wipe the diuser thoroughly to
ensure that the device is dry, then restart
the device.
4. Reinstall the splash guard so the umbrella is
directly over the mist plate.
1. The mist plate is oily.
2. The air inlet is covered with dust.
AROMATIC HOME DIFFUSER INSTRUCTIONS EN
