PureLink MPX 50 User manual

MPX 50 User Manual
Version
：
1.
1

MPX 50 HD Media Player
-
1
-
Contents
Front and Rear panel ....................................................................................................................................... - 3 -
Remote Control ................................................................................................................................................ - 4 -

MPX 50 HD Media Player
-
2
-
1
MPX50 HD Media Player Instructions
Safety guide:
●. No user serviceable parts inside, do not open case.

MPX 50 HD Media Player
-
3
-
Front and Rear panel
The front panel provides the IR receiver and LED indicator. USB port and SD card slot are on the right.
Five buttons from up to down are: on/off, next, down, return, and OK. When power on, LED light becomes
red.
From left to right: 5.2V DC, AV output, VGA output, OPTICAL and HDMI output.
Please connect the TV with TV cable. For a better effect, please use HDMI cable to connect. Also the
device supports VGA output.
Po er On/Off
Menu Navigation
USB Slot
SD Slot
IR Receiver
LED Indicator
Po er Input
Analog stereo audio, composite video output
VGA output
Optical audio output (future ready)
HDMI output

MPX 50 HD Media Player
-
4
-

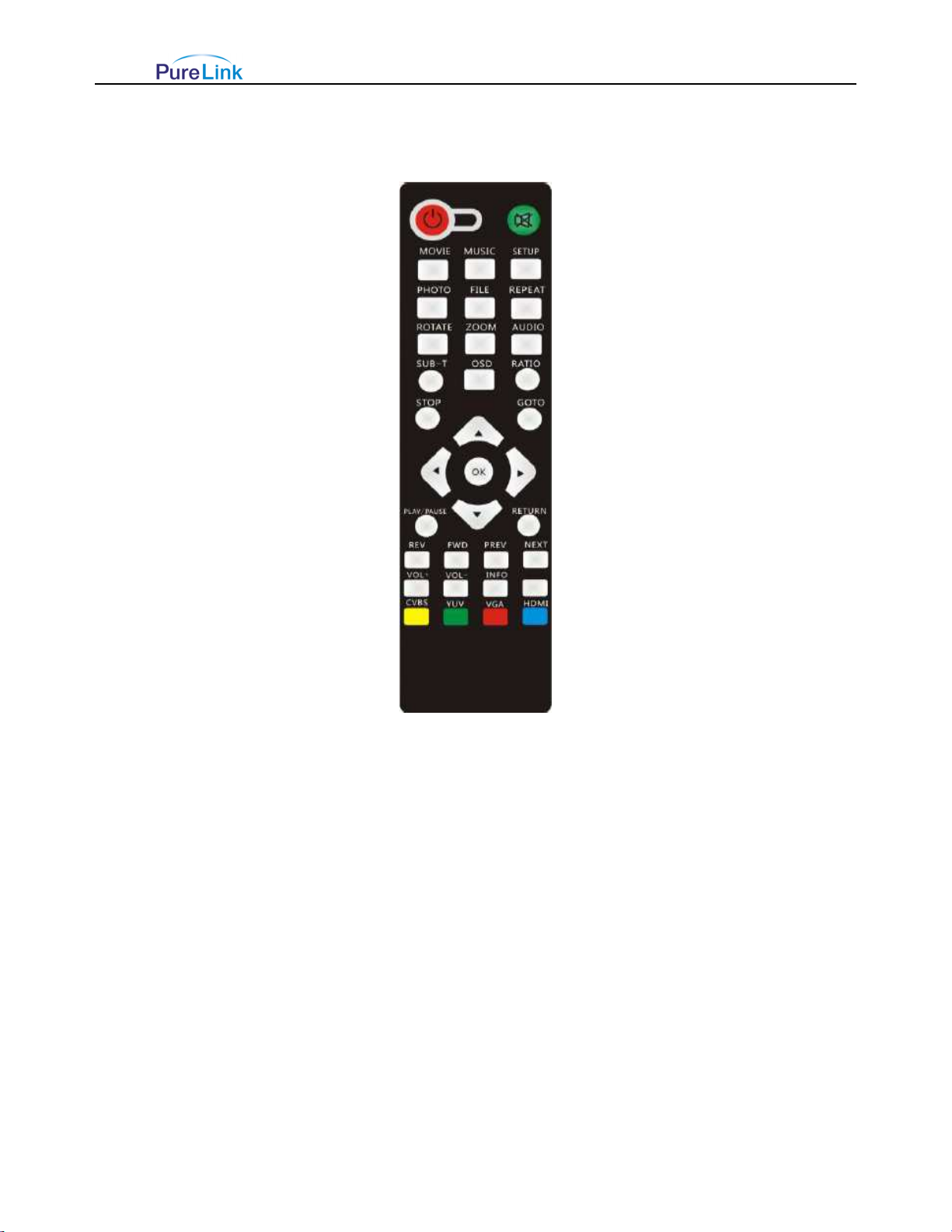

Remote Control
POWER: on/off key. Toggle between standby and on
MUTE: Toggle audio mute
Info: Provides detailed information about current playback file. Toggle to clear.
PREV,NEXT：Starts previous or next file.
REV,FWD: backward or forward at 1.5x, 2x, 4x, 8x, 16x, 32x
Return: Stops current file and displays OSD with current file folder.
Setup: Displays Settings OSD. Language, Screen Saver, Video output mode, Audio output mode, Auto
Play, Auto Detect HDMI, Restore Auto Default Setting.
OK: Play or confirm key.
Ratio: Select screen ratios: Full Screen, Original File Size, 4:3, 16:9, Fit View
OSD: display control menu when playing movies, music, or picture.
Audio: Select Mono L, Mono R, or Stereo output
VOL- and <VOL+: Adjust the output volume.

MPX 50 HD Media Player
-
5
-
SUB-T: Toggle subtitle On/Off
Zoom: Zoom in the picture or video.
Rotate: Rotate the pictures
GO-TO: Set up the start point time for playing video.
Repeat: Repeat settings: Repeat Once, Repeat One, Repeat All, Repeat Random
Movie, Music, File, Photo: Shortcut to relative folder.
CVBS: Select AV output. Note: This will disable the other video outputs.
YUV: Note: This device does not support YUV
VGA: Select VGA output. Note: This will disable the other video outputs.
HDMI: Selects HDMI output. Note: This will disable the other video outputs.
Setup
Setup allows you to determine the default startup file type under Auto Play, e.g. videos, pictures,
music.

MPX 50 HD Media Player
-
6
-
Video
As described in the Setup section, it is possible to have the MPX50 automatically start playing videos
at the point you insert an SD or USB drive containing videos.
Photos / Pictures
As described in the Setup section, it is possible to have the MPX50 automatically start playing a
picture slide sho at the point you insert an SD or USB drive containing pictures.
Music
Click Music icon and press <Ok> to enter or press Music button on remote. Music can be chosen from
USB or SD card:
Enter into USB Device or smart card, all files and music can be seen. Choose one music and press <OK>
to play.

MPX 50 HD Media Player
-
7
-

MPX 50 HD Media Player
-
8
-

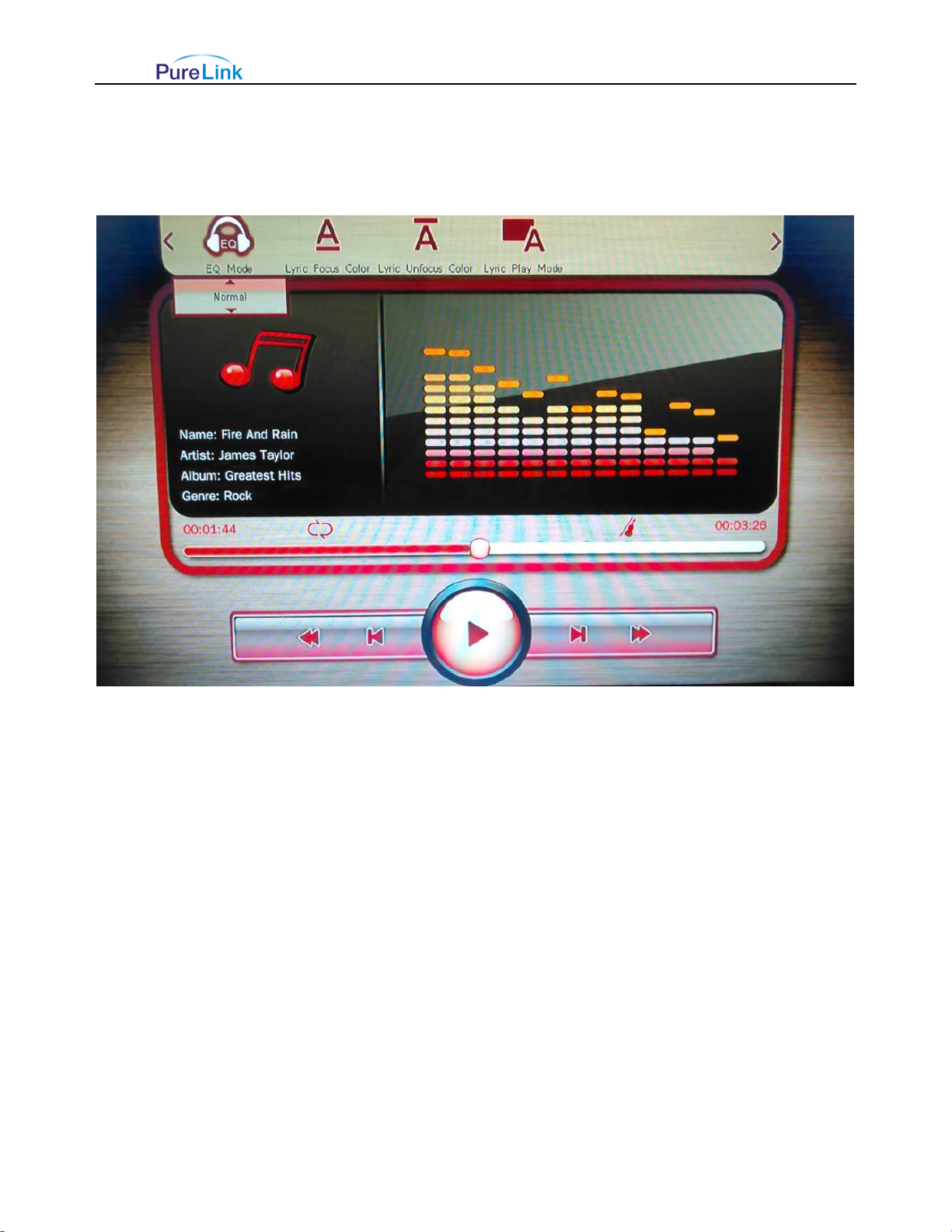

When playing, press <OSD> button on remote and a control bar will be shown as below:
EQ mode, Lyric focus color, lyric unfocus color, and lyric play mode can be chosen.
NOTE:
1. After press< OSD> button without any other operations, the control bar will disappear only <Return>
button has pressed. It will not affect the continuous play. 9 of 14

MPX 50 HD Media Player
-
9
-
2. The device supports lyric display if music file has accompanying lyric file..
For example:
Song name: Hero.mp3
Lyric name: Hero.lyc
Or no lyric will be shown only wave stripe
3. The device supports background music function. Press music icon and choose one song to play, then
press< Photo>on remote to choose any photo to watch. At the moment playing music while watching
photos. Press<Stop> button to stop background music.
Background music is loop playback. Music and photos can be stored in the same disc or not.
4. FILE
Click File icon and press<Ok>to enter or press File button on remote. Files can be chosen from USB or
SD card:
Enter into USB Device or smart card, all files can be seen. Choose any file and press <OK> to play.
A file with “！”in front means the player does not support this format.
setting
Click setting icon and press<Ok>to enter or press <Setup>button on remote.

MPX 50 HD Media Player
-
10
-
Language
The player supports Simplified Chinese, traditional Chinese, English, Russian, Portuguese, Spanish,
Korean, Japanese etc
Screen saver
Set time for when screen saver appears. The screen saver is for when player is not playing video or
pictures, audio, or during audio playback. You can turn off the screen saver as well.
Video Output Mode
Set video output format
PAL
NTSC
HDMI
VGA
Audio output mode
Set Audio Output to SPDIF LPCM, or RAWDATA
Autoplay
Off
Movies
Music
Photos
Auto play DVD
NA
Restore default setting
Restore all parameters to the factory state.
RTCTIMER Setup
The device can set the system time in order to auto play/off.
AUTO POWER SETUP PAGE
Set the time to auto on/off and 4 groups of time can be set. Workday can be chosen from every day,
except weekend, and except Sunday. The time format is 24 hours. 13 of 14

MPX 50 HD Media Player
-
11
-
Specifications
1. Supports plug-in large capacity SATA or IDE hard disk or USB disk, plug and play.
2. Supports SD card.
Video Output
•NTSC
•PAL
•VGA 720P
•HDMI720P
•1080P high definition video output.
Video File Formats
•RMVB/RM（RV8/9）
•h.263
•h.264（MOV/MP4/M4V）
•MPEG-1/2(VOB)
•MPEG-4(XVID/DIVX)
•WMV7/VC-1
•MKV
•AVI
•TS/TP
•VOB
•PMP
•FLV 1920*1080P
Audio Formats
•MP3
•WMA
•AFE
•FLAC
•OGG
•APE
•AAC
•AC3 and DTS
Photo/Pictures
•JPEG
•GIF
•BMP
•PNG
Language Support
•Simplified/ Traditional Chinese
•Japanese

MPX 50 HD Media Player
-
12
-
•Korean
•Russian
•Spanish
•English
Subtitle
•multi-track and multi-subtitle video file.
•Switching soundtrack and subtitle at will.
External 5.2V/1.5A DC powers supply.
