PureLink HX-6600 User manual

Copyright 2007 Dtrovision LLC. 1
HX-6600/8800
HDMI Matrix Router
User Manual

Copyright 2007 Dtrovision LLC. 2
Table of Contents
1. BASIC UNDERSTANDINGS OFTHE PRODUCT ................................................................................................3
1-1 CAUTIONS FOR SAFETY............................................................................................................................................3
1-2 PACKAGE INCLUDES.................................................................................................................................................4
1-3 FEATURES OF THE PRODUCT....................................................................................................................................4
1-4 NAMES AND FUNCTIONS OF EACH PART ...................................................................................................................5
1-5 INSTALLATION ENVIRONMENTS AND METHODS........................................................................................................5
2. FUNCTIONS OFTHE PRODUCT...........................................................................................................................6
2-1 FEATURES OF THE PRODUCT (THREE STACK CONFIGURATION)..............................................................................6
2-2. SYSTEM OPERATION CONFIGURATION DIAGRAM.....................................................................................................8
2-3 SPECIFICATIONS OF THE PRODUCT..........................................................................................................................9
3. HOW TO USE .............................................................................................................................................................9
3-1 HOW TO SET CHANNELS ...........................................................................................................................................9
3-2 PRODUCT NUMBER SETTING ..................................................................................................................................10
3-3 RS-232C(COM PORT) COMMUNICATION SETTING .............................................................................................. 11
4. COMMUNICATION CODE CONFIGURATION................................................................................................. 11
4-1 CONFIGURATION OF RS-232C COMMUNICATION CODE......................................................................................... 11
4-2 LAN (TCP/IP) COMMUNICATION SETTING............................................................................................................14
4-3 CONNECTOR PIN ASSIGNMENT..............................................................................................................................17
5 WARRANTY INFORMATION ................................................................................................................................18
5.1 ONE YEAR WARRANTY............................................................................................................................................18
5-2WARRANTY LIMITATION AND EXCLUSION ..............................................................................................................18
5-3 RETURNS................................................................................................................................................................18

Copyright 2007 Dtrovision LLC. 3
1. Basic understandings of the product
1-1 Cautions for safety
•All the safety and user manual should be read before the appliance is operated.
•The safety and operating instructions should be retained for future reference.
•Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
•Do not use this equipment near wet place.
•This product should be operated only from the type of power sources indicated on the marking label. If
you are not sure of the type of power supplied to your home, consult your local power company. For
equipment intended to operate from battery power, or other source, refer to the user manual.
•This equipment may be equipped with a 3 wire grounding-type plug, a plug having a third (grounding)
pin. This pin will only fit in to a grounding type power outlet. This is a safety feature. If you are unable to
insert the plug in to the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug.
•Opening in the cabinet are provided for ventilation and to ensure reliable operation of the equipment
and to protect it from overheating. The openings should never be blocked.
•Do not use any damaged power cords or plugs, or loosed outlets, this may cause electrical shock or
fire.
•Do not put heavy articles such as other equipments on this product.
•Keep it away from liquid, magnetic, inflammable substances.
•Turn off power before you insert or take out flash card. Otherwise, the flash card can be damaged.
•It is suggested to perform the product three minutes after the power is on for a precise measurement
and analysis.

Copyright 2007 Dtrovision LLC. 4
1-2 Package Includes
•Main body: HX-6600 / 8800
•Power adapter: DC12V, 5A 60W
•RS232C cable
•Rack Ears
•User’s manual
•IR Remote Controller
1-3 Features of the product
HX-6600/8800 receives signals from HDMI output ports or equipments compliant to HDMI Ver. 1.3, and
sends them to multiple displays. It can receive up to HDMI signals by three-stack configuration and
connect to six ports.
•Compliant to HDMI v1.3, the next generation standard for A/V
•19” standard rack type case (3U)
•Imbedded monitor distribution function for all output channels
•Enhanced quality and color of digital signals
•External EDID read function, supports HDMI or DVI displays.
•Can use up to 32 HDMI sources in a 3 stack configuration (HX-8800)
Supporting Function
•Supports high resolution up to WUXGA(1920x1200), 480p~1080p
•Control through 4 different method
- Select directly with front push button
- Use IR remote controller
- Control method through RS-232C COM port
- Select by LAN (TCP/IP): optional
•It has an instantaneous noise protection circuit in input and output ports; therefore it can protect
expensive equipment from fault caused by noises (if any).
•Convenient to change firmware through direct update by PC.

Copyright 2007 Dtrovision LLC. 5
1-4 Names and functions of each part
< FRONT & BACK PANEL >
1-5 Installation environments and methods
For installation, we recommend the following environments.
•Below 85 F (30°C) of ambient temperature (Best condition)
•Install and operate in the environment below 60% of ambient humidity (Best condition)

Copyright 2007 Dtrovision LLC. 6
•Use it in the environment of free of vibrations and dusts and in good ventilation condition
•Recommend stabilized AC input power (Recommend to use AVR)
2. Functions of the product
2-1 Features of the product (Three Stack Configuration)
This equipment receives signals (8 input ports) from HDMI output ports or equipments compliant to HDMI
specification and sends out to through any of output ports. It can receive up to 32 input signals in a 3 stack
configuration and give out any of 8 output ports.
The output resolution in a 3 stacks configuration is also up to 1920 * 1200 and 1080p @60 Hz. The signals are
controllable manually or from remote computers through RS-232 or LAN communication.
System configuration (As for 3 stacks configuration)
Input: 32 channels
Output: 8 channels
Input and output configuration: [8 : 8] * 4 sets, [8 : 8] * 2 sets, [8 : 8] * 1 set.
Input and output connection: 1 output port can select any of 32 input ports. The connection is the shape of 32
input-32 output -> 16 input- 16 output -> 8 input - 8 output.

Copyright 2007 Dtrovision LLC. 7

Copyright 2007 Dtrovision LLC. 8
2-2. System operation configuration diagram
Operation configuration diagram of the matrix is shown in following picture.
Any of the HDMI or DVI input signals can be selected to each output port by external RS-232C or front panel
button.

Copyright 2007 Dtrovision LLC. 9
2-3 Specifications of the product
•Type of signals: TMDS signals, digital R.G.B. & Audio
•Data transmission band: up to 1.65Gbps (single link).
•Resolutions: WUXGA (1920*1200), 480p~1080i/p
•Output port control: Front panel button switch, IR remote controller, RS-232C port,
LAN (TCP/IP)
•Input-output port: input 6 / output 6 , input 8 / output 8
•Input-output connector: HDMI 19 pin female
•Power source: DC12V, 5A
•Power consume: 20 Watt
•Size (Width * Length *Height): 445 * 222 * 60 mm
•Weight: 3.0kg
3. How to use
3-1 How to set channels
If matrix switched ON, then preview buttons are displayed with 2 steps as follow.
If each preview button is lit, then the initialization is completed.
1. Initialization display
INPUTS FUNCTION CONTOL
1 2 3 4 5 6 7 8 CREATE PREVIEW ENTER CANCEL
CRE PRE ENT CAN
1 2 3 4 5 6 7 8 EDID RESET
OUTPUTS EDI RST
2. Channel display and input selection
After the completion of the initialization, preview is lit.
INPUTS FUNCTION CONTOL
1 2 3 4 5 6 7 8 CREATE PREVIEW ENTER CANCEL
CRE PRE ENT CAN
1 2 3 4 5 6 7 8 EDID RESET
OUTPUTS EDI RST

Copyright 2007 Dtrovision LLC. 10
The functions of the switches are as follow.
•Main power switch: Matrix power on/off
•Remote controller receiver: receive infrared ray from remote controller
•Reset key: initialize the matrix
•Input key: select channel from 1 to 6
•Output key: select channel from 1 to 6
•Create (CRE) key: change input/output channel
•Preview (PRE) key: preview the status of current connection
•Enter (ENT) key: save current selection
•Cancel (CAN) key: cancel current selection
•EDID (EDI) key: read EDID data from display, which is connected to output ports
Switching channel by Push button
Input/output channel check:
Preview (PRE) button →Enter (ENT) button: present set channels are displayed in sequence
Input/output channel change
Create (CRE) button →Input button to be set →Output button (Multiple selection) →Enter (ENT) button: the
selection of the channels are changed
* In order to cancel, then press cancel button.
Example: CH# 1 input to 1,2,3,4 output same pictures
Create -> Input 1 -> Output 1,2,3,4 -> Enter
Save EDID data
EDID (EDI) button →Output button to be set →Input button to be set →Enter (ENT): read EDID data of
display and write to matrix (Should connected matrix output to display (HDTV) and display power on)
Switching Channel by Remote Control unit
Create ->IN ->1 ->OUT -> 1,2,3,4-> Enter
3-2 Product number setting

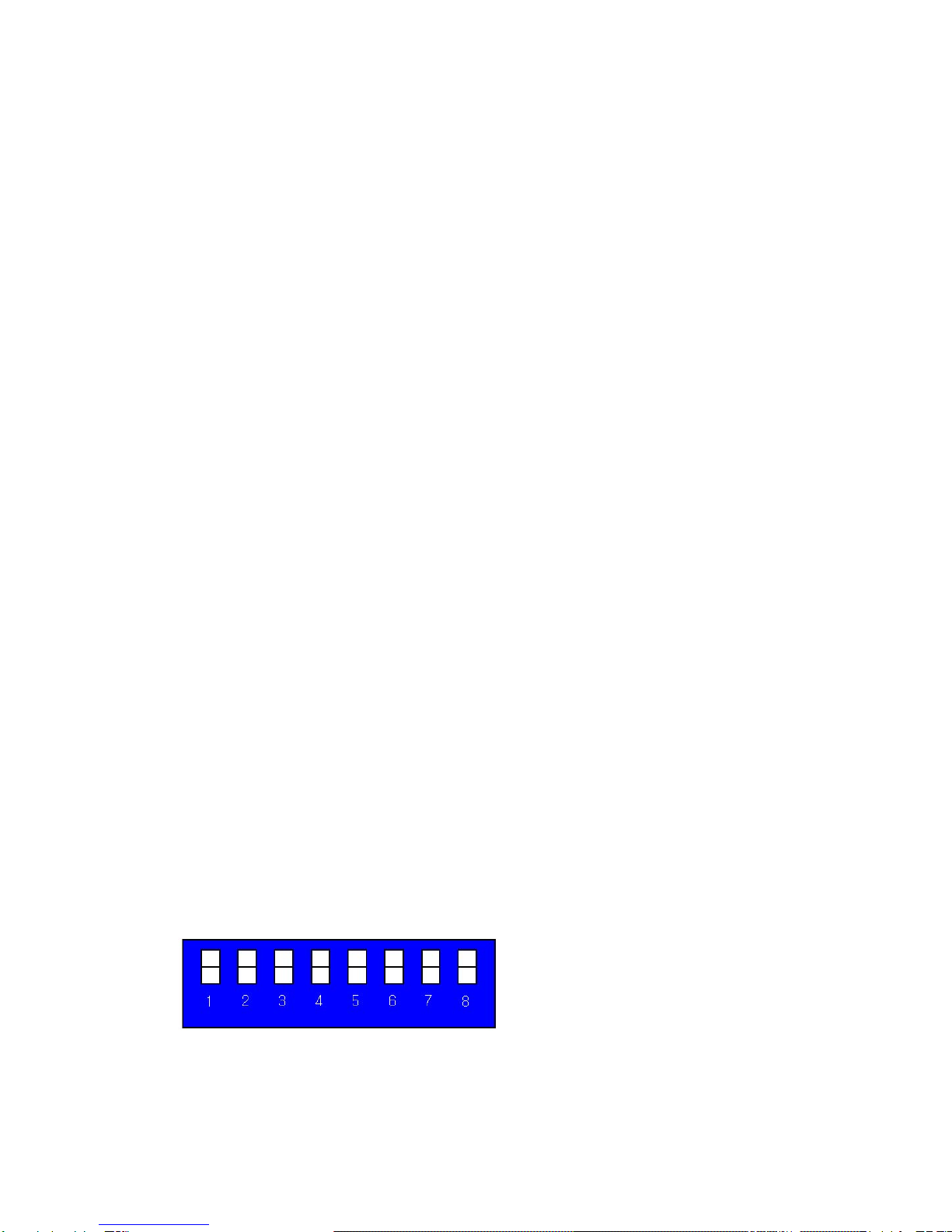

- Product ID setting (DIP switch)
•It sets each address of matrixes if many matrixes are used.
•It sets in binary values.
Ex)
Product ID = 01 (00000001b) -- 1 ON, 2 OFF, 3 OFF, 4 OFF, 5 OFF, 6 OFF, 7 OFF, 8 OFF,
Product ID = 10 (00001010b) -- 1 OFF, 2 ON, 3 OFF, 4 ON, 5 OFF, 6 OFF, 7 OFF, 8 OFF,
Product ID = 23 (00010111b) -- 1 ON, 2 ON, 3 ON, 4 OFF, 5 ON, 6 OFF, 7 OFF, 8 OFF
D0 D1 D2 D3 D4 D5 D6 D7
LSB MSB
•The product number is the value set in deep switches of the equipment and can be set in the values
of 1 ~ 255. The value “0” cannot set the channel.

Copyright 2007 Dtrovision LLC. 11
**The product ID is set number “1” at the time of its delivery (Factory Default).
3-3 RS-232C (COM PORT) communication setting
After booting the matrix, connect RS-232C cable and then
make communication settings as follows:
•Execute MiniTerm.exe or hyper terminal.
•Communication setting:
You may set port COM 1 ~ 4 or you may use all
available ports.
4. Communication code configuration
4-1 Configuration of RS-232C communication code
From Computer
Code (46Byte) Start Header (3Byte) | Product ID (2Byte) | Command (2Byte) | Data (38Byte) | Tail (1Byte)
Code Name Byte Data Function
Start Header 21h (!) Request Frame Start
Start Header 30h (0) Request Frame Start
Start Header 31h (1) Request Frame Start
Product ID 30h ~ 39h (DIP Switch Set) Product Number
Product ID 30h ~ 39h (DIP Switch Set) Product Number
Command
01 Input SW Assign
02 Input SW Assign Salvo
03 EDIE SW Assign
04 EDID SW Assign Salvo
10 Assignment Status Request
20 Reset
30 Firmware Version Request
40 RS232C Assign
Input Data10 30h ~ 39h Input Channel Select
Input Data1 30h ~ 39h Input Channel Select
Output First Data10 30h ~ 39h Output A Input Select Data
Output First Data1 30h ~ 39h Output B Input Select Data
Output Last Data10 30h ~ 39h Output N Input Select Data
Output Last Data1 30h ~ 39h Output O Input Select Data
Tail (End) 2Ah(*) Frame End

Copyright 2007 Dtrovision LLC. 12
From Matrix
Code (4Byte) Head (1byte) | Address (1Byte) | PN (1Byte) | Tail (1Byte)
Code Name Byte Data Function
Head (Start) 21h Reply Frame Start
Start Header 30h (0) Request Frame Start
Start Header 31h (1) Request Frame Start
Product ID 30h ~ 39h (DIP Switch Set) Product Number
Product ID 30h ~ 39h (DIP Switch Set) Product Number
PN 1 ~ 255 (DIP Switch Set) Product Number
Tail (End) 2Ah Frame End
Example of RS232 communication code when product ID is set to “01”.
INPUT SW ASSIGN: change Input 5 to three outputs (output 3, 4, 6)
Byte Header ID Command Number of
Output Input Output 1 Output 2 Output 3
ASCII ! 0 1 0 1 0 1 0 3 0 5 0 3 0 4 0 6
Hex 21h 30h 31h 30h 31h 30h 31h 30h 33h 30h 35h 30h 33h 30h 34h 31h 36h
Byte Tail
ASCII *
Hex 2Ah
INPUT SW ASSIGN SALVO: change all Input/output channels
Byte Header ID Command Output1 of
Input
Output2 of
Input
Output3 of
Input
Output4 of
Input
Output5 of
Input
ASCII ! 0 1 0 1 0 2 0 1 0 2 0 3 0 4 0 5
Hex 21h 30h 31h 30h 31h 30h 32h 31h 31h 30h 32h 30h 33h 30h 34h 30h 35h
Byte Output6 of
Input Tail
ASCII 0 6 *
Hex 30h 36h 2Ah
EDID SW ASSIGN : save EDID data of Output 5 to Input 1 and Input 2
Byte Header ID Command Number of
Output Output Input 1 Input 2 Tail
ASCII ! 0 1 0 1 0 3 0 2 0 5 0 1 0 3 *
Hex 21h 30h 31h 30h 31h 30h 33h 30h 32h 30h 35h 30h 31h 30h 33h 2Ah

Copyright 2007 Dtrovision LLC. 13
EDID SW ASSIGN SALVO: change all EDID data
Byte Header ID Command Input1 of
Output
Input2 of
Output
Input3 of
Output
Input4 of
Output
Input5 of
Output
ASCII ! 0 1 0 1 0 4 0 2 0 3 0 4 0 5 0 6
Hex 21h 30h 31h 30h 31h 30h 34h 30h 32h 30h 33h 30h 34h 30h 35h 30h 36h
Byte Input6 of
Output Tail
ASCII 0 1 *
Hex 30h 31h 2Ah
ASSIGNMENT STATUS REQUEST: check the status of present input/output channels
Byte Header ID Command Tail
ASCII ! 0 1 0 1 1 0 *
Hex 21h 30h 31h 30h 31h 31h 30h 2Ah
RESET: reset the matrix
Byte Header ID Command Tail
ASCII ! 0 1 0 1 2 0 *
Hex 21h 30h 31h 30h 31h 32h 30h 2Ah
FIRMWARE VERSION REQUEST: check the version of firmware
Byte Header ID Command Tail
ASCII ! 0 1 0 1 3 0 *
Hex 21h 30h 31h 30h 31h 33h 30h 2Ah
RS-232C ASSIGN: change RS-232C port selection (19200bps)
Byte Header ID Command Baud rate Data bit Stop bit Parity bit Tail
ASCII ! 0 1 0 1 4 0 0 4 0 0 0 0 0 0 *
Hex 21h 30h 31h 30h 31h 34h 30h 30h 34h 30h 30h 30h 30h 30h 30h 2Ah
Baud rate:
“ 00 ” : 1920 bps , “ 01 ” : 4800 bps , “ 02 ” : 9600 bps , “ 03 ” : 14400 bps , “ 04 ” : 19200 bps
“ 05 ” : 28800 bps , “ 06 ” : 38400 bps , “ 07 ” : 57600 bps , “ 08 ” : 76800 bps , “ 09 ” : 115200 bps
“ 10 ” : 250000 bps
Data bit :
“ 00 ” : 8 bit , “ 01 ” : 5 bit , “ 02 ” : 6 bit , “ 03 ” : 7 bit
Stop bit :
“ 00 ” : 1 bit , “ 01 ” : 2 bit
Parity bit :
“ 00 ” : disable , “ 01 ” : even parity , “ 02 ” : odd parity

Copyright 2007 Dtrovision LLC. 14
4-2 LAN (TCP/IP) communication setting
In order to control the matrix through LAN port first of all, internet IP should be set.
Set up as follows:
-Execute MultiTerm.exe or hyper terminal program
-RS-232 Communication setting for set the IP address.
After setting as above, please connect communication cable via RS232 and then matrix turn on
Press ‘C’ Key to update network configurations (1 or 2 second after matrix turned on)
If it does not show the follow Network Configuration Mode, please turn it off and on again.

Copyright 2007 Dtrovision LLC. 15
Set up IP Address
Dkey is displayed existing set information.
Gkey is input gateway IP.
Skey is input subnet mark
I key is input matrix IP
Hkey is input hardware address
If all inputs are completed, then exit the configuration by press Ekey.
Connect matrix to your network via LAN
1. Switching command at Internet Explorer
It is a receiving data to change channel.
Beginning with character train of “LCD.CGI”, “O 01 = I 6” means “Output 01 Input 6”, the sequences and sizes
of character train should be the same.
After execute reset, it should be connected again to server (switcher).
Channel switch
http://192.168.0.02/LCD.CGI?O01=I06&O02=I05&O03=I04&O04=I03&O05=I02&O06=I01 &Submit_=SEND
Initialization (Reset)
http://192.168.0.02/LCD.CGI?O01=I06&O02=I05&O03=I04&O04=I03&O05=I02&O06=I01 &Submit_=Reset
You can also see the commands at Internet Explorer

Copyright 2007 Dtrovision LLC. 16

Copyright 2007 Dtrovision LLC. 17
4-3 Connector Pin Assignment
Power Input
Part No. Pin No. Description Remarks
Power Jack(4P)
1 VCC( DC12V)
2 VCC(DC12V)
3 GND
4 GND
RS-232C Input
Part No. Pin No. Description Remarks
D-SUB 9 Pin Connector
1 Not used
2 Rx D
3 Tx D
4 Not used
5 GND
6 Not used
7 Not used
8 Not used
9 Not used
LAN Input
Part No. Pin No. Description Remarks
RJ-45 8 Pin Connector
1 Transmit data (+)
2 Transmit data (-)
3 Receive data(+)
4 Not used
5 Not used
6 Receive data(-)
7 Not used
8 Not used
HDMI Input
Part No. Pin No. Description Remarks
HDMI 19 Pin Connector
1 TMDS DATA 2P
2 TMDS DATA 2 Shield
3 TMDS DATA 2M
4 TMDS DATA 1P
5 TMDS DATA 1 Shield
6 TMDS DATA 1M
7 TMDS DATA 0P
8 TMDS DATA 0 Shield
9 TMDS DATA 0M
10 TMDS Clock P
11 TMDS Clock Shield
12 TMDS Clock M
13 CEC
14 RESERVED
15 DDC Clock
16 DDC DATA
17 GND
18 +5v
19 Hot Plug Detect

Copyright 2007 Dtrovision LLC. 18
5 Warranty Information
5.1 One Year Warranty
Dtrovision warrants this HDMI Matrix router to be free from defects in workmanship and materials, under
normal use and service for a period of one (1) year from the date of purchase from Dtrovision or its authorized
resellers.
If a product does not work as warranted during the applicable warranty period, Dtrovision shall, at its option
and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace
the defective item, or refund customer the purchase price paid for the defective product.
If the product is defective due to customer’s fault or a natural disaster, it is repaired at customer’s expense for
packing, delivery, part cost, and others.
5-2 Warranty Limitation and Exclusion
Dtrovision shall have no further obligation under the foregoing limited warranty if the product has been
damaged due to abuse or misuse.
•Did not follow the guideline of chapter 1 in this manual
•Misuse or connection with other equipments, which are not compatible
•Took service other than by or its authorized agents
•Natural disaster
•Customer’s fault
5-3 Returns
All returns MUST have an RMA number. Please contact your local dealer or, Dtrovision LLC where you
purchased this product to obtain RMA number.
