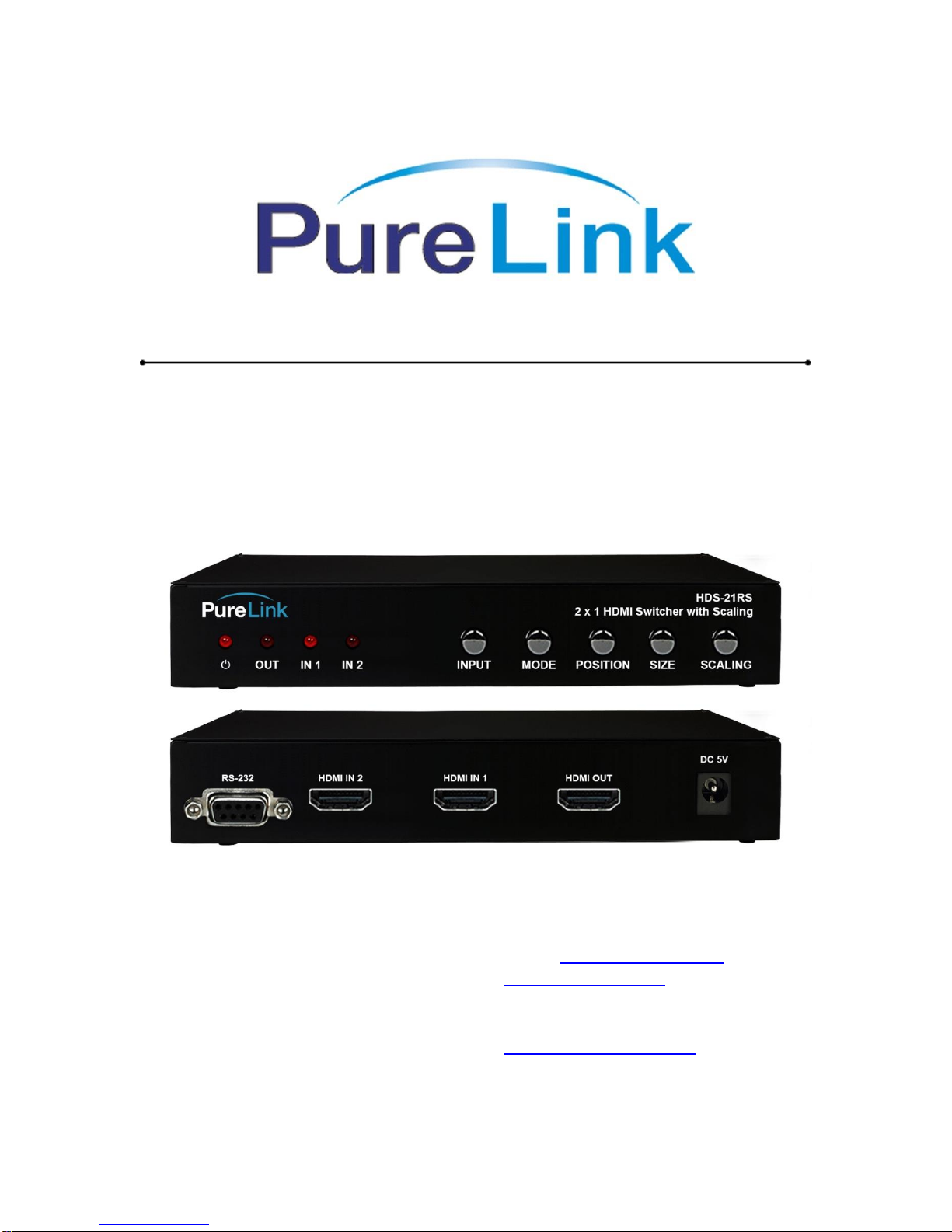

PureLink HDS-21RS User manual

HDS-21RS Owner’s Manual
2 x 1 HDMI Switch with Scaling
PureLinkTM
535 East Crescent Avenue
Ramsey, NJ 07446, USA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
www.purelinkav.com
For technical support, contact:
[email protected]

Table of Contents
1-1 Package Contents p.3
1-2 General Specification p.4
1-3 Operation and Reliability Specifications p.6
1-4 Main Features p.7
1-5 Operation Guide & Mechanical Specification p.8
1-8 Warranty Information p.13
1-9 Troubleshooting p.14

PureLink by Dtrovision
3
1-1 Package Contents
Please make sure all of the following items are included in the package:
1) HDS-21RS Unit
2) DC 5V 1A Power supply adapter
3) Owner’s Manual
4) Remote controller

PureLink by Dtrovision
4
1-2 General Specification
Welcome!
Congratulations on your purchase of the PureLink HDS-21RS 2x1 HDMI switcher with
scaling featuring picture in picture and side by side picture mode. This manual contains
information that will assist you in installing and operating the product.
PureLink HDS-21RS HDMI switch allows two HDMI/DVI sources (with audio) to share one
display. Our unique switch allows easy switching between different digital video sources
with remote control unit and/or with a manual toggle button in front and/or via RS232
port. It is a perfect solution for home theater, presentation, and other multimedia
applications.
Item
Description
Model
HDS-21RS
Input type
HDMI Single Link , 2 port
Output type
HDMI Single Link , 1 port
Supported Input
Resolution
480i/p@60Hz, 576i/p@50Hz, 720p50/60Hz, 1080i50/60Hz,
1080p@24/30/50/60Hz, 800x600@60Hz, 1024x768@60Hz
Scaling Output Resolution
1080i, 1080p, 720p, 1024x768, 1360x768
Connector type
DC Power Jack
HDMI 19 Pin Female
Serial Female
Supported format
DDWG DVI 1.0
HDMI 1.3
HDCP Compliant
Yes
Audio format
PCM2, 5.1, 7.1 CH, Dolby 5.1, DTS 5.1
Power
DC +5V , 1A, Max 10W

PureLink by Dtrovision
5
Dimension (WxDxH)
2.76”x 5.51”x 0.98”(70 x 140 x 25 mm)
Weight
0.66 lbs (0.3 kg)
Connector Pin Assignment
Part No.
Pin No.
Description
Remarks
HDMI 19pin
1
TMDS DATA 2P
2
TMDS DATA 2 Shield
3
TMDS DATA 2M
4
TMDS DATA 1P
5
TMDS DATA 1 Shield
6
TMDS DATA 1M
7
TMDS DATA 0P
8
TMDS DATA 0 Shield
9
TMDS DATA 0M
10
TMDS Clock P
11
TMDS Clock Shield
12
TMDS Clock M
13
CEC
14
RESERVED
15
DDC Clock
16
DDC DATA
17
GND
18
+5v
19
Hot Plug Detect

PureLink by Dtrovision
6
1-3 Operation and Reliability Specification
1. Operating Environment
Temperature : 32F ~ 104F (0℃~ 40℃)
Humidity : 20% ~ 90%
Altitude : 3,000m Max.
2. Transit Environment
Temperature : -13F ~ 140F (-25℃~ 60℃)
Humidity : 5% ~ 95%
Altitude : 15,000m Max.
3. Storage Environment
Temperature : -4F ~ -140F (-20℃~ 60℃)
Humidity : 20% ~ 90%
Altitude : 3,000m Max.
4. Reliability
MTBF: 90% at over 50,000 hours aging test
In compliance with LCD Monitor reliability test standard

PureLink by Dtrovision
7
1-4 Main Features
1. High Quality Picture - No Signal Loss and Digital Noise Free
HDS-21RS is built to deliver the highest quality picture preserving the native
resolutions of the video sources without any signal loss. At the same time, the digital
noises that may affect the picture quality will be eliminated. Due to the nature of the
digital signals and passing through multiple stages of connection when using
distribution amplifiers, it is important to eliminate the digital noises and boost the
signal strength to preserve/enhance the video signal quality.
2. Input Auto Switching
HDS-21RS detects input signal and automatically switch between inputs
3. Scaling Output with Don’t blink™Seamless Switching Technology
HDS-21RS is powered by HD upscaling and downscaling, frame rate conversion,
smooth motion performance, crisp imaging, as well as auto-scaling for seamless
switching.
4. Multi-View Output
HDS-21RS features multi-view output function enabling to show two input images to
a single display, a perfect solution for sharing two information in one screen.
•Picture-in-picture
•Side-by-side
4. HDCP compliant
5. 3 ways to control
- Front panel buttons
- RS232C
- IR
6. Compact and Practical Design
HDS-21/41R has all of the HDMI ports, power supply jack and RS232 port in the back of
the unit allowing it be mounted on any racks or with any other components. In the
front, there will be a remote control sensor, selector switch, and function buttons for
easy control of the unit.

PureLink by Dtrovision
8
1-5 Operation Guide & Mechanical Specification
Hardware Connection
1. Turn off the whole system before connecting.
2. Connect your video source’s HDMI output port to the HDS-21RS’s HDMI input port
using standard HDMI cables (not included)
3. Connect your HDMI display’s HDMI input port to HDS-21RS’s HDMI output port
4. Plug the 5V power supply to HDS-21RS
5. Plug the 5V wall mount power supply into the wall outlet
6. Turn on HDS-21RS
7. Turn on your monitor
8. Turn on your video source
Mechanical Specification

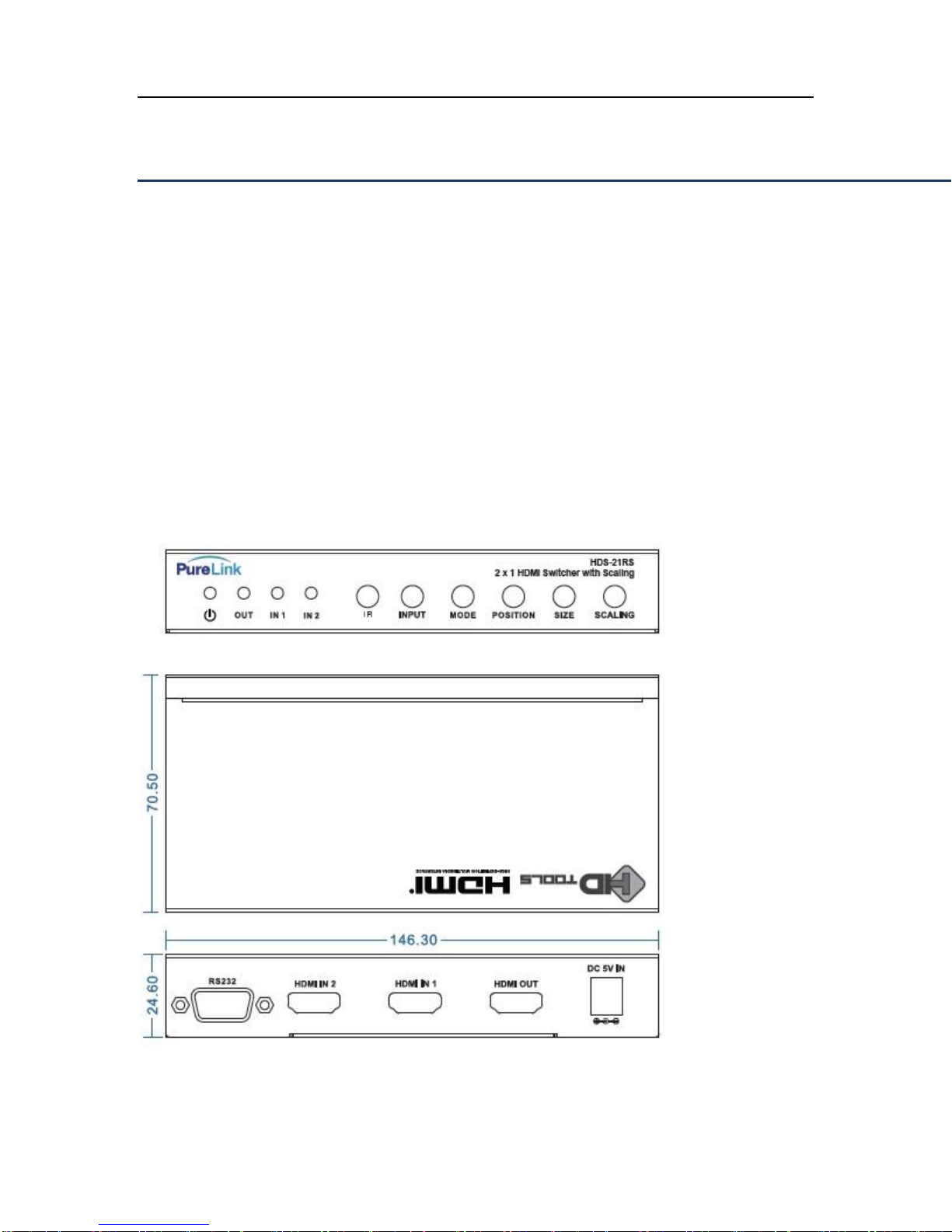

HDS-21RS dimension (WxDxH): 2.76’’ x 5.51’’ x 0.96’’ (70 x 146 x 25mm) 0.66 lbs (0.3 kg)

PureLink by Dtrovision
9
<Front View>
- Power Status Indicator
OUT –Output Status Indicator
IN1 & IN2 –Input Selection Indicator
INPUT –Input Select Toggle Button
MODE –Multi-view Mode Select Toggle Button
POSITION –PIP Image Position Select Toggle Button
SIZE –Image Size Select Toggle Button
SCALING –Scaling Output Resolution Select Toggle Button
<Rear View>
HDMI IN 1: HDMI Input 1
HDMI IN 2: HDMI Input 2
HDMI OUT: HDMI Output
RS232: For RS232 control
Operation Guide
Input Switching
Two active sources can be connected to the HDS-21RS at the same time. There are three
ways to switch inputs.
1. Front panel button
INPUT toggle button

PureLink by Dtrovision
10
2. IR remote
Input 1 button for input 1
Input 2 button for input 2
3. RS232 command
Description
Command
Input 1 select
IN1!
Input 2 select
IN2!
* RS232 communication setting:
Baud rate –115200
Data bits –8
Parity –none
Stop bits –1
MODE
There are total 4 output mode options in HDS-21RS.
Mode 1
One full input image output mode
Mode 2
Picture in picture image output mode

PureLink by Dtrovision
11
Mode 3
Side by side #1 image output mode
Mode 4
Side by side #2 image output mode
POSITION
This function only works when the unit is in PIP mode (Mode 2)
You can change the position of small image of PIP mode
Available positions are Top left, Bottom left, Top right, and Bottom right
SIZE
This function only works when the unit is in PIP mode (Mode 2)
Press the button to change size of small image of PIP mode
SCALING
Press the button to change the output resolution.
Available resolutions are;
Description
Resolution
Timing 1
1080p@60Hz
Timing 2
720p@60Hz
Timing 3
1080i@60Hz
Timing 4
1360x768@60Hz
Timing 5
1024x768@60Hz
Command Line Operation
This section is designed for programmers who wish to create their own control
programs using the command code. HDS-21RS provides a simple character stream

PureLink by Dtrovision
12
control used by external control devices attached to a PureLink device. Command codes
are used primarily for control, during system installation, setup, and for diagnostic
purposes.
Command code is a set of alphanumeric characters that combine to form control
commands. Command code strings are entered into a terminal emulation program (such
as windows HyperTerminal) running on an external control device. The control device
(PC, third-party controller) sends the commands to the system. Control devices must be
able to send and receive ASCII or HEXA code via an RS-232.
* RS232 communication setting:
Baud rate –115200
Data bits –8
Parity –none
Stop bits –1
Protocol
Description
Command
Feedback
Output Timing 1 (1080p@60Hz)
T1!
Output Timing 2 (720p@60Hz)
T2!
Output Timing 3 (1080i@60Hz)
T3!
Output Timing 4 (1360x768@60Hz)
T4!
Output Timing 5 (1024x768@60Hz)
T5!
Input 1 Select
IN1!
Input 2 Select
IN2!
Mode 1 (One input)
ONEINPUT!
Mode 2 (PIP)
PIP!
Mode 3 (Side by side #1)
SIDEBYSIDE1!
Mode 4 (Side by side #2)
SIDEBYSIDE2!

PureLink by Dtrovision
13
1-8 Warranty
3 (three) Year Warranty
Dtrovision warrants this PureLink UHD-280 to be free from defects in workmanship and
materials, under normal use and service, for a period of two (3) year from the date of
purchase from Dtrovision or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Dtrovision shall, at its option and expense, repair the defective product or part, deliver
to customer an equivalent product or part to replace the defective item, or refund to
customer the purchase price paid for the defective product.
All products that are replaced will become the property of Dtrovision.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the reminder
of the initial warranty period, whichever is longer.
Dtrovision shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
Dtrovision for repair under warranty or not.
Warranty Limitation and Exclusion
Dtrovision shall have no further obligation under the foregoing limited warranty if the
product has been damaged due to abuse, misuse, neglect, accident, unusual physical or
electrical stress, unauthorized modifications, tampering, alterations, or service other
than by Dtrovision or its authorized agents, causes other than from ordinary use or
failure to properly use the Product in the application for which said Product is intended.

PureLink by Dtrovision
14
1-9 Troubleshooting
Problem
Solution
Distribution Amplifier
does not operate
Make sure the 12V power is plugged in the back of the unit.
Check to see if the power LED light is on.
No picture(or signal)
Or Poor picture
1. In case your video source is HDCP enabled, make sure
your video display (HDTV) is HDCP compliant.
2. If you are using copper based HDMI cable, overall length
of the cables (length of the cable from video source to
switch and length of the cable from switch to display)
should not exceed 20ft. Exceeding 20ft. with copper based
cables will result in no or poor picture quality. To extend
beyond 20ft, please use fiber optical HDMI extension cables
such as PureLink EZ series.
3. Use high quality HDMI cables.
4. If you are using computers, try other refresh rate
settings. Most HDTV’s have refresh rate of 48Hz and
computer’s video cards are usually set at higher refresh
rate. Try lower refresh rates.
5. Make sure all HDMI connectors are tightly secured to all
HDMI ports. Loosened screws on the HDMI connectors will
result in no or poor picture.
6. Turn off all equipment (video source, switch and HDTV)
and restart all equipment.
Incorrectly sized picture
/resolution or No picture
Please remember that your video source will only transmit
one resolution setting. To connect varying resolution
displays (1920x1200 resolution display and 1024 x 768
resolution display) the resolution setting of your video
source must be set to the lowest resolution setting (1024 x
768).

PureLink by Dtrovision
15
1.1 FCC/CE Statement
This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE
certification. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must not accept any interference
received, including interference that may cause undesired operation. This equipment
has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 and 2 of FCC Rules and EN 55022/55024/61000-3 for CE
certification. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and. if not installed
and used in accordance with the instruction guide, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult a service representative for help.
Properly shielded and grounded cables and connectors must be used in order to comply
with FCC/CE emission limits. Changes or modifications not expressly approved by the
party responsible for compliance could void the user s authority to operate the
equipment.
1.2 UL Statement
This device has completed a UL Commercial Inspection and Testing Services for the
multimode HDMI cable complied with VW-1 under UL 758. it is validated by the UL file
number SV2038 and project number 04CA05353.
