PuriSystems HEPA Pro UVIG User manual

Owner’s Manual
HEPA Pro UVIG
E-mail:[email protected]
90069 USACalifornia,WEST HOLLYWOOD,
BLVD#79525
MONICA
Add:8605 SANTA
READ AND SAVE THESE INSTRUCTIONS

Table of Contents
Safety Notes
Introduction
Application
Identification
How it Works
Key Features
Instructions
Wiring Diagram
Specification
Warranty
1
2
2
2
2
3
4
6
7
7

WARNING!
Please note that the PureAiro HEPA Pro UVIG should only be used with parts approved
by Purisystems.The use of unauthorized parts or alterations to the machine could void
your warranty. Contact an approved distributor for further assistance.
SAFETY NOTES
To Avoid the Risk of Fire or Electric Shock:
The unit must be electrically grounded.
Please check the power cord for damage (wear, cuts, etc.) before use.
Please check if the filter is damaged before use.
Do not touch the product with wet hands.
Before plugging the power cord into the power outlet, turn off the power switch on the unit.
When water enters the machine, pull out the power plug and completely dry the machine before use
Unplug the power plug during thunder or thunderstorms.
Do not place this product in a humid place. Otherwise, there may be dangers such as electric leakage or
electric shock.
Do not install it in a place where flammable gas is generated.
Please clear any obstructions on the air inlet and outlet before use.
When cleaning the surface of the unit, unplug the power cord and wipe it with a soft cloth to avoid
scratching the unit. Do not use wet cloth, wax, or thinner.
Do not put your hands or foreign objects into the air inlet or outlet. Otherwise, product failure
or physical injury may occur.
Do not put your hand or foreign object into the air inlet or outlet to avoid physical injury and product
damage.
When repairing with PuriSystems HEPA Pro UVIG, be sure to lock the casters to avoid collision
accidents.
When using PuriSystems HEPA Pro UVIG indoors, please turn off combustion equipment such as
fireplaces, furnaces, water heaters, and HVAC systems to avoid the risk of reverse emissions of
carbon monoxide gas.
Disconnect the power supply before maintenance
Keep this manual in a visible place near the machine for easy access.
Do not stack/place heavy objects on the machine and power cord.

INTRODUCTION
The PuriSystems HEPA Pro UVIG is a convenient filtration system that cleans the air. The
PuriSystems HEPA Pro UVIG uses an effective blend of air flow and advanced filtration to expel
airborne particles, like mold spores, dust, pollen, and pet dander. The PuriSystems HEPA Pro
UVIG is ideal for for restoration jobs, including water, sewage, and fire.
APPLICATION
When used with the optional activated carbon filter (P/N:), PuriSystems HEPA Pro UVIG is also
excellent in odor control. Simply put the carbon filter in the pre-filter tank and it will capture a
variety of odor-causing gas molecules, such as volatile organic compounds (VOC’s), smoke,
soot, and paint odors.
The cleaner is also useful in many other applications, including mold repair, fire damage, dust
control, and sewage repair.
Odor Control
Other Use
HOW IT WORKS
When set to maximum airflow, the scrubber draws air throuand a HEPA/Activated Carbon Filter.
The first phase of filtration, the pre-filter, captures initial dust and allergen particles.
The second phase of filtration, the HEPA/Activated Carbon Filter, catches smaller particles,
down to 0.3 microns. This filtration Contributes to the control and prevention of the growth of
bacteria, germs, and mold. In addition, it also Captures 99.99% of dust and allergens.
UV-C light technology works with filters to enhance the elimination of airborne germs. Titani-
umDioxide is activated by the UV-C light to decompose the remaining odor molecules caused
by smoking, cooking, and pets.
1. Pre-Filter
2. HEPA/Activated Carbon Filter
3. UV-C Light
IDENTIFICATION
Congratulations on purchasing a PuriSystems HEPA Pro UVIG air scrubber. In order to take
advantage of the warranty plan, be sure to note the serial number and date of purchase.
Serial Number: Date of Purchase:

KEY FEATURES
HEPA-Filter
UV Light
Fan
Pre-Filter
Protection angle
X 6
Vertical and upright
position
Control Panel
Stable Wheels X 2
Handle X 4
Adjustable Wheels
X 2
12 Air Outlet
Power Cord Fixing
Strap

INSTRUCTIONS
Power
Indicator
Circuit Breaker
Switch
Pressure
sensing
port
Pressure
Gauge
UV-C Light
Switch
Gear Knob
THE CONTROL PANEL
When the switch is turned ON, the indicator light will turn on. When the switch is
turned OFF, the indicator will turn off.
Power Indicator
The Circuit Breaker Switch is designed to prevent more than 12 amperes of current
from passing through the circuit. If this happens, the switch will cut off power to the
machine.
Circuit Breaker Switch
The differenctial pressure is usually at 150Pa, which increases over time. When it
reaches 500Pa, replace the filter in time.
Pressure Gauge
Rotate the knob clockwise to adjust the gears. The initial position is off. Gears 1, 2 and
3 correspond to low, medium, and high speeds respectively.
Gear Switch
To turn ON/OFF the UV Light.
UV-C Light Switch
Used for differential pressure gauge to detect the pressure value. Pay attention to
check whether the port is blocked before use.
Pressure Sensing Port

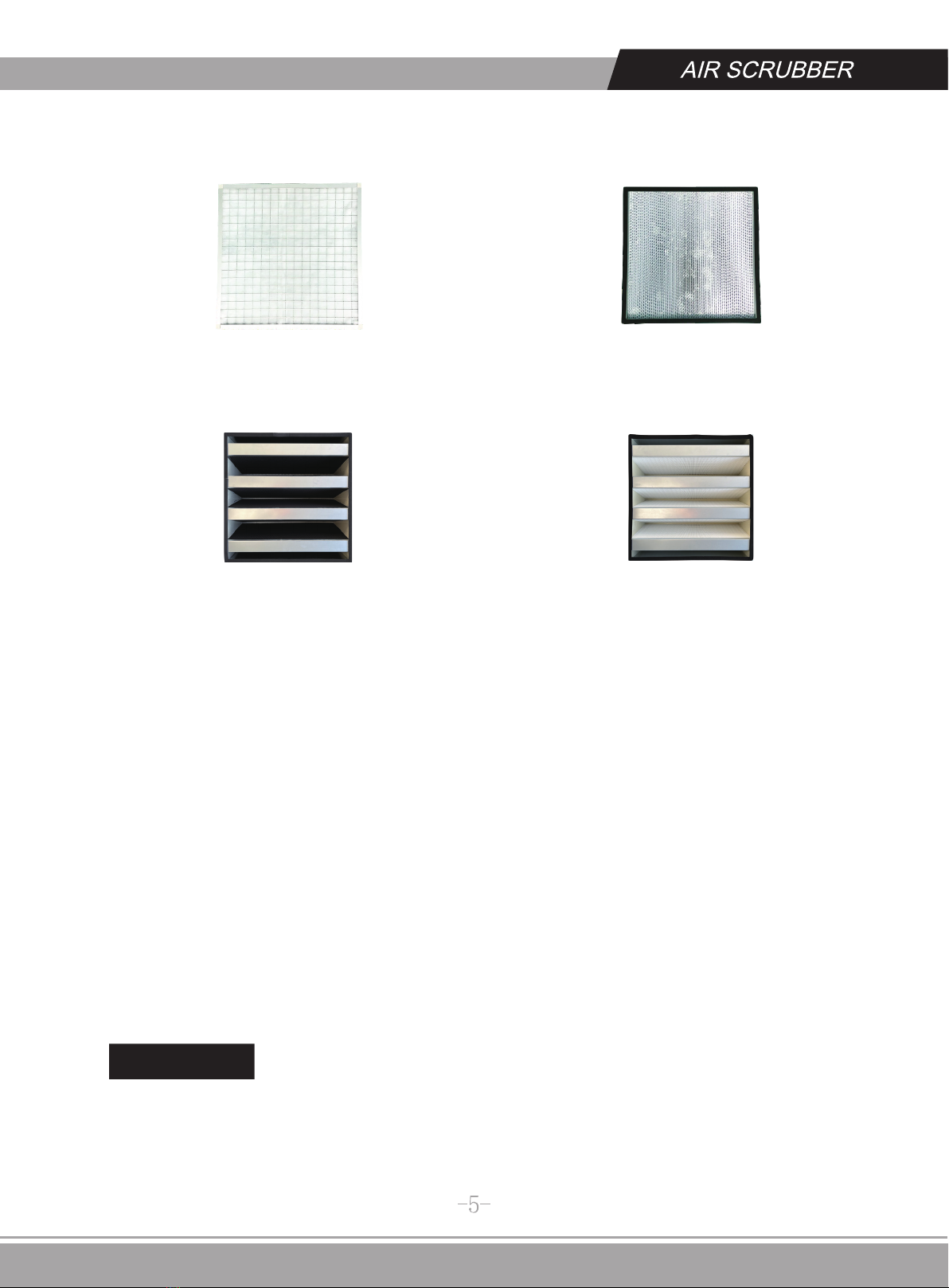

FILTER
Filter grade and size chart
PRE-FILTER PANEL HEPA FILTER
1.size：27.0X26.0X0.8(inch）
2. An Aluminum frame is put around the outer edge. It
can collect dust of 10~20μm up to 90% in accordance
with the standard of weight method.
1.size：24.0X24.0X11.5（inch）
2.It an collect dust of 0.3μm up to 99.97% in
accordance with the standard of weight method.
1. When the pressure gauge reaches 500pa.
2. When the filter is damaged due to long-time use.
3. When the filter blockage causes the suction capacity to decrease.
Filter replacement time
1.Change the filter
First, turn off the unit and then unplug the plug. Pull up the Pre-filter, twist the internal fixed knob and
remove the fixed rod. Take out the HEPA filter and replace it with a new HEPA filter. Install the fixed rod
after the replacement and tighten the knob. Insert a new Pre- filter and the replacement is complete.
2. Change the UV-C Light
First, turn off the unit and unplug the plug. Pull up the Pre-filter, twist the internal fixed knob and remove
the fixed rod. Take out the HEPA filter, pull out the UV lamp to the left to separate it from the lamp holder,
and remove UV-C light. Replace it with a new UV-C light and put in the HEPA filter. Install the fixed rod
and tighten the knob. Insert a new Pre-filter and replacement is complete.
Parts replacement
1. Do not operate without a HEPA filter! Failing to use a HEPA filter or using an unauthorized power cord
may cause damage to the electrical system or mechanical parts.
2. When replacing the filter, please always wear approved protective equipment
3. If the value of the differential pressure meter is at 500pa, the high-efficiency filter must be replaced.
WARNING
1.Size: 24.0X24.0X11.5(inch)
2.Activated carbon filter has efficient adsorption
performance and can be used for air purification. The
activated carbon filter material contains 100% surface
adsorption capacity to remove volatile organic
compounds (such as formaldehyde, toluene, hydro-
gen sulfide, chlorobenzene) and pollutants in the air.
1.Size: 24.0X24.0X11.5(inch)
2.The H14 Filter has an effective rate of 0.1
micron and 0.3 microns that reaches 99.998%,
which makes this the most effective filter for
pollutants such as smoke, dust, and bacteria.
Note: The activated carbon filter and H14 filter are sold separately.

Green
UV TUBE
BALLAST
Black
Black
Black
L N
CIRCUIT
BREAKER
THE UV
LAMP SWITCH
Black
Blue
1 2 3
Red
White
White
White
White
POWER
OFF
MECHANICAL
SWITCH
Brown
Indicator Light
Brown
Black
Black
Black
CAPACITANCE
Wiring Diagram

Specification
Category PuriSystems HEPA Pro UVIG
Power(V)
Power(W)
Airflow
Size
Weight
115Vac 60Hz
High：0.85 kw Low：0.75 kw
High：2000CFM
152 lbs
Customer Responsibities:In order to take advantage of the warranty service, the
customer must do the following:
Purisystems Warranty Steps:
WARRANTY
All warranty benefits apply to the original owner only. Warranty cannot be transferred or assigned.
1 YEAR (FROM DATE OF PURCHASE): Purisystems warrants the unit's parts will operate free of
defects in material or workmanship. This includes factory laborers. At its discretion, Purisystems will
replace defective parts, including factory labor. This does not include transportation costs.
1. Customer must provide normal care and maintenance (including, but not limited to cleaning filters)
2. Removal and re-installation of the unit is the sole responsibility of owner.
3. If the customer cannot return unit to certified repair center, all costs associated with shipment are
borne by the customer. In addition, all ancillary charges related to freight shipments, including but not
limited to palletizing, wrapping, labeling, and pickup are associated with the customer.
4. If shipped, the customer is responsible for all risk of loss or damage.
1. Once the goods are received, thecustomers must log in www.purisystems.com to fill out the warranty
registration form and submit to the Purisystems company. We will receive your purchasing and installa-
tion information and save it. If no warranty registration is sent to us the warranty period will begin the
day the shipment left the warehouse. Please be sure to record the serial # and date of installation. You
will need this information to receive the RA number.
2. If warranty service is necessary, customers must contact Purisystems Tech Support by email at
[email protected] or by a local technical service phone to receive a Return Authorization. Once
an RA has been issued, customers should bring the unit to a certified repair center.
Purisystems will arrange the shipping to bring the unit back to the Purisystems warehouse (at the
expense of the customers) if customers are not available.
3. After the unit has been received by Purisystems (whether at a repair center or the warehouse),
Purisystems will have an initial inspection. If it is determined to be an invalid warranty claim (see
exclusions below), customers have to pay for all associated repair costs and shipping costs for units
repair.
4. Customers can pick up the unit after repair at their own expense for shipping. Units will be rigorouslly
tested before it is sent back to the customer.
5. If the unit can no longer be fixed and it is within the warranty period where it is determined to be a
valid warranty claim, we will ship a new unit to the customer within the same year warranty period from
the date of replacement.
6. After parts are repaired or replaced by Purisystems, the original warranty period continues to apply
until it meets its deadline. No extensions to the original warranty period.
35.6 x 27.6 x 30.3 inch
Low: 800CFM

Limited Warranty Exclusions
This limited warranty covers manufacturing defects in materials or workmanship encountered in
normal household, commercial or noncommercial use of this product shall not cover the following:
Damage occurs in uses for which this product was not intended for.
Damage caused by unauthorized modification or alteration of the product.
Cosmetic damage including scratches, dents, chips, and other damage to the product’s finishes.
Damage caused by abuse, misuse, pest infestation, accident, fire, floods, or other acts of nature.
Damage caused by incorrect electrical line current, voltage, fluctuations, and surges.
Damage caused by failure to perform proper maintenance of the product.
The use of this product in a SPA or a room with an OUTDOOR POOL invalidates or voids the limited warranty.
