Purmo Unisenza PLUS User manual

Installation
and user manual
Unisenza PLUS - ZigBee 3.0 Gateway
EN
Wi-Fi abilitato
WiFi enabled
WiFi
Z
Zigbee
Bluetooth
Ethernet


EN
Unisenza PLUS - ZigBee 3.0 Gateway
Installation and user manual
Release Date
First release November 2022


EN
Unisenza PLUS - ZigBee 3.0 Gateway
Installation and user manual
Index
1 Safety warnings .....................................................................................................................4
Pictograms used in this manual..............................................................................................4
Purpose of the manual...............................................................................................................4
Intended use...................................................................................................................................4
Safety regulations........................................................................................................................5
2 Technical data .........................................................................................................................6
Unisenza Plus Gateway.............................................................................................................6
Power supply unit........................................................................................................................6
3 Dimensions..............................................................................................................................7
4 Pack contents..........................................................................................................................7
5 Overview ..................................................................................................................................8
Unisenza PLUS Gateway...........................................................................................................8
LED functions.................................................................................................................................8
6 Download the APP for gateway management .................................................................9
7 Nameplate ...............................................................................................................................9
8 Installation ............................................................................................................................10
Recommendations for a correct installation ...................................................................10
Wall installation........................................................................................................................... 11
Support installation................................................................................................................... 13
9 Use ......................................................................................................................................... 13
Register the Gateway to the Cloud...................................................................................... 13
Join Unisenza PLUS devices to the Gateway..................................................................16
Unisenza PLUS devices identification................................................................................ 17
10 Maintenance..........................................................................................................................18
Over-the-air (OTA) firmware update ...................................................................................18
Power Cycle Reset.....................................................................................................................18
Factory Reset...............................................................................................................................18
Cleaning .........................................................................................................................................19
11 Manual download and updates........................................................................................ 20
12 Disposal at the end of life .................................................................................................. 20


EN
Unisenza PLUS - ZigBee 3.0 Gateway
Installation and user manual
1 SAFETY WARNINGS
Pictograms used in this manual
To make reading clearer and more enjoyable, three types of symbols have been used
in this manual to convey to the reader the meaning or importance of the information
provided:
Hazard signs. Indicate prescriptions relating to present or possible dangers.
Prohibition signs. Indicate prescriptions relating to actions that must be
avoided.
Mandatory signs. Indicate information that is important to read and comply
with.
Purpose of the manual
The purpose of this manual is to guide the qualified installer the installation, maintenance
and proper and safe use of the equipment.
For this reason, it is mandatory for all personnel involved in the installation,
maintenance and use of the equipment to read this manual.
Contact the Manufacturer if any points are unclear or difficult to understand.
This manual contains information regarding:
• Technical specifications of the equipment;
• Installation and connection instructions.
Intended use
The Unisenza PLUS Gateway is an ideal solution for connecting multiple devices to the
cloud through an Internet router with WiFi or Ethernet cable connection. It is ZigBee
3.0 and connects up to 100 end devices such as smart room thermostats, radiator valve
controllers (TRV), relaybox/receiver, and sensors, etc.
Its features are:
• ZigBee 3.0
• BLE (Bluetooth Low Energy) wifi provisioning
• 802.11 b/g/n WiFi connection
• 10/100Mbps Ethernet connection


EN
Unisenza PLUS - ZigBee 3.0 Gateway
Installation and user manual
• Over the air firmware update capability
• Powered by 5VDC thru Micro-USB port
• Wall mountable (with the wall mount bracket)
Safety regulations
Before proceeding with any installation or use, it is necessary to thoroughly inspect the
product. Make sure that all the information contained in this manual correspond exactly
to the purchased equipment. In the event that differences are identified, it is necessary
to contact the Manufacturer in order to obtain the assistance and specific technical
information necessary to operate.
Read this manual carefully before the installation, use and maintenance of the
product and keep it for any further future consultation by the various operators.
All installation, assembly, electrical connections to the mains and ordinary/
extraordinary maintenance must be performed only by qualified personnel or
technicians complying with the legal requirements.
Installation, use or maintenance other than those specified in the manual
may cause damage, injury or death, invalidate the warranty and relieve the
Manufacturer of all liability.
Disconnect the equipment from the mains before installing or maintaining it.
Do not installthe equipment outdoors.The product has been designed to be installed
indoors, protected from bad weather, in places where the temperature is between
0 and +50 °C.
At the end of the installation it is necessary to instruct the user in the correct use
of the equipment.


EN
Unisenza PLUS - ZigBee 3.0 Gateway
Installation and user manual
2 TECHNICAL DATA
Unisenza Plus Gateway
Wireless Communication WiFi : 802.11 b/g/n
ZigBee 3.0, 2.4GHz
Bluetooth v4.2 BR/EDR and BLE (for provisioning only)
Wired Communication 10/100Mbps Ethernet connection
Power Supply 5 VDC from micro USB port
Power Consumption Max. 3W
Operating Environment Indoor, residential & commercial
Operating Temperature 0°C – 50°C
Relative humidity 5-95% RH non-condensing
Storage Temperature -10°C – 60°C
Size (mm) 93(W) x 98.4(D) x 24(H) mm
Ingress Protection Rating IP30
Regulation CE, UKCA
Environmental Requirement RoHS compliance
Power supply unit
Input voltage 100-240V - 50/60Hz Max 300 mA
Output voltage 5.0Vdc 0,85A 4,25W
The Unisenza Plus Gateway complies with the following European directives:
• RED directive 2014/53/EU
• ROHS directive 2011/65/EU
• REACH (EC 1907/2006)
The Unisenza Plus Gateway complies with the relevant UK Statutory Instruments:
• Electrical Equipment (Safety) Regulations 2016
• Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
Regulations 2012 (SI 2012/3032)
• REACH ETC. (Amendment etc.) Regulations 2020 - SVHC


EN
Unisenza PLUS - ZigBee 3.0 Gateway
Installation and user manual

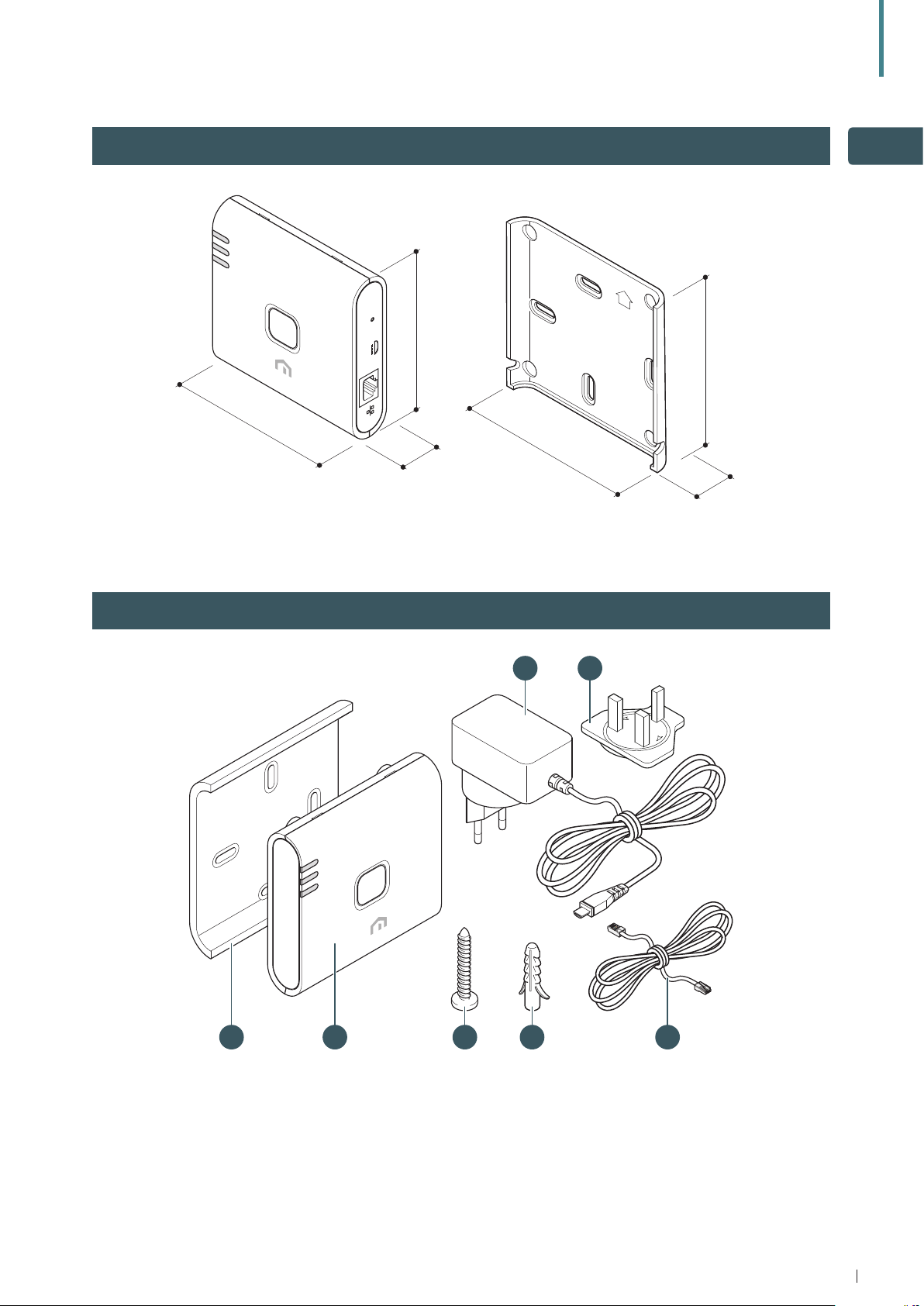

3 DIMENSIONS
DC 5V
FAC TO RY
RESET
Cloud
LAN/WiFi
ZigBee
24
16,7
98
97,4
93
97,5
UP
4 PACK CONTENTS
Cloud
LAN/WiFi
ZigBee
OPEN
L
O
C
K
x2x2
abcdg
ef
a. Wall mount bracket
b. Unisenza PLUS Gateway
c. Plate fixing screw
d. Fixing wall plug for plate fixing
e. Gateway Power supply unit
f. Plug adapter
g. Ethernet RJ-45 cable


EN
Unisenza PLUS - ZigBee 3.0 Gateway
Installation and user manual
5 OVERVIEW
Unisenza PLUS Gateway
DC 5V
FAC TORY
RESET
Cloud
LAN/WiFi
ZigBee
3
4
5
2
16
1. Communication Status LED
2. Top Button
3. RJ-45 port for Ethernet connection
4. Micro-USB power port*
5. Factory reset
(*) Use only the adaptor included with this product.
LED functions
LED Status Description
Cloud Green Gateway is connected to the cloud.
Orange Gateway has lost connection to the cloud.
LAN/WiFi Green Gateway is connected to the local network via
Ethernet cable or WiFi.
Red Local network connection is not established.
ZigBee Green Normal status.
Green Flash Identifying the joined ZigBee devices.
Orange Ready for ZigBee devices to join the gateway.
Orange Flash Reach the max. number of ZigBee devices.
If Ethernet cable is connected but LAN/WiFi LED is Red, please check your cable connection
or router setting.
DC 5V
FACTORY
RESET
Cloud
LAN/WiFi
ZigBee


EN
Unisenza PLUS - ZigBee 3.0 Gateway
Installation and user manual
6 DOWNLOAD THE APP FOR GATEWAY MANAGEMENT
The management of the Unisenza PLUS Gateway is also possible through a dedicated APP
that allows its configuration, connection to your home internet network and the management
of the devices you will pair.
In order to download the APP, you need to connect to the STORE of your device used for con-
figuration and install the Unisenza Plus.
Or, again using the device, you can directly access the installation page using the following
QR codes, again depending on the operating system.
7 NAMEPLATE
On the bask side of the Gateway there are two labels, one indicates
the Mac Address (A) of the device with its QR code next to it and one
the Device ID (B) also with the relative QR code next to it.
You will have to use the A label when you want to pair the Gateway
to your device for the management through the APP.
Mac adress
Device ID
A
B


EN
Unisenza PLUS - ZigBee 3.0 Gateway
Installation and user manual
8 INSTALLATION
Recommendations for a correct installation
UP
Cloud
WiFi
ZigBee
0°C
50°C
UP
Cloud
WiFi
ZigBee
UP
Cloud
WiFi
ZigBee
UP
Cloud
WiFi
ZigBee
Unisenza PLUS
Gateway
(on the wall)
Unisenza PLUS
Gateway
(resting)
150 cm
90 - 130 cm
UP
DC5V RESET
Cloud
WiFi
ZigBee
UP
Cloud
WiFi
ZigBee
Unisenza PLUS
Gateway
(on the wall)
Unisenza PLUS
Gateway
(resting)
DC5V RESET
Cloud
WiFi
ZigBee
UP
Cloud
WiFi
ZigBee
Unisenza PLUS
Gateway
(on the wall)
Unisenza PLUS
Gateway
(resting)
DC5V RESET
Cloud
WiFi
ZigBee
Cloud
WiFi
ZigBee
Unisenza PLUS
Gateway
(resting)
metal cabinet
