Purmo Unisenza User manual

Installation
and user manual
Unisenza - Digital Thermostat
EN
Riscal./raffred.
Heat /Cool
Heating and
Cooling
Modalità notturna ridotta
Night set back mode
Night set
back mode


Unisenza - Digital Thermostat
Installation and user manual
EN
Index
1 SAFETY WARNING....................................................................................................................................................................................................4
2 TECHNICAL SPECIFICATIONS ..............................................................................................................................................................................4
3 REFERENCE STANDARDS .....................................................................................................................................................................................4
4 INSTALLATION AND ELECTRICAL CONNECTION .........................................................................................................................................5
4.1 Wall fixing.....................................................................................................................................................................................................................5
4.2 Wiring diagram ...........................................................................................................................................................................................................5
4.2.1 Thermostat terminals description.......................................................................................................................................................................5
4.2.2 Connection to the Wiring Centre..........................................................................................................................................................................6
5 USER GUIDE................................................................................................................................................................................................................6
5.1 Home Screen...............................................................................................................................................................................................................6
5.1.1 Standby .........................................................................................................................................................................................................................7
5.1.2 Lock – Unlock..............................................................................................................................................................................................................7
5.1.3 Heating – Cooling ......................................................................................................................................................................................................7
5.1.4 Working modes selection.......................................................................................................................................................................................8
5.2 User Menu..................................................................................................................................................................................................................10
5.2.1 User Menu Map........................................................................................................................................................................................................10
5.3 Advanced Menu........................................................................................................................................................................................................ 14

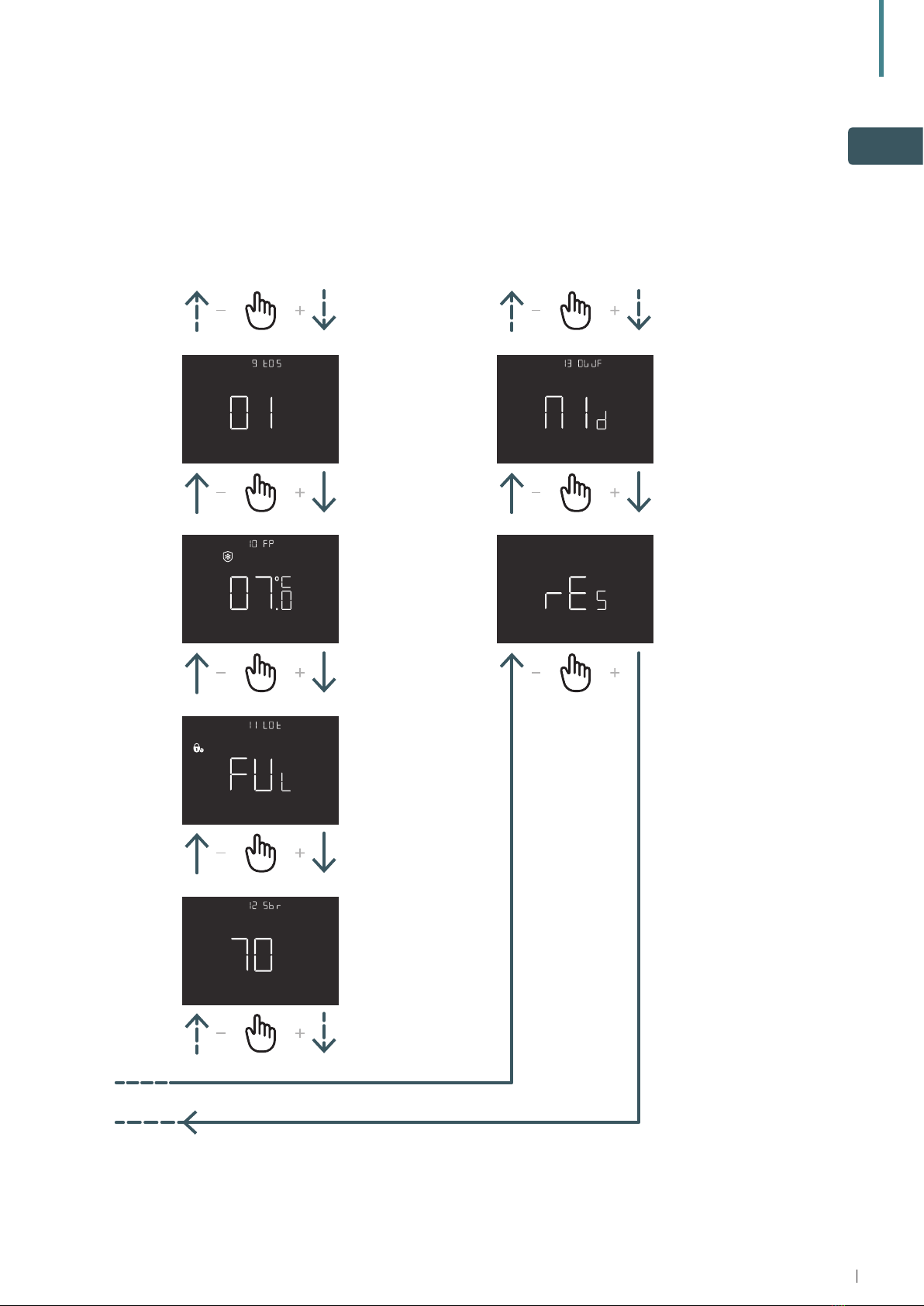

5.3.1 Advanced Menu Map.............................................................................................................................................................................................. 14

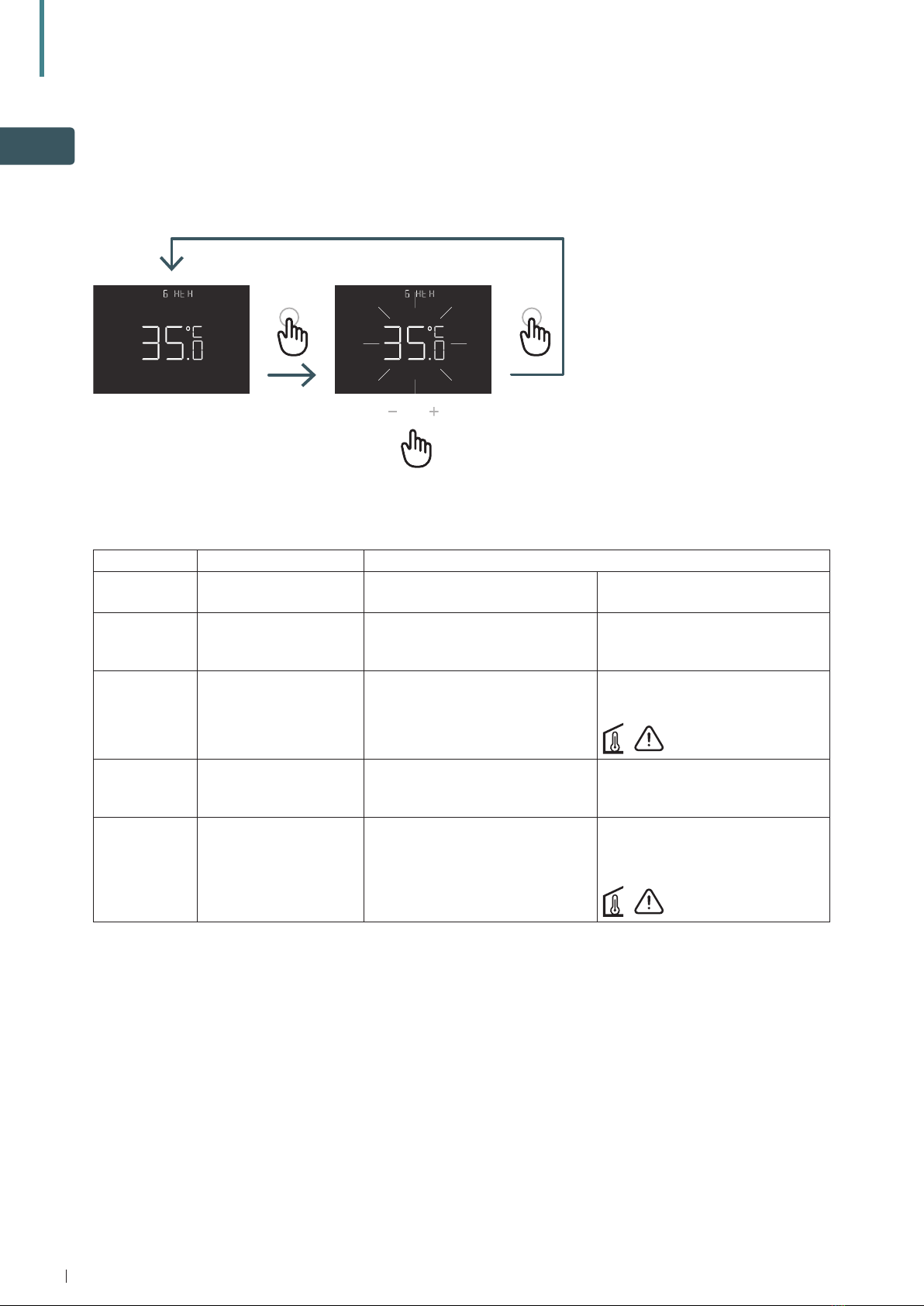

5.3.2 Advanced Menu Item explanations ..................................................................................................................................................................16
5.4 Alarms and Warnings............................................................................................................................................................................................ 27
6 WEEE DIRECTIVE APPLICATION ..................................................................................................................................................................... 27


Unisenza - Digital Thermostat
Installation and user manual
EN 1 SAFETY WARNING
During installation and operation of the device, it is neces-
sary to comply with the following instructions:
1) The device must be installed by a skilled person, in strict
compliance with the connection diagrams.
2) Do not power on or connect the device if any part of it is
damaged.
3) After installation, inaccessibility to the connection termi-
nals without appropriate tools must be granted.
4) The device must be installed and activated in compliance
with current electric systems standards.
5) Before accessing the connection terminals, verify that the
leads are not live.
2 TECHNICAL SPECIFICATIONS
• Purpose of control: electronic thermostat;
• Construction of control and whether the control
is electronic (see above example);
• Setting range: +5/+35 °C;
• Supply voltage: 230 V~ ±10 % - 50/60 Hz;
• Power consumption: 3 W;
• Capacity of the contacts: 2 (1) A 230 V~ (not voltage free);
• Type of automatic action: 1;
• Construction: Class II;
• Ingress protection: IP 30;
• Operating temperature: 0 °C…40 °C;
• Operating humidity: 20 %...90 % rH non condensing;
• Storage temperature: -20 °C…60 °C;
• Shock load voltage: 2,5 KV;
• Temperature for Ball Pressure Test: 90° C;
• Pollution degree: 2 (normal).
3 REFERENCE STANDARDS
Conformity with EU directives:
2014/35/EU (LVD)
2014/30/EU (EMCD)
is declared with reference to the following standard:
• EN 60730-2-9: Automatic electric command devices for
household and similar use.
Part 2: particular provisions for thermosensitive command
devices.


Unisenza - Digital Thermostat
Installation and user manual
EN
4 INSTALLATION AND ELECTRICAL CONNECTION
4.1 Wall fixing
CLIK
1
1
NTC
2
GND
3 4
SWL
5
CO
6
NSB
7
L
8
N
2
3
CLIK
4
CLIK
1
1
NTC
2
GND
3 4
SWL
5
CO
6
NSB
7
L
8
N
2
3
CLIK
4
CLIK
1
1
NTC
2
GND
3 4
SWL
5
CO
6
NSB
7
L
8
N
2
3
CLIK
4
CLIK
1
1
NTC
2
GND
3 4
SWL
5
CO
6
NSB
7
L
8
N
2
3
CLIK
4
4.2 Wiring diagram
4.2.1 Thermostat terminals description
1
NTC
2
GND
3 4
SWL
5
CO
6
NSB
7
L
8
N
1
NTC
2
GND
3 4
SWL
5
CO
6
NSB
7
L
8
N
Terminals 230 Vac version 24 Vac version
1. NTC External sensor (NTC 10 KOhm)
2. GND Wire ground terminal (NTC 10 KOhm)
3.
4. SWL Switch output (Live 230 Vac during request) Switch output (Live 24 Vac during request)
5. CO Heating and Cooling terminal (Live 230 Vac: cooling) Heating and Cooling terminal (Live 24 Vac: cooling)
6. NSB Night set back input (Live 230 Vac: reduced mode) Night set back input (Live 24 Vac: reduced mode)
7. L Live input 230 Vac Live input 24 Vac
8. N Neutral input 230 Vac Neutral input 24 Vac


Unisenza - Digital Thermostat
Installation and user manual
EN
5 USER GUIDE
5.1 Home Screen
External sensor
indicator
Temp / Param Value
Lock
Operation Mode Enter Editing /
Save Value
Menu
Floor Sensor
Cooling Mode
Ambient Sensor
Heating Mode
Increase / Scroll
Down
Decrease / Scroll Up
Back
Note: After 20 seconds from the last button pressed, the display and buttons go in sleep mode.
Short press on any button to wake up the display and buttons before select any function.
4.2.2 Connection to the Wiring Centre
1
NTC
2
GND
3 4
SWL
5
CO
6
NSB
7
L
8
N
Digital Thermostat
Wiring Center
External
temperature
probe
Zone 1 to 10
Note:
- CO connection is optional. It’s needed to use change over function. (Futher explanation in Wiring center manual).
- NSB connection is optional. It’s needed to use night setback fuction. (Further explanation in Wiring center manual).
- External temperature probe is optional.
Zone 1 to 10 (5)


Unisenza - Digital Thermostat
Installation and user manual
EN

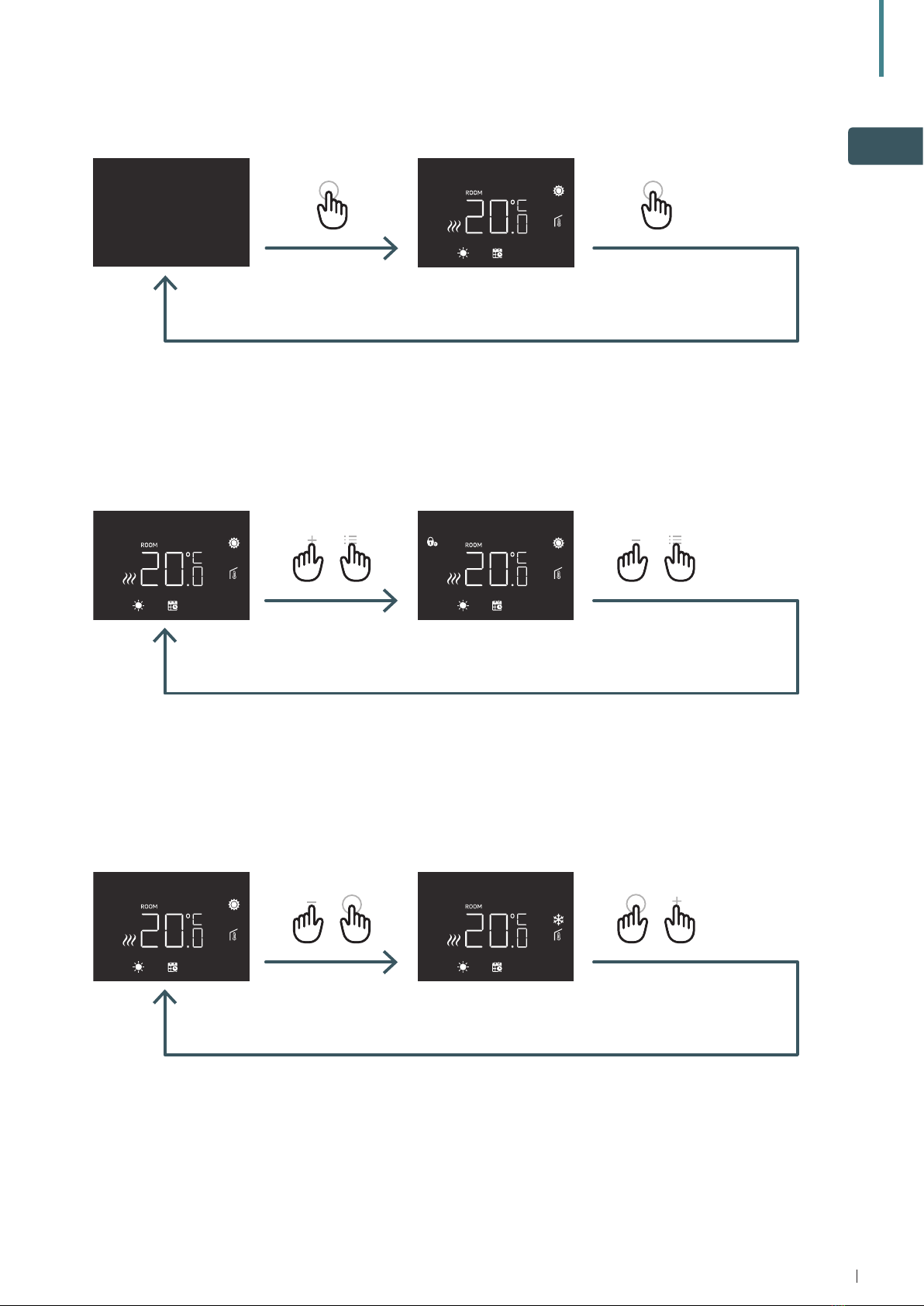

Long press (> 5sec)
Enter button to leave standby mode
Long press (> 5sec)
Enter button to enter standby mode
Long press (> 5sec) Menu button
& + Button to lock the device
Long press (> 5sec) Menu button
& - Button to unlock the device
Long press (> 5sec) - button
& Enter button to switch in cooling mode
Long press (> 5sec) Enter button
& + button to switch in heating mode
5.1.1 Standby
5.1.2 Lock – Unlock
5.1.3 Heating – Cooling
Attention: Note in standby only the antifreeze function is alive.
When the thermostat is connected to a wiring centre, only one device (thermostat or wiring centre) can switch the system
from heating to cooling and then from cooling to heating. If you try from a thermostat to switch from cooling to heating
mode and the thermostat displays NO, it means that it is possible switch in cooling mode only from the device (thermostat
or wiring centre) that switched the system from heating to cooling.
Note: If in the thermostat the Cooling function (User menu 03 COL) is disabled, it is no possible to switch in cooling mode, if
you try the heating icon blinks.


Unisenza - Digital Thermostat
Installation and user manual
EN 5.1.4 Working modes selection
10”
10”
10”
ECO Mode
COMFORT Mode
PROGRAM Mode
MANUAL Mode
or
or
or


Unisenza - Digital Thermostat
Installation and user manual
EN
5.1.4.1 COMFORT Mode
In this mode the device will work with fixed temperature
(Comfort temperature).
Using plus or minus button it’s possible modify the Comfort
temperature value.
5.1.4.2 ECO Mode
In this mode the device will work with fixed temperature
(Eco temperature).
Using plus or minus button it’s possible modify
the eco temperature value.
5.1.4.3 PROGRAM Mode
In this mode the device changing between comfort and eco
is based on NSB terminal input when the digital thermostat
is connected to the wiring centre.
5.1.4.4 MANUAL Mode
In this mode the device will work with fixed temperature.
Using plus and minus button it’s possible modify the tem-
perature.


Unisenza - Digital Thermostat
Installation and user manual
EN 5.2 User Menu
Short press Menu button to wake up the display, then long press (>5sec) menu button to enter in the User menu.
5.2.1 User Menu Map
To scroll in the user menus press + or - buttons.

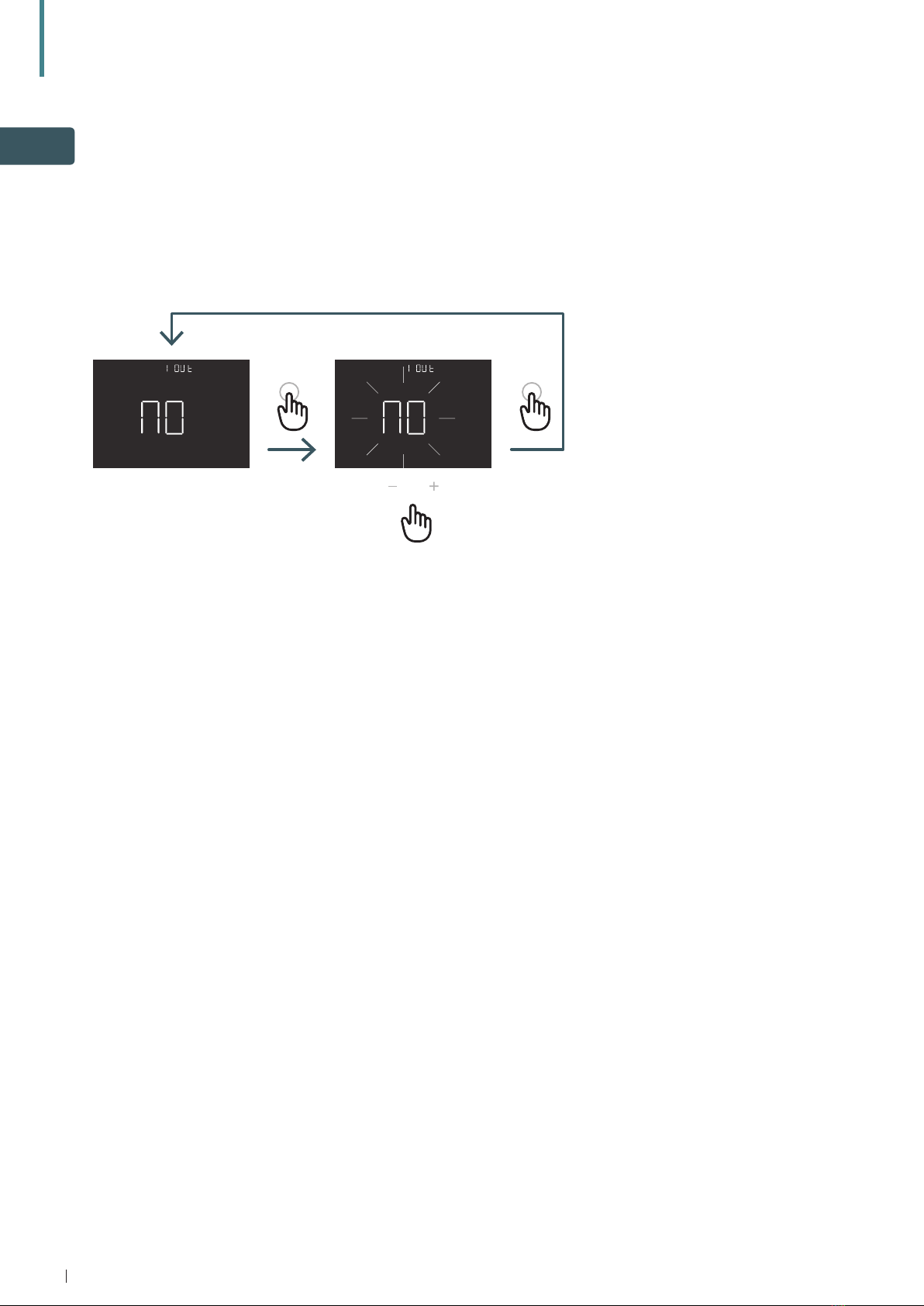

01 OWF Open window function
02 DEG Type of degree (C/F)

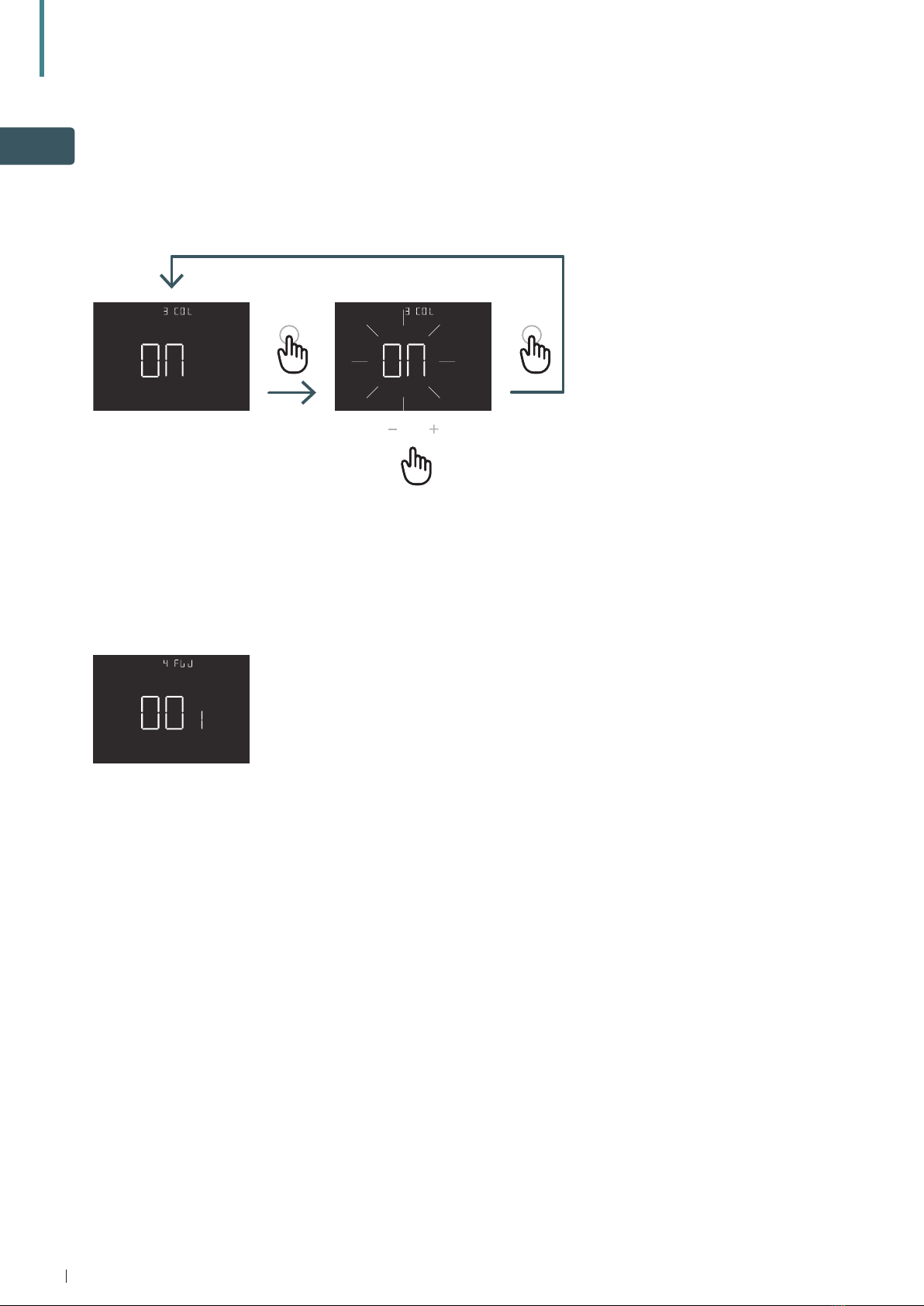

03 COL Cool function
04 FW Firmware version
05 RES User menu factory reset
