ASSEMBLY INSTRUCTION
MODEL: PAV-TIL
-L
PURPOSEAV™-TILT UNIVERSAL MOUNT FOR 32-84” SIZED DISPLAYS
CAUTION
• Read and understand these instruction in their entirety prior to installation
• This mount supports 32-84” displays, up to VESA 600 x 400
• Maximum weight capacity: 132 lb (60 kg)
• Ensure that the mounting wall will safely support up to 4 times the total weight of the
mount and display
• Use with products heavier than the maximum weights indicated may result in collapse
of the mount and its accessories causing possible injury
• Installation by a qualied professional is highly recommended
• PurposeAV™ does not accept responsibility for incorrect installations
GIVES BACK
TO CHARITY
100% PERFORMANCE
GUARANTEE
SEAMLESS
SUPPORT
10 YEAR
WARRANTY
DAILY IN-STOCK
PROMISE

www.purposeav.ca [e-mail] [phone]
PACKAGE CONTENTS:
HARDWARE LIST:
REQUIRED TOOLS:
• Power Drill
• 2/5, 3/8”, 7/32” drill bit
• Philips Head Screw Driver
• Socket Wrench
• Level
• Stud Finder

www.purposeav.ca [e-mail] [phone]
INSTALLATION
STEP 1: MOUNT WALL PLATE

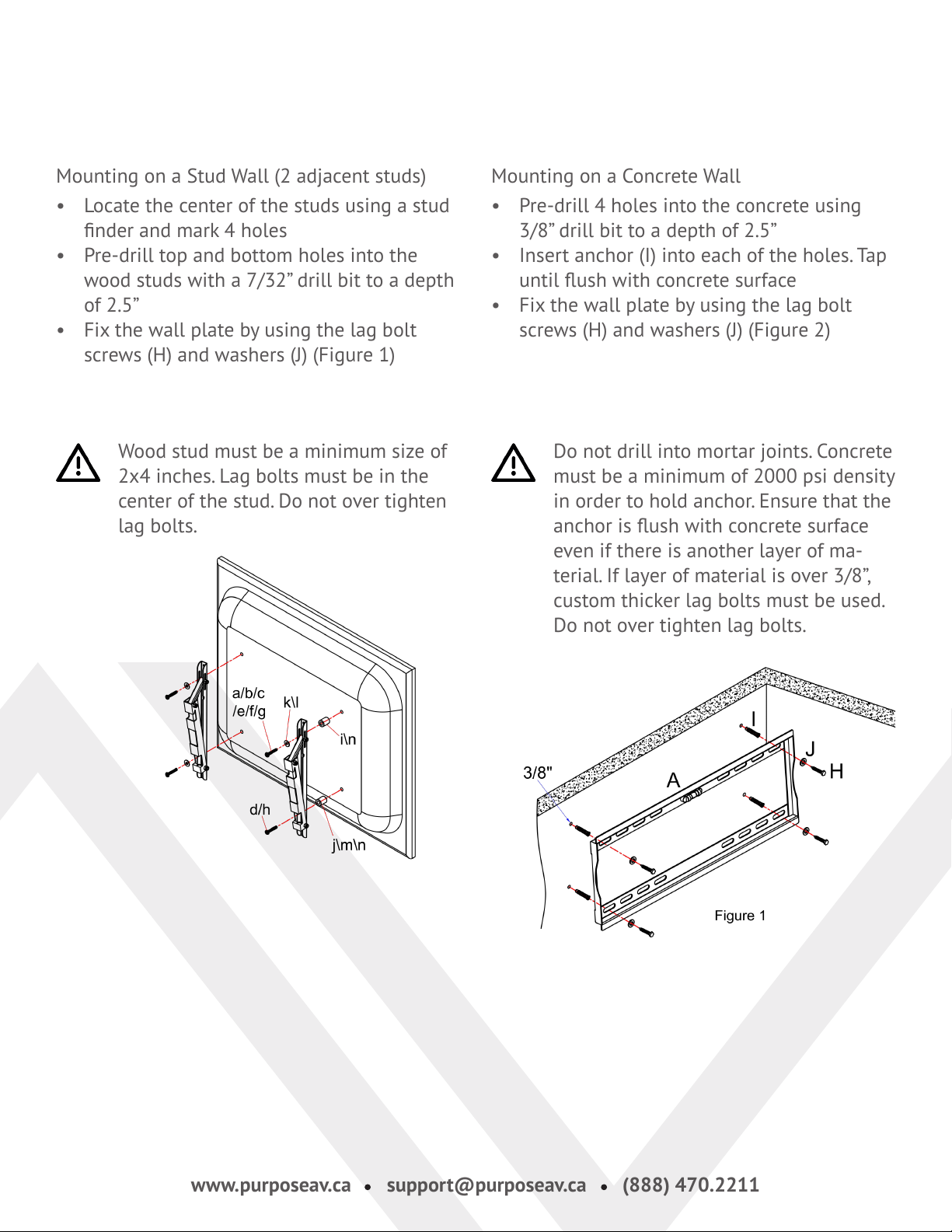

Mounting on a Stud Wall (2 adjacent studs)
• Locate the center of the studs using a stud
nder and mark 4 holes
• Pre-drill top and bottom holes into the
wood studs with a 7/32” drill bit to a depth
of 2.5”
• Fix the wall plate by using the lag bolt
screws (H) and washers (J) (Figure 1)
Mounting on a Concrete Wall
• Pre-drill 4 holes into the concrete using
3/8” drill bit to a depth of 2.5”
• Insert anchor (I) into each of the holes. Tap
until ush with concrete surface
• Fix the wall plate by using the lag bolt
screws (H) and washers (J) (Figure 2)
WARNING
Wood stud must be a minimum size of
2x4 inches. Lag bolts must be in the
center of the stud. Do not over tighten
lag bolts.
WARNING
Do not drill into mortar joints. Concrete
must be a minimum of 2000 psi density
in order to hold anchor. Ensure that the
anchor is ush with concrete surface
even if there is another layer of ma-
terial. If layer of material is over 3/8”,
custom thicker lag bolts must be used.
Do not over tighten lag bolts.

www.purposeav.ca [e-mail] [phone]
INSTALLATION
STEP 2: MOUNT ARMS TO DISPLAY
• Determine the correct screw size diameter
for your TV mounting holes. Hand-thread
one into the hole to determine the appro-
priate part to use. Stop if there is any resis-
tance
• Thread screws into the washer -> arm ->
spacer -> TV
WARNING
Using incorrect bolts may damage your
TV. Ensure arms lie at and square to
the TV.
INSTALLATION
STEP 3: HANG DISPLAY ON WALL PLATE
• Lift the TV to hook the arms over the top of
the wall plate so that it rests confortably
on the wall plate
• Tighten the screws located at the bottom
of the arms to secure and lock the arm onto
the plate
WARNING
Take caution when lifting
the display onto the wall
plate.

www.purposeav.ca [e-mail] [phone]
INSTALLATION
STEP 4: TILT ADJUSTMENT
• Adjust the tilt to the desired angle. It may
be necessary to rst loosen the screws to
reduce tilt resistance
• Once desired tilt is met, tighten screws to
lock in adjustment
