Pyle PDA5BU User manual

SPECIFICATION
• RATED OUTPUT POWER
MAX OUTPUT POWER (4 ohm/P.M.P.O.) 80WX2
• RATED INPUT LEVEL / IMPEDANCE
Audio Input 350mv/47kΩ
Microphone Input 8mv/600Ω
• TONE CONTROL
BASS f = 100Hz ±8db
TREBLE f =10kHz ±8db
• SEPARATION
Master Channel 45db
• FREQUENCY RESPONSE
Master Channel f=20Hz -20kHz 2db
• SIGNAL TO NOISE
Master Channel 71db
• SPEAKER SYSTEM
Master Channel 4Ω
• INPUT POWER AC~11OV-220
• POWER WATTAGE 150W
• DIMENSION 10.6" x8.7" x 2.8"
• N.W 5.5 lbs
• GW 6.6 lbs.
• ACCESSORIES
Operation Instructions 1pcs
* Result of spot check for reference only.
* Designs and specications are subJect to change without notice.
* Caution:please use 4 Ωspeakers.

1 6
Please take the time to follow the instructions in this owner’s guide
carefully. It will help you set up and operate your system properly and
enjoy its advanced features. Please save this owner’s guide for future
reference.
OPERATION NOTICE
1. Make sure of the line voltage
AC110V/220V
If you aren't sure of the type of
power supply in your home, consult
your appliance dealer or local power
company.
2. Protect voltage line
Avoid high pressure and stomped
on, don't pull or push excessively.
3. Avoid covering vents
Blocking up the vents will make the
temperature in the unit become
higher and will damage the unit
4. Avoid water dust and moisture
Don't put the unit on high moisture
or in a dusty place. Flower vase and
other washer container should not
be put above the unit.
5. Do not place in low temperature
Ensure the ambient temperature is
greater than 41°F.
6. Place this unit in a windy place
Avoid direct sunlight and nearing
heater. Do not operate in a sealed
box and be sure to have enough
room for heat exchange.
7. Avoid tiny metals to fall inside
the unit
To prevent short circuit avoid tiny
metals (ex. pins, coins, needle) to fall
inside the unit.
8. Avoid opening the cover or back
Don't open the cover, x or touch
the inner parts. No user-serviceable
parts inside, refer servicing to
qualied service personnel.
9. Avoid cleaning with volatile solution
Don't use volatile liquor.
Avoid cleaning with alcohol,
gasoline,etc.
TROUBLESHOOTING
If you experience any of the following diculties while using the unit, use
this trouble shooting guide to help you remedy the problem, should any
problem persist, consult your nearest dealer.
PROBLEM POSSIBLE CAUSE
No Power
No Sound
One Master Speaker
NO Sound
Bad Sound
Microphone No Sound
Severe Hum or Noise


is inactive


on the unit












securely connected


5 2
PRODUCT FUNCTION
1. POWER
Press "POWER" key, turn ON or OFF "power" supply
Caution: Make sure the master volume is set to low
Device supply is turned on, when turning on the AV amplier
2. INPUT SELECT
Four kinds of input source: CD/DVD USB Radio Bluetooth
3. MICROPHONE VOLUME: MIC VOL.
Adujst the "MIC VOL" knob to change the karaoke volume
4. ECHO
Adjusting "ECHO" can get a satiable echo eect.
5. TREBLE / BASS
Turn "TREBLE" / "BASS" knob to adjust master channel treble/bass tone.
6. MASTER VOLUME
Adjust the "MASTER.VOL" turn right volume up turn left volume down.
7. The Bluetooth receiver feature makes listening to music more
convenient
1. Connect the Power Amplier bluetooth function to your Mobile phone
2. Use the required Power Amplier bluetooth password“0000” to match
with your device
PRODUCT FUNCTION







3 4
CONTROLS & FUNCTIONS

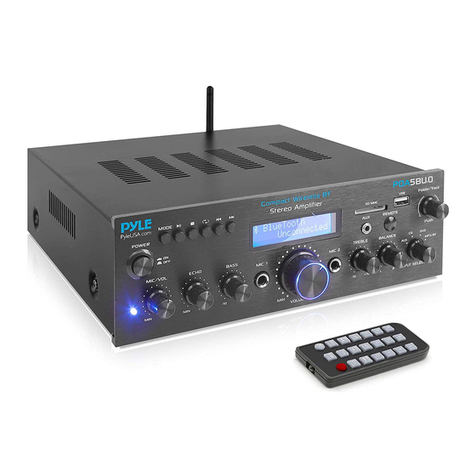

FRONT PANEL
BACK PANEL
REMOTE CONTROL FUNCTIONS
REMOTE
1 2 3 5 6 74 8 9 10 11 12 13
Input voltage 110/220V
converter
-
+-+
0 7
688 8 8 754 5 0
1 2 3 4 5 876

2. IPOD/MP3 SIGNAL INPUT

4. USB SIGNAL INPUT
5.VOLUME AND FUNCTION

6.
7.


10. BLUETOOTH/USB/RADIO


RADIO AUTOMATIC STATION

12.
13.
1. CD/DVD SIGNAL INPUT
2. LINE OUT
3. FM RADIO ANTENNA
4. AM RADIO ANTENNA

6. ~ 110V / 220V SWITCH DIRECTIONS
7. BLUETOOTH ANTENNA

LED
