OWNER’S
MANUAL
PLDN79U
www.pyleaudio.com

2
SAFETY INFORMATION.......................................................................................................3
INSTALLATION....................................................................................................................4-5
ELECTRICAL CONNECTION...............................................................................................6
THE PLAYER...........................................................................................................................7
OPERATION............................................................................................................................8
SETTINGS ....................................................................................................................8
RADIO ..........................................................................................................................9
USB/SD ........................................................................................................................9
AV-IN ..........................................................................................................................10
CALENDAR ...............................................................................................................10
REMOTE CONTROL......................................................................................................12-13
PERFORMANCE............................................................................................................ 14-15

3
SAFETY INFORMATION
Use This Product Safely
This set has been designed and manufactured to assure personal safety. Improper use
can result in electric shock or fire hazard.The safeguards incorporated in this unit protect
you if you observe the following procedures for installation, use and servicing. This unit
doesn’t contain anyparts that can be repaired by the user.
When Driving
Keep the volume level lowenough to be aware of road and traffic conditions.
When Car Washing
Do not expose the product to water or excessive moisture. This could cause electrical
shorts, fire or other damage.
When Parked
Parking in direct sunlight can produce very high temperatures inside your vehicle. Give
the interior a chance to cool down before starting playback.
Use the Proper Power Supply
This product is designed to operate with a 12 volt DC
Use Authorized Service Centers
Do not attempt to disassemble or adjust this precision product. Please refer to the
Service Center list included with this product for service assistance.
For Installation
The unit should be installed in a horizontal position with the front end up at a convenient
angle, butnot more than 300.

4
INSTALLATION
Notes:
Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
Before finally installing the unit,
connect the wiring temporarily and
make sure it is all connected up
properly and the unit and the system
work properly.
Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
Consult with your nearest dealer if
installation requires the drilling of
holes or other modifications of the
vehicle.
Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is an emergency
stop.
If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would
be subject to high temperature, such
as from direct sunlight,or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front”(conventional DIN
Front-mount) or “Rear”(DIN Rear-mount
installation, utilizing threaded screw holes
at thesidesof the unit chassis). For details,
refer to the following illustrated installation
methods.
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
ATTENTIONS OF INSTALLATION
1.This player should be installed by
professional technician.
2. please read the instruction and
operation of equipment carefully before
installing.
3. Make sure to connect other wires
before power connection.
4. To avoid short circuit. Please make
sure all theexposed wire are insulating.
5. Please fix all the wires after
installation.
6. Please make connection to the
player accordingly to this instruction
manual. Wrong connection may cause
damage.
7. This player only fit for 12V DC
device and please make sure your car
belongs to this kind of cathode grounding
electrical system.
8. Please connect the wires rightly.
Wrong connection will cause malfunction
or damage the electrical system.
30

5
INSTALLATION

6

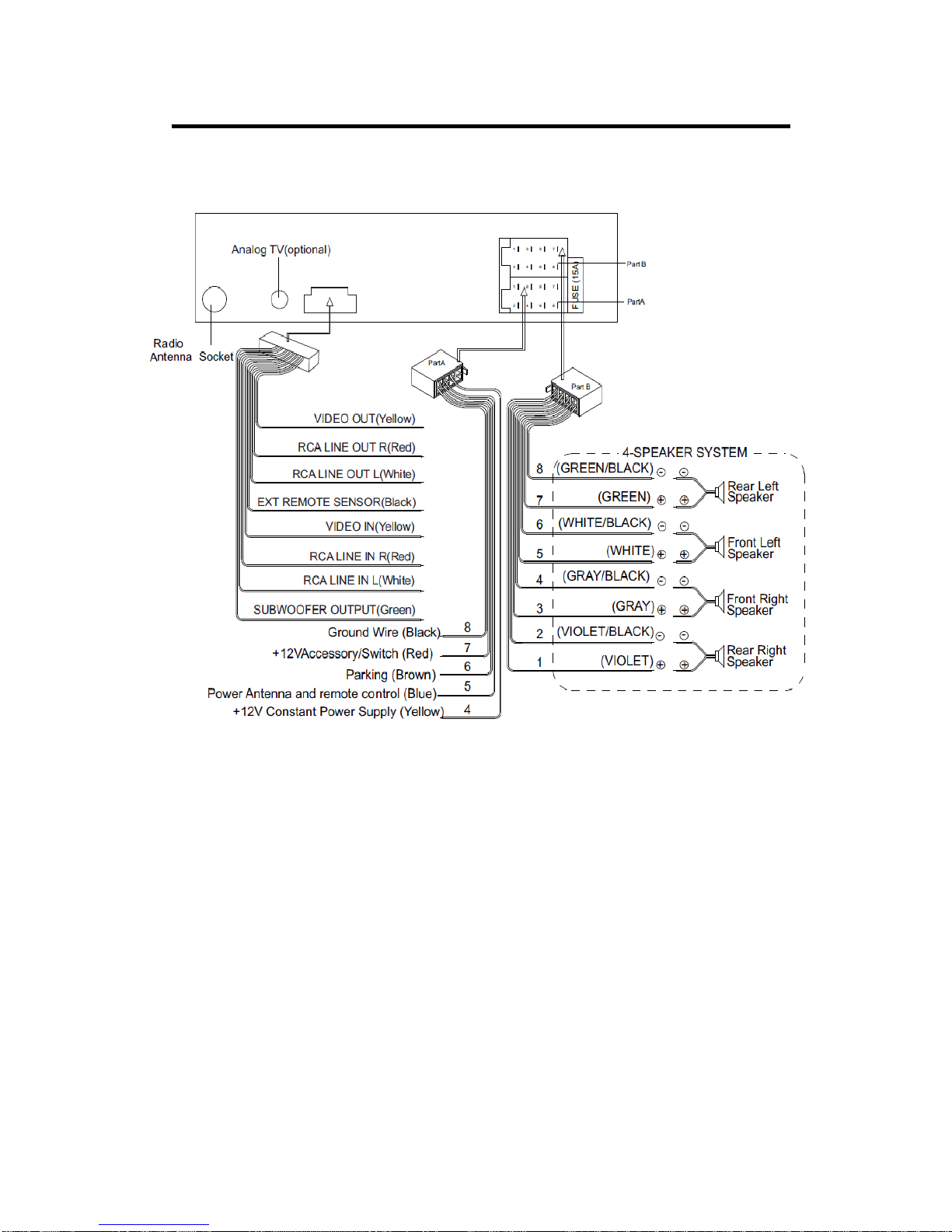

ELECTRICAL CONNECTION
Attention:
1. Please make sure “B+”and ”ACC” pin location are correct before making connection
These two pins may be different in different cars,wrong connections of these two pins
will burn the fuse outside.
2.” Parking ”wire must be connected to “ground” in order to active the video function
3. Thisplayer can only be used by the 12V DC cathode grounding electrical system.
4. Don’
t connect the terminals of the car battery until the player is absolutely with well erection
joint.
5. Please make sureto connect theyellowwire to the positive of the battery(+).
6. When change the fuse. Please make sure the specifications are same.
7. Using good quality speaker with 4-8 ohmcan result in the besteffectof the equipment.

7
THE PLAYER
.
1. IR Sensor .
2. VOL /Power on/off /Mute button.
3. AV IN1 jack.
4. USB port.
5. RESET
6. 7" TFT LCD display.
7. Multi-media TF card slot

8
OPERATION.
POWER ON/OFF THE UNIT
Short press the PWR button to turn on
the unit，Screen will display the main
menu.
Click the correspond icon to select the
different function Radio, USB, SD,
Calendar,AVIN1，AVIN2 and SETTINGS.
If no USB or TF-card found, it will enter
into the radio mode automatically. In
any mode, press and hold PWR button
for 2 seconds will turn off the unit.

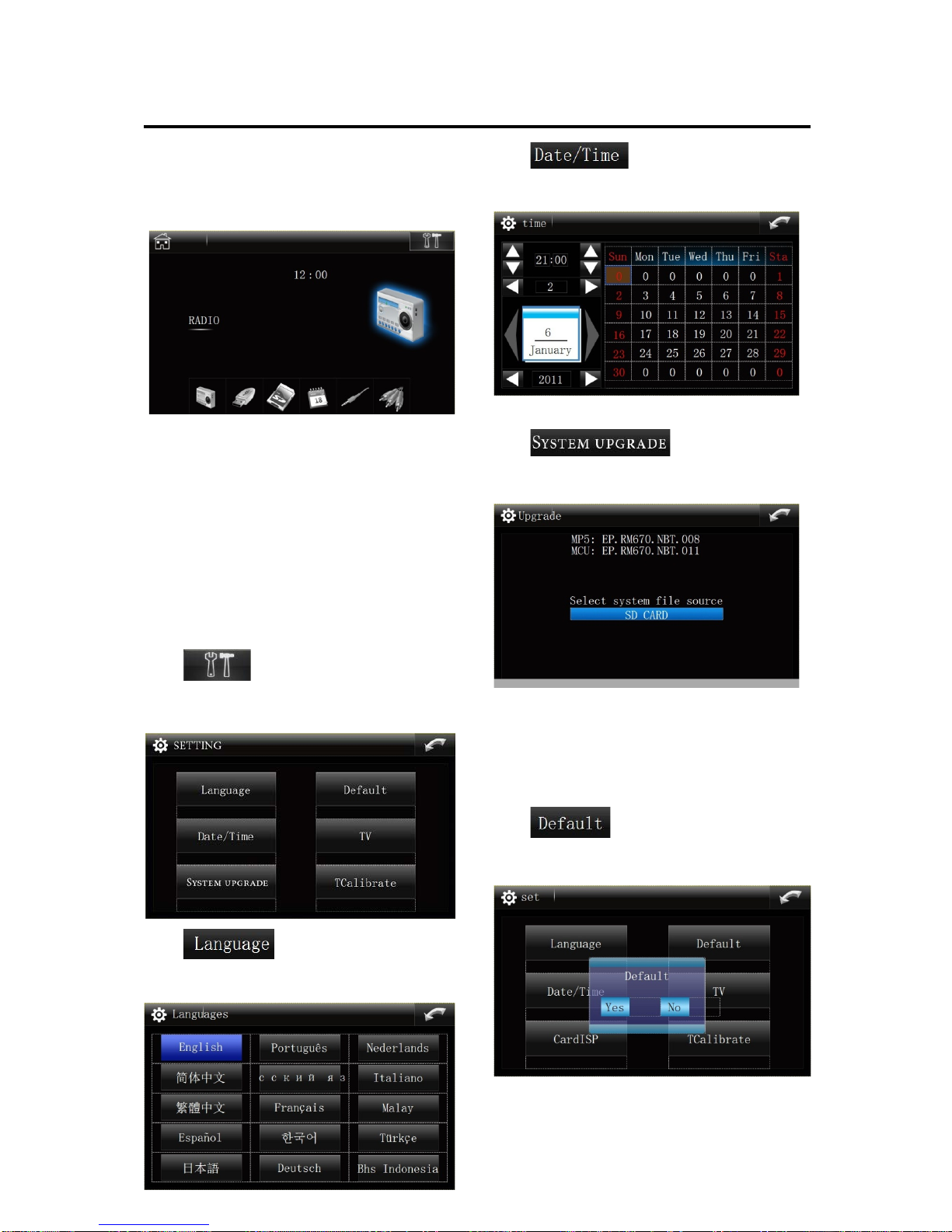

SETTINGS
Tap Iconwillenter the
setting interface as followed:
Tap Iconwillenter the
Languages interface as followed:
Tap Iconwillenter the
Date/Time interface as followed:
Tap Iconwillenterthe
System upgrade interface as below:
The upgrading is via SD, when it’s
done, please reset the unit for use.
Caution: Don’t power off while updating.
Tap Iconwillenter the
Default interface as followed:
Caution:All the settings will be defaulted
to the factorysettings if done..

9
OPERATION.
Tap Iconwillenter the
TV format setup interface as followed:
You can choose the different video
format according to the AVIN1/2 and
other video type.
Tap Iconwillenter the
TCA librationinterface as followed:
You can adjust the touch screen precision
until the calibrationis OK.
RADIO OPERATION
Tap Iconwillenter the
RADIO interface as followed:
--- LOUD ON/OFF
--ROCK/POP/CLASS/FLAT/EQOFF
--- FM Stereo ON/OFF
---Choose the VOL , Balance,
Fader, Treble and EQ setting
---Choose the band among
AM1/AM2/FM1/FM2/FM3
---Manual step seek up
---Long press for Auto seeking,
Short press can stop it while auto
Seeking.
Short press for overview the
station
---Manual step seek down
----Adjust the
volume up and down
USB/SD OPERATION
In the front panelof the unit, you will find
the USB /SD interface .
When you insert a USB /SD device, the
unit will search the MP3/ WMA files in
the USB driver and start to play
MP3/WMA files automatically. If in other
mode, Tap / icon to enter
USB/SD mode as belowpicture:

10
OPERATION.
----Repeat 1/Repeat all/Repeat all
--- Mute ON/OFF
/ --- Previous / Next
/--- Play/Pause
/--- increase(+) or decrease(-)
the selectionitems in the SEL
--- Choose the VOL , Balance,
Fader, Treble and EQ setting
---Rock/POP/CLASS/FLAT/EQ
OFF
Tap Icon will return to previous
menu.
///---Up / down / left /
right /Play
--- Select the current file and play
Tap Iconwillenter the
Movie interface as followed.
/ --- Previous / Next
/--- Play/Pause
----Repeat one/Repeat all/Repeat
all
--- Volume down
--- Volume up
Tap Iconwillenter the
photo interface as followed.
/---- Previous / Next。
/---Zoom in and out

11
OPERATION.
---- Auto play
----Normal or random play.
Tips: Also you can draw your finger on
the touch screen left or right to view the
pictures.

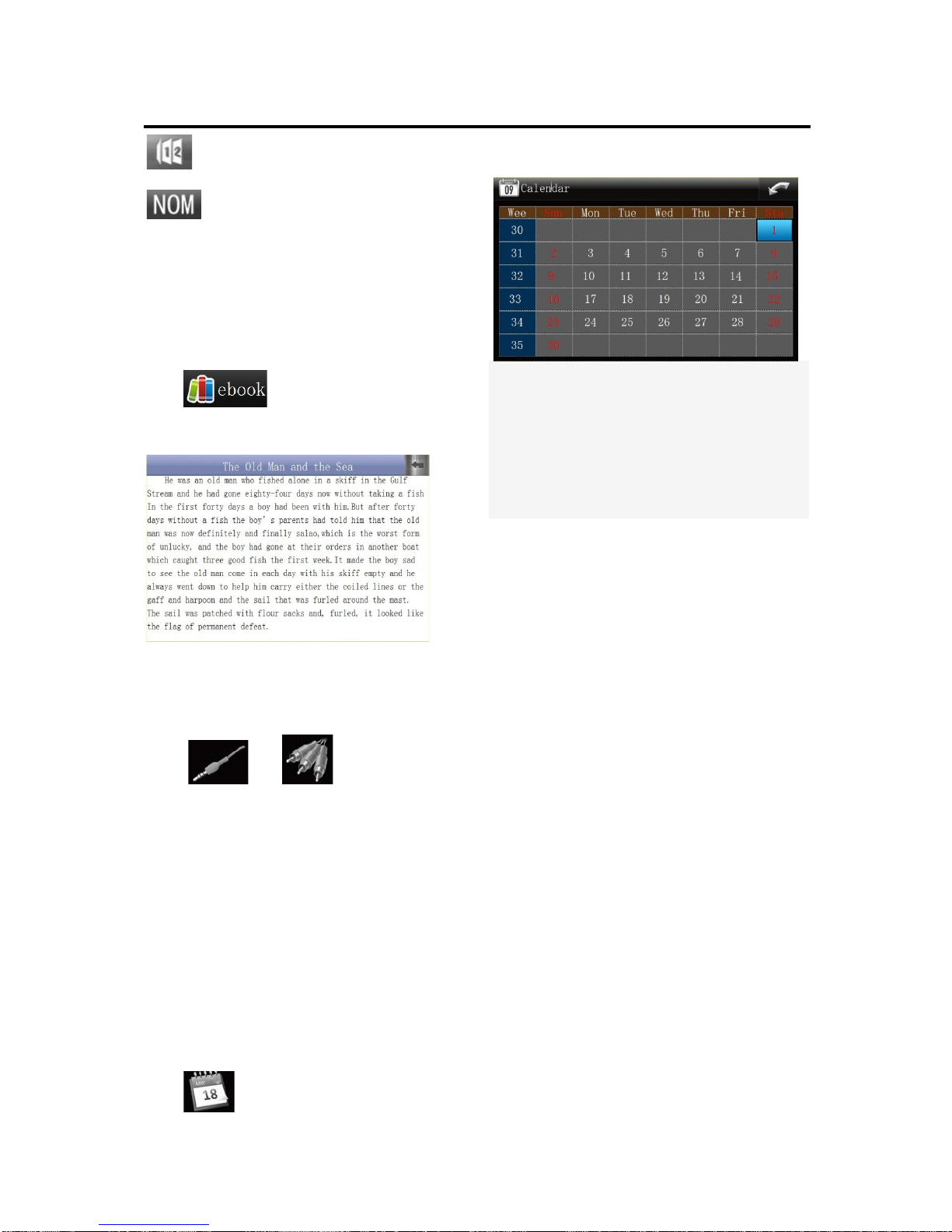

Tap Iconwillenter the
E-book interface as followed.
AV-IN OPERATION
Tap / icon to enter
AV1/AV2 mode
There is a RCA AVIN2 INPUT on the
back of the unit, and a stereo headphone
AVIN1 interface on the front panel of the
unit.
When you connect an AV into these
jacks, click AVIN1/AVIN2 on the main
menu to select them.
CALENDAR OPERATION
Tap Iconwillenter the
Calendar overview interface as followed:
Tips: Overview the month bydrawing
with your fingers on the touch screen
from left to right or right to left
Overview the month bydrawing with
your fingers on the touch screen from Up
to down or down to up

12

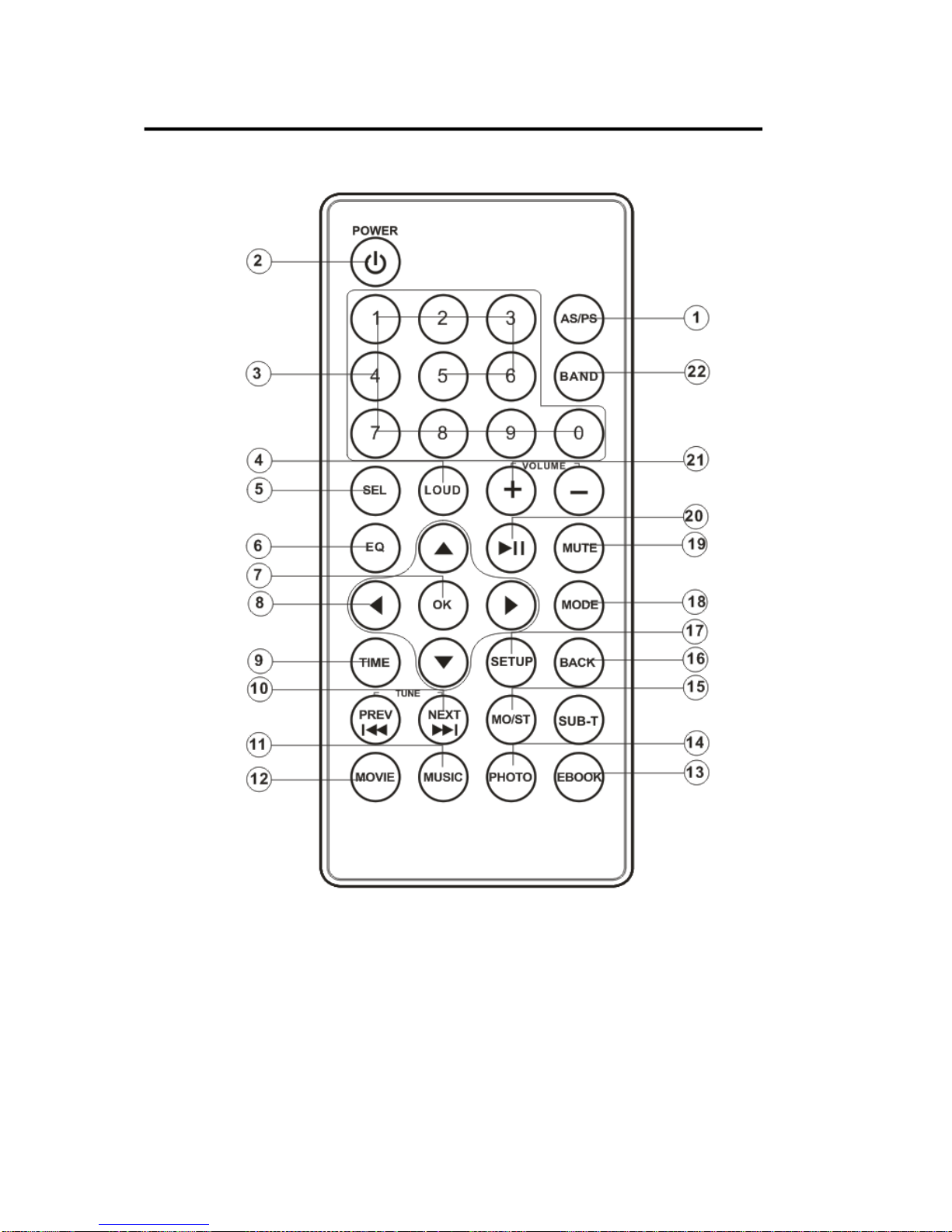

REMOTE CONTROL

13
REMOTE CONTROL
1.AS/PS In radio mode, press it to activateAutomatic Memory
Storing/Program Scanning function.
2.POWER Press it to turn the unit ON or OFF
3. 0-9 Inputs the corresponding number.
4.LOUD/EQ Loudness and EQ ON/OFF
5. SELAccess the Bass, Treble, Balance and Fader setting..
6. EQ Press it to select desired audio equalization
7.OK Confirm the current operation
8. /, /Left/Right, Up/Down
9.TIME Display the current time
10. /Previous/Next.
11.MUSIC enter into the Music play mode
12.MOVIE enter into the Video play mode
13.EBOOK enterinto the EBook mode
14.PHOTO enter into the Photo mode
15.MO/ST In radio mode press the button to set the reception between
mono and stereo mode.
16.BACK Back to the top menu
17.SETUP enter into the
setup menu
18. MODE Press to change the different sources.
19. MUTE Press to Mute the sound.Press againto recover the sound.
20. Play/Pause
21. VOL＋/- increase(+) or decrease(-) the volume level.
22. BAND: To select FM1,FM2,FM3,AM1,AM2 radio bands.

14
PERFORMANCE.
Appendix 1
Radio andAudio parameters:
FM MW(AM) MP3/WMA
Tuning range USA:87.5~107.9
MHz
EUR:87.5~108
MHz
OIRT: 64.5~73 MHz
USA:530~1710KH
z
EUR:522~1620KH
z
OIRT: :531~1620K
Hz
---
Sensitivity 4uV(S/N=30dB) 63uV(S/N=20dB) ---
S/N ratio 50 dB 45 dB 60 dB
Stereo
separation >25 dB --- 50dB
Freq.
Response 40Hz~12KHz 40Hz~2KHz 20Hz~16KH
z

15
PERFORMANCE.
Appendix 2
Audio and Video decoder ability:
Max resolution
JPG
4096x4096
GIF
Not support
Audio Sampling rate bit rate
AMR AMR-NB:8KHz,
AMR-WB:16KHz
AMR-NB: 4.75K ~
2.2K bps
AMR-WB: 6.6K ~
23.85K bps
AAC 8K ~ 48KHz
AAC-LC:32K ~
320K bps
AAC+:64K ~128K
bps
MP3 8K ~ 48KHz 32K ~ 320K bps
WAV
4K ~ 96KHz
Don't care
WMA
8K ~ 48KHz
5K ~ 320k bps
APE
8K ~ 48KHz
Don't care
FLAC
8K ~ 48KHz
Don't care
Video
Sampling rate
Decoder resolution
bit rate
fps
FLV (h.263)
flv
1280x720
3Mbps
30f
MPEG-1
mpg, dat
720x480
10Mbps
30f
MPEG-2 mpg, vob, ts 720x480 10Mbps 30f
MPEG-4 SP 3gp, mp4, avi,
mov
1280x720 4Mbps 30f
MPEG-4 ASP mp4, avi, mov 1280x720 2Mbps 30f
H.264 BP 3gp, mp4, avi,
mov
720x480 2Mbps 30f
DivX3
avi
720x480
4Mbps
30f
DivX4/5/6
avi, mov
1280x720
2Mbps
30f
RM8
ram / rm
1280x720
3Mbps
30f
RM9 / RM10
rm / rmvb
1280x720
3Mbps
30f
MS
MP41/42/43 avi / asf 720x480 4Mbps 30f
VC-1/WMV9
MP
asf / wmv 720x480 1Mbps 30f
WMV7 / 8
asf / wmv
720x480
4Mbps
30f
