Pyle PLD128 User manual

OWNER'S MANUAL
Car Audio Hifi System
DVD/VCD/CD/MP3 PLAYER
PLD128

Contents
Safety Precautions.......................................2
1
General Features..........................................5
Power
Volume
Eject
Release
Mode
N/P
Clock
Volume setting
Bass setting
Treble setting
Balance setting
Fader setting
Play Operation.........................................8
Play/Pause
Random
Repeat
Stop
PBC
Remote Control......................................10
Loading and Replacing the battery
Basic operation
Electric Connection....................................3
Receiption collection
Speaker collection
Installation....................................................4
Install the unit
Remove the unit
Specifications........................................18
Trouble Shooting...................................19
Radio Operation.......................................9
Band
Band tuner
Speaker setting..............................................7

2
CAUTION

Safety precautions
Be sure the unit is connected to a 12V
DC power with a Negative Ground.
Do not install the unit in places where
it is exposed to direct sunlight,high heat
or humidity,water splash or dust.
To change fuse,please use the same
one in specification and capacity.
When changing fuse,please do it
after pulling down power wires to avoid
short circuit.
If the unit seems not work in proper
situation, please press the reset button to
resume the function.
Do not operate when driving.
To prevent electric,etc,Please do not
let
If you smell or see smoke,turn off the
power immediately and consult our dealer.
Be careful not to drop or shock the unit
strongly.
Do not touch the liquid crystal to avoid the
life hurt.If the clothes is stained with it,Please
clean it immediately by soap.
For your driving safety,please link your
brake detecting wire with low power
level,and keep it controlled by manual brake
switch.when driving a car,the brake wire shall
be high power level and now,unit can not
play DVD or VCD disc.
the metal goods(silver,coin,tools..)fall into
the installation.
To prevent damage to the machine,
take the following precautions:
WARNING
To prevent injury or fire,Please
take the precautions:following
Attach the front panel by fixing the left
Side of it into this unit as 1 showing.
Then push the right side of panel
towards into connecting plug as 2
showing.
Attaching panel:

Attaching panel
RESET
[RESET]

Electric Connection
3
Electric Connection
FRONT.LFRONT.L
FRONT.RFRONT.R
REAR.LREAR.L
REAR.RREAR.R
Green/WhiteGreen/White
GrayGray
To front left
speaker
To front left
speaker
To front right
speaker
To front right
speaker
To rear left
speaker
To rear left
speaker
To rear right
speaker
To rear right
speaker
BrownBrown
Lgnition wire(Red)Lgnition wire(Red)
Battery wire(Yellow)Battery wire(Yellow)
Ground wire(Black) (To car chassis)Ground wire(Black) (To car chassis)
Car fuse
box
Car fuse
box
BatteryBattery
Car fuse box
(Main fuse)
Car fuse box
(Main fuse)
Lgnition key
sw tchi
Lgnition key
switch
Connect to control for antenna
or remote control for amplifier.
Connect to control for antenna
or remote control for amplifier. (Orange)(Orange)
RED RCH outRED RCH out
WHITE LCH outWHITE LCH out
YELLOW VIDEOYELLOW VIDEO
CAR ANTENNACAR ANTENNA
GreenGreen
Gray/WhiteGray/White
Brown/WhiteBrown/White
BlueBlue
Blue/WhiteBlue/White
AUX IN REDAUX IN RED
AUX IN WHITEAUX IN WHITE

4

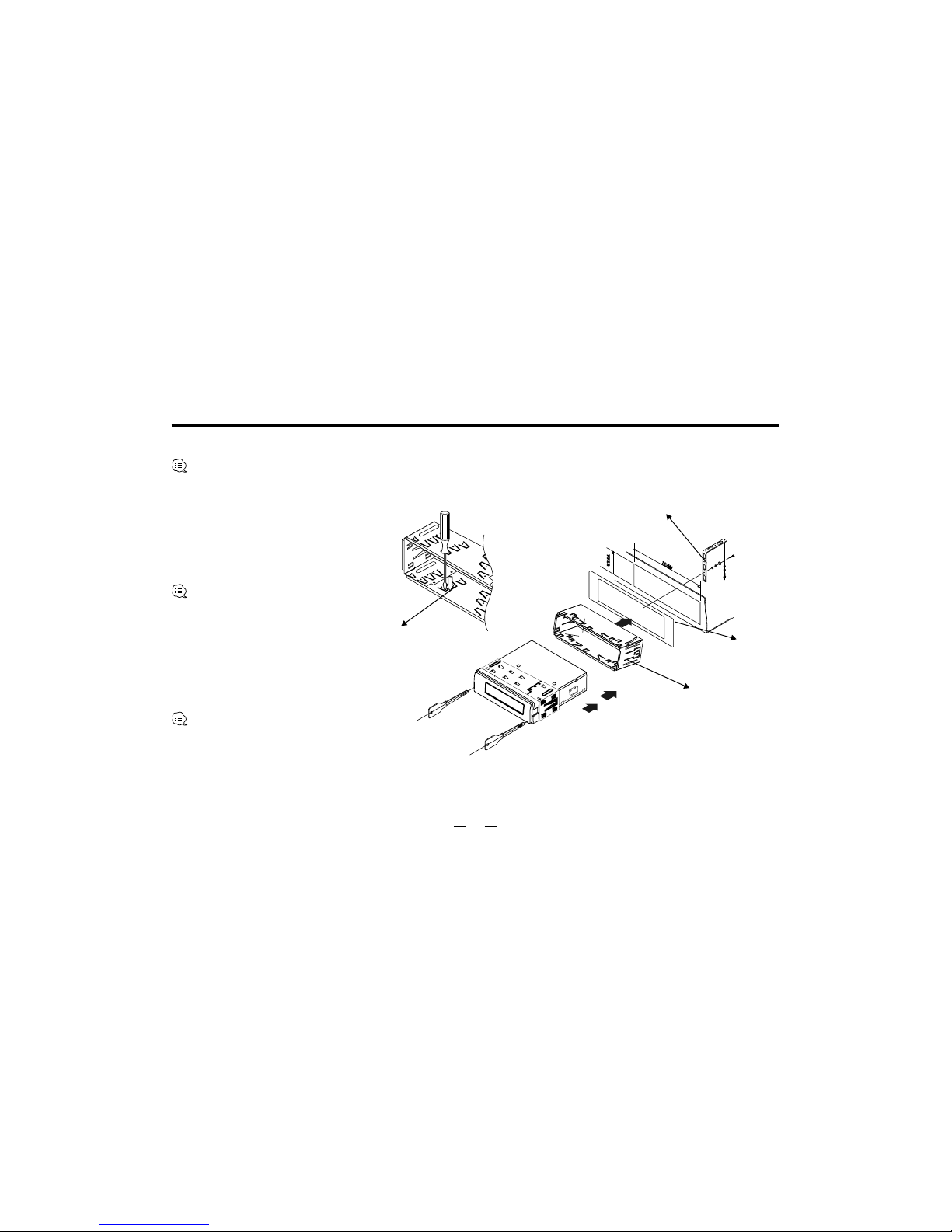

Before installing the receiver permanently, fit it in the approximate place in your car ,and connect the
equipment according to the speakers and electrical connections. When
your system is operated properly,(preferably with the
car engine running), follow the instructions
for permanent installation
of your system.
1) Adapter
(not supplied)
2)Bend over tabs
of half sleeve
(supplied)
3)Support strap
(supplied)
Half sleeve
(supplied)
4) Two wrenches for releasing
the unit (supplied)
INSTALL THE UNIT
1)Install half sleeve, can be with or
without adapter. It will fit better
with adapter.
2)Bend over some tabs to secure the
half sleeve inside of dash.
3) Support strap to be strutted under
dash, secure this strip to avoid skipping of disc.
Insert removal wrench into the small
gap on the right side of the unit and pull
the unit slightly out on the same side,
then release the wrench. Repeat the
same action for the left side. By now,
you can remove the unit and unplug
the wires connector.
REMOVE THE UNIT
Installation

1234 56
APS
PWR
S
EL
SEEK
VOL
RPT RDM BAND CLOCK MODE PBC STOP
5
Power
Press the [PWR]button to turn on/off the unit.
Volume
Increasing volume
Decreasing
Eject
Rotate the SEL/VOL button in
clockwise direction.
Rotate the SEL/VOL button in
anticlockwise direction.
Out
Press the [ ]button to eject the disc out of the unit .
Release
press the " " button to release faceplate.
General Features
CLOCK
EJECT
SEL
RELEASE MODE
N/P
VOL+
VOL-
EJECT
VOLPWR
ON/OFF

6
Clock
Short press CLK can display time even power off .
Long Press CLK for 3 seconds will enter set mode.
General Features
N/P
In PLAY mode, press the [BAND] button to exchange between
the PAL and NSTC.
Hour
Minute
Quit clock set mode
there is no operation in 5 seconds, it will quit clock
set mode.
Press the [CLOCK] button until the hour number blinking
then rotate the VOL button to set the hour.
Press the [CLOCK] button until the hour number blinking
then press the [CLOCK]again until the minute number
blinking and rotate the VOL button to set the minute.
MODE
Selecting radio and play
Press the [MODE]key.
(If mode with AUX IN and TV,the function is below:
press MD(MODE)to select:
2 If without AUX IN and TV,press MD that is: 
RADIO DISC TV AUX IN RADIO
RADIO DISC RADIO

1234 56
APS
PWR
SEL
SEEK
VOL
RPT RDM BAND CLOCK MODE PBC STOP
7
BAS -6
VOL 10
TRE 5
BAL 4
FAD -3
Volume set mode
Bass set mode
Treble set mode
Balance set mode
Fader set mode

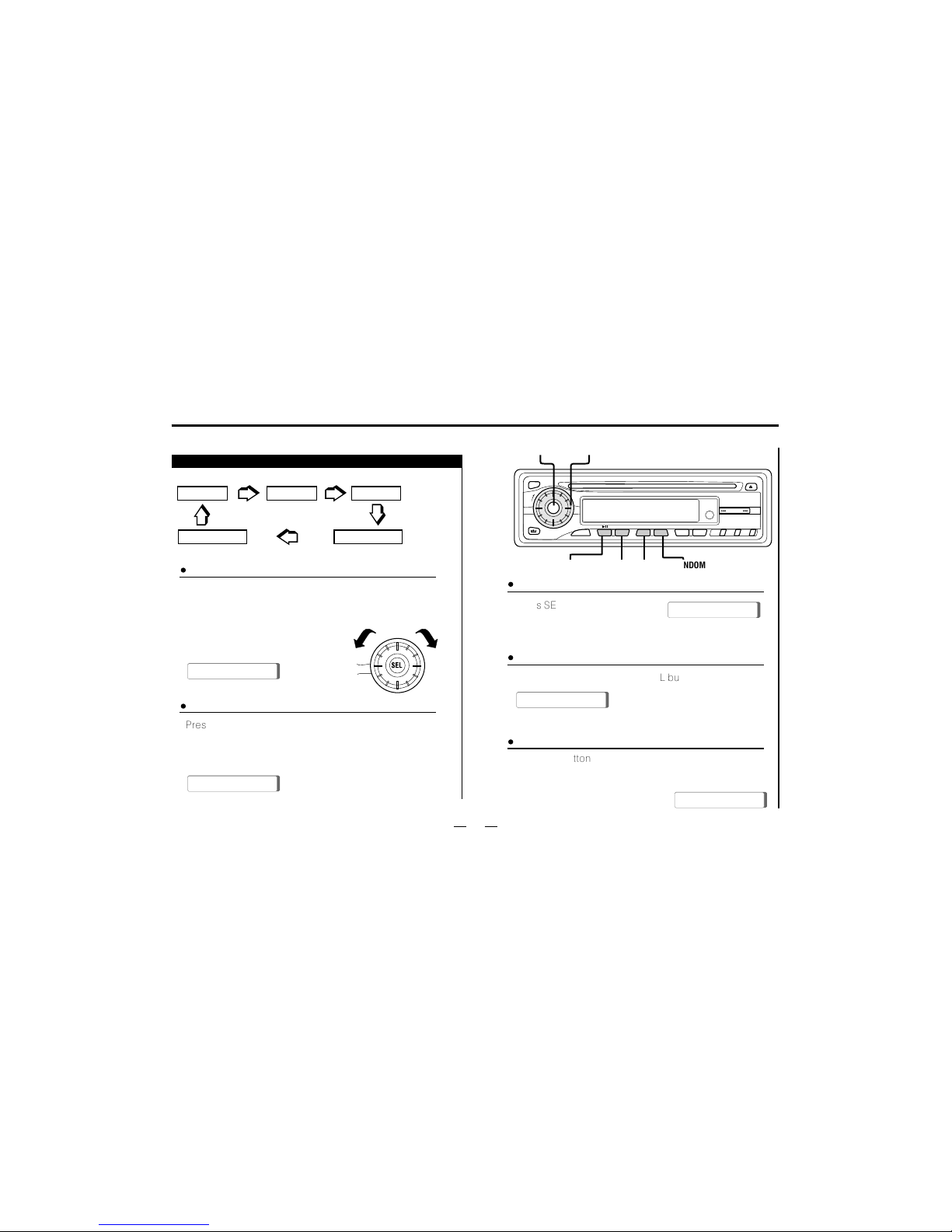

Speaker setting
Speaker mode
VOLUME BASS
BALANCE
TREBLE
FADER
Press SEL button once,display will show VOL on,
then rotate the button in clockwise direction to
increase volume level;rotate the button in
anticlockwise direction to
decrease volume level.
 
Press SEL button twice,display will show BAS on,
then rotate the button to adjust bass level up/down
in different direction.
 
Press SEL button third,
display will show TRE on,
then rotate the button to adjust treble level up/down
in different direction.
 
Press SEL button fourth,display
will show BAL on,then
rotate the button to adjust
left and right speakers level up
/down in different direction.
 
Press SEL button fifth, display will show FAD on,
then rotate the button to adjust front and rear speakers
level up/down in different direction.
 
PLAY/PAUSE STOP RANDOM
REPEAT
VOL+
VOL-
SEL VOL

8
Play control
Play/pause
Repeat
Press the button to repeat the same track continuously, RPT
will appear on the LCD display.Press the button again to come
back normal playing.
 
Press [RPT]button
Stop
Press [STOP]button
Press STOP button to stop music,and press button
to start playing from track one.
   
Random
Press this button to play all the track in random order. Press it again
to stop random playing. This button is invalid if the unit is in PBC
On mode.


Press [RDM]button
Play
If with DISC in unit,Press the [ ]to pause music.
Pause
Press the [ ]button again , come back DISC playing.
If a disc is loaded,a sector sign will show on the display.
PBC
Press [PBC]button
If the disc is VCD 2.0 version or above, press this button to toggle
the PBC function.

1234 56
A
PS
PWR
SEL
SEEK
VOL
RPT RDM BAND CLOCK MODE PBC STOP
9
FM1 FM2 FM3
AM2
Band
Press BAND button to select among three FM or two AM bands.
(FM1-FM2-FM3-AM1-AM2)
Selecting band
Radio Operation
AM1
SEEK+SEEK-
BANDPRESET MEMORY 1-6
Tuner
the long press button it can automatically select higher
frequency station. And the long press it can automatically
select lower frequency station.
manual tuning:
short press button it can select higher frequency station.
Short press can select lower frequency station.
Auto loading tuning:
Press [APS]button
Seek Tune:
In FM (FM1 FM2 FM3) or AM(AM1 AM2 playing mode, long
press "APS" button, it can seek and store strong frequecy
station automatically in to1-6 memory buttons.
   
Select station
FM can be memorized 18 stations. AM can be memorized 12 stations.
AS/PS

10
WARNING


Remote control
Pull out
Loading and replacing the battery
Use one lithium battery(CR2025)
Insert the batteries with the +and - poles aligned properly.
Following the illustration inside the case.
Store unused batteries out of the reach of children.contact a
doctor immediately if the battery is accidentally swallowed.
Do not set the remote on hot places such as the above dashboard.

CLKCLK





AudioAudio





AngleAngle
TitleTitle

AFAF
EQEQ









MODEMODE
OSDOSD

TATA PTYPTY

11
Press this button to turn on/off the unit.
POWER
CLK
Press this button can show the time,and long press to enter clock
adjustment.
MODE
Press this button can select needed receiving and playing mode.
EQ
Press this button can select mode as POPS,JAZZ,ROCK,DSP OFF.
SEEK+/SEEK-
Press this button can manually search tune,fast,back and track
searching control.
BAND P/N  
Under receiving position,press this button can select band;
under VCD,DVD position,press this button can select
automatic,PAL or NTSC.
VOL+/VOL-
Press this button can increase or decrease volume.
SEL
Repeatfully press this button can select needed mode.
LOC/RDM
Under receiving position,press this button can do far and close
switch;under VCD,CD playing,press this button can play randomly.
Press this button to stop playing.
Stop
Press this button can switch between play and pause.Under
stop state, similarly press it to play.
Play/pause
ST/PROG
Under receiving state,press this button can select stereo or single
track;under playing state,it can do programme play cooperating
with STOP button.  
Basic operation

12
PBC
When playing VCD,OK disc,press this button can show all the
prgramme menu,and can cooperate numeral buttons to select
programmes.
[ ][ ][ ][ ]
[ENTER]
Under DVD mode, press this button can move cursor in
up,down,left and right directions after entering SETUP
Menu.Press ETR button can confirm selected item.  
AMS/RPT
Under receiving state,press this button can scan memory
stations.Long press it can automatically scan and store them.
SETUP
Under playing mode,press this button can open SETUP Menu.
Press this button can zoom picture.
ZOOM
TITLE
Under VCD mode,press this button to enter Menu selection same as
PBC.
Under DVD mode,press this button to return to the top of Menu.
Basic operation

CLKCLK





AudioAudio





AngleAngle
TitleTitle

AFAF
EQEQ









MODEMODE
OSDOSD

TATA PTYPTY

13
ANGLE
Under DVD mode,press this button can change visual angle.
SLOW
Under VCD mode,press this button can advance slowly.
Under DVD mode,press this button can advance and back off slowly.
SUBTITLE
Under DVD mode,press this button can switch dialogue language.
  0-10+
Press this button can directly select track and chapter,and 1-6
buttons can select preseted stations.
AUDIO
Under VCD mode,press this button can switch track.
Under DVD mode,press this button can switch dialogue language.
MUTE
Press this button to turn off volume out ,and again to resume.
Press this button can show play time, surplus time.
OSD
Basic operation

CLKCLK





AudioAudio





AngleAngle
TitleTitle

AFAF
EQEQ









MODEMODE
OSDOSD

TATA PTYPTY

14
Basic operation

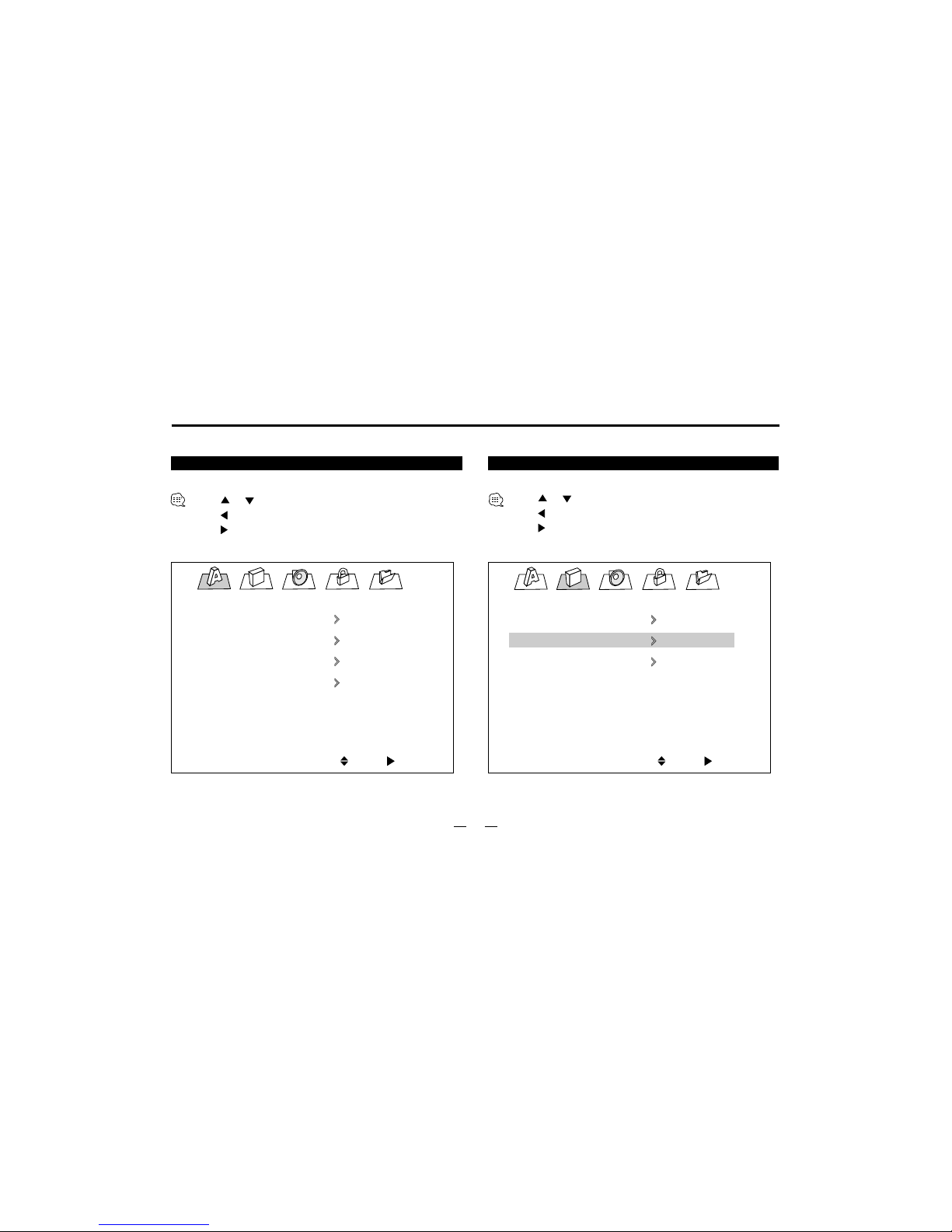

Setup Menu for Universal Capability
Press SETUP,screen will show system setup menu as follows:Press SETUP,screen will show system setup menu as follows:
Menu Language
Disc Audio
Disc Subtitle
Disc Menu
English
Original
Off
Original
LANGUAGELANGUAGE
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Display Setup Menu
TV Aspect
Display Mode
TV Output
16:9
Widescreen
NTSC
DISPLAYDISPLAY
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Move Select Move Select

15
Basic operation
Dolby Digital
DTS
DRC
Digital Output
Bitstream
Bitstream
On
On
AUDIOAUDIO
Audio Setup Menu
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Move Select
Lock Setup Menu
Rating
Password
Country
Unlock
New
LOCKLOCK
UUS
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Move Select

16

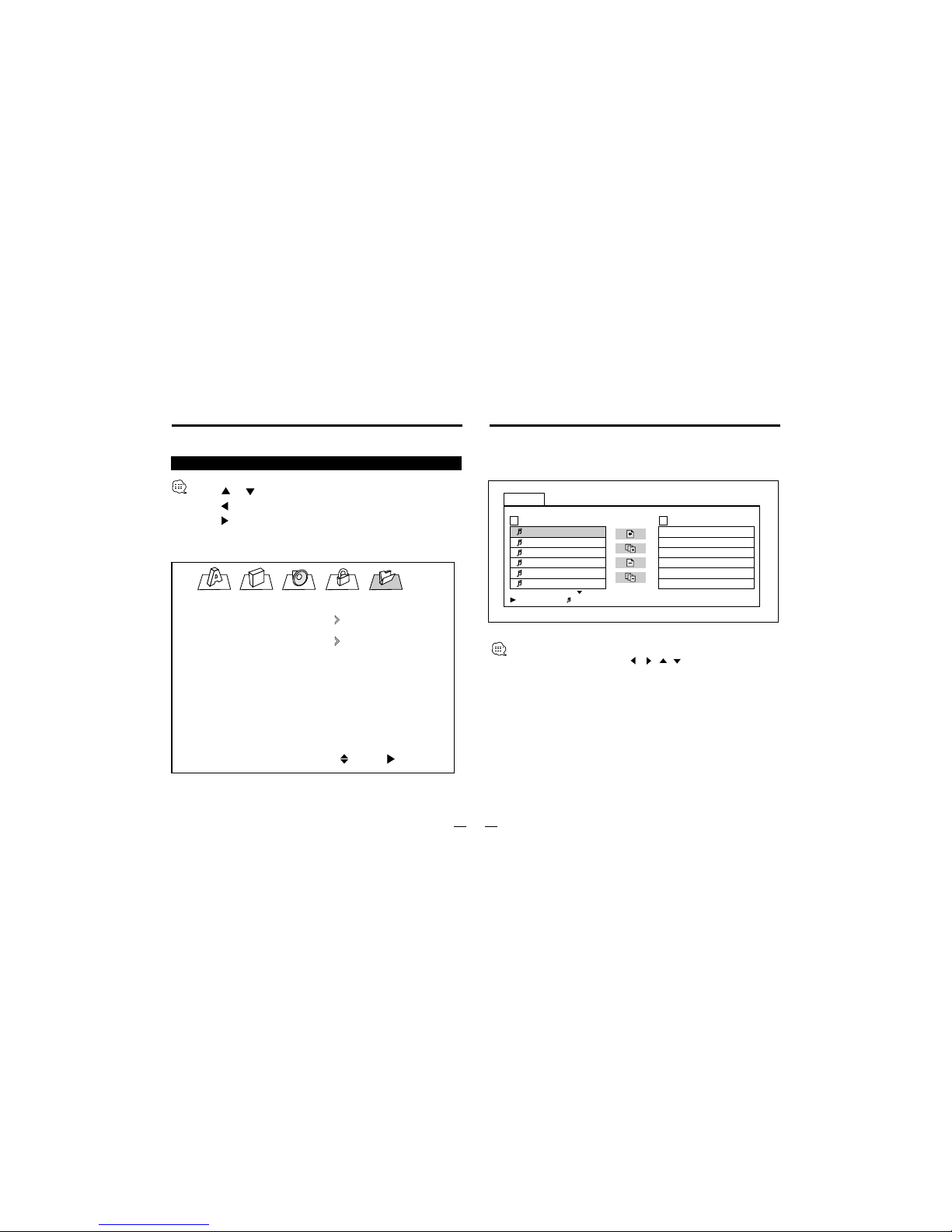

Basic operation
Load Defanlt
Screen Saver
Select
On
OTHERSOTHERS
Others Setup Menu
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Move Select
Mp3 menu
Insert MP3 disc,and TV will show menu as follows:Insert MP3 disc,and TV will show menu as follows:
In this menu,the right is the submenu of the left,and it can
cooperate remote control buttons to select
wanted contents and programmes and press ENTER to
confirm.
[ ][ ][ ][ ]
1-001_______MP31-001_______MP3
2-002_______MP32-002_______MP3
3-004_______MP33-004_______MP3
___
___
___
___
ListList
___
___
___
___
ProgramProgram
0:01:440:01:44 2/1352/135
XXXXX_______XXXXXXXX_______XXX
XXXXX_______XXXXXXXX_______XXX
XXXXX_______XXXXXXXX_______XXX
\001_______MP3\001_______MP3
MusicMusic

12
............1............1

Accessories
External view
........ Number of items
External view
........ Number of items
The use of any accessories except of those provided
might result in damage to the unit .Make sure only to
use the accessories shipped with the unit ,as shown
above.
............2
3
17

18
Signal/Noise radio......................................................70dB
Frequency response..............................20Hz-20KHz(+3dB)
Channel separation..................................................>45dB
Dual D/A converter......................................................16Bit
Tuning range..................................
USA:87.5-108MHz
(100KHz step)
FM usable sensitivity(S/N=30dB)...............................<12dB
Stereo separation......................................................>45dB
EUROPE:87.5-108.0MHz
(50KHz step)
FM Tuner
AM Tuner
Tuning range.....................................
USA:520-1720KHz
(10KHz step)
AM sensitivity..............................................................28dB
EUROPE:522-1620KHz
(9KHz step)
Operating power....................................12 Volts DC,negative
ground
%10THD output wiring.........................Designed for using four
speakers only front and rear
channels cannot be combined
in use with 2speakers.
Load impedance..................................compatible 4 to 8 ohm
speakers
Fuses............................................................ ..........10 amp
Dimensions...........................................178mm(L)x50mm(W)
x150mm(H)
Weight......................................................................2.5Kgs
CD PLAYER GENERAL
Specifications subject to change without notice.
Specifications
FM 65-74MHz

19
What might seem to be a malfunction in your unit may just be the result
of slight misoperation or miswiring.Before calling service, first check the
following table for possible problems.
Trouble shooting guide
?The power does not turn ON.
The fuse has blown.
Confirm whether the lead short circuit,then replace fuse with same capacity.
?NO Sound.
The cable connect incorrectness.
Exactitude connect of the cable.
?Noise on Radio or poor recepiton
Antenna and Antenna Cable.
Check antenna and antenna cable, the antenna base must be
grounded and connected with good condition, replace
antenna or antenna cable if needed.
?Noise on both Radio and CD
Poor ground,dirty or corroded at the car Battery posts
Check the black wire for proper grounding clean and tighten ground
connection.
?No/Poor sound on one or more speakers
Speakers or speaker wiring or volume, Balance and
Fader setting
Check the speaker wiring and test the speakers all in good condition
check the setting of volume, Balance and Fader controls.
?CD sound skips
Installation the unit angle is greater than 45 ,or
mounting is not fixed and the back strap is not secure.

Adjust the unit with mounting angle less than 45 and make sure the
unit is mounted securely and tighten with the back strap(supplied)

?Unit completely inoperative, no Light and Sound
Incorrect wire connection, Power RED/YELLOW or
Ground wire or Blown fuse
Check the Red wire to +12 Volts with key lgnition witch, yellow wire to
+12 Volts battery and black wire to ground. Check Fuse with red/yellow
wire, or check the fuse block on your car.
