Pyle PLD182 User manual

OWNER'S MANUAL
Car Audio Hifi System
DVD/VCD/CD/MP3 PLAYER
PLD182

Contents
Safety Precautions.......................................2
1
General Features..........................................5
Power
Volume
Eject
Release
Mode
N/P
Mute
Clock
EQ3
Volume setting
Bass setting
Treble setting
Balance setting
Fader setting
Play Operation.........................................8
Play/Pause
Stop
Repeat
Random
Remote Control......................................10
Loading and Replacing the battery
Basic operation
Electric Connection....................................3
Receiption collection
Speaker collection
Installation....................................................4
Install the unit
Remove the unit
Radio Operation.......................................9
Band
Band tuner
Speaker setting..............................................7
Specifications........................................18
Trouble Shooting...................................19

2
CAUTION

Safety precautions
Be sure the unit is connected to a 12V
DC power with a Negative Ground.
Do not install the unit in places where
it is exposed to direct sunlight,high heat
or humidity,water splash or dust.
To change fuse,please use the same
one in specification and capacity.
When changing fuse,please do it
after pulling down power wires to avoid
short circuit.
If the unit seems not work in proper
situation,please press the reset button to
resume the function.
Do not operate when driving.
To prevent electric,etc,Please do not
let
If you smell or see smoke,turn off the
power immediately and consult our dealer.
Be careful not to drop or shock the unit
strongly.
Do not touch the liquid crystal to avoid the
life hurt.If the clothes is stained with it,Please
clean it immediately by soap.
For your driving safety,please link your
brake detecting wire with low power
level,and keep it controlled by manual brake
switch.when driving a car,the brake wire shall
be high power level and now,unit can not
play DVD or VCD disc.
the metal goods(silver,coin,tools..)fall into
the installation.
To prevent damage to the machine,
take the following precautions:
WARNING
To prevent injury or fire,Please
take the precautions:following
Attach the front panel by fixing the left
Side of it into this unit as 1 showing.
Then push the right side of panel
towards into connecting plug as 2
showing.
Attaching panel:

Attaching panel

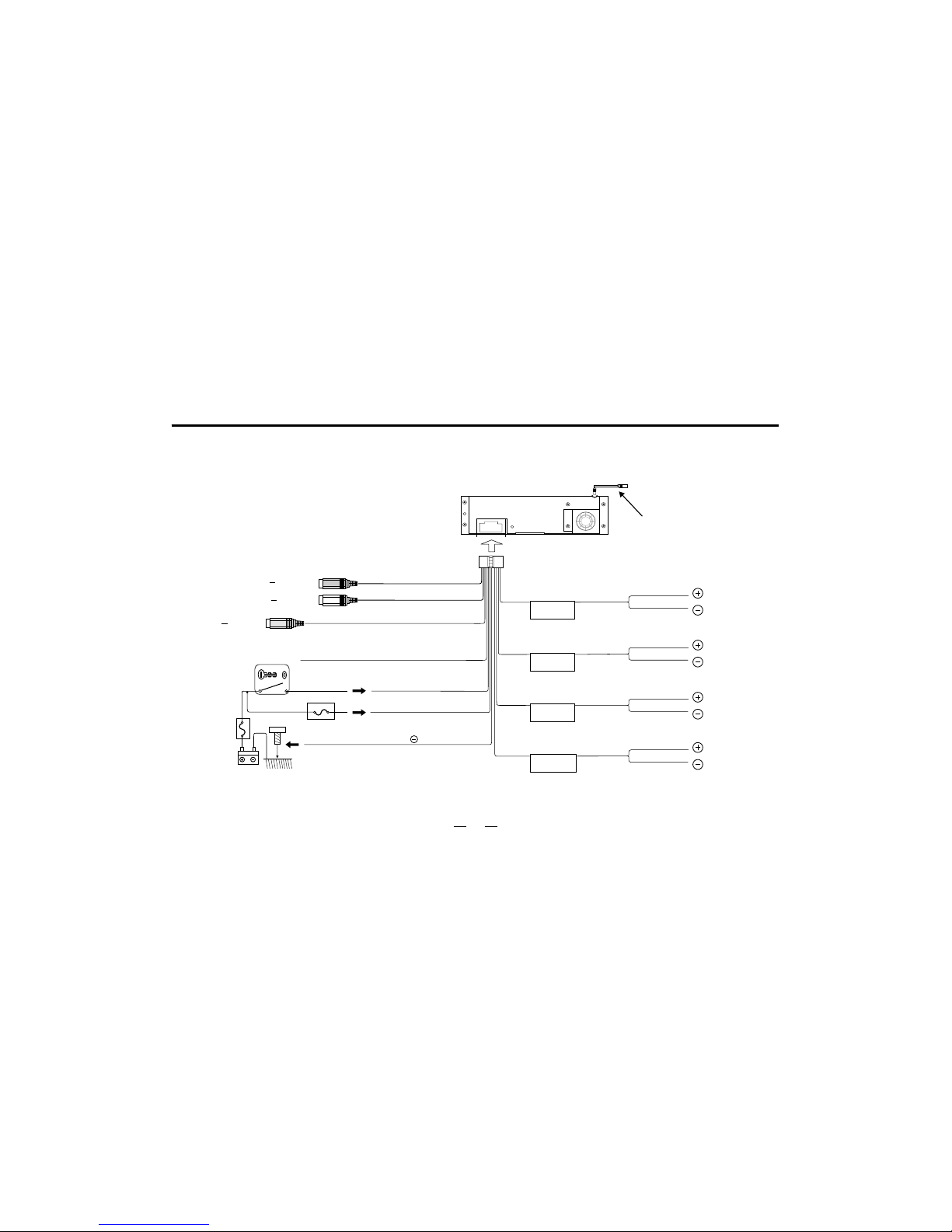

Electric Connection
3
Electric Connection
FRONT.LFRONT.L
FRONT.RFRONT.R
REAR.LREAR.L
REAR.RREAR.R
White/BlackWhite/Black
GrayGray
To front left
speaker
To front left
speaker
To front right
speaker
To front right
speaker
To rear left
speaker
To rear left
speaker
To rear right
speaker
To rear right
speaker
GreenGreen
Lgnition wire(Red)Lgnition wire(Red)
Battery wire(Yellow)Battery wire(Yellow)
Ground wire(Black) (To car chassis)Ground wire(Black) (To car chassis)
Car fuse
box
Car fuse
box
BatteryBattery
Car fuse box
(Main fuse)
Car fuse box
(Main fuse)
Lgnition key
sw tchi
Lgnition key
switch
Connect to control for antenna
or remote control for amplifier.
Connect to control for antenna
or remote control for amplifier. (Blue)(Blue)
RED RCH outRED RCH out
WHITE LCH outWHITE LCH out
YELLOW VIDEOYELLOW VIDEO
CAR ANTENNACAR ANTENNA
WhiteWhite
Gray/BlackGray/Black
Green/BlackGreen/Black
PurplePurple
Purple/BlackPurple/Black

4
Before installing the receiver permanently, fit it in the approximate place in your car ,and connect the
equipment according to the speakers and electrical connections. When
your system is operated properly,(preferably with the
car engine running), follow the instructions
for permanent installation
of your system.

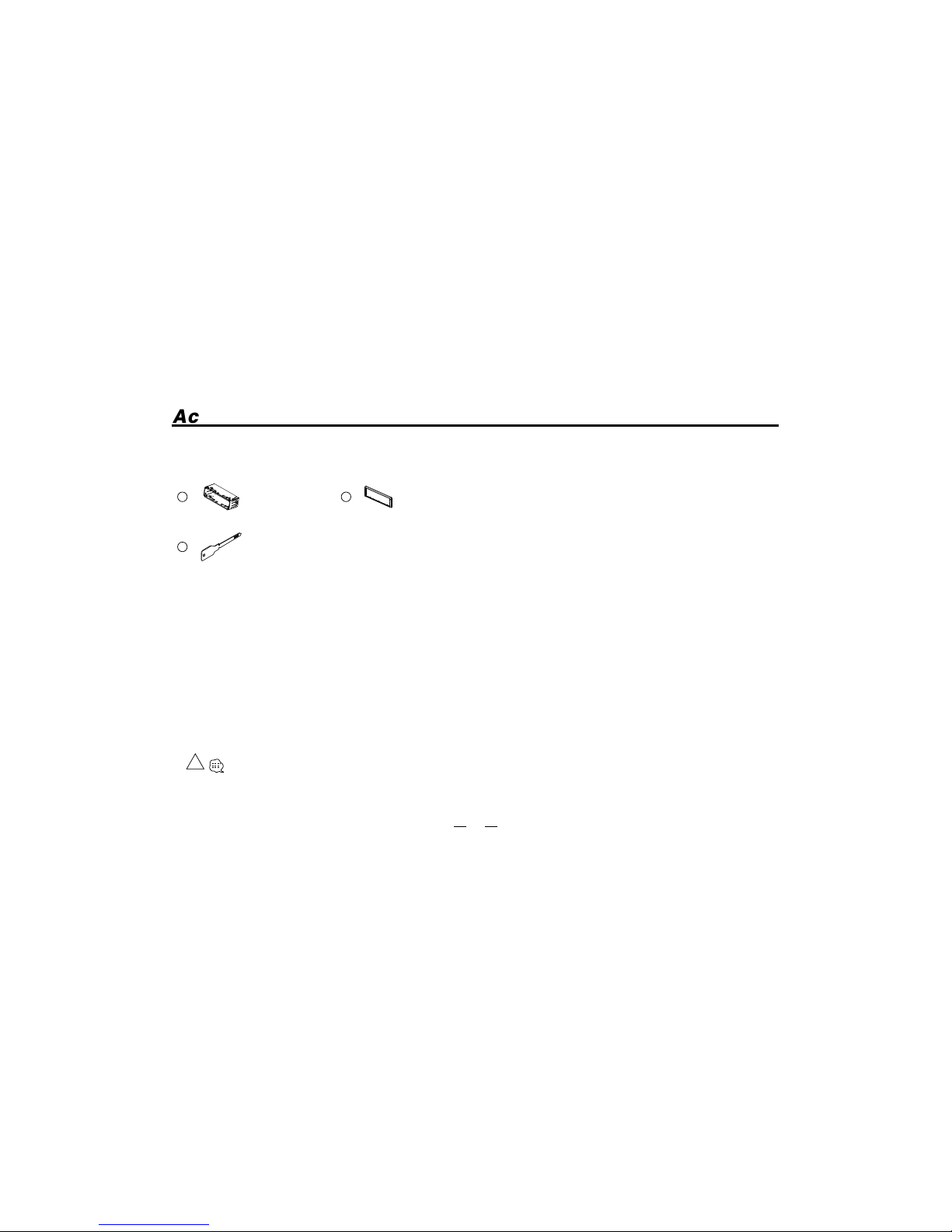

1) Adapter
(not supplied)
2)Bend over tabs
of half sleeve
(supplied)
3)Support strap
(supplied)
Half sleeve
(supplied)
4) Two wrenches for releasing
the unit (supplied)
INSTALL THE UNIT
1)Install half sleeve, can be with or
without adapter. It will fit better
with adapter.
2)Bend over some tabs to secure the
half sleeve inside of dash.
3) Support strap to be strutted under
dash, secure this strip to avoid skipp
ing of disc.
Insert removal wrench into the small
gap on the right side of the unit and pull
the unit slightly out on the same side,
then release the wrench. Repeat the
same action for the left side. By now,
you can remove the unit and unplug
the wires connector.
REMOVE THE UNIT
Installation

PWR EQ3 1
2 STOP
3 RPT 4 RDM 5
6R.SCN ST LOC
VOL+
VOL- MODE
BAND
SEEK
APS
SEL
5
Power
Press the [PWR]button to turn on/off the unit.
Volume
Increasing volume
Decreasing
Eject
Press the VOL+ button in
clockwise direction.
Press the VOL- button in
anticlockwise direction.
Out
Press the [ ]button to eject the disc out of the unit .
Release
press the " " button to release faceplate.
General Features
CLOCK
SELECT
RELEASE MODE
EQ3
VOL+
VOL-
[ ] EJECT
P/N
VOL+
POWER
VOL-
VOL+VOL+
VOL-VOL-
MUT
MUTE

6
MODE
Selecting radio and play
Each time you press the key,it will switch between radio
position and disc position.
Clock
Short press CLK can display time even power off .
Long Press CLK for 3 seconds will enter set mode.
Hour
Minute
Quit clock set mode
there is no operation in 5 seconds, it will quit clock
set mode.
Press the VOL+/- button to set the hour.
EQ3
Press EQ3 button once to effect [ROCK[ volume, LCD shows
ROCK on.
Press EQ3 button twice to effect [POPS] volume, LCD
shows CLASSICE on.
Press EQ3 button third to effect [CLASSIC] volume, LCD
shows POP on.
Press EQ3 button fourth to effect [FLAT] volume, LCD shows
FLAT on.
Press EQ3 button again to resume the normal listening.
General Features
Press the VOL+/- button to set the minute.
P/N
In video mode, press the [BAND] button to exchange between
the PAL and NSTC.
Press [BAND]button
Mute
Short press this button to mute the sound, short press
MUTE buttonagain or press any other button to
resume the normallistening.
 

PWR EQ3 1 2 STOP 3 RPT 4 RDM 5
6R.SCN ST LOC
VOL+
VOL- MODE
BAND
SEEK
APS
SEL
MUT
VOL+
7
Speaker setting
Speaker mode
VOLUME BASS
BALANCE
TREBLE
FADER
PLAY/PAUSE STOP
RANDOM REPEAT
SELECT
VOL-
VOL+VOL+
VOL-VOL-
SELSEL
BAS -6
VOL 10
TRE 5
BAL 4
FAD -3
Press SEL button once,display shows VOL ,
then press the volume + button
to adjust volume level up.press
the volume - buttonto
adjust volume
level down.
   
 
 
Volume set mode
Bass set mode
Press SEL button twice,display shows BAS ,
then press the volume + button to adjust bass
level up. Press the volume - button to adjust
bass level down.
   
 
 
Treble set mode
Press SEL button third,
display shows TRE ,then
press the volume + button to adjust treble
level up. Press the volume - buttonto adjust
treble level down.
 
 
 
 
Press SEL button fourth
display shows BAL ,then
press the volume + button
to adjust left speaks level .
Press the volume - button
to adjust right speaks level .
 
 
 
 
Balance set mode
Fader set mode
Press SEL button fifth,display shows FAD ,then
press the volume + button to adjust front speaks
level. Press the volume - buttonto adjust back
speaks level.
   
 
 

8
Play control
Play/pause
Repeat
Press the button to repeat the same track continuously,
RPT will appear on the LCD display.
Press the button again to come back normal playing.
 
Press [RPT]button
Random
Press this button to play all the track in random order. Press it again
to stop random playing. This button is invalid if the unit is in
PBC On mode.  
Press [RDM]button
Play
If with DISC in unit,Press the [ ]to pause music.
Pause
Press the [ ]button again , come back DISC playing.
If a disc is loaded,a sector sign will show on the display.
Stop
Press [STOP]button
Press STOP button to stop music,and press button
to start playing from track one.
   

PWR EQ3 1 2 STOP 3 RPT 4 RDM 5
6R.SCN ST LOC
VOL+
VOL- MODE
BAND
SEEK
APS
SEL
MUT
9
Radio Operation
R.SCN
PRESET MEMORY 1-6 SEEK-LOC
SEEK+
APS
ST
FM1 FM2 FM3
AM2
Band
Press BAND button to select among three FM or two AM bands.
(FM1-FM2-FM3-AM1-AM2)
Selecting band
AM1
Tuner
the long press button it can automatically select higher
frequency station. And the long press it can automatically
select lower frequency station.
manual tuning:
short press button it can select higher frequency station.
Short press can select lower frequency station.
Auto loading tuning:
St
if the unit has received stereo signal in FM band in stereo position.
The LCD indicate .If the signal is MONO ,It indicate
ST only.
 
 
In FM band mode,press the ST key.
Each time you press the key,you switch between MONO
position andstereo position
 
 
Press [APS]button
Seek Tune:
In FM (FM1 FM2 FM3) or AM(AM1 AM2 playing mode, long
press "APS" button, it can seek and store strong frequecy
station automatically in to1-6 memory buttons.
   
Select station
FM can be memorized 18 stations. AM can be memorized 12 stations.
In radio mode,press this button to toggle between LOC/DX
functions and LOC shown on the display indicates that
LOC function is on.
 
Loc
LOC is local frequency receipt DX is distance frequency receipt

10
WARNING



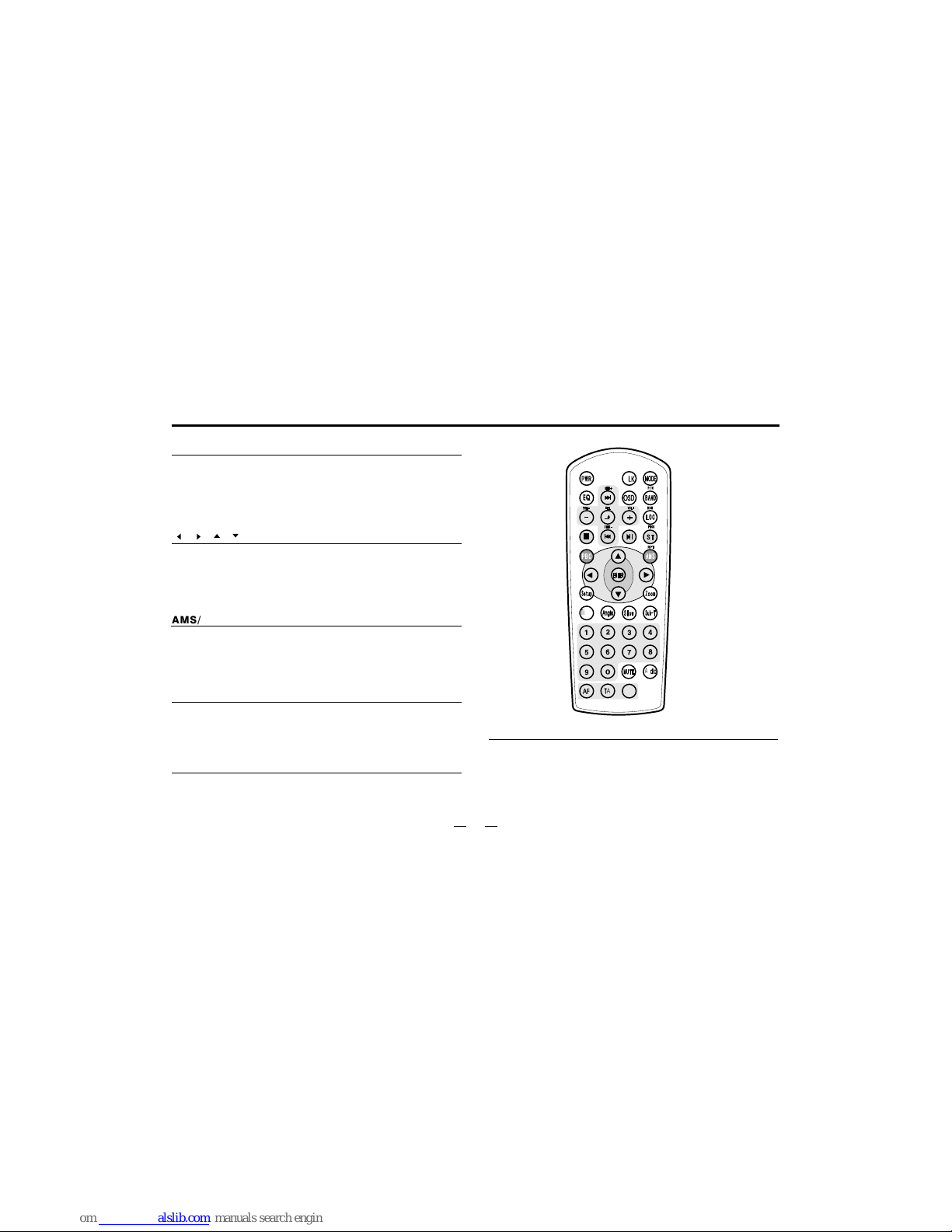

Remote control
Pull out
Loading and replacing the battery
Use one lithium battery(CR2025)
Insert the batteries with the +and - poles aligned properly.
Following the illustration inside the case.
Store unused batteries out of the reach of children.contact a
doctor immediately if the battery is accidentally swallowed.
Do not set the remote on hot places such as the above dashboard.

CLKCLK





AudioAudio





AngleAngle
TitleTitle

AFAF
EQEQ









MODEMODE
OSDOSD

TATA PTYPTY

11
Basic operation
Press this button to turn on/off the unit.
POWER
DSP
Press this button can show the time,and long press to enter clock
adjustment.
MODE
Press this button can select needed receiving and playing mode.
EQ
Press this button can select mode as POPS,JAZZ,ROCK,DSP OFF.
SEEK+/SEEK-
Press this button can manually search tune,fast,back and track
searching control.
BAND P/N  
Under receiving position,press this button can select band;
under VCD,DVD position,press this button can select
automatic,PAL or NTSC.
VOL+/VOL-
Press this button can increase or decrease volume.
SEL
Repeatfully press this button can select needed mode.
LOC/RDM
Under receiving position,press this button can do far and close
switch;under VCD,CD playing,press this button can play randomly.
Press this button to stop playing.
Stop
Press this button can switch between play and pause.Under
stop state, similarly press it to play.
Play/pause
ST/PROG
Under receiving state,press this button can select stereo or single
track;under playing state,it can do programme play cooperating
with STOP button.  

12
PBC
When playing VCD,OK disc,press this button can show all the
prgramme menu,and can cooperate numeral buttons to select
programmes.
[ ][ ][ ][ ]
[ENTER]
Under DVD mode, press this button can move cursor in
up,down,left and right directions after entering SETUP
Menu.Press ETR button can confirm selected item.  
AMS/RPT
Under receiving state,press this button can scan memory
stations.Long press it can automatically scan and store them.
SETUP
Under playing mode,press this button can open SETUP Menu.
Press this button can zoom picture.
ZOOM
TITLE
Under VCD mode,press this button to enter Menu selection same as
PBC.
Under DVD mode,press this button to return to the top of Menu.
Basic operation

CLKCLK





AudioAudio





AngleAngle
TitleTitle

AFAF
EQEQ



 





MODEMODE
OSDOSD

TATA PTYPTY

13
ANGLE
Under DVD mode,press this button can change visual angle.
SLOW
Under VCD mode,press this button can advance slowly.
Under DVD mode,press this button can advance and back off slowly.
SUBTITLE
Under DVD mode,press this button can switch dialogue language.
  0-10+
Press this button can directly select track and chapter,and 1-6
buttons can select preseted stations.
AUDIO
Under VCD mode,press this button can switch track.
Under DVD mode,press this button can switch dialogue language.
MUTE
Press this button to turn off volume out ,and again to resume.
Press this button can show play time, surplus time.
OSD
Basic operation

CLKCLK





AudioAudio





AngleAngle
TitleTitle

AFAF
EQEQ









MODEMODE
OSDOSD

TATA PTYPTY

14
Basic operation

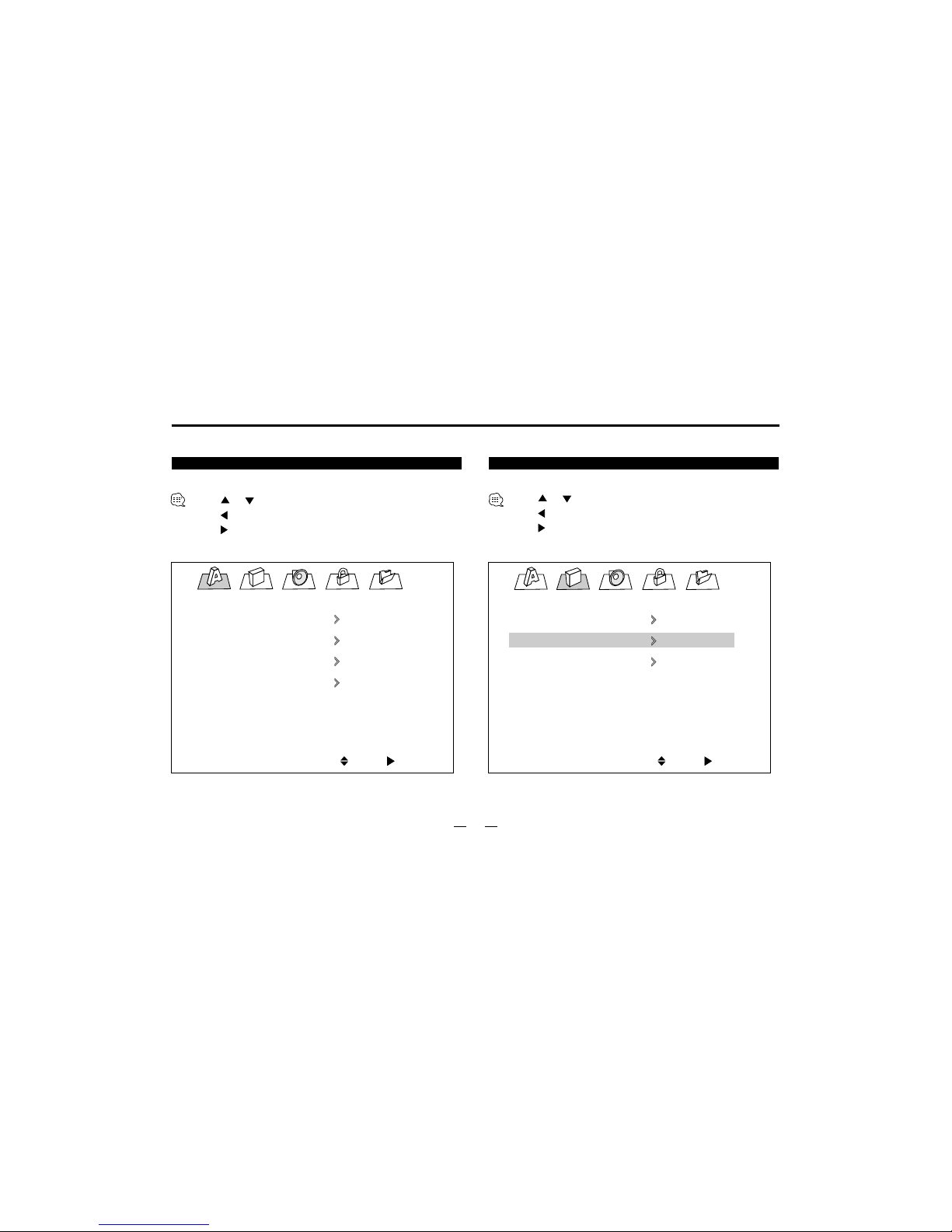

Setup Menu for Universal Capability
Press SETUP,screen will show system setup menu as follows:Press SETUP,screen will show system setup menu as follows:
Menu Language
Disc Audio
Disc Subtitle
Disc Menu
English
Original
Off
Original
LANGUAGELANGUAGE
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Display Setup Menu
TV Aspect
Display Mode
TV Output
16:9
Widescreen
NTSC
DISPLAYDISPLAY
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Move Select Move Select

15
Basic operation
Dolby Digital
DTS
DRC
Digital Output
Bitstream
Bitstream
On
On
AUDIOAUDIO
Audio Setup Menu
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Move Select
Lock Setup Menu
Rating
Password
Country
Unlock
New
LOCKLOCK
UUS
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Move Select

16
Basic operation
Load Defanlt
Screen Saver
Select
On
OTHERSOTHERS
Others Setup Menu
Press[ ] [ ]select Menu
Press[ ] retutn to Menu
Press[ ] Enter Menu
Press[ENTER] to confirm
Move Select
Mp3 menu
Insert MP3 disc,and TV will show menu as follows:Insert MP3 disc,and TV will show menu as follows:
In this menu,the right is the submenu of the left,and it can
cooperate remote control buttons to select
wanted contents and programmes and press ENTER to
confirm.
[ ][ ][ ][ ]
1-001_______MP31-001_______MP3
2-002_______MP32-002_______MP3
3-004_______MP33-004_______MP3
___
___
___
___
ListList
___
___
___
___
ProgramProgram
0:01:440:01:44 2/1352/135
XXXXX_______XXXXXXXX_______XXX
XXXXX_______XXXXXXXX_______XXX
XXXXX_______XXXXXXXX_______XXX
\001_______MP3\001_______MP3
MusicMusic

1 2
............1............1

Accessories
External view
........ Number of items
External view
........ Number of items
The use of any accessories except of those provided
might result in damage to the unit .Make sure only to
use the accessories shipped with the unit ,as shown
above.
............2
3
17

18
Signal/Noise radio......................................................70dB
Frequency response..............................20Hz-20KHz(+3dB)
Channel separation..................................................>45dB
Dual D/A converter......................................................16Bit
Tuning range..................................
USA:87.5-108MHz
(100KHz step)
FM usable sensitivity(S/N=30dB)...............................<12dB
Stereo separation......................................................>45dB
EUROPE:87.5-108.0MHz
(50KHz step)
FM Tuner
AM Tuner
Tuning range.....................................
USA:520-1720KHz
(10KHz step)
AM sensitivity..............................................................28dB
EUROPE:522-1620KHz
(9KHz step)
Operating power....................................12 Volts DC,negative
ground
%10THD output wiring.........................Designed for using four
speakers only front and rear
channels cannot be combined
in use with 2speakers.
Load impedance..................................compatible 4 to 8 ohm
speakers
Fuses............................................................ ..........10 amp
Dimensions...........................................178mm(L)x50mm(W)
x150mm(H)
Weight......................................................................2.5Kgs
CD PLAYER GENERAL
Specifications subject to change without notice.
Specifications

19
What might seem to be a malfunction in your unit may just be the result
of slight misoperation or miswiring.Before calling service, first check the
following table for possible problems.
Trouble shooting guide
?The power does not turn ON.
The fuse has blown.
Confirm whether the lead short circuit,then replace fuse with same capacity.
?NO Sound.
The cable connect incorrectness.
Exactitude connect of the cable.
?Noise on Radio or poor recepiton
Antenna and Antenna Cable.
Check antenna and antenna cable, the antenna base must be
grounded and connected with good condition, replace
antenna or antenna cable if needed.
?Noise on both Radio and CD
Poor ground,dirty or corroded at the car Battery posts
Check the black wire for proper grounding clean and tighten ground
connection.
?No/Poor sound on one or more speakers
Speakers or speaker wiring or volume, Balance and
Fader setting
Check the speaker wiring and test the speakers all in good condition
check the setting of volume, Balance and Fader controls.
?CD sound skips
Installation the unit angle is greater than 45 ,or
mounting is not fixed and the back strap is not secure.

Adjust the unit with mounting angle less than 45 and make sure the
unit is mounted securely and tighten with the back strap(supplied)

?Unit completely inoperative, no Light and Sound
Incorrect wire connection, Power RED/YELLOW or
Ground wire or Blown fuse
Check the Red wire to +12 Volts with key lgnition witch, yellow wire to
+12 Volts battery and black wire to ground. Check Fuse with red/yellow
wire, or check the fuse block on your car.
