Pyle PLDVRCAMG37 User manual

pyle
PyleUSA.com
PLDVRCAMG37
480P VEHICLE DASH CAM
Dual Camera DVR Video Recording
System with GPS Logger
USER MANUAL

INTRODUCTION
Besides general functions of the recorder, this machine has
three new main features:
1. Built-in double lens can be used to take two images at front
and back at the same time
2. Newly added GPS module can record the whole driving
track. Using random specialized software, you can view the
video using a computer, at the same time you can connect
to Google map through the Internet. Driving track shows
on the map and you can trace the running route of the
vehicle.
3. Built-in gravity sensor G-Sensor can record the gravity
sensing information. Using random specialized software,
you can see the video at computer, at the same time read
the gravity sensing data to trace accident and abnormal
circumstance occurred in the running process.
In order to maximize the performance of the recorder, please
read this instruction manual carefully before use
(This machine and accessories of the design and
specifications are subject to change without prior notice).
www.PyleLISA.com
1

CONTENTS
Product Structure.3
Using the PLDVRCAMG37 Recorder.5
Battery Charging.5
Insert Memory Card .5
Adjust the positions of the lens.6
Turnin ON and OFF .6
PLDVRCAMG37 Basic Operations.6
Changing Operating Mode.6
Setup Menu .6
System Setting.6
How to Shoot.7
Start / Stop Shooting.7
Open /Close Audio.7
Video Playback and File Management.7
Video Playback.7
Accessing the file using a computer.8
Reset the Machine.10
Product Characteristics .11
Technical Specifications.11
Accessories List .12
2
www.PyleUSA.com

Product Structure
Left Key
Power ON LED
Indicatior
Charging LED
Indicator
Right Key
Start Key
T _
LCD
OK Key
Menu Key
Mode Key
*
DC IN
Memory
Card/
CPS COver
Microphone
Micro SD Memory Card Slot
www.PyleUSA.com
3

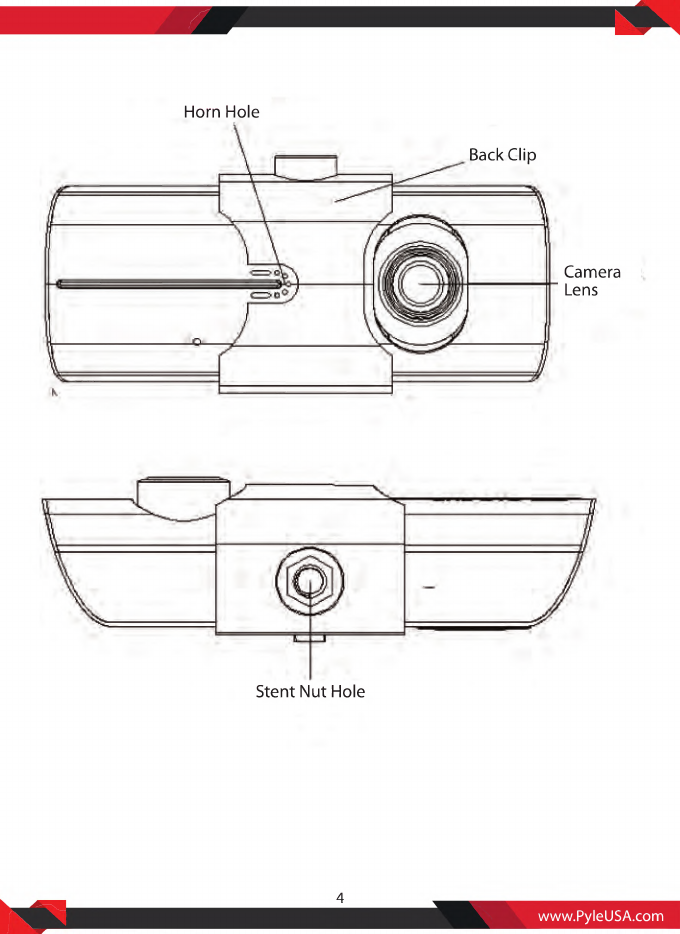

Horn Hole
Camera
Lens
4
www.PyleUSA.com

Using the PLDVRCAMG37 Recorder
Battery Charging
There are two methods for battery charging:
1. Use a USB cord to connect the machine with a computer
for charging
2 Use the accessory vehicle-mounted power source for
charging.
In the whole process of charging, charging indicator lights up
in red. When charging is finished, indicator automatically
extinguishes. The whole charging process takes about 240
minutes.
Insert Memory Card
Insert Micro SD memory card into the slot in accordance with
the indicating direction on the machine body until you hear a
"Ka" sound.
Remove Card: Push the memory card inside and the card will
pop up, then you can now remove the memory card.
Notice:
When using the memory card for the machine for the first
time, since the formatting of the memory card is not
compatible with the machine, you must use the attached tool
software ( H " "~~ ) to format the memory card (Formatting of
the memory card by computer is not supported). Formatting
will permanently delete all the data on the memory card,
including the protected image, which can not be restored.
Therefore, before formatting the memory card, please back
up important data.
If you can't use the machine to format the memory card
format, please use attached software () using a
computer.
www.PyleLISA.com
5

Adjust the positions of the lens
The front lens of this machine can be turned 20 degrees up
and down in order to meet the recorders fixed position and
better shooting.
Turning ON and OFF
Turn on: Press power supply once for a relative long time
until red ON indicator lights up.
Turn off: Press power supply one more time for a relative long
time until red ON indicator extinguish.
Notice:
When in low battery, the travelling recorder will prompt
automatic off because of low battery.
PLDVRCAMG37 Basic Operations
Changing Operating Mode
This machine has two operating modes, pickup and playback.
Press MODE button to change between them.
Setup Menu
Press MENU button to enter MENU page, now the column of
"Menu setting"is in blue background.
In the menu setting page, click left and right keys to select
the required setting fields; click "OK" button to accept the
settings, again presses the MENU key to exit the menu.
System Setting:
You can make system setting in framing preview mode.
Video Mode: Double lens /front lens /back lens;
Time Setting: Press left and right keys for time adjustment;
press OK key to confirm and exit;
6
www.PyleUSA.com

Formatting: Press the OK key to enter and select Yes/No;
Video Format: NTSC/PAL setting;
Voice: On/Off
Recording: On/Of;
Language: English / German / French / Spanish / Italian /
Portuguese /Traditional Chinese / Simplified Chinese/
Japanese
Screen Preset: On/Off
Automatic Video Protection Sensitivity: Low / general / high
/ automatically turn off video protection function
(This function sets gravity sensor to start up automatic video
recording sensitivity).
Frequency: 50HZ / 60HZ.
How to Shoot
Start / Stop shooting:
In the shooting mode, press OK key to start shooting, then
press OK key again to stop shooting.
When the traveling recorder is on or inserting a memory card,
it will automatically start shooting.
Open / Close audio:
During video recording process, pressing left key can fast
open / close audio in the video.
Video Playback and File Management
Press MODE key to enter playback mode and now the screen
shows playback picture of the last video file.
Video Playback:
Press left and right buttons to select audio and video files
need playback.
Press OK key to play and pause the video file.
www.PyleUSA.com
7

Accessing the file using a computer
This machine does not support USB protocol. Computer
access to the recorded file of this machine can be done by a
device supporting memory card (such as a card reader).
To format the memory card for the first time, it will
automatically generate specialized software tool ( O 0 '"” )
in the memory card. Computer access to the file must be
done via this tool.
Notice:
1. For easy use and to avoid abnormal circumstance of the
storage card causing software tool damage, it is
recommended to backup the tool on computer.
2. The computer operating system must be Windows 2000 /
XP / Vista / Windows 7, MAC OS x above 10.3.6.
Using the Software (0"" ) :
1. Use a card reader to read the video information on the
memory card. In the memory card disk under
"my computer", the user will view three files:
ap.bin.Default_Folder.ini and
2. Run
3. Open the player to view video documents.
Click m to open the player.
0 RATH 1 |[^n
Open J
8
www.PyleUSA.com

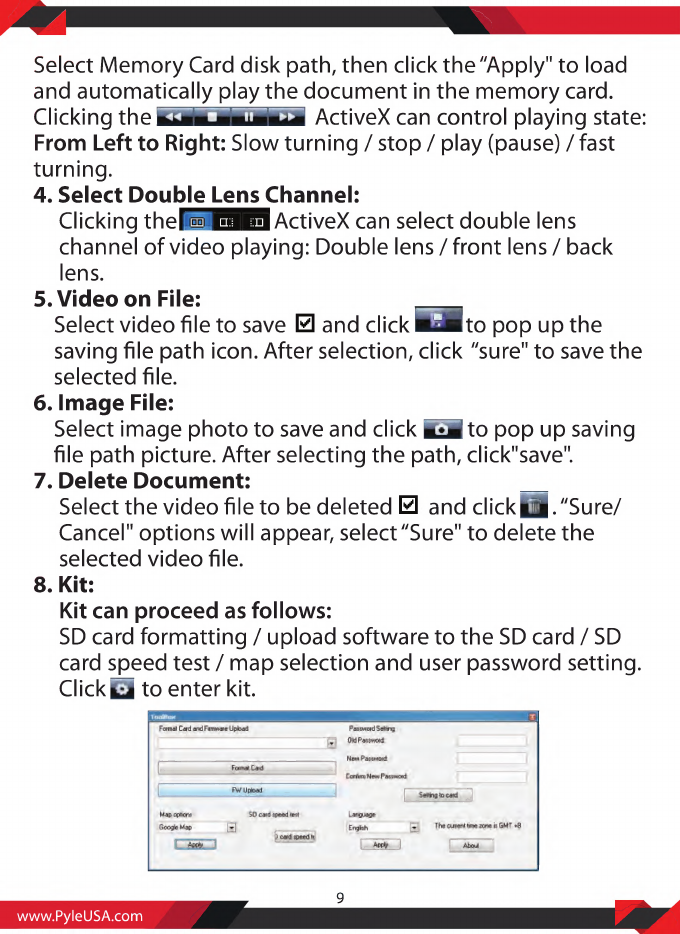

Select Memory Card disk path, then click the "Apply" to load
and automatically play the document in the memory card.
Clicking the iKUlUlUltiJl ActiveX can control playing state:
From Left to Right: Slow turning / stop / play (pause) / fast
turning.
4. Select Dou b l e Lens C h a nn e l :
Clicking ther®"HH ActiveX can select double lens
channel of video playing: Double lens / front lens / back
lens.
5. Video on File:
Select video file to save El and click B^ato pop up the
saving file path icon. After selection, click "sure" to save the
selected file.
6. Image File:
Select image photo to save and click isS to pop up saving
file path picture. After selecting the path, click"save".
7. Delete Document:
Select the video file to be deleted El and clickii|."Sure/
Cancel" options will appear, select "Sure" to delete the
selected video file.
8. Kit:
Kit can proceed as follows:
SD card formatting / upload software to the SD card / SD
card speed test / map selection and user password setting.
ClickQ to enter kit.
www.PyleUSA.com
9

9. G o og l e Map:
Click L&j and the computer will connect to Google map via
Internet and will show travelling path on the map.
You can trace the travelling path of the vehicle.
S2-1 2012/01/27 022047
G3-1 2312/01/27 022052
2012 / 01/ 27 022 140
2012/01/27 0221 43
2012101/27 0221 46
2012>01i27 0220 47
2012101/27022052
DUAL LEMS
( 1 )
FRONT
10. Gravity Sensor:
Click m, watch the video on the computer, at the same
time read and display the gravity sensing data, trace
accident and abnormal circumstances occurred during
driving.
11. Other Operations:
Click tatna respectively from left to right, and follow
operations:
Repair film / unlock protection / choose to display size.
Reset the Machine
When abnormal circumstances occured due to improper
operation, you can press reset button and then restart the
machine, now the machine will return to normal.
10
www.PyleUSA.com

Product Characteristics
• Ultra Small Volume:
The front lens with ultra wide angle of 140 degrees can be
rotated up and down 20 degrees; the back lens with ultra
wide-angle of 120 degrees high resolution; this perfect
modular design is more convenient for various angle and
high resolution video shooting.
Built-in 1/4 inch low-noise and high-quality photographic
element can capture ultra clear picture in a dark place.
Built-in lithium battery with charging and meanwhile
recording function.
Built-in microphone/speaker.
Support high-capacity Micro SD Memory Card
Automotive turning on and recording function when the
vehicle starts.
With a delayed start function to prevent transient pulse
current damage machine at the moment the vehicle start.
GPS scanning and positioning.
Gravity induced SENSOR
Technical Specifications
LCD screen size: 2.7 " (16:9)
Lens: Front lens with ultra wide angle of 140 degrees; back
lens with ultra wide-angle of 120 degrees
Optional Language: English / German / French / Spanish /
Italian / Portuguese /Traditional Chinese / Simplified
Chinese/Japanese
Video Format: AVI
Memory Card Slot: Micro SD Memory Card

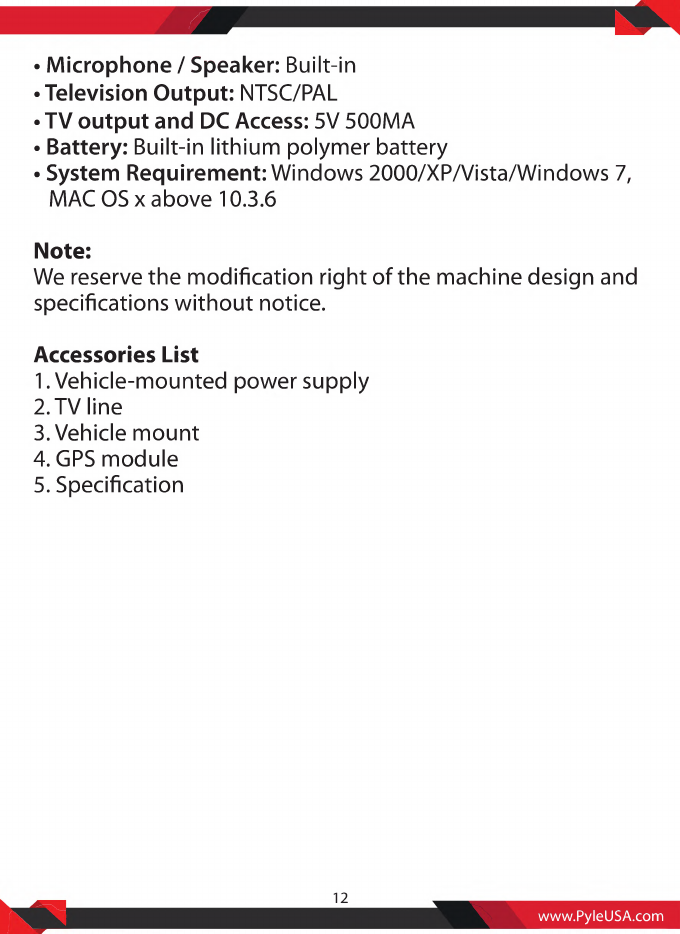

• Microphone / Speaker: Built-in
• Television Output: NTSC/PAL
• TV output and DC Access: 5V 500MA
• Battery: Built-in lithium polymer battery
• System Requirement: Windows 2000/XP/Vista/Windows 7,
MAC OS x above 10.3.6
Note:
We reserve the modification right of the machine design and
specifications without notice.
Accessories List
1. Vehicle-mounted power supply
2. TV line
3. Vehicle mount
4. GPS module
5. Specification
12
www.PyleUSA.com
