Pyle PRJTPOTS101 User manual

www.PyleUSA.com
Features:
•Indoor/Outdoor Projector Screen
•Lightweight & Portable Display + Frame Stand
•Triangular Prism Design for Wind Stability
•Hassle-Free Setup for Quick Projection
•Matte White Fabric for Optimal Color Pickup
•Home Theater Style: HD Wide-Angle Viewing
•Used for Home, Oce & Business Applications
•*Some Assembly Required
What’s in the Box:
•Projector Screen
•Mounting Frame Stand
•Travel/Storage Bag
Technical Specs:
•Projector Viewing Screen Size: 100’’-inch, Diagonal
•Aspect Ratio/Viewing Format: 16:9 Compatible
•Wide-Angle Viewing Area: 160° Degree
•Screen Gain: 1.15
•Projector Fabric Thickness: 0.012’’ inches (0.3mm)
•Construction Material: Engineered Steel Alloy Frame
•Assembled Dimensions: 88.1’’x 75.5’’x 76.3’’-inches

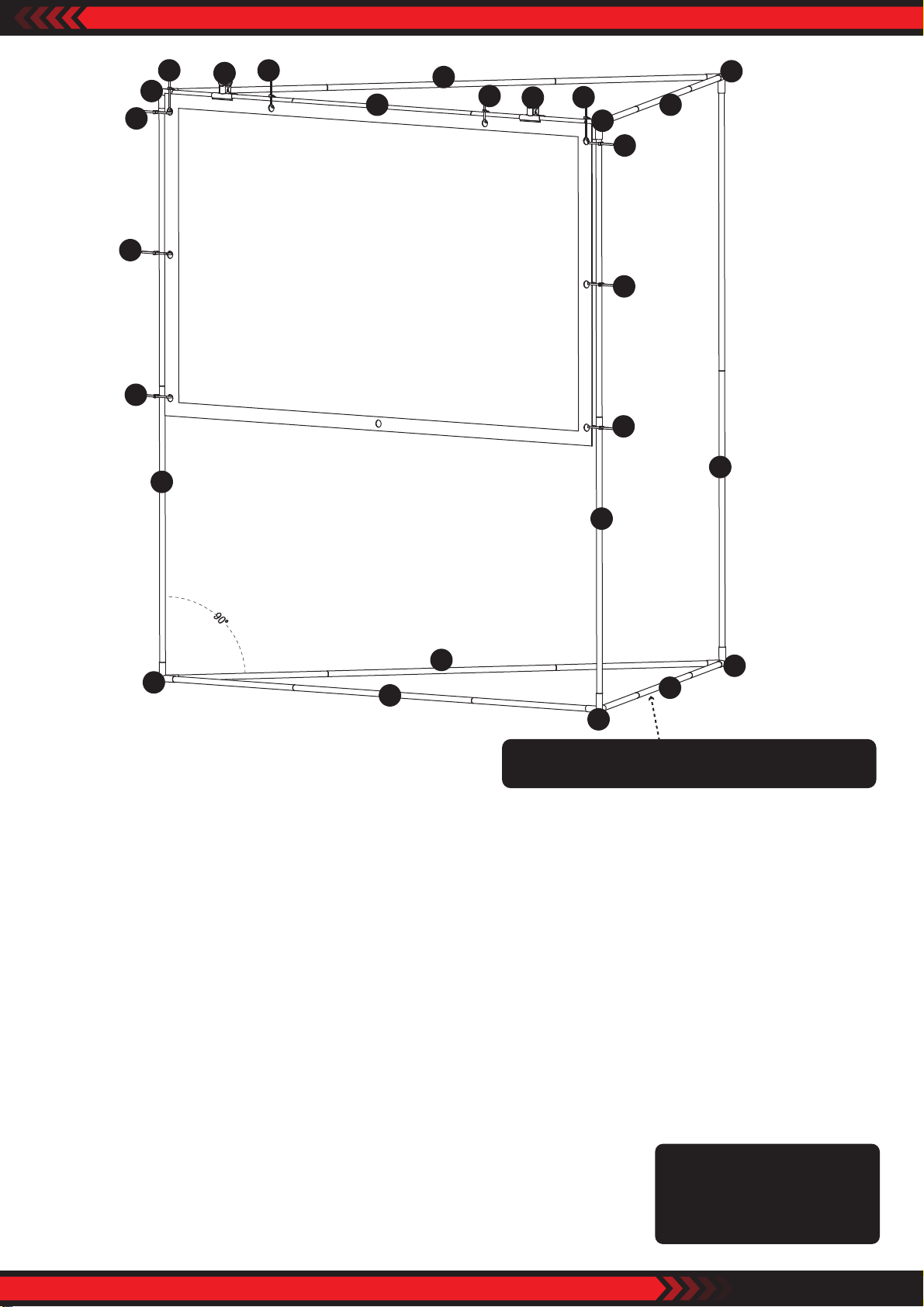

Assembly
90°
90°
1
Install the tube
connection for the
bottom triangle.
Install the
Vertical tube.
Insert the metal frame
into the 3 Way Pipe
Fittings.
The tube must be fully
inserted into the 3
Way Pipe Fittings as
much as possible.
Use the metal clip
to attach the screen
on the top bar then
use the zip tie to go
through the hole
and x the screen
on the top bar.
Note:
Care should be taken to prevent the screen
from getting dirty during assembly.
This is easier with two people.
2 3 4 5
Zip tie goes into the
hole and x it on the
tube.
Don't strap the zip
tie too tightly in the
beginning.

Questions? Comments?
We are here to help!
Phone: [phone]
Email: [email protected]
www.PyleUSA.com
Pay Attention
1. Assemble the bottom triangle rst, then attach the three uprights to make the top triangle.
It is designed intentionally to assemble the last triangle with diculty in order to make the angle to be tensioned
and not get loose.
2. The screen wil have some wrinkle due to the rolling up, it will recover after a while when you tension the screen
with zip tie.
3. Please don't cut the zip tie as you may re-use it next time.
4. This zip tie can be released again just by pressing the switch.
5. When all the zip ties are xed, you can tighten it gradually to make the screen as at as possible.
6. The metal clip is used to attach the screen on the top bar. You can leave the metal clip on or remove it.
7. There are two pairs of gloves so it is better to have two person to assemble this screen.
8. Don't tighten the screen too much; otherwise, the screen will be torn.
9. If the screen is dirty, you can clean it with a white cloth; the screen is not suitable for machine washing.
10. The screen can be used indoors or outdoors, but it is not waterproof. You cannot display it outside for a long time
as the black edge around it will be damaged by water.
11. Once you done using the Outdoor Projector Screen, use the zip tie to strap the
stand and store it with the screen in the Storage Bag.
