This manual introduces Phantom-X1 from Pylontech. Phantom-X1 is an high voltage Lithium-Ion
Phosphate Battery storage system. Please read this manual before you install the battery and
follow the instruction carefully during the installation process. Any confusion, please contact
Pylontech immediately for advice and clarification.
Contents
1. SAFE HANDLING OF LITHIUM BATTERIES GUIDE .............................................................................. 3
Before Connecting........................................................................................................................................3
In Using ...............................................................................................................................................................3
2. INTRODUCTION............................................................................................................................... 5
2.1 features.......................................................................................................................................................5
2.2 Specifications ...........................................................................................................................................6
2.2.1 Battery System.......................................................................................................................................6
Remark: The parameter will be changed when the battery modules in different series....6
2.2.2 Battery Module.....................................................................................................................................7
Battery Module Front Interface.................................................................................................................8
2.2.3 Control Module (internal power supply).....................................................................................8
Definition of RJ45 Port Pin..........................................................................................................................10
LED Indicators Instructions.........................................................................................................................10
3. INSTALLATION................................................................................................................................... 12
3.1 Tools............................................................................................................................................................12
3.2 Safety Gear .............................................................................................................................................12
2.5Accessories ...............................................................................................................................................12
3.3 Package Items .......................................................................................................................................12
Unpacking and check the Packing List:..............................................................................................12
3.4 Installation Location .............................................................................................................................15
Installation.......................................................................................................................................................15
5. TROUBLE SHOOTING STEPS............................................................................................................... 19
Problem determination based on: ........................................................................................................19
6. EMERGENCY SITUATIONS................................................................................................................. 20

3/ 21
16BISV0903
1. Safe handling of lithium batteries Guide
Warning: This product is a high voltage DC system, operated by authorized person
only.
Warning
Before Connecting
1) After unpacking, please check product and packing list first, if product is damaged or
lack of parts, please contact with the local retailer;
2) Before installation, be sure to cut off the grid power and make sure the battery is in the
turned-off mode;
3) Wiring must be correct, do not mistake the positive and negative cables, and ensure no
short circuit with the external device;
4) It is prohibited to connect the battery and AC power directly;
5) Battery system must be well grounded and the resistance must be less than 1Ω;
6) Please ensured the electrical parameters of battery system are compatible to related
equipment;
7) Keep the battery away from water and fire.
In Using
1) If the battery system needs to be moved or repaired, the power must be cut off and the
battery is completely shutdown;
2) It is prohibited to connect the battery with different type of battery.
3) It is prohibited to put the batteries working with faulty or incompatible inverter;
4) It is prohibited to disassemble the battery (QC tab removed or damaged);
5) In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are
prohibited;
6) Please do not open, repair or disassemble the battery except staffs from Pylontech or
authorized by Pylontech. We do not undertake any consequences or related
responsibility which because of violation of safety operation or violating of design,
production and equipment safety standards.

4/ 21
16BISV0903
Reminded
1) Please read the user manual carefully (in the accessories);
2) If the battery is stored for long time , it is required to charge them every six months, and
the SOC should be no less than 80%;
3) Battery needs to be recharged within 12 hours, after fully discharged;
4) Do not expose cable outside;
5) All the battery terminals must be disconnected for maintenance;
6) Please contact the supplier within 24 hours if there is something abnormal.
7) The warranty claims are excluded for direct or indirect damage due to items above.

5/ 21
16BISV0903
2. Introduction
Phantom-X1 is an high voltage Battery storage system based on lithium iron phosphate battery, is
one of new energy storage products developed and produced by Pylontech, it can be used to
support reliable power for various types of equipments and systems. Phantom-X1 is especially
suitable for application scene of high power, limited installation space, restricted load-bearing
and long cycle life.
Phantom-X1 has 2 levels BMS (battery management system）, which can manage and monitor
cells information including voltage, current and temperature. What’s more, BMS can balance
cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel
to expand capacity and power in parallel for larger capacity and longer power supporting
duration requirements.
2.1 features
The whole module is non-toxic, non-polluting and environmentally friendly;
Cathode material is made from LiFePO4 with safety performance and long cycle life;
Battery management system (BMS)has protection functions including over-discharge,
over-charge, over-current and high/low temperature;
The system can automatically manage charge and discharge state and balance current
and voltage of each cell;
Flexible configuration, multiple battery modules can be in serial for expanding voltage and
capacity.
Adopted self-cooling mode rapidly reduced system entire noise;
The module has less self-discharged, up to 6 months without charging ion shelf; no memory
effect, excellent performance of shallow charge and discharge;
Working temperature range is from 0℃to 50℃, with excellent discharge performance and
cycle life;
Small size and light weight, standard of 19-inch embedded designed module is comfortable
for installation and maintenance;
Caution: Phantom-X1 without soft-start circuit. So must choose the Inverter, which has soft-start

6/ 21
16BISV0903
function, otherwise has the risk of equipment breakdown.
2.2 Specifications
2.2.1 Battery System
No.
Product Type
PHANTOM-X1
(384V50AH)
1
Cell Technology
Li-ion(LFP)
2
Battery System Capacity (kWh)
19.2
3
Battery System Voltage (Vdc)
384
4
Battery System Capacity (AH)
50
5
Battery Module Quantity (pcs)
8
6
Battery Module Capacity (kWh)
2.4
7
Battery Module Voltage (Vdc)
48
8
Battery Module Capacity(AH)
50
9
Battery Module Cell Quantity (pcs)
15
10
Battery System Charge Voltage (Vdc)
426
11
Battery System Charge Current (Standard)
10
12
Battery System Charge Current (Normal)
25
13
Battery System Charge Current (Max.)
50
14
Battery System Discharge lower-Voltage
(Vdc)
366
15
Battery System Discharge Current(Standard)
10
16
Battery System Discharge Current(Normal)
25
17
Battery System Discharge Current(Max.)
50
18
Efficiency
96%
19
Depth of Discharge
80% (10~90%)
20
Dimension(W*D*H, mm)
600*600*1600
21
Communication
RS485\CAN
22
Protection Class
IP20
23
Weight（kg）
275
24
Operation Life
10+Years
25
Operation Cycle Life
3500
26
Operation Temperature
0~50℃
27
Storage Temperature
-20~60℃
Remark: The parameter will be changed when the battery modules in different series.

7/ 21
16BISV0903

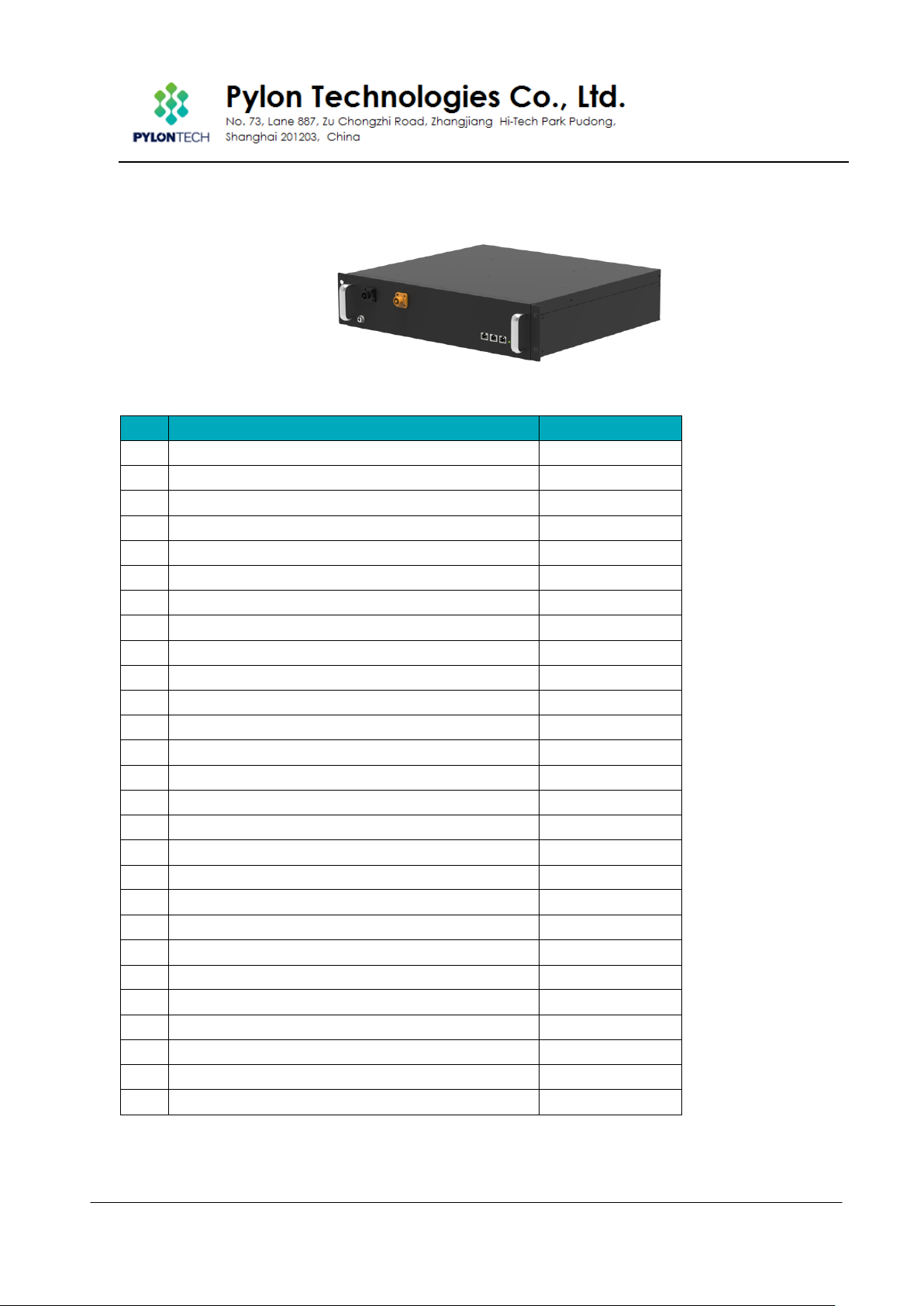

2.2.2 Battery Module
No.
Product Type
H48050A-15S
1
Cell Technology
Li-ion(LFP)
2
Battery Module Capacity(kWh)
2.4
3
Battery Module Voltage(Vdc)
48
4
Battery Module Capacity(AH)
50
5
Battery Module Quantity(pcs)
30
6
Battery Cell Capacity(Wh)
80
7
Battery Cell Voltage(Vdc)
3.2
8
Battery Cell Capacity(AH)
25
9
Battery Module Cell Quantity in Series(pcs)
15
10
Battery Module Charge Voltage(Vdc)
53.25
12
Battery System Charge Current(Standard)
10
13
Battery Module Charge Current(Normal)
25
14
Battery Module Charge Current(Max.)
50
15
Battery Module Discharge lower-Voltage(Vdc)
44.25
16
Battery System Discharge Current(Standard)
10
17
Battery Module Charge Current(Normal)
25
18
Battery Module Charge Current(Max.)
50
19
Efficiency
96%
20
Depth of Discharge
80%(10~90%)
21
Dimension(W*D*H, mm)
442*410*100
22
Communication
RS485\CAN
23
Protection Class
IP20
24
Weight
24
25
Operation Life
10+Years
26
Operation Cycle Life
3500
27
Operation Temperature
0~50℃
28
Storage Temperature
-20~60℃

8/ 21
16BISV0903
Lock
Button

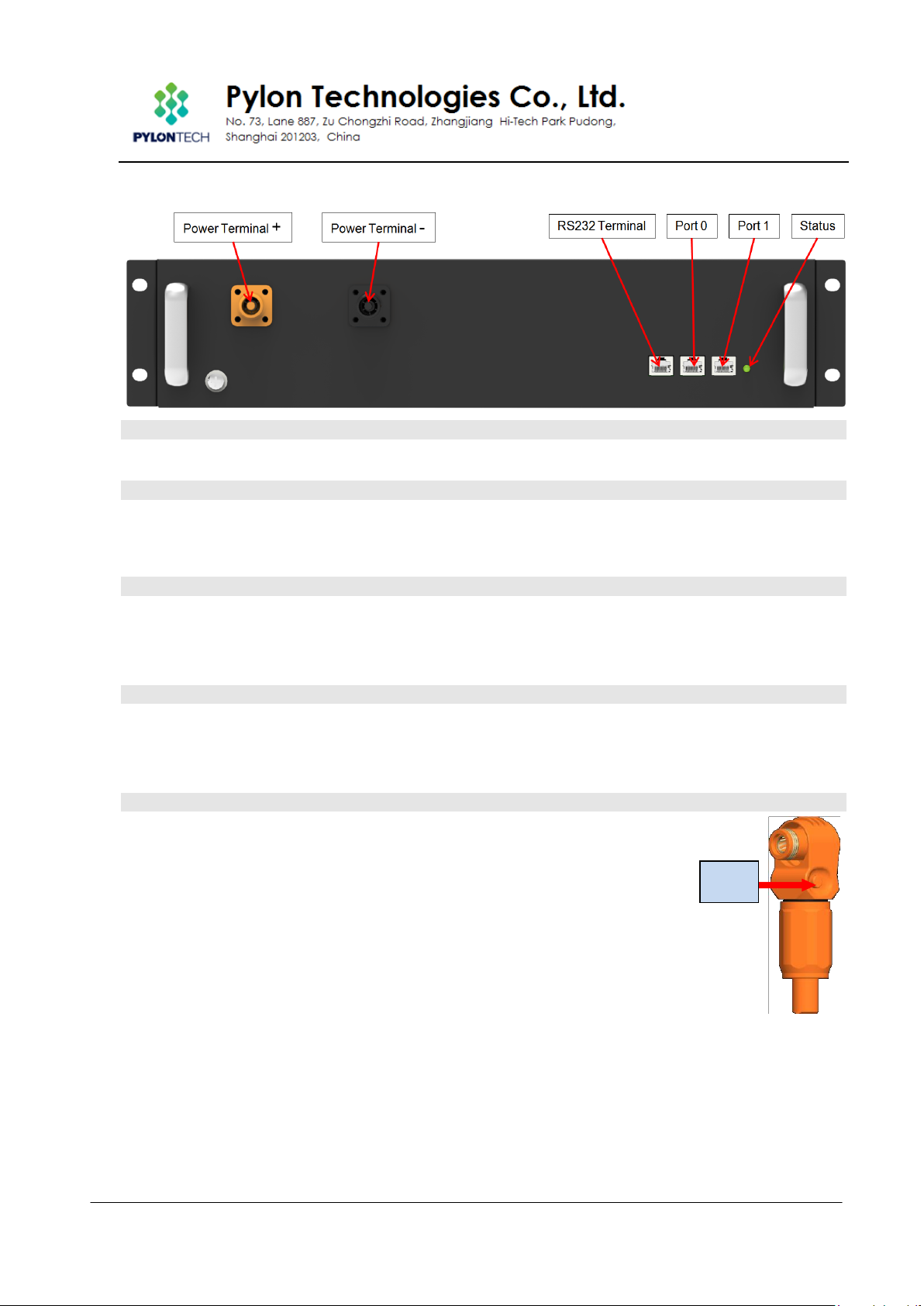

Battery Module Front Interface
Power Terminal +/-
To connect battery power cables in series.
Status
Status light: to show the battery module’s status (RUN●, Alarm●and Protection●).
RS232 Terminal
Console Communication Terminal: (RJ45 port) follow RS232 protocol, for manufacturer or
professional engineer to debug or service.
Link Port 0, 1
Link Port 0, 1 Communication Terminal: (RJ45 port) follow CAN protocol, for communication
between multiple serial battery modules and control module.
Power Terminals
Power cable terminals: there are two pair of terminals with same function, one
connect to equipment, the other one paralleling to other battery
module for capacity expanding. For each single module, each terminal
can achieve charging and discharging function.
For power cables uses water-proofed AMPHENOL connectors. It must keep pressing
this Lock Button during pulling out the power plug.
2.2.3 Control Module (internal power supply)
Control Module has two types: internal and external power supply. For home usage normally we
use internal power supply.

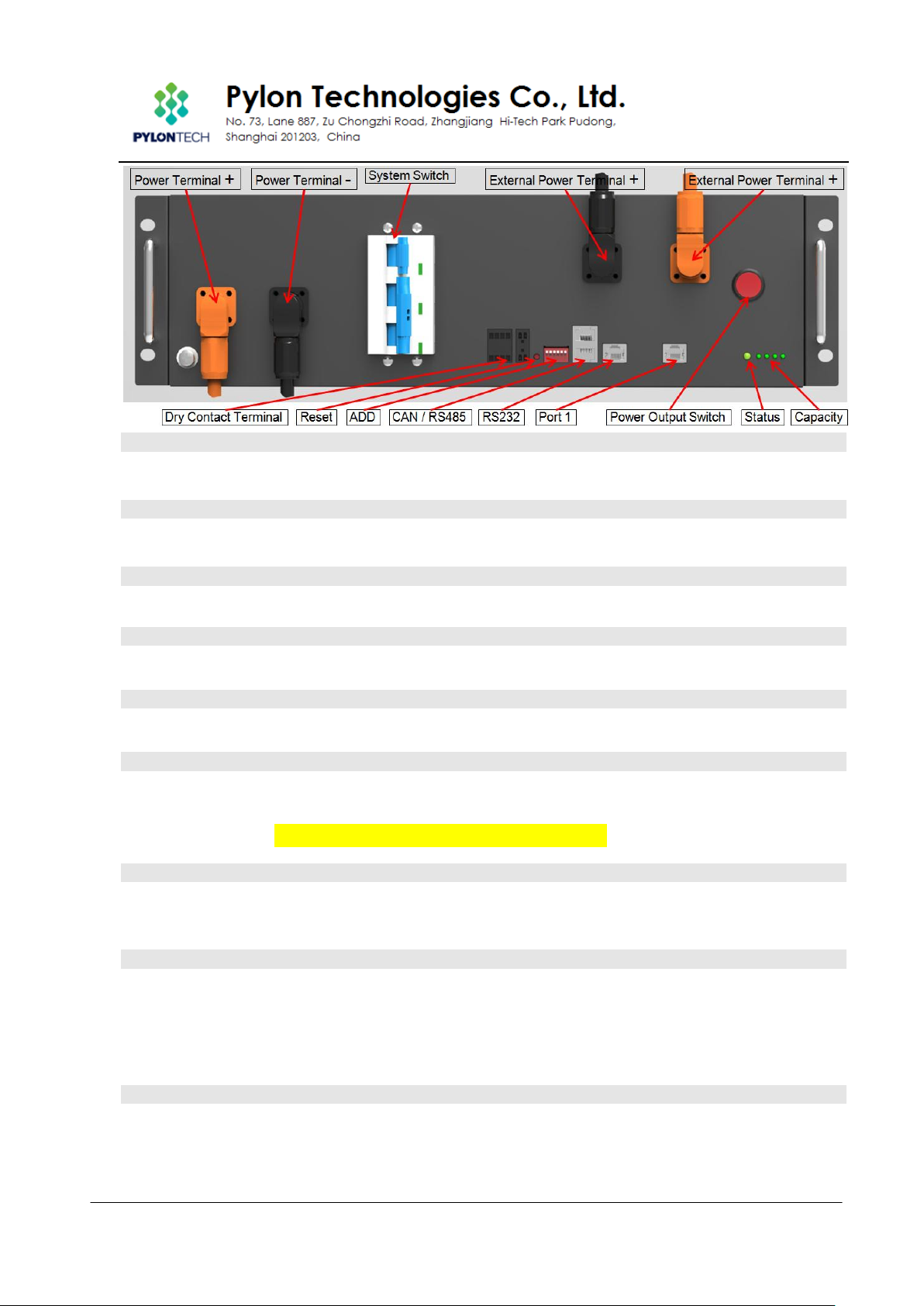

Front Interface

9/ 21
16BISV0903
Power Terminal +/-
To connect battery power cables in series.
System Switch
Switch the battery system’s (control module and high voltage DC power) ON/OFF.
External Power Terminal +/-
Connect battery system with Inverter.
Dry Contact Terminal
Dry Contact Terminal: provided 2 input and 4 output dry contact signal.
Reset
Reset Button: Long press this button to restart the battery system.
ADD
ADD: 6 bit dial switches to manually distribute the communication address of the battery
system. Nether position is OFF, means “0”. Upper position is ON, means “1”. 1st bit to 5th bit is for
address, and the 6th bit dial switch support a 120Ωresistance.
Power Output Switch
To control the high voltage DC power ON/OFF during the System Switch ON. Normally it turns
in ON position, needn’t turn it OFF.
CAN / RS485
CAN Communication Terminal: (RJ45 port) follow CAN protocol, for communication between
battery system and Inverter.
RS485 Communication Terminal: (RJ45 port) follow RS485 protocol, for communication
between battery system and Inverter.
RS232 Terminal
Console Communication Terminal: (RJ45 port) follow RS232 protocol, for manufacturer or
professional engineer to debug or service.

10 / 21
16BISV0903
Link Port 1
Link Port 1 Communication Terminal: (RJ45 port) follow CAN protocol, for communication
between multiple serial battery modules and control module.
Definition of RJ45 Port Pin
No.
CAN
RS485
RS232 Pin
1
---
RS485B
---
2
GND
RS485A
---
3
---
GND
TX
4
CANH
---
---
5
CANL
---
---
6
---
GND
RX
7
---
RS485A
---
8
---
RS485B
GND
Status
Status light: to show the battery module’s status (RUN●, Alarm●and Protection●).
LED Status Indicators
Battery capacity indicator (No.8 Figure 2-1): 4 green lamps, each light represent 25%
capacity.
LED Indicators Instructions
Battery
Statues
Protection /
Alarm /
Normal
RUN
ALM
PRC
Capacity SOC
Descriptions
●
●
●
●
●
●
●
Shut Down
Off
Off
Off
Off
Off
Off
Off
All off
Sleep
Normal
Flash
1
Off
Off
Off
Off
Off
Off
Indicates Sleep Mode,
to save the power.
Standby
Normal
Flash
1
Off
Off
Off
Off
Off
Off
Indicates save power
mode.
Alarm
Off
Light
Off
Off
Off
Off
Off
Indicates the battery is
low.
Standby
Normal
Flash
1
Off
Off
Off
Off
Off
Off
Indicates Standby
Charge
Normal
Light
Off
Off
The highest capacity
indicator LED flashes
(flash 2), others lighting
The highest capacity
indicator LED flashes
(flash 2), others lighting
Alarm
Off
Light
Off
Protection
Off
Off
Light
Off
Off
Off
Off
Stop charging, PRC
lighting

11 / 21
16BISV0903
Discharge
Normal
Flash
3
Off
Off
Indicate based on
capacity
Indicate based on
capacity
Alarm
Off
Light
Off
Protection
Off
Off
Light
Stop discharging, PRC
lighting
Abnormal
Protection
Off
Off
Light
Off
Off
Off
Off
Stop
charging/discharging,
PRC lighting
Note: The flashing instructions, flash 1 –0.25s light / off 3.75 seconds; flash 2 - 0.5s light / 0.5s off;
flash 3 - 0.5s light / 1.5s off.
External power supply Control Module
External power supply Control Module has an Australia standard AC
Power input socket and power switch. It is applied with UPS system.

12 / 21
16BISV0903
3. Installation
3.1 Tools
The following tools are required to install the battery pack
Wire cutter Crimping Modular Plier Screw Driver Set
NOTE
Use properly insulated tools to prevent accidental electric shock or short circuits.
If insulated tools are not available, cover the entire exposed metal surfaces of the available tools,
except their tips, with electrical tape.
3.2 Safety Gear
It is recommended to wear the following safety gear when dealing with the battery pack
Insulated gloves Safety goggles Safety shoes
2.5Accessories
The type and quantity of the accessories are subject to the battery packing list.
NOTE
Power cable uses water-proofed AMPHENOL connectors. It must keep
pressing this Lock Button during pulling out the power plug.
3.3 Package Items
Unpacking and check the Packing List:
Power Cable + (Connection for
Battery Series + to Control
Orange/0.16m/4AWG/2 Orange
Surlok Terminal
pcs
1

13 / 21
16BISV0903
Module +)
Power Cable - (Connection for
Battery Series - to Control
Module -)
Black/1.5m/4AWG/2 Black Surlok
Terminal
pcs
1
Power Cable (Battery Module
Serial Connection)
Orange/0.18m/4AWG/1 Orange &
1 Black Surlok Terminal
pcs
7
Battery Cascade
Communication Cable (0.18m)
Black/0.18m/8 Core Super 5th
Class Twisted-pair Wire/RJ45
pcs
7
Battery Cascade
Communication Cable (1.5m)
Black/1.5m/8 Core Super 5th Class
Twisted-pair Wire/RJ45
pcs
1
External Battery CAN
Communication Cable (direct)
Black/3.5m/Super 5th Class
Twisted-pair Wire/2 RJ45 terminal
pcs
1

14 / 21
16BISV0903
External Power Cable +
Orange/2m/4AWG/SURLOK
Terminal/25-8 Terminal
pcs
1
External Power Cable -
Black/2m/4AWG/SURLOK
Terminal/25-8 Terminal
pcs
1
For external power supply control module there is additional AC power cable:
AC Power Cable (Australia
Standard)
Black/1.5m/3*0.75mm2/Australia
Standard
pcs
1
Grounding:
The Phantom-X1 modules’is grounding based on metal direct
touch between the module’s surface and rack’s surface. So it
needn’t grounding cables at all. If uses normal rack, it can remove
the paint at the corresponding place. Or install a grounding cable
to the grounding point of the modules.

15 / 21
16BISV0903
3.4 Installation Location
Make sure that the installation location meets the
following conditions:
The area is completely water proof.
The floor is flat and level.
There are no flammable or explosive materials.
The ambient temperature is within the range
from 0°C to 50°C.
The temperature and humidity is maintained at
a constant level.
There is minimal dust and dirt in the area.
CAUTION
If the ambient temperature is outside the operating
range, the battery pack stops operating to protect
itself. The optimal temperature range for the battery
pack to operate is 0°C to 50°C. Frequent exposure
to harsh temperatures may deteriorate the
performance and life of the battery pack.
Installation
A. Put battery modules into cabinet and connect
the cables:
①Connect the External Communication Cable,
External Power Cable + and - and AC power
cable from Inverter;

16 / 21
16BISV0903
②Put the control module and the battery modules into the cabinet;
③Drive the screws, to fasten each module on the rack;
④Connect the cables between battery modules and the control module;
The cables’installation sequence is as numbers in the right diagram:

17 / 21
16BISV0903
B. System turn On
Double check all the power cables and communication cables. Make sure the voltage of the
Inverter is same level with the battery system.
(1) Switch battery system switch on.
All the control modules and the battery modules’green LED light (status and capacity) as below
will be on:
If all the LED light on as normal, which means the battery system is good and working.
(2) Check the battery system’s working status on control module.
(3) Turns the power output switch on:

18 / 21
16BISV0903
C. System turn off
(1) Turn off the System Switch.
(2) The Power Output Switch normally needn’t switch off.
Caution:
Before change the battery module for service, must charge/discharge the replaced battery
same/similar voltage to the other in system battery modules. Otherwise the system need long
time to do the balance for this replaced battery module.
NOTE
After installation, do not forget to register online for full warranty:
www.pylontech.com.cn/service/registration

19 / 21
16BISV0903
5. Trouble Shooting Steps
Problem determination based on:
1) If the system is turned on, and the status LED of Control Module is red, but the status LED of
Battery Module is green. Please check the External Battery Communication Cable
(CAN/RS485) connection is right or not.
2) If the system is turned on, and the status LED of Control Module is fleshing in red, the battery
system self check can’t detected. Please check the Power Cables of Battery Module Serial
Connection is right or not.
3) If the system is turned on, the status LED of Control Module and the status LED of Battery
Module is orange. That’s means some running condition is out of setting parameters’range.
The battery system is not failure.
4) If the system is turned on, the status LED of Control Module is red, it means the system is in
protection mode or has failure. If the status LED of Battery Module is also red (in protection
mode or has failure), voltage, current, temperature protection are protection mode. In
protection mode the system will release itself if the working environment goes back normal. If
it caused by battery system failure, please shut the battery system off, and inform service stuff.
5) If the battery system is in low capacity long time, please turn off the System Switch to avoid
the battery empty to damage the cells.

20 / 21
16BISV0903
6. Emergency Situations
1) Leaking Batteries
If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. If one is
exposed to the leaked substance, immediately perform the actions described below.
Inhalation: Evacuate the contaminated area, and seek medical attention.
Contact with eyes: Rinse eyes with flowing water for 15 minutes, and seek medical attention.
Contact with skin: Wash the affected area thoroughly with soap and water, and seek medical
attention.
Ingestion: Induce vomiting, and seek medical attention.
2) Fire
NO WATER! Only dry powder fire extinguisher can be used; if possible, move the battery pack to
a safe area before it catches fire.
3) Wet Batteries
If the battery pack is wet or submerged in water, do not let people access it, and then contact
Pylontech or an authorized dealer for technical support.
4) Damaged Batteries
Damaged batteries are dangerous and must be handled with the utmost care. They are not fit
for use and may pose a danger to people or property. If the battery pack seems to be damaged,
pack it in its original container, and then return it to Pylontech or an authorized dealer.
NOTE
Damaged batteries may leak electrolyte or produce flammable gas. If such damage occurs,
please contact [e-mail]
