Q Set Aviator CN-1000AC-BT User manual

User Manual

Contents
Introduction 3
Prepare Headset for Use 4
Operation 5
Installing Batteries 5
Mode Settings 6
Bluetooth 7
Disassembly 10
Parts List 11
Schematic Diagram 13
Specifications 14

Introduction _________
ANR Instruction: The Active Noise
Reduction CN-1000AC-BT Headset is
a headset that can isolate, offset and
cancel noise. In comparison with pas-
sive headsets, it can, under noisy cir-
cumstances, provide a quieter and more
comfortable sensation, by reducing
background noise. Therefore, make it
possible to improve the audio quality
and articulation, resulting in a higher
operation safety factor. The noise can-
celling circuitry reduces outside noise
considerably more than a standard
headset, making it more comfortable
for the pilot in the aircraft.
• ANR Active Noise ReductionLight weight
11oz.
• Soft leather ear-pads
• Carbon Fiber Construction
• Stereo and Mono
• Clear and Clean Communication
• Separate volume controls Av. Comm &
Phone
• Blue Tooth including 3.5 mm aux. input
• Easy store carrying satchel
• AA Battery Power
• 1 Year Guarantee

Prepare Headset for Use
1. Rotate the flexible boom overhead to wear the microphone on either the right or left
side of the head.
2. Rotate the headset volume control (on the side of the battery box) down to the mini-
mum position, before the headset plug is inserted into the aircraft or intercom.
3. With the headband resting securely on the top of the head, check that the ear seals are
centered over the ears.
4. For best noise cancellation, position the microphone in front of your lips.
5. Insert the microphone plug (PJ068) into the aircraft or intercom microphone jack.
Insert the earphone plug（PJ055） into the aircraft or intercom earphone jack.
6. Volume Adjustment Procedure: Rotate the volume control up to a comfortable level.
7. Auxiliary (AUX) audio input: Insert the plug (3.5mm plug) of your external audio
device into the AUX jack on the side of battery box as indicated. The volume is con-
trolled by your audio device.
8. Bluetooth function: as indicated in operation 5.

Operation
1. Insert or change Batteries:
Two AA batteries power the Q Set Aviator.
①press from the base of the triangle on the cover,
see Figure 1;②push the cover out of the safety
lock, see Figure 2;③tilt the end of the cover up and
remove the whole cover; put the batteries in;④put
the cover latch into the notch and push it back, see Figure 3.

2. S/M switch: There is an s / m switch inside the
battery box, see Figure 4. Ensure the switch is on
Mono to make both ears active (on most aircraft).
3. Light Indication for Power:
Press power button for 0.5 seconds, ANR
starts working.
Flash in green—battery fully charged;
Flash every 2 seconds in amber—battery low;
Flash every 1 second in red—battery dying.

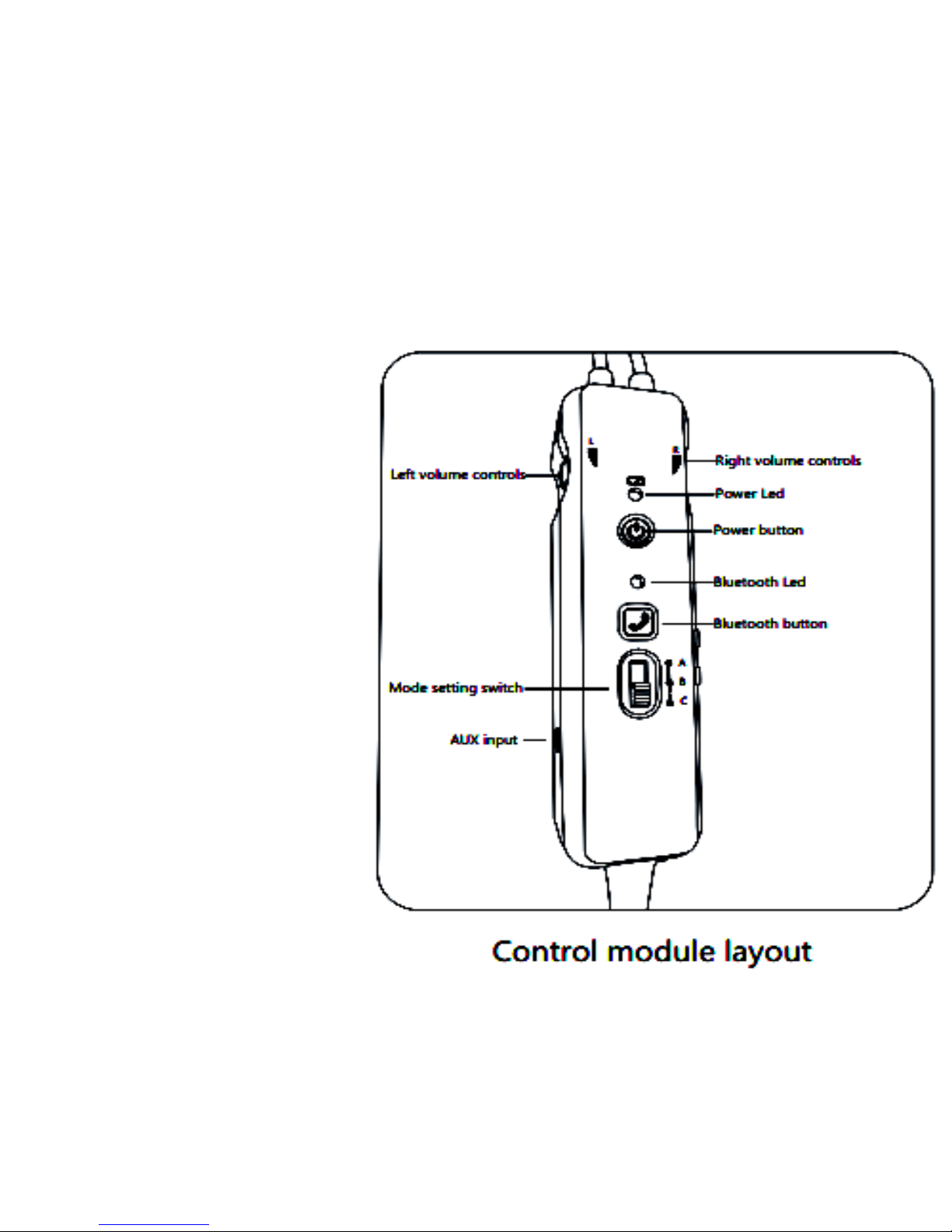

4. Mode Setting:
When it is on, press Bluetooth button for 1 second to start the
Bluetooth function.
Mode Setting:
A:Intercom Priority —When intercom is busy, Bluetooth and
AUX will be attenuated.
B:Intercom, Bluetooth and AUX –All three channels are open.
C:Intercom Only –Only intercom is on. Bluetooth and AUX are both off.
The prioritization of Bluetooth and AUX is:
Bluetooth phone >AUX > Bluetooth music

5. Bluetooth works when the mode setting switch is positioned on A or B.

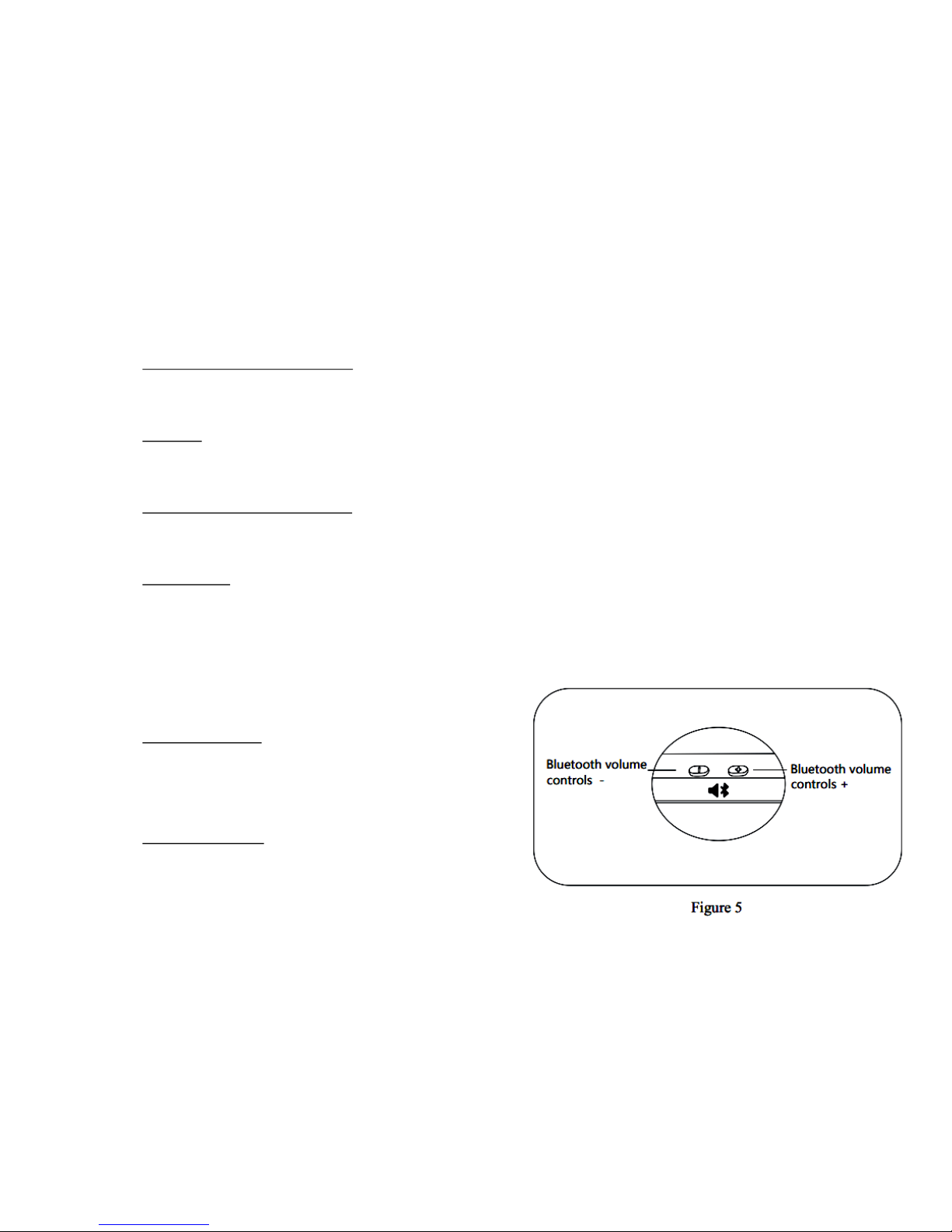

Bluetooth volume control: Press “+” or “-” to turn up or down the volume of blue tooth
connected device. Holding “+” or “-” will keep the volume up or down, see Figure 5
Pairing: device name—BT-ANR; pairing code: 0000 (four zeros). The first Bluetooth
device connecting to the headset will be paired automatically.
Pairing the second device: manual pairing is required. Press the Bluetooth button for 5
seconds to start pairing.
Re-pairing: re-pairing starts automatically if the phone moves
out of the Bluetooth scope and thus gets disconnected. The phone will be
disconnected if the re-pairing cannot succeed
In 5 minutes.
Re-connecting: click the Bluetooth
button to re-connect to the last connected
phone. The call ends after the BEEP.
Rejecting calls: Press the Bluetooth button
for 3 seconds.

Clearing the pairing record: press both Bluetooth volume
control buttons on the side for 3 seconds.
Making calls: dial the number on your phone.
Click the Bluetooth button twice to return the last
incoming call.
Receiving calls: Press the Bluetooth button and answer the call
after the BEEP.
End a call: Press the Bluetooth button. The call ends after the BEEP.
Rejecting calls: Press the Bluetooth button for 3 seconds.
Light Indication for Bluetooth:
Flash in blue and red—pairing.
Flash in red twice—disconnected.
Flash in blue regularly –phone connected.
Short flash in blue—line busy.

6. Turn Off ANR: Press power button for 2 seconds to turn ANR off.
Notice:
1.Use non-rechargeable alkaline
AA batteries.
2.Shut the power off when ANR
is not in use.
3.Take out the batteries if ANR
is left unused for a long period.

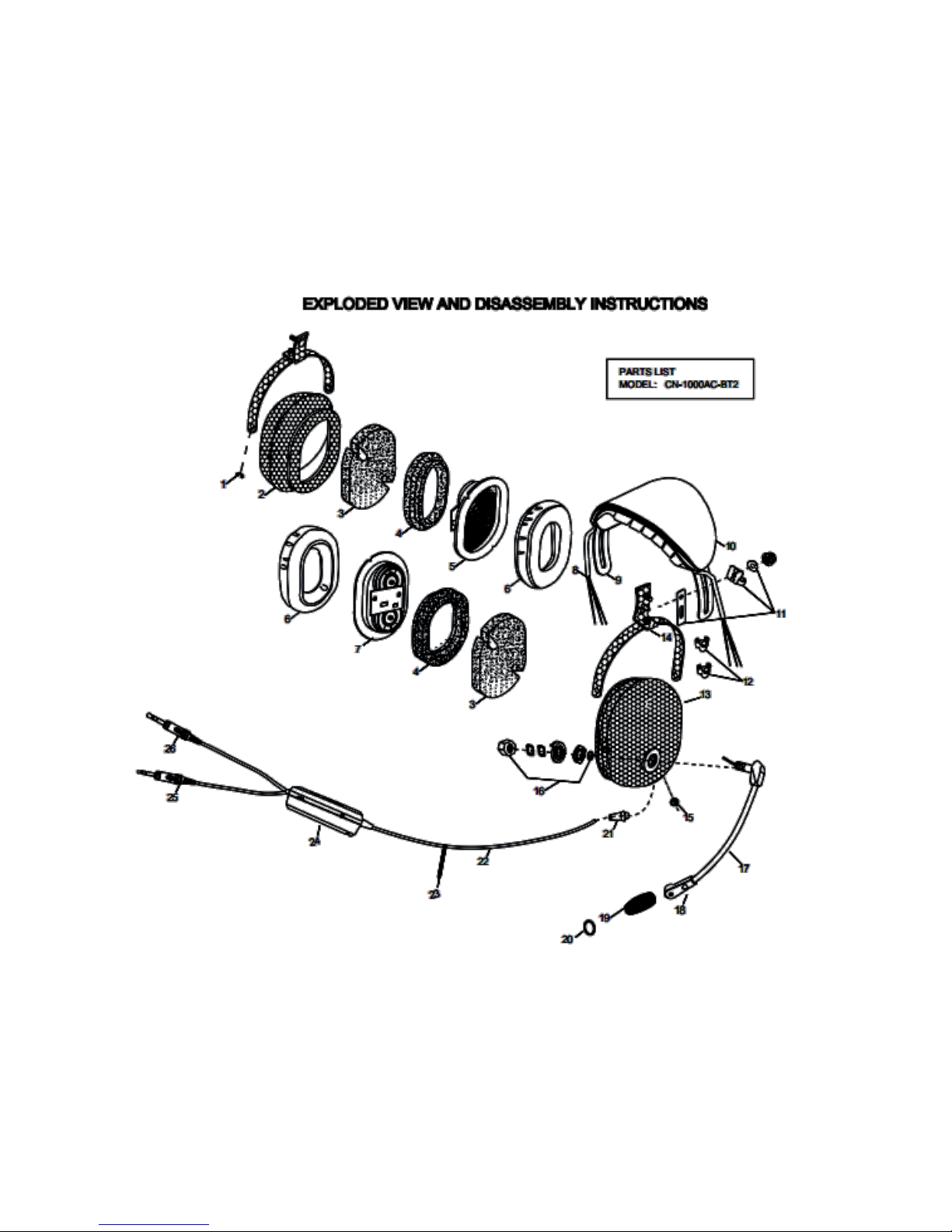

Parts List
ITEM P/N DESCRIPTION
110ME0069 RETAINING RING
210PL0038 RIGHT CARBON EARCUP
310SP0055 ABSORBENT NOISE FILTER (1)
410SP0056 ABSORBENT NOISE FILTER (2)
510EL0046 NOISE CANCELING PCB (RIGHT)
610SP0049 PROTEIN LEATHER EARSEAL
710EL0047 NOISE CANCELING PCB (LFET)
810CR0020 OVERHEAD CORD
910ME0068 HEADBAND , STAINLESS STEEL
10 10SP0005 HEADBAND CUSHION
11 10KI0020 CLAMP KIT
12 10PL0002 OVERHEAD CORD CLAMP
13 10PL0041 LEFT CARBON EARCUP

ITEM P/N DESCRIPTION
14 10ME0010 STIRRUP
15 10PL0004 GROMMET , RUBBER
16 10KI0037 MIC BOOM ATTACHMENT KIT
17 10KI0036 FLEXIBLE BOOM ASSEMBLY
18 10EL0045 ELECTRET MICROPHONE
19 10SP0054 MICROPHONE WINDSCREEN
20 10PL0008 O RING
21 10PL0005 STRAIN RELIEF
22 10CR0004 COMM CORD , STRAIGHT
23 10SP0021 SELF-GRIPPING FASTENER
24 10KI0038 BT BATTERY MODULE
25 10CR0005 F5.2 MOLDED PLUG CORD（PJ068）
26 10CR0015 F6.3 MOLDED PLUG CORD（PJ055）

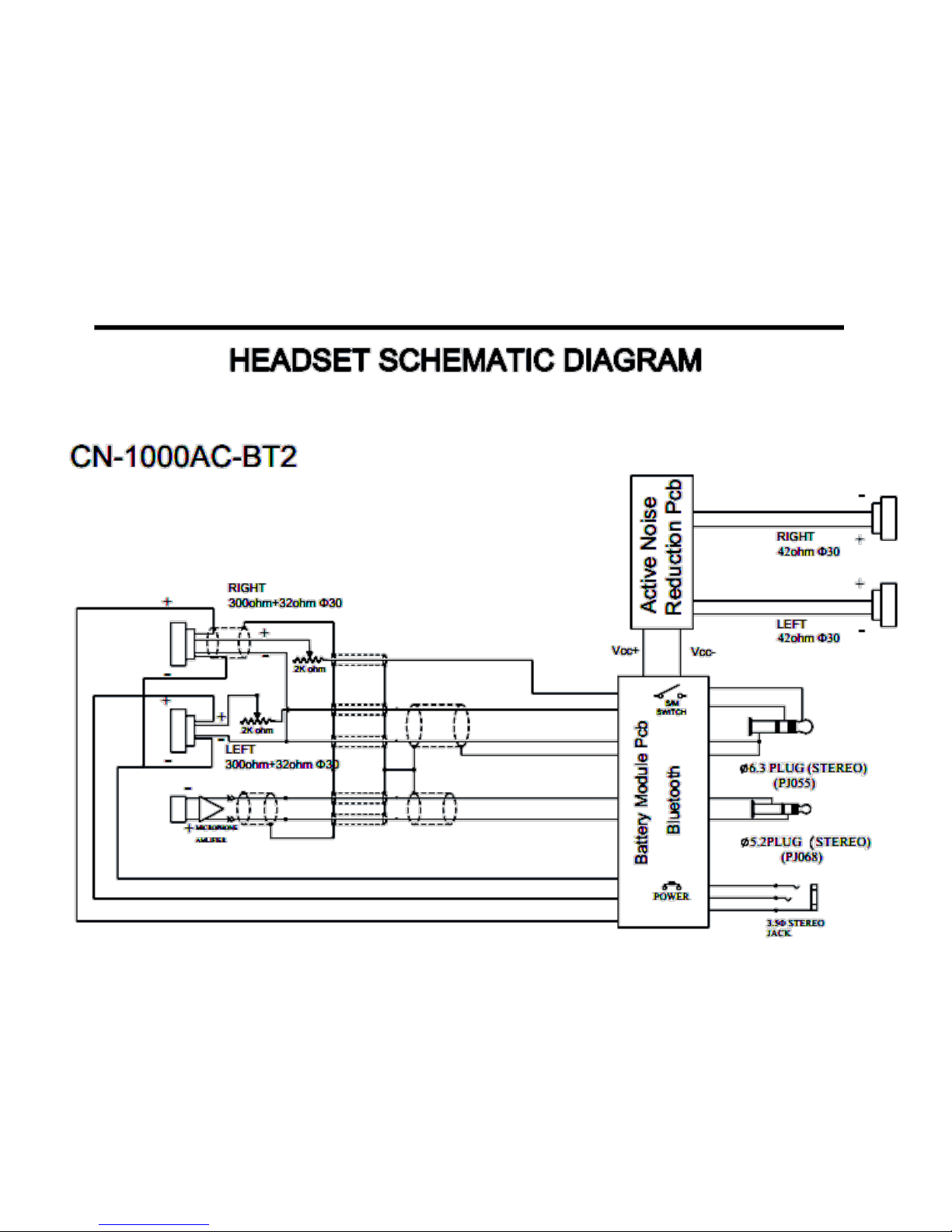

Headset Schematic Diagram

Specifications
PNR Noise Reduction Ratings
（ NRR ）： 23dB
ANR Noise Reduction Ratings
（ NRR ）： 29dB
Headphone
Type: Dynamic （Φ30）
Frequency Response: 50 Hz to 20 kHz
Sensitivity: 95±5 dB SPL
(1 kHz, 1 mW input per earcup side)
full volume on ear simulator
Active Noise Attenuation:
Dynamic 42 ohms:
Rate Input: 30mW Max. Input: 100mW
Speech Sound:
Dynamic 300 ohms:
Rate Input: 30mW Max. Input: 100mW
Microphone and Amplifier:
Element Type: Noise-canceling electret
Frequency Response: 100Hz to 5 kHz
Operating Voltage (supplied by air-
craft): 8-32 Volts DC
Matching Impedance: 150-1000 ohms
Sensitivity: -33±4 dB (Ref: 0dB
SPL=20.0uPa at 1 kHz with 10 Vdc 150
ohms AC load)

General:
Temperature: Operating: - 20 to 70°C
Cordage: Straight cord from headset to
molded plug, 150CM
Intercom Connections:
Earphone Plug： PJ-055 (.25” 6.3Φ
phone plug)
Microphone Plug： PJ-068 (.206” 5.2Φ
phone plug)
Weights: 290g
ANR Noise Reduction Specifications:
Attenuation Frequency Band ….
…….20Hz~20 KHz
Main Attenuation Frequency Band
….20Hz~600Hz
Attenuation Capability…….…
……..29dB
Power Consumption ……. ………...30
mW
Headset size range Height: 10 to 14 cm
Color: Black Boom: Flexible Boom

Manufactured in China and distributed by:
RS Designs & Consultaons
Brandon, Manitoba, Canada
R7A 2J9
1-204-726-4221
[email protected]et
