QED MP40 User manual

Assembly Guide
Part No. 95183 REV. 9-9-02
COMPRESSOR
MODEL MP40
COPYRIGHT 2001 QED ENVIRONMENTAL SYSTEMS
C
O
U
EEDD
P.O. Box 3726 Ann Arbor, MI 48106-3726 USA 1-800-624-2026 FAX [phone] [e-mail] www.qedenv.com
1133 Seventh Street Oakland CA 94607-2601 1-800-537-1767 FAX [phone]
QED ENVIRONMENTAL SYSTEMS
Ground water Sampling Remediation, Leachate and Condensation Pumps Floating Layer Recovery Systems Air Strippers
The World Leader in Air Powered Pumps
For Remediation, Landfills and Ground Water Sampling

MP40-2 HOSE REEL ASSEMBLY
Contents
CONTENTS
Topic Page
QED Warranty
1
2
4
8
MP40 GAS ENGINE / COMPRESSOR ASSEMBLY
MP40-1 CART ASSEMBLY

1
Install Filter
(Threads in
as shown)
1. Attach intake filter to compressor as shown.
2. Read and follow engine operating instructions.
MP40 GAS ENGINE / COMPRESSOR ASSEMBLY

2

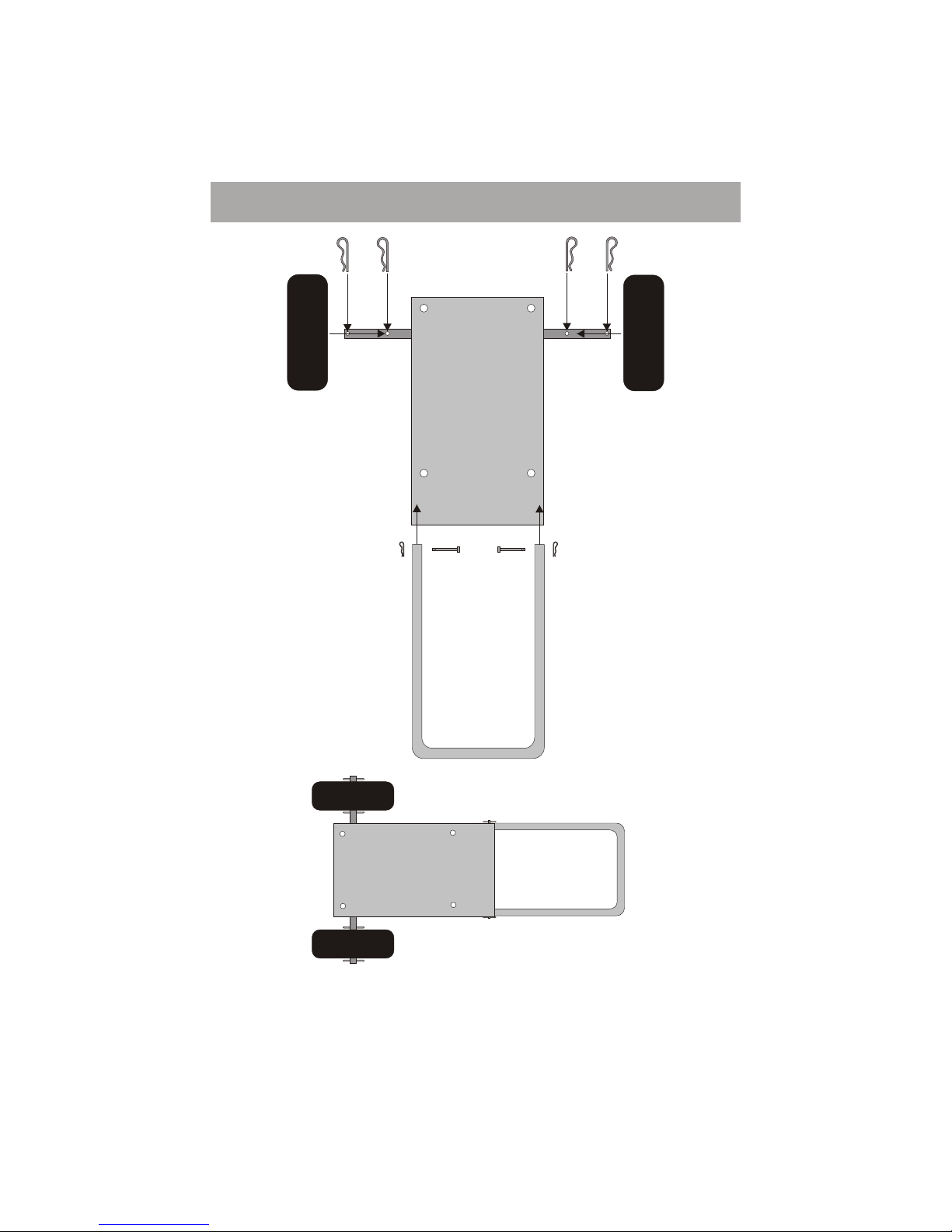

Assemble handle and wheels to cart frame
as shown, using cotter clips provided.
MP40-1 CART ASSEMBLY

3
MP40-1 CART ASSEMBLY
MP40
Remove rubber feet (4) from
bottom of MP40 Frame.
FEET
Rear of Cart
Compressor
head
Exit hose
Mount MP40 to frame by removing 4 rubber feet, then bolting the MP40
to the frame with the bolts provided.
IMPORTANT: position MP40 with compressor head and exit hose over the
cart axle, away from handle end of cart, as shown. The engine can leak oil
and be damaged if this is reversed.

4
MP40-2 HOSE REEL ASSEMBLY
Install reel handle to reel crank arm, using nut and washer provided.
Insert plug into end of handle and tighten with allen wrench.
Carburetor
Frame Clamps (2)
Position Hose Reel on top of MP40frame
as shown, (over carburetor, not over gas
tank). Use care to avoid having the reel fall
off the frame.

5
MP40-2 HOSE REEL ASSEMBLY

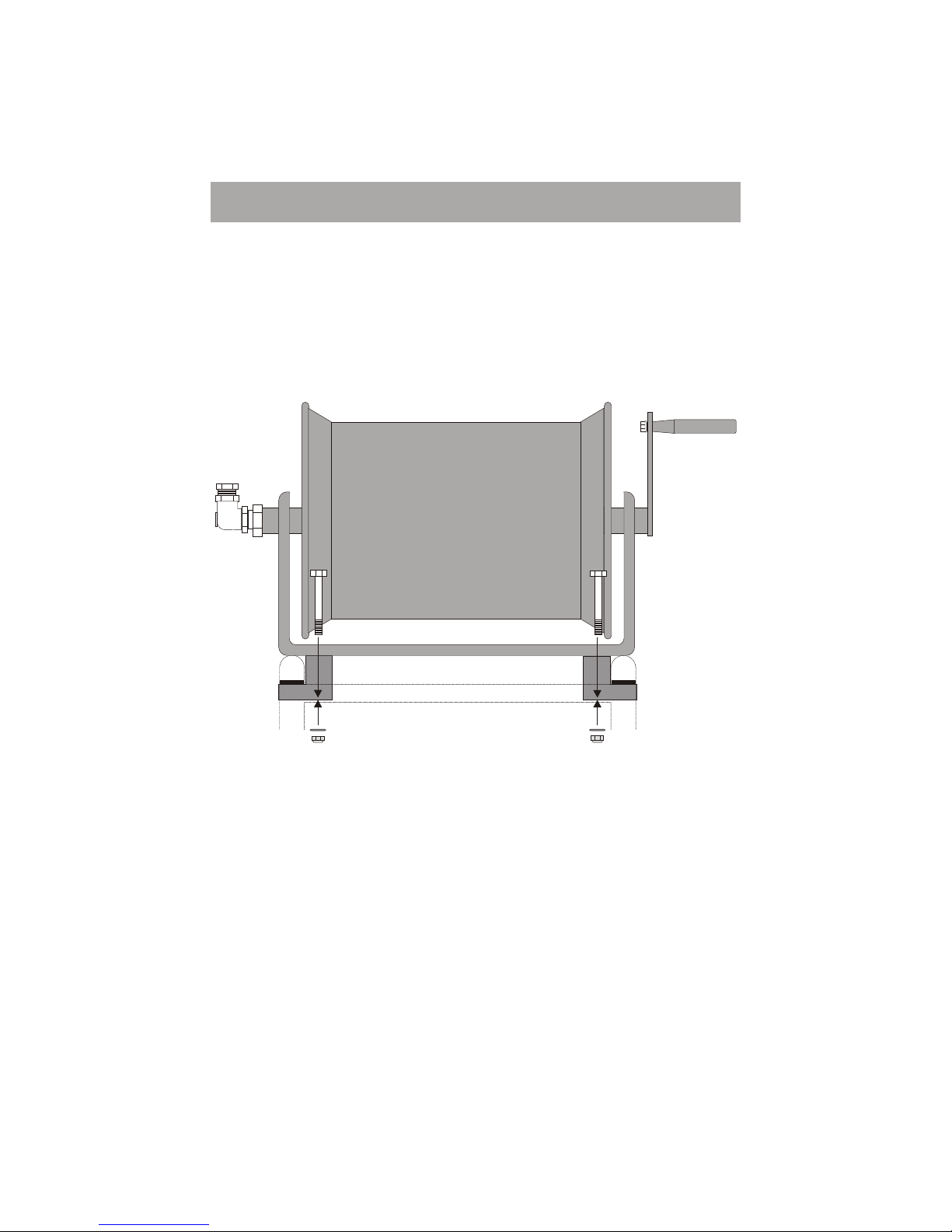

Position frame clamps under reel to grip MP40
frame tube as shown and tighten bolts and nuts
securely.

6
MP40-2 HOSE REEL ASSEMBLY
Remove standard 20 foot hose, (Black) from short,
orange length of high temperature hose attached to
compressor. DO NOT REMOVE ORANGE HIGH
TEMPERATURE HOSE! Removing the orange
hose from compressor discharge could cause air
hose to burst and cause personal injury and/or
damage.

7
MP40-2 HOSE REEL ASSEMBLY

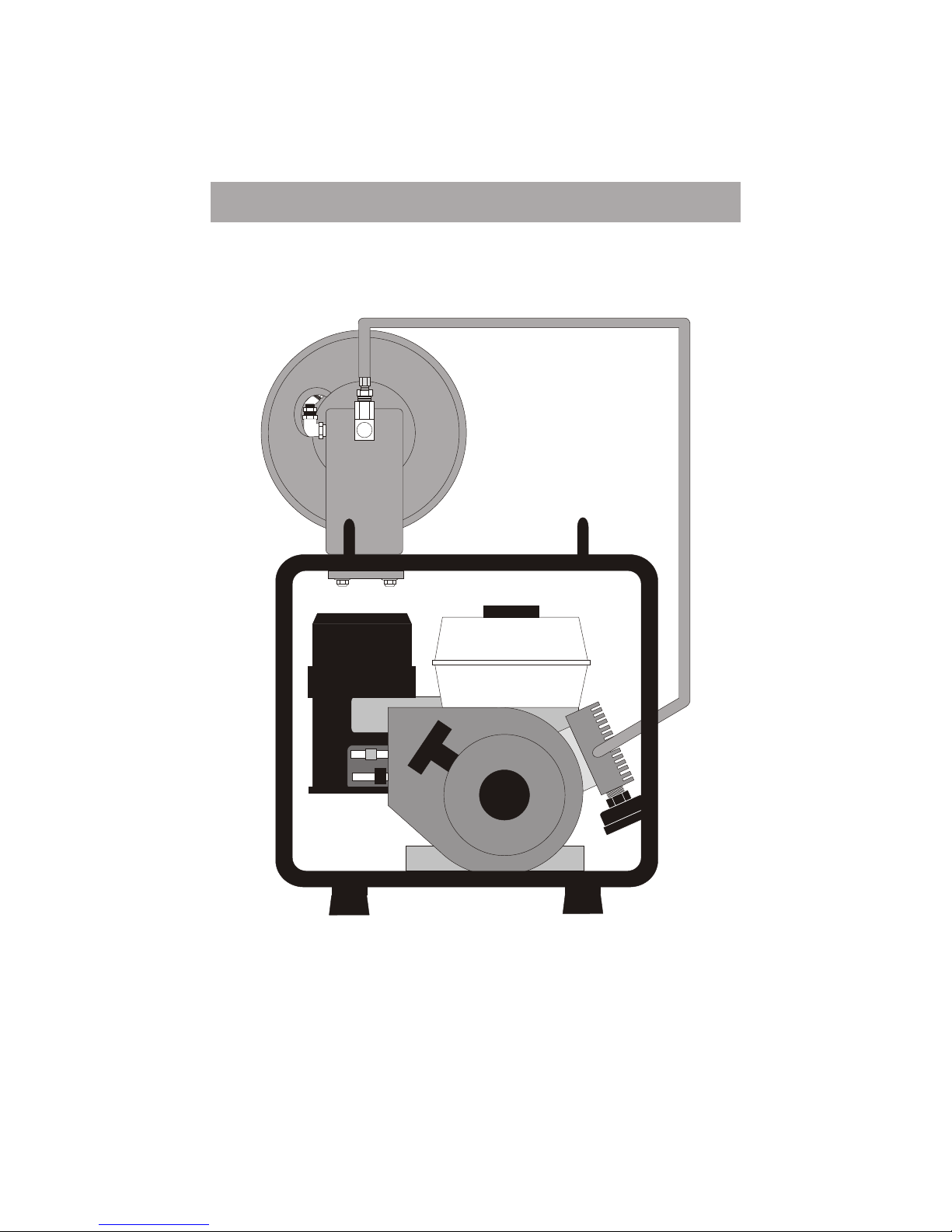

Attach hose reel hose to orange hose.

WARRANTY
QED Monitoring System WARRANTY
QED ENVIRONMENTAL SYSTEMS, INC. ("QED") warrants to the original purchaser of its products that,
subject to the limitations and conditions provided below, the products, materials and/or workmanship shall
reasonably conform to descriptions of the products and shall be free of defects in materials and workmanship.
Any failure of the products to conform to this warranty will be remedied by QED in the manner provided herein.
This warranty shall be limited to the duration and the conditions set forth below. Warranty duration is calc-
ulated from the original date of purchase.
1. Dedicated-Use System Products 10-year warranty on dedicated bladder pumps equipped with QED inlet
screens, and purge pumps used in periodic, non-continuous groundwater sampling (up to 52 samples
events per year.) All other components, equipment and accessories are warranted for one year.
2. Portable-Use Systems - Controllers and Water Level Meters are warranted for one year. Hose reels,
pumps
and caps are warranted for ninety (90) days. Tubing and Purge Mizers are covered by a ninety-(90) day
material and workmanship warranty. There will be no warranty for application on tubing and Purge Mizers
when used as part of a Portable System.
3. Separately Sold Parts and Spare Parts Kit - Separately sold parts and spare parts are warranted for ninety
(90) days. Repairs performed by QED are warranted for ninety (90) days from date of repair or for the full
term of the original warranty, whichever is longer.
Buyers' exclusive remedy for breach of said warranty shall be as follows: if, and only if, QED is notified in
writing within the applicable warranty period of the existence of any such defect in the said products, and QED
upon examination of any such defects, shall find the same to be within the term of and covered by the warranty
running from QED to Buyer, QED will, at its option, as soon as reasonably possible, replace or repair any such
product, without charge to Buyer. If QED for any reason, cannot repair a product covered hereby within four
(4) weeks after receipt of the original Purchaser's/Buyer's notification of a warranty claim, then QED's sole
responsibility shall be, at its option, either to replace the defective product with a comparable new unit at no
charge to the Buyer, or to refund the full purchase price. In no event shall such allegedly defective products be
returned to QED without its consent, and QED's obligations of repair, replacement or refund are conditioned
upon the Buyer's return of the defective product to QED.
IN NO EVENT SHALL QED ENVIRONMENTAL SYSTEMS, INC. BE LIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF SAID WARRANTY.
The foregoing warranty does not apply to major sub-assemblies and other equipment, accessories, and parts
manufactured by others, and such other parts, accessories, and equipment are subject only to the warranties,
if any, supplied by the respective manufacturers. QED makes no warranty concerning products or accessories
not manufactured by QED. In the event of failure of any such product accessory, QED will give reasonable
assistance to Buyer in obtaining from the respective manufacturer whatever adjustments is reasonable in light
of the manufacturer's own warranty.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED OR
STATUTORY (INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY AND FIT-
NESS FOR A PARTICULAR PURPOSE). WHICH OTHER WARRANTIES ARE EXPRESSLY EXCLUDED
HEREBY, and of any other obligations or liabilities on the part of QED, and QED neither assumes nor
authorizes any person to assume for it any other obligation or liability in connection with the said products,
materials and/or workmanship.
It is understood and agreed that QED shall in no event be liable for incidental or consequential damages
resulting from its breach of any of the terms of this agreement, not for special damages, nor for improper
selection of any product described or referred to for a particular application.
This warranty will be void in the event of unauthorized disassembly of component assemblies. Defects in any
equipment that result from abuse, operation in any manner outside the recommended procedures, use and
applications other than for intended use, or exposure to chemical or physical environmental beyond the
designated limits of materials and construction will also void this warranty. QED shall be released from all
obligations under all warranties if any product covered hereby is repaired or modified by persons other than
QED's service personnel unless such repair by others is made with the written consent of QED.
8

WARRANTY
9
QED Environmental Systems Inc.
6155 Jackson Road
Ann Arbor, MI 48103
[phone]
[phone]
www.qedenv.com
[e-mail]
QED Monitoring System WARRANTY (cont.)
This warranty will be void in the event of unauthorized disassembly of component assemblies. Defects in any
equipment that result from abuse, operation in any manner outside the recommended procedures, use and
applications other than for intended use, or exposure to chemical or physical environmental beyond the
designated limits of materials and construction will also void this warranty. QED shall be released from all
obligations under all warranties if any product covered hereby is repaired or modified by persons other than
QED's service personnel unless such repair by others is made with the written consent of QED.
If any product covered hereby is actually defective within the terms of this warranty, Purchaser must contact
QED for determination of warranty coverage. If the return of a component is determined to be necessary, QED
will authorize the return of the component, at owner's expense. If the product proves not be defective within
the terms of this warranty, then all costs and expenses in connection with the processing of the Purchaser's \
claim and all costs for repair, parts and labor as authorized by owner hereunder shall be borne by the Purch-
aser.
RESPONSIBILITY OF THE PURCHASER
The original Purchaser's sole responsibility in the instance of a warranty claim shall be to notify QED of the
defect, malfunction, or other manner in which the terms of this warranty are believed to be violated. You may
secure performance of obligations hereunder by contacting the Customer Service Department of QED and:
1. Identifying the product involved (by model or serial number or other sufficient description that will allow QED
to determine which product is defective).
2. Specifying where, when, and from whom the product was purchased.
3. Describing the nature of the defect or malfunction covered by this warranty.
4. Sending the malfunction component, after authorization by QED to:
