QERIDOO 2018 Sportrex1 User manual
Q3-18-A
Q3-18-DA
Q3-18-DW
Q6-18-A
Q6-18-DA
Q6-18-DW
V
I
D
E
O
T
U
T
O
R
I
A
L
This product fulfils all safety requirements of the
European standard for bicycles and bicycle trailers
(DIN EN 15918).
Sportrex1 2018
Sportrex2 2018
EN
2– 12|2017 – Subject to change. Sportrex 2018
Certificates
The Sportrex has been tested and approved in accordance with the European Safety Standard EN
15918. It also fulfils all emissions limit values laid down in accordance with Part 3 of the toy safety
standard EN 71.
Schadstoffgeprüft
CENTRE OF TESTING
SERVICE INTERNATIONAL
Test Report Number
CNB3151209-05787-C
CNB3151217-05914-C
CNB3160120-00217-CCNB3160120-00217-C
Schadstoffgeprüfte Materialien
- PTU (Fenster)
- EVA (Plastikteile)
- 1680D Stoff, 600D, 900D
(Bezug, Verdeck, Gurte)
Berücksichtigte Normen
EEuropean Standard EN 71-3:2013+A1:2014
US EPA3052:1996, US EPA 3050B:1996,
US EPA3060A:1996, US EPA 3550C:2007,
US EPA3540C:1996, ISO 17353:2004,
BS EN 14582:2007, EN 14372:2004
CTS International
Centre of Testing Service
Documentation
The statements in this documentation are not to be interpreted as an assurance of
particular product properties. Despite the greatest care being taken to avoid technical
inaccuracies or omissions, the possibility of these arising cannot be entirely excluded.
When necessary, individual items of information can be changed quickly and without
special notification.
This documentation can be ordered from Qeridoo GmbH in other languages, or is available for
download on our website if already available.
Visit us at: www.qeridoo.de
Copyright
All rights to the documentation remain with Qeridoo GmbH.
Texts, values and illustrations may not be reproduced, distributed, used for competitive purposes or
passed on to others. If other product names are used in this documentation, these must normally
be regarded as registered trademarks of the respective manufacturer.
Pronunciation and meaning
Qeridoo - keˈɾi.do
Qeridoo was borrowed from Spanish
querido, which means
or .
And this is exactly what we do.
We love our products.
Introduction 4
Proper use 4
Performance limits 4
Notes on the user manual 5
Safety instructions 6
Users 6
Conditions of use 6
Passenger 7
Towing vehicle (Trailer mode) 7
Maintenance and storage 7
Cycling with a trailer 8
Additional lanes 8
Additional weight 8
Defensive riding 8
Product overview 9

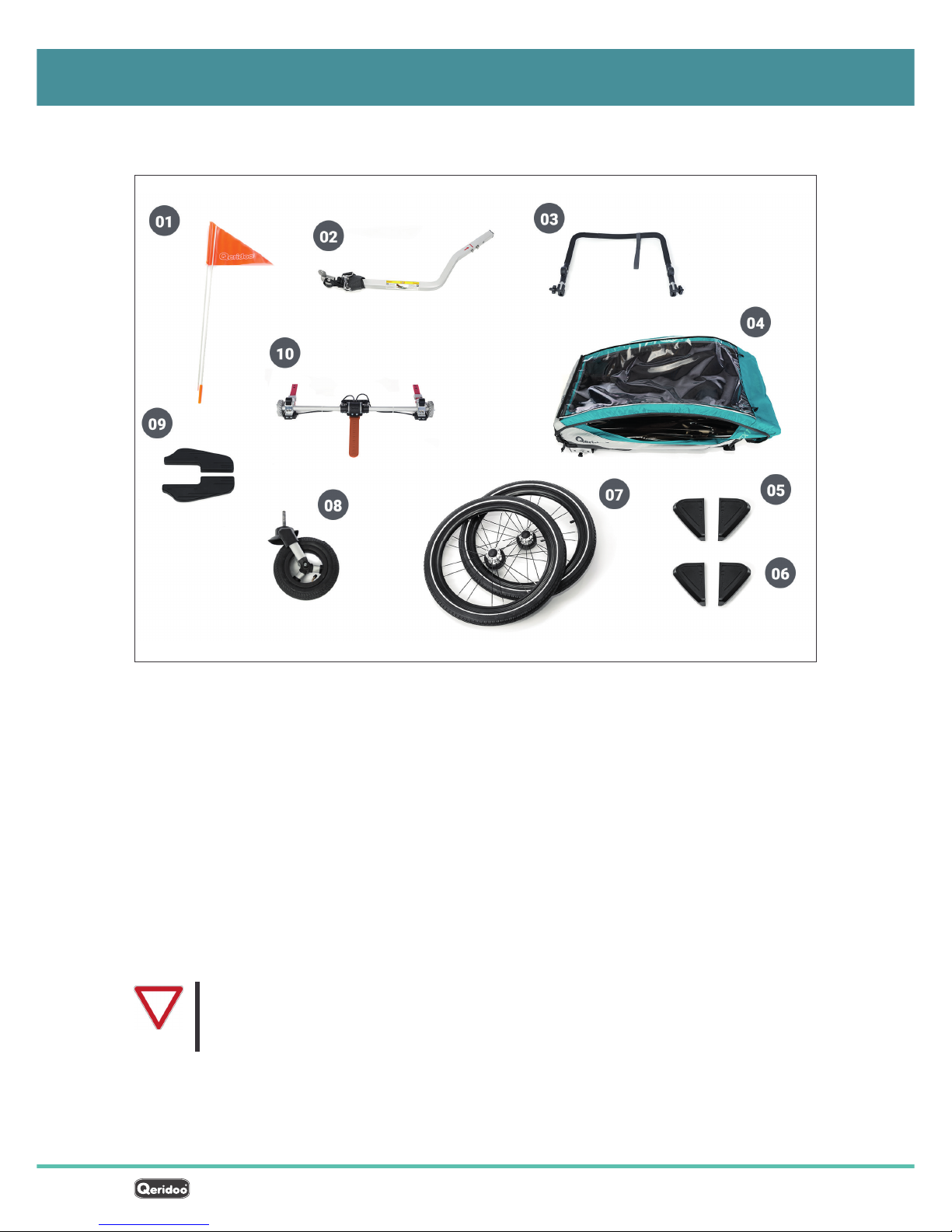

Scope of delivery 9
Components and control elements 10

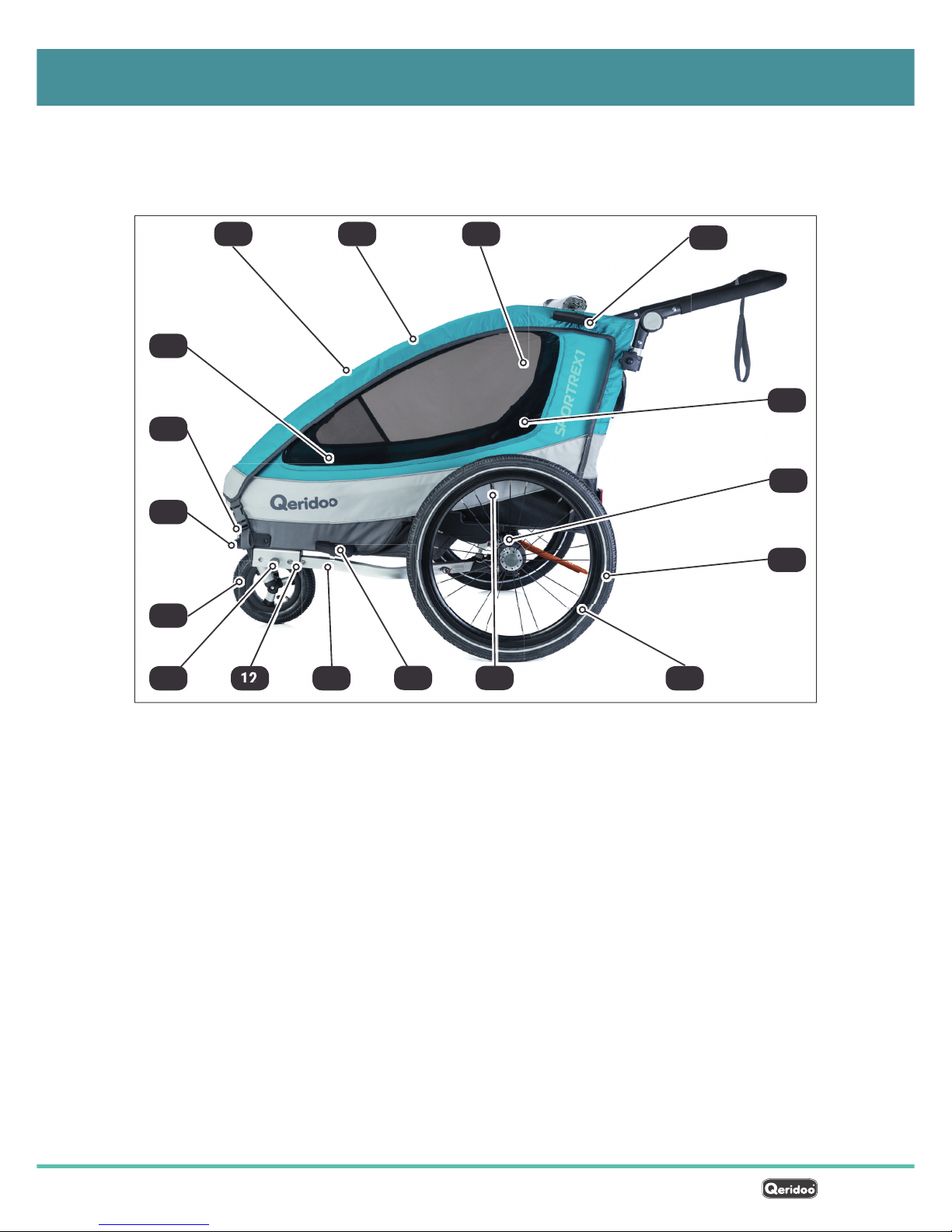

Side view 10
Rear view 11
Assembly 12
Unfolding the cabin 12
Installing the wheel axle 12
Inserting the wheels 13

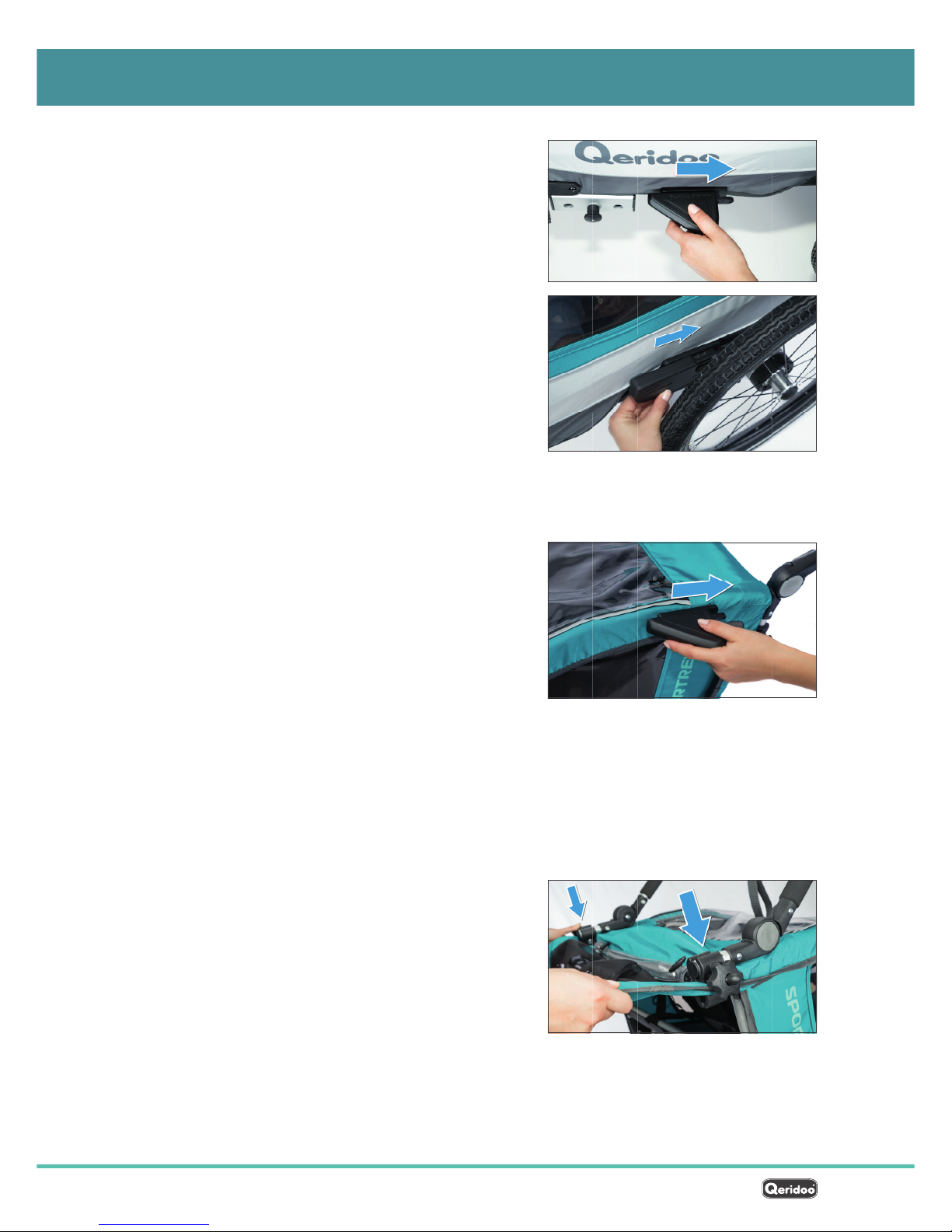

Installing the wheel guard and the leaf spring
cover 13
Installing the safety bumper (Sportrex2) 14
Mounting the push handle 14
Inserting the pennant 15
Optional assembly steps 15
Installing the buggy wheel 15
Adjusting the buggy wheel 16
Mounting the tow bar 16

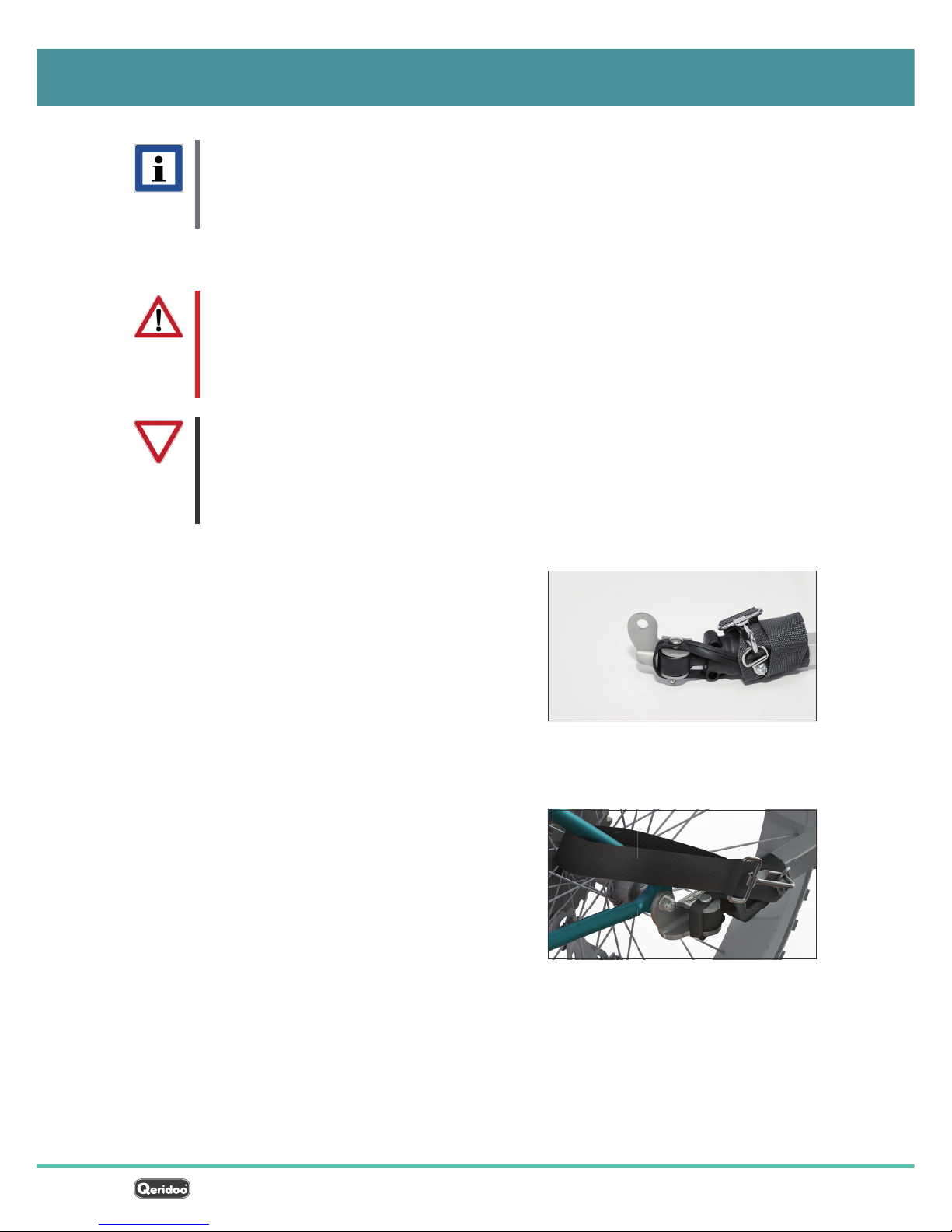

Mounting the coupler onto a bicycle 17
Installing the rear light (Accessory) 18
Utilisation 19
Applying the parking brake 19
Adjusting the push handle 19
Setting the mode 20
Adjusting the buggy wheel 20
Insert tow bar 21
Using the pennant 21
Attaching the hand strap 21
Putting on the 5-point safety harness 21
Securing the load 22
Loading the baggage 22
Adjusting the safety harnesses (Sportrex2) 22
Embarking the children 23
Strapping in children 24
Checking the weight distribution and tow bar load
24
Connecting the trailer to a bicycle 25
Using the comfort functions 26
Using the climate functions 26
Adjusting the suspension 27
Storage 28
Care and maintenance 29
Care 29
After every use 29
After use in harsh weather conditions 29
When not in use 29
Maintenance intervals 30
Before every ride 30
Monthly (or every 200 km) 30
Semi-annually (or every 500 km) 30
Every three years (or every 3000 km) 30
Appendix 31
Technical data 31
Warranty terms 32
Support information 32
Spare parts 33
Sportrex 2018 Subject to change. 12|2017 –
4– 12|2017 – Subject to change. Sportrex 2018
The Sportrex was designed as a bicycle trailer and comes with an additional buggy and walker
function. For , use a tow bar with coupler to connect the trailer to a suitable towing
vehicle (bicycle or motorised pedelec with a maximum speed of 25 km/h). With the buggy wheel
attached, the Sportrex can be used as a child carrier in . In you can use
it when walking.
The Sportrex is available as a one-seater (Sportrex1) or as a two-seater (Sportrex2) and should be
used exclusively for the private transportation for one or two children on paved routes. You can
also carry baggage in the compartments intended for that purpose, provided that you observe the
permissible weight limits and stow the baggage securely so that the load is evenly distributed.
During the journey, each child must be secured in the seat by a safety harness. If you are carrying
only one child in the two-seater, you must alter the harness arrangement as per the instructions in
the chapter „Adjusting the safety harnesses (Sportrex2)“ on page22 so that the child is seated
securely in the centre.
The Sportrex fulfils all safety requirements of the European standard for bicycles and
bicycle trailers (DIN EN 15918). It also considers the wheeled child conveyanes norm EN
1888. In Trailer mode, a rear light must be installed in accordance with the Road Traffic
Licensing Regulations and to be in use in darkness or in conditions of poor visibility.
Before using the Sportrex, check which local regulations apply and how the product may be used.
It must not be used on unsurfaced ground, to transport baggage in the passenger compartment,
to carry animals or for commercial use. It is essential to observe the limit values specified in the
chapter „Performance limits“ on page 4 and to check them before every journey. In all cases,
the rider of the combination or the person using it in Buggy or Walker mode is responsible for the
proper use and roadworthiness of the Sportrex.
The Sportrex can only be safely used if you observe and adhere to the following performance limits
in every mode:
Requirements for passengers Sportrex1 Sportrex2
Permissible total weight (Sportrex + children + luggage) 50 kg 60 kg
Permissible payload (children + luggage) 35 kg 43 kg
Maximum total weight of two children - 36 kg
Maximum weight per child 22 kg 22 kg
Luggage 9 kg 7 kg
Minimum age (without baby seat)
The child must be able to sit up independently. For children
aged up to 18 months, we recommend using a comfort insert
6 months 6 months
Minimum age (with baby seat) 1 month 1 month
Maximum age 6 years 6 years
Maximum height 116 cm 116 cm
Sportrex 2018 Subject to change. 12|2017 –
The following additional restrictions apply to Trailer mode:
Requirements for the tow bar Sportrex1 & Sportrex2
Permissible tow bar load range
(on the tow bar coupler pocket)
3 – 8 kg
Minimum ambient temperature -10° C
Requirements for the towing vehicle Sportrex1 & Sportrex2
Vehicle type Bicycle, pedelec/E-Bike
(supported for up to 25 km/h)
Maximum permissible speed 25 km/h; in curves max. 7 km/h
(walking pace)
Rear wheel size 25" – 29"
This user manual provides you with information about all technical and safety aspects that you
require for mounting, using and maintaining the Sportrex.
fRead the user manual in full.
fUtilise the user manual to provide instruction for all users.
fAlways keep the user manual close to the Sportrex.
The following typographical elements are employed in the user manual to indicate the possible
danger sources or special information:
Identifies notices pertaining to the Danger risk level. Indicates possible dangers that
can result in injury if the instructions are not followed.
Identifies notices pertaining to the Caution risk level. Indicates possible dangers that
can result in material damage if the instructions are not followed.
Identifies important information pertaining to the current subject. Indicates alternative
actions, other information sources or helpful tips.
All left, right, front, back, top, bottom etc.) refer to the perspective of a viewer
standing behind the push handle and looking in the direction of travel. The tow bar is therefore in
front, the push handle behind.
In this user manual, the word refers to the person transporting children with the Sportrex and
making the necessary adjustments on the vehicle.
This user manual applies both for the Sportrex1 and Sportrex2.
6– 12|2017 – Subject to change. Sportrex 2018
Read the safely instructions below carefully.
The safety and accident prevention regulations valid in your region and statutory rules
such as the road traffic regulations also apply, and take precedence in cases where
there is doubt.
Make sure that the Sportrex is used only by persons suitable for its operation, as defined
below. Users must have read and understood this user manual in full.
The Sportrex is not a toy and must not be misused as such. This means that it is not
permissible to attach the Sportrex to a child’s bicycle.
Users are defined as the following persons:
–Any person carrying out assembly work on the vehicle or changing the settings.
–The rider of the towing vehicle in Trailer mode.
–The operator in Buggy or Walker mode.
The user must be at least 16 years old and mentally mature enough to operate the Sportrex
and transport children.
In Buggy mode, operation by a younger person is allowed if he/she is supervised by a person
who meets the requirements stated above.
The user is at all times responsible for the proper use and roadworthiness of the Sportrex.
The Sportrex must not be used for commercial or competitive purposes.
Before every journey, check that the Sportrex is in a proper and technically faultless condition.
Perform a visual inspection and in particular pay attention to the instructions and checklists in
the chapter „Maintenance intervals“ on page30. The notes also apply to the first use of the
Sportrex.
Also inform yourself about country-specific rules and traffic regulations if you are making trips
across borders or if you want to take the Sportrex with you on trips abroad.
Before every journey, make sure that the requirements for the particular mode have been
fulfilled. In particular, pay attention to the table and the instructions in the chapter „Setting the
mode“ on page20.
In Trailer mode, a rear light must be indicated and operated on the left side of the push handle
in accordance with the Road Traffic Licensing Regulations in darkness or conditions of poor
visibility.
Before every journey, close the inner part of the 3-in-1 canopy so that the integrated insect
net protects the children from insects and small stones. When in traffic, the weather canopy
should also be closed and the ventilation window open to provide protection against exhaust
fumes.
Sportrex 2018 Subject to change. 12|2017 –
The Sportrex1 can carry one child and the Sportrex2 can carry two children
aged between 1 month and 6 years. Special accessories must be used
in order to secure children who are under 6 months old or who cannot sit
upright independently, see
www.qeridoo.de/zubehoer.
So that they have sufficient headroom in all situations, the children must not
be taller than 116 cm.
Each child must be properly fastened in with a 5-point safety harness.
The children must wear bicycle helmets for every journey. This is also recommended for the
bicycle rider in Trailer mode in order to set a good example.
Before each journey, explain to the children that they must behave appropriately. Undoing
safety harnesses, excessive rocking or leaning out must be strictly forbidden.
Make sure that the cabin is well ventilated and make sure that the children are wearing clothes
appropriate for the weather conditions and the cabin’s inside temperature.
Never leave children unsupervised in the Sportrex and make sure that they feel comfortable.
Make regular stops during longer journeys to give the children the opportunity to get out and
move around. Make sure that they drink sufficient liquids.
As the towing vehicle, it is not permitted to use vehicles that must be registered such as
motorised e-bikes for speeds up to 45 km/h or vehicles with a combustion engine.
The bicycle or the pedelec (motorised for speeds up to 25 km/h) must be technically sound
and suitable for towing loads in accordance with the permissible total weight. The maximum
permissible total weight can be found in chapter „Performance limits“ on page4. For
details, read the towing vehicle’s manual or consult a specialist dealer for a suitable inspection
to be carried out.
Before every journey, test the function of the bicycle’s brakes, brake linings and tyres and
inspect them for wear. Check that the coupler is secure.
For carrying passengers, the bicycle should be equipped with a rear-view mirror. Working lights
conforming to the road traffic regulations are mandatory for journeys in darkness or conditions
of poor visibility.
Follow all instructions relating to the care and maintenance of the Sportrex and observe the
specified maintenance intervals, see „Care and maintenance“ on page29.
Install and use only original accessories and spare parts manufactured or recommended by
Qeridoo. Using other products relieves the manufacturer of liability.
Only carry out structural modifications or extensions to the vehicle which are necessary
for the use of the approved accessories in accordance with the assembly instructions. Any
further manipulation that is not expressly approved by the manufacturer in writing relieves the
manufacturer of liability in the event of accidents and defects.
Follow the instructions in the chapter „Storage“ on page28 for storing the Sportrex properly
when it is not in use.
A
C
C
E
S
S
O
R
I
E
S
8– 12|2017 – Subject to change. Sportrex 2018
The way in which the bicycle moves changes significantly when it is pulling a trailer, and this is
particularly noticeable when braking and cornering. Withregard to this, pay attention to the following:
Practice cycling with the trailer before going out onto the road.
Do not carry children until you have familiarised yourself with the different riding behaviour on
suitable terrain.
Think of the children’s safety whenever you ride. Always adapt your way of riding and your
speed to local conditions, and never forget that you are towing a trailer.
The two wheels of the Sportrex run outside the familiar cycling lane. On all routes, particularly
when there are obstacles and potholes, remember that you will always need 3 suitable lanes
for safe riding.
The Sportrex1 is 72 cm and the Sportrex2 is 82 cm wide. Maintain a sufficient distance from
obstacles and avoid routes that are too narrow. Always negotiate narrow points and bends
slowly.
Combined, the bicycle and trailer are at least 2.5 m long in total. Negotiate curves with wider
radii than usual and bear in mind the additional lane required for the inner wheel of the
Sportrex.
When fully loaded, the Sportrex1 weighs up to 50 kg and the Sportrex2 weighs up to 60 kg that
the bicycle must pull, brake and keep on track in addition to its own weight and that of the
rider:
–Jerky pulling and braking puts high loads on the coupler and tow bar, and thereby increases
wear.
–All stopping distances are much longer when braking, and the stress on the brake linings
is correspondingly greater. The stopping distance is further increased on wet surfaces and
downhill slopes.
–During braking, especially on bends, the trailer can swing out or push the bicycle’s rear
wheel to the side and reduce its traction.
–High centrifugal force on bends can result in the trailer tipping over.
Do not exceed the maximum permitted speed of 25 km/h and avoid riding at an angle.
Negotiate bends no faster than at walking pace (max. 7 km/h) in order to prevent excessive
centrifugal forces.
Always ride defensively and with foresight.
Brake in good time before reaching bends, junctions, obstacles etc.
Always negotiate curbs and uneven surfaces slowly. Keep away from steps, escalators and
very steep stretches.
Sportrex 2018 Subject to change. 12|2017 –
The scope of delivery includes some functional units of the Sportrex already preassembled.
fUnpack all supplied parts and place these on a clean surface.
fCheck the contents of the package against the list provided.
Contact our Service department immediately if any parts are missing or if you find that
the packaging or product is damaged, see „Support information“ on page32.
fRemove the packaging material and all protective caps, and dispose of them in accordance
with the environmental guidelines that apply in your region.
fRead the chapter„Assembly“ on page12 before you assemble parts.
1Pennant with 2-part pennant staff and
centre piece
2Tow bar with coupler and retaining strap
3Push handle with hand strap
4Cabin with seats and 5-point safety
harnesses
5Wheel guard (2x)
6Head protector (Sportrex2)
72 wheels
8Multiwheel buggy wheel
9Leaf suspension cover
10 Wheel axle with parking brake and
suspension
123 4
5
6
7
8
9
10
1112
12
13
14
15
16
17
10 – 12|2017 – Subject to change. Sportrex 2018
1Cabin (frame made from aluminium tubes
with weatherproof fabric cover)
23-in-1 canopy to protect against insects
and rain with integrated sun visor, rollable
3Side window
4Head protector (Sportrex 2)
5Seats with 5-point safety harnesses
6Leaf suspension
7Reflector strip
820" wheel with push-in axle
9Air valve (Schrader valve)
10 Removeable wheel guard for rejection from
obstacles
11 Tow bar for trailer mode with cotter pin
fastening and retaining strap for securing
bicycle frame
12 Tow bar holder
13 Locking button
14 Buggy wheel for three-wheel use in Buggy
or Walker mode
15 Wheel mount on the cabin frame
Operating mode switch:
Buggy mode: rotatable wheel
Walker mode: wheel running straight
Trailer mode: dismounted buggy wheel
16 Front reflector, white
17 Small pouch in the footwell of the cabin
1
2
3
5
4
6
7
8
9
10
11
12
13
Sportrex 2018 Subject to change. 12|2017 –
1Push handle, height adjustable
2Rain cover, rollable
3Pennant pouch for holding the pennant
staff
4Rear light (Optionally available)
5Reflective seams in the fabric cover
6Coupler pocket with cotter pin fastening
and retaining strap for securing the tow bar
on the bicycle frame
7Rubber cap for push-in axle release when
mounting the wheels
8Parking brake brake lever
9Push button for adjusting the height of the
push handle
10 Star grip screw with tube clamp for
securing the push handle
11 Ventilation window with integrated pouch
for small items
12 Storage space behind the seats, accessible
from the outside
13 Rear reflector, red
12 – 12|2017 – Subject to change. Sportrex 2018

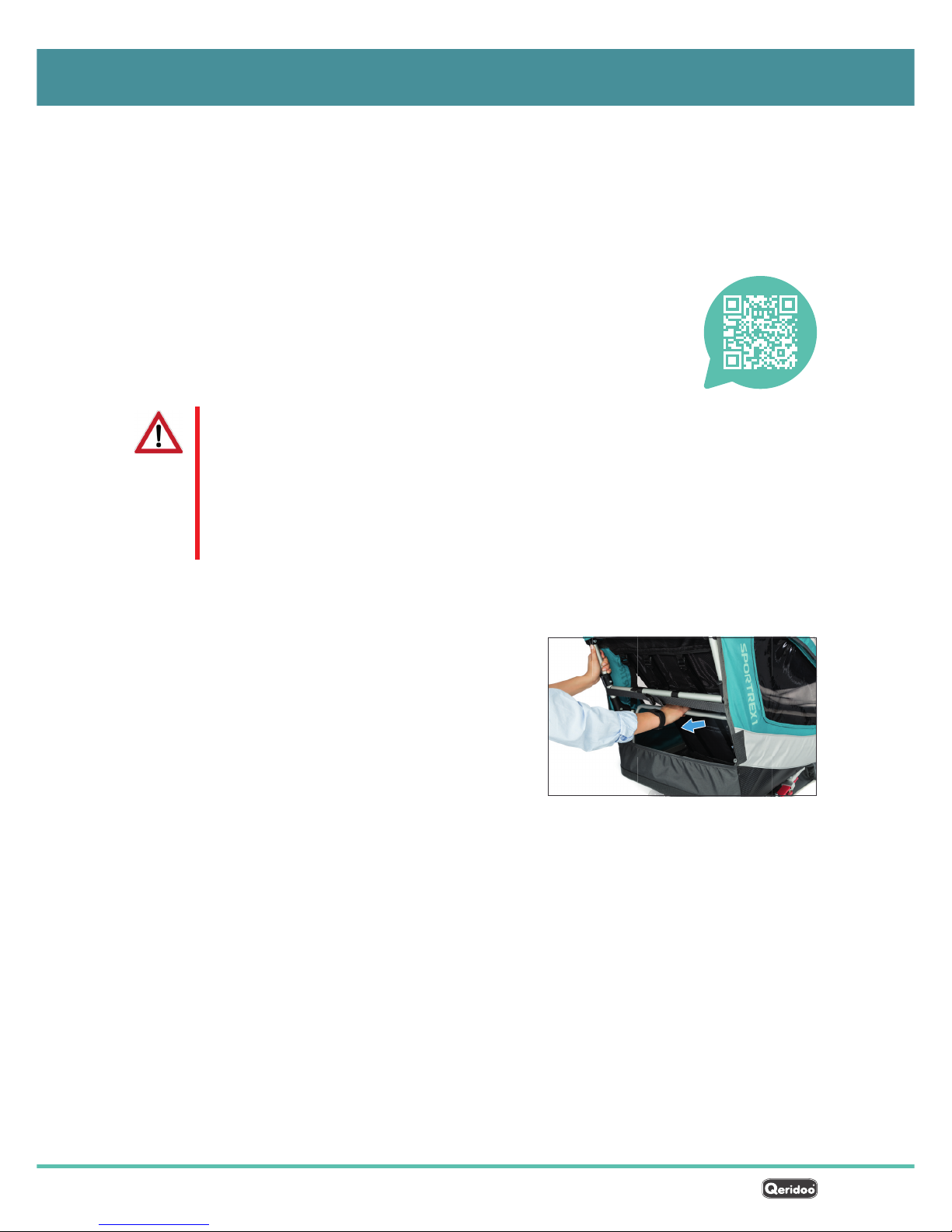

Below you can read all the information that you will need to assemble your Sportrex properly.
fMake sure that you have sufficient space to assemble it.
Also pay attention to the door width at the place of installation: The Sportrex1 is 72 cm wide
with the wheel guards fitted and the Sportrex2 is 82 cm wide.
fHave a size 4 mm hex key to hand (not supplied).
fPerform each of the instructions step by step.
fIf necessary, follow the QR code to call up a video about
assembly and operation on the Internet.
V
I
D
E
O
T
U
T
O
R
I
A
L
Never perform assembly work if there are children in the cabin. Keep children away from
the vehicle during assembly.
When handling moving components, make sure that your hands or fingers do not get
trapped.
Before using the appliance for the first time, check all screwed and splint connections
carefully.
fPlace the collapsed cabin in the assembly area.
fPosition yourself behind the cabin.
fPull both sides of the rear cabin frame all the way up.
fOpen the cover of the storage compartment.
fPull the rear frame rod assembly evenly back until it
engages audibly.
The wheel axle is equipped with adjustable leaf springs. The spring effect of both leaf spring plates
can be adjusted by moving a clamp, see „Adjusting the suspension“ on page27.
Screw the wheel axle with the leaf springs to the leaf spring seat of the cabin frame.
fLoosen 4 hexagon socket head cup screws from the leaf spring seat.
fAdjust the leaf spring plates with the clamps so that their holes lie on top of each other.
fThe knurled screws of the clamps point downwards during axle mounting (away from the
cabin).
Sportrex 2018 Subject to change. 12|2017 –
fHold the wheel axle with the leaf springs to the lead
spring seat.
fTurn the four screws through the leaf spring in the leaf
spring seat.
fTighten the screws with the hexagon socket head cup
screws firmly.
fLift the cabin a little bit in order to install the wheel
easier.
fInsert one wheel into the cabin’s axle retainer:
–Hold the wheel so that you can press your thumb
onto the rubber cap on the outside of the wheel
hub.
–Press on the rubber cap and keep it pressed in order to open the push-in axle fastening.
–Insert the wheel’s push-in axle as far as it will go into the axle retainer.
–Release the rubber cap to secure the push-in axle.
fPull on the wheel to check that the wheel is locked in the axle retainer.
fInsert the second wheel in the same way.
After mounting the wheels, secure the Sportrex whenever you park it so as to prevent it
from rolling away, see „Applying the parking brake“ on page19.
fCheck whether there is sufficient air in the wheels (recommended air pressure: 2.5 – 4 bar).
If necessary, use an air pump for car valves to top up with air.
The wheel guard on both sides of the cabin prevents the wheels from getting stuck on pillars or
similar obstacles. The leaf spring covers serve as protection against bruises
fMake sure that the slide covers for the wheel guard and leaf spring cover are fixed and
tightened on both sides.
14 – 12|2017 – Subject to change. Sportrex 2018
fSlide the wheel guard onto the slide holder as shown
in the picture.
fBe sure that the fixing mechanism locks audibly.
fRepeat the procedure on the other side of the trailer.
fSlide the leaf spring cover onto the slide holder as
shown in the picture.
fBe sure that the fixing mechanism locks audibly.
fRepeat the procedure on the other side of the trailer.
The head protector serves as additional side protection when transporting two children.
fBe sure that the slide covers for the head protector are fixed and tightened on both sides.
fSlide the head protector onto the slide holder as shown
in the picture.
fBe sure that the fixing mechanism locks audibly.
fRepeat the procedure on the other side of the trailer.
The push handle is secured to the top of the cabin frame with two robust tube clamps. It has
multiple height settings and is used for pushing, pulling and manoeuvring your Sportrex.
fPrepare the push handle by fully unfolding it. To do this, keep the light grey pushbuttons
pressed on both sides, see „Adjusting the push handle“ on page19.
fPosition yourself behind the upright cabin.
fOpen the cover of the storage compartment.
fLay the push handle on the roof and insert the pipe
clamps through the both slots in the cover.
fLoosen the two star grip screws at the bottom end of
the push handle to enable the tube clamps to be easily
pushed onto the tubes of the cabin frame.
fWith both tube clamps, hold the push handle on the
tubes of the upper cabin frame.
Sportrex 2018 Subject to change. 12|2017 –

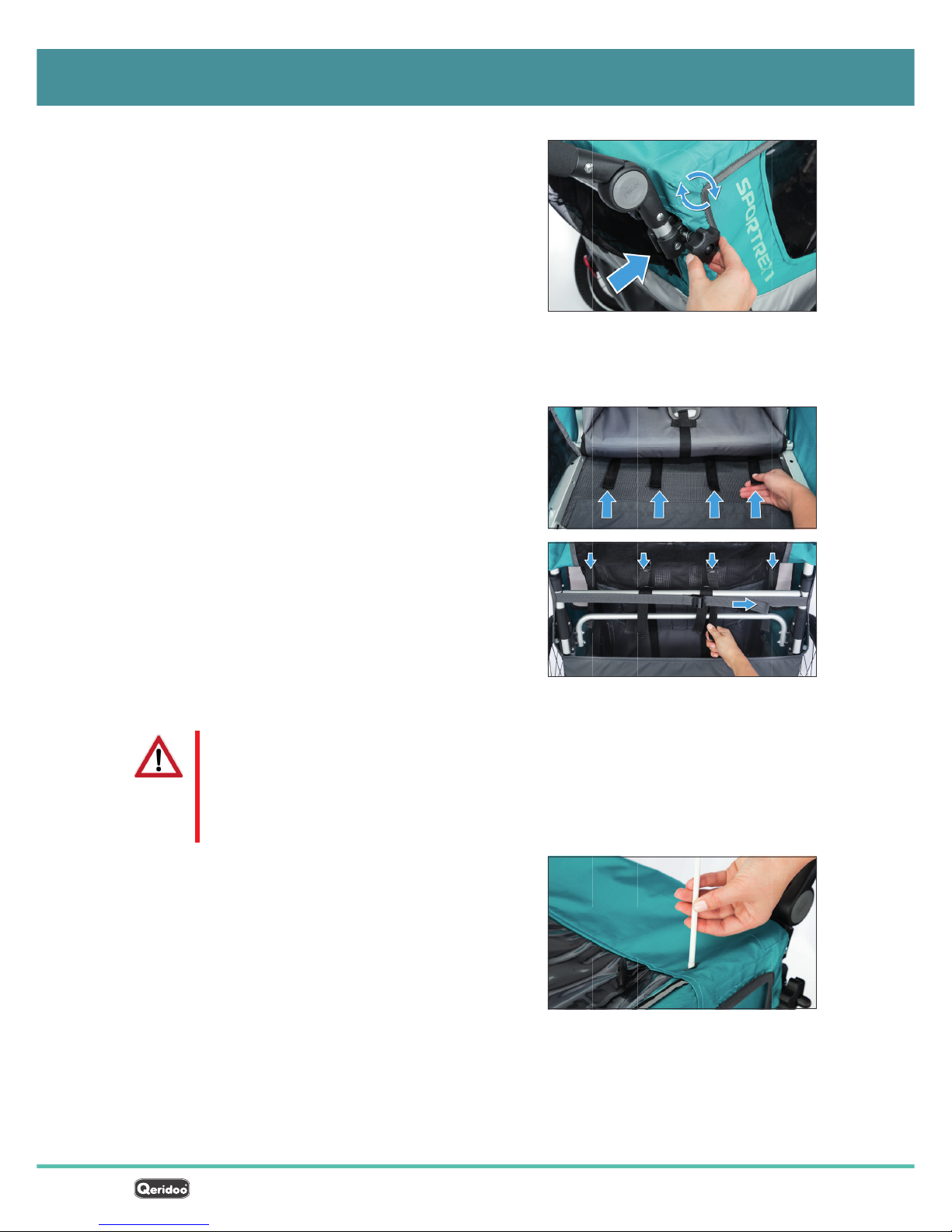

fAttach the tube clamps in turn onto the cabin frame
tubes by applying gentle pressure. Secure them by
partly tightening the star grip screws.
fAlign the push handle horizontally by pushing the tube
clamps all the way up at the same height.
fSecurely tighten the star grip screws in order to fix the
tube clamps to the cabin frame.
The stable backrest is an important safety element. The belts must always be tight under the seat
and behind a cabin for a good grip.
fPut the cabin in the upright position and open the
cover.
fCheck the tension of the 4 belts under the seat and
tighten them firmly.
fOpen the cover of the storage compartment.
fPull the belts which are tensed around the top
crossbar tightly.
fAdditionally tighten the transverse belt.
The pennant must always be mounted in Trailer mode. Otherwise the very low Sportrex
is too easily overseen by other road users.
For safety reasons, we recommend putting the pennant into the pennant pouch so
that it is easily visible before every journey, including in Buggy or Walker mode.
fUsing the connecting piece, insert the pennant staff
into the extension rod.
fInsert the extended pennant rod into the slit on the top
left of the cover and secure the position by fixing the
pennant pole in the base frame.
fUnroll the pennant so that it can fly clearly visible on
the pennant staff.
You need the buggy wheel for Buggy and Walker mode. The buggy wheel is connected directly with
the wheel suspension attached to the frame and is mounted so that it can rotate through 360°.
16 – 12|2017 – Subject to change. Sportrex 2018
fLift the cabin at the front.
fPlace the buggy wheel into the wheel mount as far as
it will go, until it engages audibly with a clicking noise.
fCheck whether there is sufficient air in the buggy
wheel (maximum air pressure: 1.9 bar). If necessary,
use an air pump for car valves to top up with air.
fSet with the mode selector switch [A] and the release
button (unlock key) [B] in front of the suspension the
desired operating mode:
–Buggy mode: Buggy wheel rotatable through 360 °.
–Walker mode: Buggy wheel running straight.
–Trailer mode: unfasten and pull out the buggy
wheel.
You only require the tow bar in Trailer mode. It is used to hook up the Sportrex behind a bicycle
equipped with a suitable coupler, see „Connecting the trailer to a bicycle“ on page25.
The tow bar is attached to the tow bar mount using a locking bolt and can be used in two different
positions:
Attachment position: The tow bar is facing forwards.
Standby position: The tow bar is facing to the rear and is carried under the cabin floor.
In both positions, the tow bar is also secured with a cotter pin.
fPull the locking knob and turn about 30 ° so that the
button during the release remains in the open position.
fPush the front button on the tow bar so that the locking
bolt unlocks.
fKeep on pushing down the button and push the tow
bar forwards until the mark in the tow bar mount is
reached.
fRelease the button so that the locking bolt secures the tow bar in the tow bar mount.
fAdditionally, secure the tow bar by pulling the locking knob slightly backwards, turn about 30 °
and let it return to the closed position.
Sportrex 2018 Subject to change. 12|2017 –
You do not have to remove the tow bar completely. Simply place the tow bar into the
tow bar mount from behind to stow it under the cabin floor, see „Insert tow bar“ on
page21.
Make sure that your bicycle is suitable for towing a bicycle trailer, see „Performance
limits“ on page4. Since it may in some cases be necessary to change the rear wheel
axle, it is best to consult your specialist dealer or the bicycle manufacturer in order to
do this.
Secure the bicycle to prevent it from toppling over, and make sure that the rear wheel
cannot drop out of the axle mount after the screw connection has been undone. Use for
example an assembly stand, or turn the bicycle upside down so that you can place it on
its saddle and handlebars.
In the as-delivered state, the supplied coupler is connected to the tow bar:
fUndo the cotter pin fastening and remove the coupler.
fThen insert the retaining cotter pin onto the tow bar
coupler pocket.
fPrepare the bicycle for mounting the coupler by
undoing the screw connection of the rear wheel axle:
–Quick-release axle: Open the bracket of the quick-release axle and unscrew the cap nut on
the other side of the rear wheel axle.
–Full axle: Unscrew the nut on the left side of the rear wheel axle.
fMount the coupler on the rear wheel axle:
–Place the large hole of the coupler onto the left side
of the rear wheel axle so that the coupler is facing
outwards.
–Screw on the dedicated nut and tighten it slightly.
–Align the rear wheel so that it can turn freely.
–Align the coupler so that it faces horizontally to the rear.
fTighten the connection firmly in order to secure the rear wheel:
–Quick-release axle: Tighten the cap nut until you can close the clamp with a certain amount
of pressure.
–Full axle: Tighten the nut with a spanner. Always pay attention to the bicycle manufacturer’s
notes about the tightening torque.
18 – 12|2017 – Subject to change. Sportrex 2018
The axle nut must be tightened in order to assure sufficient clamping force. Therefore,
observe the assembly instructions for the hub and the manufacturer’s torque
specifications when tightening the axle nut.
Due to the construction of the coupler, slight wear and tear in the form of scratches can
occur at the connection between bicycle frame and coupler. This is not a reason for a
complaint.
Do not use a washer or similar at the connection between the bicycle frame and coupler
because this could negatively affect the stability of the connection.
The provided universal coupler is suitable for mounting on the most rear-wheel models.
If it does not fit your bicycle, find a suitable adapter and special couplers in our manuals
on the following website: www.qeridoo.de/kupplungsleitfaden
Do not use a tool which was previously in contact with conventional steel.
Smallest steel particles could be transferred that could lead to contact corrosion.
In trailer mode, a certified rear light must be used during poor visibility or darkness in accordance
with the Road Traffic Licensing Requirements.
fMove the push handle to the lowest position.
fMount the rear light below the left joint of the push
handle.
Follow the attached manufacturer's information for the work of the rear light.
Sportrex 2018 Subject to change. 12|2017 –
Below you will find all the information for adapting the Sportrex to the required modes and to allow
you to use all the convenience functions.
Apply the parking brake to secure the Sportrex in order to prevent it from rolling away.
Also remember to release it before you set off.
fStand behind the cabin and hold it firmly at the push
handle.
fPress the parking brake with your foot down until it
clicks audibly to block the wheels.
fTo release the brake, place the tip of your foot under
the parking brake and pull it upwards until it clicks
audibly.
Use the two light grey pushbuttons to alter the height of the push handle. These are identified by the
word “PUSH”. You can set and engage the push handle at several levels in the 46 – 113 cm range.
fPress both pushbuttons and keep them pressed in
order to release the height adjustment.
fSwing the push handle to the desired height.
fRelease the two pushbuttons in order to activate the
engagement function.
fMove the push handle slightly up or down until the
height adjustment engages audibly.
20 – 12|2017 – Subject to change. Sportrex 2018
You can use the Sportrex in one of the following modes:
Carrying children in the Sportrex when cycling
Using the Sportrex like a buggy
Carrying children in the Sportrex when walking
The table below shows the main settings that you must make for particular components for the
respective mode:
Component Status of the components in mode
Trailer Buggy Walker
must be completely
removed
fitted
(freely rotating)
fitted
(fixed)
directed forwards
(pay attention to tow
bar load!)
directed backwards directed backwards
must be mounted recommended recommended
directed downwards comfortable height comfortable height
–wrapped around a
wrist
wrapped around a
wrist
must be fastened must be fastened must be fastened
must work in poor
visibility or darkness
(follow the Road
Traffic Licensing
Requirements)
recommended in
poor visibility or
darkness
recommended in
poor visibility or
darkness
the correct coupler
must be installed – –
Before every journey, make sure that necessary adjustments have been made for the
particular mode. For details of this, see the instructions in the following sections.
You must make the following settings, depending on the mode.
Removing the buggy wheel (Trailer mode)
The buggy wheel must not be fitted in Trailer mode, because in certain riding situations it can make
contact and cause serious accidents.
fSlightly lift the cabin at the front.
fPush the release button at the wheel mount and remove the buggy wheel completely.
This manual suits for next models
1
Table of contents
Other QERIDOO Utility Vehicle manuals
Popular Utility Vehicle manuals by other brands
Bush Hog
Bush Hog Off Road Utility Vehicle 4430 Operator's manual
Textron Specialized Vehicles
Textron Specialized Vehicles Cushman Shuttle 4 ELiTE 2020 owner's manual
BERG
BERG Extra Sport Theme user manual
Superior
Superior spx 960 Instruction Manual for Operating and Maintenance
Montracon
Montracon SanuControl manual
Toro
Toro Sand Pro 3040 Service manual
