Qlight QLV-1250-SET User manual
1
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o-• the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci¿cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, ¿re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o-• the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a ¿re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to ¿re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to ¿re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, ¿re, electric shock and loss of life.)
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
5030
56
135
HORN
Warning Light Bars for Emergency Vehicle Set
QLV-SET
• Protection rating : IP56(QLV only)
• Ambient operating temperature : -30°C to +50°C
QLV-1150 - 12 - B/R - SAMP - HORN
[Model number] [Voltage] [Color]] [Ampli¿er] [Horn]
| | | | |
• QLV-1250
• QLV-1150
• QLV-885
• 12- DC12V
• B/R -
Blue
-
Red
• R/R -
Red
-
Red
• A/A -
Amber
-
Amber
• G/G -
Green
-
Green
• SAMP
- SAMP-100
included
• HORN
- SM-100ND
included
Model
number
LED Module
number
VoltageCurrent Volume Certi¿cateWeight Color
QLV-1250-SET
24EA
DC12V
20A
Max.
135dB
20.31kg
B(Blue-Red)
R(Red-Red)
A(Amber-Amber)
G(Green-Green)
QLV-1150-SET
22EA
19A
19.42kg
QLV-885-SET
18EA
17A
16.77kg
Please scan the QR code for more
detailed product information.
www.qlight.com
Product Specications
Ordering Specications
2
Dimensions
(Units : mm)
CABLE GLAND BCG-M20-14
CABLE GLAND BCG-M20-14
CABLE GLAND BCG-M20-14
QLV-1250
QLV-1150
QLV-885
3
2-Ø7 SLOT HOLES
2-Ø12 HOLES
165
185
123
175
178.2 110
25
118
63
2-M5 TAP
FITTING HOLES
50
R3.5
65
17
108
911
27.5
15
30
Ø122
Ø117
50
35
7
Dimensions
•
SAMP-100 control unit has a 7p connector and SAMP-100 power unit has a 5p connector, and the QLV warning light bar has 10 connector.
•
Refer to the connector pin map below for wiring instructions.
•
For the power unit, please make sure to use a fuse to ensure the product operates properly.
Wiring Instructions
(Units : mm)
SAMP-100 SM-100ND
SAMP-100(POWER)
CONNECTOR-5P
SAMP-100(CONTROL)
CONNECTOR-7P
HEAD UNIT
(SAMP-100)
100W UNIT
(SM-100ND)
POWER
Fuse
PATR
INTER
TAKER
TACT
DC12V
DC12V
NIGHT
GND
GND
PATR
INTER
SPK(-)
TACT
NIGHT
SPK(+)
DC12V
TAKER
NC
GND
DC12V
GND
Warning Light Bars
CONNECTOR-10P
QLV-SET
4

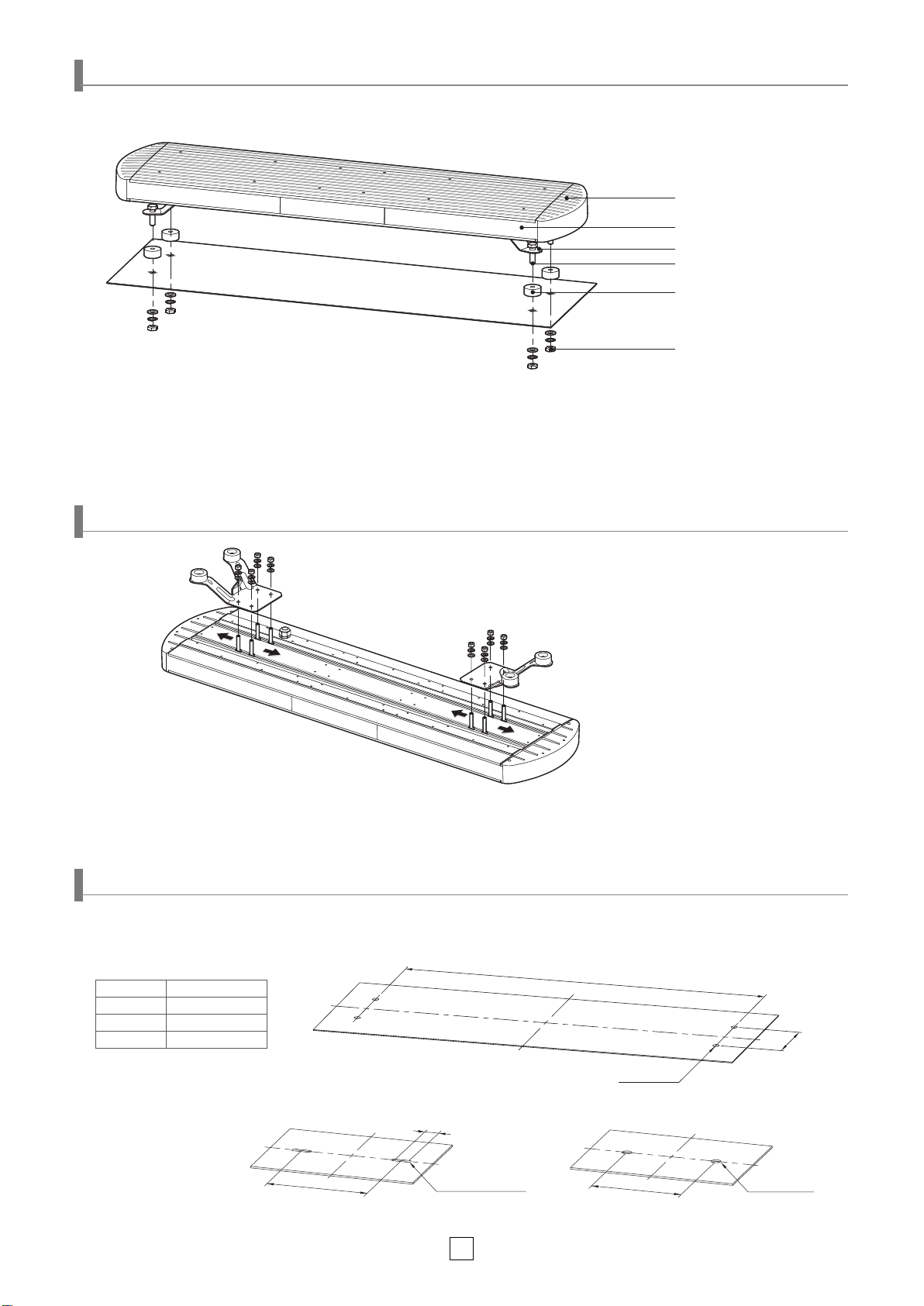

Mounting Hole Specications
Bracket Adjustment
•
Machine holes on the mounting surface referring to the diagram below.
• To adjust the bracket location, please ¿rst remove the nuts(M8) that fasten the product and move the brackets to the desired location.
• After properly aligning the brackets to the desired pitch circular diameter (PCD) locations on the mounting surface, fasten the nuts
until they tighten securely.
MODEL A
QLV-1250 900-1200
QLV-1150 800-1100
QLV-885 550-850
Parts Denition/ Installation
• First, machine taps or holes on the mounting surface.
• The mounting hole of this product is 9mm(QLV), 7mm(SAMP-100) and 12mm(SM-100ND) in diameter(long hole).
• Insert the bolt through the hole of the product, and tighten the nut from the opposite side of the mounting surface.
• Please fasten the nuts until the bolts are tightened securely.
• Use a at washer and spring washer in the bolt assembly if the product will experience severe vibration and shock.
Lens(PC)
Bolt
Cover(AL)
Packing
Nut
Bracket(STS)
QLV-SET
2-Ø8 SLOT HOLES2-Ø13 HOLES
18
123
110
4-Ø10 HOLES
A
137
QLV
SM-100ND
SAMP-100
5
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP56.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP56) , it may cause malfunction or damage to the product.
• In case of outdoor applications, installation in the upright position or horizontal position are required and do not install the product
upside-down where rain or moisture ow in.
•
For further information, please visit our website (http://www.qlight.com)
Product Functions
Number Functions Action
1TACTICAL
Strobe function for the entire warning light bar
2PATROL
Strobe function starting from the middle and radiating outwards continuously
3INTERVENTION
Strobe function radiating from left to right continuously
4NIGHT
Light intensity reduced to 25-30% of normal operation
5TAKE DOWN
All LED modules on
6HORN
Horn sound on
7WAIL
Wail emergency sound on (A-ANG)
8 YELP
Yelp emergency sound on (WA-U)
9TOOL
Piercer emergency sound on (DI-DI-DI-DI)
10 H / L
High-low emergency sound on (PI-PO)
11 HOOK KEY
Button for voice announcement when pressed down.
12 TACT SWITCH
Strobe function 1(tactical) and yelp emergency sound on
①
⑤ ⑦ ⑨⑥ ⑧ ⑩
③② ④ ⑪ ⑫
Product installation direction
■ Install the product in accordance with the manual. Otherwise rainwater or moisture may penetrate into the product.
ㆍ ELECTRONIC SOUNDER/SIGNAL HORN
Sounder part shall not be facing the sky.
Sounder part shall not be facing the sky.
ㆍBEACON/SIGNALING LIGHT
Power cord inlet part shall not be facing the sky.
Power cord inlet part shall not be facing the sky.
ㆍSIGNAL TOWER LIGHTS
ㆍHEAVY-DUTY & EXPLOSION PROOF SIGNALINGS
※ For products with a protection rating of less than IPX4, please install it vertically.
※ For products with a protection rating of less than IPX4, please install it vertically.
MEMO
Head O-ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. +82-2-2679-6152(Toll free. +82-80-328-2222) Fax. +82-2-2679-6154
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111)
Qlight OverSEAs Sales Dept |
704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100
Qlight Public Relations & Marketing Team O-ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
China Factory/ Shanghai Sales O-ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86
-
21
-
6651
-
7100 Fax. +86
-
21
-
6315
-
3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86
-
513
-
8384
-
9999 Fax +86
-
513
-
8384
-
9910
Product Operation Inquiry / Customer Support +82-51-620-4100
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea ( Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea ( Postal Code : 50805)
For your safety
Speci¿cation and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - QLV-1250-SET - 2207A
