Qlight S80SM User manual

S80SM / S100SM / S125SM
Thank you for purchasing Q.Light product. Please read this
manual carefully before installing this product for safe and long
use.
▪Suitable for a bright place and a signal transfer for a long
distance with a strong strobe signal light.
▪Having a strong magnetic that can be attached or detached
freely along to vehicle surface.
▪Easy to change its lamp by taking a connector type lamp.
▪Material : Lens-AS, Body-ABS
▪Flashes : 60-80/Min.
▪Protection Class : IP54
1) S80SM
▪ General Specification
Model
Rated
Voltage
Current
Weight
Flashes
Color
S80SM
DC12V
0.433A
0.26Kg
60~80/min.
RED-R
AMBER-A
GREEN-G
BLUE-B
DC24V
0.216A
0.26Kg
▪External View Drawing
S80SM
2) S100SM
▪ General Specification
Model
Rated
Voltage
Current
Weight
Flashes
Color
S100SM
DC12V
0.722A
0.34Kg
60~80/min.
RED-R
AMBER-A
GREEN-G
BLUE-B
DC24V
0.388A
0.34Kg
▪External View Drawing
S100SM
3) S125SM
▪ General Specification
Model
Rated
Voltage
Current
Weight
Flashes
Color
S125SM
DC12V
0.722A
0.42Kg
60~80/min.
RED-R
AMBER-A
GREEN-G
BLUE-B
DC24V
0.388A
0.42Kg
▪External View Drawing
S125SM
OPERATING MANUAL
Xenon Lamp Strobe Light with Magnet

▪This item is consist with IEC42(0.75sq)Ⅹ2P wire 2000mm and
ciggy jack plug for vehicle.
▪Working light after connecting a ciggy jack plug to the ciggy
jack in your vehicle.
This item has a strong magnetic at the bottom to attach
anywhere which conduct magnetism. If you attach this on the
vehicle’s roof, it attached smoothly with a strong magnetic along
to vehicle’s body.
1) Warning!
Must turn off power supply and change bulb after 1 minute at
least.
▪Xenon lamp work with a high voltage, if you touch a
assembling board or lamp without power-off, you may receive
an electric shock.
2) Lens Removal
Remove lens by turning it counterclockwise. and make sure
related parts on the assembling board.
3) Change Lamp
▪Our company’s xenon lamp (1) is made as a connector type
lamp. If you pull out with a small strength, it can be separated
easily.
▪Please fit the lamp by checking a connector pin location (2) as
below picture.

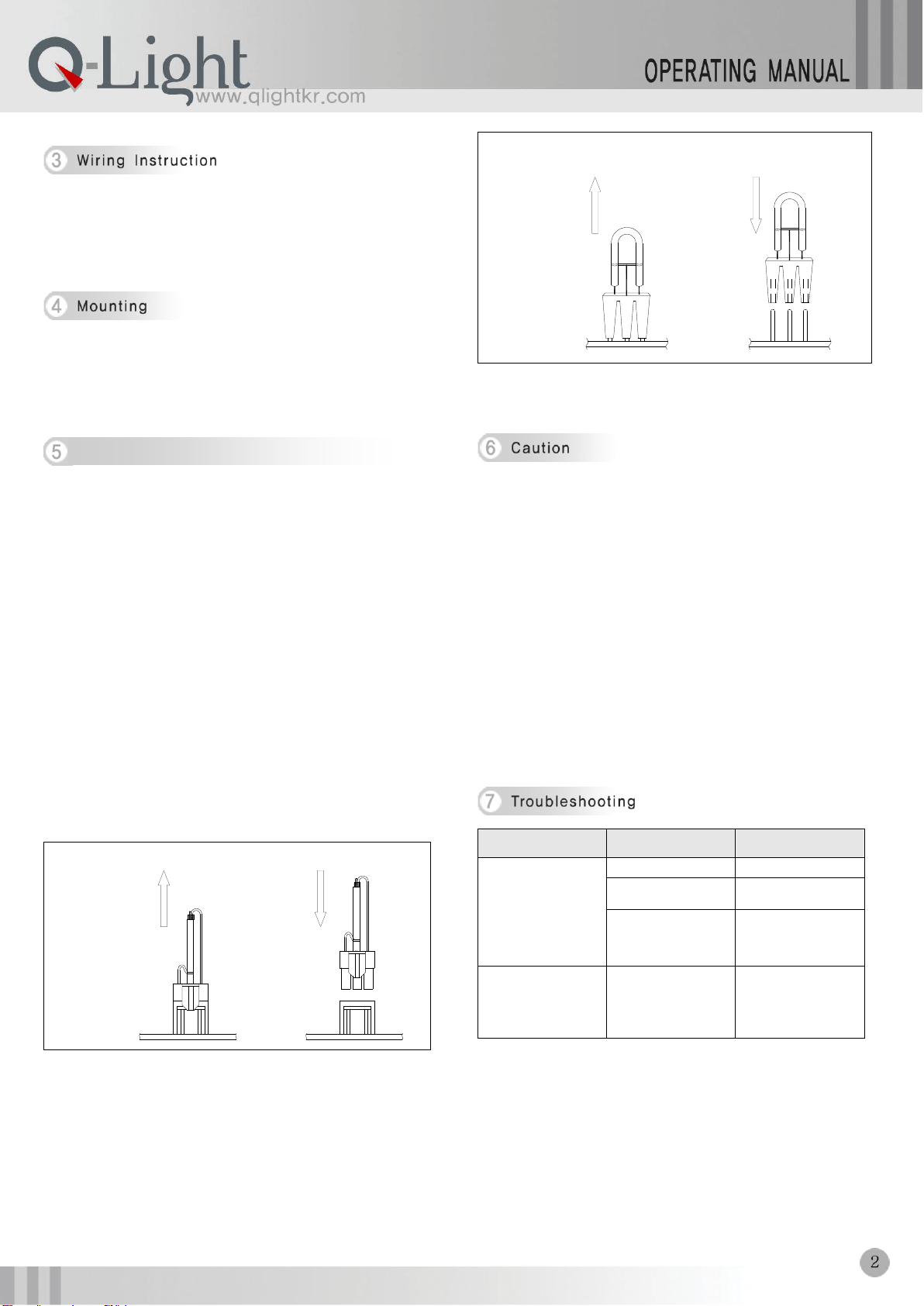

S80SM Lamp removal Lamp fitting
S100SM ,S125SM Lamp removal Lamp fitting
4) Lens Assembling
Assemble the product in reverse order of separating.
▪If using voltage is seriously higher or lower than rated voltage, it
can reduce the self-life of the product or can cause a problem
on product operating. Make sure the using voltage does not
exceed +/-5% of the rated voltage.
▪If lens or body of the product is contaminated by chemicals such
as thinner, benzene, the product can be damaged, discolored
or deformed. Please be careful.
▪Do not give strong impact to the product. It can be a reason of
wire disconnection or short circuit.
▪Do not strongly pull the wire out from the product. It can cause a
disorder.
Situation
Main reason
Solution
Lamp non-working
Damage on Lamp
Change Lamp
Lamp connector
badness
re-connecting Lamp
connector
No Power Supply
Making Sure Power
Supply
Strobe working
irregularly.
Supplying Voltage
Lower than Rated
Voltage
Making Sure Using
Voltage
Bulb change

Q-LIGHT CO., LTD.
http://www.qlightkr.com
E-mail : [e-mail]
Overseas Marketing Team /Plant
Tel) 055-328-4082Fax)055-328-4083
178-1 Woogye-Ri, Sangdong-Myun, Kimhae-Si,
KyungNam, Korea
