Qlight SANA200 User manual
6020
56
130
HORN
1
Air Horns for Vessels and Heavy Industrial Applications
SANA
• Protection rating : IP56
• Ambient operating temperature : -20°C to +60°C
Model
number
Voltage Current Frequency Volume
Certi¿cate
Weight
Color
SANA200
DC24V
0.448A
200-300Hz Max.
130dB
1.19kg
R-Red
BK-Black
7.5BG-Cian
SANA400
AC110V
0.111A
400-600Hz
1.13kg
SANA700
AC220V
0.055A
700-800Hz
1.07kg
Please scan the QR code
for more
detailed product information.
www.qlight.com
SANA200
-
220
-
R
[Model
number] [Voltage] [Color]
|
| |
• SANA200
• SANA400
• SANA700
• 24 - DC24V
• 110 -AC110V
• 220 -AC220V
R-Red
BK-Black
7.5BG-Cian
Product SpecicationsOrdering Specications
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o-• the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci¿cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, ¿re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. During wiring or maintenance, please completely turn o-• the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a ¿re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to ¿re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to ¿re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, ¿re, electric shock and loss of life.)
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
2
• There’s terminal ①inside of Solenoid valve box. Please remove a cover by loosening the
solenoid valve box’s bolts.
• Please use ‘O’ type or ‘U’ type terminal at the end of power line for safe wiring.
• Please wire the power line to terminal ①
• For AC type products, wire regardless of polarity.
• For DC type products, wire terminal of black line to (-) polarity.
• Product can be damaged by water or dust if the air supplying area is exposed outdoor
without air tightening.
①
SANA700
FITTING HOLES
17
99
144
Ø115
222
93
99
23
55
100
Ø101
NIPPLE 10C
153
118
15.3
2-Ø9
FITTING HOLES
132
132
150
11.5
8.5
FITTING HOLES
FITTING HOLES
SANA400
2-Ø
8.5
HOLES(Slot hole)
2-Ø
8.5
HOLES(Slot hole)
2-Ø8.5 HOLES(Slot hole)
17
99
193
Ø110
99
93 Ø115
222
23
55
NIPPLE 10C
100
2-Ø9
FITTING HOLES
153
15.3
132
118
11.5
132
8.5
150
Ø27 CABLE ENTRY
Ø27 CABLE ENTRY
Ø27 CABLE ENTRY
SANA200
333
99
17
NIPPLE 10C
99
93
23
55
100
222
Ø115
Ø140
2-Ø9
FITTING HOLES
153
15.3
132
150
118
11.5
132
8.5
Dimensions
(Units : mm)
Terminal Box Wiring Instructions
3

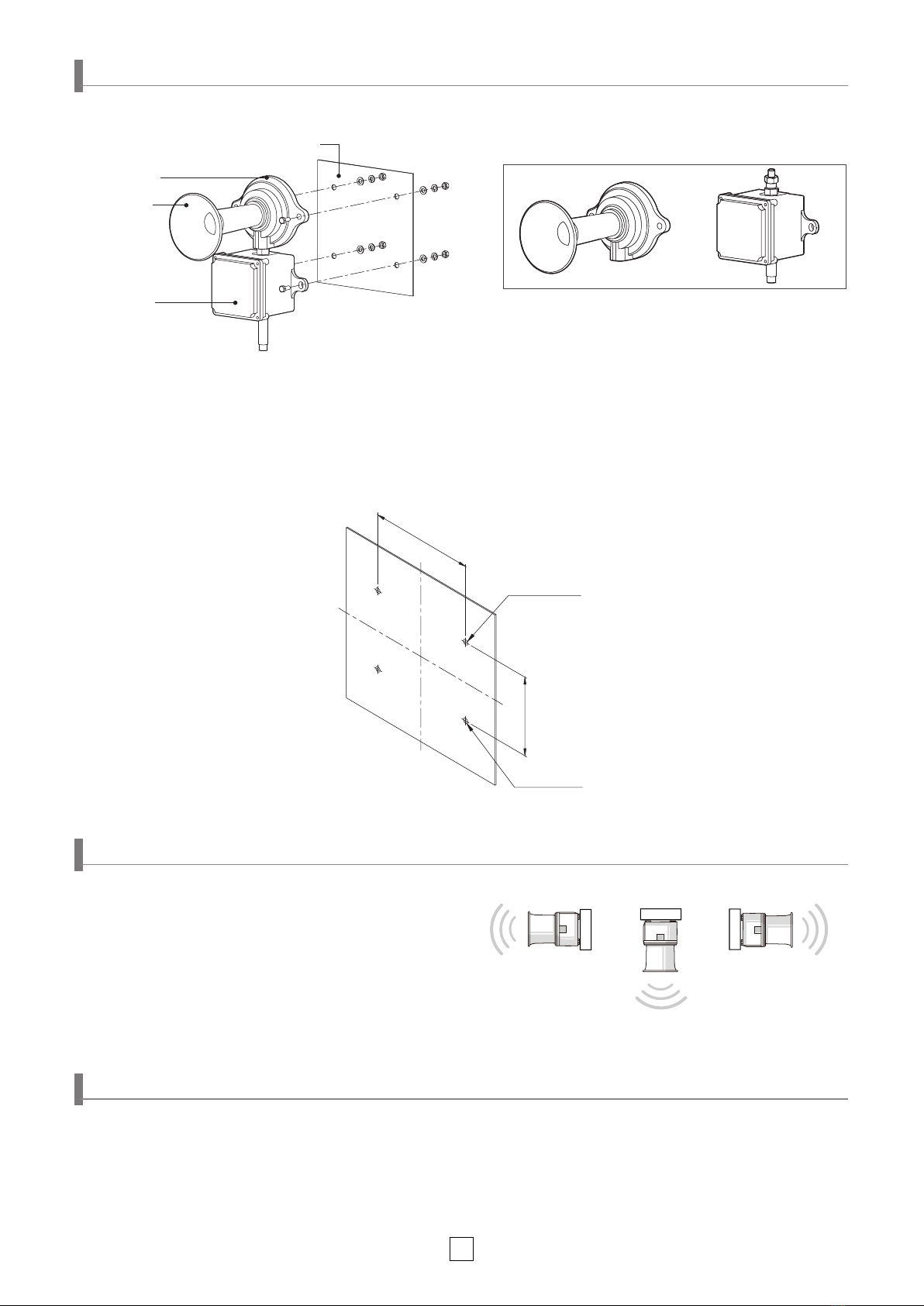

• First, machine taps or holes on the mounting surface
①
.
•
The mounting hole of this product brackets are 9mm in upper diameter and 8.5mm in lower diameter.
•
When machining taps, fasten the bolt through the mounting hole of the bracket.
•
When machining holes, insert the bolt through the hole of the bracket, and tighten the nut from the opposite side of the mounting surface
※ Solenoid valve box and horn part can be installed separately.
Horn(PC)
Horn Head
Solenoid valve
box(ABS)
•
Machine holes on the mounting surface referring to the diagram below.
■
Mounting Hole Specications
2-Ø9 HOLES
2-Ø9 HOLES
132
118
①
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP56.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP56), it may cause malfunction or damage to the product.
• For further information, please visit our website (www.qlight.com).
Parts Denition/ Installation/ Mounting Hole Specications
■
Parts Denition
/
Installation
Precautions for installation
• In case of outdoor applications, install the product in the upright
position. Do not install the product horizontal or upside-down
positions where water can potentially penetrate into the product
and impact it’s operation.
Left direction Reverse direction Right direction
[Installation]
Head O-ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. +82-2-2679-6152(Toll free. +82-80-328-2222) Fax. +82-2-2679-6154
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111)
Qlight OverSEAs Sales Dept |
704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100
Qlight Public Relations & Marketing Team O-ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
China Factory/ Shanghai Sales O-ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86
-
21
-
6651
-
7100 Fax. +86
-
21
-
6315
-
3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86
-
513
-
8384
-
9999 Fax +86
-
513
-
8384
-
9910
Product Operation Inquiry / Customer Support +82-51-620-4100
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea ( Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea ( Postal Code : 50805)
For your safety
Speci¿cation and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - SANA200 - 2201A
