QS Quick-Slide Mountinganchor User manual

Quick-Slide Mountinganchor
General assembly instructions (bitumen)

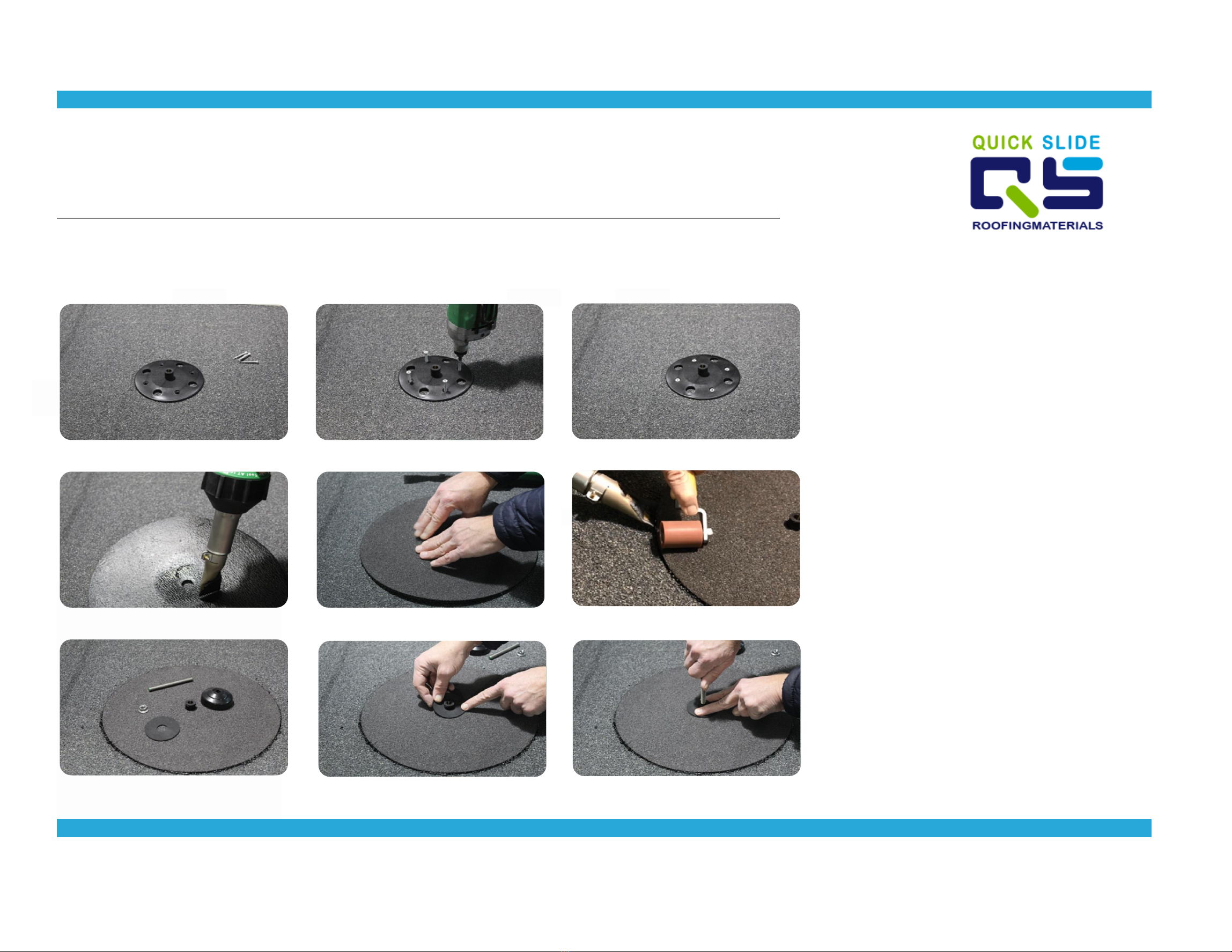

Follow the simple steps below to install the mounting anchor.
Always thoroughly clean the roof covering where you will be installing the anchor.
\Step 1
Place the black mounting base plate on the roof covering
at the desired location.
Fasten the mounting base plate with 4 screws.
The chosen screw depends on the thickness of the
insulation and the surface in which you attach it.
( the large holes are for woodwoolcement screws )
Step 2
Now heat the center of the bottom of the sleeve until the
bitumen starts to flow visibly and place the bitumen
sleeve over the anchor and press firmly.
The sleeve can then be further incorporated waterproof
on the roof covering. Work from the inside out.
Zorg voor een goede vloeinaad rondom het manchet.
(Can also be applied with a small roof torch)
Step 3
Place the black EPDM sealing ring.
Then screw the supplied threaded rod on hand tight.

Quick-Slide Mountinganchor
General assembly instructions (bitumen)
Step 4
\Place the black cover cap over the threaded rod
and fit and tighten the locknut.
Step 5
The mounting anchor is now mechanically and waterproof
attached to the roof construction.
Parts mounting anchor
A
Rivet M10 x 100 RVS A2
BLock nut M10 RVS A2
CCover cap Ø 66 mm
DEPDM sealing ring 2,0 mm
ERoofing Ø 330 mm
FMounting plate Ø 150 mm
