QSC SC-413 User manual

Developed specifically for the unique requirements
of professional motion picture playback, the SC-413
extends QSC’s commitment to the cinema market. As
a member of the DCS Digital Cinema Speaker Series,
the SC-413 is a three-way, selectable bi or tri-amplified
screen channel loudspeaker system comprised of two
main units—the MH-1063 mid-high frequency system
and the LF-4115 low-frequency system.
The MH-1063 mid-high system features a high
output, horn loaded 10" midrange cone driver and
a 2.5" (63mm) titanium diaphragm compression
driver mounted to an adjustable pan and tilt bracket.
The MH-1063 includes a driver protection network
and a passive crossover for bi-amp operation. Power
limiter circuitry protects the high-frequency driver
from overpowering. The MH-1063 provides extended
frequency coverage for the critical midrange band. A
high power 10" cone driver allows operation as low
as 250 Hz and the advanced phase plug coupling
permits a crossover point of up to 1800 Hz to the
high-frequency horn. This ensures that most of the
dialog range is reproduced by a single element for
unmatched intelligibility.
The LF-4115 single 15" (381mm) low-frequency
enclosure is designed specifically to address the
extended low-frequency response required for cinema
applications. The LF-4115 covers the frequency range
from 35 Hz to 250 Hz.
The SC-413 is designed for ease of installation.
The MH-1063 components come pre-assembled to
reduce field assembly time. Three bolts are all that
are required to secure the MH-1063 to the top of the
LF-4115 enclosure.
SC-413
Cinema Loudspeaker System
Specifications SC-413
Nominal Coverage 90° horizontal x +20 to -30° vertical
Frequency Range 33 - 16 kHz (-6 dB)
Crossover Frequency 250 and 1700 Hz, 24 dB per octave
LF-4115 MH-1063
Impedance 4Ω8Ω
Sensitivity 1 watt /1 meter, 93.5 dB Bi-amp Tri-amp
half space 105 dB MF 105 dB HF 107.5 dB
Maximum Input Power1
8 hours of 6 db crest factor 400 W RMS 250 W RMS2275 W RMS 60 W RMS
IEC 268 noise spectrum
2 hours of 6 db crest factor 500 W RMS 350 W RMS
pink noise, 50 Hz - 20 kHz,
AES method
Recommended Amplifier Power 800 W RMS maximum 800 W RMS maximum
Recommended Processing Subsonic filter below 30 Hz, 4th order LR crossover at 200 and
> 18 dB per octave 1700 Hz via QSC DCM or QSControl.net
Connectors Barrier strip screw terminals Barrier strip screw terminals
accept up to #10 AWG accept up to #10 AWG stranded wire
stranded wire
Transducers One 15" (381mm) high efficiency, 10" high efficiency mid range,
extended bass woofer featuring a 1.5" (38mm) exit, 2.5" titanium
4" copper voice coil diaphragm compression driver
Enclosure Quasi B4 alignment, ported Tilt/Pan Bracket
enclosure with fully flared ports, ±10° vertical tilt
symmetrical port design, tuned to ±10° horizontal pan
36 Hz, constructed of MDF and
heavily braced. Features vandal
resistant woofer mounting bolts
Dimensions (HWD) 18.5" x 30" x 20.3" 39" x 30" x 20"
(470 mm x 762 mm x 516 mm) (990 mm x 762 mm x 508 mm)
Weight - Net 83 lbs (38 kg) 85 lbs (39 kg)
System Weight 168 lbs (77 kg)
Baffle Cut-Out 58.75" x 32"
1) Maximum input power tested in accordance with IEC 268-5 recommendations, 50 Hz - 20 kHz band limiting, 6 dB signal crest factor.
2) Maximum input power tested in accordance with IEC 268-5 recommendations, 200 Hz - 2 kHz band limiting, 6 dB signal crest factor.
Features
• Three-way selectable, bi or tri-amplified screen channel system
• MH-1063 provides 90° horizontal by +20° to -30° vertical coverage
• LF-4115 is constructed of MDF and is heavily braced
• Low-distortion waveguides provide highly articulate dialogue
• Shallow depth (20") facilitates installation
• THX™ approved for professional cinema applications
passive
mid-high
THX is a trademark of THX Ltd.

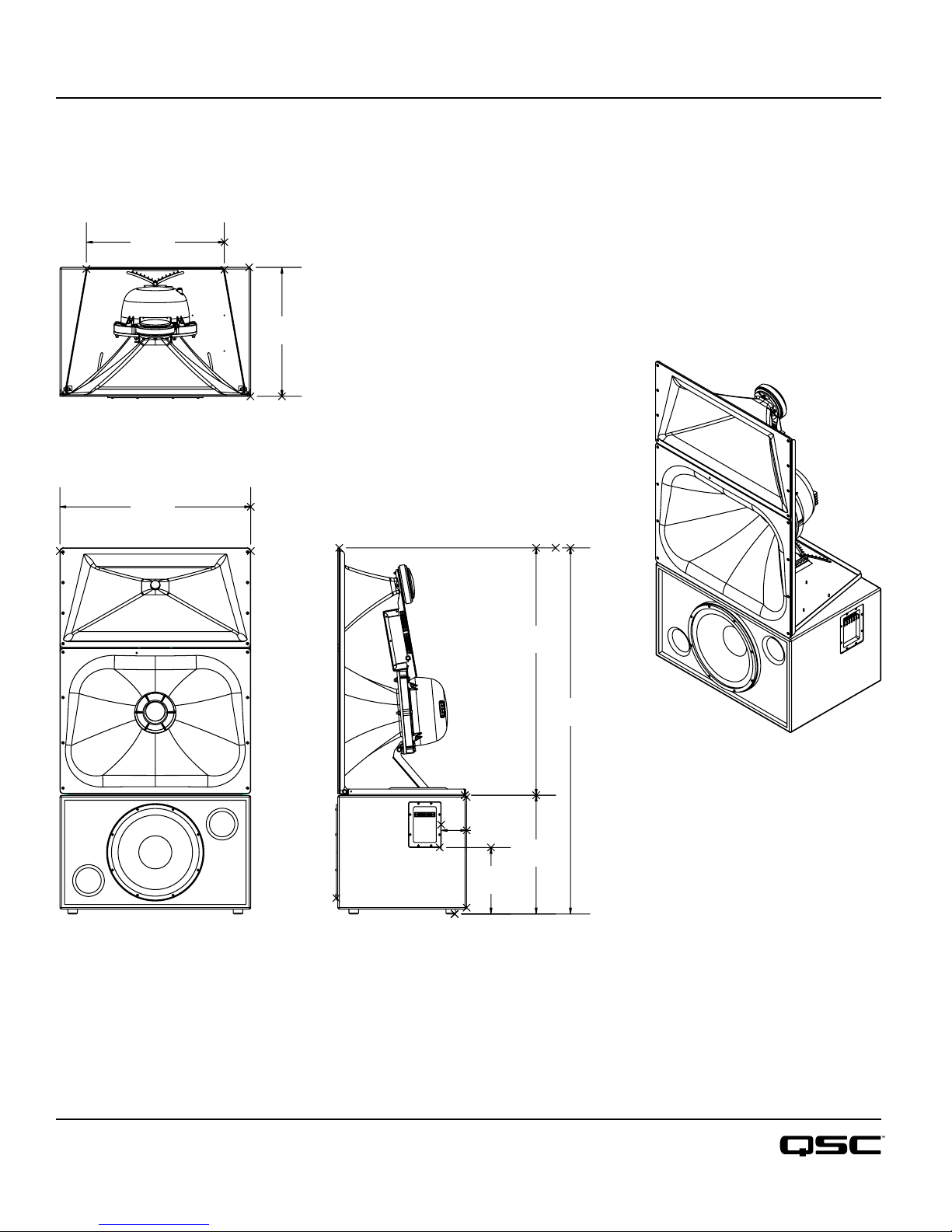

SC-413 Dimensions
qscaudio.com
Specifications subject to change without notice.
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: [phone]
SC-413 Spec Sheet - 03/10/06
Top
Side
21.7"
551 mm
20.3"
516 mm
30"
762 mm
Front
57.5"
1460 mm
10.45"
265 mm
39"
990 mm
18.5"
910 mm
4"
102 mm

*TD-000180-00*
Cinema Mid-High Loudspeaker System User Manual
MH-1063 10” (254mm) mid, 2.5” (63mm) compression driver
MH-1075 10” (254mm) mid, 3.0” (75mm) compression driver
Introduction
The MH-1063 and MH-1075 “mid-high packs” provide the mid and high frequency
components of three-way screen channel loudspeaker systems for high performance
cinema applications. They were designed to operate with and be directly mounted on
QSC’s cinema low frequency enclosures.
Mid frequencies are reproduced with a 10” (254mm) high-efficiency, phase-ring
loaded driver mounted on a custom designed cinema horn. The high-frequency driver
is a large format, 2.5” (63mm, MH-1063) or 3.0” (75mm, MH-1075) titanium dia-
phragm compression driver mounted on a custom high-frequency cinema horn. The
high frequency horn is a low-distortion waveguide providing highly articulate dialogue
without coloration associated with conventional horn loudspeakers. Both horns fea-
ture broad horizontal and vertical coverage angles to ensure coverage of every seat in
the auditorium. The driver assemblies are mounted on an adjustable pan and tilt
bracket that has an integral aiming sight, simplifying installation.
The MH-1063 and MH-1075 loudspeakers include a driver protection and crossover
network to assure reliable operation. DC blocking capacitors protect against DC or
low-frequency signals that could damage an unprotected driver. Power limiter circuitry
protects the driver from over-powering and an 18dB/octave crossover seamlessly
blends the high and mid frequency elements. Outboard processing is required to form
the crossover between the LF and MH loudspeakers.
Bi-amp or tri-amp operation is possible using a selector switch mounted on the con-
nections panel. The bi-amp setting provides a passive crossover network between mid
and high drivers. Separate amplifiers and an active crossover are required for the low
frequency channel and the mid-high channel. Tri-amp setting disables the internal
mid-high crossover and each driver is driven independently by its own amplifier and
active crossover; one for the low, one for the mid, and one for the high frequencies.
The MH-1063 and MH-1075 components come pre-assembled to reduce field assem-
bly time. Three bolts are all that are required to secure the mid-high assembly to the
top of a QSC low frequency enclosure.
Install in accordance with QSC Audio Product’s instructions and a
licensed, professional engineer. Only use attachments, mounts,
accessories, or brackets specified by QSC Audio Products, Inc. Refer
all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way.
WARNING! Before placing, installing, rigging, or suspending any
speaker product, inspect all hardware, suspension, cabinets, trans-
ducers, brackets and associated equipment for damage. Any missing,
corroded, deformed or non-load rated component could significantly
reduce the strength of the installation, placement, or array. Any such
condition severely reduces the safety of the installation and should
be immediately corrected. Use only hardware which is rated for the
loading conditions of the installation and any possible short-term
unexpected overloading. Never exceed the rating of the hardware or
equipment. Consult a licensed, professional engineer when any
doubt or questions arise regarding a physical equipment installation. TD-000180-00 rev.A
© Copyright 2004, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
“QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main Number [phone] Sales & Marketing [phone] or toll free (USA only) [phone]
Customer Service(714) 957-7150 or toll free (USA only) [phone]

2
Settings
BI-AMP / TRI-AMP Operating Mode Selection
Set the operating mode selector switch to BI-AMP or TRI-AMP, depending on your application setup.
Mounting
Attaching to Low Frequency Enclosure
The mid-high loudspeaker assembly attaches to the top of the QSC low frequency cabinet with three 5/16-18 bolts, 0.75” long, with
lock washers. This hardware ships installed on the low frequency cabinet. We recommend the use of serviceable thread locking com-
pound when installing the bolts to prevent loosening due to vibration. Do not fully tighten the mounting hardware before aiming (see
below).
Aiming
Aim the horn in the horizontal plane (pan) before tightening the attachment hardware. Adjust the vertical tilt with the mid-high vertical
adjustment bracket. The mid-high assembly is equipped with an aiming sight to assist in achieving desired coverage quickly and easily.
For typical applications, the aim point should be the center seat in the back row of the auditorium. If the cinema screen has already
been installed, a flashlight placed at the desired aiming point can be seen through the screen perforations in a darkened auditorium.
Where the sight holes are located: How to use the sights:
Aim point:
BI-AMP-When set to BI-AMP, the MH-1063 and MH-1075 accepts mid-
high frequency signals on one set of inputs and uses an internal crossover
network between the mid- and high-frequency drivers. The signal applied
to the mid-high loudspeaker assembly must not contain low-frequency
content (below 200 Hz).
TRI-AMP- When set to TRI-AMP, the MH-1063 and MH-1075 accepts
separate mid- and high-frequency signals on two sets of inputs. The inter-
nal crossover network is bypassed and only the protective circuitry for the
H.F. driver remains. Each of the driver’s signals must have the appropriate
signal processing before operating.
Do not connect amplifiers directly to the driver inputs!
Always use the input terminal strip.

3
Connections
INPUT Terminals
The MH-1063 and MH-1075 have barrier strip screw terminals that accept up to #10 AWG (5.3mm2) stranded loudspeaker wire.
Observe proper polarity. Use the largest wire size and shortest wire length for the application.
OUTPUT Terminals
The OUTPUT terminals are factory-connected to the drivers. These terminals should ONLY be connected to their respective driver. Do
not connect signals to these terminals as all protection and equalization circuitry will be bypassed.
NOTE! Maintain proper loudspeaker connection polarity throughout the entire system for maximum performance.
Do not apply full range signal to the MH-1063 / MH-1075! There is a mid-high passive crossover for bi-amp mode
only. There is no crossover connected when operating in tri-amp mode. A protection network is always active. All
required signal processing must be done before the signal is applied to the loudspeaker. Do not connect any sig-
nal to the upper sets of OUTPUT terminals.

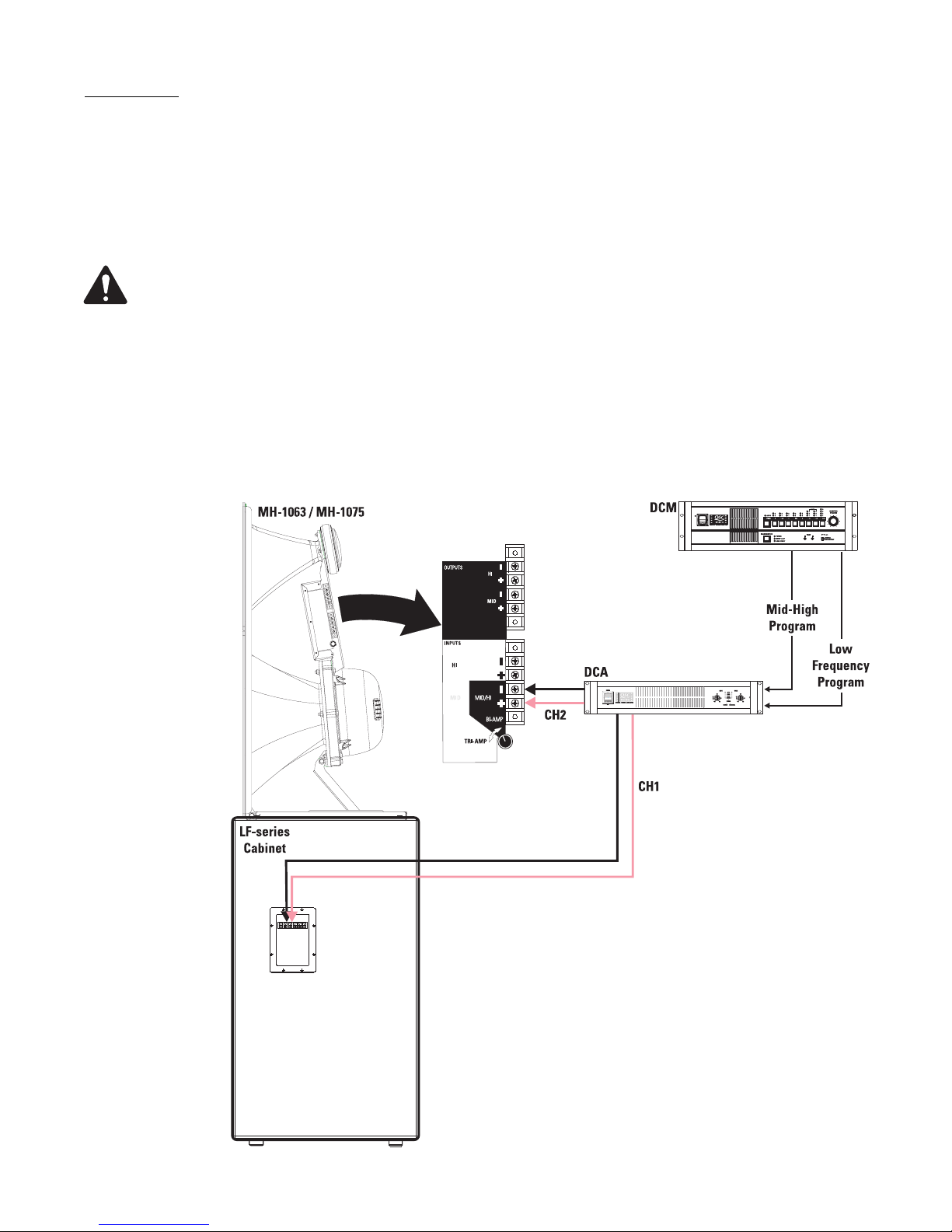

BI-AMP mode connections- Ensure the mode switch is set to BI-AMP, connect the input to the MH-1063 / MH-1075 to the lower
set of input terminals marked “BI-AMP + -”.
BI-AMP Mode- one
amplifier channel is used
for the low frequency
cabinet and one amplifier
channel for the mid-high
assembly. The MH-1063 /
MH-1075 mode switch is
set to BI-AMP. Active
crossovers are used
before amplification. The
mid-high assembly pro-
vides a passive crossover
between the mid and
high frequency drivers.

4
Connections (continued)
TRI-AMP mode connections- When the mode switch is set to TRI-AMP, connect the high frequency signal to the terminals marked
“INPUT HI + -” and the mid frequency signal to the terminals marked “INPUT MID + -”.
TRI-AMP Mode- one
amplifier channel is
used for the low fre-
quency cabinet, one
amplifier channel for
the mids, and one
amplifier channel for
the high frequencies.
The MH-1063 / MH-
1075 mode switch is
set to TRI-AMP,
bypassing the internal
mid-high passive cross-
over. Active or passive
crossovers are used
before amplification.
Power limiter and DC
blocking remain active.

5
MH-1063 Specifications (subject to change without notice)
Freq. Range 180 - 15k (-6dB, full space)
Nominal Coverage 90° horizontal X +20 to -30° vertical (50° total, adjustable mount provides for vertical plane adjustments.
The horizontal plane can be adjusted by altering mounting position on the low frequency enclosure before
tightening bolts.
DI: 9 dB (400 to 16k Hertz average)
Q: 8 (400 to 16k Hertz average)
Max. Output: [Tri-amp mode] Mid Freq. 135.5 dB SPL calculated peak, 1m, full space
[Tri-amp mode] High Freq. 131.5 dB SPL calculated peak, 1m, full space
[Bi-amp mode] 135 dB SPL calculated peak, 1m ,full space
Impedance: [Bi-amp mode] 8 ohms nominal
7.9 ohms minimum at 1500 Hertz
91 ohms maximum at 150 Hertz
Maximum Input Power [Tri-amp mode] Mid Freq. 275 W (AES method, 2 hrs.)
[Tri-amp mode] High Freq. 60 W (AES method, 2 hrs.)
[Bi-amp mode] 250 W (IEC method, 8 hrs.)
Sensitivity [Tri-amp mode] Mid Freq. 105 dB SPL, 1 watt, 1 meter
[Tri-amp mode] High Freq. 107.5 dB SPL, 1 watt, 1 meter
[Bi-amp mode] 135 dB SPL, 1 watt, 1 meter
Crossover Frequency [Tri-amp mode] 250 Hertz or higher, 24dB/octave and 1.7k Hertz, 24dB/octave
[Bi-amp mode] 250 Hertz or higher, 24dB/octave
Crossover Network 1.7k Hertz, 18 dB/octave electrical slope, HF driver power limiting circuit (never disrupts continuity). Swit-
chable operation between Bi-Amp and Tri-amp operation. Tri-amp setting removes crossover circuit from
signal, leaving power limiter and DC blocking capacitors.
Connectors Barrier strip screw terminals accept up to #10 AWG stranded wire. Four terminals, two HF input and two
MF input (for Tri-amp mode operation).
Transducers MF: 10" high efficiency midrange, phase-ring loaded.
HF: 1.5" (38mm) exit, 2.5" (63.5mm) titanium diaphragm compression driver.
Mounting Hardware: Attaches to top of the low frequency cabinet using three 5/16”-18 x 3/4” long bolts.
Size 39” high x 30” wide x 20” deep (991 x 762 x 508mm)
Weight 85 lb. (39 kg) net

6
MH-1075 Specifications (subject to change without notice
Freq. Range 180 - 15k (-6dB, full space)
Nominal Coverage 90° horizontal X +20 to -30° vertical (50° total, adjustable mount provides for vertical plane adjustments.
The horizontal plane can be adjusted by altering mounting position on the low frequency enclosure before
tightening bolts.
DI: 9 dB (400 to 16k Hertz average)
Q: 8 (400 to 16k Hertz average)
Max. Output: [Tri-amp mode] Mid Freq. 135.5 dB SPL calculated peak, 1m, full space
[Tri-amp mode] High Freq. 133 dB SPL calculated peak, 1m, full space
[Bi-amp mode] 135.5 dB SPL calculated peak, 1m ,full space
Impedance: [Bi-amp mode] 8 ohms nominal
6.4 ohms minimum at 1500 Hertz
91 ohms maximum at 150 Hertz
Maximum Input Power [Tri-amp mode] Mid Freq. 275 W (AES method, 2 hrs.)
[Tri-amp ode] High Freq. 80 W (AES method, 2 hrs.)
[Bi-amp mode] 250 W (IEC method, 8 hrs.)
Sensitivity [Tri-amp mode] Mid Freq. 105 dB SPL, 1 watt, 1 meter
[Tri-amp mode] High Freq. 108 dB SPL, 1 watt, 1 meter
[Bi-amp mode] 135.5 dB SPL, 1 watt, 1 meter
Crossover Frequencies [Tri-amp mode] 250 Hertz or higher, 24dB/octave and 1.7k Hertz, 24dB/octave
[Bi-amp mode] 250 Hertz or higher, 24dB/octave
Crossover Network 1.7k Hertz, 18 dB/octave electrical slope, HF driver power limiting circuit (never disrupts continuity). Swit-
chable operation between Bi-Amp and Tri-amp operation. Tri-amp setting removes crossover circuit from
signal, leaving power limiter and DC blocking capacitors.
Connectors Barrier strip screw terminals accept up to #10 AWG stranded wire. Four terminals, two HF input and two
MF input (for Tri-amp mode operation).
Transducers MF: 10" high efficiency midrange, phase-ring loaded.
HF: 1.5" (38mm) exit, 3" (76mm) titanium diaphragm compression driver.
Mounting Hardware: Attaches to top of the low frequency cabinet using three 5/16”-18 x 3/4” long bolts.
Size 39” high x 30” wide x 20” deep (991 x 762 x 508mm)
Weight 85 lb. (39 kg) net

7

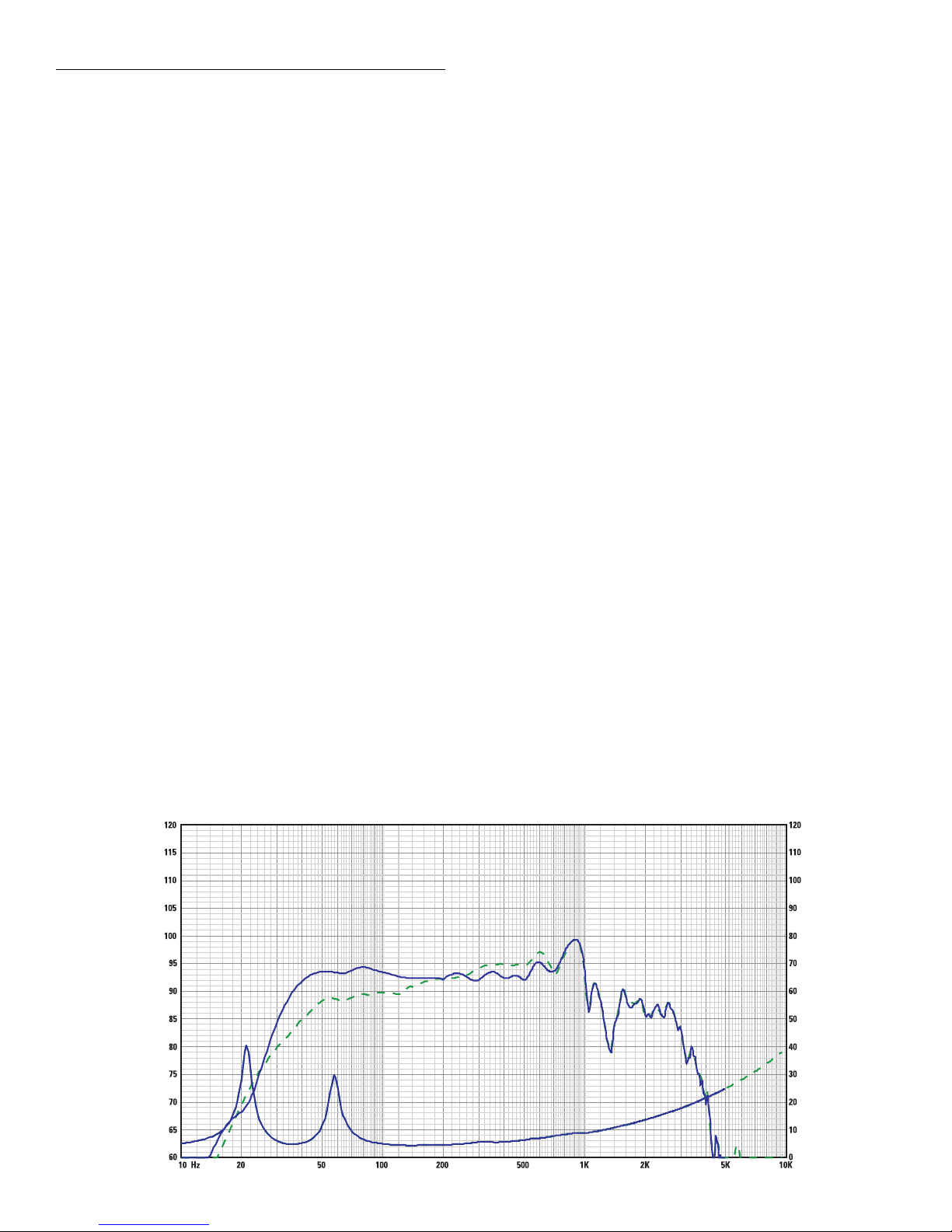

MH-1075 SPL and Impedance vs. Frequency
SPL (dB)
Frequency (Hertz)
Impedance (Ohms)
Impedance
SPL
MH-1063 SPL and Impedance vs. Frequency
SPL
Impedance
SPL (dB)
Frequency (Hertz)
Impedance (Ohms)

Warranty (USA only; other countries, see your dealer or distributor)
Disclaimer
QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or
improper installation and/or use of this loudspeaker product.
QSC Audio Products 3 Year Limited Warranty
QSC Audio Products, Inc. (“QSC”) guarantees its products to be free from defective material and / or workmanship for a period
of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty
when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized
service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that
the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend
to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been
removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific
legal rights. This limited warranty is freely transferable during the term of the warranty period.
Customer may have additional rights, which vary from state to state.
In the event that this product was manufactured for export and sale outside of the United States or its territories, then this lim-
ited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized
dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC’s war-
ranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com.
Contacting QSC Audio Products
Mailing address:QSC Audio Products, Inc.
1675 MacArthur Boulevard
Costa Mesa, CA 92626-1468 USA
Telephone Numbers:
Main Number [phone]
Sales & Marketing [phone] or toll free (USA only) [phone]
Customer Service(714) 957-7150 or toll free (USA only) [phone]
Facsimile Numbers:
Sales & Marketing Fax[phone]
Customer Service Fax[phone]
World Wide Web:www.qscaudio.com
E-mail:[email protected]
[email protected]
QSC Audio Products, Inc. 1675 MacArthur Boulevard Costa Mesa, California 92626 USA
©2004 “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office.

*TD-000171-00*
Cinema Loudspeaker Systems User Manual
LF-4115 Low Frequency Loudspeaker
Introduction
The LF-4115 15” (381mm) low frequency enclosure is designed specifically for cinema appli-
cations. Meeting cinema requirements for extended low frequency response differentiates
the LF-4115 from more conventional “rock-and-roll” woofer systems. The LF-4115 covers the
frequency range from 33 Hertz to 1200 Hertz, depending upon the high frequency system
requirements.
The custom 400 watt, 15” transducer was developed specifically for cinema use. It features
a 4” (100mm) voice coil, 120 oz.(3.4kg) ceramic magnet, and a multi-vented pole piece to
ensure cool operation. Cooler temperatures increase transducer lifespan and decrease the
problem of power compression at high power levels. An undercut pole piece ensures the
voice coil operates in a symmetrical magnetic gap, reducing second order harmonic distor-
tion. The suspension and voice coil of the transducer have been designed to provide low dis-
tortion and high impact bass at high power.
The enclosure is constructed of high quality medium density fiberboard panels with stiffen-
ing braces on all six panels. Both internal and external port openings are fully radiused
ensuring smooth air flow at higher power levels, preventing audible port turbulence.
Bass ports are symmetrically spaced on each side of the transducer, making internal pres-
sure more uniform across the back surface of the transducer. This prevents the cone from
being displaced to one side or another by unbalanced forces, reducing the chance of driving
the voice coil out of the center of the gap at high power.
Three T-nuts in the top of the enclosure provide easy mounting of QSC’s HF-75 high fre-
quency system, or MH-1063 mid-high system.
Enclosure is not designed to be suspended, flown, or rigged. Do not sus-
pend, fly, or rig this enclosure.
This product is capable of producing sound pressure levels that can perma-
nently damage human hearing. Always keep sound pressure levels in the
listening area below levels that can damage human hearing.
Install in accordance with QSC Audio Product’s instructions and a
licensed, professional engineer. Only use attachments, mounts, accesso-
ries, or brackets specified by QSC Audio Products, Inc. Refer all servicing
to qualified personnel. Servicing is required when the apparatus has been
damaged in any way.
WARNING! Before placing, installing, rigging, or suspending any speaker
product, inspect all hardware, suspension, cabinets, transducers, brackets
and associated equipment for damage. Any missing, corroded, deformed or
non-load rated component could significantly reduce the strength of the
installation, placement, or array. Any such condition severely reduces the
safety of the installation and should be immediately corrected. Use only
hardware which is rated for the loading conditions of the installation and
any possible short-term unexpected overloading. Never exceed the rating
of the hardware or equipment. Consult a licensed, professional engineer
when any doubt or questions arise regarding a physical equipment installa-
tion.
TD-000171-00 rev.C
© Copyright 2004, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
“QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main Number [phone] Sales & Marketing [phone] or toll free (USA only) [phone]
Customer Service [phone] or toll free (USA only) [phone]
Mounting points for high or
mid-high frequency system

Connections
Normal Connection
The LF-4115 has barrier strip screw termi-
nals for connection. The terminals accept
up to #10 AWG (5.3mm2) stranded loud-
speaker wiring. Use the largest wire size
and shortest wire length possible for a
given installation. Observe the polarity
markings and keep polarity consistent
throughout the system for best perfor-
mance.

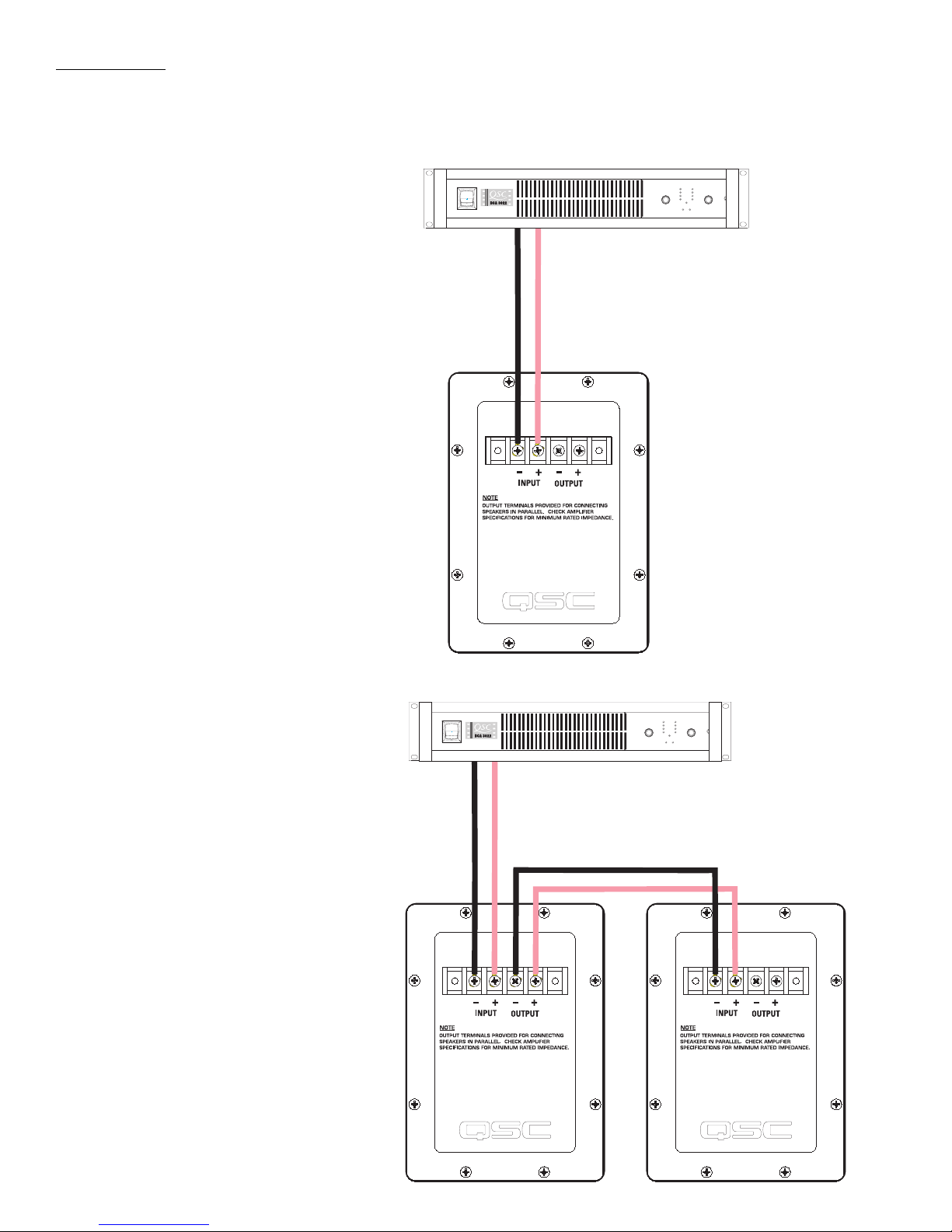

Parallel Connection of Second LF-4115
The terminals marked OUTPUT may be
used to connect another LF-4115 in paral-
lel. Connect the wires as shown in the illus-
tration, at right.
Normal Connection Example:
Parallel Connection Example:
Amplifier capable of
driving 4 ohm loads
Amplifier capable of
driving 2 ohm loads

LF-4115 Specifications (subject to change without notice)
Frequency Range: 33 - 1200 Hertz (-6dB)
29 - 3000 Hertz useable range (-10dB)
Nominal Coverage: 100° horizontal X 100° vertical at 1000 Hertz
Maximum Output: 127.0dB SPL calculated peak, 1 meter, half space, at rated rms power with 6 dB crest factor pink noise input, 35 - 1000 Hertz.
121.0dBA SPL calculated maximum continuous, 1 meter. The dBA scale is typically used to identify sound sources
which can cause permanent hearing loss.
Impedance: 4 ohms nominal
4.3 ohms minimum, 160 Hertz
40 ohms maximum, 22 Hertz
Maximum Input Power: 400 watts rms (8 hours of 6dB crest factor pink noise, 40 - 400 Hertz)
600 watts rms (2 hours of 6dB crest factor pink noise, 40 - 400 Hertz)
recommended amplifier power capability- 1100 watts rms maximum into 4 ohms (per LF-4115)
Sensitivity: 93.5dB half space, 92.0dB full space, 35 - 1000 Hertz, 1 watt, 1 meter
Recommended Processing: Subsonic filter below 30 Hertz, >18 dB per octave, maximum recommended crossover frequency is 1000 Hertz. QSC
DSP configurations are available at www.qscaudio.com. Parameters for alternative processing hardware are available
upon request.
Connectors: Barrier strip screw terminals accept up to #10 AWG (5.3mm2) stranded wire. Four terminals: (two INPUT and two par-
allel OUTPUT).
Transducers: 15” (381mm) high efficiency low frequency transducer featuring vented 4” (100mm) copper voice coil on Kapton®
formers. High excursion/low distortion design, with extremely high power handling, and low thermal and port com-
pression.
Enclosure: Quasi B4 alignment, ported enclosure with fully flared ports, low turbulence symmetrical port design, tuned to 36
Hertz, constructed of medium density fibreboard and heavily braced. Features vandal resistant woofer mounting bolts.
Size: 30” wide X 18” high X 20” deep (762mm X 457mm X 508mm)
Weight: 96 lbs. shipping, 83 lbs. net (44/38 kg.)

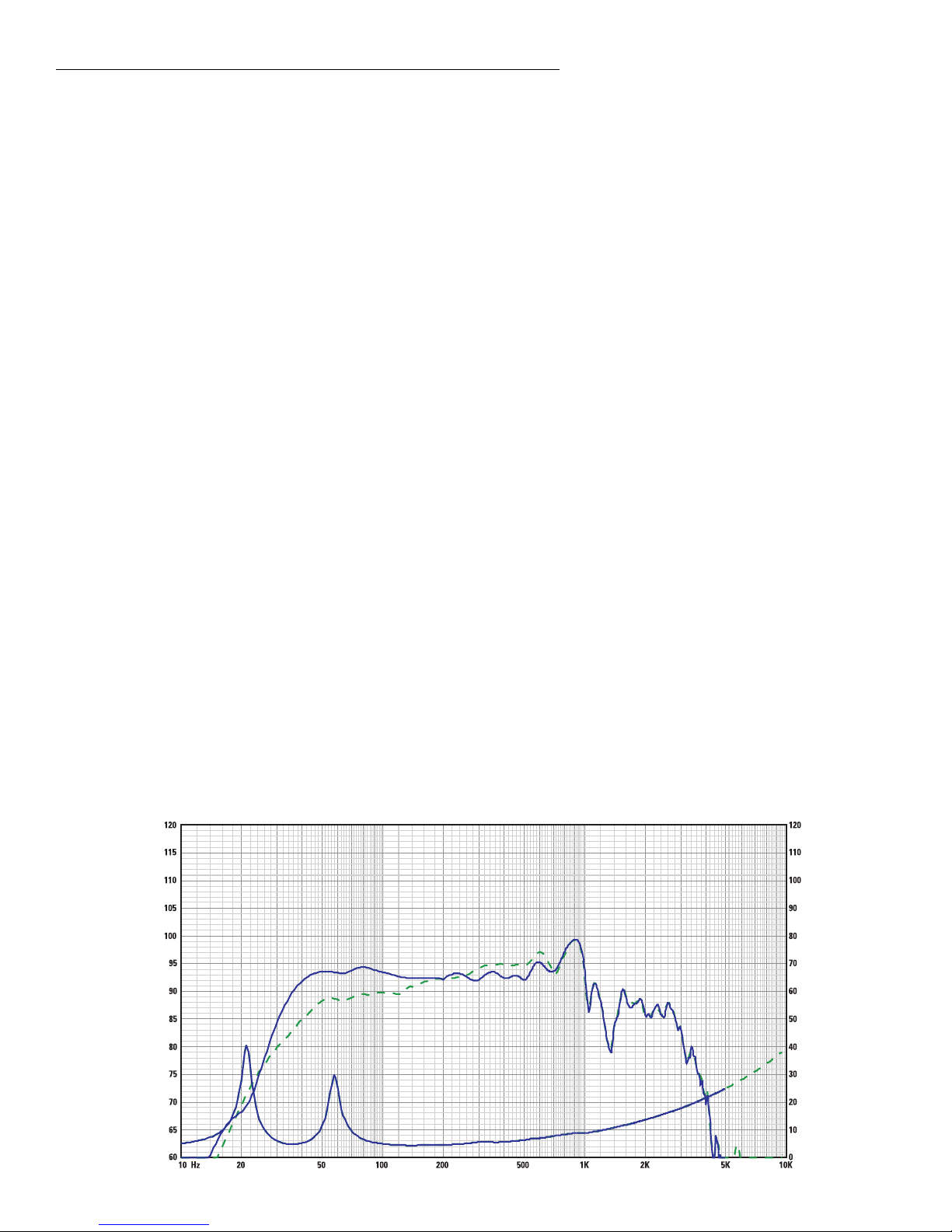

SPL and Impedance vs. Frequency
Frequency (Hertz)
SPL (dB)
Impedance (ohms)
SPL 2pi
Impedance
SPL 4pi

Warranty (USA only; other countries, see your dealer or distributor)
Disclaimer
QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or
improper installation and/or use of this loudspeaker product.
QSC Audio Products 3 Year Limited Warranty
QSC Audio Products, Inc. (“QSC”) guarantees its products to be free from defective material and / or workmanship for a period
of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty
when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized
service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that
the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend
to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been
removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific
legal rights. This limited warranty is freely transferable during the term of the warranty period.
Customer may have additional rights, which vary from state to state.
In the event that this product was manufactured for export and sale outside of the United States or its territories, then this lim-
ited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized
dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC’s war-
ranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com.
Contacting QSC Audio Products
Mailing address:QSC Audio Products, Inc.
1675 MacArthur Boulevard
Costa Mesa, CA 92626-1468 USA
Telephone Numbers:
Main Number [phone]
Sales & Marketing [phone] or toll free (USA only) [phone]
Customer Service(714) 957-7150 or toll free (USA only) [phone]
Facsimile Numbers:
Sales & Marketing Fax[phone]
Customer Service Fax[phone]
World Wide Web:www.qscaudio.com
E-mail:[email protected]
[email protected]
QSC Audio Products, Inc. 1675 MacArthur Boulevard Costa Mesa, California 92626 USA
©2004 “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office.
Kapton® is a registered trademark of E.I. du Pont de Nemours and Company.

Manual del usuario de los sistemas de altavoces para salas de cine
Altavoz de baja frecuencia LF-4115
Introducción
La caja de baja frecuencia de 15” (381 mm) del altavoz LF-4115 está diseñada específica-
mente para aplicaciones cinematográficas. El cumplimiento de los requisitos de las aplica-
ciones cinematográficas referentes a una respuesta extendida de baja frecuencia, es lo que
distingue al altavoz LF-4115 de otros sistemas woofer tipo “rock-and-roll” más convenciona-
les. El altavoz LF-4115 cubre un intervalo de frecuencia de 33 Hertzios a 1200 Hertzios,
dependiendo de los requisitos del sistema de alta frecuencia.
El transductor adaptado de 400 vatios y 15” se desarrolló específicamente para su uso en
salas de cine. Cuenta con una bobina de voz de 4” (100 mm), un imán cerámico de 120 onzas
(3.4 kg) y un polo multiventilado para asegurar una operación fría. Las temperaturas más
frías aumentan la vida útil del transductor y disminuyen el problema de compresión de la
potencia a niveles altos de potencia. Un polo proyectado asegura que la bobina de voz opere
en un campo magnético simétrico, reduciendo la deformación armónica de segundo orden.
La suspensión y la bobina de voz del transductor se han diseñado para brindar una baja dis-
torsión y graves de alto impacto a alta potencia.
La caja está construida de paneles de cartón duro mediano de alta calidad con soportes de
refuerzo en los seis paneles. Ambas aberturas del puerto, la interna y la externa, están total-
mente redondeadas, lo cual asegura un flujo de aire uniforme a mayores niveles de poten-
cia, evitando turbulencia audible en el puerto.
Los puertos de graves están separados simétricamente a cada lado del transductor, haci-
endo que la presión interna sea más uniforme a través de la superficie posterior del trans-
ductor. Esto evita que el cono sea desplazado de un lado a otro por fuerzas no equilibradas,
reduciendo la probabilidad de impulsar la bobina de voz fuera del centro del espacio a altos
niveles de potencia.
Tres tuercas en T en la parte superior de la caja permiten el montaje fácil del sistema de alta
frecuencia HF-75 o del sistema de frecuencia media alta MH-1063, ambos de QSC.
La caja no esta diseñada para montarse suspendida, en voladizo ni sobre
arneses. No suspenda esta caja, no la monte en voladizo ni sobre arneses.
Este producto es capaz de producir niveles de presión del sonido que
pueden causar daños permanentes al oído humano. Siempre mantenga los
niveles de presión del sonido en un área de audición con un nivel menor
que el que provoca daños al oído humano.
Instale de acuerdo con las instrucciones de QSC Audio Products y de un
ingeniero profesional con la debida licencia. Sólo use piezas, montajes,
accesorios O soportes especificados por QSC Audio Products, Inc. Refiera
todo el servicio a personal calificado. Cuando el aparato haya sido dañado
de alguna manera, es necesario proporcionarle servicio.
¡ADVERTENCIA! Antes de colocar, instalar, montar o suspender cualquier
producto de altavoz, inspeccione todo el equipo físico, la suspensión, los
armarios, los transductores, los soportes y el equipo asociado para detec-
tar la existencia de daños. Cualquier componente faltante, corroído, defor-
mado, o sin carga nominal podría reducir significativamente la resistencia
de la instalación, la colocación o la configuración. Cualquier condición de
este tipo reduce gravemente la seguridad de la instalación y debe corre-
girse de inmediato. Use sólo herraje que esté clasificado para las condi-
ciones de carga de la instalación y cualquier posible carga excesiva a
corto plazo inesperada. Nunca exceda el valor nominal del equipo físico ni
del dispositivo. Consulte a un ingeniero profesional con la debida licencia
cuando surjan dudas o preguntas referentes a la instalación física del
equipo. TD-000171-00 rev. C
© Derechos de autor 2004, QSC Audio Products, Inc.
QSC® es una marca comercial registrada de QSC Audio Products, Inc.
“QSC” y el logotipo de QSC están registrados con la Oficina de Patentes y Marcas
Comerciales de los Estados Unidos
1675 MacArthur Blvd., Costa Mesa, CA, 92626 EE.UU.
Número principal [phone] Ventas y Comercialización [phone] o línea sin costo (sólo para
EE.UU.) [phone]
Servicio al cliente [phone] o gratis (sólo EE.UU.) [phone]
Puntos de montaje para el sistema de
alta frecuencia o el sistema de fre-
cuencia media alta

Conexiones
Conexión normal
El altavoz LF-4115 tiene terminales de tor-
nillo de barra protectora para su conexión.
Los terminales aceptan cableado trenzado
de hasta #10 AWG (5.3 mm2) para altav-
oces. Use el alambre del calibre más
grande y de la longitud más corta posible
en cualquier instalación. Observe las mar-
cas de polaridad y mantenga la polaridad
uniforme en todo el sistema para obtener
el mejor rendimiento.
Conexión en paralelo de un segundo
LF-4115
Los terminales marcados SALIDA se
pueden usar para conectar en paralelo otro
altavoz LF-4115. Conecte los cables como
se muestra en la ilustración, a la derecha.
Ejemplo de una conexión normal:
Ejemplo de conexión en paralelo:
Amplificador con capacidad
de accionamiento de cargas
de 4 ohmios
Amplificador con capacidad de
accionamiento de cargas de 2 ohmios

Especificaciones del sistema LF-4115 (sujetas a cambio sin previo aviso)
Intervalo de frecuencias: 33 - 1200 Hertzios (-6dB)
Intervalo utilizable de 29 - 3000 Hertzios (-10 dB)
Cobertura nominal: 100° horizontal X 100° vertical a 1000 Hertzios
Salida máxima: Pico calculado de SPL: 127.0 dB, 1 metro, medio espacio, a una potencia rms nominal con entrada de ruido rosa con factor
de cresta de 6 dB, 35 - 1000 Hertzios.
Máximo calculado continuo de SPL: 121.0 dBA, 1 metro. La escala de dBA típicamente se usa para identificar
fuentes de sonido que pueden causar pérdida auditiva permanente.
Impedancia: 4 ohmios, nominal
4.3 ohmios mínimo, 160 Hertzios
40 ohmios máximo, 22 Hertzios
Potencia máxima 400 vatios rms (8 horas de ruido rosa con factor de cresta de 6 dB, 40 - 400 Hertzios)
de entrada: 600 vatios rms (2 horas de ruido rosa con factor de cresta de 6 dB, 40 - 400 Hertzios)
Capacidad recomendada de potencia del amplificador: 1100 vatios rms como máximo en 4 ohmios (por LF-
4115)
Sensibilidad: 93.5 dB medio espacio, 92.0 dB espacio completo, 35 - 1000 Hertzios, 1 vatio, 1 metro
Procesamiento Filtro subsónico menor de 30 Hertzios, >18 dB por octava, la frecuencia máxima de cruce recomendada es de
recomendado: 1000 Hertzios. Las configuraciones DSP de QSC están disponibles en www.qscaudio.com. Los parámetros
para el herraje de procesamiento alternativo están disponibles si así se solicitan.
Conectores: Los terminales de tornillo de barra protectora aceptan alambre trenzado de hasta #10 AWG (5.3 mm2). Cuatro
terminales: (dos de ENTRADA y dos de SALIDA paralela).
Transductores: Transductor de baja frecuencia de alta eficiencia, de 15” (381 mm), con bobina de voz de cobre de 4” (100 mm)
ventilada, en soportes de Kapton®. Diseño de alta excursión/baja deformación, con un manejo de potencia
extremadamente alta, y baja compresión térmica y de puerto.
Caja: Alineación Quasi B4, caja con puertos totalmente abocinados, diseño de puerto simétrico de baja turbulencia,
afinado a 36 Hertzios, construido de cartón duro de media densidad y fuertemente soportado. Tiene pernos de
montaje del woofer resistentes al vandalismo.
Tamaño: 30” de ancho X 18” de alto X 20” de profundidad (762 mm X 457 mm X 508 mm)
Peso: 96 libras envío, 83 libras neto (44/38 kg.)
SPL e impedancia en función de la Frecuencia
Frecuencia (hertzios)
SPL (dB)
Impedancia (ohmios)
SPL 2pi
Impedancia
SPL 4pi

Garantía (sólo para EE.UU.; para otros países, consulte con su vendedor o distribuidor)
Renuncia de responsabilidad
QSC Audio Products, Inc. no es responsable por ningún daño a los amplificadores, ni a ningún otro equipo que sea causado por
negligencia o instalación y/o uso inadecuado de este altavoz.
Garantía limitada de 3 años de QSC Audio Products
QSC Audio Products, Inc. (“QSC”) garantiza que sus productos estarán libres de materiales y/o mano de obra defectuosos por
un periodo de tres (3) años a partir de la fecha de la venta, y reemplazará las piezas defectuosas y reparará los productos que
funcionen mal bajo esta garantía cuando el defecto ocurra bajo condiciones normales de instalación y uso, siempre y cuando
la unidad se devuelva a nuestra fábrica o a una de nuestras estaciones autorizadas de servicio mediante transportación prep-
agada con una copia del comprobante de compra (por ejemplo, el recibo de la compra). Esta garantía requiere que el examen
del producto devuelto indique, en nuestra opinión, un defecto de fabricación. Esta garantía no se extiende a ningún producto
que hubiera estado sometido a uso indebido, negligencia, accidente, instalación incorrecta, o en el que se hubiera quitado o
modificado el código de la fecha. QSC tampoco será responsable por daños incidentales y/o emergentes. Esta garantía le
otorga derechos legales específicos. Esta garantía limitada es libremente transferible durante el período de la misma.
El cliente podría gozar de derechos adicionales, que podrían variar de un estado a otro.
En caso de que este producto fuera fabricado para exportación y venta fuera de los Estados Unidos o sus territorios, entonces
no será aplicable esta garantía limitada. La eliminación del número de serie en este producto, o la compra de este producto de
un distribuidor no autorizado, anularán esta garantía limitada. Esta garantía se actualiza periódicamente. Para obtener la ver-
sión más reciente de la declaración de la garantía de QSC, por favor visite www.qscaudio.com. Comuníquese con nosotros al
800-854-4079 o visite nuestro sitio en Internet en www.qscaudio.com.
Cómo comunicarse con QSC Audio Products
Dirección postal:QSC Audio Products, Inc.
1675 MacArthur Boulevard
Costa Mesa, CA 92626-1468 EE.UU.
Números de teléfono:
Número principal [phone]
Ventas y comercialización [phone] o gratis (sólo EE.UU.) [phone]
Servicio al cliente [phone] o gratis (sólo EE.UU.) [phone]
Números de fax:
Fax de ventas y comercialización [phone]
Fax de servicio al cliente [phone]
World Wide Web:www.qscaudio.com
Correo electrónico:[email protected]
[email protected]
QSC Audio Products, Inc. 1675 MacArthur Boulevard Costa Mesa, California 92626 EE.UU.
©2004, “QSC” y el logo QSC están registrados con la Oficina de Patentes y Marcas Comerciales de EE.UU.
Kapton® es una marca comercial registrada de E.I. du Pont de Nemours and Company.

Manuel d'utilisation de systèmes de haut-parleurs de cinéma
Haut-parleur basse fréquence LF-4115
Introduction
L'enceinte basse fréquence de 381 mm LF-4115 a été tout spécialement conçue pour les
applications en salle de cinéma. Les exigences des cinémas en matière de réponse longue durée
basse fréquence différencient le LF-4115 des systèmes de haut-parleurs de graves « rock-and-
roll » plus conventionnels. Le LF-4115 couvre la plage de fréquence de 33 à 1 200 Hz, selon les
exigences de haute fréquence du système.
Le transducteur personnalisé de 38 cm et 400 W a été spécialement développé pour un usage en
salles de cinéma. Il possède une bobine mobile de 100 mm, un aimant en céramique de 3,4 kg et
un pôle à évents multiples pour garantir l'absence de surchauffe. Les températures inférieures
augmentent la durée de vie des transducteurs et diminuent le problème de compression de
puissance à de hauts niveaux de puissance. Un pôle évidé garantit le fonctionnement des
bobines mobiles dans un espace magnétique symétrique, ce qui réduit la distorsion harmonique
secondaire. La suspension et la bobine mobile du transducteur visent à produire une faible
distorsion et des graves à fort impact à haute puissance.
L'enceinte est faite de panneaux de fibres de densité moyenne et de haute qualité avec des
renforts sur les six panneaux. Les ouvertures internes et externes des ports sont entièrement
arrondies, garantissant la circulation d'air uniforme à haute puissance, ce qui empêche les
turbulences sonores.
Les ports à basses sont équidistants de part et d'autre du transducteur, ce qui répartit
uniformément la pression interne à travers la surface arrière du transducteur. Ceci empêche le
déplacement du cône d'un côté ou de l'autre par des forces déséquilibrées, ce qui réduit le risque
d'excentrage de la bobine mobile à haute puissance.
Trois écrous en T sur le dessus de l'enceinte facilitent la fixation du système haute fréquence
HF-75 ou du système sonore de hauteur moyenne MH-1063 de QSC.
L'enceinte n'a pas été conçue pour être suspendue, balancée ou montée.
La suspension, le balancement ou le montage de l'enceinte sont interdits.
Ce produit est capable de produire des niveaux de pression sonore
susceptibles d'endommager l'ouïe de manière irréversible. Toujours
maintenir les niveaux de pression sonore dans la zone d'écoute en deçà de
niveaux susceptibles de compromettre l'ouïe.
Installer conformément aux instructions de QSC Audio Products et d'un
technicien professionnel diplômé. Utiliser uniquement des fixations,
supports, accessoires ou équerres spécifiés par QSC Audio Products.
Confier toutes les réparations à un personnel qualifié. Une réparation ou
maintenance est requise lorsque l'appareil a été endommagé d'une
manière quelconque.
AVERTISSEMENT ! Avant de placer, installer, monter ou suspendre un haut-
parleur, inspecter l'état de toute la visserie, du matériel de suspension, des
armoires, des transducteurs, des supports et du matériel associé. Tout
composant manquant, corrodé, déformé ou non adapté à la charge risque
de réduire sensiblement la solidité de l'installation, sa mise en place ou sa
portée. Une telle condition réduit sensiblement la sécurité de l'installation
et doit être immédiatement corrigée. Utiliser uniquement du matériel de
montage prévu pour les conditions de charge de l'installation et toute
surcharge éventuelle à court terme imprévue. Ne jamais dépasser les
spécifications nominales du matériel de montage ou de l'équipement.
Consulter un technicien professionnel diplômé en cas de doute ou de
question concernant l'installation physique de l'équipement.
TD-000171-00 rév. C
© Copyright 2004, QSC Audio Products, Inc.
QSC® est une marque déposée de QSC Audio Products, Inc.
QSC et le logo QSC sont des marques déposées auprès de l'U.S. Patent and
Trademark Office.
1675 MacArthur Blvd., Costa Mesa, CA 92626
Téléphone (standard) [phone] Ventes et Marketing [phone]
ou [phone] (numéro vert valable aux États-Unis seulement)
Service clientèle [phone] ou numéro vert (États-Unis seulement) [phone]
Points de fixation d'un système
haute fréquence ou de hauteur
moyenne

Branchements
Branchement normal
Le branchement du LF-4115 se fait à partir de
bornes vissables de bornier à cloisons. Les
bornes acceptent des câbles de haut-parleurs
toronnés pouvant atteindre #10 AWG (5,3
mm2). Utiliser le calibre de conducteur
maximal et la longueur de conducteur
minimale, dans la mesure du possible, pour
toute installation. Observer les repères de
polarité et maintenir une polarité constante à
travers le système pour une meilleure
performance.
Branchement en parallèle d'un second
LF-4115
Les bornes marquées OUTPUT peuvent
servir au branchement d'un autre LF-4115 en
parallèle. Brancher les conducteurs comme
indiqué sur l'illustration, à droite.
Exemple de branchement normal :
Exemple de branchement en parallèle :
Amplificateur capable de piloter
des charges de 4 ohms
Amplificateur capable de piloter des
charges de 2 ohms
