Cinema Loudspeaker Systems User Manual
SB-5118 and SB-7118 SINGLE-18” Subwoofers
Introduction
The SB-5118 and SB-7118 are specially designed cinema subwoofers, featuring 500 and 700
watt, respectively, 18” (460mm) low-frequency transducers mounted in ported enclosures. The
enclosures are tuned to 25 hertz and use a B6 alignment. These should be used with the B6
boost filter option provided by the QSC SF-1 or SF-3 Subwoofer Filter modules or the QSC Dig-
ital Cinema Monitor to ensure extended response to the lowest audible frequencies.
Meeting cinema requirements for the extended low frequency response differentiates the SB-
5118 and SB-7118 from more conventional “rock-and-roll” subwoofer systems. Their fre-
quency range extends to below 25 hertz when used with the correct B6 filter.
The two custom 500 watt (700 watt, SB-7118), 18” transducers were developed especially for
cinema use. The woofers feature 4” (100mm) voice coils and vented pole pieces to ensure cool
operation, even at high power levels. Cooler temperatures increase driver lifespan and
decrease problematic power compression at high drive levels. Undercut pole pieces provides a
Symmetrical Magnetic Gap (SMG), reducing second harmonic distortion.
Enclosures are constructed of high quality MDF panels.
Large, Fully Radiused Ports (FRP) ensure smooth air flow through the ports, especially at higher
drive levels. This prevents potentially audible port turbulence noise. Both internal and external
port openings are fully radiused.
With Symmetrical Port Loading (SPL) bass ports are evenly spaced on each side of the trans-
ducers, making internal pressure more uniform across the back surface of the transducer. This
prevents the cone from being displaced to one side or another by unbalanced air pressure,
reducing the chance of driving the voice coil out of the center of the gap at high drive levels.
Enclosure is not designed to be suspended, flown, or rigged. Do not suspend,
fly, or rig this enclosure.
This product is capable of producing sound pressure levels that can perma-
nently damage human hearing. Always keep sound pressure levels in the lis-
tening area below levels that can damage human hearing.
Install in accordance with QSC Audio Product’s instructions and a licensed,
professional engineer. Only use attachments, mounts, accessories, or brack-
ets specified by QSC Audio Products, Inc. Refer all servicing to qualified per-
sonnel. Servicing is required when the apparatus has been damaged in any
way.
WARNING! Before placing, installing, rigging, or suspending any speaker
product, inspect all hardware, suspension, cabinets, transducers, brackets
and associated equipment for damage. Any missing, corroded, deformed or
non-load rated component could significantly reduce the strength of the
installation, placement, or array. Any such condition severely reduces the
safety of the installation and should be immediately corrected. Use only
hardware which is rated for the loading conditions of the installation and any
possible short-term unexpected overloading. Never exceed the rating of the
hardware or equipment. Consult a licensed, professional engineer when any
doubt or questions arise regarding a physical equipment installation.
TD-000269-00 rev.A
© Copyright 2007, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
“QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main Number [phone] Sales & Marketing [phone] or toll free (USA only) [phone]
Customer Service(714) 957-7150 or toll free (USA only) [phone]

Connections
Normal Connection
The SB-5118/7118 has barrier strip screw termi-
nals for connection. The terminals accept up to
#10 AWG (5.3mm2) stranded loudspeaker wiring.
Use the largest wire size and shortest wire
length possible for a given installation. Observe
the polarity markings and keep polarity consis-
tent throughout the system for best performance.
Parallel Connection of Second SB-5118/7118
The terminals marked OUTPUT may be used to
connect another SB-5118/7118 in parallel. Con-
nect the wires as shown in the illustration, at
right.

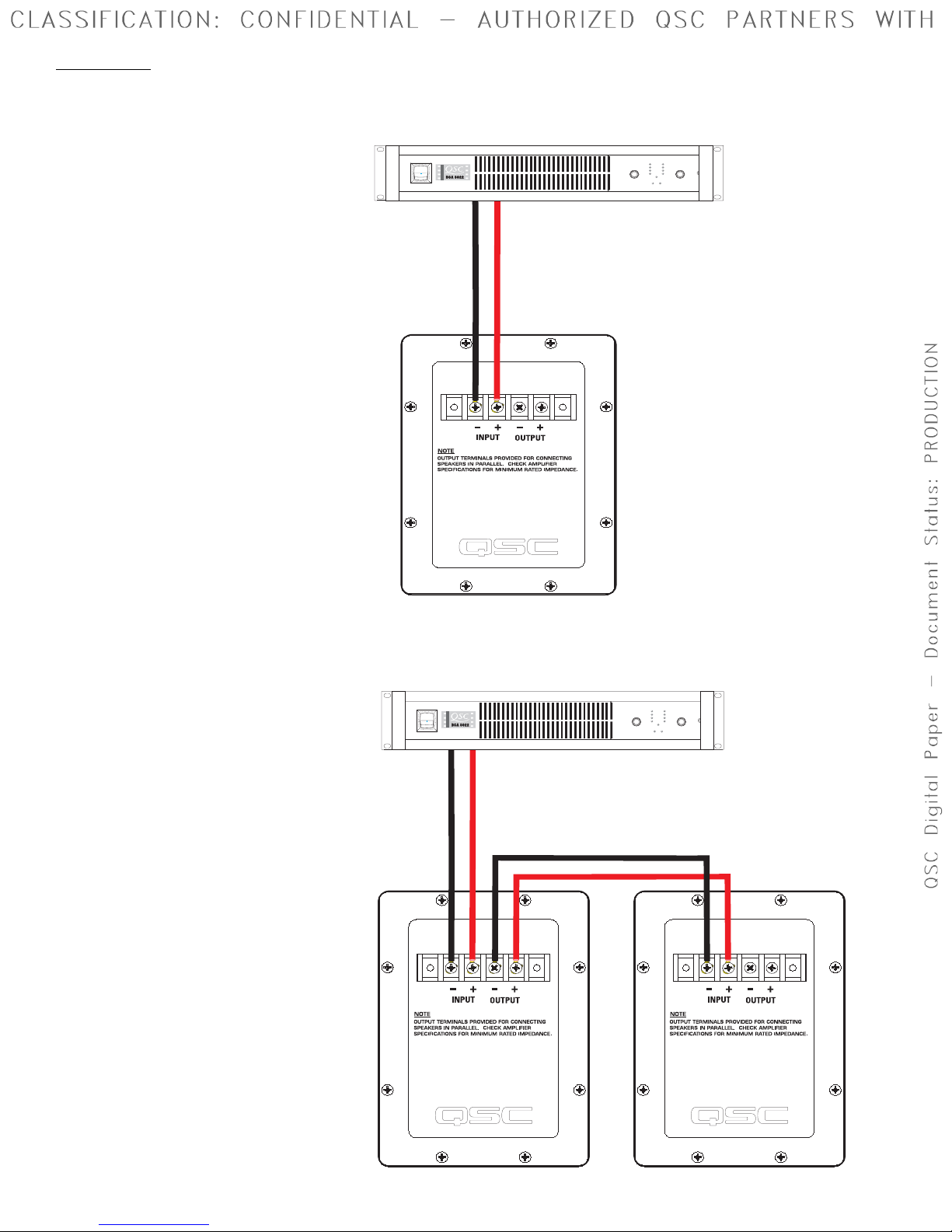

Normal Connection Example:
Amplifier capable of
driving 4 ohm loads
Amplifier capable of
driving 2 ohm loads
Parallel Connection Example:

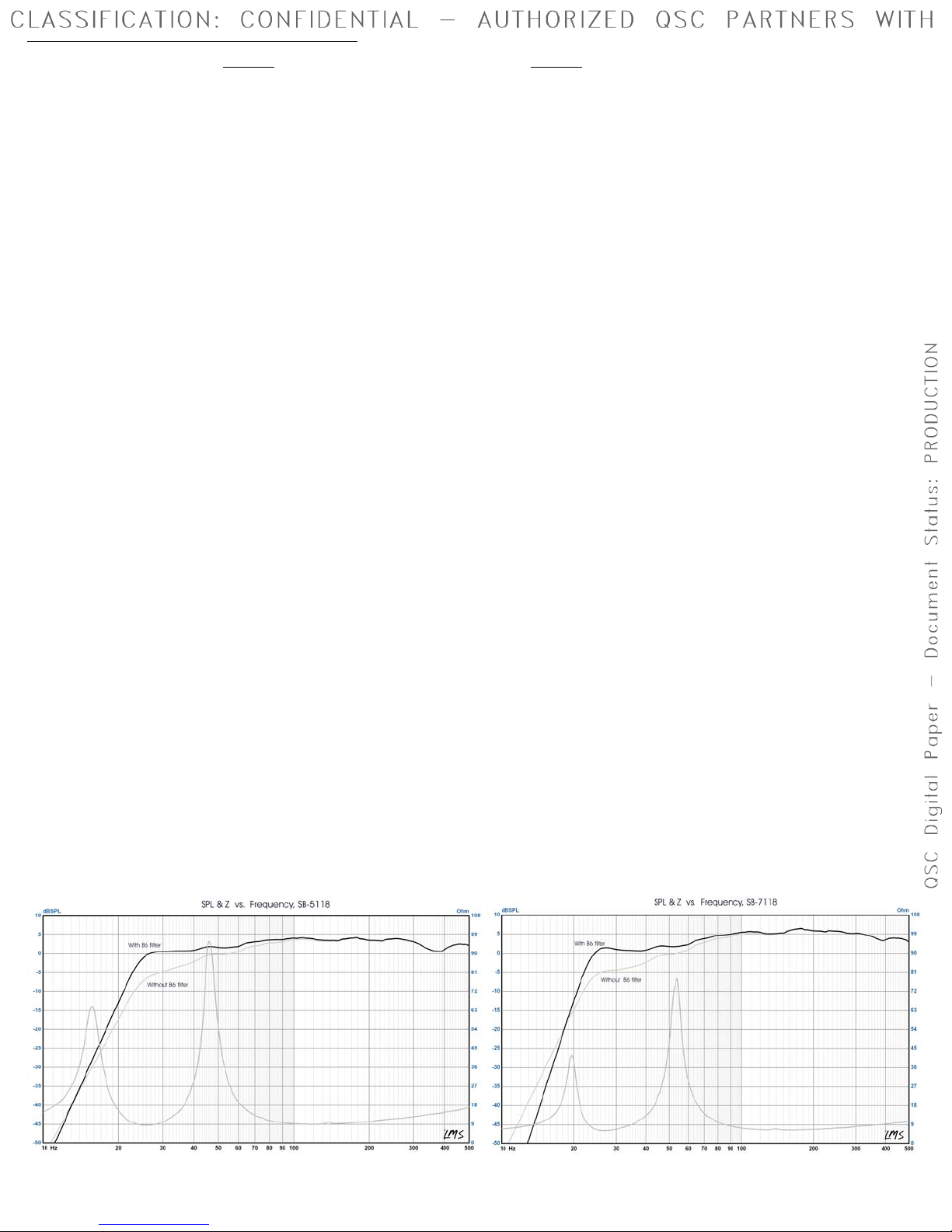

Specifications (subject to change without notice)
SB-5118 SB-7118
Frequency Range: 24 - 100 Hz (±3 dB) 24 - 100 Hertz (±3 dB)
20 - 250 Hz useable range (-10 dB) 20 - 250 Hertz useable range (-10 dB)
Maximum Output: 130 dB SPL calculated peak 133 dB SPL calculated peak
1 meter, half space, at rated rms power with 6 dB crest factor pink noise input, 25 - 250 Hertz.
124 dBA SPL calculated maximum continuous 127 dBA SPL calculated maximum continuous
1 meter. The dBA scale is typically used to identify sound sources which can cause permanent hearing loss.
Impedance: 8 ohms, nom. (8.5 @ 25 Hz., 96 @ 46 Hz.) 8 ohms, nom. (6.2 @ 27 Hz., 78 @ 54 Hz.)
Maximum Input Power:
100 hours of 6 dB crest factor 400 watts rms 600 watts rms
pink noise, 25 - 250 Hertz
2 hours of 6 dB crest factor 500 watts rms 750 watts rms
pink noise, 25 - 250 Hertz, AES method
Recommended Amp Power: 800 watts rms maximum 1300 watts rms maximum
Sensitivity: 97 dB half space 98.0 dB half space
(25 - 100 Hz, 1 watt, 1 m.) 91 dB full space 92.0 dB full space
Weight: 160 lbs. shipping, 140 lbs. net (102/93 kg.) 163 lbs. shipping, 143 lbs. net (104/95 kg.)
Both Models-
Nominal Coverage: Omnidirectional (80 Hz)
Recommended Processing: LF boost- freq.= 25 Hz, Q=2.0, gain= +6 dB. QSC DSP configurations are available at www.qscaudio.com. Parameters for alter-
native processing hardware are available upon request.
Connectors: Barrier strip screw terminals accept up to #10 AWG stranded wire. Four terminals: (two INPUT and two PARALLEL OUT).
Transducers: 18” (457mm) high efficiency subwoofer transducers featuring vented 4” (100mm) copper voice coils on Kapton® formers.
High excursion/low distortion design, with extremely high power handling, and low thermal and port compression.
Enclosure: B6 alignment, vented enclosure with symmetrical port design, tuned to 25 Hz, constructed of medium density fibreboard and
heavily braced. Features vandal resistant woofer mounting bolts.
Size: 30” wide X 35” high X 20.25” deep (762 mm X 889 mm X 514 mm)
