Qstoves QubeStove User manual

QubeStove Portable Outdoor Pizza Oven
and Fire Pit Stove in One
Owner’s Manual
IMPORTANT:
Your safety is very important, please read this manual thoroughly
before you install, operate or maintain this oven/stove. Keep this
manual for future reference. If you have questions about assembly,
operation, service or repair of this stove, please reach out to us directly.
WARNING:
FOR OUTDOOR USE ONLY!
HOT SURFACE WHEN BURNING! KEEP CHILDREN AND PETS AWAY.
WEAR PROTECTIVE GLOVES WHEN ASSEMBLING AND OPERATION.
SAVE THIS MANUAL FOR FUTURE REFERENCE
QSTOVES INC.
SAMMAMISH WA 98074, USA

2
IMPORTANT WARNINGS
•Fuels used in gas, wood or oil-fired appliances and the products of combustion of such fuels
contain chemicals known to the State of California to cause cancer, birth defects and other
reproductive harm. California Health and Safety Code Sec.25249.6
•Improper installation, service or maintenance can cause injury or property damage from hazards
of fire, explosion, burn, asphyxiation, carbon monoxide poisoning. Please be sure you understand
all operating instructions before operation or service of this stove. Read the installation operation
and maintenance instructions thoroughly before installing or servicing this equipment.
•Follow the correct lighting and usage procedures. Use gloves when necessary while handling metal
parts with care to avoid injuries. Never allow children to operate this stove.
•Do not store or use gasoline or any other flammable vapors, liquids or solid combustibles in the
vicinity of this appliance.
•Keep safe distances away from the stove, as it is extremely hot during operation.
IMPORTANT SAFETY PRECAUTIONS
To ensure safe use of your outdoor pizza oven and fire pit stove in one, you are requested to pay close
attention to ALL safety requirements. This is a wood pellet, direct-vent stove. All combustion products leave
the stove from the chimney/smokestack. Byproducts of combustion from this unit include carbon monoxide.
Carbon monoxide is toxic. Carbon Monoxide can build up in a heated space and failure to provide adequate
ventilation could result in death. Always be sure there is plenty of ventilation when the stove is in use.
Always follow the rules about ventilation in these operating instructions.
Alert both children and elders to the hazard of high surface temperatures.
Children and pets should be supervised when they are in vicinity of this heater.
Do not move or touch the heater while it is hot or burning.
Always keep the stove at least 3 ft. (.914 m) radius, clearance away from other surfaces.
This stove is to be used/installed on a flat, level surface.
It is strongly recommended that the stove be stabilized for safety precautions.
Do not spray aerosols near the heater while in use.
Do not clean heater with combustible or corrosive cleaners. Use warm, soapy water.
Do not hang clothing or flammable materials either on or near the stove.
Allow 60 or more minutes for the oven/stove to cool down after use before attempting to move your
oven/stove.
Do not operate a damaged oven/stove.
Warning:
When the stove/oven is to be operated in the presence of other people, the owner/purchaser is required
to inform people unfamiliar with the operation of the stove/oven of the instructions, and of the hazards
involved of operation. If this stove/oven is used in a commercial or rental installation, it is the responsibility
of the purchaser to check with the local codes for properly inform the user of the safety precautions and
instructions. The owner’s manual should always stay with the unit.
Failure to comply with the precautions and instructions provided with this stove/oven can result in death
serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation or
carbon monoxide poisoning. Be sure you understand all operation instructions before attempting to
operate or service this stove/oven.
QSTOVES WILL NOT BE RESPONSIBLE FOR INJURY, DEATH OR PROPERTY DAMAGE IF INSTRUCTIONS IN THIS MANUAL ARE NOT
FOLLOWED.

3
QubeStove Portable Outdoor Pizza Oven
and Fire Pit Stove in One
Owner’s Manual
1. Packing List:
Here’s everything of the QubeStove from the box,
including:
1 QubeStove fire pit/stove;
1 hook&pick tool;
1 detachable fire pit handle;
1 pizza oven (main body);
1 pizza oven chimney;
1 pizza oven lid;
1 wood handle of oven lid (with 1 screw);
1 dia. 12.6in/320mm pizza stone;
1 pizza stone rotating plate;
1 rotating hand wheel;
1bearing (2 pcs);
2. Put the QubeStove Together
The table you choose must be able to hold the
weight of Qubestove Pizza Oven and Fire Pit
(48lb/22kg) plus the foods you want to cook; and
the table surface should be good to handle the
radiant heat from the oven/stove. Wood, metal,
stone are recommended; glass and plastic ones
are not recommended.
Tool Needed:
Philips screwdriver
2.1 install the wood handle on the pizza oven lid
with attached screw by using Philips screwdriver;

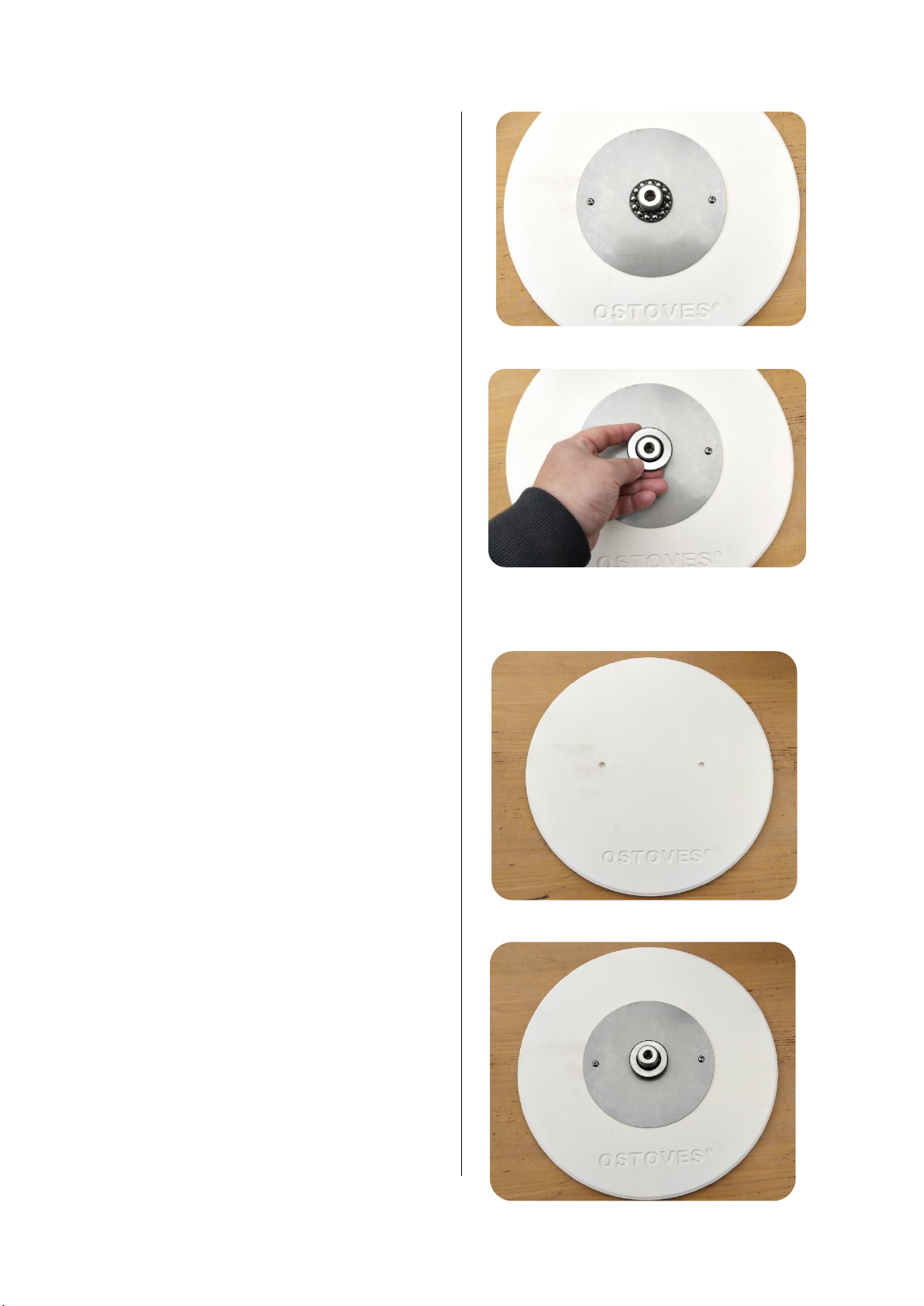

2.2 assemble the pizza stone rotating plate:

4
2.2.1 put the rolling bearing ring onto the plate
shaft;
2.2.2 put the flat bearing ring (spacer) on the plate
shaft;
2.2.3 there are 2 pits in the pizza stone; set the 2
positioning screws on the rotating plate into
2 pits;

5

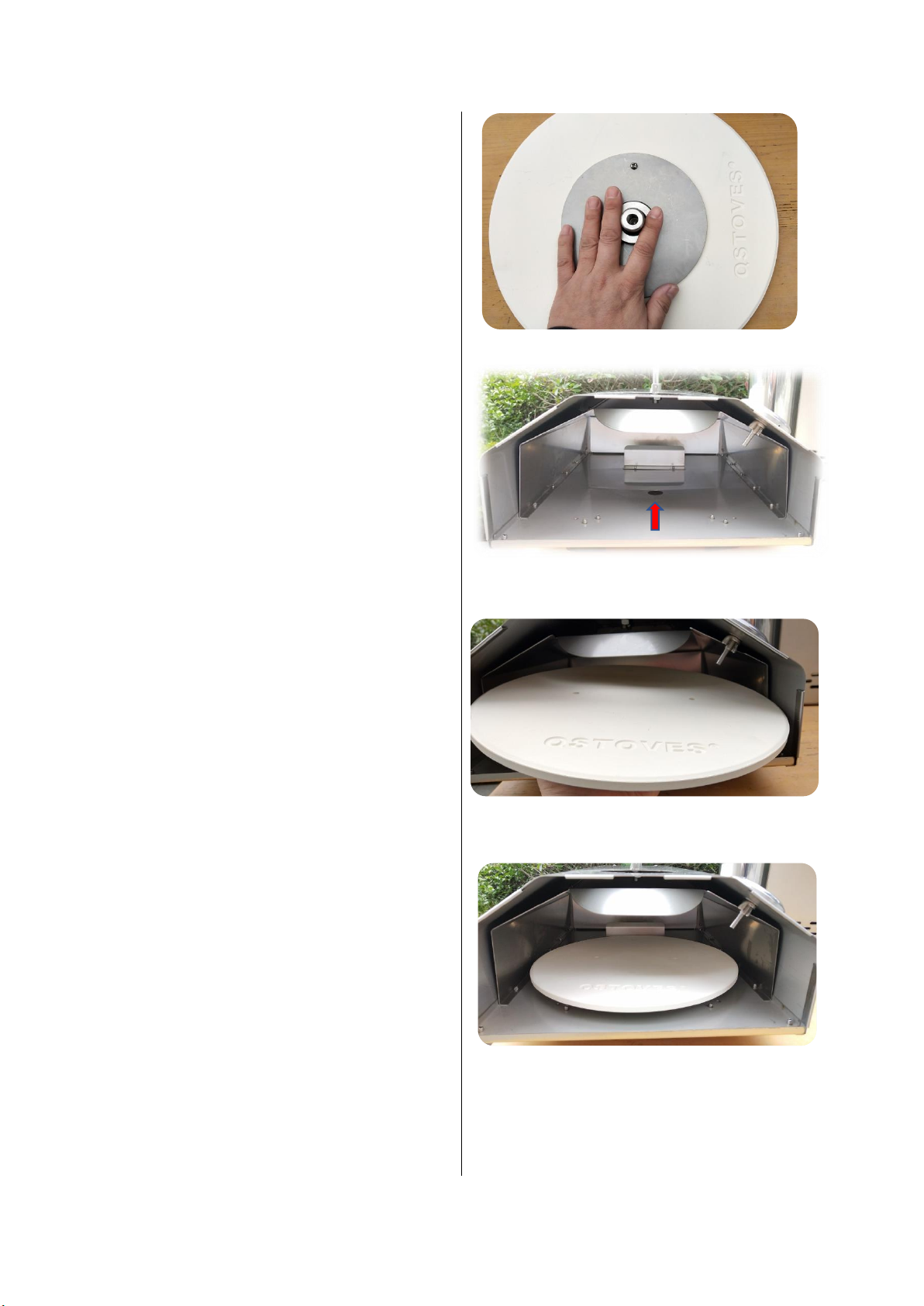

2.3 place the pizza stone into the oven:
hold the rotating plate shaft in between 2 fingers,
place the pizza stone with the rotating plate into
the pizza oven. Make sure the shaft of rotating
plate is positioned into the hole in the central of
the oven bottom.

6
2.4 set the pizza oven onto the fire pit:
2.4.1 pull the legs outward, rotate the leg base
about 40°degrees.
2.4.2 there’s a big round hole in the backside of
the oven; place this hole onto the round
connecter of the fire pit:
2.4.3: lift the pizza oven by using the handle on
the top, set the oven onto the fire pit,
connecting the round hole in the oven
bottom with the round connector collar.
Make sure the connector collar is totally
insert into the round hole in the oven
bottom.

7
2.5 put the chimney onto the pizza oven:
2.5.1 There are 3 tabs at one end of the chimney;
and 3 slots are cut on the top of the oven;
2.5.2 Insert the 3 tabs inside the 3 slots, then turn
the chimney clockwise, the chimney will be
locked firmly onto the oven top.
2.6 screw on the hand wheel of pizza stone
rotating plate:
TIPS:
This Creative Pizza Stone Rotating Plate gives
smooth spin when cooking pizzas or any foods
inside the oven, cooking the foods evenly without
pulling them out and spinning many times to avoid
overcooked or burnt. Just rotate the hand wheel
gently, the pizza stone will spin inside the oven to
get evenly heated.
2.7 put on the oven lid.
The Assembly is Done!

8

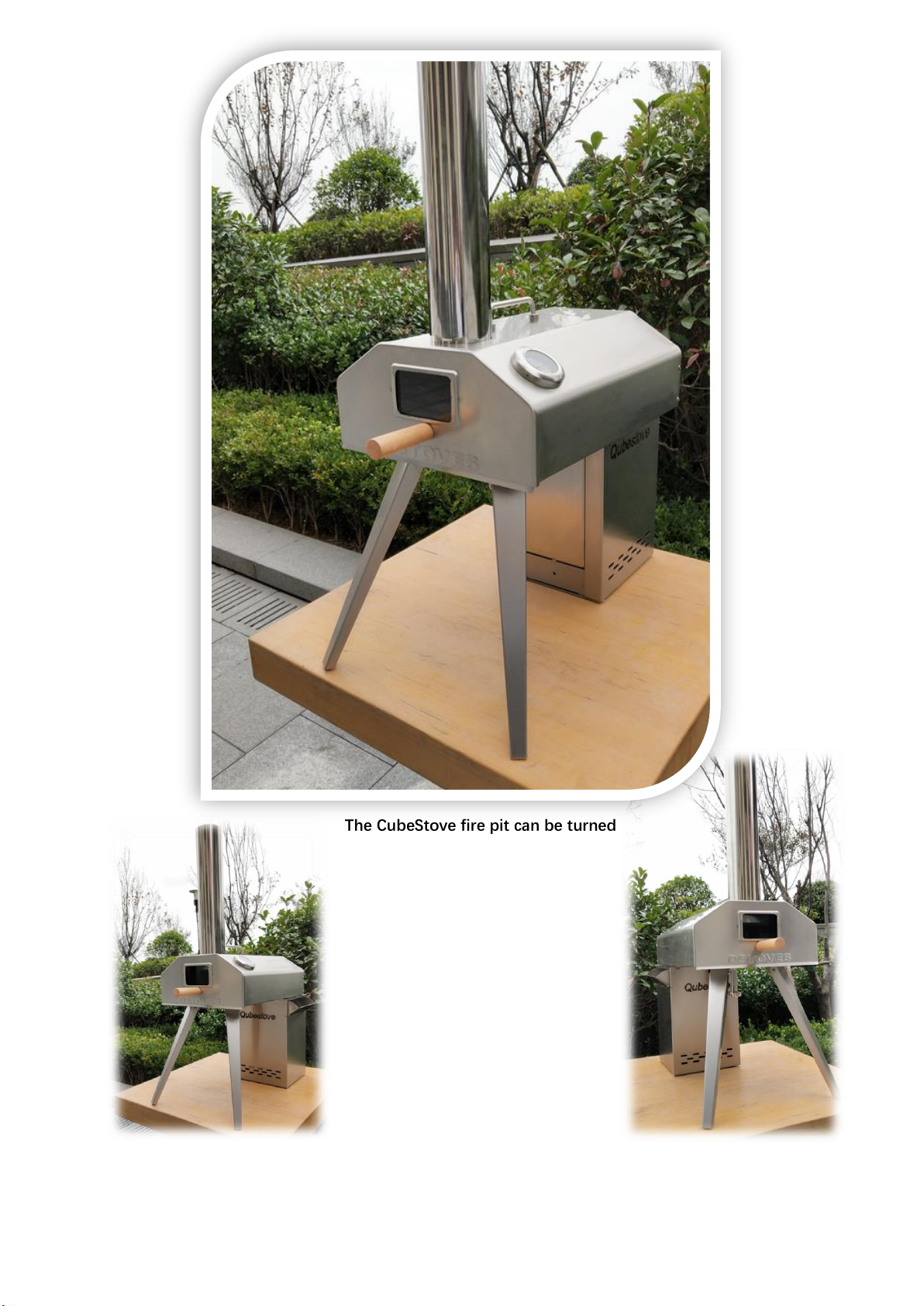

The CubeStove fire pit can be turned
90°degrees, so that the hopper lid can
be on left side or right side, make it
convenient to fill the wood pellets
when operation.

9
3. Light On the QubeStove
3.1 Use the QubeStove Fire Pit Only without Oven:
3.1.1 place the QubeStove Fire Pit on a flat and
solid surface, Keep safe distances away from
the other flammable vapors, liquids or solid
combustibles.
3.1.2 Open the wood pellets hopper lid at the
back of the Qubestove by using the
hook&pick tool, feed a scoop of wood
pellets into the feeding tube. Wood pellets
will fall onto the burn pot/fire grate through
the feeding tube.
3.1.3 Light on a piece of fire starter and put it into
the burning tube.
3.1.4 Waiting for about 5 minutes, the fire starter
will ignite the wood pellets on the burn
pot/fire grate. When the wood pellets start
burning, the flame will burn rushing out of
the tube.
3.1.5 Then use the hook&pick tool holding the
small hole in the hopper lid, open the lid and
fill up the hopper to full. The hopper can
contain about 3lb (1.4kg) wood pellets,
and will keep the fire pit burning about 1
hour. DON’T TOUCH THE SURFACE OF
THE STOVE OR OVEN, AS IT’S EXTREMLY
HOT WHEN OPERATING. ALWAYS USE
THE HOOK&PICK TOOL.

10
3.1.6 When smoke comes out from the small hole
in the hopper lid, that means wood pellets
almost burn out. Fill the hopper again to
keep it burning.
3.1.7 Let the wood pellets burn out if you want to
turn off the fire.
3.2 Light the QubeStove when the pizza oven is set
on:
3.2.1 Open the wood pellets hopper lid at the
back of the QubeStove by using the
hook&pick tool, pour a scoop of wood
pellets inside.
3.2.2 Light on a piece of fire starter, then throw it
into the hopper. The fire starter will fall into
the burn pot/fire grate through the feeding
tube, and will ignite the wood pellets on the
burn pot/fire grate. When the flame is
roaring, fill up the hopper to full.

11
TIPS:
Maintain Oven Temperature:
Check the pellets hopper by using the hook&pick
tool, add wood pellets when it’s on low level.
When smoke comes out from the small hole in
the hopper lid, that means wood pellets almost
burn out. Fill the hopper again to keep it burning.
Keep the oven lid on if you want to get high
temperature; removing it will drop the oven
temp. quickly.
3.2.3 Close the hopper lid, put on the oven lid.
That will make an air draft from the air inlet
at the bottom of QubeStove to the oven
chimney. After about 10 minutes, the flame
will rush out on the top.
3.2.4 Then fill up the hopper of Qubestove, keep
the flame on. Check the thermometer
attached on the oven and get the suitable
temperature for the food you cook.
NOW YOUR QUBESTOVE OVEN
IS LIT ON AND READY TO
COOK!

12
4. Cooling and Disposing of Ash
Wood Pellets burn very efficiently. You can only get very little ash even after hours of
burning. But pay more attention of cooling and disposing of the ash for your safety.
4.1 When you have finished heating or cooking, allow the oven/stove to burn through all
remaining wood pellets. Once your oven/stove has completely cooled down, follow
the steps below to dispose of any residual ash.
4.2 Please note the wood pellets may still be hot even it looks dark or gray. Always use
the Hook & Pick Tool supplied to handle the ash tray. Wear heatproof gloves if
needed. Allow your oven/stove to cool for at least one hour before disposing of ash
or storing. The hook&pick tool can be used as a lever: hold the hole in the ash tray
panel, pull it out and move it with care.
4.3 After a burn and once the oven/stove is completely cooled, clean out any remaining
ashes from on top of the fire grate and in the ash pan. Do not dump an ash pan with hot
embers or pellets into a garbage can or any other combustible area. It will start a fire.
Dump the ash into a metal bucket with water.
5. Storage
5.1 When you are finished using the oven/stove you should make sure that the fire is
completely out. Allow at least 60 minutes for the oven/stove to cool down.
5.2 All unused wood pellets need to be moved out from the hoppers, feeding tunnels and
combustion chamber. Pellets collect moisture when exposed to the air making them less
flammable and will swell and stick to metal surfaces. Store the oven/stove upright in a
sheltered area away from weather such as rain, snow and dust.
5.3 This unit is manufactured as an “Outdoor Unit’’ from steel. If you leave it in the weather
it will accumulate rust, even it’s made of stainless steel, the high temperature will make
its surface decolor or rusty a little bit. This is normal and can be treated by using stainless
steel cleaner on the outer shell.
5.4 A Weather Proof Cover & Traveling Tote in One is supplied as accessory (can be
purchased separately). It can protect your oven/stove from exposing to the weather and
easy to store.

13
6. Maintenance
6.1 To obtain the best performance from your oven/stove make sure you perform the
following maintenance procedures on a regular basis.
6.2 After a burn and once the oven/stove is completely cooled, clean out any remaining
ashes from on top of the fire grate and in the ash pan. Do not dump an ash pan with hot
embers or pellets into a garbage can or any other combustible area. It will start a fire.
Dump the ash into a metal bucket with water.
6.3 Keep exterior surfaces clean. Use warm soapy water for cleaning.
6.4 There’s no need for elbow grease as a run through at top temperature will do most of
the work for you. If you like, just wipe down inside with dry paper towel and use stainless
steel cleaner on the outer shell.
6.5 Never use flammable or corrosive cleaning agents on or near this oven/stove.
6.6 Clean the burn pot/fire grate to keep it unobstructed.
Caution:
Never burn stick wood or plastic or other combustibles in this stove. Burn only 1/4’’ (0.6cm)
diameter wood pellets. Never spray any cleaning product on or into any of the doors, air
intakes, or dampers.
7. To Stop the Unit during a Firing.
To stop feeding pellets, it will take 15 to 30 minutes for the pellets left in the feeding
tube/chute and in the chamber to burn off.
8. Service and Warranty Information
To learn how to service and procure parts that are worn out, defective or damaged, please
call us directly or contact us through our website for assistance. Warning: Use our original
equipment replaced parts only.
9. Warranty Terms-One Year Limited Warranty, and we’ll extend that to a 3-year
warranty on Qubestove products when you register your products.
Subject to the conditions set out below, this product is warranted to the original purchaser to
be free from defects in workmanship and materials for 1 year standard warranty, and we will
extend that to a three-year warranty when you register your product at
www.Qstoves.com/product-registration within 60 days of purchase. This warranty does not
include the paint and/or finish on the oven/stove; the warranty of detachable fire grate is 6
months; the replacement fire grate can be purchased separately from our website.
9.1 Satisfactory proof of the purchase date must be furnished at the time of notification of
the defect for any claim under the warranty to be enforceable.
9.2 This warranty covers all parts found defective in workmanship and/or materials during
the warranty period and can be repaired or replaced at the discretion of the manufacture
at no cost to the original purchaser.
9.3 This warranty will be void and accordingly no claim of any nature will be enforceable if
the product has not been assembled, installed or operated according to the instructions,

14
subjected to abuse improperly treated, neglected, rusted by exposure to the elements,
misused and/or if any repairs.
9.4 Return must be properly packaged and freight prepaid.
9.5 Each of the manufacturer, distributor and retailer will not be liable for any incidental or
consequential loss or damage arising from the installation or operation for the product
and/or the failure of any part for any reason.
9.6 There are no other expressed or implied warranties, except for those stipulated herein.
This warranty gives specific rights to the original purchaser and may have additional
rights and remedies under the law.
9.7 This warranty does not cover commercial or rental use.
9.8 Rust and oxidation is a normally occurring process for any metal exposed to the elements
and is expressly not covered under out warranty.

15
Tips:
Wood Pellets: - Safer and More Sustainable
Wood Pellets are made from compressed recycled sawdust, and is considered as
renewable, carbon neutral, eco-friendly biomass fuel, an alternative to fossil fuels
that save our precious forests and reduces air pollution.
Mainly there are 2 kinds of wood pellets: soft wood pellets and hard wood
pellets.
⚫Soft wood pellets are produced with sawdust of pine or douglas fir, which
can produce more heat output; so it’s good to be used as fuel for heating ;
⚫Hard wood pellets are made from sawdust of wood of Apple, Alder, Cherry,
Hickory, Maple, Mesquite, Oak, Pecan, etc. Hard wood pellets contain less heat
output than soft wood pellets, but have different flavors. So it’s more suitable
for cooking . Choose different hard wood pellets for different foods and get
more pleasure with fantastic tastes!
⚫For best results, store your pellets in a warm, dry environment in an air-tight
container or water proof bag.
.

16
SEE MORE STOVES AND FIREPLACE PRODUCTS, CHECK
THE ELECTRONIC VERSION OWNER’S MANUAL AND
INSTALLATION VIDEO, PLEASE VISIT:
WWW.QSTOVES.COM
Follow us and keep up to date with all things via:
Qstoves / Qubestove
Patented: QSTOVES INC.
QSTOVES, Q-STOVES, Q-FLAME, QUBESTOVE are registered trademarks of Qstoves Inc.
Copyright 2020 All Rights Reserved
For patent, trademark and copyrighted information please email
[e-mail]
v. 3.1
