Quadra-Fire CB1200 User manual

1 7014-285C August 1, 2018
R
CB1200 PELLET INSERT APPLIANCE
MODEL: CB1200MI-MBK
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrare.com
Pour obtenir une traduction française de ce manuel, s’il vous
plaît contacter votre revendeur ou visitez www.quadrare.com
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
CAUTION
Tested and approved for wood pellets and corn pellets.
Burning of any other type of fuel voids your warranty.
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, re o󰀩cials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
WARNING
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
replace.
• Alert children and adults to hazards of high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
WARNING
If the information in these instructions is
not followed exactly, a re could result
causing property damage, personal
injury, or death.
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
• Do not over re - If appliance or chimney connector
glows, you are over ring. Over ring will void your
warranty.
• Comply with all minimum clearances to combustibles
as specied. Failure to comply may cause house
re.

2 7014-285C August 1, 2018
CB1200 Pellet Insert
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
1 Important Safety Information.............3
A. Appliance Certication....................... 3
B. BTU & E󰀩ciency Specications ............... 3
C. Glass Specications ........................ 4
D. Electrical Rating ........................... 4
E. Mobile Home Approved ..................... 4
F. Non-Combustible Materials................... 4
G. Combustible Materials ...................... 4
H. Sleeping Room ............................ 4
I. California - Prop65 .......................... 4
2 Getting Started ....................................5
A . Design, Installation & Location Considerations .........5
B. Thermostat Wall Control Location .............. 6
C. Tools And Supplies Needed .................. 6
D. Inspect Appliance and Components ............ 6
E. Install Checklist ............................ 7
3 Dimensions and Clearances..............8

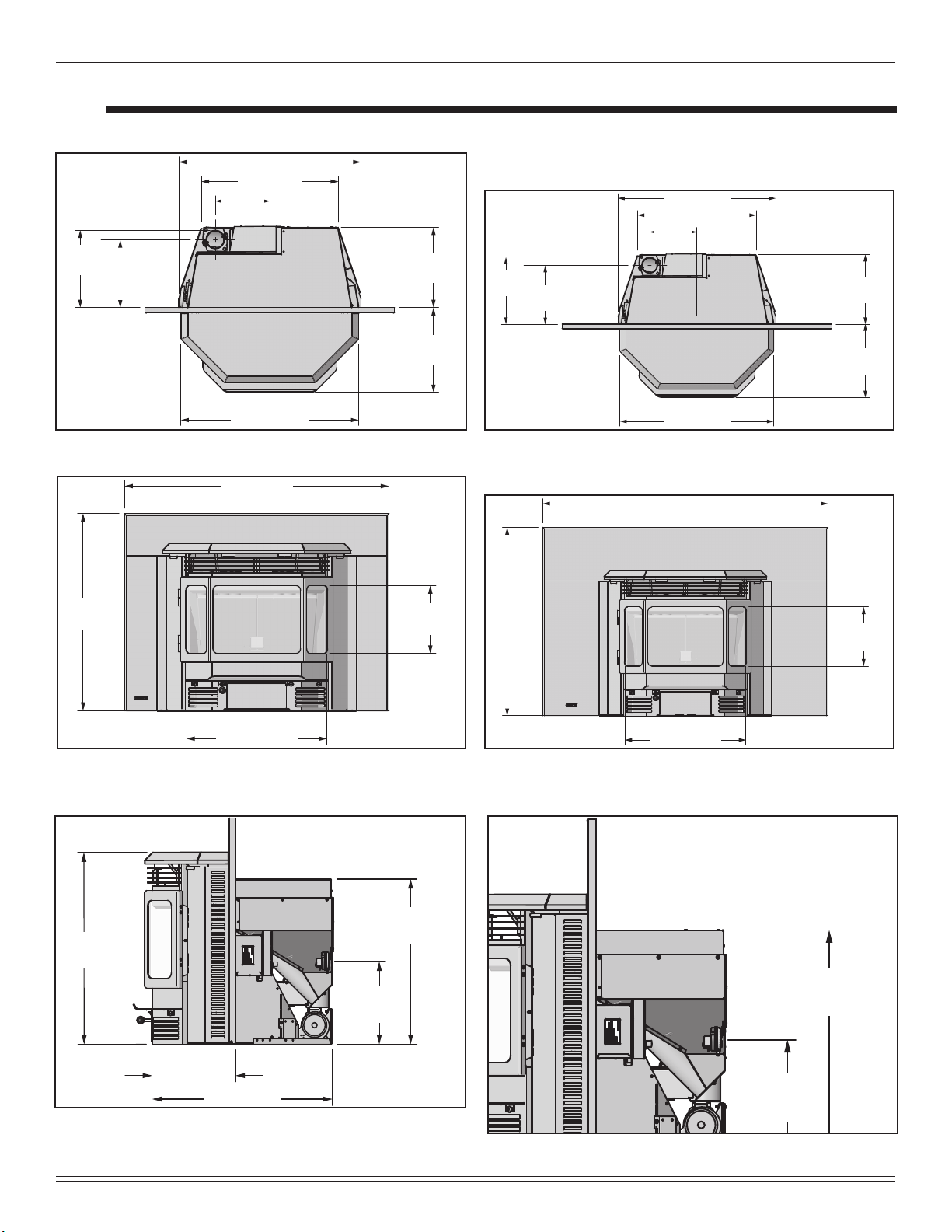

A. Appliance Dimensions ....................... 8
B. Clearance To Combustibles, UL and ULC........ 9
C. Minimum Opening for Masonry ............... 10
....& Zero Clearance Fireplaces ............... 10
D. Hearth Extension.......................... 10
E. Floor Protection .......................... 11
F. Installation into a Factory-Built Fireplace ........ 12
G. Installation into a Masonry Fireplace .......... 13
H. Prefabricated Metal Chimney ................ 13
4 Vent Information................................14

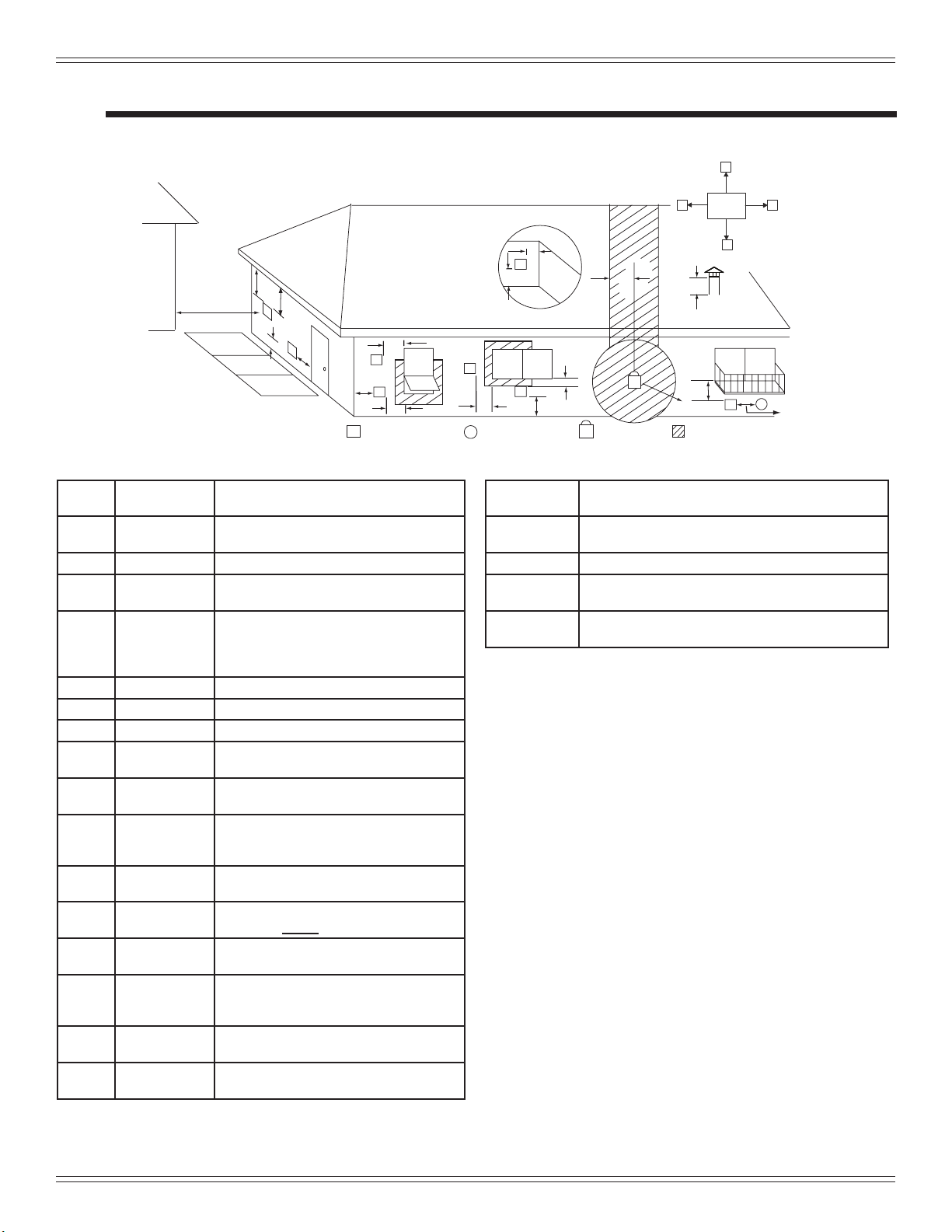

A. Venting Termination Minimum Requirements .... 14
B. Avoiding Smoke and Odors.................. 15
C. Negative Pressure......................... 16
D. Draft ................................... 16
E. Chimney and Exhaust Connection ............ 16

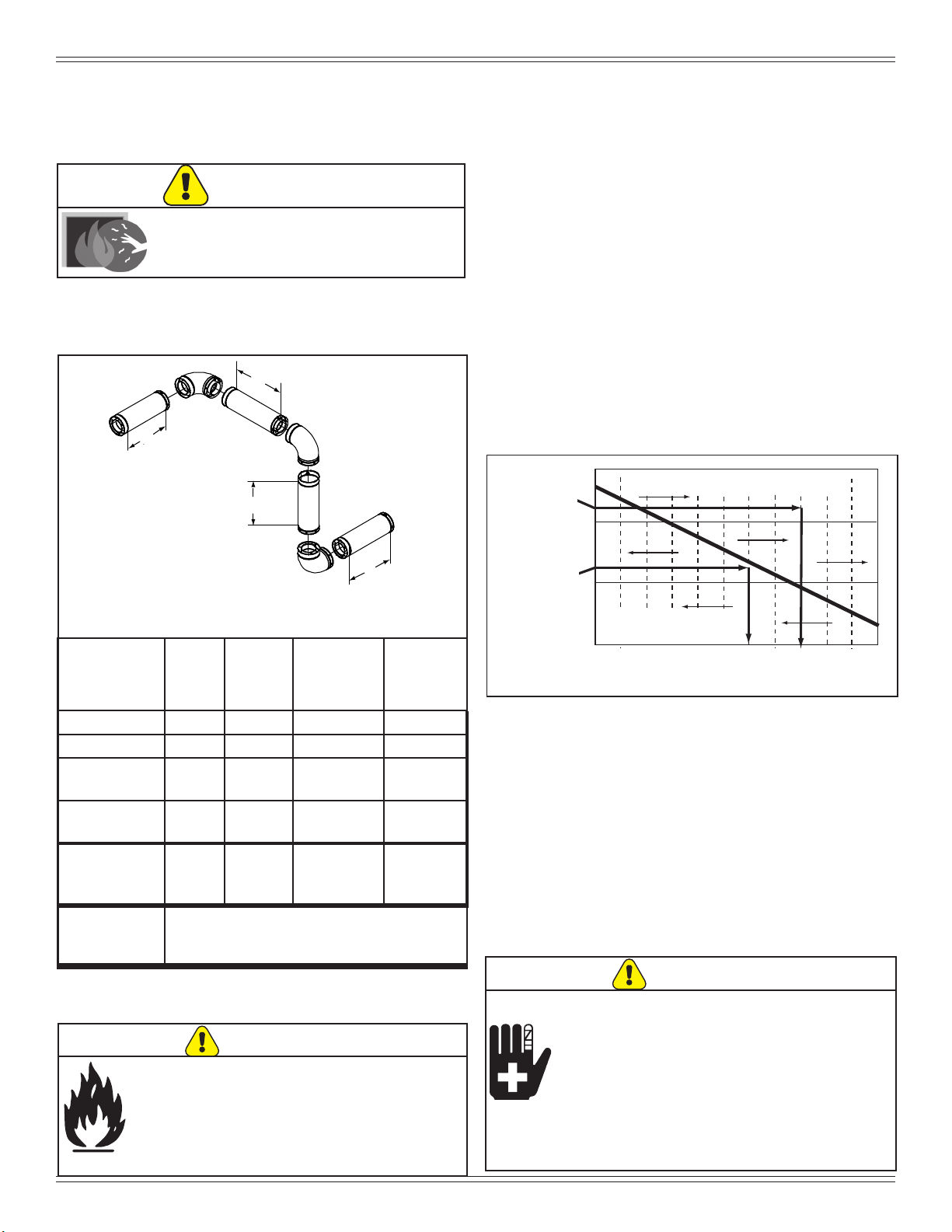

F. Equivalent Feet of Pipe ..................... 17
G. Pipe Selection Chart ...................... 17
5 Venting Systems ...............................18

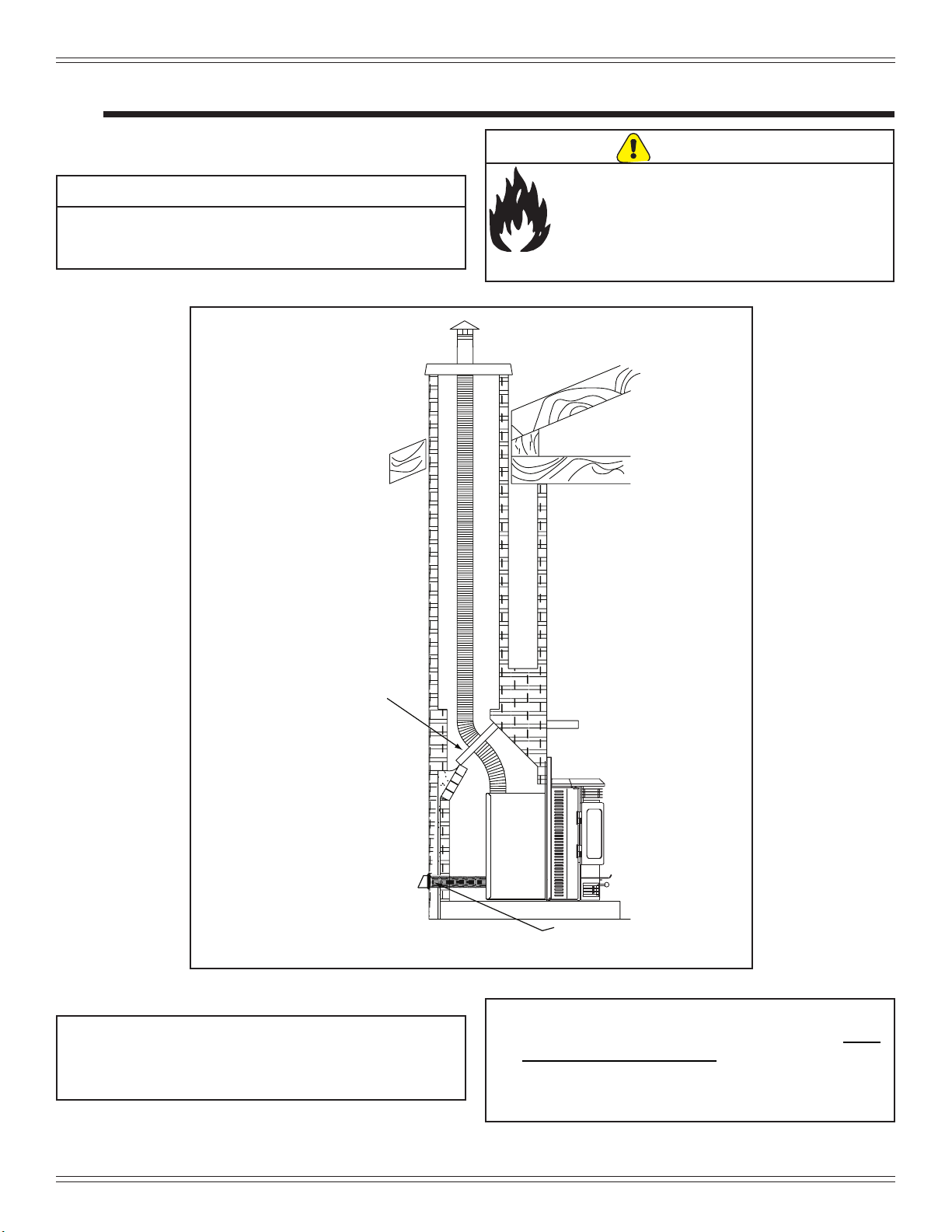

A. Full Reline With Outside Air - Horizontal ........ 18

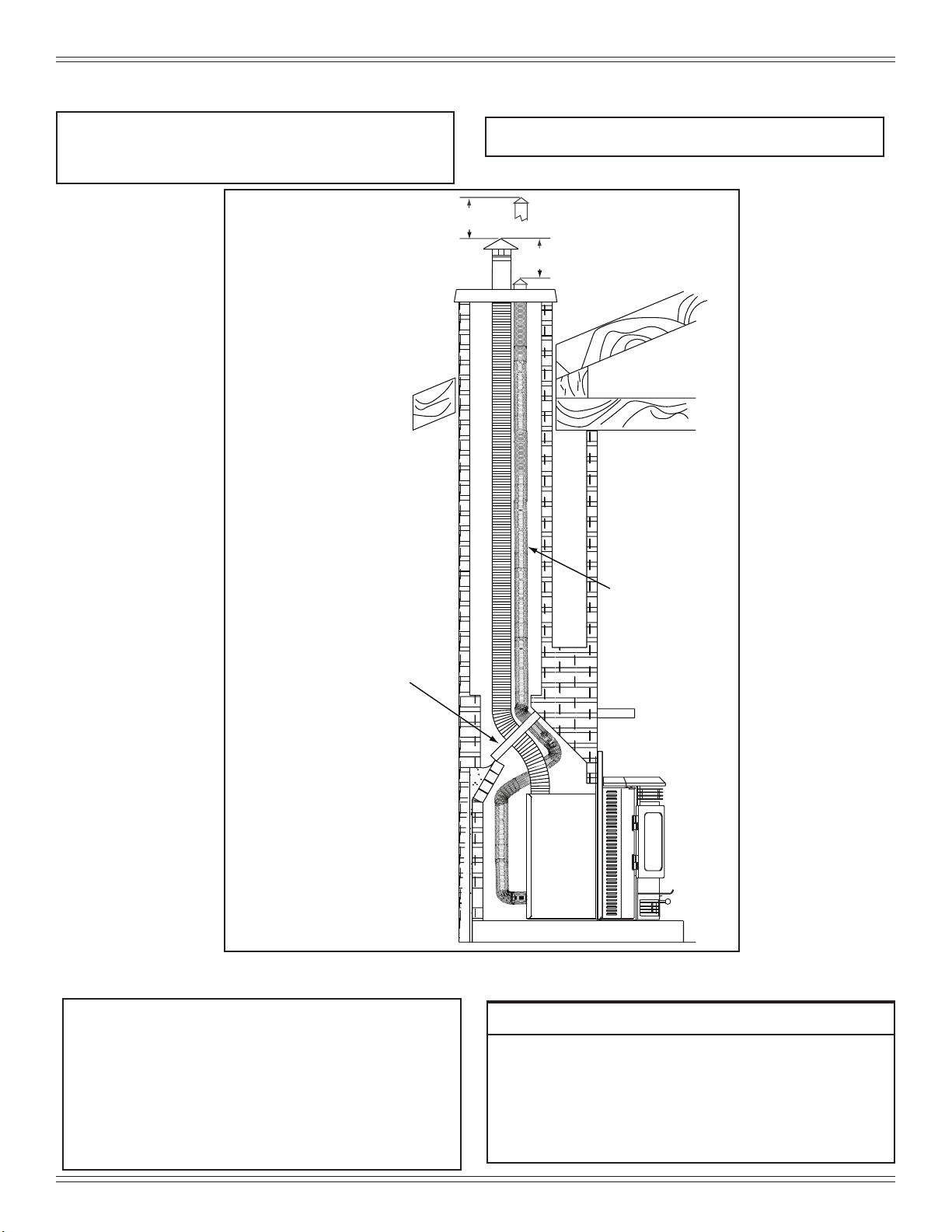

B. Full Reline With Outside Air - Vertical.......... 19
6 Appliance Set-Up ..............................20
A. Rear Shroud Installation.................... 20
B. Outside Air Kit Instructions .................. 22
C. Adjustable Hopper Options .................. 23
D. Grill Installation ........................... 23
E. Adjustable Hearth Support .................. 23
F. Panel and Trim Set ........................ 24
G. Thermostat Installation and Operation......... 26
H. Optional Log Set Placement Instructions ....... 28
7 Mobile Home Installation..................29
8 Reference Materials..........................30
A. Service & Maintenance List.................. 30
B. Accessory List ............................ 32

August 1, 2018 7014-285C 3
CB1200 Pellet Insert
Model CB1200 Pellet Insert
Laboratory OMNI Test Laboratories, Inc.
Report No. 061-S-13-2
Type Solid Fuel Room Appliance/Pellet Fuel
Burning Type Insert
Standard
ASTM E1509-95, UL127, ULC S628-
93, ULC S610-M87, and ULC/ORD-
C1482-M1990 Room Appliance Pellet
Fuel Burning Type, (UM) 84-HUD.For
use only with palletized wood or shelled
eld corn fuel. Mobile Home Approved
FCC
Complies with Part 15 of FCC Rules.
Operation is subject to the following
two conditions: (1) this device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
The Quadra-Fire CB1200 Pellet Insert meets the U.S. Environmental Protection Agency’s emission limits for pellet
inserts sold after May 15, 2015.
This pellet insert needs periodic inspection and repair for proper operation. It is against federal regulations to operate this
pellet insert in a manner inconsistent with operating instructions in this manual.
B. BTU & E󰀩ciency Specications
EPA Certication #: 972-14
EPA Certied Emissions: 1.3 grams per hour
*LHV Tested E󰀩ciency: N/A
**HHV Tested E󰀩ciency: N/A
***EPA BTU Output: 11,500 to 34,600 / hr.
****BTU Input: 15,500 to 46,400 / hr.
Vent Size: 3, 4 or 6 inches, “L” or “PL”
Hopper Capacity: 75 lbs.
Fuel Wood Pellets
* Weighted average LHV e󰀩ciency using data collected
during EPA emissions test.
**Weighted average HHV e󰀩ciency using data collected
during EPA emissions test.
***A range of BTU outputs based on EPA Default
E󰀩ciency and the burn rates from the low and high EPA
tests.
****Based on the maximum feed rate per hour multiplied
by approximately 8600 BTU’s which is the average BTU’s
from a pound of pellets.
1 Important Safety Information
NOTE: This installation must conform with local codes. In the absence of local codes you must comply with the ASTM E1509-
95, UL127, ULC S628-93, ULC S610-M87, ULC/ORD-C-1482-M1990, (UM) 84-HUD
A. Appliance Certication

4 7014-285C August 1, 2018
CB1200 Pellet Insert
NOTE: Hearth & Home Technologies, manufacturer
of this appliance, reserves the right to alter its
products, their specications and/or price without
notice.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be voided by,
the following actions:
WARNING
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied
with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
C. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please
contact your dealer for replacement glass.
D. Electrical Rating
115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 Amps
E. Mobile Home Approved
• This appliance is approved for mobile home
installations when not installed in a sleeping room and
when an outside combustion air inlet is provided.
• The structural integrity of the mobile home oor, ceiling,
and walls must be maintained.
• The appliance must be properly grounded to the frame
of the mobile home and use only Listed pellet vent
Class “L” or “PL” connector pipe.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
F. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel - Plaster - Brick - Iron
- Concrete - Tile - Glass - Slate
Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace of 750° C.
G. Combustible Materials
Material made of/or surfaced with any of the following
materials:
- Wood - Compressed Paper
- Plant Fibers - Plastic
- Plywood/OSB - Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
H. Sleeping Room
When installed in a sleeping room it is recommended
that 3ft of vertical be installed prior to horizontally exiting
the room and a smoke/CO alarm be installed in the
bedroom.  The size of the room must be at least
50ft³ per 1,000 Btu/hr stove input, if the stove exceeds the
room size, out air must be installed.
I. California - Prop65
WARNING
This product and the fuels used to operate this product (wood), and
the products of combustion of such fuels, can expose you to
chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to
the State of California to cause birth defects or other reproductive
harm. For more information go to: WWW.P65Warnings.ca.gov

August 1, 2018 7014-285C 5
CB1200 Pellet Insert
Install Guide
2 Getting Started
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended

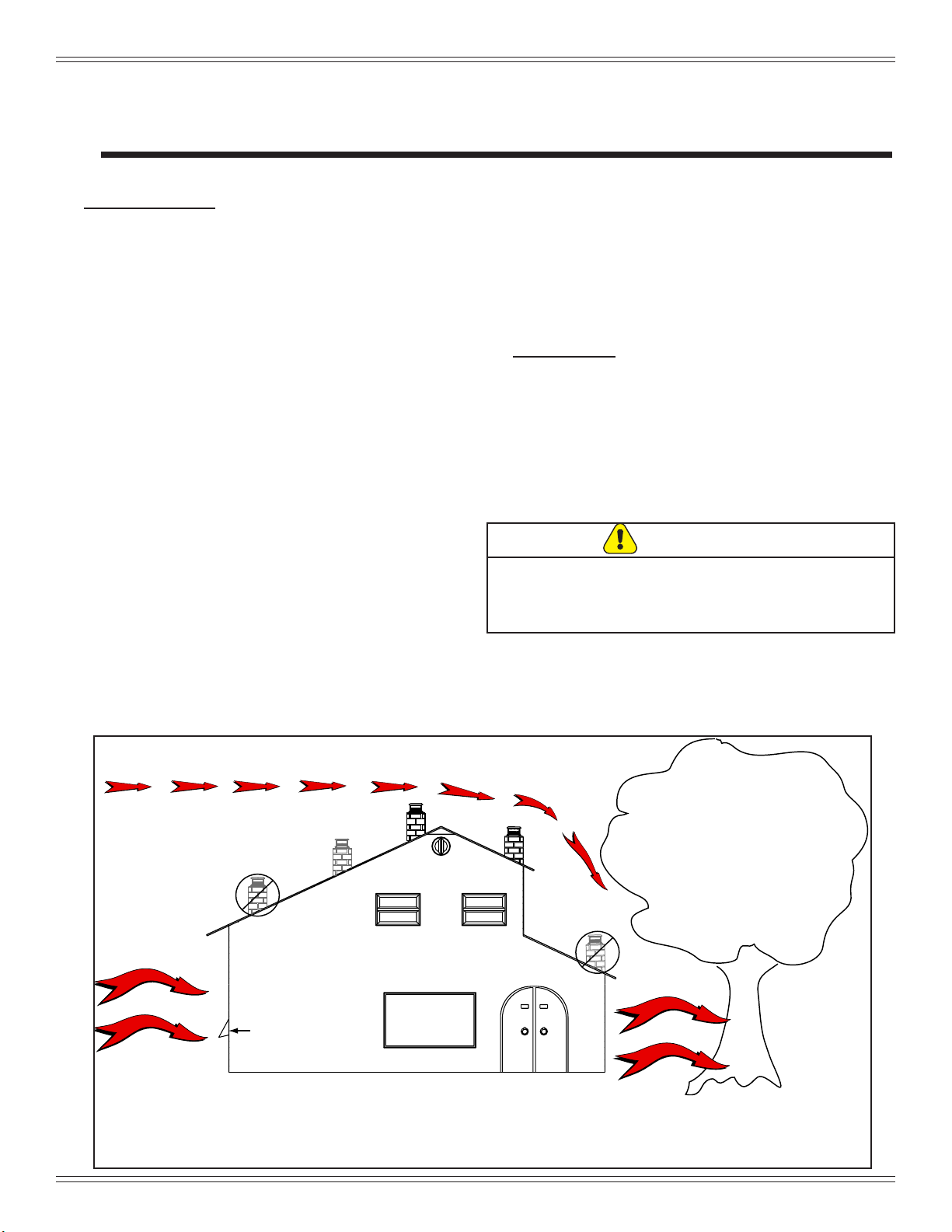

Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 5.1
A . Design, Installation & Location Considerations
1. Appliance Location
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector,
re o󰀩cials or authorities having jurisdiction over
restrictions, installation inspection and permits.
It is a good idea to plan your installation on paper, using
exact measurements for clearances and oor protection,
before actually beginning the installation. Location of the
appliance and chimney will a󰀨ect performance.
Consideration must be given to:
• Safety, convenience, tra󰀩c ow
• Placement of the chimney and chimney connector and
to minimize the use of chimney o󰀨sets.
• Place the appliance where there will be a clear passage
for a Listed chimney through the ceiling and roof
(vertical) or through exterior wall (horizontal).
• Installing the required outside air kit will a󰀨ect the
location of the vent termination.
When locating vent and venting termination, the ideal
location is to vent above roof line when possible. This
minimizes the a󰀨ects of wind loading.
Since pellet exhaust can contain ash, soot or sparks, you
must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang, so󰀩ts, porch roofs, adjacent walls
• Landscaping, vegetation
• Horizontal or vertical vent termination
2. Floor Support
The supporting oor under the appliance must be able to
handle the weight of the appliance, fuel load and the weight
of the chimney.
Ensure that your oor will support these weights prior to
installation. Add su󰀩cient additional support to meet this
weight requirement prior to installation. The weight of the
appliance is 214 lbs.
CAUTION
If burning shelled eld corn, you must use approved
venting specically designed for corn to prevent corrosion
or degradation. Follow the instructions from the venting
manufacturer.

6 7014-285C August 1, 2018
CB1200 Pellet Insert
C. Tools And Supplies Needed
B. Thermostat Wall Control Location
The thermostat wall control’s location will have some a󰀨ect
on the appliance’s operation.
• Maximum wire length from appliance is 100 feet
(30.48m) continuous non-spliced wire. Recommended
20 gauge wire, solid copper .
• When located close to the appliance, it may require a
slightly higher temperature setting to keep the rest of
the house comfortable.
• When located in an adjacent room or on a di󰀨erent
oor level, you will notice higher temperatures near the
appliance.
D. Inspect Appliance and Components
• Open the appliance and remove all the parts and
articles packed inside the Component Pack. Inspect all
the parts and glass for shipping damage.
• Report to your dealer any parts damaged in shipment.
• All labels have been removed from the glass door.
• Plated surfaces have been wiped clean with a soft
cloth, if applicable.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet.
• Follow pipe manufacturer instructions for
installation and air clearance requirements.
WARNING
Fire Risk.
Damaged parts could impair safe operation. Do
NOT install damaged, incomplete or substitute
components.
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied
with appliance).
• Do NOT Over re
Or any such action that may cause a re hazard.
Tools and building supplies normally required
for installation, unless installing into an existing
masonry replace:
Reciprocating Saw
Hammer
Tape Measure
1/4” Self-Tapping Screws
Hi-temp Caulking Material
Safety Glasses
Electric Drill & Bits (1/4”)
Channel Lock
Phillips Screwdriver
Plumb Line
Framing Material
Gloves
Framing Square
Level
May also need:
Vent Support Straps Venting Paint

August 1, 2018 7014-285C 7
CB1200 Pellet Insert
E. Install Checklist
YES IF NO, WHY?
Verified clearance to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Appliance Install
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (5 feet minimum vertical).
Roof flashing installed and sealed.
Terminations installed and sealed.
Venting/Chimney
Clearances
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Floor protection and heart extensions installed per manual requirements.
Appliance Setup
All protective materials removed.
All labels have been removed from the door.
All packaging materials are removed from inside/under appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
WARNING! Risk of Fire or Explosion! Failure to install appliance to these instructions can lead to a fire or
explosion.
Hearth & Home Technologies recommends the following:
Photographing the installation and copying this checklist for your file.
That this checklist remain visible at all times on the appliance until the installation is complete.
Electrical
120 VAC unswitched power provided to the appliance.
Check outlet with multi-meter for proper polarity and voltage (115-120 VAC).
Record voltage reading: _____________
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot/Address:
Location of Appliance:
Installer:
Dealer/Distributor Phone Number:
Serial Number:
Model Name:
__________________________________________________________________________
______________________________________________________________________
_______________________________________________________________________
________________________________________________________________
___________________________________________________________________________
________________________________________________________
______________________________________________________________________
_______________________________________________________________________
Started appliance and verified that all motors and blowers operate as they should.
Checked draft using a Manometer. Record readings: ______________________
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, ets.) and corrective action needed:
Comments communicated to party responsible __________________________ by ______________________ on ____________
(Builder/Gen. Contractor) (Installer) (Date)
Checked vacuum using a Manometer. Record readings: ____________________

8 7014-285C August 1, 2018
CB1200 Pellet Insert
Figure 8.4 - Top View with large panel set (SP-CB12I3350-GD,
NB or NL)
Figure 8.1 - Top View with small panel set (SP-CB12I3040-GD,
NB or NL)
Figure 8.2 - Front View with small panel set (SP-CB12I3040-
GD, NB or NL)
22 in [559mm]
29-1/4 in [743mm]
10-7/8 in
[277mm]
12-3/8 in
[315mm] 13 in
[330mm]
28-1/2 in [724mm]
13-5/8 in
[346mm]
8-3/4 in
[223mm]
22 in [559mm]
29-1/4 in [743mm]
10-7/8 in
[277mm]
12-3/8 in
[315mm] 13 in
[330mm]
28-1/2 in [724mm]
13-5/8 in
[346mm]
8-3/4 in
[223mm]
Figure 8.5 - Front View with large panel set (SP-CB12I3350-
GD, NB or NL)
SIDE WALL
24-5/16 in
(618mm)
50 in [1270mm]
33 in
[838mm] 10-3/8 in
[264mm]
21-1/4 in [539mm]21-1/4 in [539mm]
40 in [1016mm]
30 in
[762mm] 10-3/8 in
[264mm]
21-1/4 in [539mm]21-1/4 in [539mm]
25-1/2 in
[648mm]
11 in [279mm]
24 in [609mm]
19-1/2 in - 22 in
[496mm - 559mm]
11 in
[280mm]
25-1/2 in
[649mm]
11 in [279mm]
24 in [609mm]
19-1/2 in - 22 in
[496mm - 559mm]
11 in
[280mm]
Figure 8.2 - Side View with small panel set (SP-CB12I3040-
GD, NB or NL)
Figure 8.5 - Side View with large panel set (SP-CB12I3350-
GD, NB or NL)
3 Dimensions and Clearances
A. Appliance Dimensions

August 1, 2018 7014-285C 9
CB1200 Pellet Insert
B. Clearance To Combustibles, UL and ULC
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
Be sure to follow vent manufacturers clearance
to combustibles.
*If interior of chase will be drywalled, add the
thickness to this measurement.
**From finished floor protection. The size of your
floor protector choice must be added to this
dimension. If using Quadra-Fire floor protector,
Part 811-0730, allow 1-1/2 inches (38mm).
25 in**
(635mm)
25 in**
(635mm)
29-3/4 in.
(756mm)
15-1/2 in*
(394mm)
Figure 9.1
NOTE: A Quadra-Fire oor protector (Part 811-0730) is available through your dealer to be used as a
oor protector for the section under the insert body only. Floor protection to front and sides of
insert appliance must be supplied in addition to this part.
Fire Risk.
Comply with all minimum clearances to
combustibles as specied.
Failure to comply may cause house re.
WARNING

10 7014-285C August 1, 2018
CB1200 Pellet Insert
C
DA
B
C. Minimum Opening for Masonry
& Zero Clearance Fireplaces
Figure 10.1
Figure 10.2
SIDE TRIM
HEARTH
EXTENSION
28-1/2 in
(724mm)
SIDE WALL
TOP TRIM
19-3/4 in
(502mm)
19-3/4 in
(502m)
18-1/4 in
(464mm)
Figure 10.3
FIREPLACE FRONT SURFACE
MANTEL
USA & CANADA
17 in (432mm)
37-1/2 in
(952mm)
12 in
max *
16
(406mm)
NOTE: Minimum opening dimensions include a 1/4” (6mm)
clearance around appliance.
Note: If trim measurement is over 3/4 in (19mm) in depth
use mantle or side clearances to combustibles. Location Inches Millimeters
AHeight (Maximum Hopper Adjustment)*22-1/4 565
Height (Minimum Hopper Adjustment)*19-3/4 502
B Front Width 29-3/4 756
C Rear Width 22-1/2 572
D Depth 13-1/4 337
*Height: The Classic Bay 1200 Insert has the option of
an adjustable hopper from 22 inches for the maximum
to 19-1/2 inches for the minimum. Add a 1/4 inch to the
adjustment for clearances for any measurement in between
the maximum and the minimum height. The Maximum and
minimum are already calculated for you in the above table
for convenience.
D. Hearth Extension
Use a Type II non-combustible oor protector, extending
beneath the appliance and to the front, and to the sides as
indicated in sub-section E. Floor Protection on page 11.
The oor must be non-combustible or otherwise adequately
protected from radiant heat given o󰀨 by the appliance and
from sparks and falling embers. A layer of thin brick or
ceramic tile over a combustible oor is not su󰀩cient.
WARNING
Fire Risk.
Hearth pads must be installed exactly as specied.
High temperatures or hot embers may ignite
concealed combustibles.

August 1, 2018 7014-285C 11
CB1200 Pellet Insert
NOTE: Clearances may only be reduced by means
approved by the regulatory authority having
jurisdiction
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING

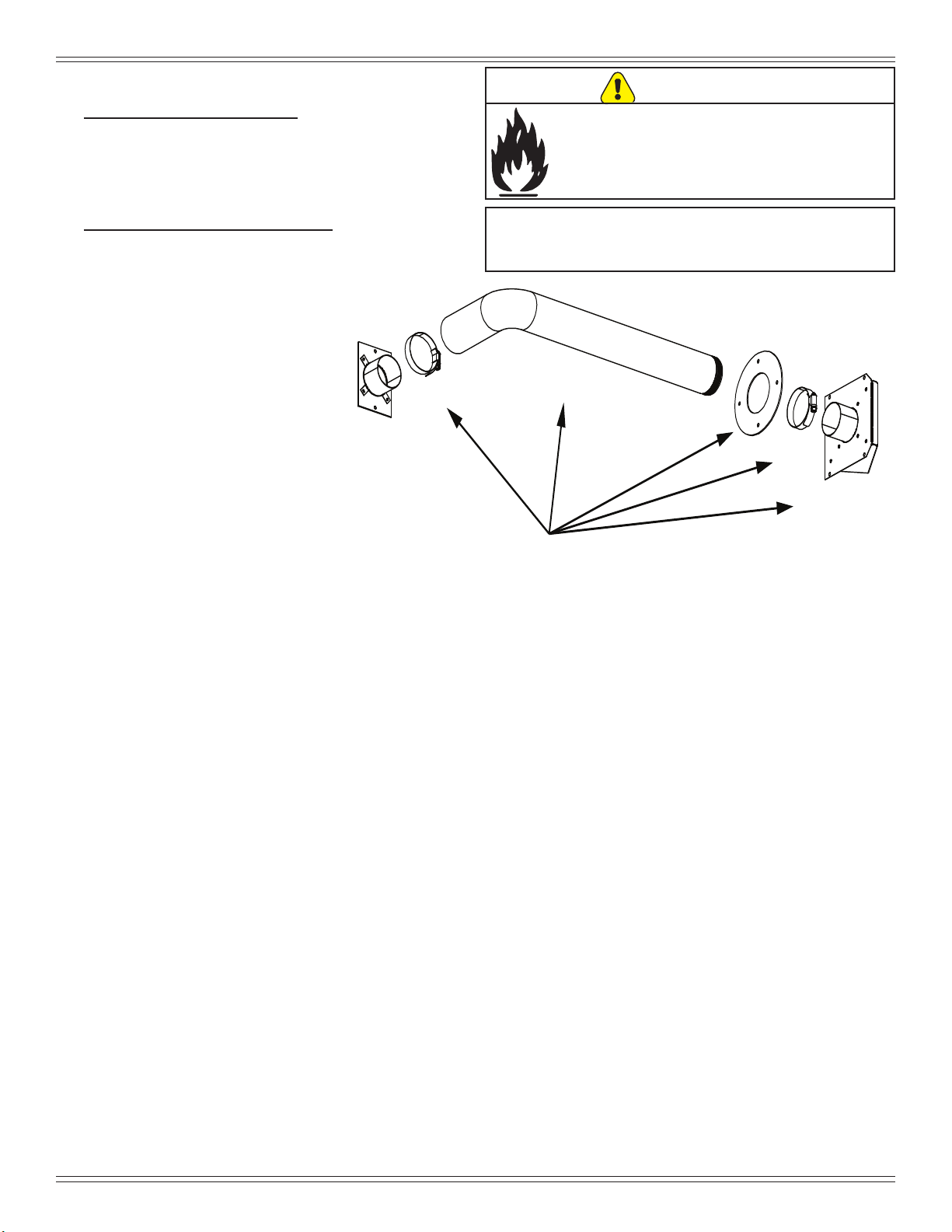

Flex Hose
Hose Clamp
Collar
Assembly
Trim Ring
Hose Clamp
Termination
Cap Assembly
NOTE: Hearth Rug may be used in
Suggested Area Figure 11.1
Thermal Resistance: R value
The R value is a measure of a material’s resistance to heat
transfer.
R value is convenient when more than one material is used
since you can add the R values together, whereas you can
not do this for k value.
The HIGHER the R factor means less heat is being
conducted through the non-combustible material to the
combustible material beneath it.
The R value of a material must be equal or larger then the
required R value to be acceptable.
NOTE: A Quadra-Fire oor protector (Part 811-0730) is
available through your dealer to be used as a oor
protector for the section under the insert body
only. Floor protection to front and sides of insert
appliance must be supplied in addition to this part.
E. Floor Protection
1. Zero Clearance Installations*
It is necessary to install a oor protection of non-
combustible material with a R value of 3.0 (1 inch
[25mm] minimum thickness with a “k” value of 0.58)
or a 1 inch (25mm) air space between insert base and
hearth.
2. Non-Zero Clearance Installations*
A non-combustible oor protector is required with a
minimum R value of 3.0 (1 inch [25mm] minimum
thickness with a “k” value of 0.58) extending 6 inches
(153mm) in front of the insert and 8 inches (203mm) to
each side of the door opening.
* See Thermal Resistance: R value.

12 7014-285C August 1, 2018
CB1200 Pellet Insert
Mark area of
floor to cut
Starter hole
F. Installation into a Factory-Built Fireplace
The following modications are permissible:
• Removal of damper or locked in open position
• Removal of smoke shelf or ba󰀪e
• Removal of ember catches
• Removal of re grate
• Removal of view screen/curtain
• Removal of doors
• Removal of factory-built replace oor
• External trim pieces which do not a󰀨ect the operation
of the replace may be removed providing they can be
stored on or within the replace for reassembly if the
insert is removed.
• The permanent metal warning label provided must be
attached to the back of the replace, with screws or
nails, stating that the replace may have been altered
to accommodate the insert, and must be returned to
original condition for use as a conventional replace.
Figure 12.1 Figure 12.2
Figure 12.3
250-2061
WARNING
THIS FIREPLACE MAY HAVE BEEN ALTERED
TO ACCOMMODATE AN INSERT. IT MUST BE
RETURNED TO ITS ORIGINAL CONDITION
BEFORE USE AS A SOLID FUEL BURNING
FIREPLACE. 250-2061
Heath & Home Technologies
250-2061
5.5 in. width x 2 in. height
NON. ANOD. ALUM BLACK LETTERS ON SILVER
with 1/8 in. holes on both sides.
Black letters
Figure 12.1
• If the hearth extension is lower than the replace
opening, the portion of the insert extending onto the
hearth must be supported.
• Manufacturer designed adjustable support kit can be
ordered from your dealer.
The following is only one example as there are many
di󰀨erent models of factory-built replaces.
Keep sharp edge of
metal floor away from
power cord
Figure 12.4
Place the insert into the factory-built rebox. Ensure that
the power cord can not be damaged by the sharp metal
edge. You may need to cut out a notch to accommodate
the cord.
Using a saws-all, cut out the oor.
Measure and mark the metal oor for cutting. With a drill,
make a starter hole in each corner.
NOTE: This example is for reference only. Any
modications must not compromise the structural
integrity or reduce the protection for combustible
materials.
NOTE: Refer to chimney liner manufacturer for
recommendations on supporting the liner.
Installation into replaces without a permit will
void the listing.
• The rebrick (refractory), glass doors, screen rails,
screen mesh and log grates can be removed from a
factory-built rebox in order to gain minimum insert
opening requirements.
• Any smoke shelves, shields and ba󰀪es may be
removed from a factory-built rebox if attached with
mechanical fasteners.
• The metal oor of the factory-built rebox may be
removed to facilitate the installation of the insert only
when a 1 inch (25mm) airspace is provided between
the insert and the oor of outer wrap.

August 1, 2018 7014-285C 13
CB1200 Pellet Insert
NOTICE: In Canada when using a factory-built chimney
it must be safety listed, Type UL103 HT
(2100
o
F) [1149oC] CLASS “A” or conforming
to CAN/ULC-S629M, STANDARD FOR 650oC
FACTORY-BUILT CHIMNEYS.
H. Prefabricated Metal Chimney
The chimney can be new or existing, masonry or prefabricated
and must meet the following minimum requirements:
• Must be minimum 6 inch (152mm) inside diameter of
high temperature chimney listed to UL 103 HT (2100oF)
or ULC-S628.
• Must use components required by the manufacturer for
installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation
• This insert is listed to ASTM E 1509-12 Standard and
is approved for installation into listed factory-built zero
clearance replaces listed to UL 127 conforming to the
following specications and instructions:
• The original factory-built clearance replace chimney
cap must be re-installed after installing the approved
chimney liner meeting type UL 103 HT requirements
(2100°F) per UL 1777.
• If the chimney is not listed as meeting HT
requirements, or if the factory built replace was tested
prior to 1998, a full height listed chimney liner must be
installed from the appliance ue collar to the chimney
top.
• The liner must be securely attached to the insert ue
collar and the chimney top.
• The air ow of the factory-built zero-clearance replace
system must not be altered. The ue liner top support
attachment must not reduce the air ow for the existing
air-cooled chimney system.
• No dilution air is allowed to enter the chimney.
Risk of Fire!
Follow venting manufacturer’s clearances and
instructions when installing venting system.
WARNING
NOTE
It is necessary to permanently seal any opening between
the masonry of the replace and the facing masonry.
1. Secure the replace damper in the open position. If
this cannot be accomplished, it will be necessary to
remove the damper
2. Seal damper area of chimney around chimney
connector with a high temperature sealant or seal insert
against the face of the replace.
3. Both methods must be removable and replaceable for
cleaning and re-installation.
• Removing oor of replace must not weaken
structure of rebox or reduce protection for
combustible materials.
• Final approval of this installation type is contingent
upon the appropriate local authority having
jurisdiction.
WARNING
G. Installation into a Masonry Fireplace
All modications that can be made to a Factory Built Fire-
place can be made to a Masonry Fireplace.
In addition DO NOT remove any brick or mortar from the
existing replace.

14 7014-285C August 1, 2018
CB1200 Pellet Insert
4 Vent Information
A. Venting Termination Minimum Requirements
J or K
X
V
M
I
H
A
V
G
B
V
V
A
B
V
FV
C
B
B
E
L
V
D
V
Electrical
Service
V
N
VN
V
N
N
V
Inside Corner
FIXED
CLOSED
OPEN
OPEN
FIXED
CLOSED
VX
G
G
Termination Cap Air Supply Inlet Gas Meter Restricted Area
O
P
Figure 14.1
A12 in. Above Finish Grade (the grade surface
must be a non-combustible material
B12 in.
48 in. no OAK
Open door or window: below or to the side
B12 in. Open door or window: above
C6 in. Permanently closed window: above, below
or to the side
D18 in.
36 in. no OAK
Vertical clearance to a ventilated so󰀩t
located above the terminal within a hori-
zontal distance of 2 ft from the center-line
of the terminal
E12 in. Clearance to unventilated so󰀩t
F12 in. Clearance to outside corner
G12 in. Clearance to inside corner
H36 in. Above gas meter/regulator measured from
horizontal center-line of regulator
I36 in. USA
72 in. Canada
Clearance to service regulator vent outlet
J12 in.
48 in. no OAK
Clearance to non-mechanical air supply
inlet to the building or the combustions air
inlet to any other appliance
K10 ft horizontal
3 ft vertical
Clearance to mechanical air supply
L7 ft. Above paved sidewalk, paved driveway
located on public property
M12 in. Under an open veranda, porch, deck or
balcony
NSee Note
below*
Electric service: above, below or to the
side (location must not obstruct or interfere
with access)
O24 in. Adjacent building, fences and protruding
parts of the structure
P12 in. Clearance above roof line for vertical
terminations
All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below.
24 in. Above grass, top of plants, wood or any other com-
bustible
12 in.
36 in. no OAK
Clearance from any forced air intake of other appli-
ance
12 in. Clearance horizontally from combustible wall
15 in. Vented directly through a wall, minimum length of
horizontal pipe
6 in. horizontal
12 in. vertical
Minimum horizontal or vertical terminations must
protrude from wall
*NOTE: Consult local building, re o󰀩cials or authorities
having jurisdiction. Local codes or regulations may
require di󰀨erent clearances.
NOTICE:
Do NOT Terminate Vent:
• In any location that will allow ue gases or soot from
entering or staining the building
• In any location which could create a nuisance or
hazard
• In any enclosed or semi-enclosed area such as a
carport, garage, attic, crawl space, under a sun deck or
porch, narrow walkway
• Closely fenced area, or any location that can build up
a concentration of fumes such as a stairwell, covered
breezeway, etc.
NOTICE:
Termination must exhaust above air inlet elevation.
• It is recommended that at least 60 inches (1.52m) of
vertical pipe be installed when appliance is vented
directly through a wall. This will create a natural draft,
which will help prevent the possibility of smoke or odor
venting into the home during a power outage.
• It will also keep exhaust from causing a nuisance
or hazard by exposing people or shrubs to high
temperatures.
• The safest and preferred venting method is to extend
the vent vertically through the roof or above the roof.

August 1, 2018 7014-285C 15
CB1200 Pellet Insert
B. Avoiding Smoke and Odors
Negative Pressure, Shut-Down and Electrical Power
Failure
To reduce the probability of back-drafting or burn-back
in the pellet appliance during power failure or shut down
conditions, it must be able to draft naturally without exhaust
blower operation.
Negative pressure in the house will resist this natural draft if
not accounted for in the pellet appliance installation.
Heat rises in the house and leaks out at upper levels. This
air must be replaced with cold air from outdoors which
ows into lower levels of the house.
Vents and chimneys into basements and lower levels of the
house can become the conduit for air supply and reverse
under these conditions.
Outside Air
An outside air kit is recommended in all installations. The
Outside Air Kit must be ordered separately.
Per national building codes, consideration must be given
to combustion air supply to all combustion appliances.
Failure to supply adequate combustion air for all appliance
demands may lead to back-drafting of those and other
appliances.
When the appliance is roof vented (strongly recommended):
The air intake is best located on the exterior wall
oriented towards the prevailing wind direction during
the heating season.
When the appliance is side-wall vented:
The air intake is best located on the same exterior wall
as the exhaust vent outlet and located lower on the wall
than the exhaust vent outlet.
The outside air supply kit can supply most of the demands
of the pellet appliance, but consideration must be given to
the total house demand.
House demand may consume the air needed for the
appliance. It may be necessary to add additional
ventilation to the space in which the pellet appliance is
located.
Consult with your local HVAC professional to determine the
ventilation demands for your house.
Vent Congurations
When installing a pellet appliance with a horizontal vent
conguration the frequency of power outages should be
considered:
• Power outages during operation will cause the
appliance to immediately turn o󰀨 and may create
conditions where smoke will back draft into the house.
In order to reduce the likelihood of smoke back drafting
into the house during a power outage, Hearth and
Home Technologies strongly suggests:
- Installing the pellet venting with a minimum vertical
run of 5 feet (1.52m).
- Installing the outside air kit at least 4 feet (1.22m)
below the vent termination.
To prevent soot damage to exterior walls of the house and
to prevent re-entry of soot or ash into the house:
• Maintain specied clearances to windows, doors and
air inlets, including air conditioners.
• Vents should not be placed below ventilated so󰀩ts.
Run the vent above the roof.
• Avoid venting into alcove locations.
• Vents should not terminate under overhangs, decks or
onto covered porches.
• Maintain minimum clearance of 12 inches (305mm)
from the vent termination to the exterior wall. If you
see deposits developing on the wall, you may need to
extend this distance to accommodate your installation
conditions.
CAUTION
• DO NOT CONNECT THIS Appliance TO A CHIMNEY
FLUE SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.

16 7014-285C August 1, 2018
CB1200 Pellet Insert
C. Negative Pressure
Negative pressure results from the imbalance of air
available for the appliance to operate properly. It can be
strongest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air
conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the e󰀨ects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are
not located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and
seams taped or sealed
WARNING
Risk of Asphyxiation!
Negative pressure can cause spillage of combustion
fumes and soot.
E. Chimney and Exhaust Connection
1. Chimney & Connector:Use 3 or 4 inch (76-102mm)
diameter type “L” or “PL” venting system. It can be vented
vertically or horizontally.
2. Mobile Home: Approved for all Listed pellet vent. If using
the 3 inch (76mm) vertical Top Vent Adapter Kit or the 3
to 6 inch (76-152mm) Top Vent O󰀨set Adapter, use Listed
double wall ue connector. A Quadra-Fire Outside Air Kit
must be used with manufactured home installations.
3. Residential: The 3 inch (76mm) vertical Top Vent
Adapter Kit and the 3 to 6 inch (76-152mm) Top Vent
O󰀨set Adapter are tested to use 24 gauge single wall ue
connector or Listed double wall ue connector to Class
A Listed metal chimneys, or masonry chimneys meeting
International Residential Code standards for solid fuel
appliances.
4. INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER.
5. Secure exhaust venting system to the appliance with at
least 3 screws. Also secure all connector pipe joints with
at least 3 screws through each joint.
6. DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST
VENTING SYSTEM OF THIS Appliance.
7. DO NOT CONNECT THIS Appliance TO A CHIMNEY
FLUE SERVING ANOTHER APPLIANCE.
NOTE: All pipe must be welded seam pipe whenever
possible. Seal pipe joints with high temperature silicone
(500°F [260°C] minimum rated only).
NOTE: If burning shelled eld corn, you must use
approved venting specically designed for corn. Follow
the instructions from the venting manufacturer.
D. Draft
Draft is the pressure di󰀨erence needed to vent an
appliance successfully. When an appliance is drafting
successfully, all combustion byproducts are exiting the
home through the chimney.
Install through the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die-down of the re.
Considerations for successful draft include:
• • Preventing negative pressure
• • Location of appliance and chimney
•
Notice: Hearth & Home Technologies assumes no
responsibility for the improper performance of the chimney
system caused by:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices

August 1, 2018 7014-285C 17
CB1200 Pellet Insert
Fire Risk.
• Only LISTED venting components may be
used.
• NO OTHER vent components may be used.
• Substitute or damaged vent components
may impair safe operation.
WARNING
RISK OF INJURY OR PROPERTY DAMAGE!
• Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
• Refer to the owner’s information manual
provided with this appliance.
• For assistance or additional information
consult a qualied installer, service agency
or your dealer.
WARNING
Figure 17.2
3 in. or 4 in. (76mm or
102mm) Diameter Pipe
3 in. or 4 in. (76mm or
102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEETALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only4 in. (102mm) Diameter Pipe Only
10
Example 1Example 1
Example 2
Example 2
Example 1: If the equivalent length of pipe is 23 feet (7m)
with altitude of 8,000 feet (2438m) you must use 4 inch
(102mm) diameter type “L” or “PL” vent.
Example 2: If the equivalent length of pipe is 12 feet
(3.7m) with altitude of 6,000 feet (1829m) you may use 3 or
4 inch (76 to 102mm) diameter type “L” or “PL” vent.
G. Pipe Selection Chart
The chart will help you in determining proper venting
size according to the equivalent feet of pipe calculated
previously and the altitude above sea level of this
installation (Figure 16.2).
a. Locate the calculated equivalent feet of pipe on the
vertical left side of the chart.
b. Move to the right horizontally on the chart until you
reach your altitude above sea level.
c. If you fall below the diagonal line, 3 or 4 inch (76 to
102mm) pipe may be used.
d. If it is anywhere above the diagonal line, a 4 inch
(102mm) diameter pipe is required.
NOTICE:
• A 90° elbow is 5 times as restrictive to the ow of
exhaust gases under positive pressure as 1 foot
(305mm) of horizontal pipe.
• A foot of horizontal pipe is twice as restrictive as a foot
of vertical pipe.
F. Equivalent Feet of Pipe
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent
size (Figure 17.1).
Example of 3 Elbow-Rear Vent Termination
Calculation
Figure 17.1
2 ft.
2 ft.
3 ft.
2 ft.
NOTE: This is a generic example and is not intended to
represent any specic fuel type.
Pellet
Venting
Component
90°
Elbow
or Tee
45°
Elbow
Horizontal
Pipe
Vertical
Pipe
# of Elbows 3
Feet of Pipe 7 2
Multiplied
By X X X X
Equivalent
Feet 5 3 1 0.5
Components
Equivalent
Feet
15 7 1
Total
Equivalent
Feet
23
Vent surfaces get HOT, can cause burns
if touched. Non-combustible shielding or
guards may be required.
WARNING

18 7014-285C August 1, 2018
CB1200 Pellet Insert
NOTE:
In Canada, where passage through a wall or partition of
combustible construction is desired, the installation shall
conform to CAN/CSA-B365.
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be a minimum 6
inch (152mm) UL103 HT.
WARNING
CAUTION
Never draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
NOTE:
• Illustrations reect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
Outside Air through Rear
Wall (Horizontal)
NOTE; Use metal plate around
exhaust vent pipe and seal all
edges with non-flammable insu-
lation such as mineral wool or
ceramic.
Do not use high temperature
caulking materials to seal any
edge to prevent furture service-
ability.
Figure 18.1
5 Venting Systems
A. Full Reline With Outside Air - Horizontal

August 1, 2018 7014-285C 19
CB1200 Pellet Insert
B. Full Reline With Outside Air - Vertical
NOTE: Check clearances carefully for this type
of installation to ensure adequate room for
outside air venting.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, re o󰀩cials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
NOTE: In Canada only a full reline is allowed per ULC
S628, ORD ULC C1482-M1990.
Figure 19.1
Outside Air
Te rmination
at
Chimney To p
(Vertical)
305mm min.
below
305mm min.
above
NOTE; Use metal plate around
exhaust vent pipe and seal all
edges with non-flammable insula-
tion such as mineral wool or
ceramic.
Do not use high temperature caulk-
ing materials to seal any edge to
prevent furture serviceability.
NOTE: In Canada this replace insert must be installed
with a continuous chimney liner extending from
the replace insert to the top of the chimney.
The chimney liner must conform to the Class 3
requirements of CAN/ULC-S635, Standard for
Lining Systems for Existing Masonry or Factory-
Built Chimneys and Vents, or CAN/ULC-S640,
Standard for Lining Systems for New Masonry
Chimneys.

20 7014-285C August 1, 2018
CB1200 Pellet Insert
6 Appliance Set-Up
A. Rear Shroud Installation
Tools Required:
Electric drill, #26 drill bit, Phillips screw driver, 3/8 inch
wrench, and 7/16 inch socket wrench.
Needed to complete installation of the Rear Shroud
Assembly; 811-0680, will need to purchase one of the
following kits:
or
3 Inch Top Vent
Adapter (811-0660)
4 Inch Top Vent
Adapter (811-0670)
Do not drill any holes into the appliance until the
shroud assembly is attached to the appliance via
screws completely; this will ensure the holes line up
between the appliance and the shroud assembly.
Figure 20.4
Figure 20.5
Figure 20.3
Attach bolts and nuts in
these locations.
Figure 20.1
Figure 20.2
Remove top vent
adapter from the
this adapter
Use the two holesUse the two holes
Note for the follow step verify the use of the correct
hole placement for the ller piece attachment.
Verify gasket is installed between adapters before moving
onto the next step. Failure to do so may cause leaking of
soot and smoke into the home.
1. Remove the top vent adapter from the vertical exhaust
transition pipe (Figures 20.1 and 20.2).
2. Using a Phillips head screwdriver and two screws to
attach Filler Bracket (Figure 20.3).
3. Using a 3/8-nch wrench and 7/16-inch socket wrench
fasten Rear Shroud Top Vent to the the exhaust
transition with two bolts and two nuts. Secure with two
clamps from the appliance (Figures 20.4 and 20.5).
