Quadra-Fire DISCOVERY-III User manual

1 7037-158C August 01, 2016
DISCOVERY III WOOD APPLIANCE
Automatic Combustion Control (ACC)
Model: DISCOVERY-III
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
WARNING
If the information in these instruc-
tions is not followed exactly, a
re could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overre - If appliance or chimney
connector glows, you are overring. Overr-
ing will void your warranty.
• Comply with all minimum clearances to
combustibles as specied. Failure to
comply may cause house re.
WARNING
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may overre and generate
poisonous gases (i.e. carbon monoxide).
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrare.com
Pour obtenir une traduction française de ce manuel, s’il vous
plaît contacter votre revendeur ou visitez www.quadrare.com
O-T L
Tested and
Listed by
Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
Installation and service of this
appliance should be performed by
quali ed personnel. Hearth & Home
Technologies recommends HHT
Factory Trained or NFI certified
professionals.

2 7037-158C August 01, 2016
Discovery III
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products, their
specications and/or price without notice.
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
1Important Safety Information...........3
A. Appliance Certication.............................................3
B. BTU & Efciency Specications ..............................3
C. Mobile Home Approved........................................... 3
D. Glass Specications................................................3
E. Non-Combustible Materials......................................3
F. Combustible Materials ..............................................3
2Getting Started ..................................4
A . Design and Installation Considerations ....................... 4
B. Fire Safety................................................................4
C. Negative Pressure .................................................5
D. Tools And Supplies Needed ....................................5
E. Inspect Appliance and Components........................5
F. Install Checklist.........................................................6
3Dimensions and Clearances ............7

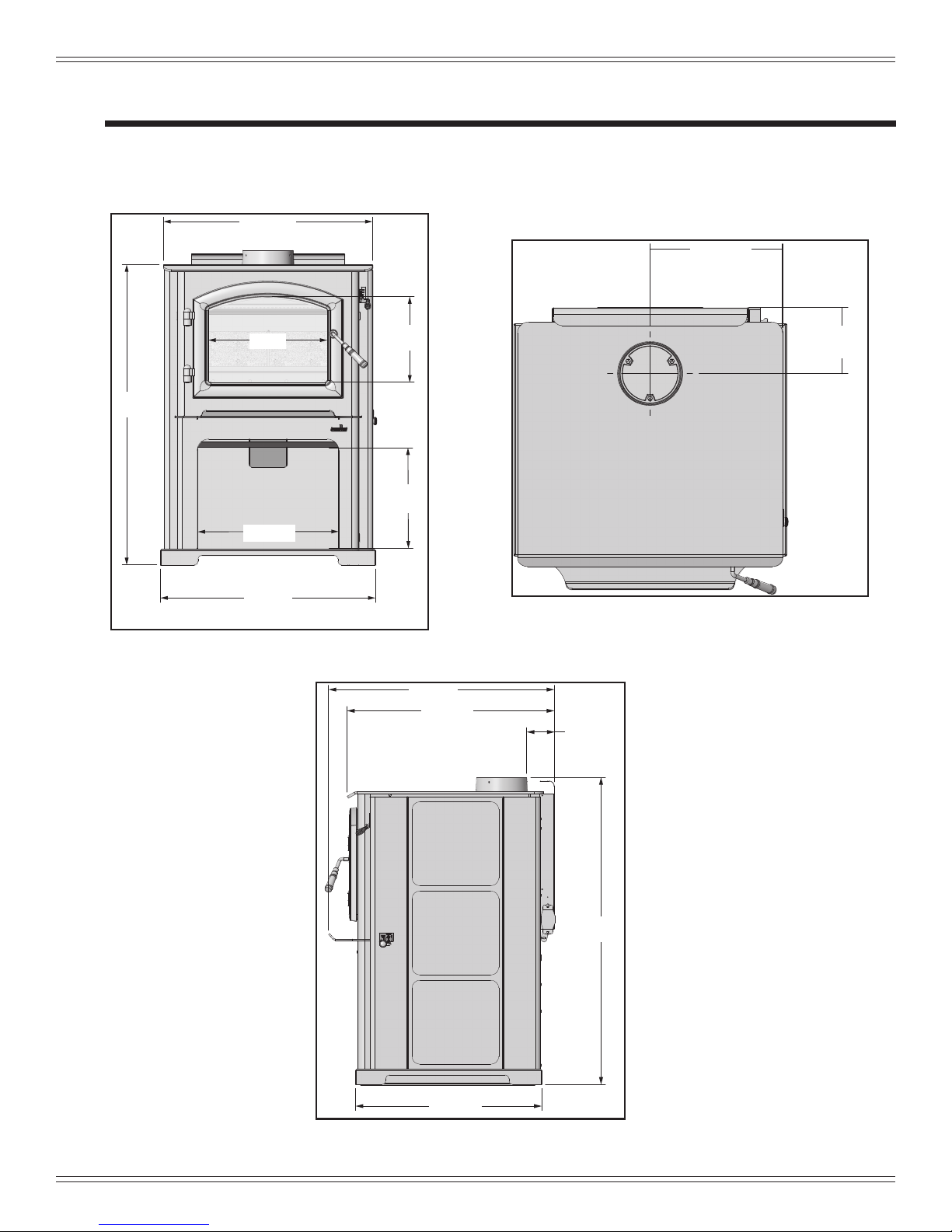

A. Appliance Dimensions.............................................7
B. Hearth Protection Requirements.............................8
C. Clearances to Combustibles ...................................9
4Chimney Systems ...........................10
A. Locating Your Appliance & Chimney .......................10
B. Chimney Termination Requirements .......................11
C. 2-10-3 Rule ............................................................11
D. Chimney Height/Rise and Run ...............................12
E. Venting Components ..............................................12
F. Chimney Systems....................................................12
G. Installing Chimney Components ..............................14
H. Proper Draft ...........................................................14
5Appliance Set-Up ............................15
A. Outside Air Kit Installation .......................................15
B. Decorative Panel Removal & Installation ................16
C. Door Handle Assembly ...........................................17
D. Blower (Optional) ....................................................17
6Mobile Home Installation................18
7Accessory List ................................19

August 01, 2016 7037-158C 3
Discovery III
The Quadra-Fire Discovery III Wood Appliance meets the
U.S. Environmental Protection Agency’s crib wood emission
limits for wood appliances sold after May 15, 2015.
A. Appliance Certication
B. BTU & Efciency Specications
Model: Discovery III Wood Appliance
Laboratory: OMNI Test Laboratories, Inc.
Report No & Date: 061-S-67-6
Type: Listed Room Appliance, Solid Fuel
Type
Standard: UL1482 and ULC S627-00 and (UM)
84-HUD, Mobile Home Approved.
EPA Certication #: 656
EPA Certied Emissions: 1.00 grams per hour
*LHV Tested Efciency: 80.2 %
**HHV Tested Efciency: 74.2 %
***EPA BTU Output: 11,800 to 38,300 / hr.
****Peak BTU/Hour Output: 63,700
Vent Size: 6 inches
Firebox Size: 2.3 cubic feet
Recommended Wood Length: 18 inches
Fuel Orientation: Front-to-Back
Fuel Seasoned Cord Wood
*Weighted average LHV (Low Heating Value) efciency using
Douglas Fir dimensional lumber and data collected during EPA
emission test. LHV assumes the moisture is already in a vapor
state so there is no loss in energy to vaporize.
**Weighted average HHV (High Heating Value) efciency using
Douglas Fir dimensional lumber and data collected during EPA
emission test. HHV includes the energy required to vaporize the
water in the fuel.
***A range of BTU outputs based on EPA Default Efciency and
the burn rates from the low and high EPA tests, using Douglas
Fir dimensional lumber.
****A peak BTU out of the appliance calculated using the max-
imum rst hour burn rate from the High EPA Test and the BTU
content of cordwood (8600) times the efciency.
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products, their
specications and/or price without notice.
C. Mobile Home Approved (USA ONLY)
• This appliance is approved for mobile home installa-
tions in the USA when not installed in a sleeping room
and when an outside combustion air inlet is provided.
• The structural integrity of the mobile home oor, ceil-
ing, and walls must be maintained.
• The appliance must be properly grounded to the frame
of the mobile home with #8 copper ground wire.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
Hearth & Home Technologies WILL NOT warranty appli-
ances that exhibit evidence of over-ring. Evidence of
over-ring includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated bafe and other interior components
D. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please con-
tact your dealer for replacement glass.
NOTE: This installation must conform with local codes.
In the absence of local codes you must comply with the
UL1482-07, (UM) 84-HUD and NFPA211 in the U.S.A. and
the ULC S627-00 and CAN/CSA-B365 Installation Codes
in Canada. NOT APPROVED FOR MOBILE HOME
INSTALLATIONS IN CANADA!
F. Combustible Materials
Material made of/or surfaced with any of the following ma-
terials:
- Wood - Compressed Paper
- Plant Fibers - Plastic
- Plywood/OSB - Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or un-plastered.
E. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel - Plaster
- Brick - Iron
- Concrete - Tile
- Glass - Slate
Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace of 750° C.
1 Important Safety Information

4 7037-158C August 01, 2016
Discovery III
Install Guide
2 Getting Started
A. Design and Installation Considerations
Consideration must be given to:
• Safety
• Convenience
• Trafc ow
• Chimney and chimney connector required
It is a good idea to plan your installation on paper, using exact
measurements for clearances and oor protection, before
actually beginning the installation. If you are not using an
existing chimney, place the appliance where there will be a
clear passage for a factory-built listed chimney through the
ceiling and roof.
We recommend that a qualied building inspector and your
insurance company representative review your plans before
and after installation.
If this appliance is in an area where children may be near it is
recommended that you purchase a decorative barrier to go
in front of the appliance. Remember to always keep children
away while it is operating and do not let anyone operate
this appliance unless they are familiar with these operating
instructions.
WARNING
• DO NOT CONNECT THIS APPLIANCE TO A CHIM-
NEY FLUE SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.
May allow ue gases to enter the house.
Asphyxiation Risk.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building, re ofcials or authori-
ties having jurisdiction about restrictions, installation inspection,
and permits.
CAUTION
NOTICE: HEARTH & HOME TECHNOLOGIES ASSUMES NO
RESPONSIBILITY FOR THE IMPROPER PERFORMANCE
OF THE APPLIANCE SYSTEM CAUSED BY:
• Inadequate draft due to environmental conditions
• Downdrafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
• Overdrafting caused by excessive chimney heights
• Ideal performance is with height of chimney between 14-16
feet (4.26-4.88m) measured from the base of the appliance.
B. Fire Safety
To provide reasonable re safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each oor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
2. A conveniently located Class A fire extinguisher to
contend with small res resulting from burning embers.
3. A CO detector should be installed in the room with the
appliance.
4. A practiced evacuation plan, consisting of at least two
escape routes.
5. A plan to deal with a chimney re as follows:
In the event of a chimney re:
a Evacuate the house immediately
b. Notify re department.

August 01, 2016 7037-158C 5
Discovery III
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
• Operating appliance without fully assembling all components.
• Operating appliance without legs attached (if supplied with
appliance).
• Do NOT Overre - If appliance or chimney connector glows,
you are overring.
Any such action that may cause a re hazard.
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
C. Negative Pressure
Negative pressure results from the imbalance of air avail-
able for the appliance to operate properly. It can be stron-
gest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the effects of negative air pressure:
• Install optional outside air kit with the intake facing
prevailing winds during the heating season
• Ensure adequate outdoor air for all combustion appliances
and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed
• Basement installations should be avoided
WARNING
• Negative pressure can cause spillage of com-
bustion fumes, soot and carbon monoxide.
• Appliance needs to draft properly for safety.
Asphyxiation Risk.
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
Reciprocating saw Framing material
Pliers High temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits
Plumb line Safety glasses
Level Tape measure
Misc. screws and nails
1/2-3/4 in. length, #6 or #8 self-drilling screws
• Remove appliance and components from packaging and
inspect for damage.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the
installation to ensure maximum safety and benet.
E. Inspect Appliance and Components
Inspect appliance and components for damage.
Damaged parts may impair safe operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Fire Risk.

6 7037-158C August 01, 2016
Discovery III

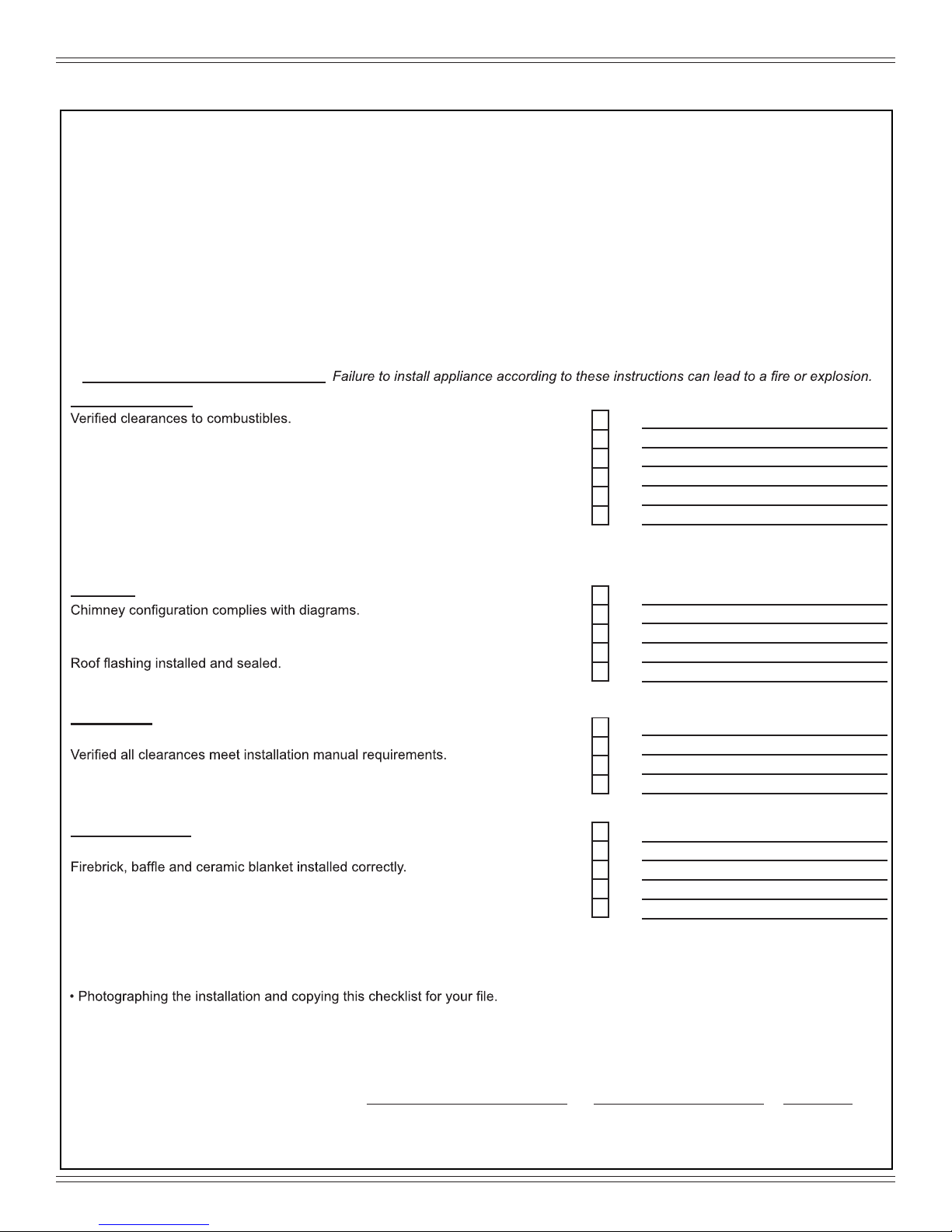

F. Install Checklist
Appliance Install
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Chimney
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (14-16 feet).
Terminations installed and sealed.
Clearances
Combustible materials not installed in non-combustible areas.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Appliance Setup
All packaging and protective materials removed.
All labels have been removed from the door.
All packaging materials are removed from inside/under the appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual.
Customer: __________________________________________________________________________
Date Installed: __________________________________________________________________________
Lot/Address: __________________________________________________________________________
Location of Appliance: ______________________________________________________________
Installer: __________________________________________________________________________
Dealer/ Distributor Phone #: ______________________________________________________________
Serial #: __________________________________________________________________________
Model : __________________________________________________________________________
WARNING! Risk of Fire or Explosion!
Hearth & Home Technologies recommends the following:
• That this checklist remain visible at all times on the appliance until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible by on
(Builder/Gen. Contractor) (Installer) (Date)
YES IF NO, WHY?

August 01, 2016 7037-158C 7
Discovery III
26-5/16 [668]
28-5/8 [728]
40-1/4
[1021]
23-5/16 [600]
3-1/2 [89]
Figure 7.1 Front View
Figure 7.3 Side View
26-1/2 in. [673]
38-3/8
[975]
15 [383]
11 in.
[278]
27-1/4 [692]
13-1/4
[337]
17-7/8 [454]
Figure 7.2 Top View
6-3/4
[170]
13-1/4 [337]
3 Dimensions and Clearances
A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)

8 7037-158C August 01, 2016
Discovery III
16 in. from glass
8 in.
Fuel loading door
31-1/2 in.
minimum
41 in.
minimum
Figure 8.2Figure 8.1 Figure 8.3
203mm
203mm 203mm
457mm
Must extend 2 in.
(51mm) beyond
each side of pipe
(shaded area)
1295mm
minimum
1073mm
minimum
B. Hearth Protection Requirements
FLOOR PROTECTION: Floor protector must be non-combus-
tible material, extending beneath appliance and to the front,
sides and rear as indicated. The oor must be non-combusti-
ble or otherwise adequately protected from radiant heat given
off by the appliance and from sparks and falling embers. A
layer of thin brick or ceramic tile over a combustible oor is
not sufcient.
I t is necessary to install a Type I oor protector with a min-
imum of 16 inches (406mm) in front of glass and 8 inches
(203mm) to both sides of the fuel loading door. Open the
door and measure 8 inches (203mm) from the side edge of
the opening in the face of the appliance.
In Canada, similar oor protection must be provided 18 inches
(457mm) in front and 8 inches (203mm) from the sides and
rear of the appliance. Figure 8.2 *See exception.
*EXCEPTION: Non-combustible floor protections must
extend beneath the ue pipe when installed with horizontal
venting and extend 2 inches (51mm) beyond each side. See
Figure 8.2
WARNING
Fire Risk.
Hearth pads must be installed exactly as specied.
High temperatures or hot embers may ignite concealed
combustibles.
27-3/8 in.
37 in.
66 in.
135°
56-3/8 in.
USA
CANADA
USA
775mm
946mm
1747mm
135°
1499mm
Figure 8.4 CANADA
695mm
940mm
78mm
135°
1297mm
CANADA
Figure 8.5 Figure 8.6
775mm
946mm
1747mm
135°
1499mm
USA
Corner hearth pad dimensions
with single wall pipe
Corner hearth pad dimensions
with double wall pipe

August 01, 2016 7037-158C 9
Discovery III
C. Clearances to Combustibles
BACKWALL / SIDEWALL
A B
C
D
EF
F
E
CORNER INSTALLATION
C
ALCOVE TOP VIEW
GA
ALCOVE SIDE VIEW
NOTE: Clearances may only be reduced by means
approved by the regulatory authority having jurisdiction
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in inches (Millimeters)
Note: A, C, and F Dimensions are to the center of the flue collar
DISCOVERY-III
INSTALLATION: FULL VERTICAL
A B C D E F G H*
SINGLE WALL PIPE 18-1/2 (470) 11-3/4 (298) 27-1/2 (699) 14-1/2 (368) 10 (254) 20-1/2 (521) 53-1/2 (1359) 12 (305)
DOUBLE WALL PIPE 12 (305) 5-1/4 (133) 27-1/2 (699) 14-1/2 (368) 10 (254) 20-1/2 (521) 53-1/2 (1359) 12 (305)
INSTALLATION: 90 DEGREE ELBOW OFF TOP OF STOVE THROUGH BACKWALL
DOUBLE WALL PIPE 11-1/2 (292) 6 (152) 27-1/2 (699) 15 (381) 10 (254) 20-1/2 (521) 53-1/2 (1359) N/A
INSTALLATION: ALCOVE
DOUBLE WALL PIPE 16 (406) 10 (254) 27 (686) 14-1/2 (368) N/A N/A 53-1/2 (1359) 12 (305)
For alcove only: Six inch diameter listed Double wall air insulated connector pipe with UL103 HT listed factory built Class
A chimney or masonry chimney. Maximum depth of Alcove shall be no more than 48 inches (1219mm) and the referenced
alcove clearances. Canada must comply with CAN/ULC-S269 M87 for the 650° factory built chimney.
* FOLLOW PIPE MANUFACTURES CLEARANCES AS REQUIRED
G
*
90° OFF TOP
UP & OUT CEILING
CLEARANCE
STOVE TO CEILING
CLEARANCE
H
13-1/4 in.
(337mm)
23 (584mm)

10 7037-158C August 01, 2016
Discovery III
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 10.1

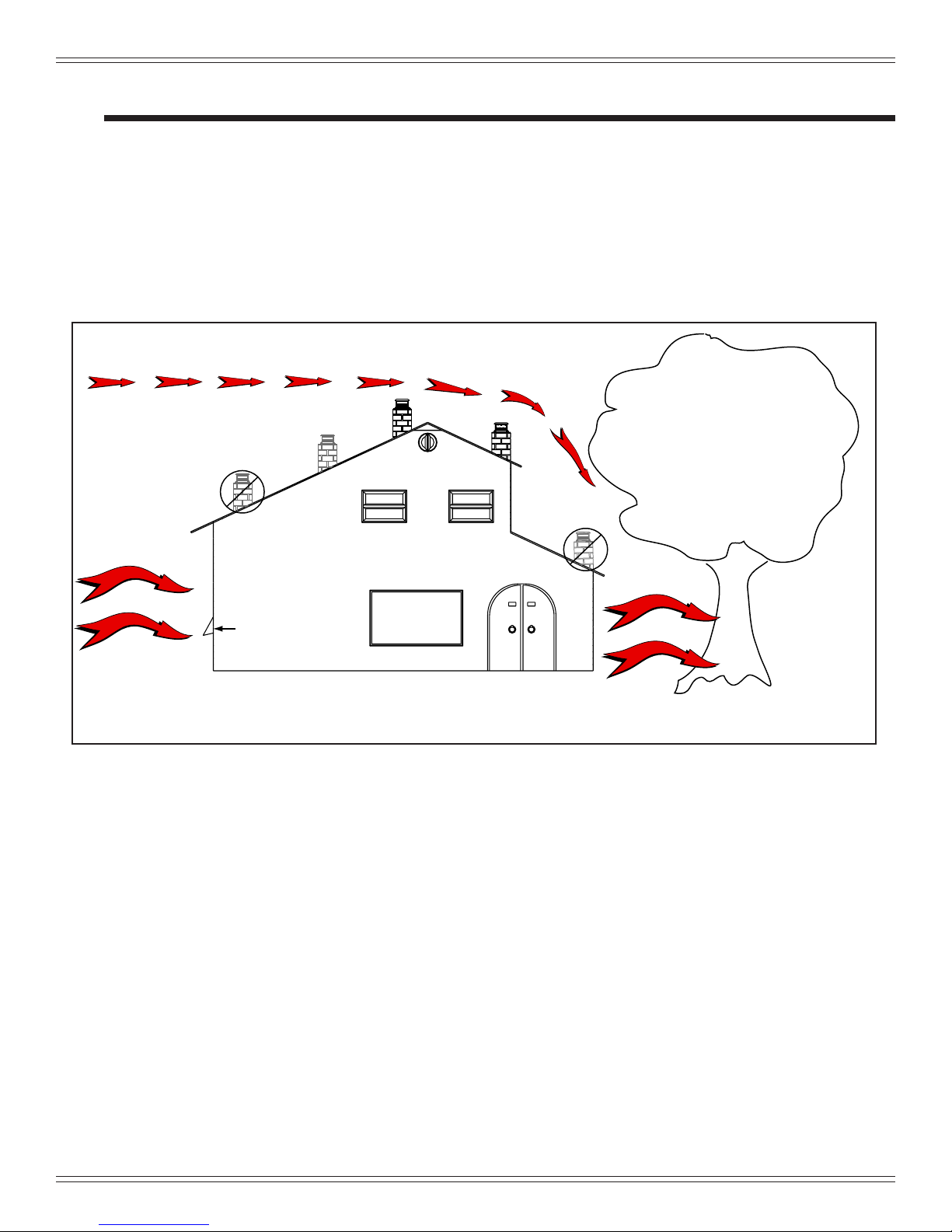

A. Locating Your Appliance & Chimney
Location of the appliance and chimney will affect perfor-
mance. As shown in Figure 10.1 the chimney should:
• Install through the warm space enclosed by the build-
ing envelope. This helps to produce more draft, espe-
cially during lighting and die down of the re.
• Penetrate the highest part of the roof. This minimizes
the affects of wind turbulence and down drafts.
• Consider the appliance location in order to avoid oor
and ceiling attic joists and rafters.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
Your local dealer is the expert in your geographic area and
can usually make suggestions or discover solutions that will
easily correct your ue problem.
4 Chimney Systems

August 01, 2016 7037-158C 11
Discovery III
3 ft. (91cm)
Minimum
Less than 10 ft. (305cm)
2 ft. (61cm) 3 ft. (91cm)
Minimum
10 ft. (305cm) To Nearest Roofline
2 ft. (61cm)
Pitched Roof
Figure 11.1
Figure 11.2
10 ft. (305cm) or more
3 ft. (91cm) Minimum
Less than 10 ft. (305cm)
2 ft. (61cm) Minimum
3 ft. (91cm) Minimum
Wall or Parapet
Flat Roof

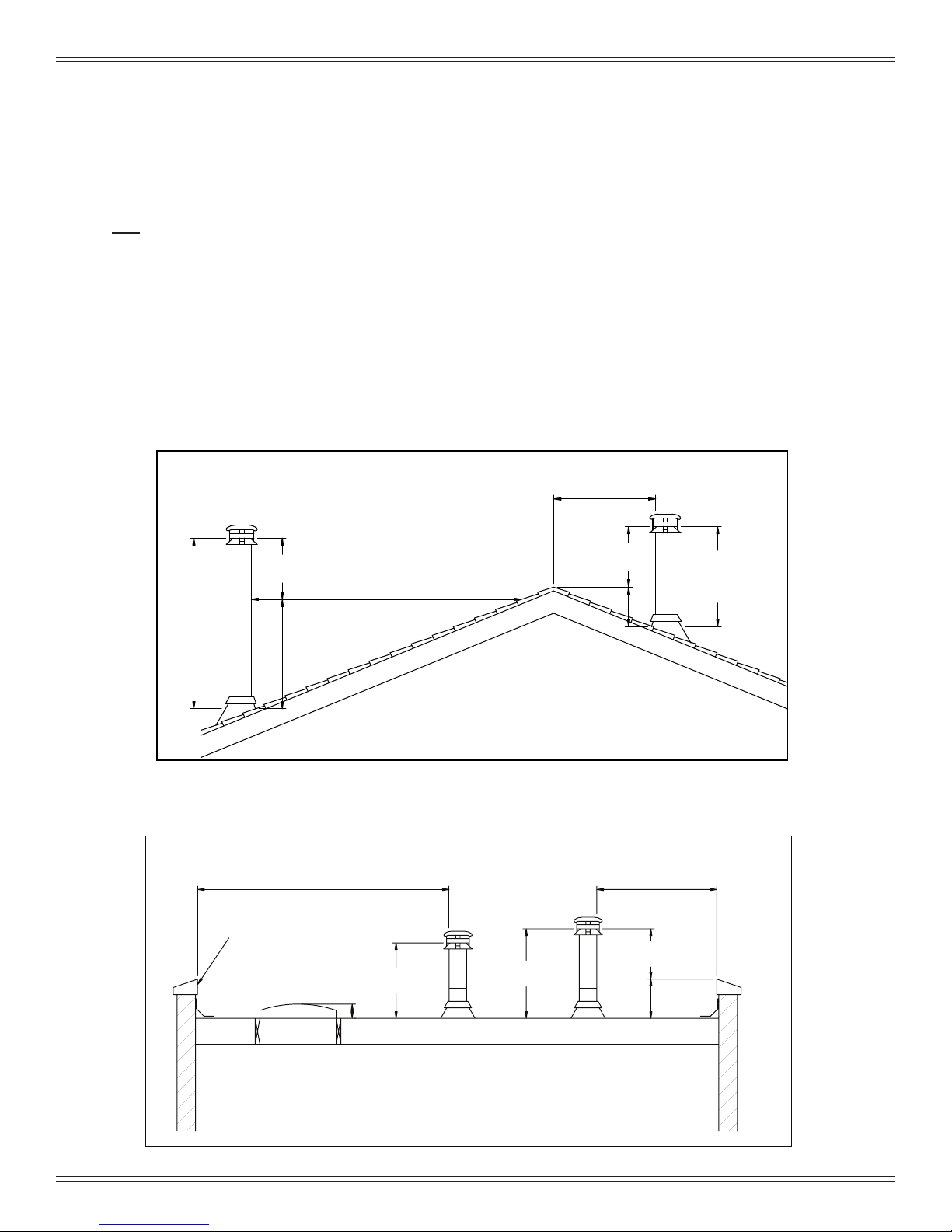

C. 2-10-3 Rule
These are safety requirements and are not meant to
assure proper ue draft.
This appliance is made with a 6 inch (152mm) diameter
chimney connector as the ue collar on the appli-
ance.
• Changing the diameter of the chimney can affect draft
and cause poor performance.
• It is not recommended to use offsets and elbows at
altitudes above 4000 feet above sea level and or when
there are other factors that affect ue draft.
B. Chimney Termination Requirements
Follow manufacturer’s instructions for clearance, securing
ashing and terminating the chimney. Fig. 11.1 & 11.2
•Must have an approved and Listed cap
•Must not be located where it will become plugged by
snow or other material
• Must terminate at least 3 feet (91cm) above the roof
and at least 2 feet (61cm) above any portion of the
roof within 10 feet (305cm).
• Must be located away from trees or other structures
NOTICE:
• Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions affect
performance.
• Chimney height may need adjustment if smoking or
overdraft occurs.
NOTICE: Locating the appliance in a basement or in a
location of considerable air movement can cause intermittent
smoke spillage from appliance. Do not locate appliance near
• Frequently open doors
• Central heat outlets or returns

12 7037-158C August 01, 2016
Discovery III
NOTE: In Canada when using a factory-built chimney it must
be safety listed, Type UL103 HT (2100
o
F) CLASS “A” or
conforming to CAN/ULC-S629M, STANDARD FOR 650oC
FACTORY-BUILT CHIMNEYS.
F
loor
Pr
otector
Chimney
Connector
Insulated "T "
Flashing
Listed Termination Cap
Trim Collar on
Inside Wall Listed Chimney
Storm Collar
Wall Support
Roof Brace (if required)
Thimble

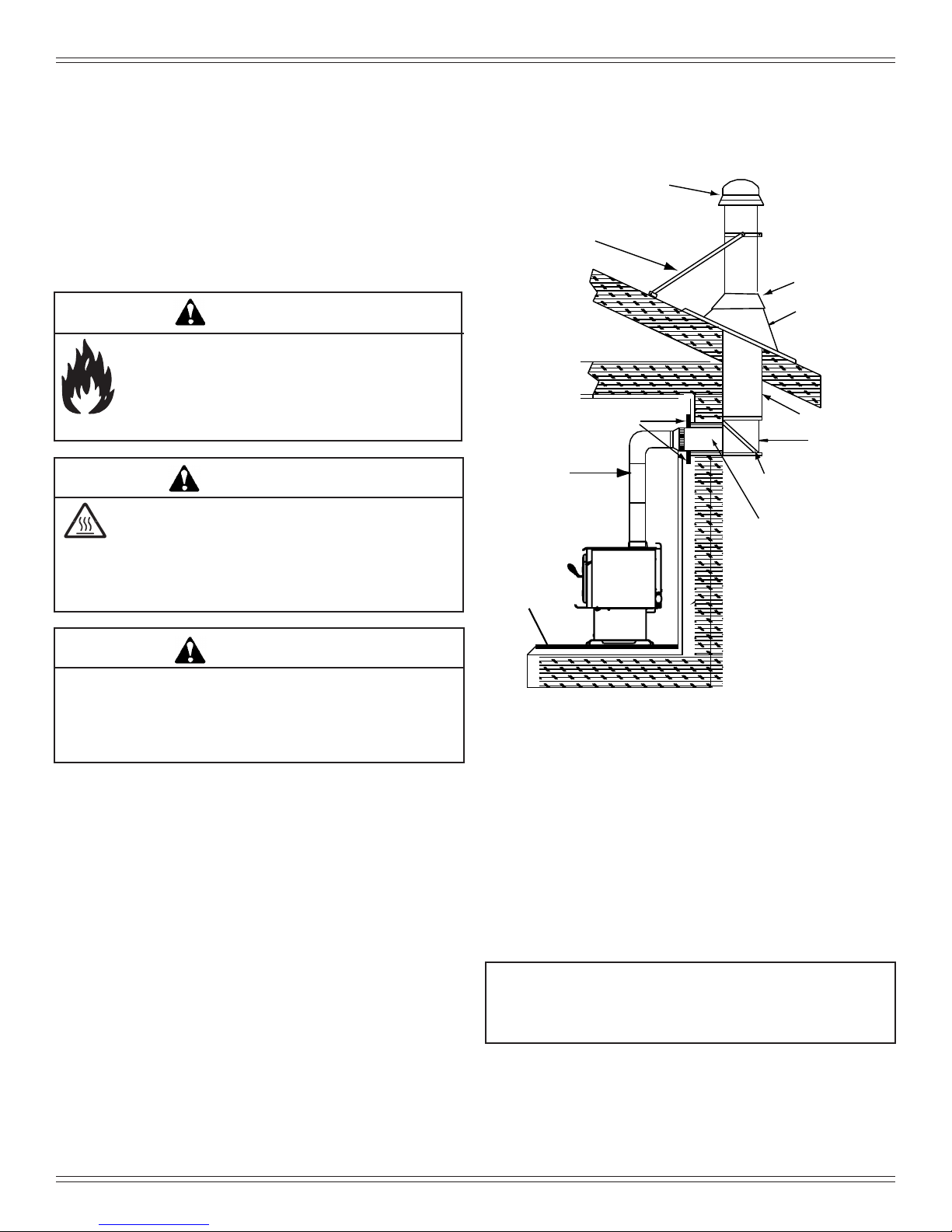

Figure 12.1 Prefabricated Exterior Chimney
E. Venting Components
Chimney Connector:
It is also known as ue pipe or appliance pipe. The chimney
connector joins the appliance to the chimney. It must be a 6
inch (152mm) minimum diameter 24 gauge mild steel black
or 26 gauge blued steel, or an approved air-insulated double
wall venting pipe.
Thimble:
A manufactured or site-constructed device installed in
combustible walls through which the chimney connector
passes to the chimney. It is intended to keep the walls
from igniting. Site constructed thimbles must meet NFPA
211 Standards. Prefabricated must be suitable for use with
selected chimney and meet UL103 Type HT Standards. Follow
instructions provided by the manufacturer for manufactured
thimbles for masonry chimney and prefabricated chimneys.
F. Chimney Systems
Prefabricated Metal Chimney
• Must be minimum 6 inch (152mm) diameter (ID) high
temperature chimney listed to UL 103 HT (2100oF) or
ULC S629M.
• Must use components required by the manufacturer
for installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation.
D. Chimney Height / Rise and Run
This product was designed for and tested on a 6 inch (152mm)
chimney, 14 to 16 feet (420-480cm) high, (includes appliance
height) measured from the base of the appliance. The further
your stack height or diameter varies from this conguration,
the greater the likelihood it may affect performance.
Chimney height may need to be increased by 2 - 3% per
each 1000 feet above sea level. It is not recommended to
use offsets or elbows at altitudes above 4000 feet above sea
level or when there are other factors that affect ue draft.
WARNING
Asphyxiation Risk.
• DO NOT CONNECT THIS Appliance TO A CHIM-
NEY FLUE SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.
May allow ue gases to enter the house.
Improper installation, adjustment, alteration, service or main-
tenance can cause injury or property damage. Refer to the
owner’s information manual provided with this appliance. For
assistance or additional information consult a qualied installer,
service agency or your dealer.
WARNING
Fire Risk.
Inspection of Chimney:
• Chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch (152mm) UL103 HT.
WARNING
Chimney:
The chimney can be new or existing, masonry or prefabricated
and must meet the following minimum requirements and as
specied in Section 4F.

August 01, 2016 7037-158C 13
Discovery III
Floor
Protector
Chi
mney
Conne
ctor
Ceiling Support
Listed Chimney
Listed Termination Cap
Storm Collar
Flashing
Figure 13.1 - Prefabricated Interior Chimney
Thimble
Site constructed for masonry chimney installation:
Components
• A minimum length of 12 inches [305mm] (longer for
thicker walls) of solid insulated factory-built chimney
length constructed to UL 103 Type HT 6 inch (152mm)
inside diameter. Chimney needs to extend a minimum
of 2 inches (51mm) from the interior wall and a minimum
of 1 inch (25mm) from the exterior wall.
• Wall spacer, trim collar and wall band to t solid pack
chimney selected.
• Minimum 8 inch (203mm) diameter clay liner section (if
not already present in chimney) and refractory mortar.
• When jurisdiction requires install approved chimney
liner in masonry chimney.
Air Clearances
• Masonry chimney clearance must meet NFPA 211 mini-
mum requirement of 2 inches (51mm) to sheet metal sup-
ports and combustibles.
• Minimum of 1 inch (25mm) clearance around the chim-
ney connector.
• Top of wall opening is a minimum of 13-1/2 inches
(343mm) from ceiling or 4-1/2 inches (114mm) below
minimum clearance specied by chimney connector
manufacturer. NFPA 211 minimum vertical clearance of
18 inches (457mm) from chimney connector and ceiling
or minimum recommended by chimney connector manu-
facturer. Figure 13.2
Instructions:
1. Open inside wall at proper height for the chimney con-
nector to entry the masonry chimney. Figure 13.2
2. Entry hole to masonry chimney must be lined with an 8
inch (203mm) minimum diameter clay liner, or equiva-
lent, secured with refractory mortar.
3. Construct a 17 inch x 17 inch (432mm x 432mm) outside
dimension frame from 2 x 2 framing lumber to t into wall
opening. Inside opening of frame should be no less than
14 inch x 14 inch (356mm x 356mm). Figure 13.2
4. Attach the wall spacer to the chimney side of the frame.
5. Nail the frame into the wall opening. The spacer should
be on the chimney side.
6. Insert the section of the solid insulated chimney into the
outer wall of the masonry chimney.
7. Tightly secure the length of the solid insulated chimney
with the wall band to the masonry chimney.
8. Insert a section of chimney connector into the chimney.
Make sure it does not protrude past the edge of the clay
chimney liner inside the chimney.
9. Seal the end of the chimney connector to the clay liner
with refractory mortar.
10. Install trim collar around the sold pack chimney section .
Figure 13.2
1.5”
1.0”
2.0”
2.0”
1.5”
14.0” ID
17.0” OD
ceiling
Minimum18.0”
NFPA 211
13.5” below ceiling to top
of opening
1.0”
8.0”
1.5 2x2 framing stud
2.0 min air clearance
1.0 min air clearance
4.5
or top of opening is a min.of
4.5” below min.clearance
specified by connector mfg.
Center of Hole
Thimble
C
L
C
L
Wall
Include depth
of hearth pad

14 7037-158C August 01, 2016
Discovery III
Trim Collar
Chimney Section
with 2 inch
(51mm)
Clearance to
Combustibles
Chimney
Connector
Fire Clay Flue
Liner
with Airspace
Masonry
Chimney
Wall Band to
Secure Chimney
Section
Wood Studs Used
for Framing - Spaced
2 inch (51mm)
clearance from
Masonry Chimney
Wall Spacer
Solid Pack Chimney with Metal Supports as a Thimble
Figure 14.1
Fire Risk.
Do NOT pack insulation or other combustibles between
spacers.
• ALWAYS maintain specied clearances around vent-
ing and spacers.
• Install spacers as specied.
Failure to keep insulation or other material away from vent pipe
may cause re.
WARNING
Flue Gas
Direction
Crimped
End
Toward
Appliance
Secure pipe sections with a
minimum of 3 screws
Figure 14.3 Chimney Connector (Appliance Pipe)
WARNING
ONLY use connector:
• Within the room, between appliance and ceiling or wall.
Connector shall NOT pass through:
• Attic or roof space
• Closet or similar concealed space
• Floor or ceiling
Maintain minimum clearances to combustibles
Fire Risk.
Follow Chimney Connector Manufacturer’s
Instructions for Proper Installation.
Chimney Flue
Liner
Fireclay
Liner or
Equivalent
Masonry Chimney
Constructed to NFPA 211
Wall Spacer
Wall Band
Trim Collar
Chimney
Connector
1 inch (25mm) Air
Space to Chimney
Section
Min. Clearance
2 inch (51mm)
Min. Chimney Clearance to
Wall Spacer and
Combustibles - 2 inch (51mm)
Chimney Section

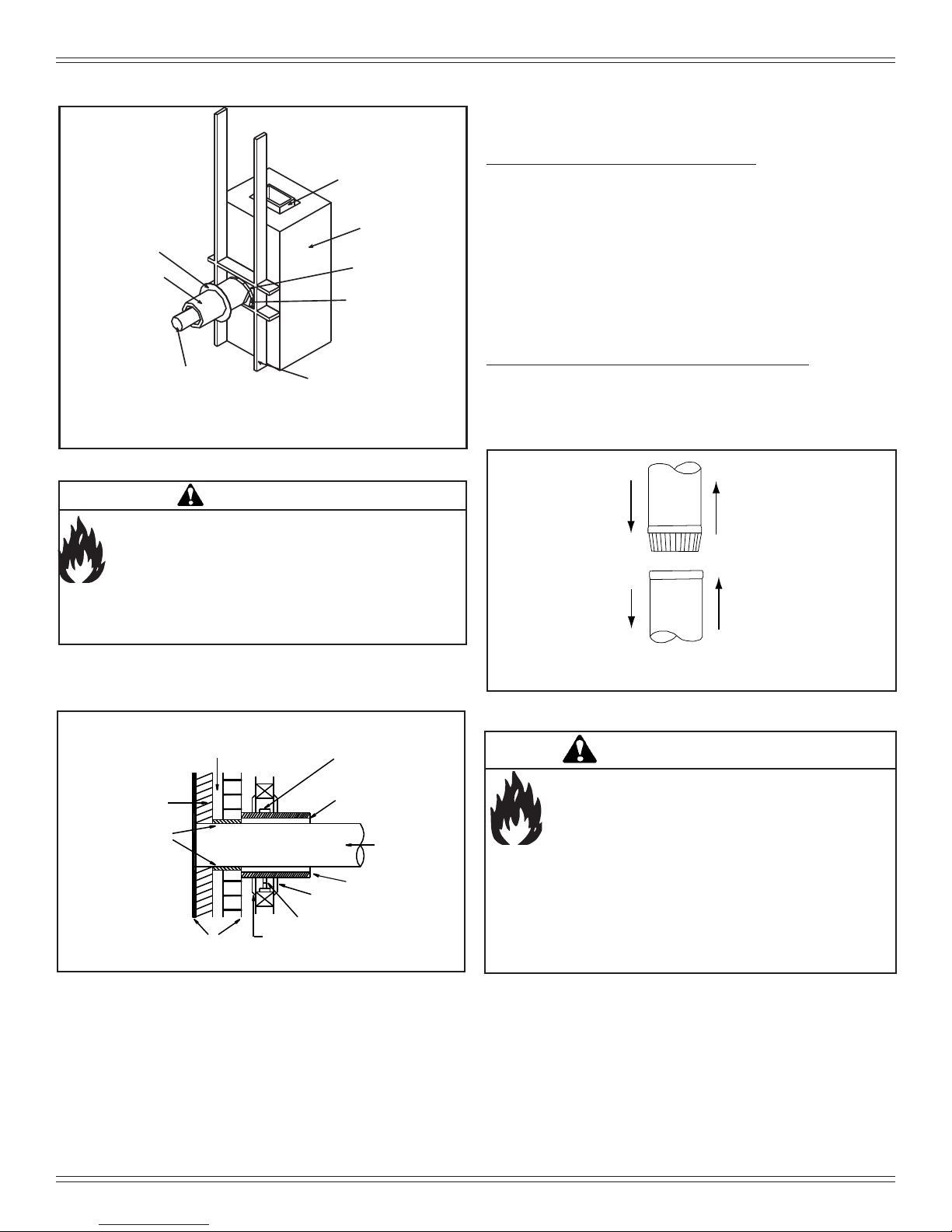

Figure 14.2
Solid Pack Chimney with Metal Supports as a Thimble
(Cont’d)
G. Installing Chimney Components
Chimney Connector
Single wall connector or appliance pipe.
This must be at least 24 gauge mild steel or 26 gauge blue
steel. The sections must be attached to the appliance and
to each other with the crimped (male) end pointing toward
the appliance. All joints, including the connection at the ue
collar, should be secured with 3 sheet metal screws. Make
sure to follow the minimum clearances to combustibles.
Where passage through the wall, or partition of combustible
construction is desired in Canada, the installation shall con-
form to CAN/CSA-B365.
Factory-built listed chimney connector (vented).
A listed connector (vented) must be used when installing
this appliance in a mobile home. The listed connectors must
conform to each other to ensure a proper t and seal.
H. Proper Draft
To be sure that your Quadra-Fire insert burns properly, the
chimney draft (static pressure) should be approximately -0.10
inches water column (W.C.) during a high burn and -0.04
inches W.C. during a low burn, measured 6 inches (152mm)
above the top of the insert after one hour of operation at each
burn setting.

August 01, 2016 7037-158C 15
Discovery III
5 Appliance Set-Up
USA
Figure 15.2 - Floor Installation
A. Outside Air Kit Installation
A source of air (oxygen) is necessary in order for combus-
tion to take place. Whatever combustion air is consumed
by the re must be replaced. Air is replaced via air leakage
around windows and under doors. In homes that have tightly
sealed doors and windows, an outside air source is needed.
An optional Outside Air Kit is avail able.
Optional OAK-ACC includes: Termination cap, (2) wire ties,
ex adapter, and fasteners
Items Needed for Installation (not supplied)
• 4 inch ex aluminum pipe, or if using alternate material,
then it shall be made from durable, non-combustible,
heat resistant material up to 350oF. Cut the pipe to the
required length for your installation.
• Phillips head screw driver
• Silicone sealant
• Drills and saws necessary for cutting holes through the
wall or ooring in your home.
Installation Instructions
1. Remove all materials from packing box.
2. Floor & Rear Installation: Cut a 4 inch (102mm) hole in
outside wall or oor to accommodate outside air piping.
Use 4 inch (102mm) aluminum metal ex or rigid piping
to directly connect outside air to appliance intake. Use
the supplied termination cap with a rodent screen. Seal
between the wall (or oor) and the pipe with silicone to
prevent moisture penetration.
WARNING
Fire Risk. Asphyxiation Risk.
Do not draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic or garage
• Close proximity to exhaust vents or chimneys
Fumes or odor may result
Asphyxiation Risk.
Outside air inlet must be located to prevent blockage
from:
• Leaves • Snow or ice • Other debris
Block may cause combustion air starvation
Smoke spillage may set off alarms or irritate sensitive individuals.
WARNING
Asphyxiation Risk.
Length of outside air supply duct shall NOT exceed the
length of the vertical height of the exhaust ue.
• Fire will not burn properly
•Smoke spillage occurs when door is opened due to air star-
vation
WARNING

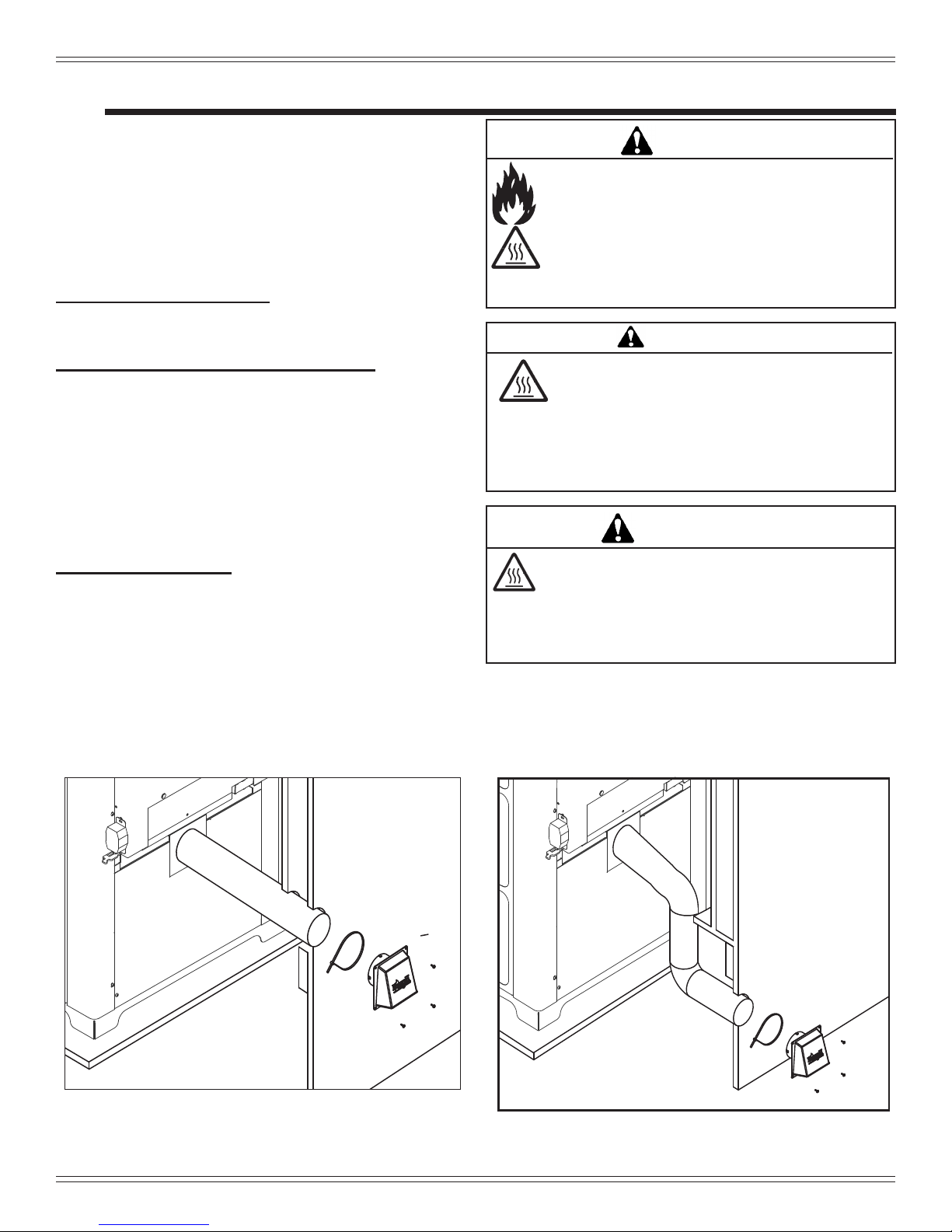

Figure 15.1 - Rear Installation

16 7037-158C August 01, 2016
Discovery III
Figure 16.5
Figure 16.1
WARNING!
Use only noncombustible materials as a decorative tile.

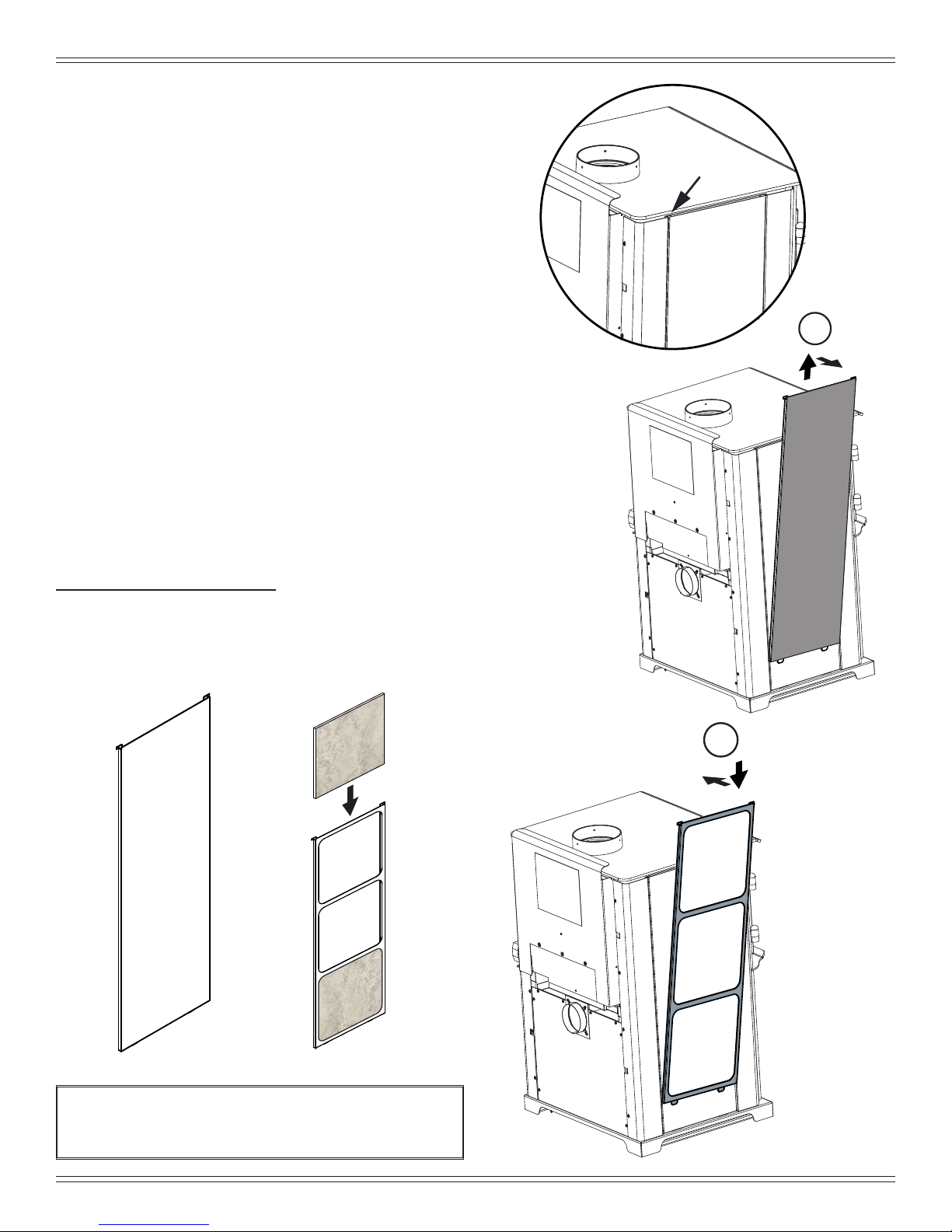

B. Decorative Panel Removal & Installation
Your appliance ships with two different side options, one is a solid
side panel (Figure 16.1) and tile side panel (Figure 16.2). There
are two of each and no left or right side, these can be changed
at anytime.
The appliances are being shipped with a solid side panel
securing clip on both sides. Please remove and discard
pins prior to use. (Figures 16.3)
Solid Side Panel Removal
1. Remove solid panel from side by lifting up and pulling away
from appliance (use a at tool to pry from bottom if needed).
Figure 16.4
Note: 300 degree F high temp paint can be use to repaint the
solid side panel only! DO NOT use on the rest of appliance this
requires 1200 degree F high temp paint.
Tile Panel Installation
1. Remove tile frame from side by lifting up and pulling away
from appliance. Figure 16.4 reference solid side panel re-
moval.
2. Stack non-combustible material tiles in tile frame as shown
in Figure 16.2.
3. Reattach tile frame Figure 16.5.
Tile Dimensional Requirements:
Max Thickness: 5/16”
Max Length/Width: 11-7/8” square
Min Length/Width: 11-11/16” square
1
Figure 16.4
3
Figure 16.2
Securing
Clip
Figure 16.3

August 01, 2016 7037-158C 17
Discovery III

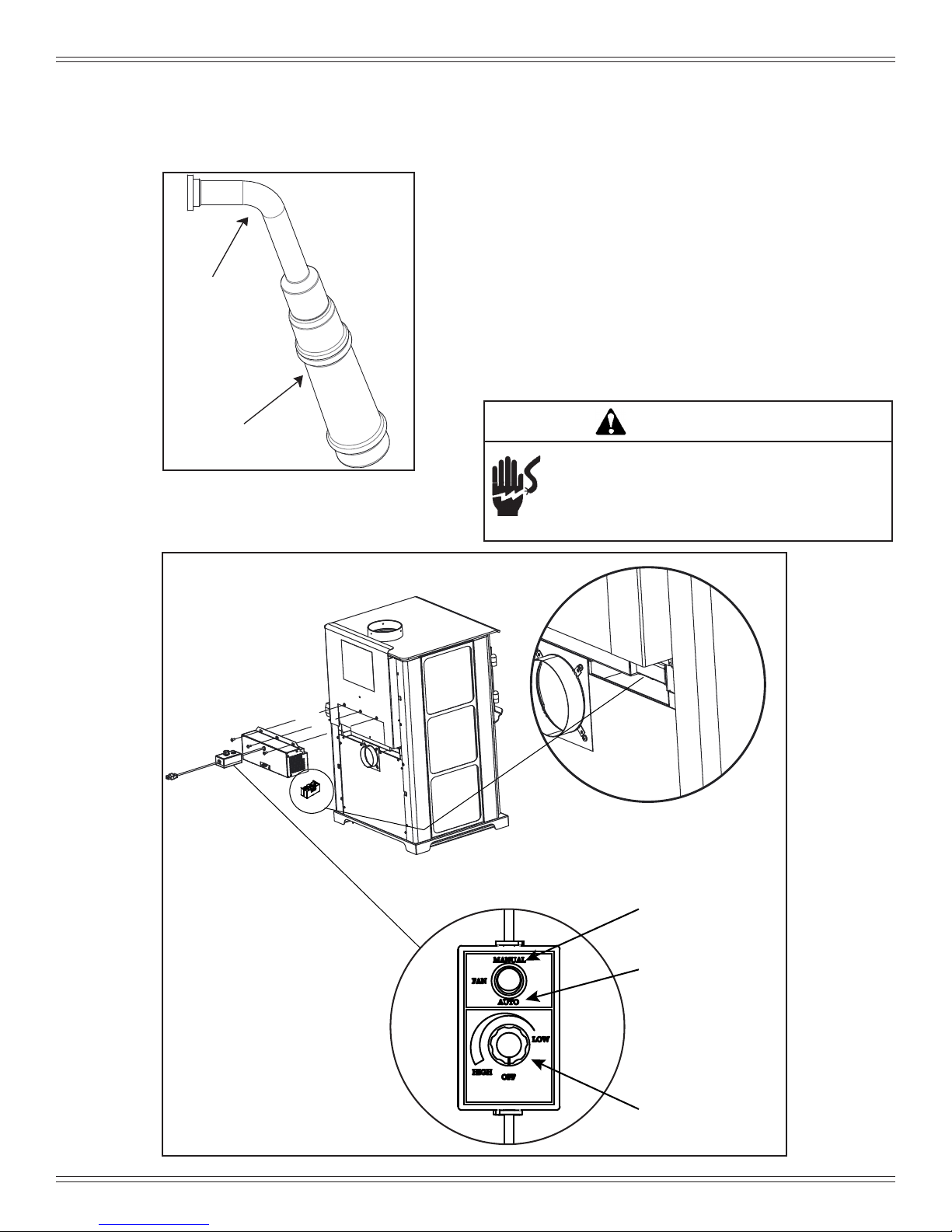

D. Blower (Optional)
Tools Required: #2 Phillips head screwdriver
1. Locate bolts supplied with the blower.
2. Align holes in mounting ange of blower with bolt holes in
appliance. Blower should be positioned at bottom of rear
outer skin as shown in Figure 17.2
3. Re-insert and tighten bolts, securing blower onto outer
wall of appliance.
4. Place the bracket containing the snap disc and magnet
under the bottom left rear corner.
See Owner’s Manual for detailed operating instructions
for the blower and snap disc.
Shock Risk.
• Do NOT remove grounding prong from plug.
• Route cord away from appliance.
• Do NOT route cord under or in front of appliance.
• Plug directly into properly grounded 3 prong receptacle.
CAUTION
Figure 17.2
MANUAL: Overides the
Snap Disc
AUTO: Fan will turn
ON/OFF Automatically
by the Snap Disc
Controls the Fan Speed
C. Door Handle Assembly
Figure 17.1
Door Handle
Fiber Handle
1. Install ber handle to door handle rod.

18 7037-158C August 01, 2016
Discovery III
CAUTION
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED
Do NOT cut through:
• Floor joist, wall, studs or ceiling trusses.
• Any supporting material that would affect the structural integ-
rity.
Asphyxiation Risk.
NEVER INSTALL IN A SLEEPING ROOM.
Consumes oxygen in the room.
WARNING
You must use a Quadra-Fire Outside Air Kit Part
OAK-ACC; which is availble from you dealer, for
installation in a mobile home.
1. An outside air inlet must be provided for combustion.
2. Appliance must be secured to the mobile home structure
by bolting the legs to the oor.
3. Appliance must be grounded with #8 solid copper
grounding wire or equivalent and terminated at each end
with N.E.C. approved grounding device.
4. Appliance must be installed with an approved UL103 HT
ventilated chimney connector, UL103 HT chimney, and
terminal cap with spark arrestor. Never use a single wall
connector (appliance pipe) in a mobile home installation.
Use only double-wall connector pipe, Dura-Vent DVL,
Selkirk metalbestos DS or Security DL double-wall
connector or any listed double-wall connector pipe.
5. In Canada, this appliance must be connected to a 6 inch
(152mm) factory-built chimney conforming to CAN/ULC-
629M, STANDARD FOR FACTORY BUILT CHIMNEYS.
6. Follow the chimney and chimney connector manufacturer’s
instructions when installing the ue system for use in a
mobile home.
7. Maintain clearance to combustibles.
8. Floor protection requirements must be followed precisely.
9. Use silicone to create an effective vapor barrier at the
location where the chimney or other component penetrates
to the exterior of the structure.
NOTE: Offsets from the vertical, not exceeding 45°, are
allowed per Section 905(a) of the Uniform Mechanical Code
(UMC). Offsets greater than 45° are considered horizontal and
are also allowed, providing the horizontal run does not exceed
75% of the vertical height of the vent. Construction, clearance
and termination must be in compliance with the UMC Table
9C. This installation must also comply with NFPA 211.
NOTE: Top sections of chimney must be removable to allow
maximum clearance of 13.5 feet (411cm) from ground level
for transportation purposes.
10. Burn seasoned cord wood only. Other types of fuels may
generate poisonous gases (e.g., carbon monoxide).
11. If appliance burns poorly while an exhaust blower is on
in home, (i.e., range hood), increase combustion air.
12. Installation shall be in accordance with the Manufacturers
Home & Safety Standard (HUD) CFR 3280, Part 24.
Approved for USA Installation only!
6 Mobile Home Installation

August 01, 2016 7037-158C 19
Discovery III
Service Parts
DISCOVERY-III
Beginning Manufacturing Date: July 2016
Ending Manufacturing Date: Active
R
IMPORTANT: THIS IS DATED INFORMATION . Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers . Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
ACCESSORIES
Blower Assembly BK-ACC
Blower Control Box w/Switch SRV7000-194 Y
Component Pack SRV7033-051
Snap Disc Bracket Assembly SRV7033-036
Snap Disc, # 1, Convection Blower SRV230-0470 Y
Wire Harness, Blower 7033-262
Logo, Quadra-Fire Pkg of 10 7000-649/10
Outside Air Kit, Floor & Rear OAK-ACC
Outside Air Collar Assembly 7033-039
Outside Air Shield 33271 Y
Outside Air Cover Plate Assembly SRV7033-041 Y
7 Accessory List

20 7037-158C August 01, 2016
Hearth & Home Technologies
1445 North Highway
Colville, WA 99114
Division of HNI INDUSTRIES
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating and
maintenance instruc-
tions included.
• Leave this manual with
party responsible for use
and operation.
• Read, understand and
follow these instruc-
tions for safe installa-
tion and operation.
DO NOT
DISCARD
Please contact your Quadra-Fire dealer with any questions or concerns.
For the number of your nearest Quadra-Fire dealer
log onto www.quadrare.com
CONTACT INFORMATION
This product may be covered by one or more of the following patents: (United States) 5341794, 5263471, 6688302, 7216645, 7047962
or other U.S. and foreign patents pending.
We recommend that you record the following pertinent
information for your heating appliance.
Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer phone:
Notes:
