Quadro QuadroE1/T1 User manual

QuadroE1/T1 Manual I: Installation Guide
QuadroE1/T1; (SW Version 3.2.x)
Copyright and Trademarks
Copyright © 2003 - 2006 Epygi Technologies, Ltd. All Rights Reserved. QuadroE1/T1 is a registered trademark of Epygi
Technologies, Ltd. Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation. All other
trademarks and brand names are the property of their respective proprietors.
Limited Warranty
Epygi Technologies, Ltd. (‘Epygi’) warrants to the original end-user purchaser every Quadro to be free from physical de-
fects in material and workmanship under normal use for a period of one (1) year from the date of purchase (proof of pur-
chase required) or two (2) years from the date of purchase (proof of purchase required) for products purchased in
the European Union (EU). If Epygi receives notice of such defects, Epygi will, at its discretion, either repair or replace prod-
ucts that prove to be defective.
This warranty shall not apply to defects caused by (i) failure to follow Epygi’s installation, operation or maintenance instruc-
tions; (ii) external power sources such as a power line, telephone line, or connected equipment; (iii) Products that have
been serviced or modified by a party other than Epygi or an authorized Epygi service center; (iv) Products that have had
their original manufacturer’s serial numbers altered, defaced, or deleted.
In no event shall Epygi’s liability exceed the price paid for the product from direct, indirect, special, incidental, or conse-
quential damages resulting from the use of the product, its accompanying software, or its documentation. Epygi offers no
refunds for its products. Epygi makes no warranty or representation, expressed, implied, or statutory, with respect to its
products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality,
performance, merchantability, or fitness for any particular purpose.
Return Policy
If the product proves to be defective during this warranty period, contact the Epygi authorized reseller from whom you pur-
chased the product to obtain a Return Material Authorization (RMA) Number. When returning a product, mark the Return
Authorization Number clearly on the outside of the package and include your original proof of purchase. Return requests
cannot be processed without proof of purchase. Customers are responsible for shipping and handling charges when ship-
ping to Epygi.
Epygi or its service center will use commercially reasonable efforts to ship a replacement Product within ten (10) working
days after receipt of the returned product. Actual delivery times may vary depending on the Customer's location.
Epygi reserves the right to revise or update its products, pricing, software, or documentation without obligation to notify any
individual or entity. Please direct all inquiries to:
Epygi Technologies, Ltd., Two Legacy Town Center, 6900 North Dallas Parkway, Suite 850, Plano, Texas 75024
Notice to Users
This Installation Guide in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form
without prior written approval.
Epygi provides no warranty with regard to this Installation Guide or other information contained herein and hereby expressly
disclaims any implied warranties of merchantability or fitness for any particular purpose with regards to this manual or such
other information. In no event shall Epygi be liable for any incidental, consequential, or special damages, whether based on
tort, contract, or otherwise, arising out of or in connection with this manual or other information contained herein or the use
thereof.
FCC Statement (Part 15) Class A
The Epygi Quadro has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used accord-
ing to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television re-
ception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and device
•Connect the equipment to an outlet different from the receiver
•Consult a dealer or an experienced Radio/TV technician for assistance
You are cautioned that any change or modification to the equipment not expressly approved by the manufacturer could void
iring and telephone network must comply with the applicable FCC Part 68 rules
as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is nec-
company will provide advance notice in order for you to make nec-
e tariffs. Contact the state public utility commission, public service commis-
the user’s authority to operate this device.
Administrative Council for Terminal Attachments (ACTA) Customer Information
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. A plug and jack used
to connect this equipment to the premises w
and requirements adopted by the ATCA.
If the QuadroE1/T1 causes harm to the telephone network, the telephone company will notify you in advance that tempo-
rary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the
customer
essary.
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the op-
eration of the equipment. If this happens, the telephone
essary modifications to maintain uninterrupted service.
Connection to party line service is subject to stat
sion or corporation commission for information.

QuadroE1/T1 Manual I: Installation Guide
QuadroE1/T1; (SW Version 3.2.x)
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of the
quality AC surge suppressor in the AC outlet
S t
Be e ered to:
•al shock, do not open the QuadroE1/T1. Refer servicing to qualified personnel only.
disconnected at the net-
ervice. These services are made avail-
hrough the Internet and therefore are dependent upon a constant source of electricity and network availability. In the
ent of a power outage, the QuadroE1/T1 SIP Service will automatically be disabled. User understands that in the event of
ower or network outage, the QuadroE1/T1 SIP Service will not support 911 emergency services and further that such
rvices will only be available via the user's regular telephone line not connected to the QuadroE1/T1. User further ac-
owledges that any interruption in the supply or delivery of electricity or network availability is beyond Epygi's control and
at Epygi shall have no responsibility for losses arising from such interruption.
QuadroE1/T1 does not disable your alarm equipment. If you have any questions about what will disable alarm equipment,
consult your telephone company or a qualified installer.
Electrical Safety Advisory
To reduce the risk of damaging power surges, we recommend you install a
1/T1 is powered.from which the QuadroE
Industry Canada Statement
Th pris oduct meets the applicable Industry Canada technical specifications.
afe y Information
for using the QuadroE1/T1, please review and ensure the following safety instructions are adh
•To prevent fire or shock hazard, do not expose your QuadroE1/T1 to rain or moisture.
To avoid electric
•Never install wiring during a lightning storm.
•Never install telephone jacks in wet locations unless the jack is specified for wet locations.
een•Never touch un-insulated telephone wire or terminals unless the telephone line has b
work interface.
•Use caution when installing or modifying cable or telephone lines.
•Avoid using your QuadroE1/T1 during an electrical storm.
•Do not use your QuadroE1/T1 or telephone to report a gas leak in the vicinity of the leak.
•An electrical outlet should be as close as possible to the unit and easily accessible.
Emergency Services
The QuadroE1/T1 SIP Service is intended to function as a secondary telephone s
able t
ev
a p
se
kn
th

QuadroE1/T1 Manual I: Installation Guide
QuadroE1/T1; (SW Version 3.2.x)
Table of Contents
Manual-I: Installation Guide
About This Installation Guide ....................................................... 5
Requirements ............................................................................ 6
Hardware Overview .................................................................... 7
QuadroE1/T1’s Rear Panel.....................................................................7
QuadroE1/T1’s Front Panel LEDs ............................................................8
Installing QuadroE1/T1 ............................................................... 9
Networking Overview............................................................................9
Connecting the Hardware.................................................................... 10
Configuring the QuadroE1/T1......................................................11
Logging in to QuadroE1/T1.................................................................. 12
Basic Configuration............................................................................. 13
Run the System Configuration Wizard.............................................................13
System Configuration..............................................................................14
DHCP Settings for the LAN Interface..........................................................14
Regional Settings....................................................................................15
Finishing the System Configuration Wizard .................................................16
Run the Internet Configuration Wizard............................................................17
Uplink Configuration................................................................................18
WAN IP Configuration..............................................................................18
PPP/PPTP Configuration ...........................................................................19
WAN Interface Configuration ....................................................................20
DNS Settings .........................................................................................21
Finishing the Internet Configuration Wizard ................................................21
Configuring the Firewall................................................................................23
Configuring the E1/T1 Settings ............................................................ 24
Editing the E1/T1 Trunk ...............................................................................25
Signaling Type CCS.................................................................................26
Signaling Type CAS.................................................................................31
Setting up Call Routing ....................................................................... 37
Registering on Epygi’s Technical Support ......................................45
Appendix: PC DHCP Settings.......................................................46
Appendix: Changing the Admin Password......................................48
Appendix: Configuring SIP NAT Traversal......................................49
Appendix: Checking the Connections............................................51
Appendix: Pin Assignment of E1/T1..............................................53
Manual II: see Administrator's Guide
Describes in detail the QuadroE1/T1 management menus and includes all sys-
tem default values at a glance, too.

QuadroE1/T1 Manual I: Installation Guide About This Installation Guide
QuadroE1/T1; (SW Version 3.2.x) 5
About This Installation Guide
This Installation Guide explains the installation of the QuadroE1/T1 VoIP gateway. It gives
step-by-step instructions to provision the QuadroE1/T1 and configure the phone extensions
with the Epygi SIP Server. After successfully configuring the QuadroE1/T1, a user will be
able to make SIP phone calls to remote QuadroE1/T1 devices, make local calls to the PSTN
and access the Internet from devices connected to the LAN.
This Installation Guide does not provide advanced configuration information. For these fea-
tures, refer to the Administrator's Guide.
Installing QuadroE1/T1 explains connection of cables and devices to the Quadro.
Configuring the QuadroE1/T1 describes the configuration steps necessary to integrate the
Quadro into a network environment and to setup the voice features. The chapter in-
cludes information about the System and Internet Configuration Wizards to integrate
the QuadroE1/T1 in your network environment, about the basic E1/T1 settings and
about the basic setting up of the call routing functionality.
Please Note: The Quadro configuration described in this Installation Guide describes
basic configurations only. For more complex configurations, please refer to the Manual
lII - Administrator's Guide.
Registering on Epygi’s Technical Support shows you how to gain access to the Epygi
Technical Support Center and the Epygi SIP Server.
Appendix: PC DHCP Settings explains how to configure your PC to access the Quadro
configuration GUI.
Appendix: Changing the Admin Password explains how to change the default administra-
tor password.
Appendix: Configuring SIP NAT Traversal explains configuration of the Quadro if it is
placed behind a NAT enabled router.
Appendix: Checking the Connections gives hints to solve common problems.

QuadroE1/T1 Manual I: Installation Guide Requirements
QuadroE1/T1; (SW Version 3.2.x) 6
Requirements
•One 120/240 V power outlet in close proximity to the QuadroE1/T1.
•One RJ-45 Ethernet 10/100 broadband Internet connection.
•One off-the-shelf analog phone with an RJ-11 telephone cable.
•One CAT 5 Ethernet cable with an RJ-45 connector to connect to the
QuadroE1/T1 LAN port
•One PC with a 10Mbps or a 10/100 Mbit/s Ethernet card or adapter installed.
•TCP/IP network protocol installed on each PC.
•For optimal results, Internet Explorer 5.5 or higher, or Netscape Navigator 4.7 or
higher are recommended).
Please Note: The QuadroE1/T1 is shipped with one RJ-11 cable and one straight RJ-45
CAT 5 cable. If the LAN connector of the QuadroE1/T1 is to be connected to a hub or
switch, a crossover cable may be required (see Appendix: Pin Assignment of E1/T1, too).

QuadroE1/T1 Manual I: Installation Guide Hardware Overview
QuadroE1/T1; (SW Version 3.2.x) 7
Hardware Overview
QuadroE1/T1’s Rear Panel

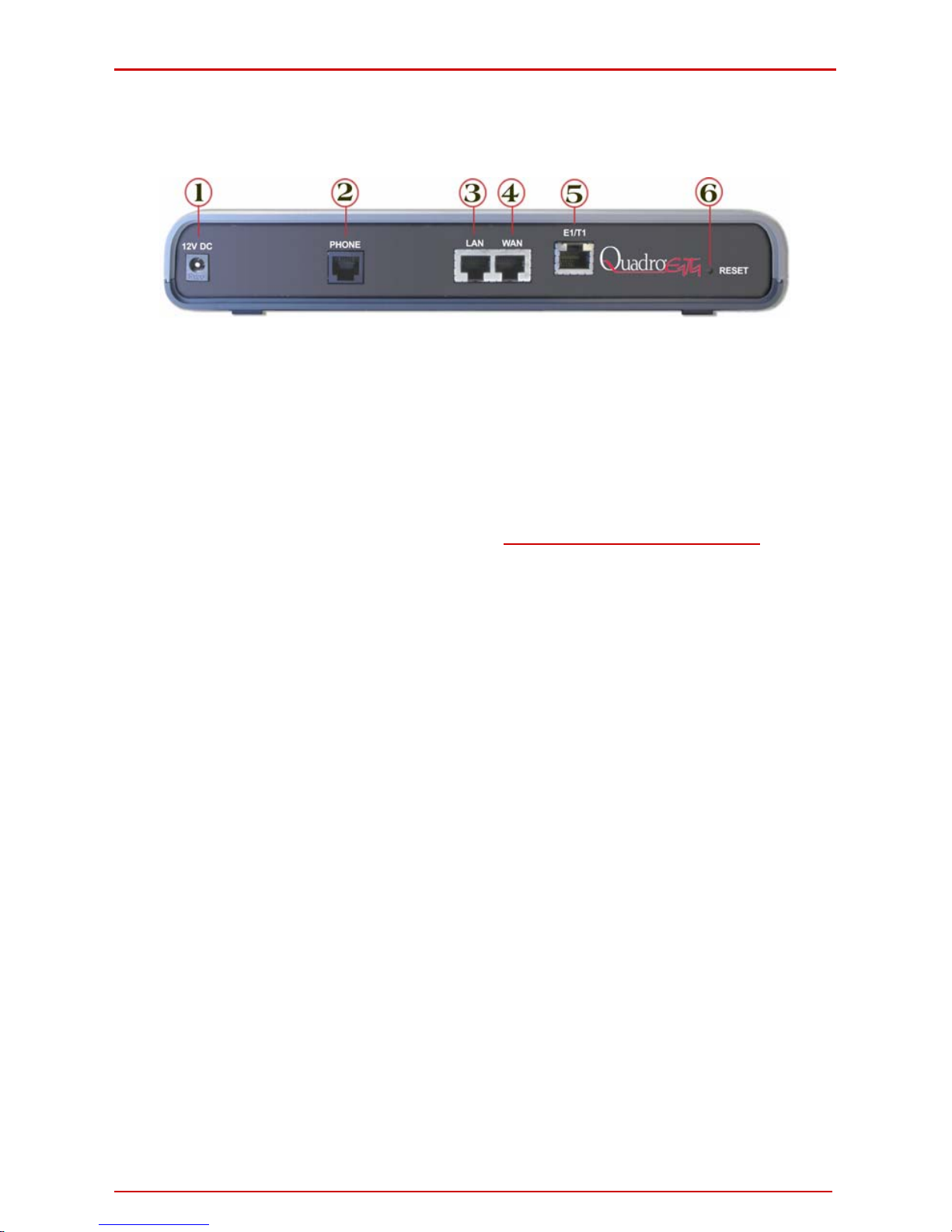

Fig. I-1: QuadroE1/T1's backplate
1 Power supply socket. Use only the power adapter delivered with the QuadroE1/T1.
2PHONE socket with a RJ-11 connector enables connectivity of a regular analog tele-
phone. This is a FXS (Foreign Exchange Station) analog port.
3RJ-45 socket to attach the Local Area Network (LAN) via an Ethernet CAT 5 cable. If a
PC is connected directly to this socket, a straight cable is used. If an Ethernet hub,
router or switch is used, a crossover cable may be required.
4RJ-45 socket to attach the Internet Uplink (WAN) via an Ethernet CAT 5 cable.
5RJ-45 socket to attach the E1/T1 trunk. See Appendix: Pin Assignment of E1/T1.
6The Reset button may be used in two ways: (1) to initiate a normal reset, (2) to carry
out a factory reset. A normal reset is executed by pressing the Reset button with a pa-
per clip for an instant.
Pressing the reset button and holding it down for 7 seconds or more will execute a fac-
tory reset. This will restore the factory defaults and clear all settings including the IP
address and the administration password you entered.
Please Note: A Factory Reset forces the default LAN IP address of 172.30.0.1 and
default administrator's password of 19.

QuadroE1/T1 Manual I: Installation Guide Hardware Overview
QuadroE1/T1; (SW Version 3.2.x) 8
QuadroE1/T1’s Front Panel LEDs
Fig. I-2: QuadroE1/T1's Front Panel LEDs
1
BUSY
green
(Status of the CPU)
on: device is booting
off: No power
blinking: activity
2 INFO
yellow
(System information)
on: device is booting
off: no information
blinking: an event occurred that was specified in Event
Management
3 FAULT
red
(System status)
on device is booting/ error
off: no error
blinking: system unusable
4 SPARE
green undefined
5 LAN
green
(Status of the LAN interface)
on: link ok
off: no link
flickering: traffic on the link
6 WAN
green
(Status of the WAN interface)
on: link ok
off: no link
flickering: traffic on the link
7 Line1
green
(Status of the E1/T1 link)
on: frame synchronization is ok
off: frame synchronization is not ok
flickering: link is down
8 Line2
green
(Status of the E1/T1 link)
on: Link ok
off: RED alarm indication
flickering: link is down
LED Indication during a firmware update
A firmware update is indicated by the red (Fault) and yellow (Info) LED. Both will blink si-
multaneously for about five minutes while the firmware is updated. The QuadroE1/T1 will
then re-boot automatically showing the boot LED sequence.
LED Indication during a boot sequence
A boot sequence is indicated as follows: The red Fault LED will glow for a few seconds, then
the yellow Info LED will glow for another four or five minutes while the green Busy LED is
blinking. Once the Info LED is off, the boot sequence has been completed successfully.

QuadroE1/T1 Manual I: Installation Guide Installing QuadroE1/T1
QuadroE1/T1; (SW Version 3.2.x) 9
Installing QuadroE1/T1
Networking Overview
To establish a connection between the PSTN (or your PBX) and the Internet, a VoIP gate-
way is needed. The QuadroE1/T1 is a VoIP gateway, and will perform the task of connecting
your PSTN (or PBX) via its E1/T1 port to a Private Data Network that includes Quadro SIP
routers (Quadro2x, -4x and/or16x) or the Internet. The QuadroE1/T1 will process and regu-
late the voice traffic between these networks by means of Call Routing paths that are speci-
fied by the administrator according to a dial plan. The QuadroE1/T1 has one additional LAN
port that is used to connect a PC for management purposes. The WAN port transmits up to
10 Mbps, and the LAN port transmits at 10 Mbps or 100 Mbps.

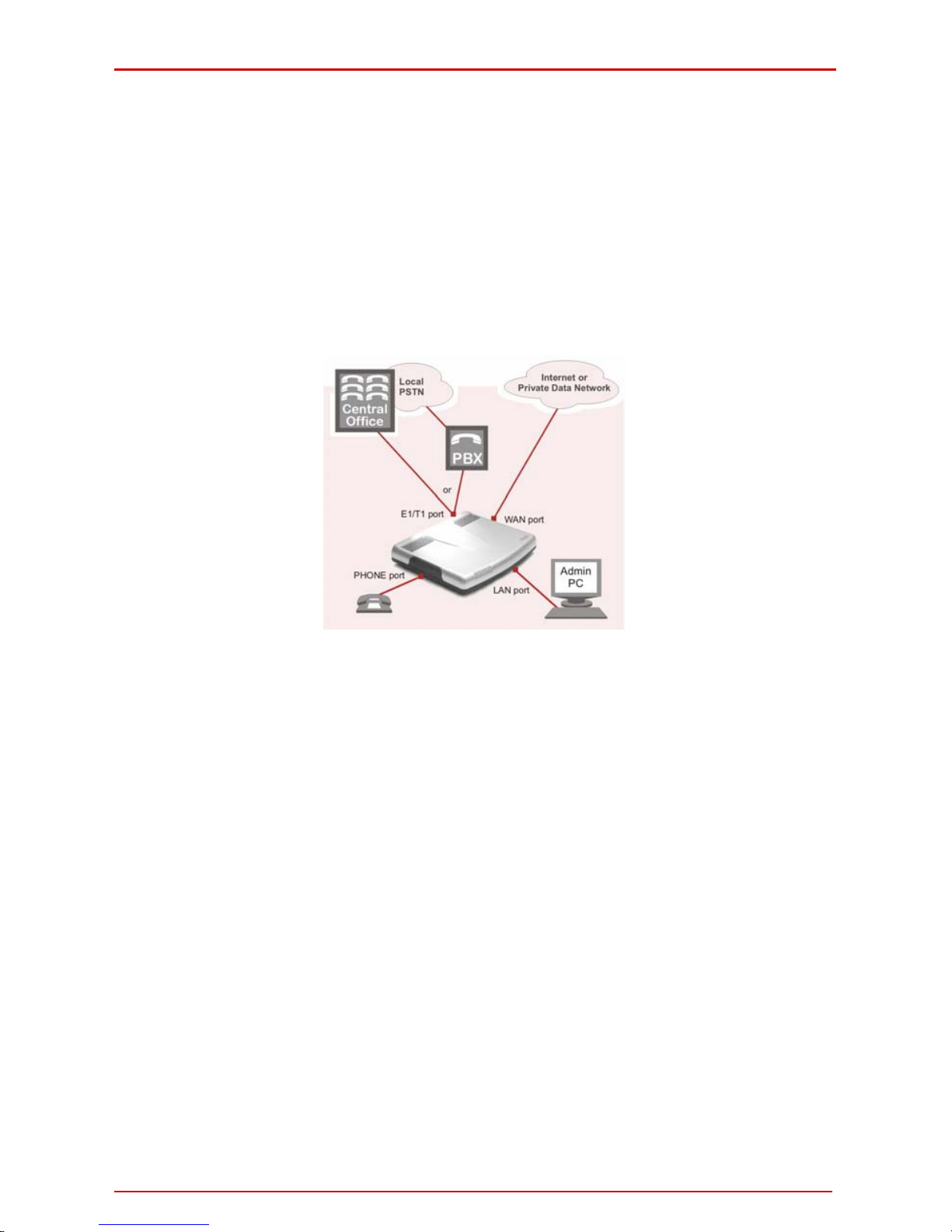

Fig. I-3: Connection overview
Every device within an IP network requires a unique IP address to identify itself. Since the
QuadroE1/T1 connects to both the LAN (Admin PC) and the WAN (Private Data Network or
Internet), it has to be part of both networks, and must have two IP addresses: one for the
WAN side and one for the LAN side. The QuadroE1/T1’s integrated firewall/NAT functional-
ity will hide the LAN IP address from the WAN (Internet) side.
There are two ways of assigning an IP address: statically or dynamically. The Quadro E1/T1
can be configured with a static IP address on the WAN interface. You also can use a DHCP
server assigned IP address on the WAN side.
Please Note: A DHCP client is software that requests an IP address from a DHCP server. A
DHCP server assigns on request a unique IP address to a device. The QuadroE1/T1 acts as
a DHCP client on its WAN interface and as a DHCP server on its LAN interface.

QuadroE1/T1 Manual I: Installation Guide Installing QuadroE1/T1
QuadroE1/T1; (SW Version 3.2.x) 10
Connecting the Hardware

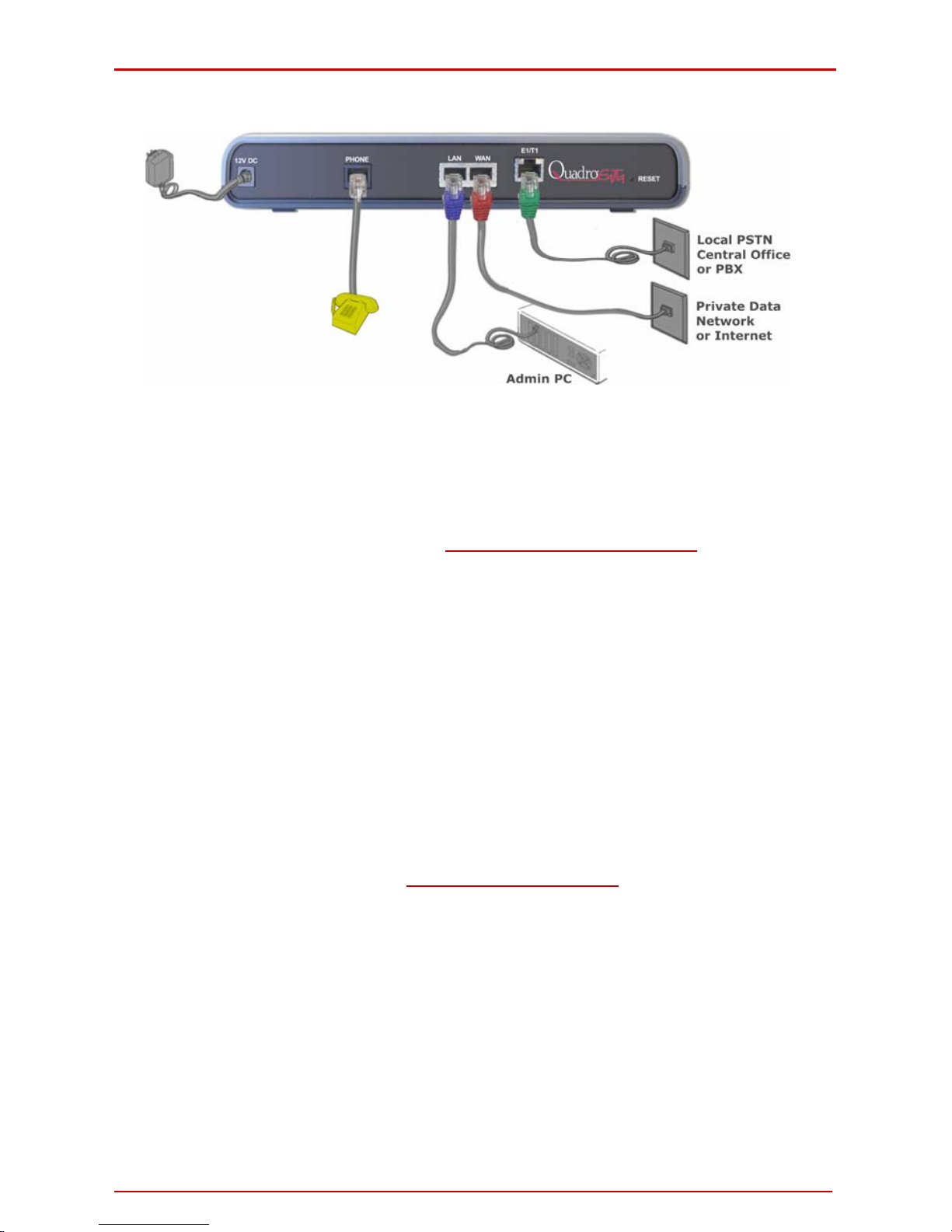

Fig. I-4: Connecting the Hardware
•Verify the product package contents are complete. Refer to the contents sheet included
in the packaging to determine if all the items were shipped in the box.
•Connect a telephone to the PHONE port on the QuadroE1/T1’s rear panel.
•Connect the QuadroE1/T1’s E1/T1 port to your PBX or the trunk from the PSTN
Central Office ONLY after configuring the E1/T1 settings according to the specifi-
cations of your PSTN provider (see Appendix: Pin Assignment of E1/T1).
•Connect the Ethernet port on your PC via a straight CAT 5 cable with an RJ-45 connec-
tor to the LAN socket of the QuadroE1/T1. If a hub or switch is connected between the
QuadroE1/T1 and your PC, use a crossover cable from the LAN interface of the
•ct the WAN port of the QuadroE1/T1 to the Private Data Network or Internet ser-
•
ill glow for several minutes. As soon as Info is off, the QuadroE1/T1 is opera-
•
QuadroE1/T1 to the hub/switch.
Conne
vice.
•When using a DSL or Cable modem, power up the modem before the Quadro.
Connect the power adapter to the POWER port on the QuadroE1/T1’s rear panel and
plug the power adapter into a power outlet. Only use the original power adapter and plug
it into a power strip with surge protection or to a UPS if available.
The red LED (Fault) will glow for several seconds followed by the yellow LED (Info),
which w
tional.
Power up any hub or switch followed by any PC and other devices on the LAN side.
Please Note: The PC must be configured for DHCP to receive an IP address directly
from the QuadroE1/T1. Refer to Appendix: PC DHCP Settings for instructions on how to
set up a PC for DHCP operation.
Check the LEDs: The green Busy LED should glow continuously. The green LAN and
WAN LEDs will blink when cables are connected to these ports and all devices are pow-
•
ms, hubs, switches and routers will require the use of
crossover cables.
ered up. If the green LAN and WAN LEDs do not blink, verify cabling and ensure that all
devices are powered up.
Please Note: CAT 5 cables can be faulty without visual indication. The LAN and WAN
LEDs verify that the Ethernet connection is established between the end points. If these
LEDs are not illuminated, there is a connection problem between the QuadroE1/T1 and
the other device. Some mode

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 11
Configuring the QuadroE1/T1
To configure the QuadroE1/T1 basically, four steps are needed:
Step1: Basic Configuration using the System Configuration Wizard and the
Internet Configuration Wizard.
Step 2: Entering the E1/T1 settings provided by your PSTN Provider.
Step 3: Specifying the Call Routing paths according to your dial plan.
The most important settings required in Step 1: Basic Configuration are:
Static IP address for the WAN Interface. If you use a DHCP server, please config-
ure it to deliver a static IP address. In this case, QuadroE1/T1 will get its IP address
automatically, as it acts as a DHCP client on the WAN side.
Bandwidth – used to regulate the number of calls allowed by the QuadroE1/T1 to
avoid degradation in low bandwidth conditions.
Regional Settings - if your QuadroE1/T1 is located outside the United States, it is
important to properly configure your line connections to the PSTN in your location
Firewall - if your QuadroE1/T1 is connected behind a router configure the firewall to
make the QuadroE1/T1 accessible for management.
To customize these settings, connect a PC to QuadroE1/T1's LAN port, log in and complete
the Basic Configuration as described in the following sections.

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 12
Logging in to QuadroE1/T1
Start a browser (MS Internet Explorer, Netscape, Opera) on a PC connected to the LAN
port.
Enter http://172.30.0.1 (QuadroE1/T1’s default LAN IP address) into the address field.
The Login page of the QuadroE1/T1 will be displayed (see picture below).
Fig. I-5: QuadroE1/T1's login page
Enter admin as the Username and 19 as the Password to log in as the administrator.
After logging in, the QuadroE1/T1 Management page will be displayed.
Please Note: If you enter a wrong password and/or username five times, the device will be
unavailable for login for five minutes.
Fig. I-6: QuadroE1/T1's Management page

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 13
Basic Configuration
Two Configuration Wizards are available to accomplish the basic configuration of Quadro
devices:
•The System Configuration Wizard - a tool for the administrator to define the
Quadro's Local Area Network settings and to specify regional configuration set-
tings to make Quadro operational in its LAN. It must be run upon Quadro first
startup.
•The Internet Configuration Wizard - a tool for the administrator to configure the
WAN settings and to adjust Quadro's connectivity in the global network. It must be
run if Quadro is desired to be connected to the Internet.
Please Note: It is strongly recommended that factory default settings are left unchanged if
their meanings are not completely clear.
Run the System Configuration Wizard
Open the System Configuration Wizard by selecting the corresponding menu item on the
System menu. The page Getting Started will be displayed:
Fig. I-7: System Configuration Wizard
This first page of the System Configuration Wizard is for information only and lists the items
to be configured, Click on the Next button to get to the System Configuration page.

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 14
System Configuration
Enter into the Host Name field a unique name for the QuadroE1/T1. This is useful when
many Quadro’s are part of a network and one administrator has remote access to all of
them. All Web Management pages show this Host Name in the top right corner.
For a basic configuration, leave the default LAN IP address. If you want to change the de-
fault LAN IP address, e.g. in order to integrate the device into an existing LAN, insert the
new LAN IP address into the IP Address text field and have it handy. You need it to re-
access Quadro management.
Fig. I-8: System Configuration page
Clicking on Next shows the page DHCP Settings for the LAN Interface
DHCP Settings for the LAN Interface
If the DHCP server is enabled, the QuadroE1/T1 will assign dynamic IP addresses to the
Admin PC connected to its LAN port.
If you didn’t change the default IP address of the QuadroE1/T1, you may also leave the de-
fault values for IP Address Range. Make sure your connected Admin PC belongs to the
same network as the LAN port of your QuadroE1/T1.
Please Note: Make sure there is only one DHCP server on the LAN. Otherwise, unpredict-
able network behavior can occur.

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 15

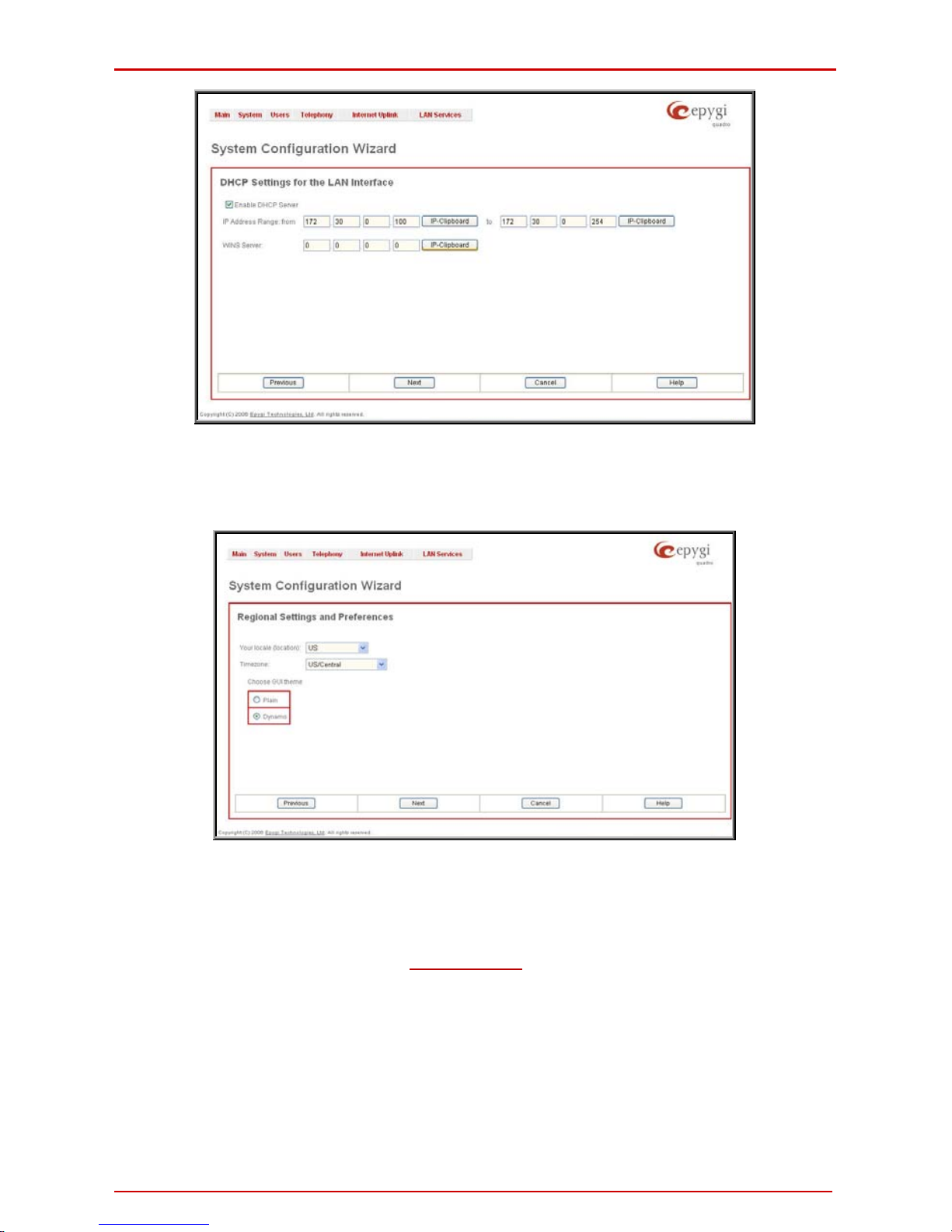

Fig. I-9: DHCP Settings for the LAN Interface page
Click on Next to display the Regional Settings page.
Regional Settings
Fig. I-10: Regional Settings page
Proper configuration of Regional Settings is important to the functionality of the voice sub-
system. The Regional Settings determine the proper telephony parameters for the specified
country. Select the country where the QuadroE1/T1 is located. If you do not find your coun-
try in the list, pick the closest. If this setting does not work, issue a request to Epygi technical
support under the Support section of www.epygi.com.
The Quadro gets the correct time automatically over the Internet from a time server. If you
are not located in US / Central Standard Time Zone, you will need to change the Timezone
to your region.
Click Next to show the summary page.

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 16
Finishing the System Configuration Wizard

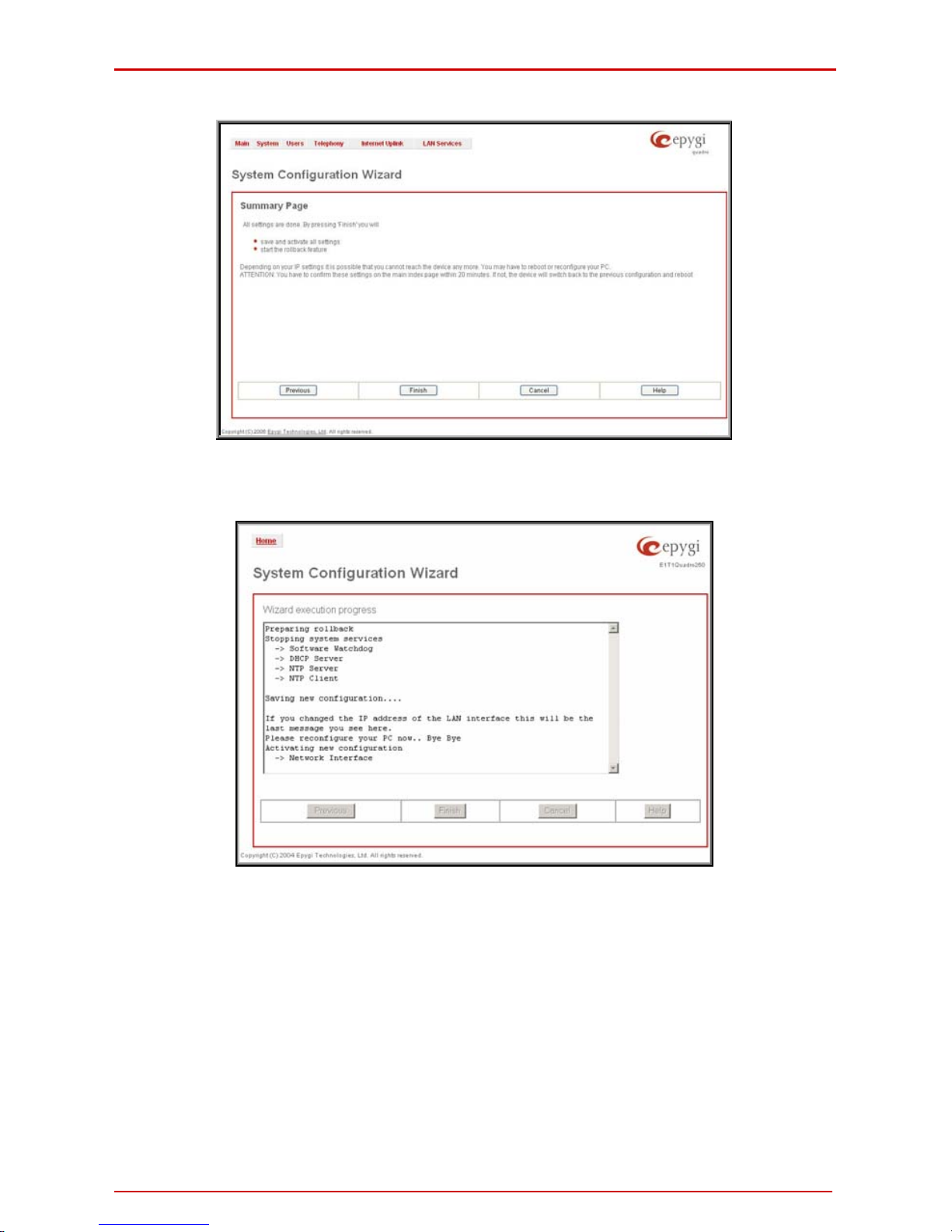

Fig. I-11: System Configuration Wizard finishing page
Click the Finish button to complete the System Configuration Wizard. The Quadro will then
stop internal functions and apply the changes made in the wizard.
Fig. I-12: Wizard execution process
After this is complete, the Quadro will reply with the Confirm Settings page requesting con-
firmation of the changes. Press the OK button to confirm the settings.

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 17
Fig. I-13: Confirm Settings page
Please Note: you must confirm the settings within 20 minutes. If not, the device will revert
back to the previous configuration and reboot.
Please Note: If you do not use DHCP for your LAN and you have changed your LAN set-
tings, make sure that the IP address of the PC connected to Quadro is still within the speci-
fied IP address range. Otherwise, your PC might be unable to establish a connection to
Quadro.
If you changed the network configuration of the LAN, you may have to reboot your PC to get
a new IP address from the new network. You can then access the Web Management of the
Quadro on the new IP address you assigned to the Quadro.
Run the Internet Configuration Wizard
Open the Internet Configuration Wizard by selecting the corresponding menu item on the
System menu. The page Getting Started will be displayed:
Fig. I-14: Internet Configuration Wizard
This first page of the Internet Configuration Wizard is for information only and lists the items
to be configured, Click on the Next button to get to the Uplink Configuration page.

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 18
Uplink Configuration
Select here the WAN Interface Protocol required by you ISP: PPPoE (Point to Point Proto-
col over Ethernet), PPTP (Point to Point Tunneling Protocol) or Ethernet.

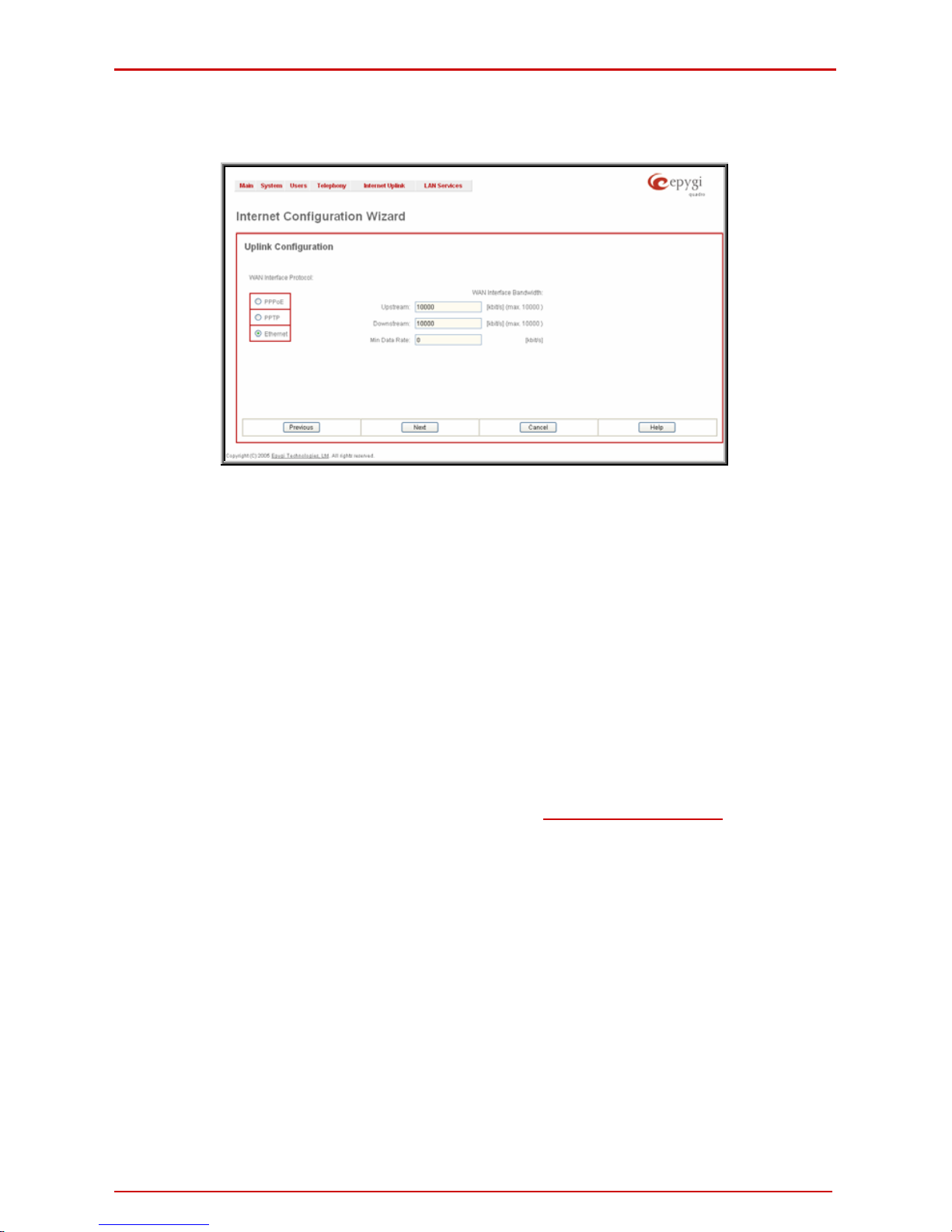

Fig. I-15:Uplink Configuration
If the available bandwidth is used to the point where the quality of an additional IP call would
suffer, then new IP calls are rejected.
The bandwidth provided by your ISP must be specified for both Upstream and Downstream
fields. The default entry in both fields is 10000, the maximum bandwidth of the 10 MB uplink
module. For basic DSL and cable modem service in the United States, typical values are
300 for Upstream and 1500 for Downstream.
The Min Data Rate text field is used to specify the amount of bandwidth reserved for data
applications. The value entered here needs to be smaller that the value specified for Up-
stream Bandwidth.
Specify the WAN Interface Protocol by choosing between available WAN interface proto-
cols: PPPoE (Point to Point over Ethernet), PPTP (Point to Point Tunneling Protocol) and
Ethernet. Use Ethernet for DHCP or static IP.
For Ethernet,clicking Next will display the WAN IP Configuration page. If PPPoE is the
selected WAN Interface Protocol, the next page will be PPP/PPTP Configuration.For PPTP
WAN Interface Protocol, PPP/PPTP Configuration page will follow the WAN IP Configura-
tion.
WAN IP Configuration
Your Internet Service Provider (ISP) should provide this information.
•Assign automatically via DHCP - The parameters are set automatically by the
ISP. This is common with cable modem and DSL service.
•Assign Manually requires the administrator to enter the external IP Address, the
corresponding Subnet Mask, and the IP address of the Standard Gateway. This
is common when you have a static IP address with your ISP.

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 19

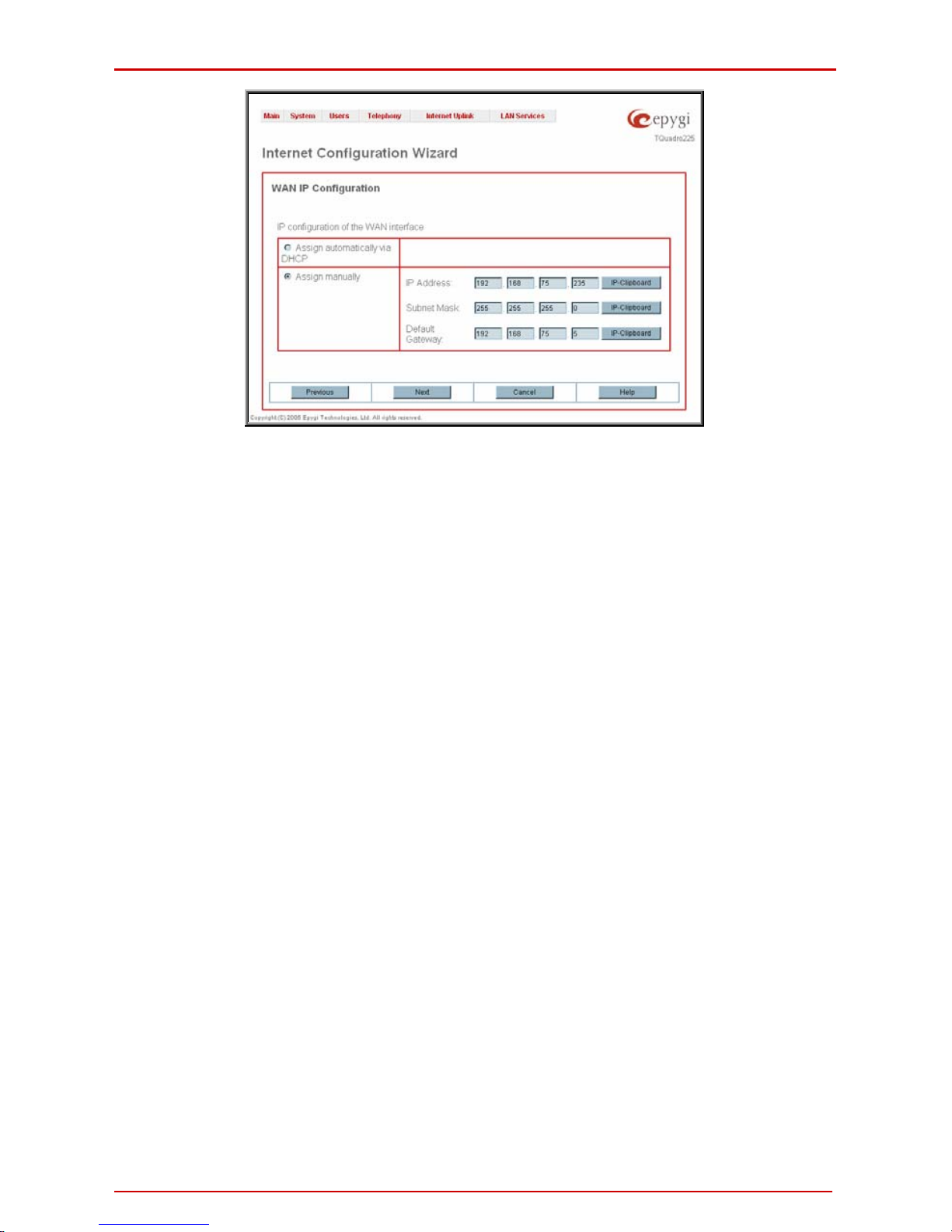

Fig. I-16: WAN IP Configuration page
Click the Next button to display the WAN Interface Configuration page.
PPP/PPTP Configuration
Enter the IP address of the PPTP server into the PPTP Server text field.
Choose the encryption for the traffic over the PPTP interface from the Encryption drop
down list.
Authentication Settings require the Username and the Password used for the authentica-
tion on the ISP server.
Dial Behavior radio buttons:
•Dial Manually - if this radio button is activated, a button will be displayed in the main
management window that serves to switch the Internet connection on/off. When ac-
cessing the Internet, every station of the connected LAN has to connect to Quadro first.
•Always connected - Quadro stays in the always connected mode. This will allow
Quadro always remain online in the network.
The IP Address Assignment field is used to specify the external IP address given to the
Quadro. Usually it is a dynamic address but in some cases you may be given a static IP ad-
dress.

QuadroE1/T1 Manual I: Installation Guide Configuring the Quadro E1/T1
QuadroE1/T1; (SW Version 3.2.x) 20

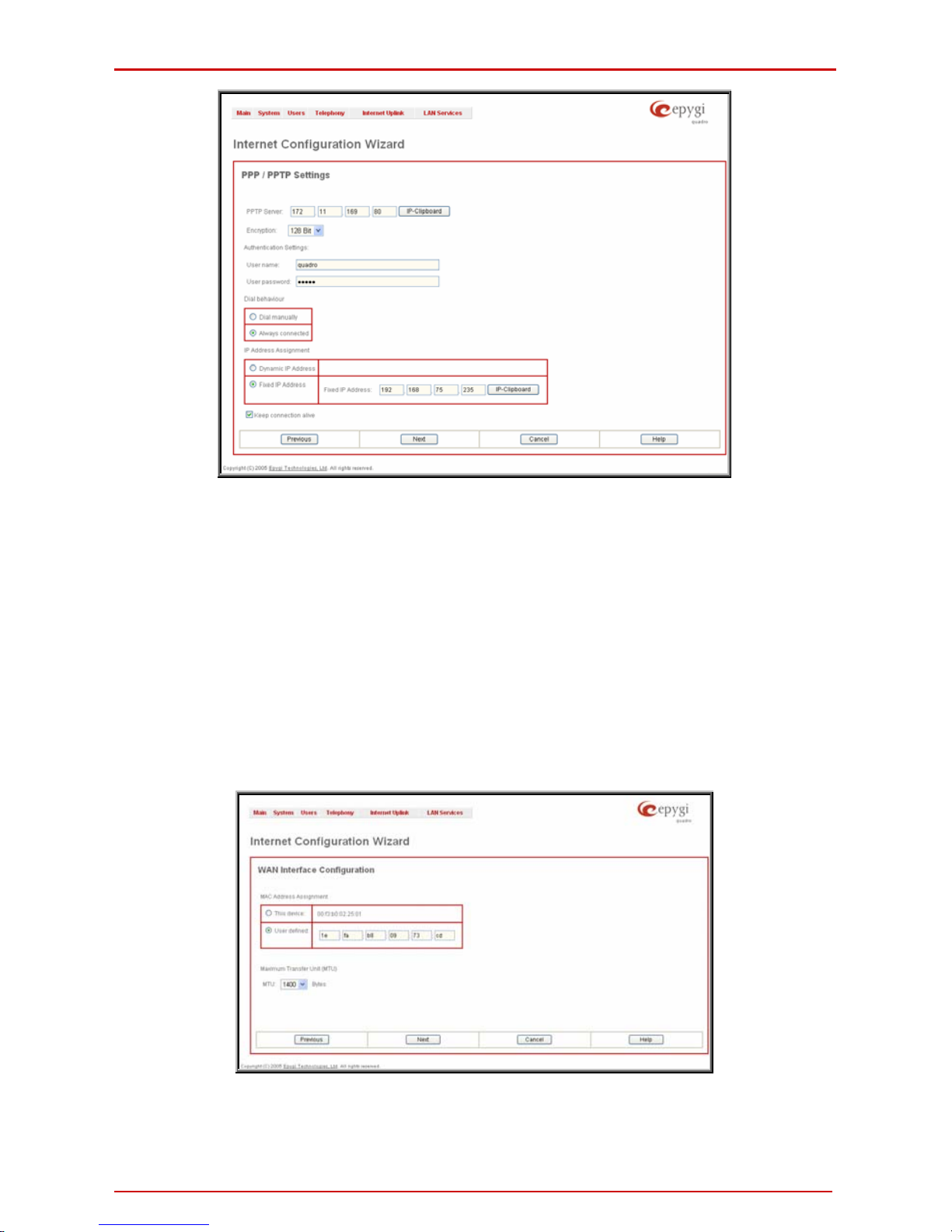

Fig. I-17: PPP Configuration page
If your ISP assigns a dynamic IP address, activate the Dynamic IP Address radio button,
otherwise activate the Fixed IP Address radio button and enter the IP address you were
assigned by your ISP.
Keep Connection alive checkbox enables keeping the connection alive by sending control
packets dedicated for the link state verification.
Click the Next button to display the WAN Interface Configuration page.
WAN Interface Configuration
If your ISP requires a specific MAC address (e.g., for authentication), it can be entered on
this page. The required MAC address can be entered into the User defined field. If a spe-
cific MAC address is not required, leave the default selection This device selected.
Fig. I-18: WAN Interface Configuration page
Use the MTU drop down list to select the maximum packet size on the Ethernet (in bytes).
Click Next to display the DNS Settings page.
