Quality Craft M707P-2628FCN User manual

ELECTRIC FIREPLACE HEATER
INSTRUCTION MANUAL
M707P-2628FCN
NDF-62N
ATTENTION:
1. Find a location for the fireplace heater that is protected
from direct sunlight.
2. Do not plug the unit into the power outlet before you
read all instructions.

2
SAFETY INSTRUCTIONS
IMPORTANT
Please note when you open the carton
carefully check the unit and make sure
there are no damages. If you have any
problems with the unit, with how the various
functions work or with hidden damages or
missing parts please call 1-800-459-4409
(EST) immediately for service. NOTE: DO
NOT RETURN UNIT TO THE STORE BEFORE
CALLING THE TOLL FREE NUMBER. Do
not dispose of your cartons until you are
completely satisfied with your new fireplace
heater. Read all instructions thoroughly
before operating your new electric fireplace.
NOTE: Light bulbs may become loose
during shipping. If the flame effect is dim
or does not work, please check that light
bulb or bulbs are finger tight in socket. See
instructions for replacing bulb or bulbs.
NOTE: The electric fireplace heater may
emit a slight harmless odor when first
turned on. This is caused by activating the
internal heater components for the first time
and should not occur again.
WARNING: Do not load articles more than
40 lbs (18.2kg) on the corner drop leaf,
which may cause product damage or
personal injury.
1) Read all instructions before using this
electric fireplace heater.
2) This electric fireplace heater is hot when
in use. To avoid burns, do not let bare skin
touch hot surfaces. The grill directly in front
of the heater outlet becomes hot during
heater operation. Keep combustible materi-
als, such as furniture, pillows, bedding,
papers, clothes, and curtains at least 3 feet
(0.9 m) away from the front of the unit and
keep them away from the sides and rear.
3) Extreme caution is necessary when any
heater is used by, or near, children or indi-
viduals with disabilities and whenever the
fireplace is left operating and unattended.
4) Always unplug fireplace when not in use.
5) Do not operate any electric fireplace with
a damaged cord or plug or after the heater
malfunctions, has been dropped or dam-
aged in any manner.
6) Do not use outdoors.
7) This electric fireplace heater is not in-
tended for use in bathrooms, laundry areas
and similar indoor locations. Never locate
IMPORTANT SAFETY INSTRUCTIONS
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAU-
TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO
PERSONS, INCLUDI NG THE FOLLOWING:

3
heater where it may fall into a bathtub or
other water container.
8) Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from
traffic area and where it will not be tripped
over.
9) To disconnect fireplace, turn controls to
off, then remove plug from outlet.
10) Connect to properly grounded outlets
only.
11) Do not insert or allow foreign objects to
enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or
damage the heater.
12) To prevent a possible fire, do not block
air intakes or exhaust in any manner. Do
not use on soft surfaces, like a bed, where
openings may become blocked.
13) A heater has hot and arcing or sparking
parts inside. Do not use it in areas where
gasoline, paint, or flammable liquids are
used or stored.
14) Use this fireplace heater only as
described in this manual. Any other use
not recommended by the manufacturer
may cause fire, electric shock, or injury to
persons.
15) Avoid the use of an extension cord
because the extension cord may overheat
SAFETY INSTRUCTIONS
and cause a risk of fire. However, if you have
to use an extension cord, the cord shall be
No.14 AWG minimum size and rated not
less than 1875 watts. The extension cord
shall be a 3 wire cord with a grounding type
cord and plug connector.
16) Do not plug this product into a receptacle
controlled by a wall switch or dimmer.
17) When storing or transporting the unit
and cord, keep in a dry place, free from
excessive vibration and store so as to
avoid damage.
CAUTION
If you use this heater in conjunction with
a thermal control, a program controller,
a timer or any other device that switches
the heater on automatically, remember to
observe all safety warnings at all times.
The electric fireplace has safety overheat
protection. If the overheat protection trips,
unplug the power cord from the receptacle.
It should reset automatically after 5 minutes.
WARNING:
Procedures and techniques if not carefully
followed, will result in damage to the equip-
ment or will expose the user to the risk of
serious injury, illness or death.

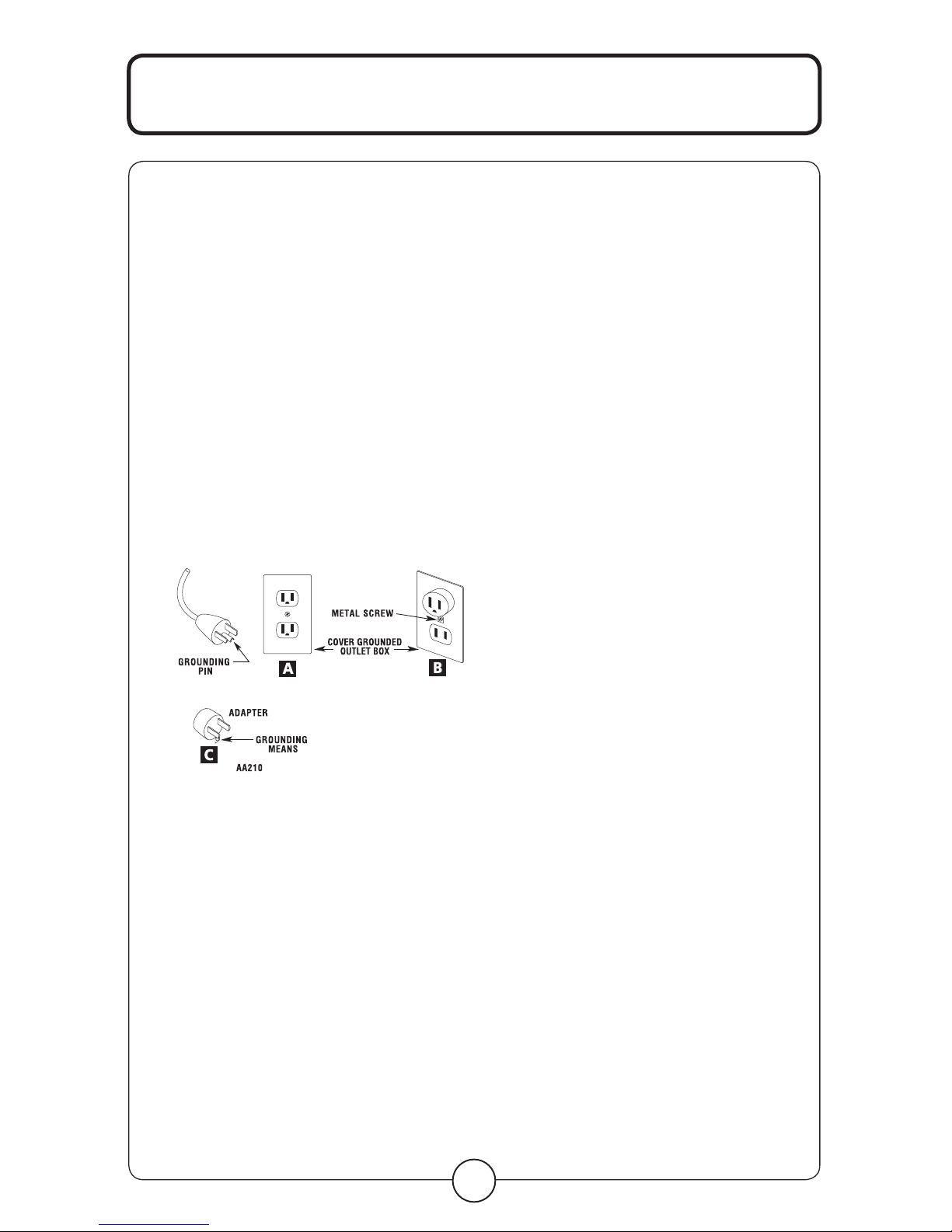

This electric fireplace heater is for use on
120 volts. The cord has a plug as shown at
A in illustration below. An adapter as shown

4
at C is available for connecting three-blade
grounding-type plugs to two-slot recep-
tacles. The green grounding plug extend-
ing from the adapter must be connected
to a permanent ground such as a properly
grounded outlet box. The adapter should not
be used if a three-slot grounded receptacle
is available. A 15 AMP circuit is required to
operate this heater. If the breaker trips when
the heater is used then you may need to
move the heater to another location or un-
plug other appliances that are on the same
circuit. If you require an extension cord use
one that is rated at 1875 watts.
SAVE THESE
INSTRUCTIONS
FOR FUTURE USE.
SAFETY INSTRUCTIONS

5
ASSEMBLY INSTRUCTIONS

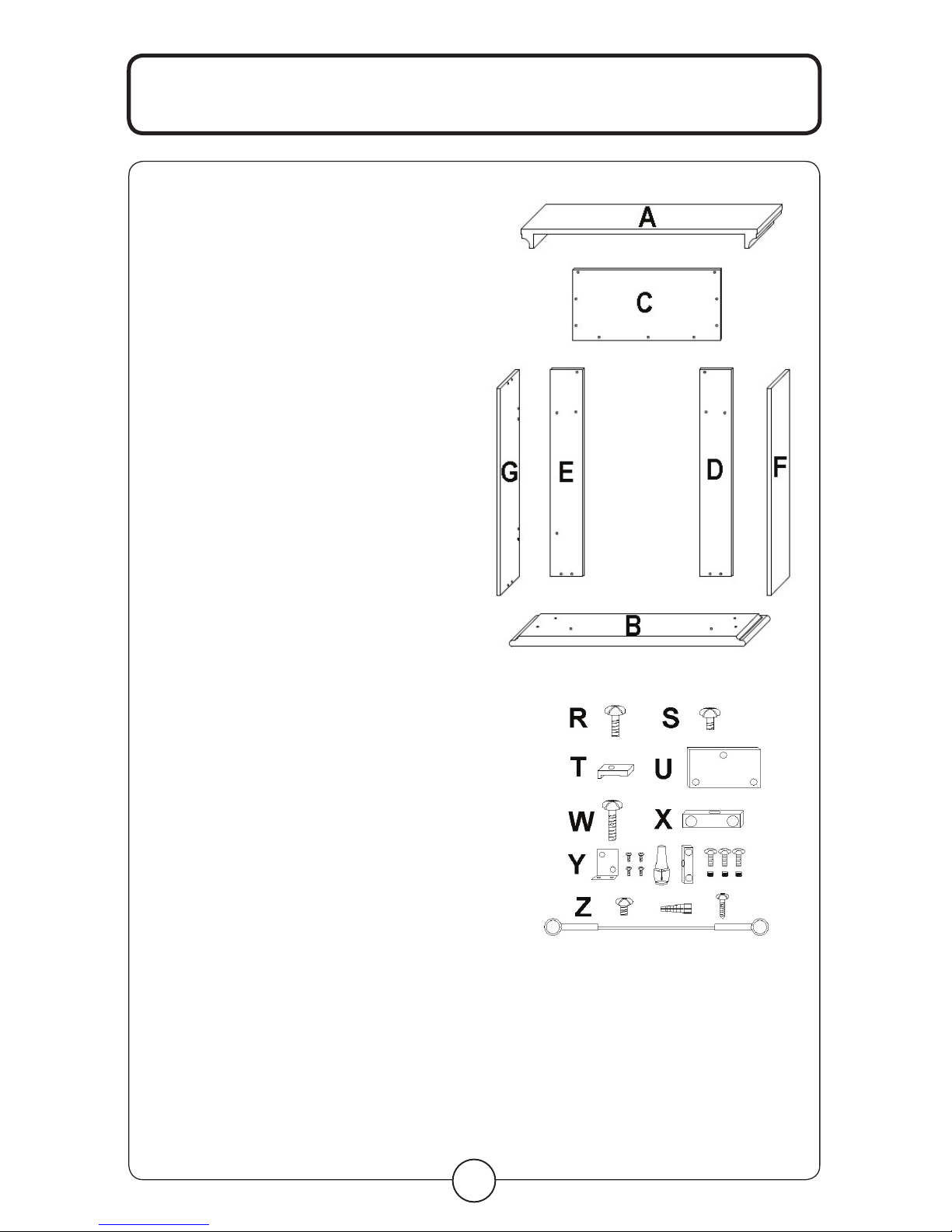

PARTS LIST:
Fireplace insert 1
A) Top panel 1
B) Base 1
C) Front panel 1
D) Left front panel 1
E) Right front panel 1
F) Left side panel 1
G) Right side panel 1
R) Medium KD screws 2
S) Short KD screws 3
T) Mounting brackets 2
U) Wood connectors 2
W) KD screws 42
X) Plastic connectors 12
Y) SELF REPAIR SET
Touch-up repair paint (bottle)
L-shape bracket 2
Screws for L bracket 8
Plastic connectors 1
KD screws 3
KD nuts 3
Z) WALL ANCHOR SAFETY CABLE
Wall Anchor 1
Screw for wall anchor 1
Screw for mantle 1
Security cable 1
Tools required: Phillips screwdriver
MANTEL ASSEMBLY:
CAUTION: Place a piece of cardboard or
protective sheet on the floor in order to
avoid scratching the decorative surface of
your mantel during assembly.

6
ASSEMBLY INSTRUCTIONS
Please DO NOT fully tighten the KD screws
until all panels are assembled.
NOTE: Each plastic connector is pre-assem-
bled (pre-drilled) on the specific panels with
2 screws. If the KD screw(s) do not fit during
assembly, loosen the 2 (pre-drilled) screws
to adjust the plastic connector until the KD
screws are able to be installed. Tighten all
KD screws once all panels are assembled.
Step 1: Attach 8 plastic connectors [X] to left
side panel [G] and Right side panel [F] with
16 KD screws (2 screws for each connector).
Attach 2 plastic connectors [X] to Left front
panel [D] and Right front panel [E] with 4 KD
screws. Attach 2 wood connectors [P] to
front panel [C] with 4 KD screws (2 screws
for each connector). Attach 2 plastic connec-
tors to front panel [C] with 2 KD screws; 1
KD screw for each connector. Voir fig. A.
Fig. A
Step 2: Attach left side panel [F] to left front
panel [D] with 2 KD screws. Attach right
side panel [G] to right front panel [E] with 2
KD screws. See Fig. B.
Fig. B
Step 3: Attach left front panel [D] and left
side panel [F] to Base [B]with 2 KD screws.
Attach right front panel [E] and Right side
panel [G] to base [B] with 2 KD screws. See
Fig. C.
Fig. C
Step 4: Attach front panel [C] to left front
panel [D] and right front panel [E] with 2 KD
screws. See fig. D.

7
Fig. D
Step 5: Attach top panel [A] to the unit as
shown in Fig E, with 4 KD screws.
See fig. E.
Fig. E
Step 6: Tighten all KD SCREWS.
FIREPLACE INSERT
INSTALLATION:
The fireplace insert can be installed after the
mantel has been fully assembled.
WARNING: Make sure the fireplace insert
controls are in the OFF position and the unit
is NOT plugged in.
Step 1: Carefully place the INSERT in the
unit opening. The front of INSERT should be
flush with the front of the mantel. Carefully
lift the INSERT into the mantel until the top
stopper is against the mantel.
Step 2 : Attach top side of insert with 3 short
KD screws. Attached 2 mounting brackets
[T] at the bottom sides of the insert with 2
medium KD screws. See Fig. F.
Fig. F
Step 3: Move assembled unit to desired
location. Unit should not be positioned in
area exposed to direct sunlight.

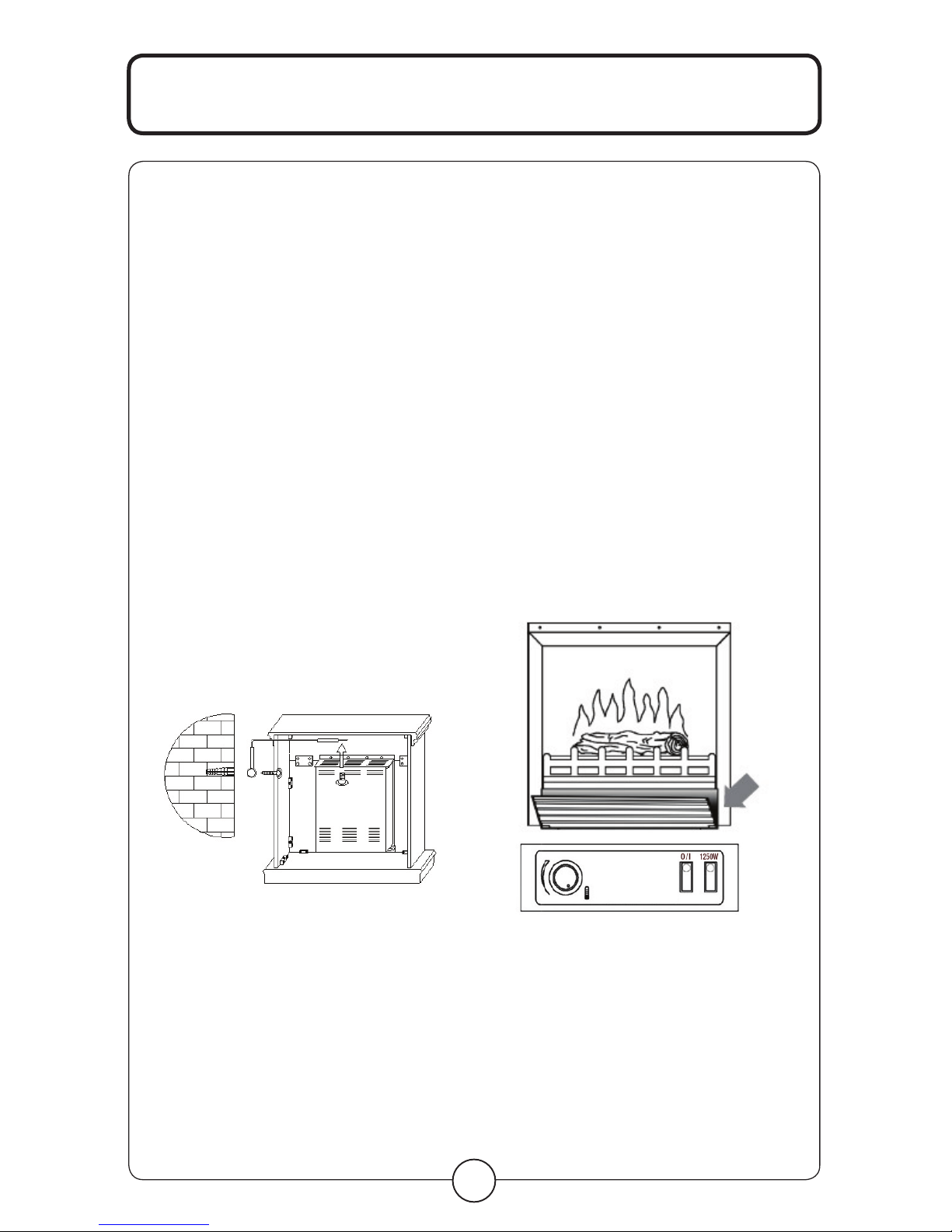

WALL ANCHOR SAFETY
CABLE
The use of WALL ANCHOR SAFETY CABLE
is highly recommended in order to reduce
ASSEMBLY INSTRUCTIONS

8
the risk of the fireplace being tipped over
accidentally. WARNING: This CABLE may
reduce possible risk of injury if the fireplace
is improperly handled, but is not a substi-
tute for proper adult supervision. Children
should not be left unattended near any
heater.
1. Drill a 5/16 in (8 mm) hole in the wall.
Insert the PLASTIC WALL ANCHOR into the
hole and gently tap until the flange on the
anchor is against the wall surface.
2. Position the back edge of the mantel
close to the wall.
3. Attach the SAFETY CABLE to the mantel
using the SCREW FOR MANTEL.
4. Use the SCREW FOR WALL to attach the
other end of SAFETY CABLE to the wall.
5. Make sure all screws are tight.
Wall
OPERATION
After reading complete instructions, confirm
all controls on fireplace are in the OFF posi-
tion. Plug the fireplace into a 15AMP/120Volt
outlet. If the cord does not reach, you may
use an extension cord rated for a minimum
of 1875 WATTS. Once the fireplace insert
has been properly connected to a grounded
electrical outlet, it is ready to operate.
OPERATION BY THE
CONTROL PANEL
The controls are located behind the grill
below the front glass and can be accessed
by pulling the grill from the top, forward and
down.
WARNING: DO NOT TOUCH. HOT SURFACE
AT CENTRE OF GRILL. HANDLE LEFT OR
RIGHT SIDE OF GRILL WHEN PULLING OUT.
O/I: Press this button for main power and
flame effect. The indicator light will turn on.
See below for other control switches.
1250W: For heat function - Press this
switch while the O/I switch is in the ON posi-
tion. The indicator light will turn ON.
ASSEMBLY INSTRUCTIONS

9
OPERATION
TEMPERATURE CONTROL: To adjust the
temperature to your individual require-
ments, turn the temperature control dial to
the right (clockwise) to increase the desired
temperature and to the left for lower tem-
perature. This temperature control dial can
only be used while the O/I switch and 1250W
switch are in the ON position.
NOTE: When the O/I switch is turned off, the
heater functions will stop even though the
switches may be in the ON position.
MAINTENANCE
WARNING: Disconnect power and unplug
the power cord before attempting any main-
tenance or cleaning to reduce the risk of fire,
electric shock or damage to persons. The
bulbs in your unit can become extremely
hot. Allow at least 10 minutes between turn-
ing off the unit and removing the light bulbs
to avoid the accidental burning of the skin.
RISK OF FIRE: DO NOT EXCEED
THE RECOMMENDED BULB
WATTAGE.
REPLACING THE FLAME
EFFECT LIGHT AND
LOG-SET LIGHT BULBS
Step 1: Remove 12 screws on the back of
fireplace and open the rear cover. There are
2 larger screws and 10 smaller screws.
Step 2: You will find 1 X 40W Type B-10 bulb
under log-set bed.
Step 3: Loosen and remove the burnt out
bulb and replace with new bulb.
Step 4: Close the rear cover. Secure the 2
larger screws into the top left corner hole
and bottom right corner holes as shown in
the diagram. Secure the 10 smaller screws
into the remaining holes. Make sure the
screws are in the correct holes and have
been tightened.
Step 5: Plug in the unit.
REPAIR SET

10
TOUCH UP REPAIR PAINT
1. Paint directly on the mantel unit if
necessary. Fig. A.
fig. A
REPAIRS
If any problems are found with the original
parts during mantel assembly such as the
panels cannot be installed with the plastic
connector. Try to solve by one of the fol-
lowing method.
Tools required: Electric drill, drill bits 3/4
inches (10 mm) or 1/16 inches (2 mm),
pencil, hammer, Philips screwdriver,
safety goggles and gloves (if necessary).
WARNING: Wear goggles before you start
drilling.
OPTION 1:
Use the spare KD NUTS, KD SCREWS and
PLASTIC CONNECTOR
1. Place the PLASTIC CONNECTOR on the
mantel unit and mark the drill-holes as
shown in Fig. B.
MAINTENANCE
fig. B
2. Drill the holes with diameter 3/4 inches
(10 mm) and depth 3/4 inches
(10 mm) on
the mantel. Each Plastic Connector needs
3 holes. See Fig. C.
fig. C
fig. D
3. Gently install the KD NUTS into the
drilled-holes with hammer as shown in
Fig. D.
4. Attach the PLASTIC CONNECTOR and
lock in place with KD SCREWS as shown
in Fig. E.

11
REPAIR SET / CLEANING
Option 2:
Use the SMALL L-BRACKETS and
SCREWS.
1. Place the SMALL L-BRACKET to the
unit as shown and mark the drill-holes on
the mantel as shown in Fig. F.
2. Drill the holes with diameter 1/16 inch-
es (2 mm) and depth 5/16 inches (8 mm)
on the mantel. Each SMALL L-BRACKET
needs 4 holes. See Fig. G.
fig. G fig. H
3. Attach the SMALL L-BRACKET and lock
in place with SCREWS as shown in Fig. H
CLEANING
To clean unit first turn off controls on unit
and unplug the unit from power source. To
clean glass display panel; remove dust with
clean dry cloth or to remove finger prints
and other marks clean glass with clean
damp cloth. Do not use abrasive cleaners or
spray liquids on glass display panel surface.
Metal and metal painted parts should be
cleaned with damp cloth. Do not use
abrasive cleaners or spray liquids on
these surfaces.

12
WARRANTY
Every electric fireplace heater is tested be-
fore it leaves the factory and it is guaranteed
for one year. If the unit should fail to operate
correctly within one year from the date of
purchase, call customer service at 1-800-
459-4409 (EST). We will, at our discretion ei-
ther repair or replace the unit. It will have to
be returned to us freight prepaid and we will
return the repaired or replaced unit to you
freight prepaid. The company’s sole obliga-
tion is to repair or replace the unit. This war-
ranty is void if in the opinion of Quality Craft
the unit has been tampered with, altered,
misused, damaged, abused or used with
the wrong power source. Light bulbs are not
covered by this warranty. The warranty is
for homeowner use only and does not cover
units used in commercial situations.
Imported by
Quality Craft
Laval, Quebec, Canada H7S 2G7
1-800-459-4409 (EST)
www.qualitycraft.com
Made in China
WARRANTY
