Quanmax QDSP-1000 User manual

I
QDSP-1000/ 1010
User’s Manua
l
QDSP-1000/ 1010
Ultra Slim Fan-less Box PC
with Intel® ULV Celeron® M Processor
User’s Guide

II
QDSP-1000/ 1010
User’s Manua
l
Contact Info: Quanmax Inc.
4F, No. 415, Ti-Ding Blvd. Sec. 2NeiHu District,
Taipei 114Taiwan
Tel: [phone]
Fax: [phone]
Visit our site at: www.quanmax.com
© 2008 Quanmax Inc. All rights reserved.
The information in this user’s guide is provided for reference only. Quanmax does not assume any
liability arising out of the application or use of the information or products described herein. This user’s
guide may contain or reference information and products protected by copyrights or patents and does
not convey any license under the patent rights of Quanmax, nor the rights of others.
Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade
names used in this user’s guide are the property of their respective owners. All rights reserved. This
user’s guide contains information proprietary to Quanmax. Customers may reprint and use this user’s
guide in other publications. Customers may alter this user’s guide and publish it only after they remove
the Quanmax name, cover, and logo.
Quanmax reserves the right to make changes without notice in product or component design as
warranted by evolution in user needs or progress in engineering or manufacturing technology.
Changes which affect the operation of the unit will be documented in the next revision of this user’s
guide.
Revision Date Edited by Changes
1.0 11/13/2008 SLee Initial Release

Content
3
QDSP-1000/ 1010
User’s Manua
l
Content
Content....................................................................................................................... 3
Figures ....................................................................................................................... 4
Tables......................................................................................................................... 5
Safety Instructions...................................................................................................... 6
Before You Begin .................................................................................. 6
When Working Inside a Computer ........................................................ 6
Preventing Electrostatic Discharge ....................................................... 7
Instructions for Lithium Battery ............................................................. 8
Voltage Ratings..................................................................................... 8
Preface....................................................................................................................... 9
How to Use This Guide ......................................................................... 9
Unpacking............................................................................................. 9
Regulatory Compliance Statements...................................................... 9
Warranty Policy................................................................................... 10
Maintaining Your Computer................................................................. 11
Chapter 1 Introduction ........................................................................................... 14
Overview............................................................................................. 14
Product Specifications ........................................................................ 15
Mechanical Layout.............................................................................. 16
Chapter 2 Assembly/Disassembly ......................................................................... 17
Accessing Internal Components ......................................................... 17
Installing a Memory Module ................................................................ 18
Wall Mounting ..................................................................................... 20
VESA Mounting................................................................................... 21
Chapter 3 Getting Started ...................................................................................... 22
Power Connection .............................................................................. 22
Operating System and Drivers............................................................ 23
Installing a SATA Controller Driver ..................................................... 23
Chapter 4 Maintenance and Prevention ................................................................ 27
Chapter 5 Interface................................................................................................ 28
External Connectors ........................................................................... 28
Internal Jumpers ................................................................................. 31

Figures
4
QDSP-1000/ 1010
User’s Manua
l
Figures

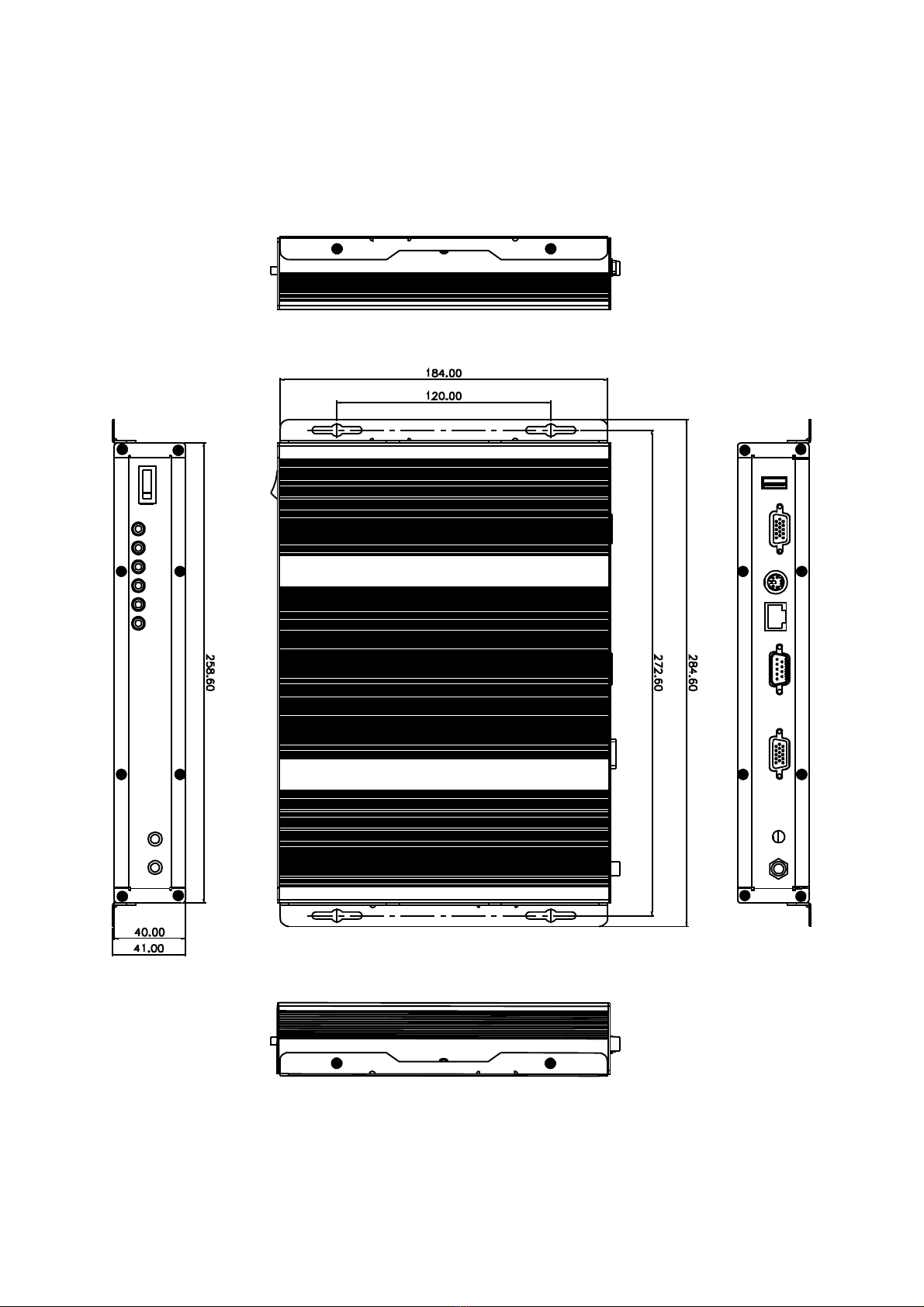

Figure 1 Mechanical Dimensions ............................................................................. 16
Figure 2 Mechanical Layout - Internal Components ................................................. 17
Figure 3 chassis bottom cover ................................................................................. 18
Figure 4 Align the SO-DIMM Memory Module with the onboard socket ................... 19
Figure 5 Fully insert the SO-DIMM Memory Module into the onboard socket .......... 19
Figure 6 Press down on the SO-DIMM Memory Module to lock it in place............... 19
Figure 7 Secure the L-brackets for wall mounting .................................................... 20
Figure 8 Wall mount holes spacing .......................................................................... 20
Figure 9 VESA mounting drawing ............................................................................ 21
Figure 10 Power connector - DC power inlet............................................................ 22
Figure 11 Jumper Locations..................................................................................... 31

Tables
5
QDSP-1000/ 1010
User’s Manua
l
Tables

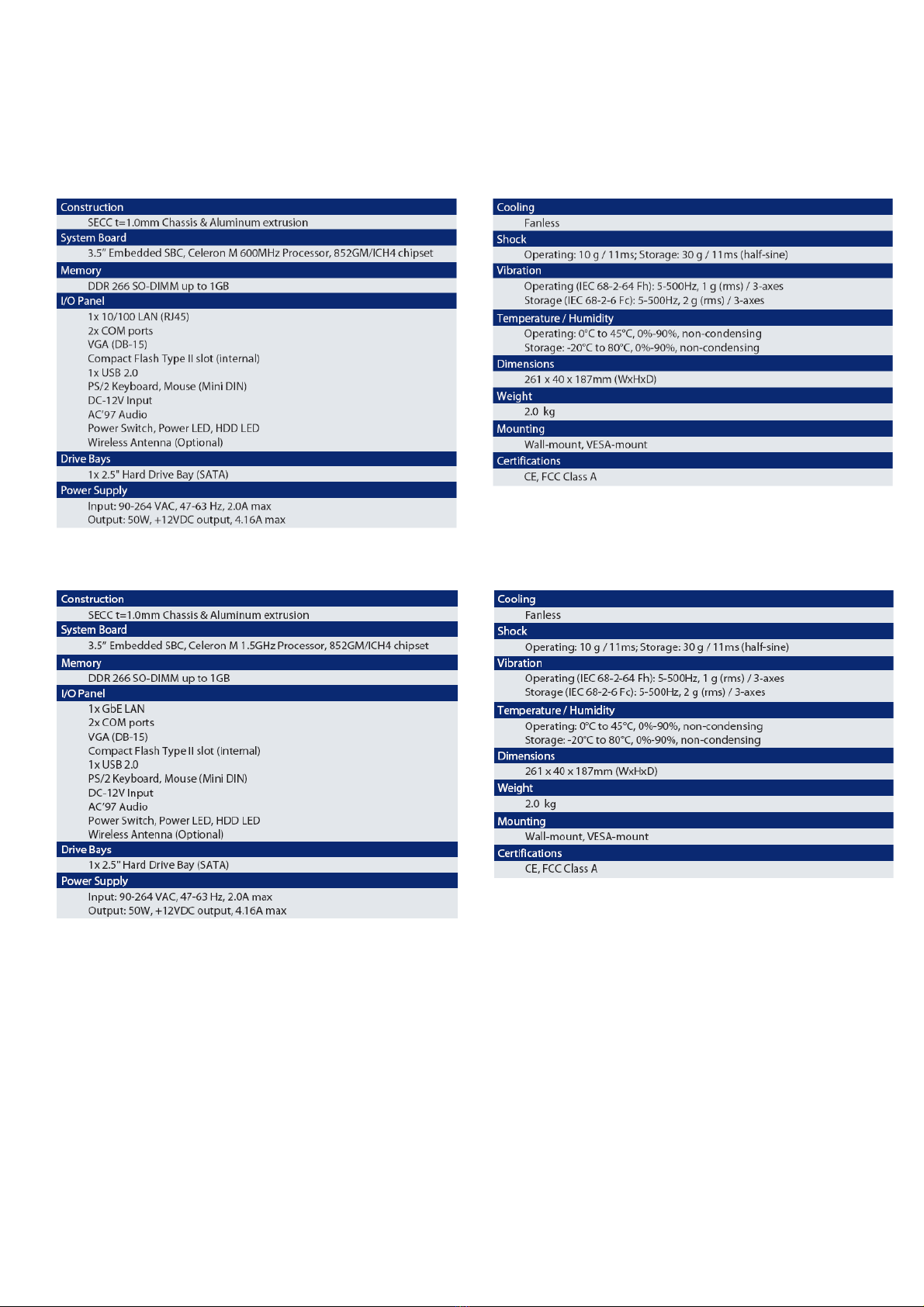

Table 1 QDSP-1000 product specifications .......................................................................................... 15
Table 2 QDSP-1010 product specifications .......................................................................................... 15
Table 3 Rear panel connectors description...........................................................................................28
Table 4 USB Connector pin definition.......................................................................................................28
Table 5 VGA Display Connector pin definition.....................................................................................29
Table 6 Keyboard/Mouse Connector pin definition...........................................................................29
Table 7 Gigabit Ethernet Connector pin definition (QDSP-1010)............................................29
Table 8 Fast Ethernet Connector pin definition (QDSP-1000) ..................................................29
Table 9 COM1 RS-232 Serial Port Connector pin definition.......................................................30
Table 10 COM2 RS-232/ 422/ 485 Serial Port Connector pin definition.............................30
Table 11 AC97’ Audio Connectors...............................................................................................................30
Table 12 CF Master/Slave Setting (JP2)................................................................................................ 31
Table 13 Clear CMOS Setting (JP3) ......................................................................................................... 31

Safety Instructions
6
QDSP-1000/ 1010
User’s Manua
l
Safety Instructions
Before You Begin
Before handling the product, read the instructions and safety guidelines on the
following pages to prevent damage to the product and to ensure your own personal
safety. Refer to the “Advisories” section in the Preface for advisory conventions used
in this user’s guide, including the distinction between Warnings, Cautions, Important
Notes, and Notes.
Always use caution when handling/operating a computer. Only qualified,
experienced, authorized electronics service personnel should access the
interior of a computer. The power supplies produce high voltages and
energy hazards, which can cause bodily harm.
Use extreme caution when installing or removing components. Refer to the
installation instructions in this user’s guide for precautions and procedures.
If you have any questions, please contact Quanmax Post-Sales Technical
Support.
WARNING
High voltages are present inside the chassis when the unit’s power cord is
plugged into an electrical outlet. Turn off system power, turn off the power
supply, and then disconnect the power cord from its source before
removing the chassis cover. Turning off the system power switch does not
remove power to components.
When Working Inside a Computer
Before taking covers off a computer, perform the following steps:
1. Turn off the computer and any peripherals.
2. Disconnect the computer and peripherals from their power sources or
subsystems to prevent electric shock or system board damage. This does not
apply when hot swapping parts.

Safety Instructions
7
QDSP-1000/ 1010
User’s Manua
l
3. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the
following page.
4. Disconnect any telephone or telecommunications lines from the computer.
In addition, take note of these safety guidelines when appropriate:
To help avoid possible damage to system boards, wait five seconds after
turning off the computer before removing a component, removing a system
board, or disconnecting a peripheral device from the computer.
When you disconnect a cable, pull on its connector or on its strain-relief loop,
not on the cable itself. Some cables have a connector with locking tabs. If you
are disconnecting this type of cable, press in on the locking tabs before
disconnecting the cable. As you pull connectors apart, keep them evenly
aligned to avoid bending any connector pins. Also, before connecting a cable,
make sure both connectors are correctly oriented and aligned.
CAUTION
Do not attempt to service the system yourself except as explained in this
user’s guide. Follow installation and troubleshooting instructions closely.
Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation
and follow proper ESD procedure to reduce the risk of damage to components.
Quanmax strongly encourages you to follow proper ESD procedure, which can
include wrist straps and smocks, when servicing equipment.
You can also take the following steps to prevent damage from electrostatic
discharge (ESD):
When unpacking a static-sensitive component from its shipping carton, do not
remove the component’s antistatic packing material until you are ready to install
the component in a computer. Just before unwrapping the antistatic packaging,
be sure you are at an ESD workstation or grounded. This will discharge any
static electricity that may have built up in your body.
When transporting a sensitive component, first place it in an antistatic container
or packaging.

Safety Instructions
8
QDSP-1000/ 1010
User’s Manua
l
Handle all sensitive components at an ESD workstation. If possible, use
antistatic floor pads and workbench pads.
Handle components and boards with care. Don’t touch the components or
contacts on a board. Hold a board by its edges or by its metal mounting bracket.
Do not handle or store system boards near strong electrostatic, electromagnetic,
magnetic, or radioactive fields.
Instructions for Lithium Battery
WARNING
Danger of explosion when battery is replaced with incorrect type. Only
replace with the same or equivalent type recommended by the
manufacturer.
Do not dispose of lithium batteries in domestic waste. Dispose of the battery
according to the local regulations dealing with the disposal of these special
materials (e.g. to the collecting points for disposal of batteries
Voltage Ratings
The external power adaptor of the QDSP-1000/1010 has the following voltage
ratings:
Input: 90-264 VAC, 47-63 Hz, 2.0A max
Output: 50W, +12VDC , 4.16A max

Preface
9
QDSP-1000/ 1010
User’s Manua
l
Preface
How to Use This Guide
This guide is designed to be used as step-by-step instructions for installation, and as
a reference for operation, troubleshooting, and upgrades.
NOTE
Driver downloads and additional information are available under
Downloads on our web site: www.quanmax.com.
Unpacking
When unpacking, follow these steps:
1. After opening the box, save it and the packing material for possible future
shipment.
2. Remove all items from the box. If any items listed on the purchase order
are missing, notify Quanmax customer service immediately.
3. Inspect the product for damage. If there is damage, notify Quanmax
customer service immediately. Refer to “Warranty Policy” for the return
procedure.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices.
FCC Compliance Statement for Class A Devices
The product(s) described in this user’s guide has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not

Preface
10
QDSP-1000/ 1010
User’s Manua
l
installed and used in accordance with the user’s guide, may cause harmful
interference to radio communications. Operation of this equipment in a residential
area (domestic environment) is likely to cause harmful interference, in which case
the user will be required to correct the interference (take adequate measures) at
their own expense.
Changes or modifications not expressly approved by Quanmax could void the user's
authority to operate the equipment.
NOTE
The assembler of a personal computer system may be required to test
the system and/or make necessary modifications if a system is found to
cause harmful interference or to be noncompliant with the appropriate
standards for its intended use.
Warranty Policy
Limited Warranty
Quanmax Inc.’s detailed Limited Warranty policy can be found under Support at
www.quanmax.com. Please consult your distributor for warranty verification.
The limited warranty is void if the product has been subjected to alteration, neglect,
misuse, or abuse; if any repairs have been attempted by anyone other than
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God,
or other causes beyond the control of Quanmax or the manufacturer. Neglect,
misuse, and abuse shall include any installation, operation, or maintenance of the
product other than in accordance with the user’s guide.
No agent, dealer, distributor, service company, or other party is authorized to change,
modify, or extend the terms of this Limited Warranty in any manner whatsoever.
Quanmax reserves the right to make changes or improvements in any product
without incurring any obligation to similarly alter products previously purchased.
Return Procedure
For any Limited Warranty return, please contact Support at www.quanmax.com and
login to obtain a Return Material Authorization (RMA) Number. If you do not have an
account, send an email to [email protected] to apply for one.
All product(s) returned to Quanmax for service or credit must be accompanied by a

Preface
11
QDSP-1000/ 1010
User’s Manua
l
Return Material Authorization (RMA) Number. Freight on all returned items must be
prepaid by the customer who is responsible for any loss or damage caused by
common carrier in transit. Returns for Warranty must include a Failure Report for
each unit, by serial number(s), as well as a copy of the original invoice showing the
date of purchase.
To reduce risk of damage, returns of product must be in a Quanmax shipping
container. If the original container has been lost or damaged, new shipping
containers may be obtained from Quanmax Customer Service at a nominal cost.
Quanmax owns all parts removed from repaired products. Quanmax uses new and
reconditioned parts made by various manufacturers in performing warranty repairs
and building replacement products. If Quanmax repairs or replaces a product, its
warranty term is not extended.
Shipments not in compliance with this Limited Warranty Return Policy will not be
accepted by Quanmax.
Limitation of Liability
In no event shall Quanmax be liable for any defect in hardware, software, loss, or
inadequacy of data of any kind, or for any direct, indirect, incidental, or
consequential damages in connection with or arising out of the performance or use
of any product furnished hereunder. Quanmax’s liability shall in no event exceed the
purchase price of the product purchased hereunder. The foregoing limitation of
liability shall be equally applicable to any service provided by Quanmax or its
authorized agent.
Maintaining Your Computer
Cleaning Components
Internal fans cool the computer by drawing in air through air vents in the front of the
computer and blowing it out the rear-side panels. Dust and other debris is drawn in
with the air and, if allowed to build up, will interfere with the operation of various
system components and insulate components, preventing heat from dissipating. To
prevent this, an air filter has been installed in front of the air vents in the front panel
to block dust and other debris from entering the computer.
Dust and debris builds up on the air filter over time. When the air filter becomes very
dirty, it is difficult for cooling air to pass through the air filter and enter the computer.
So, the air filter must be cleaned to prevent the computer from overheating. Remove
and clean the air filter on a regular basis following the steps described in the “Air
Filter” section of Chapter 2. Also, regularly vacuum the exterior of the chassis to

Preface
12
QDSP-1000/ 1010
User’s Manua
l
remove dust that has accumulated around the air vents.
Environmental Factors
Temperature
The ambient temperature within an enclosure may be greater than room
ambient temperature. Installation in an enclosure should be such that the
amount of air flow required for safe operation is not compromised.
Consideration should be given to the maximum rated ambient temperature.
Overheating can cause a variety of problems, including premature aging and
failure of chips or mechanical failure of devices.
If the system has been exposed to abnormally cold temperatures, allow a
two-hour warm-up period to bring it up to normal operating temperature before
turning it on. Failure to do so may cause damage to internal components,
particularly the hard disk drive.
Humidity
High-humidity can cause moisture to enter and accumulate in the system. This
moisture can cause corrosion of internal components and degrade such
properties as electrical resistance and thermal conductivity. Extreme moisture
buildup inside the system can result in electrical shorts, which can cause
serious damage to the system.
Buildings in which climate is controlled usually maintain an acceptable level of
humidity for system equipment. However, if a system is located in an unusually
humid location, a dehumidifier can be used to maintain the humidity within an
acceptable range. Refer to the “Specifications” section of this user’s guide for
the operating and storage humidity specifications.
Altitude
Operating a system at a high altitude (low pressure) reduces the efficiency of
the cooling fans to cool the system. This can cause electrical problems related
to arcing and corona effects. This condition can also cause sealed components
with internal pressure, such as electrolytic capacitors, to fail or perform at
reduced efficiency.
Power Protection
The greatest threats to a system’s supply of power are power loss, power spikes,
and power surges caused by electrical storms, which interrupt system operation
and/or damage system components. To protect your system, always properly

Preface
13
QDSP-1000/ 1010
User’s Manua
l
ground power cables and one of the following devices.
Surge Protector
Surge protectors are available in a variety of types and usually provide a level
of protection proportional with the cost of the device. Surge protectors prevent
voltage spikes from entering a system through the AC power cord. Surge
protectors, however, do not offer protection against brownouts, which occur
when the voltage drops more than 20 percent below the normal AC line voltage
level.
Line Conditioner
Line conditioners go beyond the overvoltage protection of surge protectors.
Line conditioners keep a system’s AC power source voltage at a fairly constant
level and, therefore, can handle brownouts. Because of this added protection,
line conditioners cost more than surge protectors. However, line conditioners
cannot protect against a complete loss of power.
Uninterruptible Power Supply
Uninterruptible power supply (UPS) systems offer the most complete protection
against variations on power because they use battery power to keep the server
running when AC power is lost. The battery is charged by the AC power while it
is available, so when AC power is lost, the battery can provide power to the
system for a limited amount of time, depending on the UPS system.
UPS systems range in price from a few hundred dollars to several thousand
dollars, with the more expensive unit s allowing you to run larger systems for a
longer period of time when AC power is lost. UPS systems that provide only 5
minutes of battery power let you conduct an orderly shutdown of the system,
but are not intended to provide continued operation. Surge protectors should be
used with all UPS systems, and the UPS system should be Underwriters
Laboratories (UL) safety approved.

Chapter 1
14
QDSP-1000/ 1010
User’s Manua
l
Chapter 1
Introduction
Overview
The QDSP-1000/1010 is an Ultra Slim Fanless Box PC ideal for space critical
applications. This embedded hardware platform is based on a 3.5” industrial SBC
with Intel® Celeron M Processor, 852GM/ICH4 chipset, and DDR 266 SO-DIMM up
to 1GB. Featured are a 2.5” SATA hard drive bay, Internal Compact Flash Type II
slot, USB 2.0, VGA, COM (RS-232), and PS/2 KB/MS. The QDSP-1010 provides
high reliability for harsh environments, compact size, noiseless operation and is
highly suited to a wide range of industrial applications such as Digital Signage,
Gaming, transportation, Surveillance, and Thin Servers.
Checklist
PS2 cable * 1
Power cord * 1
AC/DC adapter * 1
Wall mount bracket * 1set (2pcs)
VESA mount bracket * 1pcs
Screws (1 pack)
Quick Installation Guide * 1
Driver CD * 1
Features
Fan-less design and compact size with 3.5” embedded SBC
Intel® ULV Celeron® M Processor 479 μFC-BGA
Intel® 852GM GMCH + ICH4, DDR266 SODIMM up to 1GB
USB 2.0, GbE, COM, VGA, AC’97 Audio
1x 2.5" SATA hard drive bay
Rugged aluminum chassis with integrated cooling solution

Chapter 1
15
QDSP-1000/ 1010
User’s Manua
l
Product Specifications
Table 1 QDSP-1000 product specifications
Table 2 QDSP-1010 product specifications

Chapter 1
16
QDSP-1000/ 1010
User’s Manua
l
Mechanical Layout
Mechanical Dimensions
Figure 1 Mechanical Dimensions

Chapter 2
17
QDSP-1000/ 1010
User’s Manua
l
Chapter 2
Assembly/Disassembly
Accessing Internal Components
WARNING
Before opening your system, make sure to turn it off and disconnect the
power sources to prevent electric shock or system damage.
Follow the procedure described below to access the system's internal components
1. Loosen the 16 flathead screws from the front and rear panels and the 6 flathead
screws from each side to remove the chassis cover.
2. Lift the chassis cover up and off of the chassis base. See figure below for the
locations of the internal components of the system.
Figure 2 Mechanical Layout - Internal Components
Audio Board
Power Supply
Main Board
HDD

Chapter 2
18
QDSP-1000/ 1010
User’s Manua
l
Installing a Memory Module
Remove the chassis bottom cover
Loosen the 6 flathead screws and remove the chassis bottom cover
Figure 3 chassis bottom cover
Installing a SO-DIMM
1. To avoid generating static electricity and damaging the SO-DIMM, ground
yourself by touching a grounded metal surface or use a ground strap before you
touch the SO-DIMM.
2. Do not touch the connectors of the SO-DIMM. Dirt or other residue may cause a
malfunction.
3. Hold the SO-DIMM with its notch aligned with the memory socket of the
QDSP-1000/1010 and insert it at a 30-degree angle into the socket.

Chapter 2
19
QDSP-1000/ 1010
User’s Manua
l
Figure 4 Align the SO-DIMM Memory Module with the onboard socket
4. Fully insert the module into the socket until a “click” is heard.
Figure 5 Fully insert the SO-DIMM Memory Module into the onboard socket
5. Press down on the SO-DIMM so that the tabs of the socket lock on both sides
of the module.
Figure 6 Press down on the SO-DIMM Memory Module to lock it in place
6. Replace the chassis bottom cover as described above.

Chapter 2
20
QDSP-1000/ 1010
User’s Manua
l
Wall Mounting
The QDSP-1000/1010 comes with two L-brackets for wall mounting. Secure the
L-brackets to the each side of the chassis using the 4 screws.
Figure 7 Secure the L-brackets for wall mounting
Refer to figure below for wall mount holes spacing.The shape of the screw holes
allows the QDSP-1000/1010 to be mounted with the Front Panel facing in any
orientation, and provides for easy removal of the chassis for repair of maintenance.
Use standard M3 screws to mount the QDSP-1000/1010.
Figure 8 Wall mount holes spacing
Wall Mounting
holes
