Quasonix QSX-RDMS-RM Series User manual

ISO 9001:2015
Certified
No part of the document may be circulated, quoted, or reproduced for distribution without prior written approval from
Quasonix, Inc.
Copyright Quasonix, Inc., All Rights Reserved.
Installation and Operation Manual

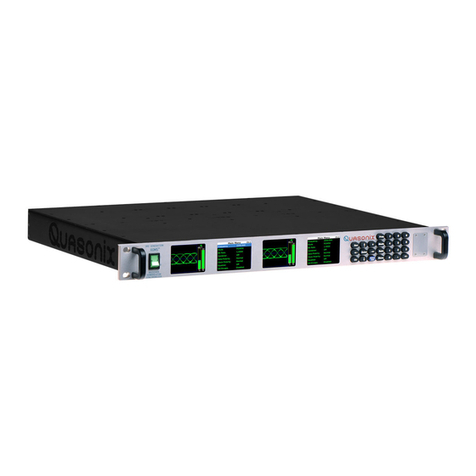

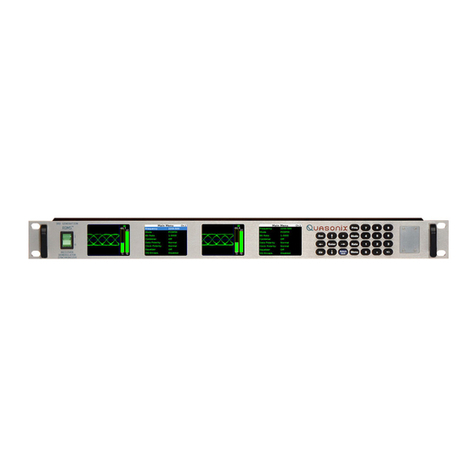

Rack-Mount RDMSTM Telemetry Receiver
Quasonix, Inc.
6025 Schumacher Park Dr.
West Chester, OH 45069
19 July 2018
Revision 3.5
Specifications subject to change without notice.
All Quasonix products are under U.S. Department of Commerce jurisdiction; not covered by ITAR

Rack-Mount RDMSTM Telemetry Receiver
i
Quasonix, Inc.
Table of Contents
1Introduction ............................................................................................................................................1
1.1 Description...................................................................................................................................1
1.2 Nomenclature ..............................................................................................................................1
1.2.1 Band........................................................................................................................................2
1.2.2 Options....................................................................................................................................3
1.2.3 Detailed Option Descriptions...................................................................................................4
1.2.3.1 SAW Filter Option –14 .......................................................................................................4
1.2.3.2 Continuous Tuning –CT.....................................................................................................4
1.2.3.3 Diversity Combiner –DC ....................................................................................................4
1.2.3.4 Viterbi Decoder (for Legacy PSK Only) –K7......................................................................4
1.2.3.5 Forward Error Correction/Low Density Parity Check (LDPC) (SOQPSK Only) –LD.........4
1.2.3.6 No Display –ND..................................................................................................................4
1.2.3.7 RS-422 –RS.......................................................................................................................4
1.2.3.8 Clone Channel 2 –X2.........................................................................................................4
1.2.3.9 Extended C Band –XC.......................................................................................................5
1.2.3.10 Extended Frequency All Bands –XF..............................................................................5
1.2.3.11 Extended Lower L Band –XL.........................................................................................5
1.2.3.12 Extended P Band –XP...................................................................................................5
1.2.3.13 Extended S Band –XS...................................................................................................5
1.2.3.14 Extended Upper L Band –XU ........................................................................................5
1.3 Package Contents .......................................................................................................................5
2Specifications.........................................................................................................................................6
3Installation Instructions ..........................................................................................................................9
3.1 Mechanical...................................................................................................................................9
3.2 Thermal......................................................................................................................................11
3.3 Electrical ....................................................................................................................................11
3.3.1 Rear Panel Connections .......................................................................................................11

Rack-Mount RDMSTM Telemetry Receiver
ii
Quasonix, Inc.
3.3.1.1 Channel 1 HD15 D-Sub Pinout.........................................................................................12
3.3.1.2 Channel 2 HD15 Pinout ....................................................................................................13
3.3.2 Electrical Signals...................................................................................................................13
3.4 Remote Control Interface...........................................................................................................14
3.4.1 Network Requirements..........................................................................................................15
4Operating Instructions..........................................................................................................................16
4.1 Front-Panel Control ...................................................................................................................16
4.1.1 Waveform Graphics...............................................................................................................17
4.1.1.1 Signal Quality....................................................................................................................18
4.1.2 Navigation..............................................................................................................................18
4.1.3 Selecting a Receiver Channel...............................................................................................19
4.1.4 Main Menu Settings...............................................................................................................20
4.1.4.1 Setting Frequency.............................................................................................................21
4.1.4.2 Setting Mode.....................................................................................................................23
4.1.4.3 Setting Bit Rate .................................................................................................................24
4.1.4.4 Diversity Combiner (Optional)...........................................................................................25
4.1.4.5 Frequency Diversity (Available with Diversity Combiner) .................................................26
4.1.4.6 Setting Data Polarity .........................................................................................................27
4.1.4.7 Setting Clock Polarity........................................................................................................27
4.1.4.8 Derandomizer State..........................................................................................................27
4.1.4.9 Force Break Lock (PSK Modes Only)...............................................................................28
4.1.4.10 Modulation Scaling (PCM/FM Mode Only)...................................................................28
4.1.4.10.1 Modulation Scaling - Tracking...............................................................................28
4.1.4.10.2 Modulation Scaling - Locked .................................................................................29
4.1.4.10.3 Modulation Scaling - Off ........................................................................................30
4.1.4.10.4 Modulation Scaling - Acquire.................................................................................30
4.1.4.11 Modulation Persistence (PCM/FM Mode Only)............................................................31
4.1.4.12 Differential Decoder......................................................................................................32
4.1.4.13 AGC Menu....................................................................................................................32
4.1.4.14 AM Menu ......................................................................................................................36
4.1.5 Options Menu........................................................................................................................39

Rack-Mount RDMSTM Telemetry Receiver
iii
Quasonix, Inc.
4.1.5.1 Save Rack Presets Menu .................................................................................................40
4.1.5.2 Load Rack Presets Menu..................................................................................................41
4.1.5.3 Save Rack Presets to USB...............................................................................................42
4.1.5.4 Load Rack Presets from USB...........................................................................................43
4.1.5.5 Save a USB Preset...........................................................................................................45
4.1.5.6 Load a USB Preset ...........................................................................................................46
4.1.5.7 Status Menu......................................................................................................................48
4.1.5.7.1 Save Events.............................................................................................................48
4.1.5.7.2 Application Update...................................................................................................49
4.1.5.8 Network Menu...................................................................................................................50
4.1.5.8.1 DHCP.......................................................................................................................51
4.1.5.8.2 IP Address ...............................................................................................................51
4.1.5.8.3 Subnet Mask............................................................................................................52
4.1.5.8.4 Default Gateway Address........................................................................................52
4.1.5.8.5 Set Group Security ID..............................................................................................53
4.1.5.8.6 Set Rack Alias .........................................................................................................54
4.1.5.9 LCD Backlight Option........................................................................................................55
4.1.5.10 Advanced Menu............................................................................................................56
4.1.5.10.1 Synchronize Measured Bit Rate............................................................................57
4.1.5.10.2 IF Filter...................................................................................................................58
4.1.5.10.3 Video Filter.............................................................................................................62
4.1.5.10.4 Video Scale............................................................................................................63
4.1.5.11 Video Invert...................................................................................................................64
4.1.5.12 Video DeEmphasis.......................................................................................................65
4.1.5.13 Phase Noise Compensation.........................................................................................65
4.1.5.14 Tape Output..................................................................................................................66
4.1.5.15 Tape Frequency............................................................................................................66
4.1.5.16 Muting...........................................................................................................................67
4.1.5.17 Muting Timeout.............................................................................................................68
4.1.5.18 Modulation Scaling Menu .............................................................................................69
4.1.5.18.1 Mod Scale Index....................................................................................................69
4.1.5.18.2 Hold Threshold ......................................................................................................70
4.1.5.19 Encoding Menu.............................................................................................................71
4.1.5.19.1 Encoding................................................................................................................72
4.1.5.19.2 Spectrum Inversion................................................................................................73
4.1.5.19.3 Bi-Phase ................................................................................................................73
4.1.5.20 DC Antenna ..................................................................................................................73

Rack-Mount RDMSTM Telemetry Receiver
iv
Quasonix, Inc.
4.1.5.21 Convolutional Decode...................................................................................................75
4.1.5.22 SNR Estimator..............................................................................................................75
4.1.5.23 Factory Default .............................................................................................................76
4.2 Remote RDMS™ Client (RRC) Control.....................................................................................76
4.2.1 Considerations for Running Multiple GUI Clients on a Single Computer..............................77
4.2.2 Selecting an RDMS™ Unit ....................................................................................................78
4.2.3 Remote Control Menu ...........................................................................................................80
4.2.3.1 Basic Settings ...................................................................................................................80
4.2.3.1.1 Basic Settings Tab...................................................................................................81
4.2.3.1.2 Advanced Settings Tab ...........................................................................................90
4.2.4 Remote Monitoring Menu....................................................................................................100
4.2.4.1 Multiple RDMS Performance Monitor .............................................................................100
4.2.5 Tools Menu..........................................................................................................................103
4.2.5.1 Network Settings.............................................................................................................104
4.2.5.1.1 Ethernet Settings...................................................................................................105
4.2.5.1.2 Status.....................................................................................................................105
4.2.5.1.3 Alias Name ............................................................................................................105
4.2.5.1.4 Additional Information............................................................................................106
4.2.5.2 Arrange Windows............................................................................................................106
4.2.5.2.1 Restore Default Locations .....................................................................................107
4.2.5.3 Firmware Upgrade ..........................................................................................................107
4.2.6 Mission Management Menu ................................................................................................107
4.2.6.1 Mission Control ...............................................................................................................107
4.2.6.1.1 Control of Mission Control Client Window.............................................................109
4.2.6.1.2 Client Master..........................................................................................................114
4.2.6.2 Group Security Filter.......................................................................................................116
4.2.6.2.1 Ethernet Group ID Filter ........................................................................................117
4.2.6.2.2 Notes .....................................................................................................................117
4.2.6.2.3 RDMS Racks Configured By Department Groups ................................................120
4.2.6.2.4 RDMS™ Racks Configured With Independent Group ID Names .........................120
4.2.7 About Menu.........................................................................................................................121
4.2.8 File Menu.............................................................................................................................122
4.2.8.1 Save/Load Presets..........................................................................................................122
4.2.8.2 Save or Load RDMS Flash Presets................................................................................126
4.2.8.2.1 RDMS Save Profile Menu......................................................................................126

Rack-Mount RDMSTM Telemetry Receiver
v
Quasonix, Inc.
4.2.8.2.2 RDMS Load Profile Menu......................................................................................127
4.2.8.3 Turn Off RDMS™ Unit ....................................................................................................128
4.2.8.4 Communications Help.....................................................................................................129
4.3 Advanced Terminal..................................................................................................................129
4.3.1 Advanced Terminal Window................................................................................................130
4.3.2 Tier 0 (PCM/FM), Tier I (SOQPSK-TG), and Tier II (MULTI-H CPM) Commands .............132
4.4 Operational Priority..................................................................................................................146
4.5 Troubleshooting Remote Client Operation ..............................................................................146
4.5.1 Remote Client Cannot Find Rack with a One to One Cable...............................................146
4.5.2 Graphics in the Remote Client are not Rendering Correctly on a PC using Windows 7 ....148
5Performance Specifications...............................................................................................................151
5.1 RF Input...................................................................................................................................151
5.2 Power.......................................................................................................................................151
5.3 RF Frequency Error.................................................................................................................151
5.4 Bit Error Rate...........................................................................................................................151
5.5 Synchronization .......................................................................................................................152
6Maintenance Instructions...................................................................................................................154
7Product Warranty...............................................................................................................................155
8Technical Support and RMA Requests..............................................................................................156
9Appendix A –Bit Error Rate Testing..................................................................................................157
9.1 Test Noise Commands............................................................................................................160
10 Appendix B –AGC Compensation.................................................................................................162
10.1 AM Menu..................................................................................................................................162
10.1.1 Recommended Settings......................................................................................................162
10.2 SNR Estimator (Advanced Menu) ...........................................................................................162
11 Appendix C –Phase Noise Compensation....................................................................................163
11.1 Trellis Demodulation Basics ....................................................................................................163
11.1.1 Trellis Demodulation Summary...........................................................................................164

Rack-Mount RDMSTM Telemetry Receiver
vi
Quasonix, Inc.
11.2 Phase Noise Impact.................................................................................................................165
11.3 Clock Jitter Impact...................................................................................................................165
11.4 When to Use PNC ...................................................................................................................165
11.5 Know Your Transmitter............................................................................................................166
12 Appendix D –Factory Reset Values ..............................................................................................167
13 Appendix E –Special Considerations for International Applications .............................................171
13.1 IP Address Separator ..............................................................................................................171
14 Appendix F –Acronym List ............................................................................................................174
List of Figures
Figure 1: Rack-Mount RDMS™ Part Number Construction .........................................................................2
Figure 2: Mechanical Drawing –Front View.................................................................................................9
Figure 3: Mechanical Drawing –Top View (Dual-channel Connectors Shown)...........................................9
Figure 4: Interior 3-D Drawing of Single-Channel Receiver........................................................................10
Figure 5: Portable 19” Rack Installation with Four RDMS™ Units Shown .................................................10
Figure 6: Rear Panel...................................................................................................................................11
Figure 7: HD15 D-Sub Pin Locations..........................................................................................................13
Figure 8: Baseband Signal Timing..............................................................................................................14
Figure 9: Front Panel Diagram for Dual-Channel Configuration.................................................................16
Figure 10: Front Panel Keypad...................................................................................................................16
Figure 11: Example PCM/FM Eye Pattern..................................................................................................17
Figure 12: Example SOQPSK Constellation...............................................................................................17
Figure 13: Waveform Graphics LCD with Locked PCM/FM Signal ............................................................18
Figure 14: Front Panel Navigation Keys .....................................................................................................19
Figure 15: Select Unit Key ..........................................................................................................................19
Figure 16: Active Main Menu Settings LCD................................................................................................19
Figure 17: Inactive Main Menu Display Grayed Out –Other Channel Active.............................................20
Figure 18: Inactive Main Menu Display with Wait Message .......................................................................20
Figure 19: Front Panel Keypad...................................................................................................................21
Figure 20: Frequency Key on Front Panel..................................................................................................21
Figure 21: Main Menu, Frequency Setting..................................................................................................22
Figure 22: Frequency Entry Screen............................................................................................................22

Rack-Mount RDMSTM Telemetry Receiver
vii
Quasonix, Inc.
Figure 23: Example Keypad Combination for Setting Frequency...............................................................22
Figure 24: Main Menu, Mode Setting..........................................................................................................23
Figure 25: Rate Key on Front Panel ...........................................................................................................24
Figure 26: Main Menu, Bit Rate Setting......................................................................................................25
Figure 27: Bit Rate Entry Screen ................................................................................................................25
Figure 28: Example Keypad Combination for Setting Bit Rate...................................................................25
Figure 29: Main Menu, Combiner Setting ...................................................................................................26
Figure 30: Main Menu, Frequency Diversity Setting...................................................................................26
Figure 31: Main Menu, Data Setting ...........................................................................................................27
Figure 32: Main Menu, Clock Setting..........................................................................................................27
Figure 33: Main Menu, Derandomizer Setting ............................................................................................28
Figure 34: Main Menu, Force Break Lock...................................................................................................28
Figure 35: Main Menu, Modulation Scaling –Tracking...............................................................................29
Figure 36: Red Eye Pattern Display - Tracking...........................................................................................29
Figure 37: Main Menu, Modulation Scaling –Locked.................................................................................29
Figure 38: Green Eye Pattern Display - Locked .........................................................................................29
Figure 39: Main Menu, Modulation Scaling –Off........................................................................................30
Figure 40: Green Eye Pattern Display - Off................................................................................................30
Figure 41: Main Menu, Modulation Scaling –Acquire ................................................................................31
Figure 42: Yellow Eye Pattern Display - Acquire........................................................................................31
Figure 43: Main Menu, Modulation Persistence –Off.................................................................................31
Figure 44: Main Menu, Modulation Persistence –On.................................................................................32
Figure 45: Main Menu, Differential Decoder Setting...................................................................................32
Figure 46: Main Menu, AGC Menu Selection .............................................................................................33
Figure 47: AGC Menu, AGC and Polarity Highlighted................................................................................33
Figure 48: AGC Menu, AGC Zero Hold Off Highlighted .............................................................................34
Figure 49: AGC Menu, Gain and Time Constant Highlighted.....................................................................34
Figure 50: AGC Gain and Time Constant Entry Screens...........................................................................34
Figure 51: Waveform Graphics Before AGC Zero Set................................................................................35
Figure 52: AGC Menu, AGC Zero Highlighted............................................................................................36
Figure 53: AGC Menu, AGC Zero Set Message.........................................................................................36
Figure 54: Waveform Graphics After AGC Zero Set...................................................................................36
Figure 55: Main Menu, AM Menu Selection................................................................................................37
Figure 56: AM Menu, Bandwidth and Time Delay Highlighted ...................................................................37
Figure 57: AM Menu, Scale Highlighted .....................................................................................................38
Figure 58: AM Bandwidth and Time Delay Entry Screens..........................................................................38
Figure 59: AM Scaling Entry Screen...........................................................................................................38

Rack-Mount RDMSTM Telemetry Receiver
viii
Quasonix, Inc.
Figure 60: AM Menu, AM Polarity Highlighted............................................................................................39
Figure 61: AM Menu, AGC COMP Highlighted...........................................................................................39
Figure 62: Main Menu, Options Menu Selection.........................................................................................40
Figure 63: Options Menu, Save Rack Presets Menu Selection..................................................................40
Figure 64: Save Menu, Save Presets –Slot 1 Full, Slot 2 Empty...............................................................41
Figure 65: Options Menu, Load Menu Selection ........................................................................................41
Figure 66: Load Menu, Load Presets –Slot 1 Load Available, Slot 2 Empty.............................................42
Figure 67: Options Menu, Save Rack Presets to USB Selection ...............................................................42
Figure 68: Save Rack Presets to USB Entry Screen..................................................................................43
Figure 69: File Exists Error Screen.............................................................................................................43
Figure 70: Options Menu, Rack Presets Saved Message..........................................................................43
Figure 71: Options Menu, USB Error Message ..........................................................................................43
Figure 72: Options Menu, Load Rack Presets from USB Selection...........................................................44
Figure 73: Load Rack Presets to USB Entry Screen..................................................................................44
Figure 74: Options Menu, Rack Presets Loaded Message ........................................................................45
Figure 75: Options Menu, USB Error Message ..........................................................................................45
Figure 76: Options Menu, Save a USB Preset Selection ...........................................................................45
Figure 77: Save a USB Preset Entry Screen..............................................................................................46
Figure 78: File Exists Error Screen.............................................................................................................46
Figure 79: Options Menu, USB Saved Message........................................................................................46
Figure 80: Options Menu, USB Error Message ..........................................................................................46
Figure 81: Options Menu, Load a USB Preset Selection............................................................................47
Figure 82: Load a USB Preset Entry Screen..............................................................................................47
Figure 83: Options Menu, USB Loaded Message ......................................................................................48
Figure 84: Options Menu, USB Error Message ..........................................................................................48
Figure 85: Options Menu, Status Menu Selection ......................................................................................48
Figure 86: Status Menu, Save Events –Mem Stick ...................................................................................49
Figure 87: Status Menu, App Update –Mem Stick.....................................................................................49
Figure 88: Status Menu, App Update –Mem Stick - Not Found.................................................................50
Figure 89: Options Menu, Network Menu Selection ...................................................................................50
Figure 90: Network Menu, Apply New Settings Displayed .........................................................................51
Figure 91: Network Menu, DHCP Setting ...................................................................................................51
Figure 92: Network Menu, IP Setting..........................................................................................................52
Figure 93: Network Menu, Subnet Setting..................................................................................................52
Figure 94: Network Menu, Gateway Setting ...............................................................................................53
Figure 95: Network Menu, Set Group Security ID Setting ..........................................................................53
Figure 96: Enter New Group ID ..................................................................................................................54

Rack-Mount RDMSTM Telemetry Receiver
ix
Quasonix, Inc.
Figure 97: Network Menu, Set Rack Alias Setting......................................................................................54
Figure 98: Enter New Rack Alias................................................................................................................55
Figure 99: Options Menu, LCD Backlight Selection....................................................................................55
Figure 100: LCD Backlight Value Entry Screen..........................................................................................55
Figure 101: Main Menu, Advanced Menu...................................................................................................56
Figure 102: Advanced Menu, Sync Measured Bit Rate Selection..............................................................57
Figure 103: Advanced Menu, Measured Bitrate Entry Screen ...................................................................57
Figure 104: Sync Measured Bit Rate Not Valid Message...........................................................................58
Figure 105: 70 MHz IF Module in 2” x 3” Chassis.......................................................................................58
Figure 106: 70 MHz IF Module in 2” x 3” Chassis SAW Filter Responses, Narrow Group (10 MHz Span)59
Figure 107: SAW Filter Responses, Wide Group (Plotted on 100 MHz Span)...........................................60
Figure 108: Optional SAW Filter Responses for 70 kHz to 6 MHz.............................................................61
Figure 109: Optional SAW Filter Responses for 14 MHz and 28 MHz.......................................................62
Figure 110: Front Panel Advanced Menu and IF Filter Menu.....................................................................62
Figure 111: Advanced Menu, Video Filter Selection...................................................................................63
Figure 112: Video Filter Setting Entry Screen.............................................................................................63
Figure 113: Advanced Menu, Video Scale Selection..................................................................................64
Figure 114: Video Scale Entry Screen........................................................................................................64
Figure 115: Advanced Menu, Video Invert Selection..................................................................................65
Figure 116: Advanced Menu, Video DeEmphasis Selection ......................................................................65
Figure 117: Advanced Menu, Phase Noise Compensation Selection........................................................66
Figure 118: Advanced Menu, Tape Output Selection.................................................................................66
Figure 119: Advanced Menu, Tape Frequency Selection...........................................................................67
Figure 120: Tape Frequency Value Entry Screen ......................................................................................67
Figure 121: Advanced Menu, Muting Selection..........................................................................................68
Figure 122: Advanced Menu, Muting Timeout Selection............................................................................68
Figure 123: Muting Timeout Entry Screen ..................................................................................................69
Figure 124: Advanced Menu, Mod Scaling Menu Selection.......................................................................69
Figure 125: Mod Scaling Menu, Mod Scale Index Selection ......................................................................70
Figure 126: Modulation Scale Index Entry Screen .....................................................................................70
Figure 127: Mod Scaling Menu, Hold Threshold Selection.........................................................................71
Figure 128: Modulation Scaling Hold Threshold Entry Screen...................................................................71
Figure 129: Advanced Menu, Encoding Menu Selection............................................................................72
Figure 130: Encoding Menu, Encoding Selection.......................................................................................72
Figure 131: Encoding Menu, Spectrum Selection ......................................................................................73
Figure 132: Encoding Menu, Bi-Phase Selection .......................................................................................73
Figure 133: Advanced Menu, DC Antenna Selection .................................................................................74

Rack-Mount RDMSTM Telemetry Receiver
x
Quasonix, Inc.
Figure 134: Advanced Menu, Convolutional Decode Selection..................................................................75
Figure 135: Advanced Menu, SNR Estimator Selection, AGC and DSP....................................................76
Figure 136: Advanced Menu, Factory Default Selection ............................................................................76
Figure 137: Remote RDMS™ Client in Desktop Window...........................................................................77
Figure 138: Please Wait Message..............................................................................................................77
Figure 139: Searching for RDMS Units Message.......................................................................................78
Figure 140: Selected RDMS Unit................................................................................................................78
Figure 141: Selected RDMS Unit and Connect Screen Button ..................................................................79
Figure 142: Connecting to RDMS™ Unit ....................................................................................................79
Figure 143: RDMS™ Connected Image .....................................................................................................79
Figure 144: Remote Control Menu..............................................................................................................80
Figure 145: Basic RDMS Settings Window.................................................................................................80
Figure 146: Basic RDMS Settings, Only One Channel Available...............................................................81
Figure 147: On-Screen Buttons ..................................................................................................................82
Figure 148: Basic Settings Window ............................................................................................................83
Figure 149: Basic Settings Window, Mode Menu.......................................................................................83
Figure 150: Basic Settings Window, Modulation Scaling Menu..................................................................84
Figure 151: Modulation Scaling Set to Tracking, Signal Graph Displays Red............................................84
Figure 152: Modulation Scaling Set to Locked, Signal Graph Displays Green ..........................................85
Figure 153: Modulation Scaling Set to Acquire, Signal Graph Displays Yellow .........................................86
Figure 154: Filter Settings Window, PCM/FM Mode...................................................................................87
Figure 155: Filter Settings Window, Non-PCM/FM Mode...........................................................................87
Figure 156: Signal Graph and Signal Indicators Windows .........................................................................88
Figure 157: Signal Indicators, Signal Not Locked.......................................................................................88
Figure 158: Diversity Combiner Link with Lock...........................................................................................89
Figure 159: Diversity Combiner Link without Lock......................................................................................89
Figure 160: Diversity Combiner Error .........................................................................................................89
Figure 161: Copy Channel Settings............................................................................................................90
Figure 162: Advanced Settings Tab (PCM/FM Version).............................................................................91
Figure 163: Advanced Settings Tab (Non-PCM/FM Version).....................................................................92
Figure 164: On-Screen Buttons ..................................................................................................................93
Figure 165: Modulation Scale Settings Window .........................................................................................93
Figure 166: AGC Settings Window .............................................................................................................94
Figure 167: AM Settings Window................................................................................................................95
Figure 168: Tape Output Settings Window.................................................................................................95
Figure 169: Muting Settings Window ..........................................................................................................95
Figure 170: Synchronize Bit Rate Settings Window ...................................................................................96

Rack-Mount RDMSTM Telemetry Receiver
xi
Quasonix, Inc.
Figure 171: Video Settings Window............................................................................................................97
Figure 172: Additional Advanced Settings, Encoding Menu Highlighted, PCM/FM Mode Only.................98
Figure 173: Additional Advanced Settings, Check Boxes...........................................................................99
Figure 174: Additional Advanced Settings, SNR Estimator........................................................................99
Figure 175: Multiple RDMS Performance Monitor....................................................................................100
Figure 176: Multiple RDMS Performance Monitor, Two Active Channels, Signal Not Locked.................101
Figure 177: Multiple RDMS Performance Monitor, Two Channels, One Signal Locked ..........................101
Figure 178: Multiple RDMS Performance Monitor, Two Active Channels, Both Signals Locked.............102
Figure 179: Multiple RDMS Performance Monitor, Inactive Channels Hidden.........................................102
Figure 180: Multiple RDMS Performance Monitor, Two RDMS™ Receivers in Rack..............................103
Figure 181: Multiple RDMS Performance Monitor, Four RDMS™ Receivers in Rack .............................103
Figure 182: Tools Menu ............................................................................................................................103
Figure 183: Tools Menu, Network Settings Option...................................................................................104
Figure 184: Network Settings Screen .......................................................................................................104
Figure 185: Network Settings, Ethernet Settings Window........................................................................105
Figure 186: Network Settings, Status Window..........................................................................................105
Figure 187: Network Settings, Alias Name Window .................................................................................106
Figure 188: Network Settings, Additional Information Window.................................................................106
Figure 189: Tools Menu, Arrange Windows Option..................................................................................107
Figure 190: Tools Menu, Firmware Upgrade Option ................................................................................107
Figure 191: Mission Management Tab, Mission Control Option...............................................................107
Figure 192: Mission Control Screen..........................................................................................................108
Figure 193: Mission Control, Active Clients Window ................................................................................108
Figure 194: Mission Control, Messages Window......................................................................................109
Figure 195: Messages Window, Message Displayed...............................................................................109
Figure 196: Selected RDMS Unit and Connect Screen Button ................................................................109
Figure 197: Rack Assigned to Another Client Message ...........................................................................110
Figure 198: Request Sent Message .........................................................................................................110
Figure 199: Tool Bar Flashes –Another Client Wants Control of Rack ...................................................111
Figure 200: Close Up of (Flashing) Mission Management Tool Bar.........................................................111
Figure 201: Example –Client 2’s Mission Control Window ......................................................................112
Figure 202: Example –Client 2’s Active Clients Window .........................................................................112
Figure 203: Example –Client 2’s Messages Window Prior to Denying Control.......................................112
Figure 204: Example –All Clients’ Messages Window with Automatic Denial Message .........................113
Figure 205: Example –Client 2’s Messages Window Prior to Releasing Control ....................................113
Figure 206: Example –Close Selected Rack Controls Message.............................................................113
Figure 207: Example –Mission Control Window for Both Clients ............................................................114

Rack-Mount RDMSTM Telemetry Receiver
xii
Quasonix, Inc.
Figure 208: Example –Mission Control Window for Both Clients ............................................................114
Figure 209: Enable Master Example –Active Clients with Enable Master Screen Button.......................115
Figure 210: Mission Control with Options Master Pass Code Box ...........................................................115
Figure 211: Mission Control Client HCD-L2 Master Enabled ...................................................................115
Figure 212: Access Granted Message......................................................................................................116
Figure 213: Message to HCD-L2 from ERIC-PC (ERIC-LAPTOP)...........................................................116
Figure 214: Mission Management Menu, Group Security Filter Option....................................................117
Figure 215: Mission Management Tab, Group Security Filter –Ethernet Group ID Filter Screen ...........117
Figure 216: Save Group ID Table File, Windows Explorer Selection Screen...........................................118
Figure 217: Load Group ID Table File, Windows Explorer Selection Screen...........................................119
Figure 218: Selected RDMS Unit..............................................................................................................120
Figure 219: Group Security Filter, Ethernet Group ID Filter Screen –Filtered by Department................120
Figure 220: Group Security Filter, Ethernet Group ID Filter Screen –Filtered by RDMS Name..............121
Figure 221: Remote RDMS™ Client Main Menu Bar, About Menu..........................................................121
Figure 222: About Screen.........................................................................................................................122
Figure 223: File Menu...............................................................................................................................122
Figure 224: Save/Load Preset Files..........................................................................................................123
Figure 225: Save/Load Preset Files, Save Preset Window......................................................................123
Figure 226: Save/Load Preset Files, Folder Name Window.....................................................................124
Figure 227: Save/Load Preset Files, Folder Name Typed........................................................................124
Figure 228: Save/Load Preset Files, Delete Window ...............................................................................125
Figure 229: Save/Load Preset Files, Rename Window............................................................................126
Figure 230: File Tab, Save/Load Preset Files...........................................................................................126
Figure 231: RDMS Save Profile Window..................................................................................................127
Figure 232: RDMS Load Profile Window..................................................................................................127
Figure 233: File Menu, Turn Off RDMS Unit.............................................................................................128
Figure 234: RDMS Shutdown Warning Window.......................................................................................128
Figure 235: File Menu, Communications Help..........................................................................................129
Figure 236: Remote Control Menu, Advanced Terminal Option...............................................................129
Figure 237: Start Advanced Terminal Communications ...........................................................................130
Figure 238: Advanced Terminal Window..................................................................................................130
Figure 239: Advanced Terminal Window with User Message ..................................................................131
Figure 240: Start Menu - Control Panel....................................................................................................147
Figure 241: Control Panel - Network and Sharing Center........................................................................147
Figure 242: Start Menu - Control Panel....................................................................................................148
Figure 243: Control Panel, Display Selection ...........................................................................................149
Figure 244: Display Window, Set Custom Text Size Option.....................................................................149

Rack-Mount RDMSTM Telemetry Receiver
xiii
Quasonix, Inc.
Figure 245: Custom DPI Setting Window .................................................................................................150
Figure 246: BER Performance for Tier 0, I, and II ....................................................................................152
Figure 247: Synchronization Time at Various Signal-to-Noise Ratios......................................................153
Figure 248: Ideal PCM/FM Phase Tree (h = 0.7)......................................................................................163
Figure 249: Phase Trajectory Never Forgets............................................................................................164
Figure 250: Trellis Detection Gain with Zero to Minimum Phase Noise ...................................................164
Figure 251: Trellis Detection Gain with Significant to Severe Phase Noise .............................................165
Figure 252: "Clean" Eye Pattern...............................................................................................................166
Figure 253: Start Menu - Control Panel....................................................................................................171
Figure 254: Region and Language Selection............................................................................................172
Figure 255: Customize Format Window....................................................................................................173
List of Tables
Table 1: Standard Band Field Codes............................................................................................................2
Table 2: Model Configuration Example.........................................................................................................3
Table 3: Extended Band Frequency Ranges................................................................................................5
Table 4: Rear Panel Connector Specifications...........................................................................................11
Table 5: Channel 1 HD15 D-Sub Pinout (J7)..............................................................................................12
Table 6: Channel 2 HD15 D-Sub Pinout (J17)............................................................................................13
Table 7: Band and Frequency Combinations..............................................................................................23
Table 8: Modulation Naming Convention....................................................................................................24
Table 9: Standard and Optional User Commands....................................................................................132
Table 10: Interface Prioritization ...............................................................................................................146
Table 11: Band Codes and Frequencies ..................................................................................................151
Table 12: RDMS™ BER Specifications ....................................................................................................152
Table 13: Bit Error Rate Serial Commands...............................................................................................157
Table 14: Test Noise Commands .............................................................................................................161
Table 15: Recommended AM/AGC Settings ............................................................................................162
Table 16: QPSK Factory Reset Values.....................................................................................................167
Table 17: PCM/FM Factory Reset Values ................................................................................................168
Table 18: SOQPSK Factory Reset Values ...............................................................................................169
Table 19: Multi-h CPM Factory Reset Values...........................................................................................170

Rack-Mount RDMSTM Telemetry Receiver
xiv
Quasonix, Inc.

Rack-Mount RDMSTM Telemetry Receiver
1
Quasonix, Inc.
1 Introduction
1.1 Description
This document describes the installation and operation of the Quasonix Rack-Mount RDMSTM Telemetry Receiver.
The RDMS™ (Receiver / DeModulator / bit Synchronizer) is designed to downconvert, demodulate, and bit synch
to a variety of RF telemetry signals from flight-test aircraft. With an intuitive front-panel interface as well as an
extensible Ethernet-based client interface, and antenna-tracking outputs, the Rack-Mount RDMSTM is capable of
fulfilling a variety of flight test station requirements.
The following waveform formats are supported by RDMS™:
•PCM/FM (ARTM Tier 0)
•SOQPSK-TG (ARTM Tier I)
•ARTM CPM / Multi-h CPM (ARTM Tier II)
•Legacy (PSK) suite, which includes:
•BPSK
•QPSK
•Offset QPSK (OQPSK)
•Asymmetric QPSK (AQPSK)
•Unbalanced QPSK (UQPSK)
•Asymmetric Unbalanced QPSK (AUQPSK)
•Digital PM
Of the aforementioned, RDMS™ provides true multi-symbol trellis demodulation in all three ARTM modes,
PCM/FM, SOQPSK-TG, and Multi-h PCM. It also provides a clock signal, obviating the need for any outboard bit
synchronizer.
The Rack-Mount RDMS™ Telemetry Receiver is manufactured by:
Quasonix, Inc.
6025 Schumacher Park Drive
West Chester, OH 45069
CAGE code: 3CJA9
1.2 Nomenclature
The Rack-Mount RDMS™ (hereafter referred to as “RM RDMS™”) is available in a plethora of variations based on
the number of channels, frequency bands, demodulation methods, options, etc. The features and modes installed in
each unit are identified in the model number, as depicted in Figure 1.

Rack-Mount RDMSTM Telemetry Receiver
2
Quasonix, Inc.
Figure 1: Rack-Mount RDMS™ Part Number Construction
1.2.1 Band
Band field codes are listed in Table 1.
Table 1: Standard Band Field Codes
Model Number
Code
Band
Minimum
Frequency
Maximum
Frequency
Default
Frequency
P
P band (UHF)
400.0 MHz
1150.0 MHz
400.0 MHz
L
Lower L
1435.5 MHz
1534.5 MHz
1435.5 MHz
U
Upper L
1755.0 MHz
1850.0 MHz
1755.0 MHz
S
S
2200.5 MHz
2394.5 MHz
2200.5 MHz
C
C “Low”
4400.0 MHz
5150.0 MHz
4400.0 MHz
G
P and S (Dual band)
400.0 MHz and
2200.5 MHz
1150.0 MHz and
2394.5 MHz
2200.5 MHz
F
S and C (Dual band)
2200.5 MHz and
4400.0 MHz
2394.5 MHz and
5150.0 MHz
2200.5 MHz
M
Lower L, Upper L, and
S (Tri-band)
1435.5 MHz
2394.5 MHz
1435.5 MHz
R
P, Full-L, and S
(Quad band)
400.0 MHz
2394.5 MHz
1435.5 MHz
Q
Full L, S, and C
(Quad band)
1435.5 MHz
5150.0 MHz
1435.5 MHz
- - X2
Copy Channel 1 modes
(both channels
configured the same)
(X2 orblank)
Rack Mount RDMS™ Part Numbering Example
S
Frequency
Band Code
(Referto
band tables)
QSX-RDMS-RM 2
Standard
Prefix Channels
1 or 2
- - XF
Options, separatedby
hyphens
(example extended
frequency)
M
Frequency
Band Code
(if different
Channel 2)
(Referto
band tables)
-1 1 1 0
PCM/FM
SOQPSK-TG
Legacy
Mode:
1 = Enabled
0 = Not enabled
ARTM CPM
1 1 1 0
PCM/FM
SOQPSK-TG
Legacy
Mode:
1 = Enabled
0 = Not enabled
(if different
Channel 2)
ARTM CPM
-

Rack-Mount RDMSTM Telemetry Receiver
3
Quasonix, Inc.
Model Number
Code
Band
Minimum
Frequency
Maximum
Frequency
Default
Frequency
E
P, Full L, S, and C
(Five band)
400.0 MHz
5150.0 MHz
400.0 MHz
1.2.2 Options
The available options are listed below. Refer to section 1.2.3 for detailed descriptions of each option. Please contact
Quasonix for assistance ordering receiver options.
•14 14 SAW filters (adds 70 kHz, 1.4, 3, 6, 14, and 28 MHz filters)
•CT Continuous tuning
•DC Digitally implemented pre-detection diversity combiner (requires dual-channel configuration)
•K7 K7 Viterbi Decoder (k=7, rate 1/2)
•LD LDPC decoder
•ND Blank front panel with no displays or keypad
•RS RS-422 clock and data outputs on 3-lug triax connectors
•X2 Configure-Channel 2 the same as Channel 1 (bands and modes)
•XC Extended C band
•XF Extend frequency range for all enabled bands
•XL Extended Lower L band
•XP Extended P band
•XS Extended S band
•XU Extended Upper L band
For example, a model QSX-RDMS-RM2-L-1101-S-1101-DC is configured as shown in Table 2:
Table 2: Model Configuration Example
Identifiers
Description
QSX
Quasonix product
RDMS
Receiver / Demodulator / Bit Synchronizer
RM2
Rack-Mount package, 2 channels
L
Ch 1: Lower L-band operation
1101
Ch 1: Tier 0 present, Tier I present, Tier II absent,
Legacy (PSK) present
S
Ch 2: S-band operation
1101
Ch 2: Tier 0 present, Tier I present, Tier II absent,
Legacy (PSK) present

Rack-Mount RDMSTM Telemetry Receiver
4
Quasonix, Inc.
Identifiers
Description
DC
Diversity combiner option
In the case of multi-channel receiver configurations with identical frequency bands and modes, a shorthand part
number can be used by including a multiplier code immediately following the initial frequency band and mode
character string. The multiplier code is “X2” for applicability to a two channel receiver configuration.
As an example, the following traditional part number, QSX-RDMS-RM2-M-1110-M-1110-DC, can be shortened to
QSX-RDMS-RM2-M-1110-X2-DC.
1.2.3 Detailed Option Descriptions
1.2.3.1 SAW Filter Option –14
This option adds additional SAW filters, for a total of 14. The additional filters are 70 kHz, plus 1.4, 3, 6, 14, and 28
MHz.
1.2.3.2 Continuous Tuning –CT
The CT option allows continuous tuning, including between specified bands. This option only applies to five-band
receivers.
1.2.3.3 Diversity Combiner –DC
The DC option provides a digitally implemented pre-detection diversity combiner. This option requires the dual-
channel configuration.
1.2.3.4 Viterbi Decoder (for Legacy PSK Only) –K7
The K7 option (k=7, rate 1/2) enables Viterbi decoding of a convolutionally encoded data stream, which converts it
back to the original (uncoded) source data stream.
Convolutional encoding adds redundant information to the transmitted data stream to help detect and correct bit
errors that may occur, particularly due to predominantly Gaussian noise. Use of convolutional encoding requires a
matching Viterbi decoder in the receiver to extract the source data. The decoded data rate is half the encoded data
rate. The receiver has two independent decoders, one for in-phase (“I”) data and one for quadrature (“Q”) data. For
BPSK, only a single decoder is used. Each decoder is compatible with the convolutional encoding described in the
“Consultative Committee for Space Data Systems, Recommendation for Space Data System Standards, TM
Synchronization and Channel Coding, CCSDS 131.0-B-1, Blue Book, September 2003, Section 3.”
1.2.3.5 Forward Error Correction/Low Density Parity Check (LDPC) (SOQPSK Only) –LD
The LD option provides the Low Density Parity Check (LDPC) forward error correction (FEC) decoder. This option
is only available with SOQPSK.
1.2.3.6 No Display –ND
The ND option provides a blank front panel with no displays or keypad.
1.2.3.7 RS-422 –RS
The RS option specifies RS-422 clock and data outputs on 3-lug triax connectors.
1.2.3.8 Clone Channel 2 –X2
The X2 option specifies Channel 2 configuration to match the Channel 1 bands and modes.

Rack-Mount RDMSTM Telemetry Receiver
5
Quasonix, Inc.
1.2.3.9 Extended C Band –XC
The XC option specifies a new frequency limit for C band receivers. The standard frequency range for C band is
4400.0 MHz to 5150.0 MHz. The extended tuning range is 4400.0 MHz to 5250.0 MHz.
1.2.3.10 Extended Frequency All Bands –XF
The XF option specifies extended frequency ranges for all enabled bands. Refer to Table 3 for extended ranges.
Table 3: Extended Band Frequency Ranges
Band
Standard Frequency
Range
Extended Frequency
Range
P band (UHF)
400.0 MHz –1150.0 MHz
200.0 MHz –1150.0 MHz
Lower L
1435.5 MHz –1534.5 MHz
1415.0 MHz –1585.0 MHz
Upper L
1755.0 MHz –1850.0 MHz
1650.0 MHz –1855.0 MHz
S
2200.5 MHz –2394.5 MHz
2185.0 MHz –2500.0 MHz
C
4400.0 MHz –5150.0 MHz
4400.0 MHz –5250.0 MHz
1.2.3.11 Extended Lower L Band –XL
The XL option specifies a new frequency limit for Lower L band receivers. The standard frequency range for Lower
L band is 1435.5 MHz to 1534.5 MHz. The extended tuning range is 1415.0 MHz to 1585.0 MHz.
1.2.3.12 Extended P Band –XP
The XP option specifies a new frequency limit for P band receivers. The standard frequency range for P band is
400.0 MHz to 1150.0 MHz. The extended tuning range is 200.0 MHz to 1150.0 MHz.
1.2.3.13 Extended S Band –XS
The XS option specifies a new frequency limit S band receivers. The standard frequency range for S band is 2200.5
MHz to 2394.5 MHz. The extended tuning range is 2185.0 MHz to 2500.0 MHz.
1.2.3.14 Extended Upper L Band –XU
The XU option specifies a new frequency limit for Upper L band receivers. The standard frequency range for Upper
L band is 1755.0 MHz to 1850.0 MHz. The extended tuning range is 1650.0 MHz to 1855.0 MHz.
1.3 Package Contents
The contents of the box include the following:
•Rack-Mount receiver unit
•Power cord
•CD with user manual, data sheets, etc.
•Four (4) rubber feet with adhesive for lab bench use
