Quell QE-001 User manual

© 2017 NeuroMetrix, Inc.
User Manual

Contents
2 Chapter 1: Pain Relief with Quell
2 Introduction
3 What You Should Have Received
4 Device Components
5 Chapter 2: Getting Started
7 Chapter 3: Device Basics
7 Checking Battery
7 Charging Battery
8 Attaching Electrode
9 Device Placement
10 Chapter 4: Calibration
10 Option A: App Calibration (Recommended)
10 Option B: Manual Calibration
11 Chapter 5: Pain Relief Therapy
11 Preparing for Therapy Session
11 Starting Therapy Session
11 What Therapy Feels Like
12 Adjusting Intensity During Therapy Session
12 Ending Therapy Session
14 Chapter 6: Overnight Therapy
15 Chapter 7: Electrodes
16 Chapter 8: Skin Care
17 Chapter 9: Using the Mobile App
17 Download the App
17 Create an Account
18 Personalization Features
19 Chapter 10: Maintenance,
Safety, and Service
19 Maintenance
19 Cleaning Device
19 Cleaning Band
19 Device Storage
19 Disposal
19 Limited Warranty
20 APPENDIX A: Indicator Lights
22 APPENDIX B: Troubleshooting
27 APPENDIX C: Frequently Asked Questions
29 APPENDIX D: Alternate Placement Sites
30 APPENDIX E: Therapy Dose
31 APPENDIX F: Technical Specifications
33 APPENDIX G: Precautions and Warnings
35 APPENDIX H: Symbols
36 APPENDIX I: Electromagnetic
Compatibility Declaration
39 APPENDIX J: FCC and IC
40 APPENDIX K: Bluetooth®
41 APPENDIX L: Declaration of Conformity

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
2
Chapter 1: Pain Relief with Quell
Introduction
Quell Wearable Pain Relief Technology™ is patented, non-invasive nerve stimulation
technology that provides relief from chronic pain. It consists of a device and an
electrode that attaches to the device. The device is worn on your upper calf, a few
inches below the knee, and is controlled by a single button on the device or by the
"Quell Relief" smartphone app.
Quell provides pain relief by comfortably stimulating the nerves that carry normal,
non-painful sensations to your brain, which decreases the perception of pain.
Pain relief is initiated by simply clicking a button on the device or using the app on
your smartphone. Regular therapy sessions are 60 minutes. After your first session,
therapy will automatically restart every other hour. Pain relief may begin in as little
as fifteen minutes after the start of a therapy session and may last up to an hour
following the end of a session. You have complete control and can start or end therapy
anytime from your device or smartphone.
You should review this User Manual carefully. Chapter 2 shows you how to get started.
Chapters 3-5 provide detailed instructions on device use. Chapter 6 describes device
use during sleep. Chapter 7 offers tips for taking care of the electrodes. Chapter 8
provides information on preventing skin irritation, particularly if you have sensitive
or dry skin. Chapter 9 provides information about the optional smartphone app.
APPENDIX C gives answers to frequently asked questions.
If you have any questions about how to use Quell, please call Quell Customer Care at
1-800-204-6577 or, if calling from outside the US, please call [phone].
Chapter 1
Pain Relief with Quell®

Chapter 1: Pain Relief with Quell
Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
3
What You Should Have Received
Upon receiving your Quell Wearable Pain Relief System you should inspect its contents
to make sure all of the following are included and undamaged.
Quell Electrode Pack*
(packaging may vary)
Quell Device Sports Band
USB Cable AC Adapter
Travel Bag (available separately) Quick Start Guide
Start Therapy
Click the but ton.
One light will blink.
The stimulation will
increase for 2 minutes
until optimal level is
reached. Stimulation
should feel strong,
but comfortable.
Decrease Intensity
Click the but ton to
reduce intensity.
Repeat if needed.
Increase Intensity
Press and hold button
down. Intensity
increases until you
release the button.
Stop Therapy
To stop therapy, click
the button 4 times in
a row.
Always stop therapy
BEFORE removing
the device.
When the lights
are off, it is safe to
remove device.
Quick Start Guide
Terms of Use - visi t quellrelief.com/terms PN 2204113 Rev. K
*Adjustme nts can als o be made usin g the app.
Tips for Success
• Calibrate prop erly so Quell delivers the right stimulation level for optimal
pain relief.
• Use your Quell daily, at least 2 to 3 full therapy sessions, for the first
month. Can also be used overnight.
• Give it time as it may take several weeks to experience optimal pain
relief from using your Quell.
Important Guidelines
• The electrode should be making good contact with the skin.
• Remove electrode briefly during the day to reduce risk of skin irritation.
After 4 hours of wear, device will pulse on/off for 1 minute as a reminder.
• To get the most use of your electrode, put the liner back on the gel pads
when elec trode is not on skin.
• Change the electrode every 2 weeks.
• Do not use when showering or bathing, or while operating a vehicle.
• For tips on customizing therapy, visit quellrelief.com/quell-user.
Warnings
Quell is contraindicated if you have a cardiac pacemaker, implanted
defibrillator, or other implanted metallic or electronic device. If you have any
of these conditions, please discuss with your doc tor before usin g Quell.
Therapy
Regular therapy sessions last 60 minutes with a 60 minute break
between sessions. Sessions will continue automatically until the device is
removed from the leg.
Have Questions? Call Us: 1-800-204-6577.
ElectrodesOptional App Sport s BandQuell De vice
Manually Adjusting and Stopping Therapy*
4x
* Only use electrodes manufactured by NeuroMetrix, Inc.

Chapter 1: Pain Relief with Quell
Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
4
Push button
Adjustable sports band
Two electrode
connector snaps
Indicator lights
Micro-USB port
(not seen in image, port is on bottom of device,
not accessible through sports band)

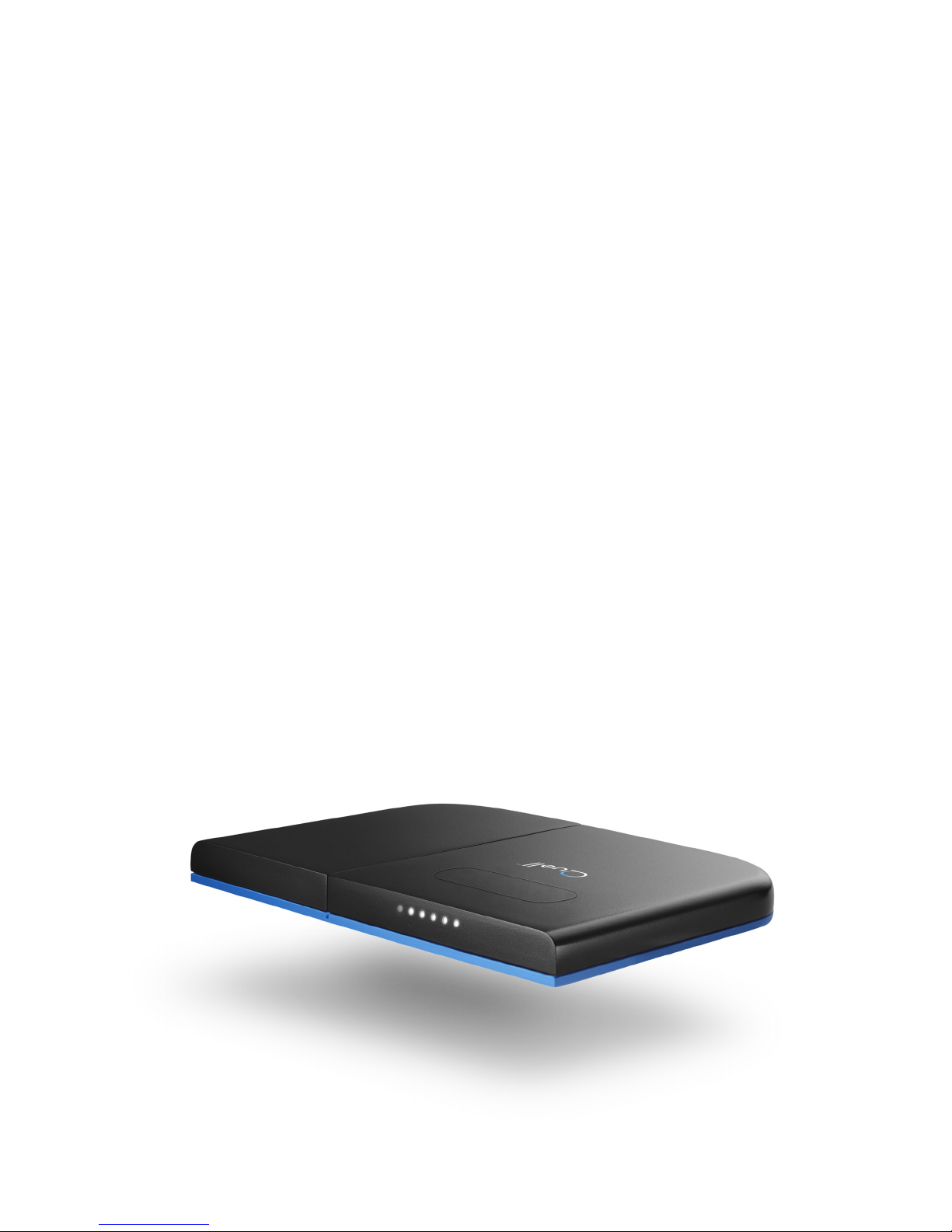

Device Components

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
5
Chapter 2: Getting Started
1. Check Battery
Click the button and check the indicator
lights. The number of white lights indicates
the charge remaining in the battery. A
single orange light indicates the unit needs
charging. If the battery needs to be recharged,
use the USB cable and AC adapter.
Chapter 2
Getting Started
The recommended way to get started is is to use the Quell Relief smartphone app.
Download the app and follow the set up screens.
You may also follow the steps below for manual set up and calibration. For additional
details on each step, please review Chapters 3-5 or call Customer Care with any
questions at 1-800-204-6577.
2. Insert Device
Slide your device into the band pouch so that
the button is visible inside the blue-rimmed
window, with the lights facing up.
3. Attach Electrode
Remove an electrode from the package,
and snap it onto the connectors.
The electrode may be oriented in either
direction. Carefully remove the liner and save
it for storing the electrode between uses.

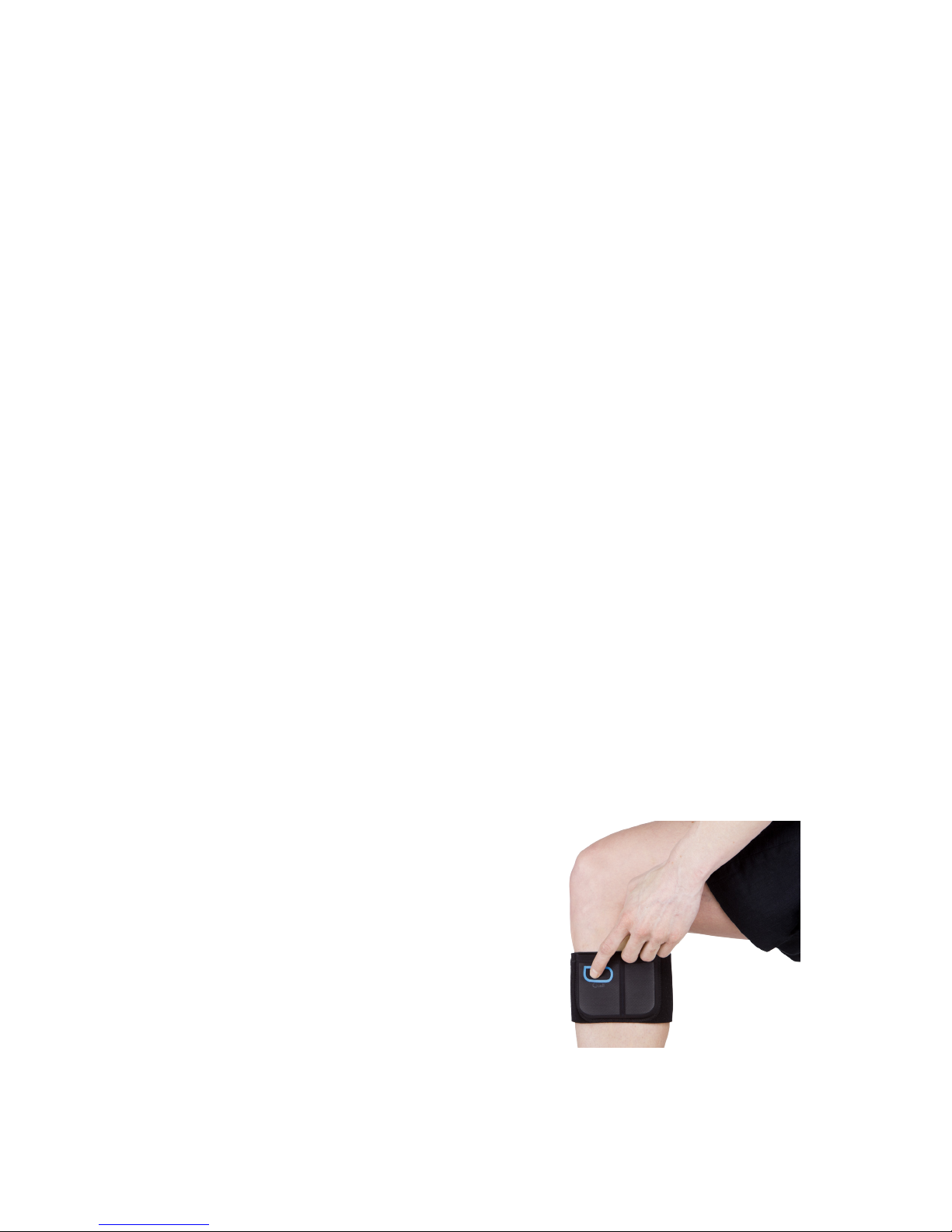

4. Place Device
Place your Quell band directly on your upper
calf approximately 1 to 2 inches below the
knee of either leg. Lights should face up. 2”

Chapter 2: Getting Started
Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
6
5. Calibrate
Perform this step when using the device for the first time.
Option A: App Calibration (Recommended)
Once you have downloaded and launched the app, follow
instructions to set up and calibrate.
Option B: Manual Calibration
Sit with foot flat on the floor and leg at a 90 degree angle.
Calibration won't start if leg is extended horizontally.
Press and hold the button until you see the lights running
back and forth, then release the button. Lights will continue
running.
Wait until you feel the slightest tingle under the band, then
immediately click the button one time.
When the sensation starts again, click the button again. You
will typically click the button 3-6 times.
When the lights go off, calibration is complete. If you need
to recalibrate, simply repeat the calibration steps. See next
step to begin therapy.
6. Start Therapy
Click the button. One indicator light will blink. The sensation
will increase for 2 minutes until optimal intensity is reached.
You should feel a strong but comfortable sensation under
the electrode.
Decrease Intensity: Click the button to reduce intensity.
Repeat if needed.
Increase Intensity: Hold button down. Intensity increases
until you release the button.
Turn off: To stop therapy, click the button four times in
sequence.
Regular therapy sessions last for 60 minutes with a 60
minute break between sessions. Sessions will continue until
the device is removed from the leg. You may go about your
normal activities during a therapy session.
To learn how to control your Quell device and personalize
your therapy with the smartphone app, please review
Chapter 9.
Tips for Success
• Calibrate properly so Quell delivers
the right stimulation level for optimal
pain relief.
• Use your Quell daily, at least 2 to 3 full
therapy sessions, for the first month.
Can also be used overnight.
• Give it time as it may take several
weeks to experience optimal pain
relief from using your Quell.

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
7
Chapter 3: Device Basics
Checking Battery
Your Quell will arrive fully charged. To check battery
level, hold the device in your hand and briefly click
the button. The indicator lights will flash white if
the battery has sufficient charge. The number of
illuminated white lights corresponds to the level
of battery charge. Five white lights indicate a fully
charged battery. If orange indicator light flashes,
the battery needs to be recharged (see below for
charging instructions).
Charging Battery
A fully charged battery can provide up to 50 hours
oftherapy for most users.
To charge the battery:
Plug the USB cable into the micro-USB port on
the bottom of the device.
Plug the other end of the cable into the AC
Adapter. The cable should not be plugged into a
computer USB port for charging.
1
2
Chapter 3
Device Basics
1
2
The AC Adapter should then be plugged into a standard electrical outlet. The USB
connector on many computers is not powerful enough to charge Quell. The white
indicator lights on the device will show that the device is charging. The number of
lights shown will increase as the battery charges. When the battery is fully charged,
all 5 lights will be lit. It will take approximately 3 hours to charge an empty battery.
When the battery is fully charged, unplug the cable from the device.
If the orange light blinks while device is connected to the outlet, charging has failed.
If the battery is too low to start a therapy session, you can charge the device for
approximately 20 minutes to provide enough battery life for one therapy session.
To confirm, disconnect the USB cable from the device and briefly click the button. If
at least 1 white indicator light flashes, battery has enough charge for one therapy
session. If the orange light flashes, reconnect the USB cable and continue charging.
Do not use your device with the USB cable connected.

Chapter 3: Device Basics
Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
8
Attaching Electrode
You will need to attach a new electrode prior to first use of the device and on average
every 2weeks thereafter. You should reseal the package if it contains an electrode.
Improper storage of the electrode will reduce its life.
Only use Quell electrodes manufactured by NeuroMetrix, Inc.
1. Slide device into band pouch with lights
facing up.
2. Align the snaps on the electrode to the snap
connectors on the back of the device. Insert
snaps until they are securely fastened.
3. Remove the liner covering the electrode prior
to placing the device on your leg. Remember
to keep the liner as it should be re-applied to
protect the electrode when not in use.
4. The first time you use a new electrode, write
the date on the liner. When placing liner on the
electrode when it is not in use, ensure graphics
on liner are facing up so that the paper side
doesn’t stick to the gel. The electrode should be
replaced approximately 2 weeks from this date.

Chapter 3: Device Basics
Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
9
Device Placement
Place your Quell band on your upper calf about
1–2 inches below the knee. You may place on either
leg. Be sure the electrode is only covering healthy
skin that is not irritated and does not have cuts
or other wounds. Position the device so that it
is comfortable and the button is accessible. You
may position the device with the button on the
inside, outside, or back of the leg. You should avoid
placing one of the device compartments directly
over your shinbone.
If the device cannot be placed in the standard
location as shown, refer to APPENDIX D for
alternate site options.
Wrap the band around your leg and attach it
with the Velcro®. The band should fit securely and
comfortably around your leg. The electrode should
make smooth contact with the skin. If there is
buckling of the electrode, smooth the electrode
and re-secure the band. It is important that all
four electrode pads are in contact with your skin.
If the pads are only partially on the skin, then the
stimulation may feeluncomfortable.
The band was designed to stretch and fit most
legs. If the band does not fit your leg, contact
Customer Care at 1-800-204-6577.
2”
Chapter 3: Device Basics

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
10
Chapter 4: Calibration
Option A: App Calibration (Recommended)
Watch the App Calibration video on the app or on quellrelief.com/quell-user before
you use Quell for the first time.
1. Download the Quell Relief app from the App Store or Google Play.
2. Launch Quell Relief app. Follow instructions to pair your
smartphone and calibrate your device.
3. Start Therapy.
If you do not have a smartphone, please follow Option B: Manual
Calibration.
Chapter 4
Calibration
Read through all the steps below before you begin calibration. You
must calibrate the first time you use Quell, so Quell will learn your
nerve sensitivity. Sit in a quiet place where you can focus, with your
foot flat on the floor and knee bent at 90° angle as shown.
Step 1:
Press and HOLD button until you see lights running back and forth,
then release button. Lights will continue running.
Step 2:
Wait until you feel the slightest tingle under the band, then
immediately CLICK the button one time.
Step 3:
Repeat Step 2 until the lights go off, meaning calibration is
complete. People typically click the button 3-6 times during
calibration.
You are now ready to begin therapy.
You do not need to stay seated during therapy. You may move
around and be as active as you can be while wearing your Quell.
Option B: Manual Calibration
Watch the Manual Calibration Video on quellrelief.com/quell-user before you use Quell
for the first time.

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
11
Chapter 5: Pain Relief Therapy
During a therapy session, the device will
comfortably stimulate the nerves in your leg to
provide pain relief. Regular therapy sessions last
60 minutes, and a new session will automatically
restart every other hour. If you prefer to not have
automatic restart turned on, consult APPENDIX E
to learn how to turn it off.
To optimize pain relief, you should feel a strong
but comfortable sensation during therapy. The
intensity that you will require is estimated based
on your device calibration. However, because of
differences among people, this estimated intensity
may be too low and feel weak, or too high and
feel uncomfortable. In either case, you should
adjust the intensity as described on page 12. The
greatest pain relief will be obtained when you
set the intensity to the highest level that is also
comfortable. The device will remember changes
made to the intensity after the first two minutes
of therapy and you should not need to adjust
often. Please follow the steps on the following
pages for a therapy session.
Preparing for Therapy Session
Before starting a therapy session make sure you
have an electrode attached to the device. You
should also check the battery to ensure it has an
adequate charge. Place the device on your leg as
described in Chapter 3.
Starting Therapy Session
To start a therapy session, tap the start button on
the Dashboard screen in the app. Or, briefly click
the button on the device. One indicator light will
blink white for the duration of the therapy session.
Chapter 5
Pain Relief Therapy
What Therapy Feels Like
The intensity will gradually increase during the
first two minutes to an intensity that is strong but
comfortable. This strong but comfortable intensity
is based on results of the calibration process. You
may feel a strong sensation at first but it will
typically fade to a comfortable level after a couple
of minutes. If the sensation is uncomfortable
or painful, you should decrease the intensity as
described in the next section. Therapy will continue
for 60 minutes in Regular dose (see page 18 for
personalization options).
Once you have placed the device on your leg,
you may cover the device with your clothing. You
should be careful not to dislodge the device and
electrode when covering with clothing. You may
go about your normal activities during a therapy
session. Do not shower, bathe or swim with the
device on your leg.

Chapter 5: Pain Relief Therapy
Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
12
You may adjust intensity as needed at any
time during a therapy session using the
button on the device or the smartphone app.
Optimal pain relief will be obtained at the highest
intensity that is also comfortable.
To learn how to control your Quell device with your
smartphone app, please review Chapter 9.
Ending Therapy Session
Regular therapy sessions will run automatically
60 minutes on, then 60 minutes off, unless you
manually turn off therapy during a session or
recalibrate.
To manually stop therapy during a session, click
the button four times in sequence. You should
not remove the device while it is stimulating, so
make sure that the indicator light is not blinking
white before removing the device and electrode
from your leg. Otherwise you may experience an
uncomfortable sensation when you remove the
device.
After completing a therapy session, you may
either leave the device on your leg or remove
it. If you remove the device, be careful to not
damage the electrode and remember to reapply
the liner (see page 15 for instructions on
removing electrode).
Adjusting Intensity During
Therapy Session
Frequent adjustments should not be necessary;
however, if the sensation feels uncomfortable or
is not strong enough, you may make adjustments.
The easiest way to adjust therapy intensity or
to stop therapy is to tap the buttons on the
Dashboard screen in the smartphone app. For
manual adjustments, please follow the directions
below.
Decrease Intensity: Click the button. Each click
decreases intensity. Lights will flash and then go
down to indicate intensity has decreased.
Increase Intensity: Press and hold button to
increase the intensity. Intensity increases until
you release the button or for a maximum of 20
seconds. If you still need to increase intensity after
20 seconds, hold the button down again.
4x
click
press and hold

Chapter 5: Pain Relief Therapy
Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
13
If you leave the device on your leg for long periods
of time, you should check your skin regularly to
make sure that it does not get irritated. Chapter 8
provides information on skin care.
If a problem arises during a therapy session,
stimulation will stop and the indicator light will
blink orange for 2 minutes. Refer to APPENDIX B
for troubleshooting assistance.
Air-out skin after wearing for 4-5 hours or
overnight. After 4 hours of wear, device will pulse
on and off for 1 minute as a reminder.

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
14
Chapter 6: Overnight Therapy
You may use Quell at bedtime and throughout the night.
Before going to sleep, make sure the device is placed securely and comfortably around
your leg. Start a therapy session by briefly clicking the button. The default sleep
setting is "Gentle Overnight." In this setting, the first therapy session will stimulate at
your regular intensity level. Subsequent therapy sessions will start automatically every
other hour throughout the night. If you are asleep during these sessions, the device will
automatically lower the intensity.
App users have multiple sleep mode options. To learn about the different sleep
settings, please review Chapter 9, Using the Mobile App.
Chapter 6
Overnight Therapy

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
15
Chapter 7: Electrodes
The electrodes are designed to operate
consistently for up to 2 weeks. With repeated use,
the electrode gel may peel and/or dry out thereby
losing some of its adhesion, but the electrode is
still usable.
Electrode Removal
You should be careful to not damage the electrode
when you remove it from your upper calf area.
Slowly peel the electrode from your skin, while
making sure that each of the gel pads does not
separate from the electrode. Avoid touching the
gel with your fingers as that can damage the
gel and decrease the life of the electrode. After
removal of the electrode, you should cover it with
the liner.
If you have difficulty removing the electrode, refer
to Chapter 8 for tips on skin care to ease electrode
removal.
Electrode Storage
Electrodes should always be stored with the
liner covering the gel pads. Place the liner with
graphic side up so the paper does not stick to the
gel. Electrodes should be stored in a sealed bag
at room temperature out of direct sunlight. You
may also snap the electrode into the device for
convenient storage.
Electrode Replacement
The electrode should be replaced prior to two
weeks if stimulation becomes painful despite
positioning the device so that the entire electrode
is making smooth contact with the skin. You can
order electrodes at www.quellrelief.com/replace
or from the location where you purchased your
device.
Chapter 7
Electrodes
Helpful Tips
• The entire electrode should contact the
skin.
• To get the most use of your electrode,
put the liner back on the gel pads when
electrode is not on skin.
• Air-out skin or switch legs during the
day or after overnight use. After 4
hours of wear, device will pulse on and
off for 1 minute as a reminder.
• Change the electrode every 2 weeks.
• Do not use while showering or bathing.

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
16
Chapter 8: Skin Care
Quell works by electrically stimulating your sensory nerves through your skin. Some
people have dry or sensitive skin, and it is important to regularly monitor your skin
where it contacts the electrode to ensure that skin irritation does not occur. If your
skin becomes irritated, using the device may be uncomfortable. There are some simple
things you can do to take care of your skin while using Quell.
Never use the device on open wounds or rashes or over swollen, red, infected, or
inflamed skin.
Chapter 8
Skin Care
Prevent Skin Irritation
Air-out Skin
Air-out skin after 4-5 hours of wear during the day
or after overnight use. Many users simply switch
the device to the other leg every 4-5 hours.
If you have sensitive skin, you may also consider
the following:
Start Slow
Limit the time the device is on your skin to 3-4
hours per day in the first week. If you do not
experience irritation you may increase use while
closely monitoring your skin.
Use Skin Protectant
Apply a skin protectant before placing the device
on your leg. Skin protectants are available as
wipes, swabs, or sprays. They are safe and may
reduce the likelihood of irritation. They also
increase adhesion of the electrode to your skin.
Protectants that work well include:
• 3M Cavilon™ No Sting Barrier Film
• Smith & Nephew SKIN-PREP®
• Smith & Nephew No-Sting SKIN-PREP®
• Coloplast Prep™ Protective Skin Barrier
These products are available online or at selected
retailers.
Check for Skin Irritation
Check for signs of irritation, including:
• Skin itches while device is on
the skin or after removal
• Skin is red where it contacted electrode
• Raised or reddened hair follicles
If skin irritation develops then you should not
place the device over the irritated area until it
completely heals. You may apply a topical steroid
cream to help accelerate healing and reduce
irritation. You may also place the device on the
other leg or use different locations as shown in
APPENDIX D.
If you experience skin irritation, then you should
limit device use to 3-4 hours per day for a week to
make sure that further irritation does not occur.

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
17
Download the App
The Quell App is optional and not required for the use of the device. From your mobile
device search for “Quell Relief” by NeuroMetrix, Inc. and download the app. Before
proceeding, make sure that Bluetooth® is enabled on your mobile device.
iOS and Android devices must have Bluetooth Low Energy (LE, also called Bluetooth
Smart) compatibility.
For more insights on the data tracked with the app, visit www.quellrelief.com/
how-quell-works/app/ and select Sleep, Therapy, Activity, or Pain.
Create a Health Cloud Account
Creating a Health Cloud account from the app provides a secure backup of your data
and allows you to view data across multiple devices.
The tables below and on the next page describe app features and how they may help
you optimize your Quell therapy during the day and at night.*
*Not all features available on all devices.
Chapter 9: Using the Mobile App
Chapter 9
Using the Mobile App
Feature Why is it important?
Sleep Position Tracking Enables device to track sleep metrics including time slept on back or on sides, and
the number of times position changed while sleeping.
Lights Out Use if Quell overestimates your 'Time Asleep.' To indicate when you are ready for
sleep, press 'Lights Out.' To indicate when you are awake in the morning despite
remaining in bed, press 'Awake.'
Sleep Onset Detection Let Quell itself figure out when you actually went to sleep. Disable 'Sleep Onset
Detection' if Quell underestimates your time asleep. You should then indicate when
going to sleep using 'Lights Out.'
Sleep Mode
Bedtime only Therapy only while falling asleep.
Gentle overnight Overnight therapy at reduced intensity.
Full power Overnight therapy at daytime intensity.
As needed Therapy only when Quell detects poor sleep quality.

Chapter 9: Using the Mobile App
Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
18
Stimulation Select the type of stimulation Quell will provide during therapy sessions. Standard
and Alternate are equally effective, but one may feel more comfortable. Sensitive
is an option if Standard and Alternative feel uncomfortable. Your selection will take
effect with the next therapy session.
Standard Feels like a constant vibration.
Alternative Feels lke a fast gentle pulse.
Sensitive Feels like a low vibration.
Therapy Dose You can select the duration and timing of your therapy sessions.
Regular Therapy is 60 minutes and restarts every 60 minutes.
High Therapy is 60 minutes and restarts every 30 minutes.
Low Therapy is 30 minutes and restarts every 60 minutes.
Manual Therapy is 60 minutes and does not restart automatically.
Time of Day Adjustment Enable if stimulation feels particularly strong at certain times of day. If enabled,
indicate the time of day when stimulation feels strongest. The device will then
automatically compensate so the stimulation feels consistent to you.
Device Button Disable device button to prevent unintended button presses, such as while sleeping.
If the device button is disabled, then you must use the app to start therapy and
control the intensity. You can always stop therapy by clicking the button 4 times in a
row.
Calibration Recommended method to set up your device the first time you use Quell.
Electrode Keep track of how many days you have been wearing your electrodes.
Notifications
Electrode Replacement When enabled, you will get a notification that it is time to replace your electrodes.
Rate Pain When enabled, you will get a notification to remind you to rate your pain.
Intensity Display When enabled, the stimulation intensity will be displayed on the Dashboard during
therapy sessions.
Pairing If paired, shows the serial number of the device to which it is paired. To pair with a
different device, tap Un-Pair.
Account Create a Health Cloud account.

Quell®User Manual Quell Customer Care 1-800-204-6577 or [phone]
< Contents |
19
Chapter 10: Maintenance, Safety, and Service
Maintenance
Contact Quell Customer Care at 1-800-204-6577
if the device requires service.
Cleaning Device
Use a damp cloth to clean the exterior of the
device. Do not use any other cleaning solutions
since they may damage the case. Never immerse
the device in water or other liquids.
Cleaning Band
Remove device before washing the band. Handwash
band with a gentle detergent and let it air dry. If
band material is becoming stretched, it may be put
through a gentle dryer cycle; ensure Velcro is adhered
to band before drying.
Device Storage
When device is not in use, store it in a dry location
away from direct sunlight.
Disposal
Used electrodes can be disposed of in normal
trash receptacles. Dispose of the device according
to national, state, and local regulations as the
device contains a Lithium-Ion battery.
Limited Warranty
NeuroMetrix, Inc. manufactures its hardware
products in accordance with industry standard
practices. NeuroMetrix warrants the Quell
device to be free from defects in materials and
workmanship at the time of shipment. The
warranty term is two years beginning on the
date of sale to the original purchaser, as further
described in the following text.
This warranty does not cover damage due
to external causes, including accident, abuse,
misuse, problems with electrical power, usage
not in accordance with product instructions,
failure to perform required maintenance, and
problems caused by use of parts or components
not supplied by NeuroMetrix. This warranty does
not apply to any product repaired or altered by
anyone other than NeuroMetrix or an authorized
NeuroMetrix representative. Quell products
purchased from unauthorized resellers are not
covered by this warranty.
NeuroMetrix will repair or replace products that
are shown to be other than as warranted above
and covered under this limited warranty that are
returned to NeuroMetrix under a NeuroMetrix
issued Return Material Authorization (RMA)
Number. To initiate a return, contact Customer
Care at 1-800-204-6577.
All parts removed from repaired products
will become the property of NeuroMetrix. If
NeuroMetrix repairs or replaces a product, the
original warranty is not extended.
NEUROMETRIX MAKES NO EXPRESS OR IMPLIED WARRANTIES
OR REPRESENTATIONS BEYOND THOSE STATED IN THIS
WARRANTY STATEMENT. NEUROMETRIX DISCLAIMS ALL OTHER
WARRANTIES AND REPRESENTATIONS, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
NEUROMETRIX’S OBLIGATIONS FOR ANY FAILURE OF A
PRODUCT TO BE AS WARRANTED ARE LIMITED TO, AT
NEUROMETRIX OPTION, REPAIR OR REPLACEMENT OF THE
PRODUCTS SET FORTH IN THIS WARRANTY STATEMENT.
UNDER NO CIRCUMSTANCES WILL NEUROMETRIX BE LIABLE
FOR ACTUAL OR CLAIMED DEFECTS IN ANY PRODUCT BEYOND
THE REMEDIES SET FORTH IN THIS WARRANTY STATEMENT.
IN NO EVENT SHALL NEUROMETRIX BE LIABLE FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF
OR IN CONNECTION WITH THIS AGREEMENT REGARDLESS OF
THE LEGAL THEORY UPON WHICH SUCH CLAIM IS BASED AND
EVEN IF SUCH PARTY HAS BEEN ADVISED OF THE POSSIBILITY
THEREOF.
Chapter 10
Maintenance, Safety, and Service
