INTRODUCTION
This manual describes the operation, connections and normal use of the Hum Bug in the
neurosciences and related fields of research. The original Hum Bug was developed in the
electrophysiology laboratory of Dr. Tom Richardson in response to problems with electrical
interference during intracellular studies. In theory, proper attention to grounding and appropriate
shielding can eliminate 50/601Hz noise induced by electrical wiring, power supplies, and lights.
In practice, this noise remains a frequent and distressing problem in the daily operation of many
electrophysiology laboratories. Even with diligent attention to detail, noise may come and go for
no apparent reason and may appear during critical phases of data collection. The effort required
to maintain noise at an acceptable level is time consuming and frustrating.
Notch or Comb filters are sometimes used to attenuate 50/60 Hz noise and related
harmonics. Unfortunately, the composition of many biological signals includes these
frequencies. As a result, critical components of the signal are filtered along with the noise. This
distortion and loss of information is usually unacceptable for scientific investigation.
The Hum Bug is a simple and hassle free solution to these problems. It will eliminate
electrical interference from physiological recordings without altering your signal of interest.
Simply insert it into the signal path of your recording system and it will automatically eliminate
noise without any need for adjustment.
The Hum Bug is not a filter. It is a new class of instrument capable of eliminating
electrical interference from analogue signals without creating phase shifts, frequency loss,
amplitude errors, DC shifts, time delays, or digital distortion. It effectively eliminates 50/60 Hz2
noise and harmonics3without altering the frequency characteristics of the desired signal4even
when frequencies within the signal overlap with noise components. It uses an advanced signal
processing circuit to continuously construct a replica of noise present on the input and to subtract
this replica from the original signal. The end result is a clean signal which is free from
distortion. It performs this function in the presence of biological activity even when the shape,
amplitude, and harmonic content of the noise evolves over time.
The Hum Bug can eliminate 50/60 Hz noise from virtually any analogue signal. It is
equally effective at removing noise associated with inadequate grounding, ground loops, and
electrical pickup. Common applications include noise elimination from signals recorded using
microelectrodes, skin electrodes (EKG, EMG, EEG), high gain amplifiers, magnetic sensors, and
audio equipment.
1The frequency depends on the AC frequency of the power mains. This frequency is 60 Hz in North America and
50 Hz in many other regions of the world.
2Each Hum Bug is internally configured for either a 50 or 60 Hz fundamental.
3Electrical interference is usually composed of a variety of frequencies which are harmonics of the 50/60 Hz
fundamental. Frequencies as high as 1 kHz are not uncommon. The HumBug will eliminate harmonics with
frequencies up to 4 kHz.
4For frequencies up to at least 500 kHz

Page 4 Hum Bug Reference Manual
Quest Scientific
THEORY OF OPERATION
This section reviews the basic internal operations of the Hum Bug. This knowledge will
help you become familiar with the front panel controls and the operating characteristics of the
device.
A noisy analogue waveform is the summation of two separate components. One
component is the biological signal of interest and the other is noise of various forms. These
forms of noise include: A) random fluctuations generated by the sensor, amplifier and
background biological activity, and B) electrical interference generated by electrical wiring and
instruments in the vicinity of an experimental setup. The Hum Bug is designed to cancel
electrical interference. It constructs a replica of noise imbedded within the input signal and
subtracts this replica from the noisy signal as it passes through the device. The end result is an
output which consists of the input minus its noise content. Therefore, the output contains only
the original signal of interest.
The figure on the facing page illustrates the internal operations of the Hum Bug. Three
processes occur in parallel. These include: 1) adaptation to evolving noise levels on the input
signal (
ADAPTOR ), 2) construction of a noise replica ( CONSTRUCTOR ), and 3) subtraction of
the replica from the input signal (
SUBTRACTER ). The continuous operation of these processes
results in effective noise cancellation even when the amplitude, frequency content, and phase
characteristics of the noise are changing. The time constant for adaptation is 5 to 10 seconds
under ideal conditions but is slower when low amplitude noise is dominated by ongoing
physiological activity and/or noise harmonics are greater than 1 kHz. Therefore, the noise
replica may lag behind if the noise characteristics suddenly change. Under these conditions,
some noise will transiently appear on the output while the Hum Bug adapts to the new
characteristics.
The major advantage of this method of noise elimination is the fact that the input signal is
never directly filtered. In fact, the signal of interest passes through the Hum Bug without any
form of waveform distortion or processing artifact. Since the Hum Bug takes several seconds to
adapt to a particular pattern of electrical interference, physiological activity passes through the
device with little or no effect on the noise replica. Even if the noise replica does get disturbed,
the cancellation procedure will not distort the signal of interest. The only result will be a failure
to completely cancel the electrical interference.
The controls on the front panel allow you to interrupt the normal operation of the Hum
Bug. When the
Hold Key is activated the ADAPTOR halts and the CONSTRUCTOR does not
update the noise replica. Noise cancellation continues but the Hum Bug will not adapt if the
input noise changes. Activation of the Bypass Key halts the SUBTRACTER . Noise is not
eliminated and the input signal simply passes directly from the input to the output. Depressing
the Clear Button resets the noise replica to a flat line. The LED Indicator flashes when the noise
replica is changing. It flashes red when the replica is growing and green when it is shrinking.
When the LED is not flashing the noise replica is stable or undergoing small adjustments.

Hum Bug Reference Manual Page 5
Quest Scientific

Page 6 Hum Bug Reference Manual
Quest Scientific
INSTALLATION

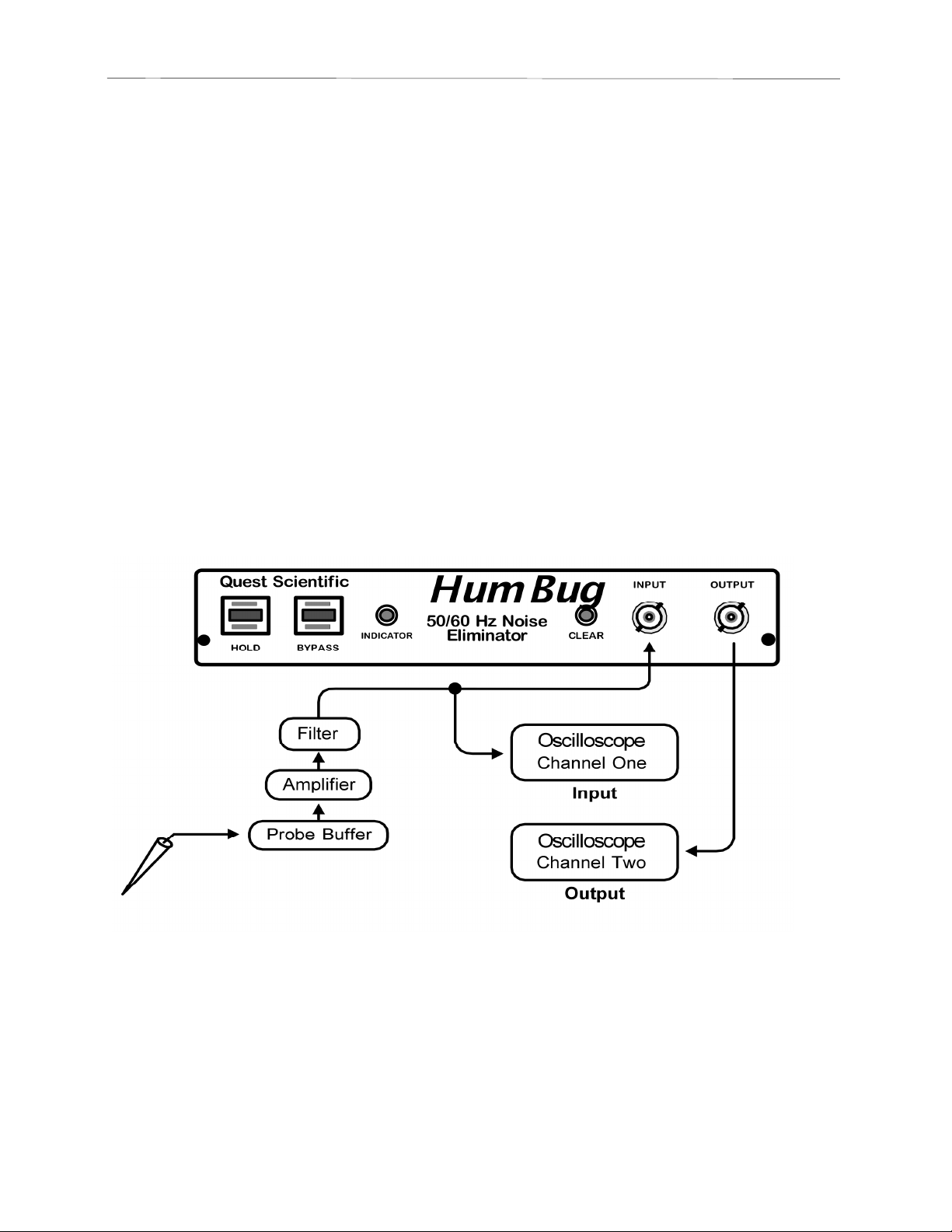

The Hum Bug can be immediately put to use by inserting it into your recording system as
illustrated in the diagram below. Input and output connectors are located on the front panel and
the power switch is on the back of the unit. Insert the Hum Bug at any point in the chain of
instruments after the signal from your electrode or sensor is buffered and before the signal is
connected to your oscilloscope, computer, and/or tape recorder. The ideal location is after the
signal is fully amplified and any filtering is complete. This location will maximize the amplitude
of signals passing through the Hum Bug and will ensure that any electrical interference
accumulated along the signal path will be eliminated.
Turn on the Hum Bug and confirm that the green LED on the
Bypass Switch is
illuminated. If not, press the
Bypass Switch to toggle the indicator from red to green. Now
ensure that the indicator on the
Hold Switch is also green. The Hum Bug is now in normal
operating mode.
During your initial evaluation of the Hum Bug it is a good idea to turn off any computer
monitors in the vicinity of your recording setup. This will eliminate possible confusion between
50/60 Hz noise and any additional interference associated with your monitors. See the section on
monitor noise for more details.
After an initial warm up period of approximately thirty seconds the Hum Bug will be
fully operational. It will then start adapting to whatever level of electrical interference happens
to be present in the input signal. As adaptation proceeds, noise in the output signal will
gradually decrease to minimal levels. During this period the
LED Indicator on the front panel
will flash red to indicate that the noise replica is growing. As noise cancellation approaches
completion the rate of flashing will slow down and stop.
If the characteristics of noise in the input signal are not constant you may notice that the
LED Indicator occasionally flashes. This indicates that the noise replica is either growing (red)
or shrinking (green) as the Hum Bug adapts to these changing conditions. On other occasions
the LED may remain solid green. This indicates that little or no electrical interference is present

Hum Bug Reference Manual Page 7
Quest Scientific
in the input signal. The LED will also alert you if the noise amplitude grows beyond the 1 volt
upper limit for cancellation. Under these conditions the LED will continue to flash red
indefinitely and some noise will remain in the output signal.
CONTROLS
All operations of the Hum Bug are automatic and no adjustments or settings are required.
However, on occasion you may wish to observe your signal without noise cancellation. If so,
depress the Bypass Switch to toggle from normal to bypass mode. The red LED on the switch
should illuminate. When bypass is in effect, noise cancellation is temporarily suspended and the
input signal is passed directly to the output. Toggling bypass mode on and off is a good way to
quickly determine how much noise the Hum Bug is eliminating.
On other occasions you may want the Hum Bug to continue noise cancellation at the
present level without adapting to new or changing levels of noise. If so, depress the
Hold Switch
to toggle from normal to hold mode. When the red LED on this switch is illuminated the
Hum Bug continues to cancel noise but ignores any changes in the noise characteristics. This
switch is useful if you know that something you are about to do will cause a transient change in
noise characteristics (e.g. touching a micromanipulator) and you don’t want to disturb the present
level of noise cancellation.
The
Clear Button is the only other control function on the front panel. Pushing it will
clear the noise replica and force the Hum Bug to generate a new noise replica from scratch. In
effect, this causes the Hum Bug to immediately forget the noise waveform. This function is
seldom necessary since the Hum Bug automatically adapts to changing noise conditions.
INPUT SIGNAL
The Hum Bug will operate on analogue signals originating from virtually any laboratory
equipment including amplifiers, filters, and other signal conditioning instruments. It
automatically adjusts to signals over a wide range of amplitudes and has no special requirements
for impedance matching. Even so, following the guidelines given below will help optimize
operation of the Hum Bug.
Signal Levels: Ideally, the relevant events present in the input signal (population spikes,
single units, channel activity, etc.) should have an amplitude greater than 100 mV at the input to
the Hum Bug, although amplitudes as low as 25 mV are acceptable. In many
electrophysiological applications the amplitude of signals arising from the initial instrument
connected to a sensor or electrode may fall below this limit. Although the Hum Bug will
eliminate noise from these small signals, adaptation will proceed more slowly. In extreme cases
the amplitude of physiological events may approach the noise floor of the Hum Bug. Therefore
you should insert the Hum Bug into the signal path after the signal is fully amplified.
It is also important to confirm that the amplitude of the input signal is not too large.
Although signals as large as 50 volts will pass through the Hum Bug, the procedure used to adapt
to changing noise levels only operates while the signal is below 5 volts peak-to-peak. Although

Page 8 Hum Bug Reference Manual
Quest Scientific
occasional excursions beyond this limit are acceptable, adaptation rates will be optimal if the
average level of the input signal remains within the 5 volt limit.
Noise Levels: The previous discussion views the input signal with respect to events of
interest. The Hum Bug actually focuses on the noise imbedded in the signal. Therefore the
amplitude of noise in the input signal also has important implications. These are outlined below.
The Hum Bug will cancel 50/60 Hz noise with amplitudes up to 1 volt peak-to-peak. If
the amplitude of noise in the input signal is greater than this limit, then some noise will remain in
the output signal. Under these conditions the
LED Indicator will continue to flash red
indefinitely as the Hum Bug attempts, unsuccessfully, to increase the amplitude of its noise
replica above the 1 volt limit.
The lower limit for noise cancellation is less well defined. The Hum Bug will effectively
eliminate noise with amplitudes as small as a few mV. However, the adaptation rate to evolving
noise is slightly reduced when the noise amplitude is less than 15 mV and the rate is further
reduced when the amplitude falls below 5 mV.
Frequency Response: Physiological activity with frequencies in the range of DC to greater
than 500 kHz passes through the Hum Bug unchanged while 50/60 Hz noise and all harmonics
up to 4 kHz are eliminated.
NOISE GENERATED BY COMPUTER MONITORS
Monitors can generate two forms of electrical interference. One is generated by the
power supply and related circuitry. The frequency of this interference is the same as the power
mains so it will be eliminated by the Hum Bug. The second form of interference, referred to as
refresh noise, is generated each time a monitor refreshes the image displayed on its screen. The
frequency of this interference will depend on the video mode assigned to the monitor. In most
cases it will differ from the power mains and will not be recognized as noise by the Hum Bug.
Fortunately, following the guidelines outlined below will help eliminate this form of electrical
interference.
Monitor Placement: The electric field generated by a monitor during screen refresh emanates
directly from the screen and quickly dissipates with distance. Therefore, the easiest way to
minimize refresh noise is to move all monitors as far away as possible and to make sure that their
screens don’t face your experimental setup. However, keep in mind that a person standing or
sitting in front of a monitor can distort the electric field emanating from its screen. As a result,
even a monitor which is facing away from an experimental setup may generate varying levels of
noise when someone is working nearby. The only way to be sure that a given monitor is in a
safe location is through careful evaluation under actual working conditions.
Screen Grounding: If it is not practical to move your monitor to a safe location you can
eliminate refresh noise by shielding the screen. This is done by placing a grounded cover over
the glass of the display. These shields are constructed from a piece of anti-glare glass with an
electrically conductive coating. A wire is provided to connect the conductive coating to ground.
These screens are very effective protection against refresh noise and are relatively inexpensive
(<$100). Most computer and office supply outlets keep them in stock.

Hum Bug Reference Manual Page 9
Quest Scientific
SOURCES OF COMPLEX NOISE
Fluorescent lamps, dimmers and related noise sources can induce very narrow spikes of
interference which repeat at some multiple of 60 Hz (or 50 Hz). Under worse case conditions the
frequency components within these spikes can approach the upper limit of your signal
conditioning filters.
The Hum Bug will eliminate spikes with frequency components up to 4 kHz. If you
routinely set the upper limit of your signal conditioning filters to a value greater than this limit,
you may occasionally find that high frequency noise components are not fully eliminated. If so,
try adjusting your signal conditioning filter to a lower setting. This will remove some of the
highest frequency harmonics so that the remaining noise can be eliminated by the Hum Bug.
Whether this trade off between noise elimination and frequency response is acceptable will
depend on your application. Feel free to consult Quest Scientific for more information.
ADAPTATION RATE
The Hum Bug adapts to changing noise characteristics in the input signal. Under normal
conditions these characteristics evolve slowly and the Hum Bug is able to maintain effective
noise elimination. However, noise will appear in the output signal following a sudden change in
noise characteristics. This output noise will then decay with a time constant related to the
adaptation rate of the Hum Bug. Under ideal conditions this time constant is in the order of 5 to
10 seconds. In practice, the exact time constant is difficult to predict because it depends on the
change in noise amplitude, the harmonic content of the noise, and the magnitude of the noise
relative to ongoing physiological activity. The Hum Bug adapts rapidly when the input signal is
dominated by noise and proceeds more slowly when low amplitude noise is imbedded within
continuous physiological activity. Adaptation is also slower for harmonics with frequencies
greater than 1 kHz.

Page 10 Hum Bug Reference Manual
Quest Scientific
FRONT PANEL*
*Here is an example taken from electrophysiological research. The noise on a micropipette recording is usually stable and only
changes slowly over time. However, touching a manipulator, approaching the electrode, or lifting the electrode from the
experimental preparation can cause additional, but transient, noise on the recorded signal. Using
HOLD during these
manipulations will keep the Hum Bug from chasing the transient noise. As a result, effective cancellation of ongoing noise can
resume immediately after the manipulation is complete.

Hum Bug Reference Manual Page 11
Quest Scientific
BACK PANEL

Page 12 Hum Bug Reference Manual
Quest Scientific
TROUBLE SHOOTING
The Hum Bug is very reliable and should give you years of trouble free service.
However, on occasion you may encounter a problem. In some cases the problem may be based
on a simple misunderstanding about the operation of the device and in others, the Hum Bug may
need repair. The following procedures will help you solve any problems as quickly as possible.
Initial Evaluation: A good way to start trouble shooting is to systematically evaluate the
operation of your Hum Bug under test conditions. The following procedures are designed to
exercise all of its important functions. Compare the operation of your unit to the expected
behavior described for each procedure.
Step One: Set up your equipment in a manner similar to the illustration shown below. The
objective is to simultaneously view the input and output of the Hum Bug on different channels of
an oscilloscope while recording a noisy signal. This description assumes that you are recording
neuronal activity using a micropipette, but a similar procedure could be used for other forms of
recording. If it is not convenient to use an actual biological preparation to generate a noisy
recording you may wish to use a model cell connected to an intracellular probe (50 MΩresistor
in parallel with a 500 pF capacitor or similar values). Short current pulses can be used to make
model electrophysiological events.
Step Two: Make sure that the signal and noise conform to the frequency and amplitude ranges
outlined in connections and setup.

Hum Bug Reference Manual Page 13
Quest Scientific
Step Three: Observe the operation of the Hum Bug in BYPASS mode. In this mode the input
and output of the Hum Bug should be identical. Here are some explicit steps to help you with
the procedure.
•Make sure that you are recording a noisy signal.
•Turn on the Hum Bug.
•Press the BYPASS key. The red LED should be on. Note that the HOLD function
will also become active.
•Using your oscilloscope, confirm that the input and output of the Hum Bug are
identical. If not, check the calibration on the oscilloscope. If you are not sure that the
calibration is correct you can use a single channel on the oscilloscope to alternately
observe the input and output.
•Initiate normal operation by pushing the
BYPASS key again. Make sure that HOLD
is also disengaged. Both the
BYPASS and HOLD switches should have their green
LEDs illuminated.
•Watch any 50/60 Hz noise present on the input signal gradually disappear from the
output signal. The
LED Indicator will flash red as the noise replica grows to the
required size. When adaptation is complete the
Indicator should be off.
•Toggle
BYPASS mode on (red LED) and off (green LED) to observe the signal with
and without noise cancellation.
•Compare the input and output signals. You should find that the primary signal of
interest is not modified by the Hum Bug.
Step Four: Observe the Hum Bug adapt to changing noise conditions. One easy way to
change the level of noise is to place your hand near the recording electrode. Alternatively, turn
on a light or a nearby instrument known to cause noise in your recordings.
•Cause a change in the noise level and/or wave-form and then observe the Hum Bug
adapt to the change. Rapid changes require time for full cancellation whereas the
output will remain relatively free from noise when noise on the input is slowly
evolving.
•Activate the HOLD function (red LED) and then cause a change in the input noise.
The level of noise cancellation present before
HOLD was activated should continue
but the Hum Bug should not adapt to the change in noise level.
•Return to normal operating mode by turning off the HOLD function and observe the
Hum Bug
catch up to the new noise level on the input.

Page 14 Hum Bug Reference Manual
Quest Scientific
Step Five: Observe what happens when you press the CLEAR button. Before you carry out
the following steps confirm that the Hum Bug has completely canceled any noise on the
input signal.
•Press
CLEAR . The internal noise replica will be cleared and all input noise should
appear on the output. The
LED Indicator should turn green.
•After a brief pause, the Hum Bug will begin to adapt to the noise on the input and the
noise on the output should gradually decrease to minimal levels. During this phase
the LED Indicator should flash red.
•The
LED Indicator should turn off when cancellation is nearly complete and should
remain off unless the noise on the input changes. If the indicator continues to flash
red, check that the amplitude of the input noise is not greater than 1 volt peak-to-peak
(the upper limit for noise). If it remains green then the noise level at the input may be
negligible.
Specific Failure Modes: The following sections focus on different types of abnormal Hum
Bug behavior. The tasks outlined in each section are designed to help you identify the specific
cause of abnormal behavior in your Hum Bug.
A. The Hum Bug fails to operate.
1. No LEDs are illuminated on the panel switches and the indicator does not illuminate
when you push clear.
•Check that the power switch is on.
•Check that the power cable on the back panel is pushed fully into its socket.
•Confirm that the voltage printed beside the connector agrees with the power in
your outlets.
•Check the fuse on the back panel and replace it if necessary. The fuse rating
is printed beside the holder. If replacement fuses fail repeatedly, contact
Quest Scientific.
•Confirm that your wall outlet is functional. An easy way to quickly check that
power is available is to use the same outlet to power another instrument.
•Try a different universal power cord (borrow one from another instrument).
2. A switch on the front panel fails to operate or is unreliable.
•An LED may be burned out. If so, the instrument will operate correctly even
though the LED fails to illuminate.
•Perhaps the switch is faulty
. Push the switch firmly and slowly and then let it
go. Try several times.

Hum Bug Reference Manual Page 15
Quest Scientific
B. The Hum Bug is operating but noise cancellation is inadequate or abnormal.
1. The LEDs on both switches are green and clear causes the indicator LED to turn
green. However, noise remains on the output signal of the Hum Bug.
•Confirm that your Hum Bug is configured for the appropriate AC line
frequency for your country. The frequency is recorded next to the connector.
•Perhaps the noise present in your recordings is not electrical interference from
the power mains or the power supplies in your equipment. Computers,
terminals, video displays, and some oscilloscopes can generate interference
which looks like 50/60 Hz noise but has a different frequency. A standard
Hum Bug will not cancel these forms of interference. Look at the noise with
your oscilloscope set to line triggering. If the noise is
rolling across the
screen, or it’s frequency is varying, the noise is not emanating from the power
mains or related sources. Try to determine the source of the noise by
systematically turning off the power on each instrument in the vicinity of your
setup. If you find the cause, move it away or shield it with metal foil
connected to ground. If you continue to have problems with non-50/60 Hz
electrical interference, contact Quest Scientific for further advice.
•Perhaps the peak-to-peak level of noise is too large for the Hum Bug to
completely cancel. If so, the indicator will continue to flash red. Connect the
input signal of the Hum Bug to an oscilloscope and determine the noise
amplitude. The Hum Bug cannot cancel noise greater than 1 Volt peak-to-
peak. If your noise levels are higher than this limit you may have to reduce
the gain in your preamplifier.
•Perhaps the amplitude of the noise you are attempting to cancel is too small
for the Hum Bug to detect. If so, the indicator will remain green. The
Hum Bug is most efficient when noise levels are greater than 15 mV peak-to-
peak (after preamplification). Adaptation to signals below 1 mV may be very
slow. You can solve this problem by increasing the gain of your amplification
system.
•Perhaps the noise on the input is rapidly changing or jumping to new levels.
Under these conditions the
ADAPTOR may lag behind and noise will
transiently appear on the output. This pattern of noise usually suggests that
the grounding system in the experimental setup may be a problem. Contact
Quest Scientific for advice.
2. The 50/60 Hz noise on the output of the Hum Bug increases to very high levels even
when little or no noise is present on the input.
•Check that the input and output are not reversed. If the signal passes through
the Hum Bug in the wrong direction the noise replica will grow without
constraint.
•There may be a grounding problem between the Hum Bug and other
equipment in your setup. Refer to section D1.

Page 16 Hum Bug Reference Manual
Quest Scientific
C. The output of the Hum Bug has too much baseline noise (random, wide-band
noise).
1. Are you attempting to use the Hum Bug on very low level signals (less than 1 mV)?
If so, circuit noise from the Hum Bug may be detected on the output.
•Compare the input and output on two channels of your oscilloscope. The
baseline noise should look identical on both signals for levels down to 1 mV.
Below this level additional circuit induced noise may appear on the output. If
the baseline noise on your input signal is below 1 mV and the additional noise
introduced on the output is a problem in your application, it may be necessary
to increase the gain of your amplifier.
2. The
baseline noise on the output of the Hum Bug is greater than on the input, even
when its amplitude is greater than 1 mV.
•Directly ground the input connector of the Hum Bug and observe both the
input and output at the same time. Is the
baseline noise on the output more
than a few mV even when the input is grounded? If so, there may be a
problem with grounding. Refer to section D1.
3. The baseline noise is only a few mV when the input is grounded but much larger than
expected when an input signal is connected to the Hum Bug.
•Perhaps the grounding of the Hum Bug and associated equipment is the
problem. See section D1.
•Are you connecting the Hum Bug to an unusual piece of equipment? If so,
check the output impedance of the device. Although the Hum Bug will adapt
to a wide range of input characteristics, a signal source with a very high
impedance could present a problem. This problem can be solved by passing
the signal through a suitable impedance-matching amplifier (buffer) before it
enters the Hum Bug.
D. The Hum Bug adds 50/60 Hz noise to the output.
1. Incorrect grounding is the most likely cause of this problem.
•Confirm that the grounding prong on the power cable is connected to the
building ground at your preferred grounding point. Avoid using more than 1
service outlet for your setup. A good way to bring all of the instrument
grounds in your system to one point is to use a power bar. The ground on the
power bar becomes the final common ground connected to the wall outlet.
However, poor ground connections are a frequent problem with inexpensive
power distribution bars.
•Make sure that the signal ground on your probe preamplifier is not attached to
the Hum Bug other than through the BNC cable connecting the two
instruments. This helps prevent ground loops.

Hum Bug Reference Manual Page 17
Quest Scientific
•Remove any additional grounding wires connected to the chassis of the
Hum Bug. These additional ground wires will make inappropriate
connections between grounds in your setup and the grounds in the power
mains.
•Check your cables to make sure that the braided shield is connected to the
ground ring of the BNC connector on both ends.
If you have tried the suggestions outlined above and still have problems or questions please
contact Quest Scientific.

Page 18 Hum Bug Reference Manual
Quest Scientific
SPECIFICATIONS
Physical
Standard steel instrument box with cast aluminum base.
•W-6.5” D-7.5” H-1.3” (32.2X18.1X3.1 cm).
•Weight - 2.8 lb. (1.3 kg).
Power
•115-120 VAC at 60 Hz.
•230-240 VAC at 50/60 Hz.
Input Voltages
Input protection: 50 volts peak-to-peak.
Maximum input signal recognized by the adaptor: 5 volts peak-to-peak.
Maximum noise amplitude for complete cancellation: 1 volt peak-to-peak.
Frequency Response
Input to output: DC to greater than 500 kHz.
Hz and harmonics cancellation: 50/60 Hz to 4 kHz.
Controls
BYPASS: halts noise cancellation by routing input directly to output.
HOLD: suspends adaptation to evolving noise characteristics.
CLEAR: clears the noise replica.
Display
LED indicates changing noise levels.
•GREEN: decreasing amplitude of the noise replica.
•RED: increasing amplitude of the noise replica.
QUEST SCIENTIFIC
1164 West 21st Street
North Vancouver, BC
Canada V7P 2C8
Voice and Fax [phone]
E-Mail [email protected]
QUEST SCIENTIFIC LIMITED WARRANTY: Quest Scientific warrants this product to be free of defects
in material and workmanship for a period of two years from date of original purchase. Contact Quest Scientific for
further information.
© Copyright 1997 Quest Scientific Instruments Inc.
