Quick B3 Guide

EN* INSTALLATION AND USE MANUAL
B3Series
WATER HEATER SERIES B3
*Other languages available by scanning the QR code on the back of this
manual or on the label on the product.
B3 15 - 15 12V
B3 20 - 20 12V
B3 25
B3 30
B3 40
B3 60
B3 80
REV 001A
March, 2023
IT *Altre lingue disponibili scansionando il codice QR presente sul retro
del seguente manuale o sull’etichetta alloggiata sul prodotto.
ES *Otros idiomas disponibles escaneando el código QR en la parte
posterior de este manual o en la etiqueta del producto.
FR *Autres langues disponibles en scannant le code QR au dos de ce
manuel ou sur l'étiquette du produit.
DE
*Andere Sprachen sind durch Scannen des QR-Codes auf der Rück-
seite dieser Betriebsanleitung oder auf dem Aufkleber am Produkt
verfügbar.
PT *Outros idiomas disponíveis, digitalizando o código QR no verso deste
manual ou no rótulo do produto.

B3Series EN
3
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
Index
1.0 - Model code 4
1 - Information about the product 4
2 - Supply and equipment 6
2.0 - Standard supply and material included in the package 6
3 - Introduction 6
3.0 - Important notes 6
3.1 - Precautions 6
3.2 - Precautions for the installer 6
4 - Installation / Use 7
4.0 - Installation requirements 7
4.1 - Installation procedure 7
4.2 - Use 7
4.2.0 - Cautions for use 8
4.2.1 - DC power supply of the equipment 8
4.2.2 - AC power supply of the equipment 8
4.2.3 - AC thermostat setting 8
5.0 - B3Series hydraulic connection 9
5.1 - Hydraulic connection diagram, 12V 9
5.2 - AC connection diagram 10
6 - Maintenance 11
6.0 - B3Series maintenance 11
6.1 - B3Series AC maintenance 11
7 - Product disposal 12
8 - Spare parts 13
9 - Dimensions 14

B3Series
EN
B3 40 12 S L
4
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
SERIES NAME
TANK
CAPACITY
(l)
HEAT
EXCHANGER
(IF INSTALLED)
ELECTRIC ELEMENT
VOLTAGE:
(L) 110 VAC
(1) 12 VDC
(-) 220 VAC
ELECTRIC
ELEMENT
POWER (W)
1 - Information about the product
QUICK®RESERVES THE RIGHT TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE EQUIPMENT AND THE CONTENTS OF
THIS MANUAL WITHOUT PRIOR NOTICE. IN CASE OF DISCORDANCE OR ERRORS IN TRANSLATION BETWEEN THE TRANSLATED
VERSION AND THE ORIGINAL TEXT IN THE ITALIAN LANGUAGE, REFERENCE WILL BE MADE TO THE ITALIAN TEXT.
NAUTIC WATER HEATER
Our long experience in the nautical sector has enabled us to develop a series of water heaters with innovative
features compared to the market standard. The advantages that Quick®nautic water heaters offer are:
• High-quality materials ensuring durability and resistance over time.
• Heat exchanger with a large exchanging surface.
• Possibility of producing hot water even with the electric element, complete with adjustable and safety thermostat.
• Relief/non-return valve that allows the water heater to drain the water when not in use.
• Easy installation on a at area.
1.0 - Model code
MODELS B3 15 B3 20
TANK
CAPACITY
Litres
15 20
US gallon 3.96 5.28
Tank material AISI 316 AISI 316
Thermal insulation material Polyurethane foam Polyurethane foam
External cladding material COMPOSITE COMPOSITE
Tank pressure during testing 800 kPa
(1)
800 kPa
(1)
Maximum working pressure 600 kPa
(1)
600 kPa
(1)
Electric element
voltage rating 12 VDC 220 VAC 110 VAC 110 VAC 220 VAC 12 VDC 220 VAC 110 VAC 110 VAC 220 VAC
Electric element power rating 300 W 500 W 600 W 1200 W 300 W 500 W 600 W 1200 W
Fittings diameter 1/2” 1/2”
Weight
(2)
Kg 7 8,1
Lb 15.4 17.8
(1) 1 Bar = 100 kPa • (2) with equipment vacuum
12V 110/220V
Functional temperature 60°C adjustable 40°C - 80°C
Safety temperature 90°C 87°C

B3Series EN
5
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
1 - Information about the product
MODELS B3 25 B3 30 B3 40
TANK
CAPACITY
Litres
25 30 40
US gallon 6.6 7.92 10.56
Tank material AISI 316 AISI 316 AISI 316
Thermal insulation material Polyurethane foam Polyurethane foam Polyurethane foam
External cladding material COMPOSITE COMPOSITE COMPOSITE
Tank pressure during testing 800 kPa
(1)
800 kPa
(1)
800 kPa
(1)
Maximum working pressure 600 kPa
(1)
600 kPa
(1)
600 kPa
(1)
Electric element
voltage rating 220 VAC 110 VAC 110 VAC 220 VAC 220 VAC 110 VAC 110 VAC 220 VAC 220 VAC 110 VAC 110 VAC 220 VAC
Electric element power rating 500 W 600 W 1200 W 500 W 600 W 1200 W 500 W 600 W 1200 W
Fittings diameter 1/2” 1/2” 1/2”
Weight
(2)
Kg 8,5 10,5 11.7
Lb 18.7 23.1 25.8
(1) 1 Bar = 100 kPa • (2) with equipment vacuum
MODELS B3 60 B3 80
TANK
CAPACITY
Litres
60 80
US gallon 15.8 17.59
Tank material AISI 316 AISI 316
Thermal insulation material Polyurethane foam Polyurethane foam
External cladding material COMPOSITE COMPOSITE
Tank pressure during testing 800 kPa
(1)
800 kPa
(1)
Maximum working pressure 600 kPa
(1)
600 kPa
(1)
Electric element
voltage rating 220 VAC 110 VAC 110 VAC 220 VAC
110 VAC
220 VAC
Electric element power rating 500 W 600 W 1200 W 1200 W
Fittings diameter 1/2” 1/2”
Weight
(2)
Kg 14,6 17,8
Lb 32.2 39.2
(1) 1 Bar = 100 kPa • (2) with equipment vacuum

B3Series
EN
B3Series
6
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
2 - Supply and equipment
2.0 - Standard supply and material included in the package
• Water heater
• Floor or wall-mounting brackets
• Various screws and hardware (for assembly)
• User’s manual
• Conditions of warranty.
3 - Introduction
BEFORE USING THE PRODUCT, PLEASE READ THIS USER’S MANUAL CAREFULLY. IF IN DOUBT,
PLEASE CONSULT YOUR QUICK®DEALER.
Warning symbol for
dangerous situations.
Caution symbol to prevent direct or indirect
damage to the product.
3.0 - Important notes
3.1 - Precautions
• Use the product only for the applications described in this manual.
• Do not use these products for any other type of operation.
• Quick®shall not be held liable for direct or indirect damage caused by improper use of the product.
• Before connecting the equipment, make sure that cables are not live.
• This equipment is not intended for use by people (including children) with reduced physical, sensory
or mental capabilities. Quick®SpA shall not be held liable for direct or indirect damage caused by
improper use of the equipment.
• Never switch on the electric element if the product is not lled with water, otherwise the heating
element could be irreversibly damaged.
3.2 - Precautions for the installer
This manual features Warning and/or Caution symbols that are important for safety.
Stick to the given instructions.
This document provides boat manufacturers and nautical equipment installers with instructions
on how to assemble the water heater and operate it correctly.
CARRY OUT THE INSTALLATION IN GOOD LIGHTING CONDITIONS.
It is advisable to wear suitable clothing and personal protective equipment (PPE).
The water heater is not suitable for installation in potentially explosive environments and/or atmospheres.
Installation and subsequent inspection or repair work must only be carried out by qualied personnel.
CARRY OUT INSTALLATION/MAINTENANCE WORK MAKING SURE THAT THE PRODUCT IS
DISCONNECTED FROM THE ELECTRICAL SYSTEM.
Quick accepts no responsibility for inadequate connection of users to the electrical system and
inadequate safety of the electrical system.

B3Series EN
7
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
4 - Installation / Use
4.0 - Installation requirements
The water heater must be installed in a dry and well-ventilated place. This precaution is necessary, even if the
water heater is made of materials resistant to the marine environment, due to the presence of electrical devices
(in models equipped with them). In addition, installation in an unventilated place may cause condensation;
condensation may be mistaken for a false leak.
WARNING: do not install the water heater in environments with the presence of gas or potentially
ammable materials.
WARNING: the weight of the water heater indicated in the technical specications refers to empty
equipment. For the weight when fully loaded, add the weight of the mass of water lled in the
equipment to the weight when empty (1 litre of water corresponds to approximately 1 kg. / 2.2 lb).

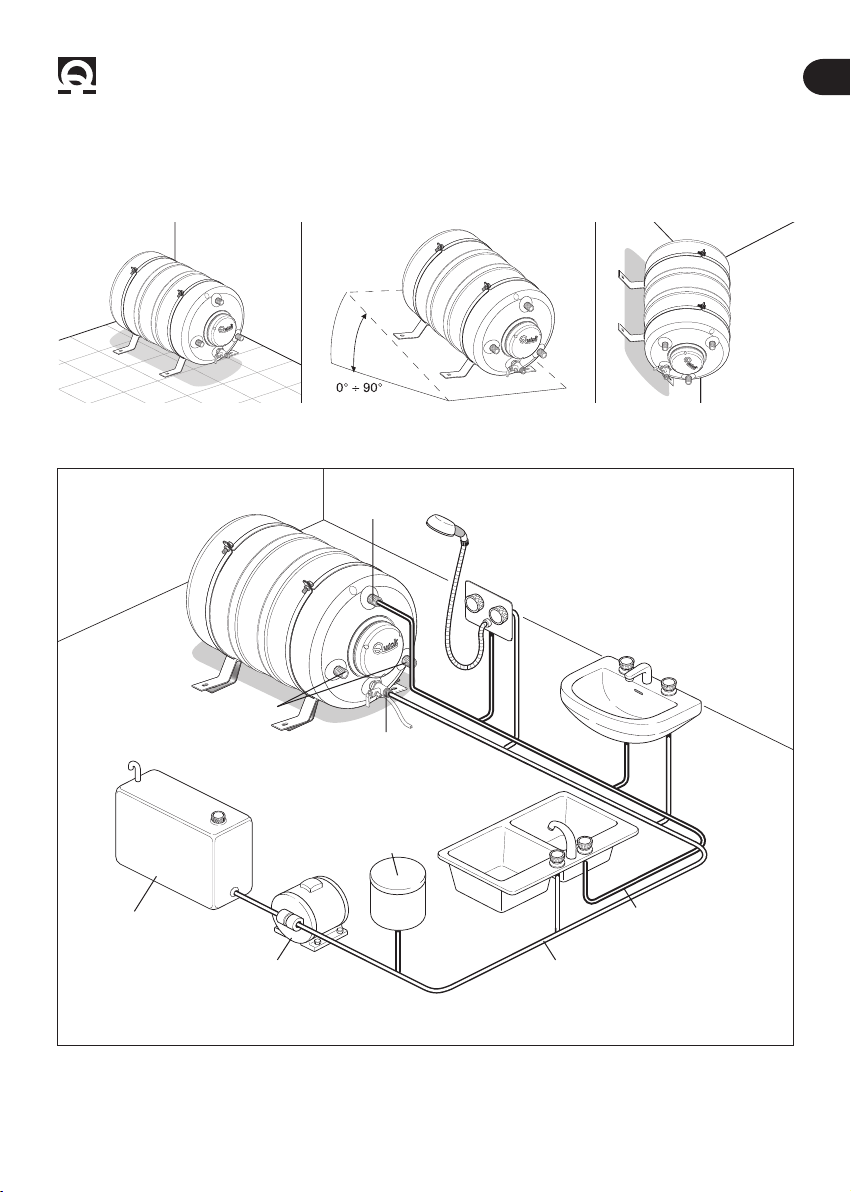

4.1 - Installation procedure
A - Apply the brackets to the tank.
B - Fix the water heater to a at surface as shown in gure 1 (page 9) using supports suitable for the weight of the
water heater and the type of surface available for installation.
C - Make the hydraulic connections for the tap hot water input and output and the engine cooling circuit to the heat
exchanger (in models featuring it) as shown in gure 2 (page 9). The connection between the engine cooling circuit
and the water heater exchanger should be as short as possible.
WARNING: follow the engine manufacturer’s instructions to withdraw the coolant to be sent to the
water heater exchanger.
WARNING: the overpressure release pipe must be positioned on a continuous downward slope and
in a place protected from ice formation.
WARNING: water may drip from the overpressure stub pipe; leave this pipe open so that it can drain
the water in the atmosphere.
WARNING: use Loctite 243, 577 or Teon when installing the ttings.
Check that there are no water leaks.
4.2 - Use
WARNING: follow the engine manufacturer’s instructions to withdraw the coolant to be sent to the
water heater exchanger.

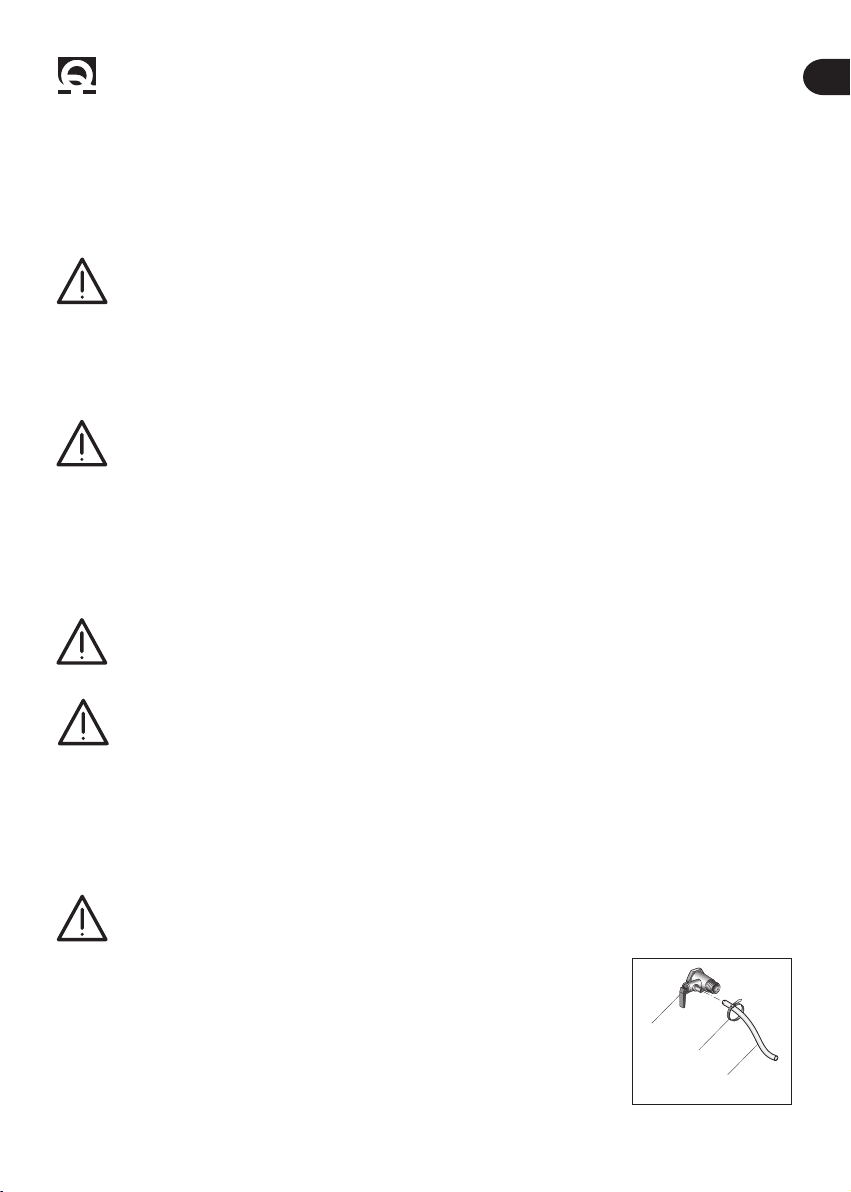

• Position the stub pipe (2) of the valve (1) securing it with the clamp (3).
Position it in such a way that any spillage of water will not damage other objects.
• Open the hot water taps of the washbasins and start the water pump. This allows
the air in the water heater and in the pipes to ow out. Close the taps as soon as
only water starts to ow out.
• Check that there is no leakage from the ttings.
2
3
1

B3Series
EN
1
L
2
N
N
L
T
105
2
1
R
E
S
E
T
-
S
A
F
E
T
Y
1
L
2
N
N
L
T
105
2
1
R
E
S
E
T
-
S
A
F
E
T
Y
8
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
4.2.0 - Cautions for use
Before connecting the equipment, make sure that cables are not live.
Never switch on the electric element if the water heater is NOT lled with water, otherwise the
heating element could be irreversibly damaged and the protection devices will not work properly.
WARNING: if the power cable is damaged, have it replaced at a Quick® service centre. To avoid
accidents, the equipment must only be opened by authorised personnel. The warranty will be void if
the equipment is opened by unauthorised personnel.
4.2.1 - DC power supply of the equipment
The equipment is provided with a box for DC network connections.
For connections to the DC network, see g. 3. Before supplying power to the water heater, make sure that its
operating voltage corresponds to that supplied by the DC network.
An equipment ON/OFF switch and a 30A fuse must be installed in the electrical system. The insulation material
between the contacts of the connections to the DC network must be at least 3 mm.
Connections to the DC network must be made in accordance with the national standards on electrical systems.
4.2.2 - AC power supply of the equipment
The equipment is already provided with a power cable for the AC network. For connections to the AC network,
see gure 3. Before supplying power to the water heater, make sure that its operating voltage corresponds to that
supplied by the AC network.
A double pole switch must be installed in the electrical system to turn the equipment on and off and a fuse suitable
for its absorption. The insulation material between the contacts of the connections to the AC network must be at
least 3 mm. Connections to the AC network must be made in accordance with the national standards on electrical
systems.

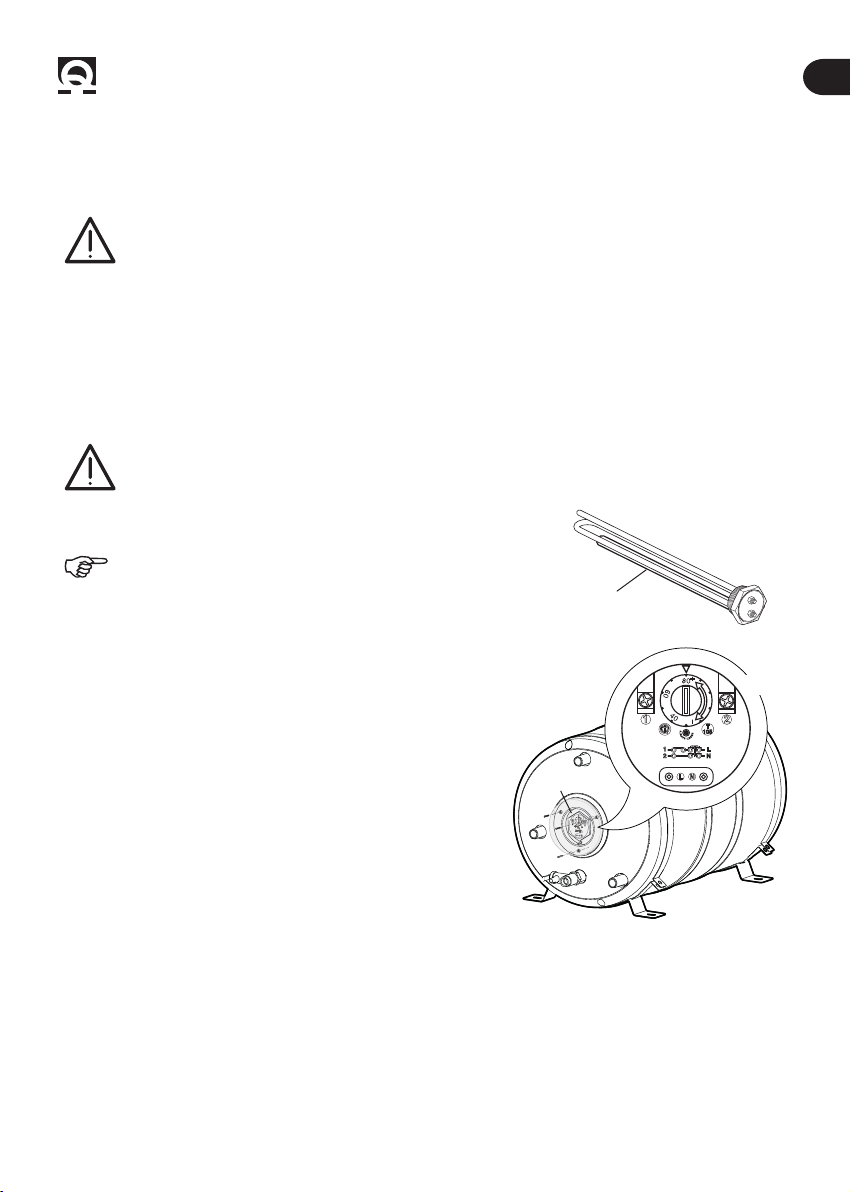

4.2.3 - AC thermostat setting
The thermostat factory-set temperature value is 60°C.
If you wish to change this value, follow the procedure below:
• interrupt the power supply.
• Remove the protection cover to reach the thermostat.
• Use a screwdriver to turn the thermostat knob and set the desired temperature value.
• Ret the protection cover.
• Restore the power supply.
The thermostat regulates the water temperature
only when operating with electric element.
5 - Wiring diagram
THERMOSTAT TEMPERATURE
SETTING KNOB
4 - Installation / Use
PROTECTION
COVER

B3Series EN
9
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
5.0 - B3Series hydraulic connection
FIG.1
FIG.2
5.1 - Hydraulic connection diagram, 12V
ENGINE COOLING LIQUID
HOT TAP WATER
OUTPUT
COLD TAP WATER INPUT
TAP WATER TANK
WATER PUMP COLD WATER
HOT WATER
EXPANSION TANK

B3Series
EN
10
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
5 - Wiring diagram
5.2 - AC connection diagram
FIG.3
FIG.4
1
L
2
N
N
L
T
105
2
1
R
E
S
E
T
-
S
A
F
E
T
Y
AC
NETWORK
NEUTRAL
AC NETWORK
LIVE
THERMOSTAT
TEMPERATURE
SETTING KNOB
RESET
BUTTON
PHASE NEUTRAL EARTH
SWITCH
BATTERY
12 V
SWITCH
FUSE 30A
CONNECTION
BOX
WATER HEATER B3 12V
FUSE 2A

B3Series EN
11
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
6 - Maintenance
6.0 - B3Series maintenance
WARNING: if the overtemperature safety device is triggered repeatedly during the use of the water
heater, contact a Quick®service centre.
WARNING: if the power cable is damaged, have it replaced at a Quick®service centre. To avoid
accidents, the equipment must only be opened by authorised personnel. The warranty will be void if
the equipment is opened by unauthorised personnel.
• During the cold season, if the water heater is not in use, it is advisable to empty it using the valve lever (g. 1 page 7).
This is to avoid damage caused by frost.
• Periodically check the hydraulic system ttings for leaks; check the tightness of the fastening screws and replace
them if they are worn out or corroded.
• Periodically check the efciency of the electrical system.
6.1 - B3Series AC maintenance
WARNING: Quick®water heaters (only AC model) are equipped with a double thermostat with manual
reset that cuts off the power supply in the event of too high water temperature.
If this condition occurs, proceed as follows:
It is advisable to check the magnesium anode every 12 months.
Replace it if deteriorated.
This simple preventive maintenance guarantees a long
equipment life over time.
PROCEDURE for SINGLE-PHASE manual reset (only for AC model):
• Interrupt the power supply
• Remove the protection cover (B) to reach the thermostat (C).
• Use a screwdriver to turn the thermostat knob (g. 4 page 10) and
set the maximum temperature value.
• Press the reset button on the double thermostat (g. 4 page 10).
• Use a screwdriver to turn the thermostat (C) knob and set the
desired temperature value.
• Ret the protection cover (B).
• Restore the power supply.
1
L
2
N
N
L
T
105
2
1
R
E
S
E
T
-
S
A
F
E
T
Y
1
L
2
N
N
L
T
105
2
1
R
E
S
E
T
-
S
A
F
E
T
Y
B
C
A

B3Series
EN
12
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
7 - Product disposal
As with installation, at the end of this product life, dismantling must be carried out by qualied personnel.
This product is made up of various materials, some can be recycled and others must be suitably disposed of;
enquire about the recycling or disposal systems provided for by local regulations for this product category.
Some parts of the product may contain pollutants or hazardous substances that, if dispersed, may be harmful to
the environment and human health.
As indicated by the symbol on the side, it is forbidden to dispose of this product as domestic waste.
Separate the products for disposal in accordance with the regulations in force in your area or return
the product to the seller when purchasing a new equivalent product.
Local regulations may impose severe penalties for the improper disposal of this product.

B3Series EN
13
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
8 - Spare parts
POS. DESCRIPTION CODE
1 A OSP ELECTRIC ELEMENT
COVER B3 110V FVSLCR110V00A00
1B OSP ELECTRIC ELEMENT
COVER B3 220V FVSLCR220V00A00
2 A OSP ELECTRIC ELEMENT
KIT 300W 12V FVSLRSB03012A00
2B OSP ELECTRIC ELEMENT
KIT 600W 110V FVSLRSB05110A00
2C OSP ELECTRIC ELEMENT
KIT 500W 220V FVSLRSB05220A00
2D OSP ELECTRIC ELEMENT
KIT 800W 110V FVSLRSB0811SA00
2E OSP ELECTRIC ELEMENT
KIT 800W 220V FVSLRSB0822SA00
2F OSP ELECTRIC ELEMENT
KIT 1200W 110V FVSLRSB12110A00
2G OSP ELECTRIC ELEMENT
KIT 1200W 220V FVSLRSB12220A00
3 OSP ELECTRIC ELEMENT SEAL B3 FVSLGRB03X00A00
4OSP DOUBLE THERMOSTAT
KIT 15A 270MM B3 FVSLTB152700A00
5 OSP PIPE END WASHERS B3 FVSLRCTBRB00A00
6 A OSP FIXING KIT B3 15-20-25 FVSLPNXB3300A00
6B OSP FIXING KIT B3 30-40 FVSLPNXB3360A00
6C OSP FIXING KIT B3 60-80 FVSLPNXB3400A00
1 2 3 4
5 6

B3Series
EN
14
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
H
I
C
D
E
G
B
AF
F
H
I
C
D
G
E
B
A
B
A
F
G
E
H
I
C
D
B3 15L 4 GAL - B3 20L 5.3 GAL - B3 25L 6.6 GAL
B3 30L 8 GAL - B3 40L 10.5 GAL
B3 60L 15.8 GAL - B3 80L 21.1 GAL
9 - Dimensions

B3Series EN
15
INSTALLATION AND USE MANUAL - QUICK B3 SERIES WATER Heater - REV001A
9 - Dimensions
15L 3.9 gal 20L 5.3 gal 25L 6.6 gal
A405 (15 61/64) 500 (19 11/16) 605 (23 13/16)
B316 (12” 7/16)
C123 (4” 27/32)
D59 (2” 21/64)
EØ 306 (12” 3/64)
F304 ÷ 318 (11” 31/32 ÷ 12” 1/2)
G320 (12” 19/32)
H 87 (3” 27/64)
I259 (10” 13/64)
30L 7.9 gal 40L 10.5 gal
A495 (19 31/64) 623 (24 13/32)
B366 (14” 13/32)
C158 (6” 7/32)
D75 (2 61/64)
EØ 366 (14” 13/32)
F304 ÷ 318 (11” 31/32 ÷ 12” 1/2)
G320 (14” 3/16)
H 79 (3” 7/64)
I325 (12” 51/64)
60L 15.8 gal 80L 21.1 gal
A721 (28 3/8) 921 (36 1/2)
B 404 (15” 29/32)
C 204 (8” 1/32)
D 85 (3” 11/32)
E Ø 400 (15 3/4)
F 270 ÷ 285 (10” 5/8 ÷ 11” 7/32)
G320 (12” 19/32)
H 204 (8” 1/32)
I 323 (12” 23/32)

Product serial number
QUICK®S.p.A. - Via Piangipane, 120/A - 48124 Piangipane (RAVENNA) - ITALY
Tel. [phone] - Fax [phone] - www.quickitaly.com - [e-mail]
B3Series
WATER HEATER SERIES B3
REV 001A
B3 15 - 15 12V
B3 20 - 20 12V
B3 25
B3 30
B3 40
B3 60
B3 80
