Quincy Compressor QED 650 Instructions for use

READ THIS MANUAL CAREFULLY BEFORE CARRYING OUT ANY OPERATIONS ON THE DRYER.
INSTRUCTION AND
MAINTENANCE MANUAL
Refrigerant Compressed Air Dryers
QED 650, QED 850, QED 1050

QUINCY
QED 650, QED 850, QED 1050
Instruction book
Original instructions
Copyright Notice
Any unauthorized use or copying of the contents or any part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers and drawings.
This instruction book is valid for CE as well as non-CE labelled machines. It meets the
requirements for instructions specified by the applicable European directives as identified
in the Declaration of Conformity.
2012 - 10
No. 2920 1818 00
www.quincycompressor.com

Table of contents
1 Safety precautions..........................................................................................................5
1.1 SAFETY ICONS...................................................................................................................................5
1.2 SAFETY PRECAUTIONS, GENERAL...........................................................................................................5
1.3 SAFETY PRECAUTIONS DURING INSTALLATION...........................................................................................6
1.4 SAFETY PRECAUTIONS DURING OPERATION..............................................................................................7
1.5 SAFETY PRECAUTIONS DURING MAINTENANCE OR REPAIR...........................................................................8
2General description......................................................................................................10
2.1 INTRODUCTION.................................................................................................................................10
2.2 AIR SYSTEM....................................................................................................................................17
2.3 REFRIGERATION SYSTEM....................................................................................................................19
2.4 AUTOMATIC REGULATION SYSTEM........................................................................................................21
2.5 CONDENSATE DRAIN SYSTEM..............................................................................................................22
2.6 ELECTRICAL SYSTEM.........................................................................................................................24
3Air Logic controller...............................................................................29
3.1 AIR LOGIC controller ....................................................................................................................29
3.2 CONTROL PANEL..............................................................................................................................30
3.3 ICONS USED....................................................................................................................................31
3.4 MAIN SCREEN..................................................................................................................................34
3.5 CALLING UP MENUS..........................................................................................................................37
3.6 INPUTS MENU...................................................................................................................................38
3.7 OUTPUTS MENU...............................................................................................................................40
3.8 COUNTERS......................................................................................................................................42
3.9 EVENT HISTORY MENU.......................................................................................................................44
3.10 MODIFYING SETTINGS........................................................................................................................45
3.11 INFO MENU......................................................................................................................................52
3.12 WEEK TIMER MENU...........................................................................................................................53
Instruction book
2 2920 1818 00

3.13 TEST MENU.....................................................................................................................................61
3.14 SERVICE MENU................................................................................................................................63
3.15 PROTECTIONS MENU.........................................................................................................................67
3.16 EXTRA MENU...................................................................................................................................68
3.17 WEB SERVER..................................................................................................................................70
3.18 PROGRAMMABLE SETTINGS ................................................................................................................75
4 Installation.....................................................................................................................76
4.1 DIMENSION DRAWINGS.......................................................................................................................76
4.2 INSTALLATION PROPOSAL...................................................................................................................80
4.3 INSTALLATION INSTRUCTIONS..............................................................................................................81
4.4 ELECTRIC CABLE SIZE AND FUSES........................................................................................................83
4.5 PICTOGRAPHS.................................................................................................................................83
5 Operating instructions.................................................................................................85
5.1 WARNINGS......................................................................................................................................85
5.2 INITIAL START..................................................................................................................................85
5.3 STARTING.......................................................................................................................................86
5.4 DURING OPERATION..........................................................................................................................86
5.5 STOPPING.......................................................................................................................................87
6 Maintenance..................................................................................................................88
6.1 MAINTENANCE INSTRUCTIONS.............................................................................................................88
7 Problem solving............................................................................................................90
7.1 PROBLEM SOLVING...........................................................................................................................90
8 Technical data...............................................................................................................92
8.1 REFERENCE CONDITIONS AND LIMITATIONS............................................................................................92
8.2 AIR DRYER DATA..............................................................................................................................92
Instruction book
2920 1818 00 3

9 Pressure equipment directives...................................................................................96
Instruction book
4 2920 1818 00

1 Safety precautions
1.1 Safety icons
Explanation
Danger for life
Warning
Important note
1.2 Safety precautions, general
General precautions
1. The operator must employ safe working practices and observe all related work safety requirements and
regulations.
2. If any of the following statements does not comply with the applicable legislation, the stricter of the two
shall apply.
3. Installation, operation, maintenance and repair work must only be performed by authorized, trained,
specialized personnel.
4. The compressor is not considered capable of producing air of breathing quality. For air of breathing quality,
the compressed air must be adequately purified according to the applicable legislation and standards.
5. Before any maintenance, repair work, adjustment or any other non-routine checks, stop the compressor,
press the emergency stop button, switch off the voltage and depressurize the compressor. In addition, the
power isolating switch must be opened and locked.
On units powered by a frequency converter, wait six minutes before starting any electrical repair.
If the machine is equipped with an automatic restart after voltage failure function and if this
function is active, be aware that the machine will restart automatically when the power is
restored if it was running when the power was interrupted!
6. Never play with compressed air. Do not apply the air to your skin or direct an air stream at people. Never
use the air to clean dirt from your clothes. When using the air to clean equipment, do so with extreme
caution and wear eye protection.
7. The owner is responsible for maintaining the unit in safe operating condition. Parts and accessories shall
be replaced if unsuitable for safe operation.
8. It is not allowed to walk or stand on the unit or on its components.
Instruction book
2920 1818 00 5

1.3 Safety precautions during installation
All responsibility for any damage or injury resulting from neglecting these
precautions, or non-observance of the normal caution and care required for
installation, operation, maintenance and repair, even if not expressly stated, will
be disclaimed by the manufacturer.
Precautions during installation
1. The machine must only be lifted using suitable equipment in accordance with the applicable safety
regulations. Loose or pivoting parts must be securely fastened before lifting. It is strictly forbidden to
dwell or stay in the risk zone under a lifted load. Lifting acceleration and deceleration must be kept within
safe limits. Wear a safety helmet when working in the area of overhead or lifting equipment.
2. The unit is designed for indoor use. If the unit is installed outdoors, special precautions must be taken;
consult the manufacturer.
3. Place the machine where the ambient air is as cool and clean as possible. If necessary, install a suction
duct. Never obstruct the air inlet. Care must be taken to minimize the entry of moisture at the inlet air.
4. Any blanking flanges, plugs, caps and desiccant bags must be removed before connecting the pipes.
5. Air hoses must be of correct size and suitable for the working pressure. Never use frayed, damaged or
worn hoses. Distribution pipes and connections must be of the correct size and suitable for the working
pressure.
6. The aspirated air must be free of flammable fumes, vapors and particles, e.g. paint solvents, that can lead
to internal fire or explosion.
7. Arrange the air intake so that loose clothing worn by people cannot be sucked in.
8. Ensure that the discharge pipe from the dryer to the air net is free to expand under heat and that it is not
in contact with or close to flammable materials.
9. No external force may be exerted on the air outlet valve; the connected pipe must be free of strain.
10. If remote control is installed, the machine must bear a clear sign stating: DANGER: This machine is
remotely controlled and may start without warning.
The operator has to make sure that the machine is stopped and that the isolating switch is open and locked
before any maintenance or repair. As a further safeguard, persons switching on remotely controlled
machines shall take adequate precautions to ensure that there is no one checking or working on the
machine. To this end, a suitable notice shall be affixed to the start equipment.
11. Air-cooled machines must be installed in such a way that an adequate flow of cooling air is available and
that the exhausted air does not recirculate to the air inlet or cooling air inlet.
12. The electrical connections must correspond to the applicable codes. The machines must be earthed and
protected against short circuits by fuses in all phases. A lockable power isolating switch must be installed
near the dryer.
13. On machines with automatic start-stop system or if the automatic restart function after voltage failure is
activated, a sign stating "This machine may start without warning" must be affixed near the instrument
panel.
14. Never remove or tamper with the safety devices, guards or insulation fitted on the machine. Every pressure
vessel or auxiliary installed outside the machine to contain air above atmospheric pressure must be
protected by a pressure-relieving device or devices as required.
15. Pipework or other parts with a temperature in excess of 80˚C (176˚F) and which may be accidentally
touched by personnel in normal operation must be guarded or insulated. Other high-temperature pipework
must be clearly marked.
16. If the ground is not level or can be subject to variable inclination, consult the manufacturer.
Instruction book
6 2920 1818 00

Also consult following safety precautions: Safety precautions during operation and Safety
precautions during maintenance.
These precautions apply to machinery processing or consuming air or inert gas. Processing
of any other gas requires additional safety precautions typical to the application which are not
included herein.
Some precautions are general and cover several machine types and equipment; hence some
statements may not apply to your machine.
1.4 Safety precautions during operation
All responsibility for any damage or injury resulting from neglecting these
precautions, or non-observance of the normal caution and care required for
installation, operation, maintenance and repair, even if not expressly stated, will
be disclaimed by the manufacturer.
Precautions during operation
1. Never touch any piping or components of the compressor during operation.
2. Use only the correct type and size of hose end fittings and connections. When blowing through a hose or
air line, ensure that the open end is held securely. A free end will whip and may cause injury. Make sure
that a hose is fully depressurized before disconnecting it.
3. Persons switching on remotely controlled machines shall take adequate precautions to ensure that there
is no one checking or working on the machine. To this end, a suitable notice shall be affixed to the remote
start equipment.
4. Never operate the machine when there is a possibility of taking in flammable or toxic fumes, vapors or
particles.
5. Never operate the machine below or in excess of its limit ratings.
6. Keep all bodywork doors shut during operation. The doors may be opened for short periods only, e.g. to
carry out routine checks. Wear ear protectors when opening a door.
7. People staying in environments or rooms where the sound pressure level reaches or exceeds 90 dB(A)
shall wear ear protectors.
8. Periodically check that:
• All guards are in place and securely fastened
• All hoses and/or pipes inside the machine are in good condition, secure and not rubbing
• There are no leaks
• All fasteners are tight
• All electrical leads are secure and in good order
• Safety valves and other pressure-relief devices are not obstructed by dirt or paint
• Air outlet valve and air net, i.e. pipes, couplings, manifolds, valves, hoses, etc. are in good repair, free
of wear or abuse
9. If warm cooling air from dryers is used in air heating systems, e.g. to warm up a workroom, take precautions
against air pollution and possible contamination of the breathing air.
10. Do not remove any of, or tamper with, the sound-damping material.
11. Never remove or tamper with the safety devices, guards or insulations fitted on the machine. Every pressure
vessel or auxiliary installed outside the machine to contain air above atmospheric pressure shall be
protected by a pressure-relieving device or devices as required.
Instruction book
2920 1818 00 7

Also consult following safety precautions: Safety precautions during installation and Safety
precautions during maintenance.
These precautions apply to machinery processing or consuming air or inert gas. Processing
of any other gas requires additional safety precautions typical to the application which are not
included herein.
Some precautions are general and cover several machine types and equipment; hence some
statements may not apply to your machine.
1.5 Safety precautions during maintenance or repair
All responsibility for any damage or injury resulting from neglecting these
precautions, or non-observance of the normal caution and care required for
installation, operation, maintenance and repair, even if not expressly stated, will
be disclaimed by the manufacturer.
Precautions during maintenance or repair
1. Always use the correct safety equipment (such as safety glasses, gloves, safety shoes, etc.).
2. Use only the correct tools for maintenance and repair work.
3. Use only genuine spare parts.
4. All maintenance work shall only be undertaken when the machine has cooled down.
5. A warning sign bearing a legend such as "work in progress; do not start" shall be attached to the starting
equipment.
6. Persons switching on remotely controlled machines shall take adequate precautions to ensure that there
is no one checking or working on the machine. To this end, a suitable notice shall be affixed to the remote
start equipment.
7. Close the dryer air outlet valve before connecting or disconnecting a pipe.
8. Before removing any pressurized component, effectively isolate the machine from all sources of pressure
and relieve the entire system of pressure.
9. Never use flammable solvents or carbon tetrachloride for cleaning parts. Take safety precautions against
toxic vapors of cleaning liquids.
10. Scrupulously observe cleanliness during maintenance and repair. Keep dirt away by covering the parts
and exposed openings with a clean cloth, paper or tape.
11. Never weld on, or in any way modify, pressure vessels.
12. Whenever there is an indication or any suspicion that an internal part of a machine is overheated, the
machine shall be stopped but no inspection covers shall be opened before sufficient cooling time has
elapsed; this to avoid the risk of spontaneous ignition of the oil vapor when air is admitted.
13. Never use a light source with open flame for inspecting the interior of a machine, pressure vessel, etc.
14. Make sure that no tools, loose parts or rags are left in or on the machine.
15. All regulating and safety devices shall be maintained with due care to ensure that they function properly.
They may not be put out of action.
16. Before clearing the machine for use after maintenance or overhaul, check that operating pressures,
temperatures and time settings are correct. Check that all control and shut-down devices are fitted and that
they function correctly.
17. Protect the motor, electrical and regulating components, etc. to prevent moisture from entering them, e.g.
when steam-cleaning.
Instruction book
8 2920 1818 00

18. Make sure that all sound-damping material and vibration dampers, e.g. damping material on the bodywork,
is in good condition. If damaged, replace it by genuine material from the manufacturer to prevent the
sound pressure level from increasing.
19. Never use caustic solvents which can damage materials of the air net, e.g. polycarbonate bowls.
20. The following safety precautions are stressed when handling refrigerant:
• Never inhale refrigerant vapours. Check that the working area is adequately ventilated; if required, use
breathing protection.
• Always wear special gloves. In case of refrigerant contact with the skin, rinse the skin with water. If
liquid refrigerant contacts the skin through clothing, never tear off or remove the latter; flush
abundantly with fresh water over the clothing until all refrigerant is flushed away; then seek medical
first aid.
Also consult following safety precautions: Safety precautions during installation and Safety
precautions during operation.
These precautions apply to machinery processing or consuming air or inert gas. Processing
of any other gas requires additional safety precautions typical to the application which are not
included herein.
Some precautions are general and cover several machine types and equipment; hence some
statements may not apply to your machine.
Instruction book
2920 1818 00 9

2 General description
2.1 Introduction
Description
The air dryers remove moisture from compressed air by cooling the air to near freezing point. This causes
water to condense. The condensate is automatically drained. The air is warmed up before leaving the dryer
(approx. 5 ˚C (9 ˚F) below the incoming air temperature).
The Air Logic Controller (1) keeps the pressure dew-point stable at no load by opening or closing the
solenoid valve of the hot-gas by-pass.
The condenser has a cooling fan controlled by a pressure sensor.

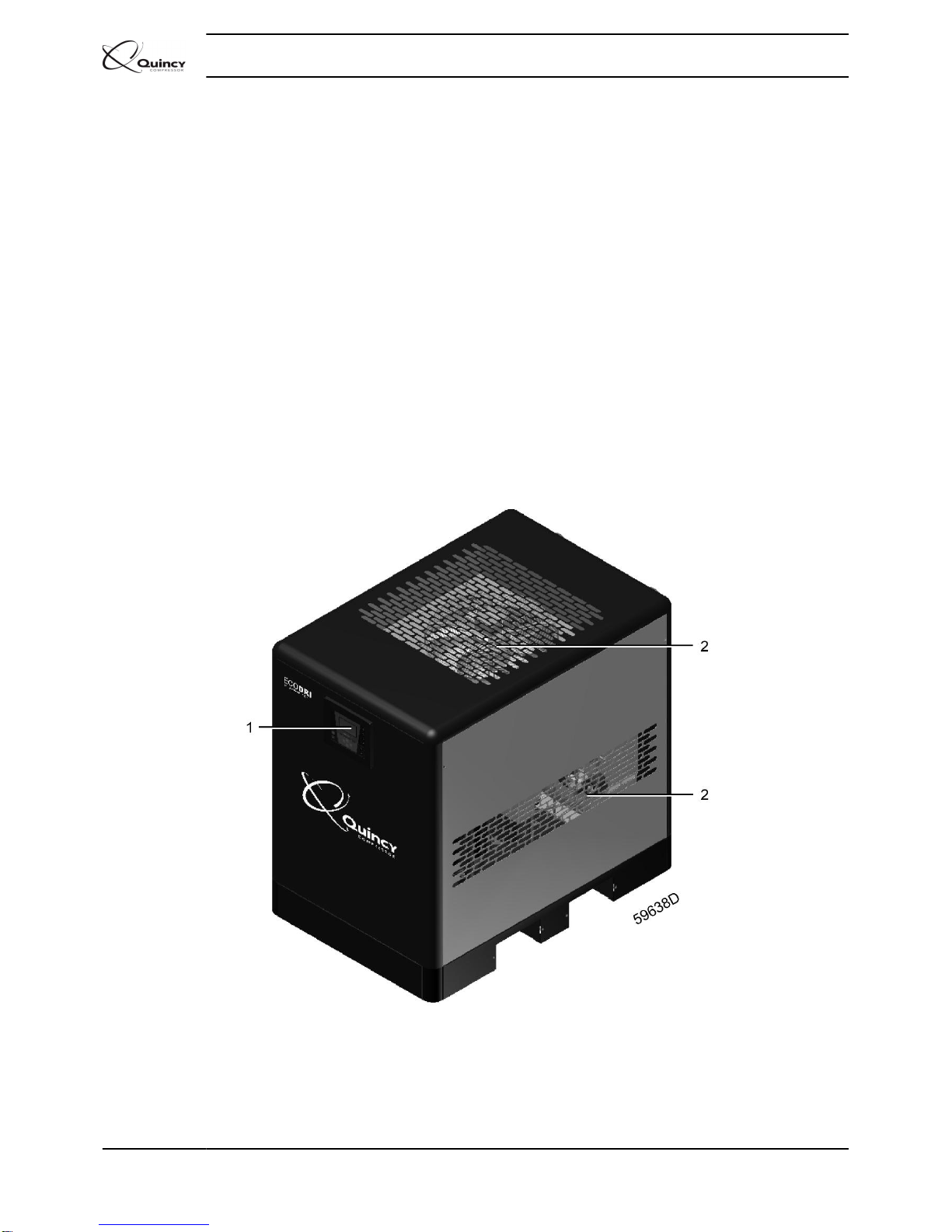

General view
General view of QED 650
Instruction book
10 2920 1818 00

General view of QED 850
Instruction book
2920 1818 00 11

General view of QED 1050
Reference Name
1Air Logic Controller
2 Grating
Instruction book
12 2920 1818 00

Position of components
Inside view of QED 650
Instruction book
2920 1818 00 13

Inside view of QED 850
Instruction book
14 2920 1818 00

Inside view QED 1050
1 Heat exchanger
2 Cooling fan(s)
3 Condenser
4 Solenoid valve
5 Cubicle
6 Hot-gas by-pass valve
7 Refrigerant compressor
8 Liquid separator
9 Electronic water drain (EWD)
10 Sight-glass with moisture indicator
11 Thermostatic expansion valve
12 Refrigerant dryer/filter
13 Non-return valve
Instruction book
2920 1818 00 15

Connections
Rear view
1 Compressed air outlet
2 Compressed air inlet
3 Cable gland, electrical connection
4 Automatic drain hose
Instruction book
16 2920 1818 00

2.2 Air system
Air flow diagram

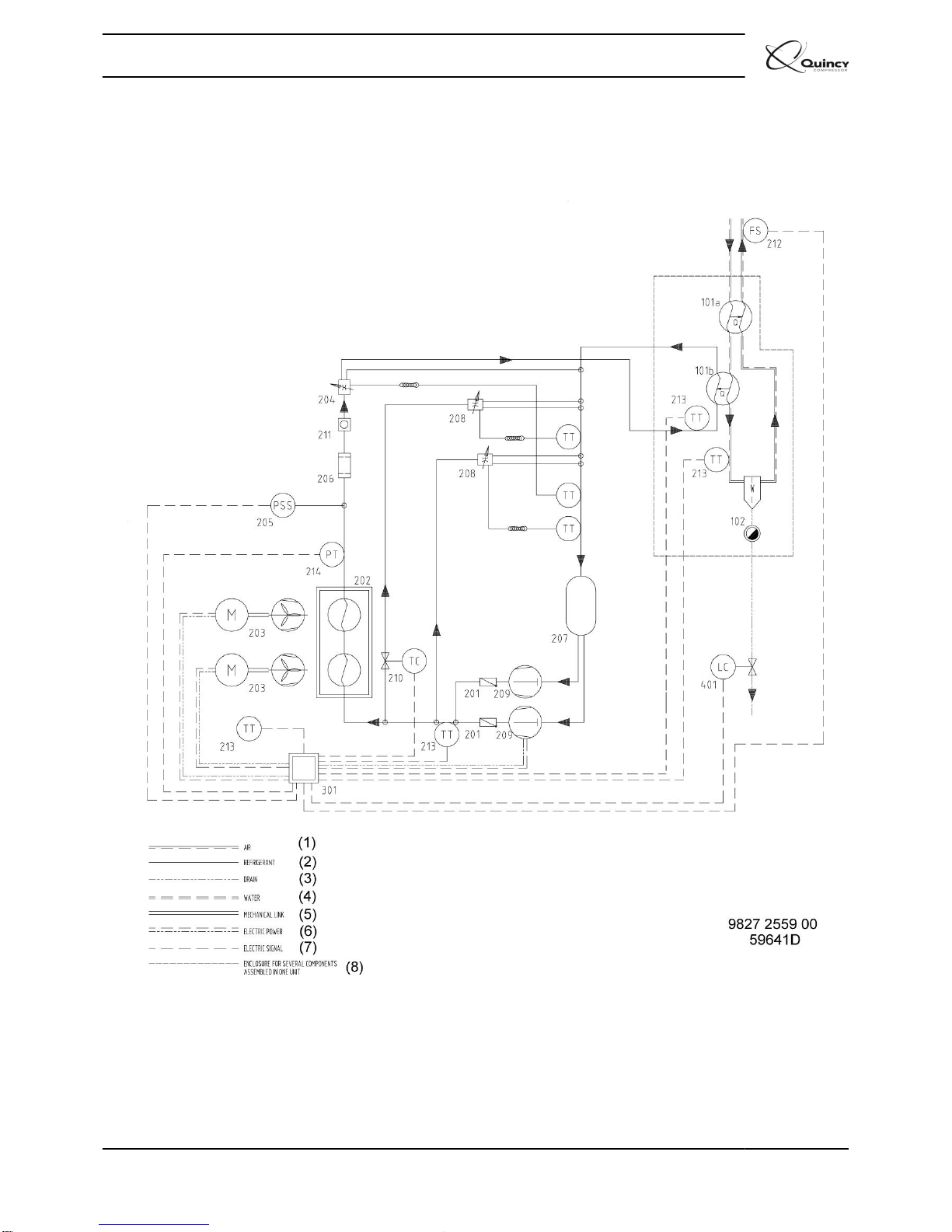

Air and refrigerant flow diagram for QED 650 up to QED 2100
Reference Name
101a Air/air heat exchanger
101b Air/refrigerant heat exchanger
Instruction book
2920 1818 00 17

Reference Name
102 Condensate separator
201 Non-return valve
202 Air-cooled condenser (air-cooled version)
203 Fan blower (air-cooled version) *)
204 Thermostatic expansion valve
205 Pressure shut-down switch
206 Refrigerant dryer/filter
207 Liquid separator
208 Hot-gas by-pass valve
209 Refrigerant compressor
210 Solenoid valve
211 Sight-glass
212 Flow switch
213 Temperature switch
214 Pressure sensor
(air-cooled version)
301 Cubicle
401 Automatic drain
(1) Air
(2) Refrigerant
(3) Drain
(4) Water
(5) Mechanical link
(6) Electric power
(7) Electric signal
(8) Enclosure for several components assembled in one unit
*) Second fan blower is installed on QED 1050
Description
Compressed air enters heat exchanger (101a) and is cooled by the outgoing, cold, dried air. Water in the
incoming air starts to condense. The air then flows through heat exchanger/evaporator (101b) where the
refrigerant evaporates causing the air to be further cooled to close to the evaporating temperature of the
refrigerant. More water in the air condenses. The cold air then flows through separator (102) where all the
condensate is separated from the air.
The condensate collects in the Electronic Water Drain (EWD) (401) and is automatically drained. The cold,
dried air flows through heat exchanger (101a), where it is warmed up by the incoming air to approx. 5 ˚C (9
˚F) below the incoming air temperature.
Condensation in the air net cannot occur unless the air is cooled to below the pressure dew-point indicated
on the control panel.
Instruction book
18 2920 1818 00

2.3 Refrigeration system
Refrigerant flow diagram
Air and refrigerant flow diagram for QED 650 up to QED 2100
Description
Refrigerant compressor (209) delivers hot, high-pressure refrigerant gas, which flows through condenser
(202), where most of the refrigerant condenses.
Instruction book
2920 1818 00 19
