Quincy Compressor QED 650 User manual

Quincy
Refrigerant compressed air dryers
QED-650, QED-850, QED-1050
QPVS-650, QPVS-850, QPVS-1050
Air-Cooled and Water-Cooled
Instruction book

Refrigerant dryers
QED-650, QED-850, QED-1050
QPVS-650, QPVS-850, QPVS-1050
Instruction Book
Copyright, International Compressor Distribution NV, Antwerp, Belgium.
Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in
particular to trademarks, model denominations part numbers and drawings.
Use only authorized parts. Any damage or malfunction caused by the use of unauthorized parts
is not covered by Warranty or Product Liability.
02/2021
No. 9828 0934 73 Ed 00

Instruction Book
4 9828 0934 73

Instruction Book
9828 0934 73 5
Table of Contents
1Safety precaution................................................................................................................ 7
1.1 Safety icons...........................................................................................................................................................7
1.2 General Safety precautions ..................................................................................................................................7
1.3 Safety precautions during installation...................................................................................................................8
1.4 Safety precautions during operation .....................................................................................................................9
1.5 Safety during maintenance or repair...................................................................................................................10
1.6 Dismantling and disposal....................................................................................................................................11
2General description........................................................................................................... 13
2.1 Introduction .........................................................................................................................................................13
2.2 Air circuit .............................................................................................................................................................21
2.3 Refrigeration system...........................................................................................................................................26
2.4 Automatic regulation system...............................................................................................................................31
2.5 Condensate drain system ...................................................................................................................................35
2.6 Electrical system .................................................................................................................................................37
3Controller........................................................................................................................... 38
3.1 General................................................................................................................................................................38
3.2 Control panel.......................................................................................................................................................39
3.3 Icon used.............................................................................................................................................................40
3.4 Main screen.........................................................................................................................................................43
3.5 Calling up menus ................................................................................................................................................45
3.6 Inputs menu ........................................................................................................................................................47
3.7 Outputs menu......................................................................................................................................................48
3.8 Counters..............................................................................................................................................................50
3.9 Event history menu .............................................................................................................................................51
3.10Modifying settings ...............................................................................................................................................52
3.11Info menu ............................................................................................................................................................59
3.12Week timer menu................................................................................................................................................60
3.13Test menu ...........................................................................................................................................................69
3.14Service menu......................................................................................................................................................70
3.15Converter menu ..................................................................................................................................................73
3.16Protections menu................................................................................................................................................74
3.17Extra menu..........................................................................................................................................................75
3.18Web server..........................................................................................................................................................77
3.19Programmable settings.......................................................................................................................................82

Instruction Book
6 9828 0934 73
4Installation ......................................................................................................................... 83
4.1 Dimension drawings............................................................................................................................................83
4.2 Installation proposal............................................................................................................................................94
4.3 Installation instructions........................................................................................................................................96
4.4 Electrical cable size and fuses............................................................................................................................98
4.5 Pictographs .......................................................................................................................................................100
5Operating instructions.................................................................................................... 101
5.1 Warnings...........................................................................................................................................................101
5.2 Initial start-up.....................................................................................................................................................101
5.3 Starting..............................................................................................................................................................102
5.4 During operation................................................................................................................................................102
5.5 Stopping............................................................................................................................................................103
6Maintenance..................................................................................................................... 104
6.1 Preventive maintenance schedule....................................................................................................................104
7Problem solving .............................................................................................................. 106
7.1 Problem solving.................................................................................................................................................106
7.1.1 Faults and remedies (general).........................................................................................................................107
7.1.2 Faults and remedies (controller)......................................................................................................................108
7.1.3 Faults and remedies (converter). Only for VSD models..................................................................................108
8Technical data ................................................................................................................. 111
8.1 Limitations and reference conditions ................................................................................................................111
8.2 Air Dryer data....................................................................................................................................................112
9Pressure equipment directives...................................................................................... 133

Instruction Book
9828 0934 73 7
1 Safety precaution
1.1 Safety icons
Explanation
Danger for life
Warning
Important note
1.2 General Safety precautions
General precautions
1. The operator must employ safe working practices and observe all related work safety requirements
and regulations.
2. If any of the following statements does not comply with the applicable legislation, the stricter of the
two shall apply.
3. Installation, operation, maintenance and repair work must only be performed by authorized, trained,
specialized personnel. The personnel should apply safe working practices by use of personal
protection equipment, appropriate tools and defined procedures.
4. The compressor is not considered capable of producing air of breathing quality. For air of breathing
quality, the compressed air must be adequately purified according to the applicable legislation and
standards.
5. Before any maintenance, repair work, adjustment or any other non-routine checks:
•Stop the compressor
•Press the emergency stop button
•Switch off the voltage
•Depressurize the compressor
•Lock Out - Tag Out (LOTO):
•Open the power isolating switch and lock it with a personal lock
•Tag the power isolating switch with the name of the service technician.
•On units powered by a frequency converter, wait 10 minutes before starting any electrical repair.
•Never rely on indicator lamps or electrical door locks before maintenance work, always disconnect
and check with measuring device.
If the machine is equipped with an automatic restart after voltage failure function and ifthis
function is active, be aware that the machine will restart automatically when the power is
restored if it was running when the power was interrupted!
6. Never play with compressed air. Do not apply the air to your skin or direct an air stream at people.

Instruction Book
8 9828 0934 73
Never use the air to clean dirt from your clothes. When using the air to clean equipment, do so with
extreme caution and wear eye protection.
7. The owner is responsible for maintaining the unit in safe operating condition. Parts and accessories
shall be replaced if unsuitable for safe operation.
8. It is prohibited to walk or stand on the unit or on its components.
1.3 Safety precautions during installation
All responsibility for any damage or injury resulting from neglecting these precautions, or
non-observance of the normal caution and care required for installation, operation,
maintenance and repair, even if not expressly stated, will be disclaimed by the
manufacturer.
Precautions during installation
1. The machine must only be lifted using suitable equipment in accordance with the applicable safety
regulations. Loose or pivoting parts must be securely fastened before lifting. It is strictly forbidden to
dwellor stay in the risk zone under a lifted load. Lifting acceleration and deceleration must bekept within
safe limits. Wear a safety helmet when working in the area of overhead or lifting equipment.
2. The unit is designed for indoor use. If the unit is installed outdoors, special precautions must be
taken; consult the manufacturer.
3. Place the machine where the ambient air is as cool and clean as possible.
4. Any blanking flanges, plugs, caps and refrigerant bags must be removed before connecting the pipes.
5. Air hoses must be of correct size and suitable for the working pressure. Never use frayed, damaged
or worn hoses. Distribution pipes and connections must be of the correct size and suitable for the
working pressure.
6. The aspirated air must be free of flammable fumes, vapors and particles, e.g. paint solvents that can
lead to internal fire or explosion
7. Arrange the air intake so that loose clothing worn by people cannot be sucked in.
8. Ensure that the discharge pipe from the dryer to the air net is free to expand under heat and that it
is not in contact with or close to flammable materials.
9. No external force may be exerted on the air outlet valve; the connected pipe must be free of strain.
10. If remote control is installed, the machine must bear a clear sign stating: DANGER: This machine
is remotely controlled and may start without warning.
The operator has to make sure that the machine is stopped and that the isolating switch is open and
locked before any maintenance or repair. As a further safeguard, persons switching on remotely
controlled machines shall take adequate precautions to ensure that there is no one checking or working
on the machine. To this end, a suitable notice shall be affixed to the start equipment.
11. Air-cooled machines must be installed in such a way that an adequate flow of cooling air is available
and that the exhausted air does not recirculate to the air inlet or cooling air inlet.
12. The electrical connections must correspond to the applicable codes. The machines must be earthed
and protected against short circuits by fuses in all phases. A lockable power isolating switch must be
installed near the dryer.
13. On machines with automatic start-stop system or if the automatic restart function after voltage failure
is activated, a sign stating "This machine may start without warning" must be affixed near the
instrument panel.
14. Never remove or tamper with the safety devices, guards or insulation fitted on the machine. Every
pressure vessel or auxiliary installed outside the machine to contain air above atmospheric pressure
must be protected by a pressure-relieving device or devices as required.
15. Pipework or other parts with a temperature in excess of 80˚C (176˚F) and which may be accidentally
touched by personnel in normal operation must be guarded or insulated. Other high-temperature

Instruction Book
9828 0934 73 9
pipework must be clearly marked.
16. If the ground is not level or can be subject to variable inclination, consult the manufacturer.
17. If the maximum working pressure of the compressor is higher than the design pressure of the dryer, a
full flow safety valve must be installed between the compressor and the dryer in order to blow off
excessive pressure.
Also consult following safety precautions: Safety precautions during operation and Safety
precautions during maintenance.
These precautions apply to machinery processing or consuming air or inert gas.
Processing of any other gas requires additional safety precautions typical to the
application which are not included herein.
Some precautions are general and cover several machine types and equipment; hence
some statements may not apply to your machine.
1.4 Safety precautions during operation
All responsibility for any damage or injury resulting from neglecting these precautions, or
non-observance of the normal caution and care required for installation, operation,
maintenance and repair, even if not expressly stated, will be disclaimed by the
manufacturer.
Precautions during operation
1. Always be careful when touching any piping or components of the dryer during operation.
2. Use only the correct type and size of hose end fittings and connections. When blowing through a hose
or air line, ensure that the open end is held securely. A free end will whip and may cause injury. Make
sure that a hose is fully depressurized before disconnecting it.
3. Persons switching on remotely controlled machines shall take adequate precautions to ensure that
there is no one checking or working on the machine. To this end, a suitable notice shall be affixed to
the remote start equipment.
4. Never operate the machine when there is a possibility of taking in flammable or toxic fumes, vapors or
particles.
5. Never operate the machine below or in excess of its limit ratings.
6. Keep all bodywork doors shut during operation. The doors may be opened for short periods only, e.g.
to carry out routine checks. Wear ear protectors when opening a door.
7. People staying in environments or rooms where the sound pressure level reaches or exceeds 90
dB(A) shall wear ear protectors.
8. Periodically check that:
•All guards are in place and securely fastened
•All hoses and/or pipes inside the machine are in good condition, secure and not rubbing
•There are no leaks
•All fasteners are tight
•All electrical leads are secure and in good order
•Safety valves and other pressure-relief devices are not obstructed by dirt or paint
•Air outlet valve and air net, i.e. pipes, couplings, manifolds, valves, hoses, etc. are in good repair,
free of wear or abuse
9. If warm cooling air from dryers is used in air heating systems, e.g. to warm up a working area, take
precautions against air pollution and possible contamination of the breathing air.

Instruction Book
10 9828 0934 73
10. Do not remove any of, or tamper with, the sound dampening material.
11. Never remove or tamper with the safety devices, guards or insulations fitted on the machine. Every
pressure vessel or auxiliary installed outside the machine to contain air above atmospheric pressure
shall be protected by a pressure relieving device or devices as required.
Also consult following safety precautions: Safety precautions during installation and
Safety precautions during maintenance.
These precautions apply to machinery processing or consuming air or inert gas.
Processing of any other gas requires additional safety precautions typical to the
application which are not included herein.
Some precautions are general and cover several machine types and equipment; hence
some statements may not apply to your machine.
1.5 Safety during maintenance or repair
All responsibility for any damage or injury resulting from neglecting these precautions, or
non-observance of the normal caution and care required for installation, operation,
maintenance and repair, even if not expressly stated, will be disclaimed by the
manufacturer.
Precautions during maintenance or repair
1. Always use the correct safety equipment (such as safety glasses, gloves, safety shoes, etc.).
2. Use only the correct tools for maintenance and repair work.
3. Use only genuine spare parts.
4. All maintenance work shall only be undertaken when the machine has cooled down.
5. A warning sign bearing a legend such as "Work in progress - do not start" shall be attached to
the starting equipment.
6. Persons switching on remotely controlled machines shall take adequate precautions to ensure that
there is no one checking or working on the machine. To this end, a suitable notice shall be affixed
to the remote starting equipment.
7. Close the dryer air outlet valve before connecting or disconnecting a pipe.
8. Before removing any pressurized component, effectively isolate the machine from all sources
of pressure and relieve the entire system of pressure.
9. Never use flammable solvents or carbon tetrachloride for cleaning parts. Take safety
precautions against toxic vapors of cleaning liquids.
10. Scrupulously observe cleanliness during maintenance and repair. Keep dirt away by covering
the parts and exposed openings with a clean cloth, paper or tape.
11. Never weld on, or in any way modify, pressure vessels.
12. Whenever there is an indication or any suspicion that an internal part of a machine is overheated,
the machine shall be stopped but no inspection covers shall be opened before sufficient cooling
time has elapsed; this to avoid the risk of spontaneous ignition of the oil vapor when air is admitted.
13. Never use a light source with open flame for inspecting the interior of a machine, pressure vessel, etc.
14. Make sure that no tools, loose parts or rags are left in or on the machine.
15. All regulating and safety devices shall be maintained with due care to ensure that they function

Instruction Book
9828 0934 73 11
properly. They may not be put out of action.
16. Before clearing the machine for use after maintenance or overhaul, check that operating pressures,
temperatures and time settings are correct. Check that all control and shut-down devices are fitted
and that they function correctly.
17. Protect the motor, electrical and regulating components, etc. to prevent moisture from entering them,
e.g. when steam-cleaning.
18. Make sure that all sound-damping material and vibration dampers, e.g. damping material on the
bodywork, is in good condition. If damaged, replace it by genuine material from the manufacturer
to prevent the sound pressure level from increasing.
19. Never use caustic solvents which can damage materials of the air net, e.g. polycarbonate bowls.
20. The following safety precautions are stressed when handling refrigerant:
•Never inhale refrigerant vapours. Check that the working area is adequately ventilated; if required,
use breathing protection.
•Always wear special gloves. In case of refrigerant contact with the skin, rinse the skin with
water. If liquid refrigerant contacts the skin through clothing, never tear off or remove the latter;
flush abundantly with fresh water over the clothing until all refrigerant is flushed away; then seek
medical first aid.
Also consult following safety precautions: Safety precautions during installation and
Safety precautions during operation.
These precautions apply to machinery processing or consuming air or inert gas.
Processing of any other gas requires additional safety precautions typical to the
application which are not included herein.
Some precautions are general and cover several machine types and equipment; hence
some statements may not apply to your machine.
After maintenance or repair, a functional test with depressurized vessels must be
performed to check the correct operation of the dryer.
1.6 Dismantling and disposal
Dismantling
Once the end of life of the machine is reached, please follow next steps:
1. Stop the machine.
2. Check all safety precautions mentioned in the previous chapters to secure safe handling
(e.g. LOTO, cool-down, depressurize, discharge, ...).
3. Separate the harmful from the safe components (e.g. drain oil from oil containing parts).
4. Refer to the disposal topic mentioned below.

Instruction Book
12 9828 0934 73
Disposal of electrical and electronic appliances (WEEE)
This equipment falls under the provisions of the European Directive 2012/19/EU on waste electrical and electronic
appliances (WEEE) and may not be disposed as unsorted waste.
The equipment is labelled in accordance with the European Directive 2012/19/EU with the crossed-out wheelie bin
symbol.
At the end of life-time of the electric and electronic equipment (EEE) it must be taken to separate collection.
For more information check with your local waste authority, customer center or distributor.
Disposal of other used material
Used filters or any other used material (e.g. desiccant, lubricants, cleaning rags, machine parts, etc.) must be
disposed of in an environmentally friendly and safe manner, and in line with the local recommendations and
environmental legislation.

Instruction Book
9828 0934 73 13
2 General description
2.1 Introduction
Description
The air dryers remove moisture from compressed air by cooling the air to near freezing point. This causes
water to condense. The condensate is automatically drained. The air is warmed up before leaving the dryer
(approx. 5 ˚C (9 ˚F) below the incoming air temperature).
The electronic regulator (1) keeps the pressure dew-point stable at no load by opening or closing the
solenoid valve of the hot-gas by-pass.
On air-cooled dryers, the condenser has a cooling fan controlled by a pressure sensor.
Water-cooled dryers have a water regulating valve in the water outlet of the condenser.
The descriptions mentioned in this book are valid for both air-cooled and water-cooled dryers.

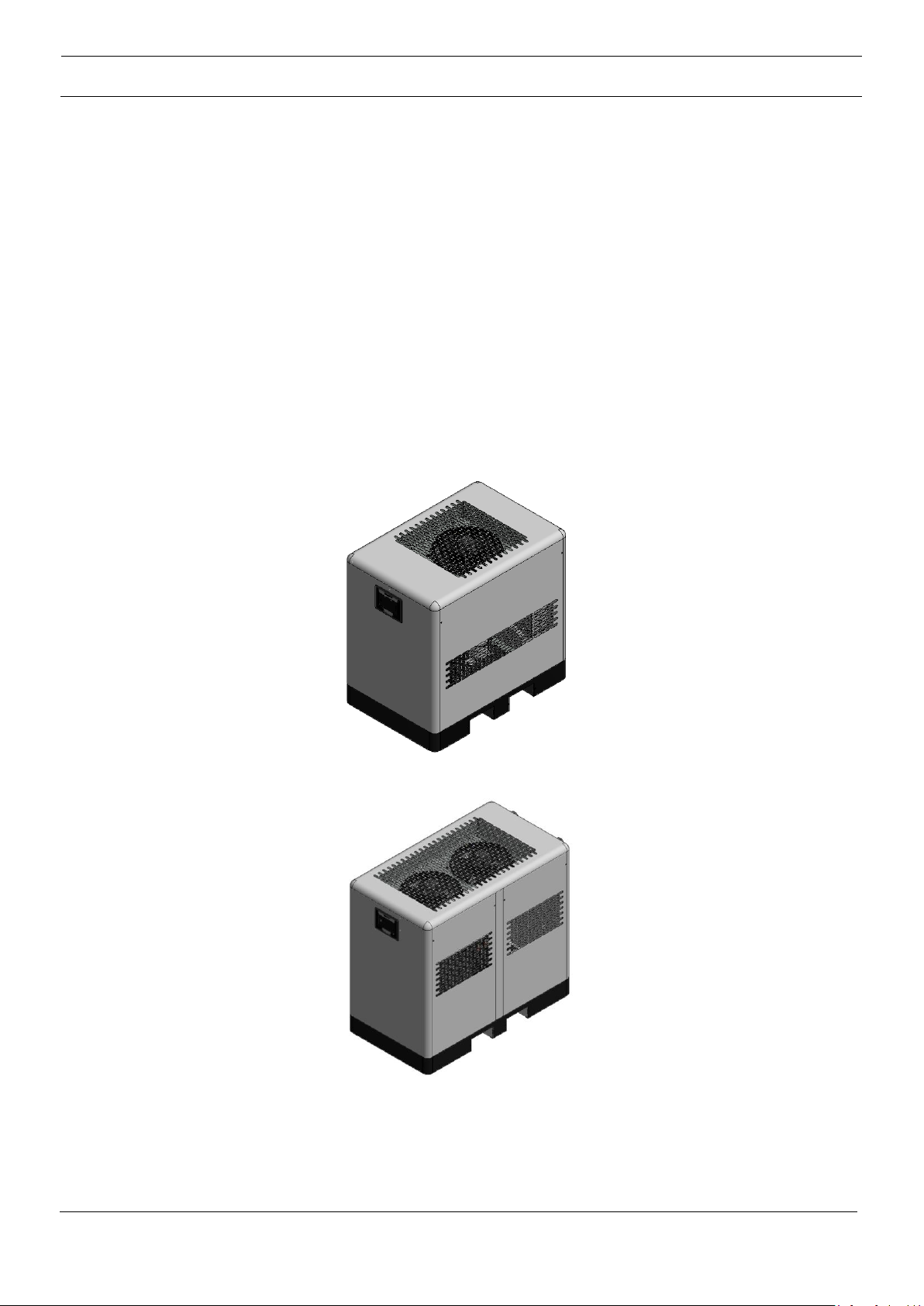

General View
General view of air cooled QED-650 (ES 310), QPVS-650 (ES 310 VSD)/ QED-850 (ES 410), QPVS-850
(ES 410 VSD)/ QPVS-1050 (ES 510 VSD)
General view of air cooled QED-1050 (ES 510)

Instruction Book
14 9828 0934 73
General view of water-cooled QED/QPVS dryer
Reference
Description
1
Electronic regulator
2
Grating

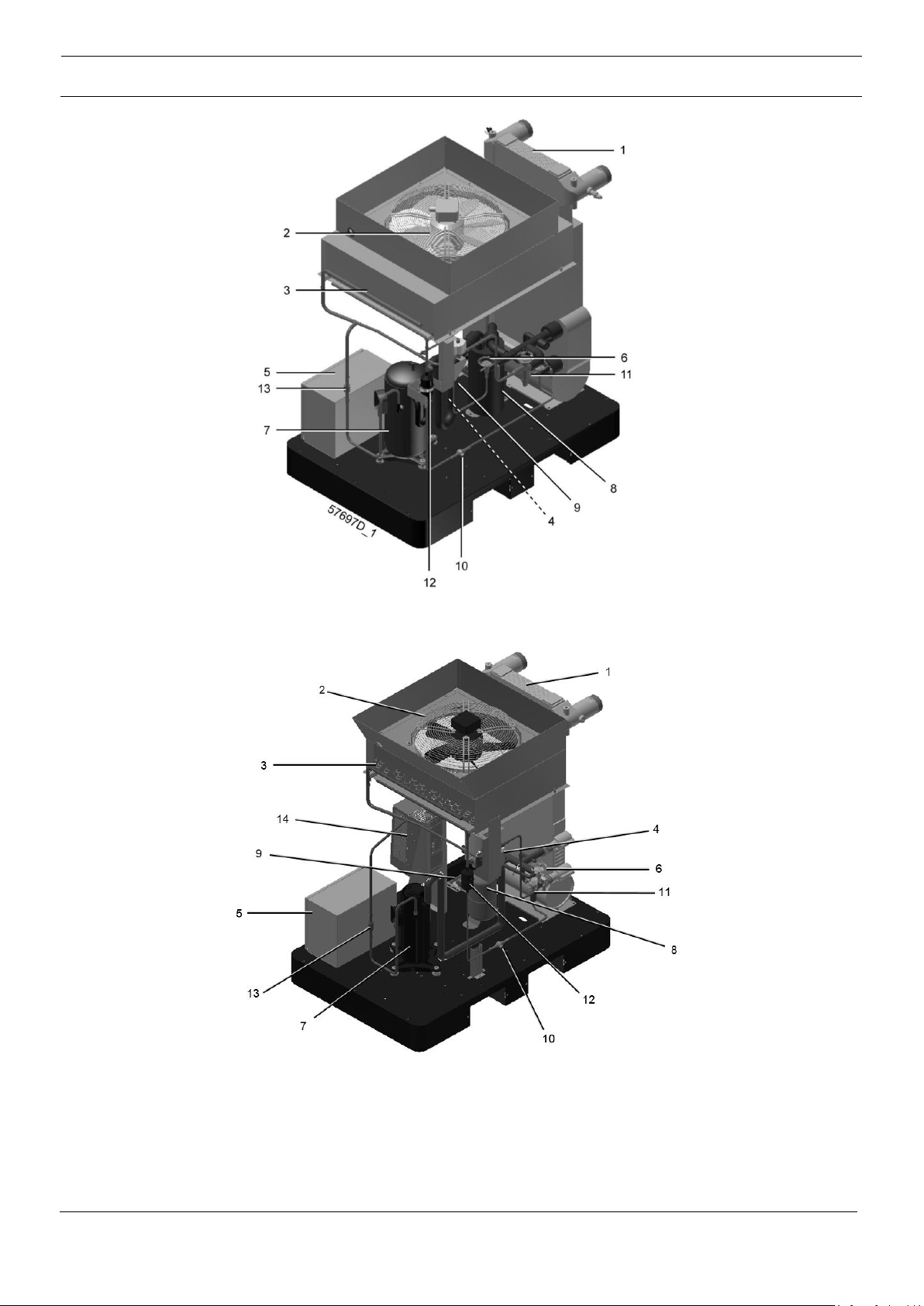

Position of components
Inside view of air cooled QED-650 (ES 310)

Instruction Book
9828 0934 73 15
Inside view of air cooled QED-850 (ES 410)
Inside view of air cooled QPVS-650 (ES 310 VSD)and QPVS-850 (410 VSD)

Instruction Book
16 9828 0934 73
Inside view air cooled QED-1050 (ES 510)
Inside view air cooled QPVS-1050 (ES 510 VSD)

Instruction Book
9828 0934 73 17
Inside view of water-cooled QED-650 (ES 310)
Inside view of water-cooled QPVS-650 (ES 310 VSD)and QPVS-850 (ES 410 VSD

Instruction Book
18 9828 0934 73
Inside view of water-cooled QED-850 (ES 410)and QED-1050 (ES 510)
Inside view of water-cooled QPVS-1050 (ES 510 VSD)

Instruction Book
9828 0934 73 19
Reference
Name
1
Heat exchanger
2
On air-cooled dryers, cooling fan(s)
On water-cooled dryers, water regulating valve
3
On air-cooled dryers, air-cooled condenser
On water-cooled dryers, water-cooled condenser
4
Solenoid valve
5
Cubicle
6
Hot-gas by-pass valve
7
Refrigerant compressor
8
Liquid separator
9
Electronic water drain
10
Sight-glass with moisture indicator
11
Thermostatic expansion valve
12
Refrigerant dryer/filter
13
Non-return valve
14
Converter
Connection
Rear view of air cooled dryer

Instruction Book
20 9828 0934 73
Rear view of water-cooled dryer
Reference
Name
1
Compressed air outlet
2
Compressed air inlet
3
Cable gland, electrical connection
4
Automatic drain hose
5
Cooling water outlet
(Only on water-cooled dryers)
6
Cooling water inlet
(Only on water-cooled dryers)
