Quincy Compressor HP 15 Instruction manual

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 1
MANUAL USE AND MAINTENANCE
SILENCED SCREW ROTARY COMPRESSOR UNITS
HP 15-20-25-30 KW 11-15-19-22
HP 15-20-25-30 (VSD) KW 11-15-19-22 (VSD)
(VSD ): Compressors variable speed
WARNING: CAPACITORS INSIDE INVERTER MAY REMAIN CHARGED FOR 15 MINUTES (ONLY FOR VSD) AFTER THE UNIT
HAS BEEN DISCONNECTED FROM MAIN SUPPLY.
WAIT AT LEAST 15 MINUTES (ONLY FOR VSD) AFTER POWER SUPPLY HAS BEEN REMOVED BEFORE PERFOM SERVICE OR
REPAIR TO AVOID DEATH OR SERIOUS INJURY.
CONTENTS
PART A: INFORMATION FOR THE USER
PART B: INFORMATION RESERVED FOR TECHNICALLY SKILLED
PERSONNEL
1.0 GENERAL CHARACTERISTICS
20.0 STARTING UP
2.0 INTENDED USE
21.0 GENERAL ORDINARY MAINTENANCE REQUIRES
TRAINED PERSONNEL
3.0 OPERATION
22.0 CHANGING THE OIL
4.0 GENERAL SAFETY STANDARDS
23.0 CHANGING THE OIL SEPARATING FILTER
5.0 DESCRIPTION OF DANGER SIGNALS
24.0 OLEOPNEUMATIC DIAGRAM
6.0 DANGER ZONES
25.0 CALIBRATIONS FOR DRYER
7.0 SAFETY DEVICES
8.0 POSITION OF PLATES
9.0 COMPRESSOR ROOM
10.0 TRANSPORT AND HANDLING
IMPORTANT: A COPY OF THE WIRING DIAGRAMS CAN BE FOUND
INSIDE THE ELECTRIC BOARD OF THE COMPRESSOR.
11.0 UNPACKING
12.0 INSTALLATION

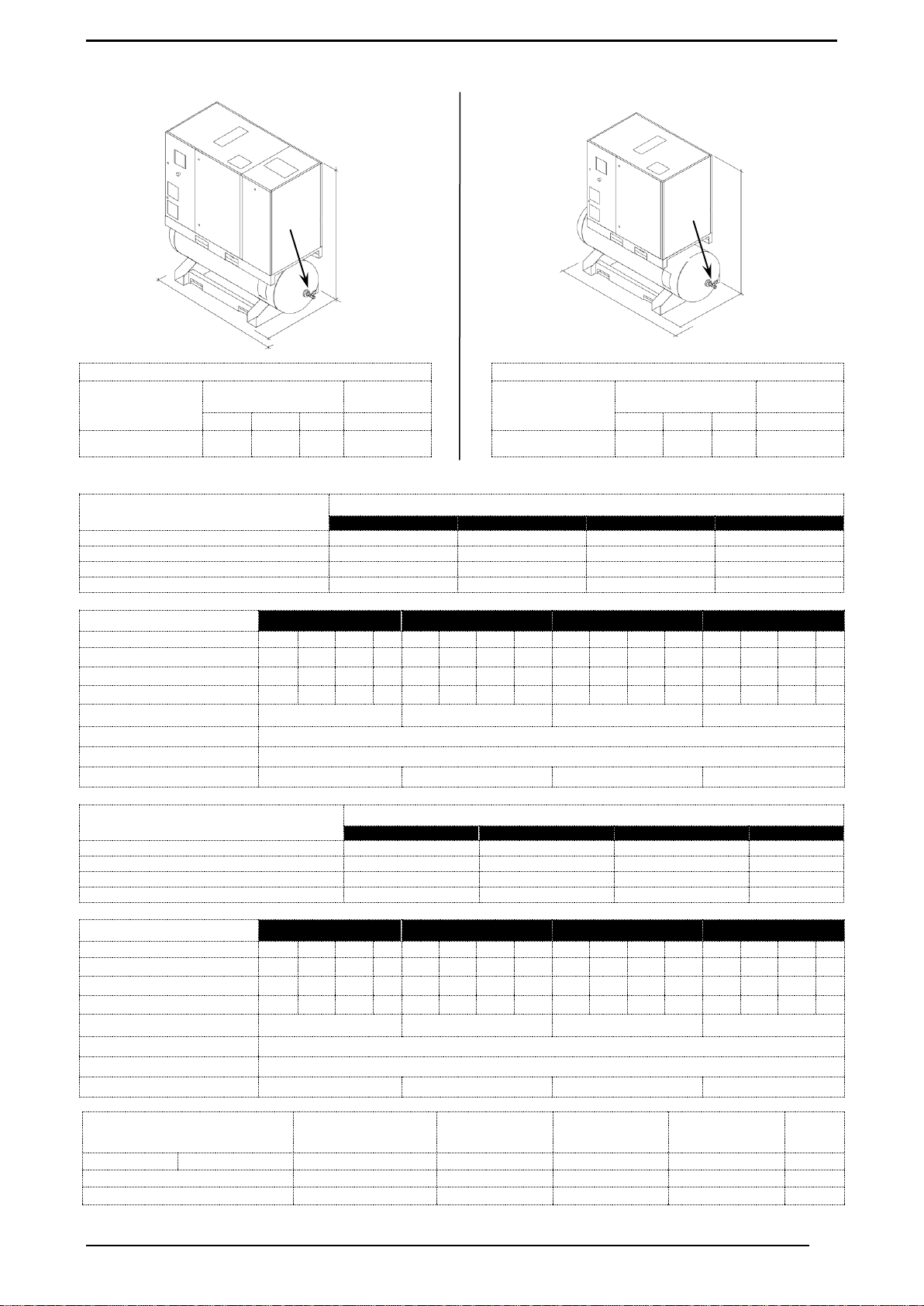

13.0 DIMENSIONS AND TECHNICAL DATA
14.0 MACHINE ILLUSTRATION
15.0 ORDINARY MAINTENANCE TO BE DONE BY THE USER
16.0 PERIODS OF INACTIVITY
17.0 SCRAPPING THE UNIT
18.0 LIST OF SPARE PARTS FOR ROUTINE MAINTENANCE
19.0 TROUBLE-SHOOTING AND EMERGENCY REMEDIES
Code
9828093052
04
Edition 02/2018
READ THIS MANUAL CAREFULLY BEFORE CARRYING OUT ANY OPERATIONS ON THE COMPRESSOR UNIT.

ENGLISH
2 - Edition 02/2018 Cod. 9828093052 04 -

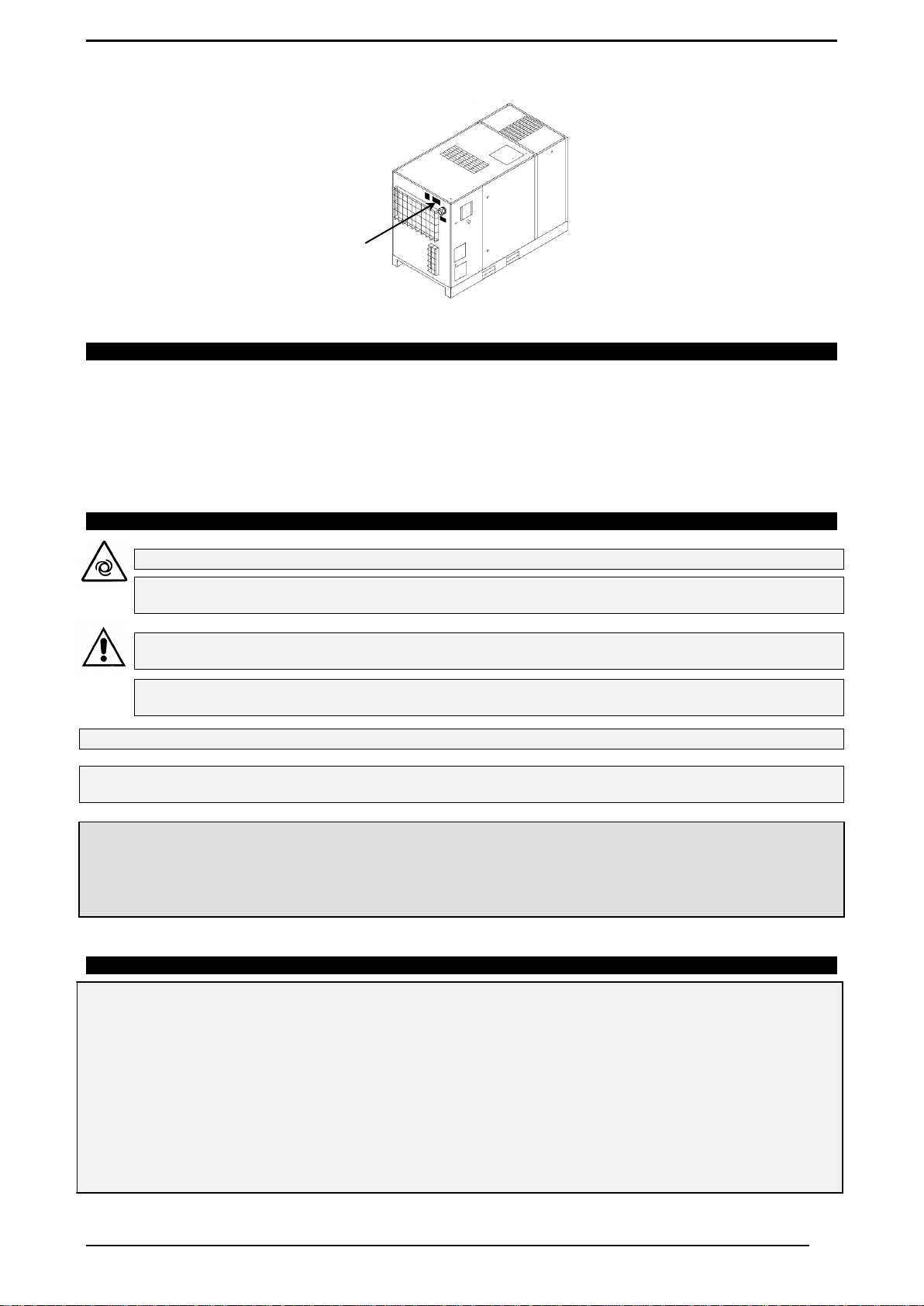

MACHINE AND MANUFACTURER IDENTIFICATION DATA
1) Position of the identification plate
ADDRESSES OF ASSISTANCE CENTRES
In the event of breakdown or malfunction of the machine, switch it off and do not tamper with it.
If repairs are needed, apply only to a technical assistance centre approved by the manufacturer and insist on the use of original spare parts.
Failure to comply with the above may endanger the safety of the machine.
INTRODUCTION
Keep this manual with care for future consultation; the use and maintenance manual is an integral part of the machine. Read this
manual carefully before carrying out any operations on the compressor unit.
The installation of the compressor unit and all operations involving it must be performed in conformity with the regulations in
force concerning electric plants and personal safety.
CHARACTERISTICS AND SAFETY PRECAUTIONS
MACHINE WITH AUTOMATIC START
Lock Out –Tag Out (LOTO): Open the power isolating switch and lock it with a personal lock. Tag the power isolating switch
with the name of the service technician.
BEFORE REMOVING THE PROTECTIVE GUARDS TO CARRY OUT ANY MAINTENANCE ON THE MACHINE, SWITCH OFF THE
ELECTRIC POWER SUPPLY AND DISCHARGE THE RESIDUAL PRESSURE INSIDE THE UNIT.
ALL WORK ON THE ELECTRIC PLANT, HOWEVER SLIGHT, MUST BE CARRIED OUT BY PROFESSIONALLY SKILLED
PERSONNEL.
THIS MACHINE IS NOT SUITABLE FOR EXTERNAL INSTALLATION
THIS MACHINE CORRESPOND TO THE ESSENTIAL SAFETY REQUIREMENTS FORESEEN FROM THE EUROPEAN STANDARD (2006/42
CE).
THE LUBRICATING LIQUIDS AND OTHER EVENTUAL FLUIDS MUST NOT BE DISCHARGED IN THE ENVIRONMENT. THESE POLLUTING
AND HAZARDOUS PRODUCTS MUST COMPULSORY BE DISPOSED BY CHARGING AUTHORISED AND SPECIALISED FIRMS
ACCORDING TO THE DIFFERENT TYPOLOGY OF PRODUCT.
DIFFERENTIATE THE COMPRESSOR COMPONENTS ACCORDING TO THE DIFFERENT CONSTRUCTION MATERIALS (PLASTIC,
COPPER, IRON, OIL FILTER, AIR FILTER ECC…)
The manufacturer does not accept responsibility for damage caused as a result of negligence or failure to abide by the instructions given above.
AIR RECEIVER AND SAFETY VALVE:
- To limit internal corrosion, which could compromise the safety of the compressed air tank, the condensation that is produced must be
discharged at least once a day. If an automatic drain fitted to the air receiver is present, it is necessary to check that it is working correctly
every week and repair it if necessary.
- The thickness of the receiver must be checked every year and also in accordance with legislation in force in the country where
the receiver is installed.
- The tank cannot be used and must be replaced if the thickness falls below the minimum level given in the instruction documents
for the tank.
- The tank can be used within the temperature limits given in the conformity declaration.
- The safety valves of the air receiver and oil receiver must be checked every year and replaced if necessary in
accordance with legislation in force.
NOT RESPECTING THE ABOVE MENTIONED PRESCRIPTION CAN RESULT IN AIR RECEIVER BURSTING HAZARD.
The manufacturer does not accept responsibility for damage caused as a result of negligence or failure to abide by the instructions given above.
1

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 3
1.0 GENERAL CHARACTERISTICS
The compressor units use single-stage screw rotary air compressors with oil injection.
The system is self-bearing and does not require bolts or other devices to anchor it to the floor.
The unit is completely assembled in the factory; the necessary connections for setting it up are:
connection to the power mains (see installation chapter)
connection to the compressed air network (see installation chapter)
2.0 INTENDED USE
The compressor has been built to supply compressed air for industrial use.
The machine cannot be used in premises where there is a risk of fire or explosion or where work is carried out which releases
substances into the environment which are dangerous with regard to safety (for example: solvents, inflammable vapours,
alcohol, etc.).
In particular the appliance cannot be used to produce air to be breathed by humans or used on direct contact with foodstuffs. These uses
are allowed if the compressed air produced is filtered by means of a suitable filtering system (Consult the manufacturer for these special
uses.) This appliance must be used only for the purpose for which it was specifically designed.
All other uses are to be considered incorrect and therefore unreasonable.
The Manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable use.
3.0 OPERATION
3.1 OPERATION FOR COMPRESSOR
The electric motor and the compressor unit are coupled by means of a gear transmission.
The compressor unit takes in the outside air through the suction valve. The air taken in is filtered the cartridge fitted upstream from the
suction valve. Inside the compressor unit, the air and the lubricating oil are compressed and sent to the oil separating tank where the oil is
separated from the compressed air; the air is then filtered again by the oil separating cartridge to reduce the amount of suspended oil
particles to a minimum. At this point the two flows (of oil and air) are sent to two separate coolers where they are cooled, using a flow of air
taken from the environment by a special fan inside the machine.
The cooled oil returns to the circuit while the compressed air passes the using network.
3.2 OPERATION FOR DRYER
Dryer operation is described below. The gaseous refrigerant coming from the evaporator (4) is sucked by the refrigeration compressor (1)
and it is pumped into the condenser (2). This one allows its condensation, eventually with the help of the fan (3); the condensed refrigerant
passes through the dewatering filter (8) and it expands through the capillary tube (7) and goes back to the evaporator where it produces the
refrigerating effect. Due to the heat exchange with the compressed air which passes through the evaporator against the stream, the
refrigerant evaporates and goes back to the compressor for a new cycle. The circuit is equipped with a bypass system for the refrigerant;
this intervenes to adjust the available refrigerating capacity to the actual cooling load. This is achieved by injecting hot gas under the control
of the valve (9): this valve keeps constant the pressure of the refrigerant in the evaporator and therefore also the dew point never decreases
below 0 °C in order to prevent the condensate from freezing inside the evaporator.
The drier runs completely automatically; it is calibrated in the factory for a dew point of
5 °C and therefore no further calibrations are required.
DRYER FLOW DIAGRAM
DRYERS WITH R410A REFRIGERANT GAS STARTS WITH SOME DELAY (UP TO 3 MINUTES) AT THE COMPRESSOR START UP
4.0 GENERAL SAFETY STANDARDS
The appliance may be used only by specially trained and authorized personnel.
Any tampering with the machine or alterations not approved beforehand by the Manufacturer relieve the latter of responsibility for any
damage resulting from the above actions.
The removal of or tampering with the safety devices constitutes a violation of the European Standards on safety.
ENSURE THAT THERE ARE DISCONNECTOR SWITCH AND FUSES UPSTREAM THE MACHINE. FOR DETAILS (SIZE AND TYPE)
SEE WIRING/SERVICE DIAGRAM.
ALL WORK ON THE ELECTRIC PLANT, HOWERER SLIGHT, MUST BE CARRIED OUT BY
PROFESSIONALLY SKILLED PERSONEL.
AIR INLET
AIR OUTLET

ENGLISH
4 - Edition 02/2018 Cod. 9828093052 04 -

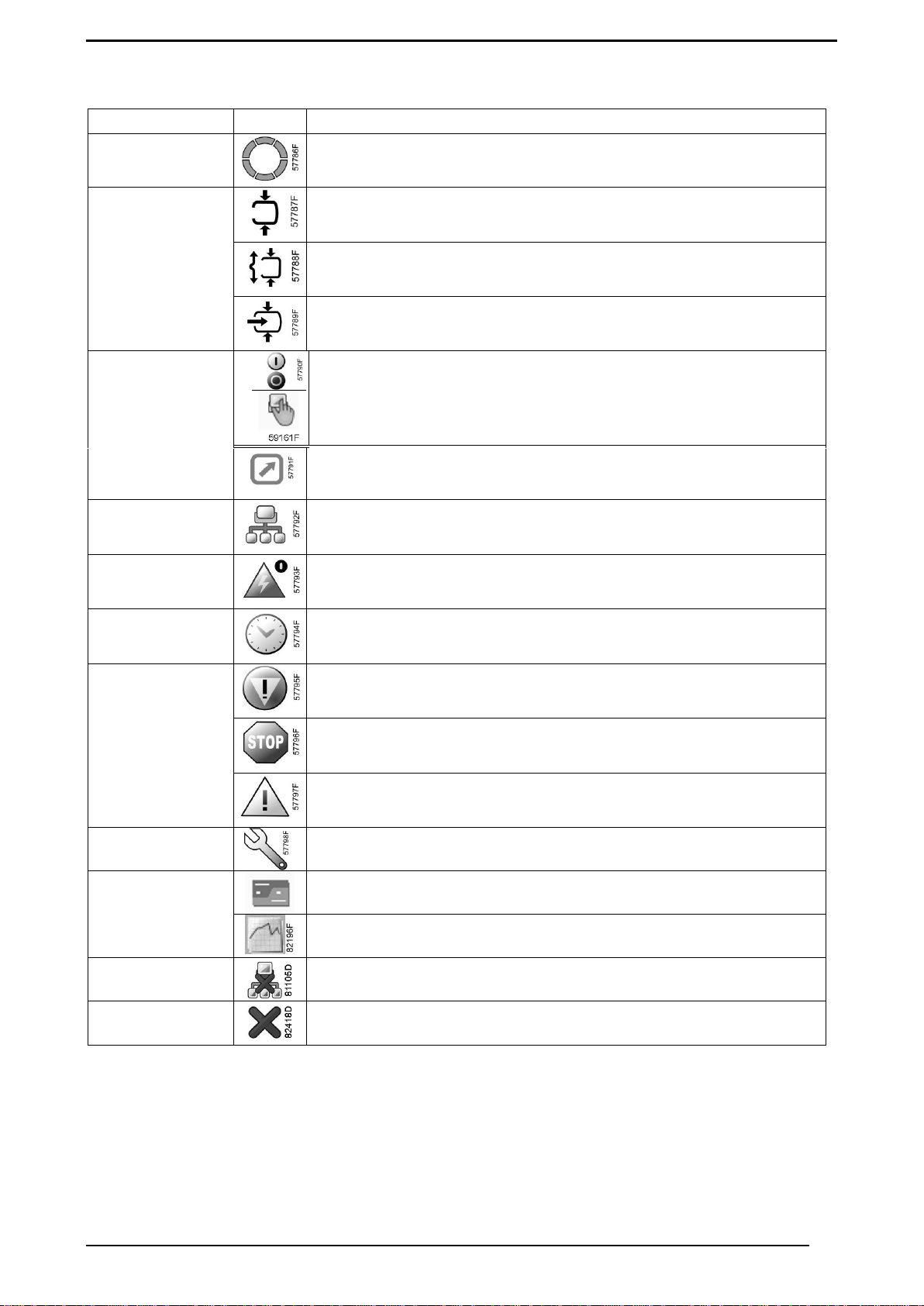

5.0 DESCRIPTION OF DANGER SIGNALS
1) FLUID EJECTION
6) HOT PARTS
2) DANGEROUS ELECTRIC
VOLTAGE
7) MOVING PARTS
3) AIR NOT FIT FOR BREATHING
8) MOVING PARTS
4) NOISE
9) MACHINE WITH AUTOMATIC START
5) HIGH PRESSURE
10) PURGE EVERY DAY
5.1 DESCRIPTION OF COMPULSORY SIGNALS
11) READ THE USE AND MAINTENANCE
INSTRUCTIONS
FIG. 2

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 5
6.0 DANGERS ZONES
6.1 DANGERS ZONES FOR COMPRESSOR UNIT
Risks present on the whole machine
1
2
3
7
8
5
2
2
8
2
2
1
3
8
2
5
3
FIG. 3

ENGLISH
6 - Edition 02/2018 Cod. 9828093052 04 -

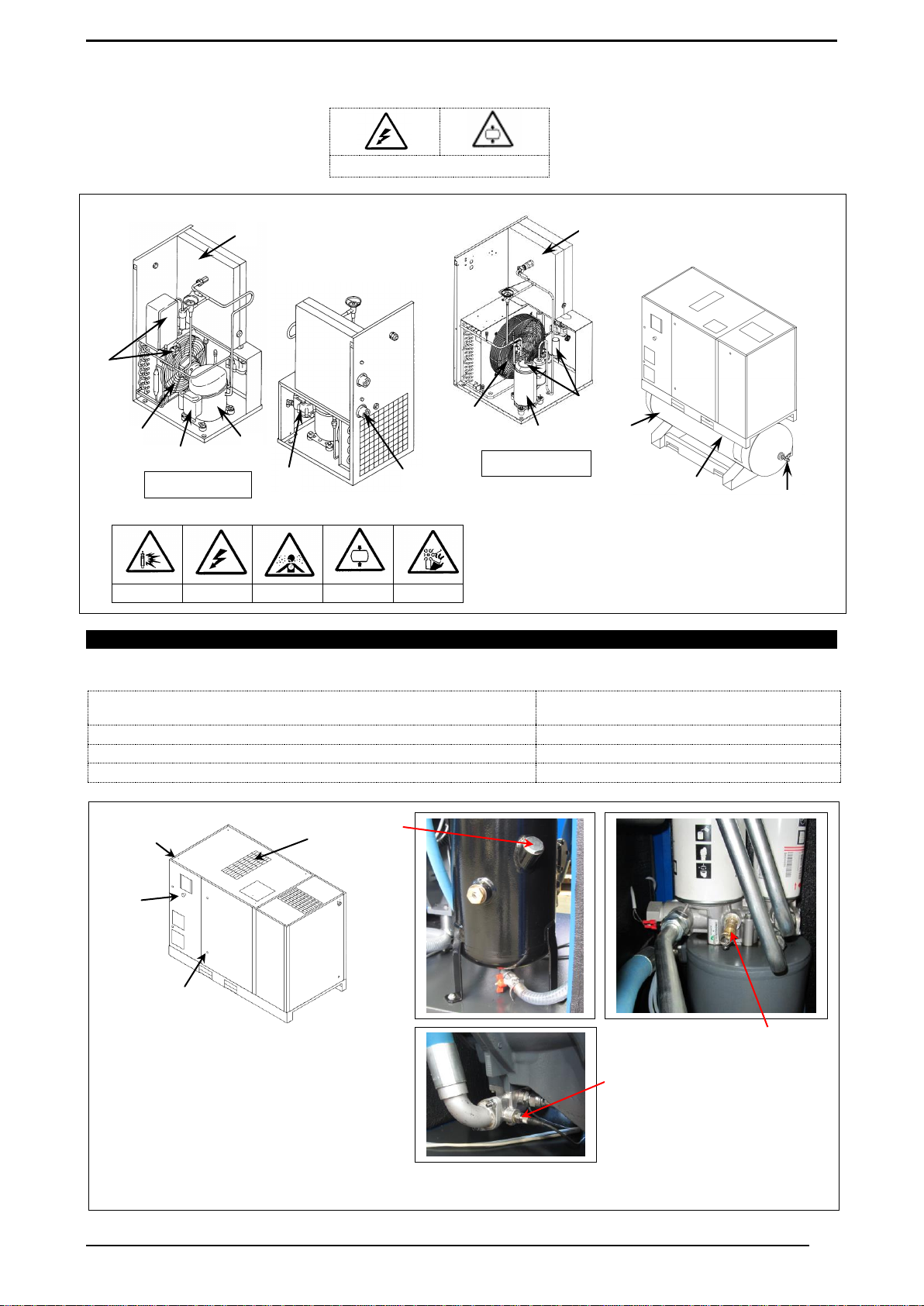

6.2 DANGERS ZONES FOR DRIER UNIT AND TANK
Risks present on the whole machine
7.0 SAFETY DEVICES
7.1 SAFETY DEVICES FOR SCREW COMPRESSOR
1) Safety screws
4) Emergency stop button with mechanical seal and
rotation release.
2) Side panels and door to the electric panel, opened with a special key
5) Oil filling cap (with safety breather)
3) Fixed protection device - cooling fan
6) Safety valve
7) Temperature switch
1
2
3
5
8
FIG. 4
4
2
1
3
6
5
7
FIG. 3A
3
2
3
5
1
5
2
8
2
5
5
2
8
5
Dryers Series (E)
Dryers Series (A)

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 7
7.2 SAFETY DEVICES FOR DRIER UNIT AND TANK
1) Earth
4) Overload protector for compressor
2) Fan protection
5) Protective pressure switch cap
3) Relay for compressor (automatic)
6) Safety valve
POSITION OF PLATES

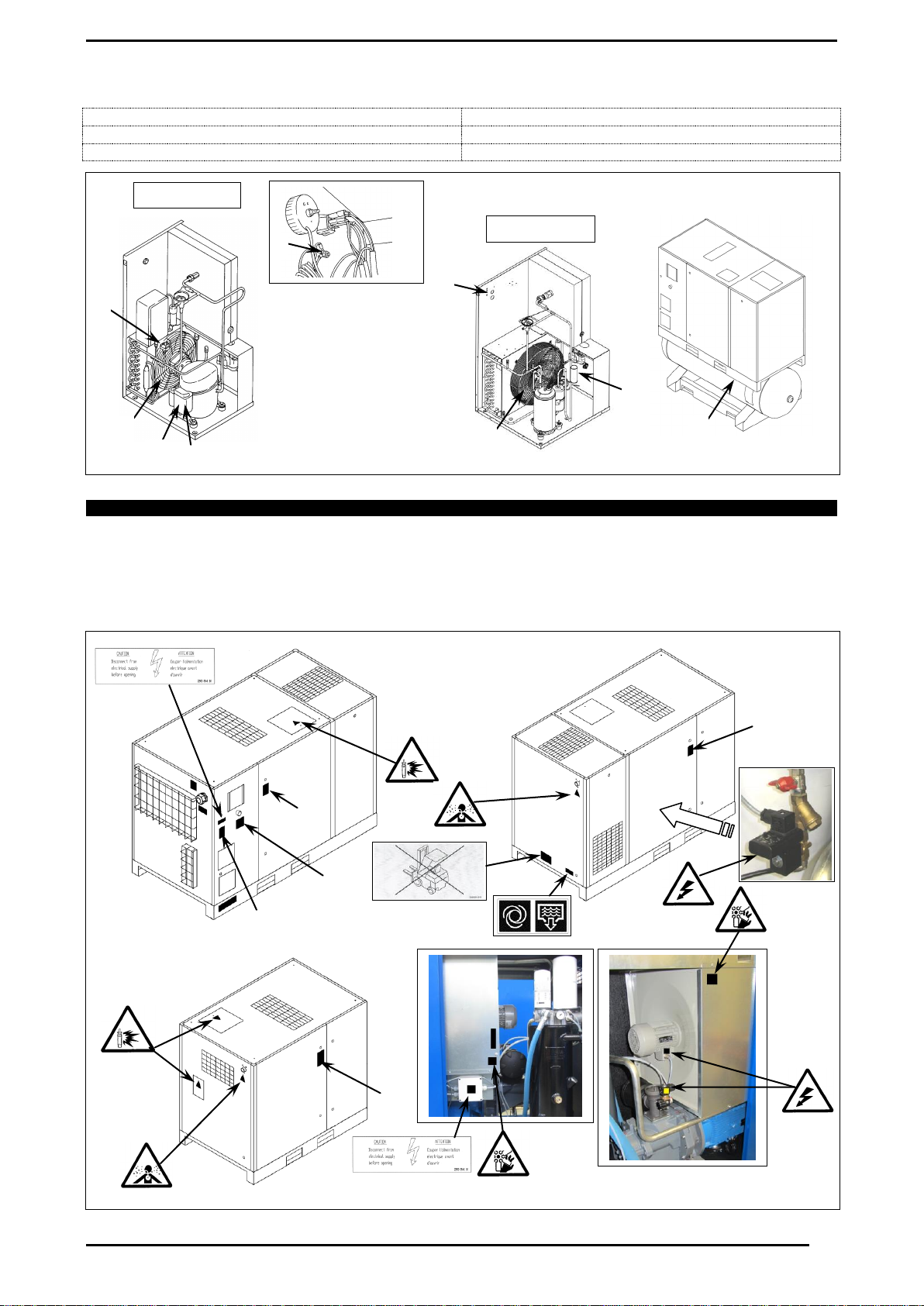

8.1 POSITION OF THE DANGER PLATES FOR COMPRESSOR UNIT
The plates fitted on the compressor unit are part of the machine; they have been applied for safety purposes and must not be removed or
spoiled for any reason.
1) Dangers plate Code 1079990348 2) Plate “Machine with automatic start” 2202260791
1
FIG. 6
1
2
1
1
4
FIG. 5
6
2
3
5
2
1
1
4
Dryers Series (E)
Dryers Series (A)

ENGLISH
8 - Edition 02/2018 Cod. 9828093052 04 -
8.2 POSITION OF THE DANGER PLATES FOR DRYER AND TANK
The plates fitted on the compressor unit are part of the machine; they have been applied for safety purposes and must not be removed or
spoiled for any reason.
1) Dangers plate Cod. 1079990148
8.3 POSITION OF THE DATA PLATE FOR COMPRESSOR UNIT, ELECTRICAL AND UL LABELS
1) Identification plate, 2) Label electrical equipment, 3) Purge condensate water, 4) Label “UL”, 5) Connection label (for fixed speed),
6) Fuses label
FIG. 7
FIG. 8
4
2
1
3
6
5
6
4
1

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 9

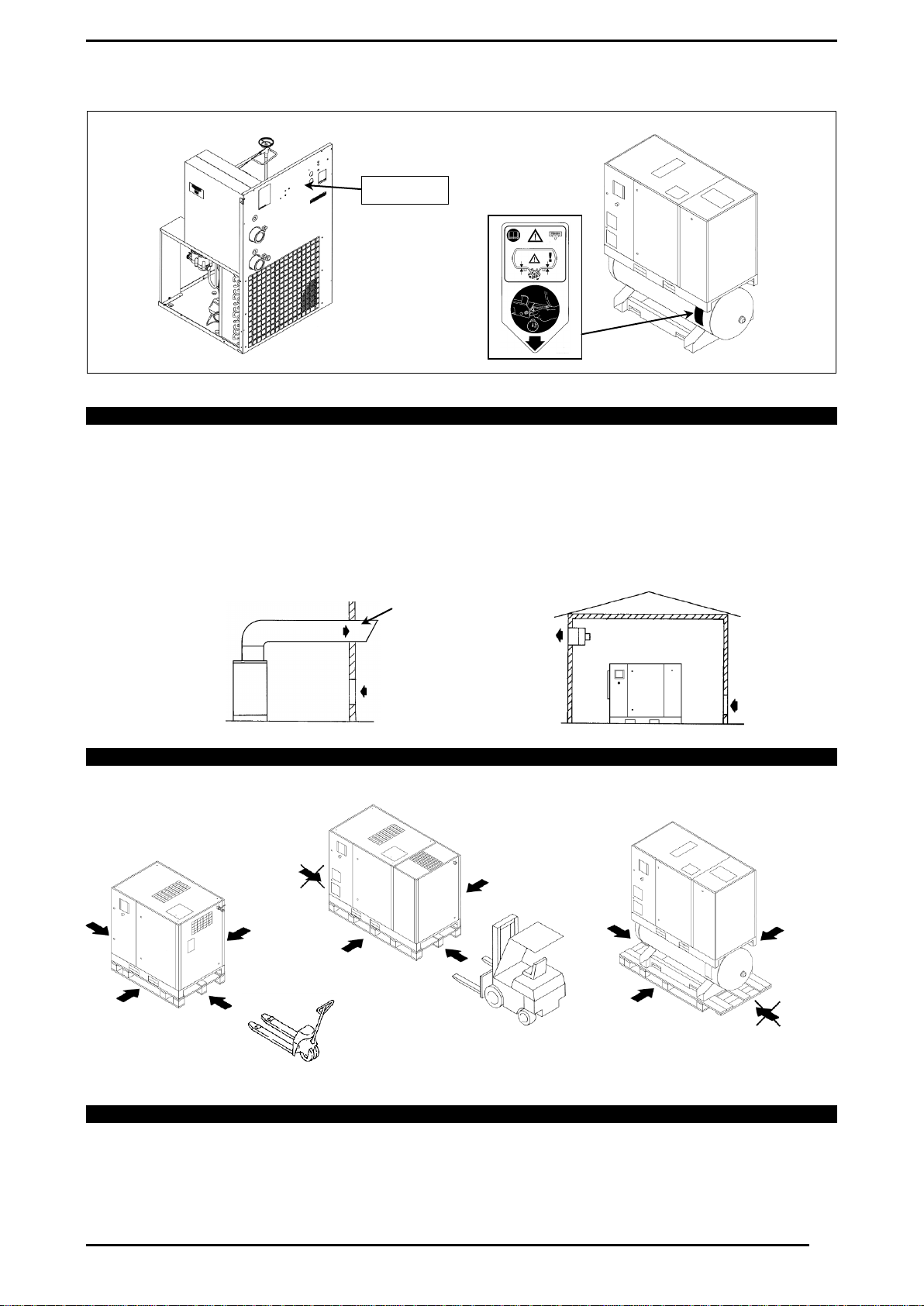

8.4 POSITION OF THE DATA PLATE FOR DRYER UND TANK
9.0 COMPRESSOR ROOM
9.1 FLOOR
The floor must be even and of industrial type; the total weight of the machine is shown in the Chap. 13.0
Remember the total weight of the machine when positioning it.
9.2 VENTILATION
When the machine is operating, the room temperature must not be higher than 46 °C or lower than 1 °C.
The volume of the room must be about 60 m3The room must be provided with 2 openings for ventilation with a surface area of about 0,5
m2each. The first opening must be in a high position to evacuate the hot air, the second opening must be low to allow the intake of external
air for ventilation. If the environment is dusty it is advisable to fit a filtering panel on this opening.
9.3 EXAMPLES OF VENTILATION OF THE COMPRESSOR ROOM
10.0 TRANSPORT AND HANDLING
The machine must be transported as shown in the following figures.
11.0 UNPACKING
After removing the packing, ensure that the machine is unbroken and that there are no visibly damaged parts.
If you are in doubt, do not use the machine but apply to the manufacturer technical assistance service or to your dealer. The packing
material (plastic bags) must not be left within the reach of children or abandoned in the environment, as they are a potential source of
danger and pollution. Dispose of these materials in the approved collection centres.
FIG. 9
FIG. 10
Hot air pipe
Fan air
output
FIG. 11
Data plate

ENGLISH
10 - Edition 02/2018 Cod. 9828093052 04 -

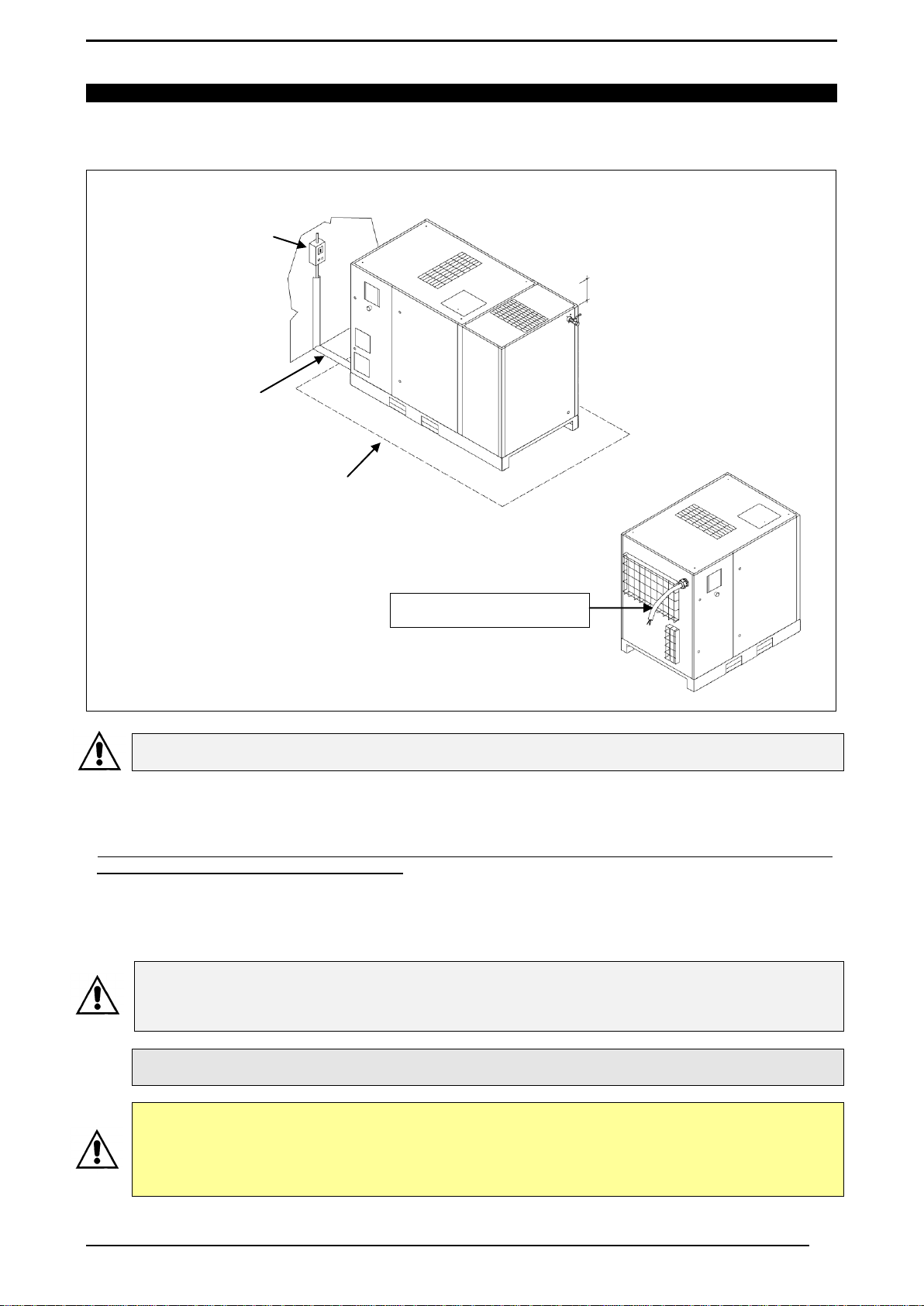

12.0 INSTALLATION
12.1 POSITIONING
After unpacking the equipment and preparing the compressor room, put the machine into position, checking the following items:
ensure that there is sufficient space around the machine to allow maintenance (see Fig. 12).
ENSURE THAT THE OPERATOR CAN SEE THE WHOLE MACHINE FROM THE CONTROL PANEL AND CHECK THE
PRESENCE OF ANY UNAUTHORIZED PERSONS IN THE VICINITY OF THE MACHINE.
12.2 ELECTRICAL CONNECTION
Check that the supply voltage is the same as the value indicated on the machine data plate.
Check the condition of the line leads and ensure that there is an efficient earth lead.
Ensure that there are disconnector switch and fuses upstream the machine (see Ref. 1 for compresseur Ref. 2 for dryer Fig. 11).
For details (size and type) see wiring/service diagram.
Connect the machine power cables with the greatest care, according to the standards in force.
These cables must be as indicated on the machine wiring diagram.
Connect the cables to the charging clamps on the electric panel and make sure they are properly tightened. After the first 50 working
hours, check that the screws on the electric terminals are tight.
ONLY PROFESSIONALLY SKILLED PERSONNEL MAY HAVE ACCESS TO THE ELECTRIC PANEL. SWITCH OFF THE
POWER BEFORE OPENING THE DOOR OF THE ELECTRIC PANEL.
COMPLIANCE WITH THE REGULATIONS IN FORCE CONCERNING ELECTRIC PLANTS IS FUNDAMENTAL FOR
OPERATOR SAFETY AND FOR THE PROTECTION OF THE MACHINE.
CABLES, PLUGS AND ALL OTHER TYPE OF ELECTRIC MATERIAL USED FOR THE CONNECTION MUST BE SUITABLE
FOR THE USE AND COMPLYING WITH THE REQUIREMENTS STATED BY THE REGULATIONS IN FORCE.
The standard voltage configuration for the compressor is mentioned on the data plate of the machine.
NEVER OPERATE THE COMPRESSOR ON A VOLTAGE OTHER DIFFERENT THAN SHOWN ON THE ELECTRIC CABINET.
For tri-voltage machine follow the instructions in the electrical diagram (inside cubicle) to convert the
operating voltage of the compressor for either 208V or 230V or 460V
FIG. 12
THREE PHASE SCREW-COMPRESSOR
SUPPLY LEAD
MINIMUM (59 in)
1
PROTECT THE POWER
CABLE WITH A SUITABLE
CHANNEL
SPACE FOR MAINTENANCE
MINIMUM (59 in)

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 11
12.3 CONNECTION TO THE COMPRESSED AIR NETWORK
Fit a manual interception valve Ref. 1 between the machine and the compressed air network so that the compressor may be isolated during
maintenance operations (see figure 13 ) .
PIPES, FITTINGS AND CONNECTIONS USED FOR THE CONNECTION OF THE ELECTROCOMPRESSOR TO THE
COMPRESSED AIR NETWORK MUST BE SUITABLE TO THE USE ACCORDING TO THE PRESCRIPTIONS OF THE
REGULATIONS IN FORCE IN THE COUNTRY OF USE.
The automatic drainage Ref. 2 and manual Ref. 4 Fig. 13 the condensate, are led outside the machine with a flexible pipe that may be
inspected. Drainage must comply with the local regulations in force.
ALL DAMAGE DUE TO THE FAILURE TO COMPLY WITH THESE INDICATIONS CANNOT BE ATTRIBUTED TO THE
MANUFACTURER AND MAY CAUSE INVALIDITY OF THE GUARANTEE CONDITIONS.
12.4 STARTING UP
See part B of this manual, Chapter 20.0
13.0 DIMENSIONS AND TECHNICAL DATA
HP 15-20-25-30
kW 11-15-18,5-22
Dimensions (in)
Air connection
(NPT)
L
W
H
D
HP 15-20-25-30 (VSD)
KW 11-15-18,5-22 (VSD)
77,9
35,6
50,3
1”
HP 15-20-25-30
kW 11-15-18,5-22
Dimensions (in)
Air connection
(NPT)
L
W
H
D
HP 15-20-25-30 (VSD)
KW 11-15-18,5-22 (VSD)
58,5
35,6
50,3
1”
W
L
H
D
W
L
H
D
FIG. 13
1
2
THE COMPRESSOR MUST BE CONNECTED TO AN AIR TANK
EQUIPED WITH SAFETY VALVE ACCORDING TO LOCAL
PRESSURE EQUIPMENT REGULATIONS.
3
LOOSE “NPT” ADAPTER IS
ATTACHED TO OIL SEPARATOR
VESSEL FOOT Ref. 3
1
4
ALWAYS USE A
FLEXIBLE PIPE

ENGLISH
12 - Edition 02/2018 Cod. 9828093052 04 -
Net weight (lb) (Fixed speed compressors)
HP 15 - kW 11
HP 20 - kW 15
HP 25 - kW 18,5
HP 30 - kW 22
Weight (lb) with dryer
1279
1296
1378
1413
Weight (lb) with air receiver 120 Gal. with dryer
1780
1797
1879
1914
Weight (lb) without dryer
1071
1089
1122
1157
Weight (lb) with air receiver 120 Gal. without dryer
1572
1590
1623
1658
HP 15 - kW 11
HP 20 - kW 15
HP 25 - kW 18,5
HP 30 - kW 22
Working pressure (psi)
100
125
150
100
125
105
100
125
150
100
125
150
Maximum pressure (psi)
107
132
157
107
132
157
107
132
157
107
132
157
Standard air capacity (cfm) 50Hz
81,8
68,4
61,4
100,4
92,4
79,2
121,4
114,8
100
142,8
131,6
118,9
Standard air capacity (cfm) 60Hz
78,4
70,1
61,5
101,3
92,6
81,4
125
111,8
100,3
147,5
131,9
119,4
Noiose product. dB(A)
66
67
68
69
Minimum ambient temperature (°F)
34
Maximum ambient temperature (°F)
115
Oil load (Gal)
3,43
3,43
3,43
3,43
Net weight (lb) (Variable speed compressors VSD 460V/60Hz and 400V/50Hz)
HP 15 - kW 11
HP 20 - kW 15
HP 25 - kW 18,5
HP 30 - kW 22
Weight (lb) with dryer
1259
1276
1391
1426
Weight (lb) with air receiver 120 Gal. with dryer
1760
1777
1892
1927
Weight (lb) without dryer
1052
1069
1135
1171
Weight (lb) with air receiver 120 Gal. without dryer
1553
1570
1636
1672
HP 15 - kW 11
HP 20 - kW 15
HP 25 - kW 18,5
HP 30 - kW 22
Working pressure (psi)
100
125
150
100
125
105
100
125
150
100
125
150
Maximum pressure (psi)
107
132
157
107
132
157
107
132
157
107
132
157
Standard air capacity (cfm) 50Hz
79,7
70,8
62,9
101,9
94,4
86,8
129,6
120
110,6
155,9
141,3
128,2
Standard air capacity (cfm) 60Hz
79,7
70,8
62,9
101,9
94,4
86,8
129,6
120
110,6
155,9
141,3
128,2
Noiose product. dB(A)
66
67
68
69
Minimum ambient temperature (°F)
34
Maximum ambient temperature (°F)
115
Oil load (Gal)
3,43
3,43
3,43
3,43
Air receiver 120 Gal. (without dryer)
HP 15-20-25-30
kW 11-15-18,5-22
Dimensions (in)
Air connection
(NPT)
L
W
H
D
HP 15-20-25-30 (VSD)
KW 11-15-18,5-22 (VSD)
73,6
35,6
74,8
1”
Air receiver 120 Gal. (with dryer)
HP 15-20-25-30
kW 11-15-18,5-22
Dimensions (in)
Air connection
(NPT)
L
W
H
D
HP 15-20-25-30 (VSD)
KW 11-15-18,5-22 (VSD)
77,9
35,6
74,8
1”
Type Dryer
Freon
R134A (lb)
Freon
R404A (lb)
Freon
R410A (lb)
Dryer maximum
power (hp)
MAX.
(psi)
60 Hz
50 Hz
50 Hz
60 Hz (50 Hz)
A6/7
1,250
1,32
-
1,4 (1,27)
188
A8 (E8 50Hz)
1,45 (A8)
-
1,587 (E8)
2,13 (1,90)
188
H
L
W
D
D
H
W
L

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 13

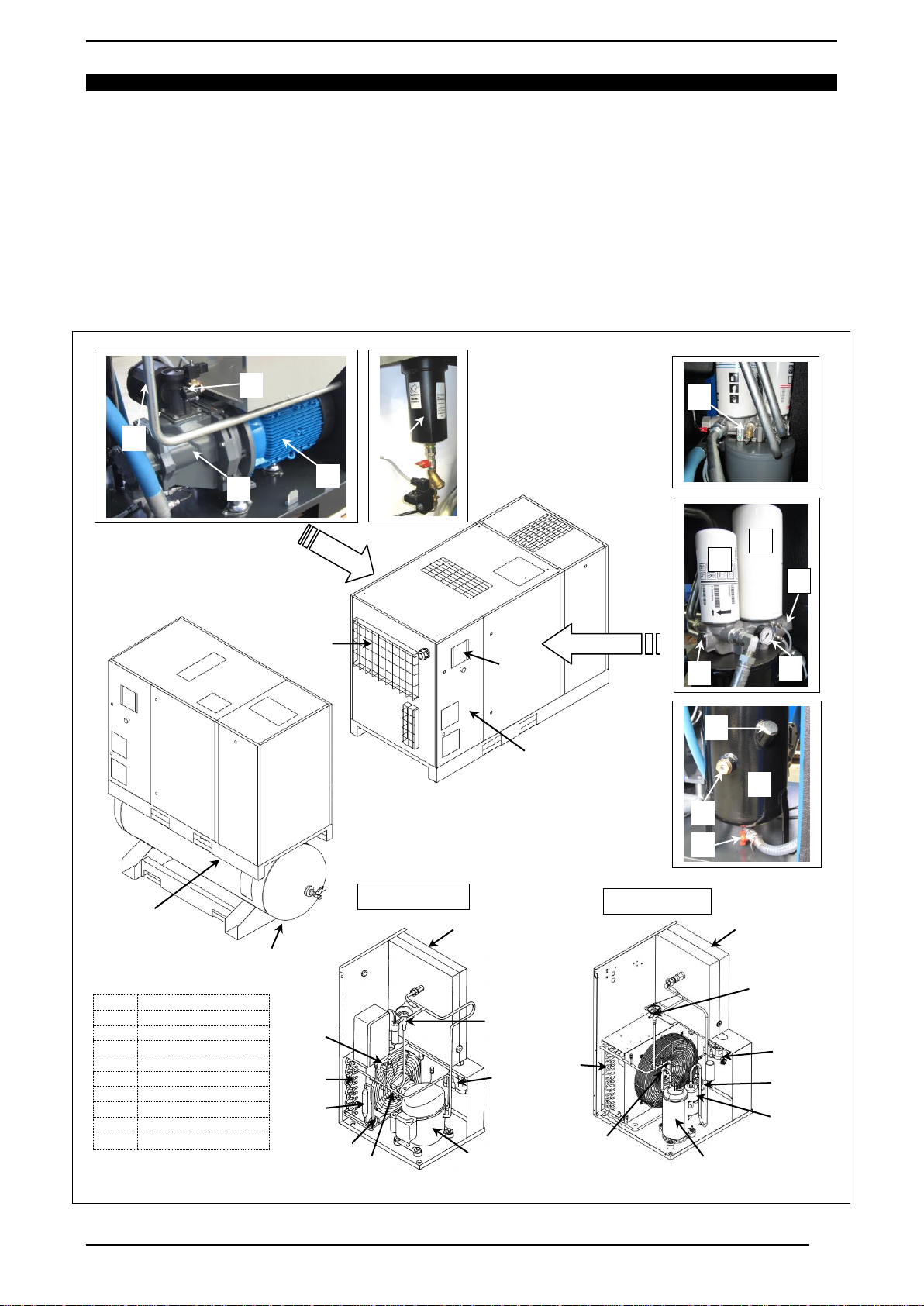

14.0 MACHINE ILLUSTRATION
14.1 GENERAL LAY-OUT FOR DRYER AND TANK
1 Air suction filter
2 Thermostatic valve
3 Oil filter
4 Air-oil cooler
6 Minimum pressure valve
7 Air-oil separator with oil separating filter
8 Top-up or oil filling cap
9 Control panel
10 Oil gauge
11 Oil discharge
12 Oil tank
13 Pressure gauge tank
14 Control card
15 Safety valve ()
16 Water separator drain
17 Electric motor
18 Screw compressor
19 Suction unit
20 Condensate manual drainage
IT IS FORBIDDEN TO TAMPER WITH THE
SETTING VALUES OF THE SAFETY VALVE
21
Refrigerant compressor
22
Condenser
23
Motor fan
24
Evaporator
25
Condensate drain
26
Hot gas by-pass valve
27
Refrigerant filter
28
Expansion capillary tube
29
Pressure switch
FIG. 15
17
18
19
1
15
7
3
2
6
8
11
10
12
9
14
13
16
20
15
4
24
26
25
21
29
22
27
28
23
Dryers Series (A)
24
26
21
22
27
28
23
25
Dryers Series (E)

ENGLISH
14 - Edition 02/2018 Cod. 9828093052 04 -
14.2 COMMAND AND CONTROL PANEL
BEFORE CARRYING OUT THE OPERATION TEST, READ CAREFULLY AND ACQUIRE A GOOD KNOWLEDGE OF THE
COMMAND FUNCTIONS.
14.3 Graphic controller for fixed compressor and Variable Speed Drive compressor.
Introduction
The electronic controller has following functions:
Controlling the compressor
Protecting the compressor
Monitoring components subject to service
Automatic restart after voltage failure (option)
Automatic control of the compressor
The controller maintains the net pressure between programmable limits by automatically loading and unloading the compressor in case of
fixed speed machines. For VSD machines the controller also change the motor speed in order to maintain the setpoint pressure. A number
of programmable settings, e.g. the unloading and loading pressures, the minimum stop time and the maximum number of motor starts are
taken into account.
The controller stops the compressor whenever possible to reduce the power consumption and restarts it automatically when the net
pressure decreases. If the expected unloading period is too short, the compressor is kept running to prevent too short stand-still periods.
Protecting the compressor
Shut-down
The compressor will be stopped and it will be indicated on the display in the following events:
compressor element outlet temperature bigger than the programmed shut-down level detected by temperature sensor
compressor element outlet temperature bigger than the programmed shut-down level detected by temperature switches
overload of the drive motor
overload of the fan motor
frequency converter failure (only for VSD compressors)
In chapter “Shut-down visualization” it’s explained how it appears on the display, how to recognize which is the shut-down and how to solve it.
Shut-down warning
A shut-down warning level is a programmable level below the shut-down level. If one of the measurements exceeds the programmed shut-
down warning level, this will also be indicated to warn the operator before the shut-down level is reached. The shut-down warning appears
in case of:
Too high temperature at the compressor element outlet
Too high or too low dew-point temperature for dryer equipped units
In chapter “Shut-down warning visualization” it’s explained how it appears on the display, how to recognize which is the warning and how to
solve it.
Service warning
If the service timer exceeds a programmed value, this will be indicated on the display to warn the operator to carry out some service actions.
Automatic restart after voltage failure
The controller has a built-in function to automatically restart the compressor when the voltage is restored after voltage failure.
The function is not active and to activate it please contact the customer centre.
Provided the controller is in the automatic operation mode, the compressor will automatically restart when
the supply voltage to the module is restored.
FIG. 16
1) Control card
2) Emergency stop button
with mechanical seal and
rotation release
1
2

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 15
Control panel
Function keys of the controller
Reference
Designation
Function
1
Display
Shows icons and operating conditions.
2
Automatic operation symbol
3
LED, Automatic operation
Indicates that the regulator is automatically controlling the compressor: the compressor is loaded,
unloaded, stopped and restarted depending on the air consumption and the limitations
programmed in the regulator.
4
Warning symbol
5
LED, Warning
It’s lit if a warning condition exists.
6
Voltage symbol
7
LED, Voltage on
Indicates that the voltage is switched on.
8
Service symbol
9
LED, Service
It’s lit when service is needed.
10
Start button
This button starts the compressor. Automatic operation LED (3) lights up. The Elektronikon is
operative.
11
Stop button
This button is used to stop the compressor. Automatic operation LED (3) goes out.
12
Scroll buttons
Use these buttons to scroll through the menu .
13
Enter button
Use this button to confirm the last action.
14
Escape button
Use this button to go to previous screen or to end the current action.
CAUTION: WAIT AT LEAST 20 SECONDS BEFORE STARTING THE MACHINE AFTER SWITCH OFF.
CAUTION: IN CASE OF START UP OR RESTART AFTER EMERGENCY STOP /ARAVF/ SHUT DOWN (SEE INSTRUCTION BOOK),
REFRIGERANT DRYER WILL RUN AFTER A DELAY OF 180 SECONDS; (ONLY FOR COMPRESSOR WITH
DRYER (SERIES “E8” R410A).
FIG. 17A
9
14
4
2
6
8
10
0
11
1
12
5
3
7
13

ENGLISH
16 - Edition 02/2018 Cod. 9828093052 04 -

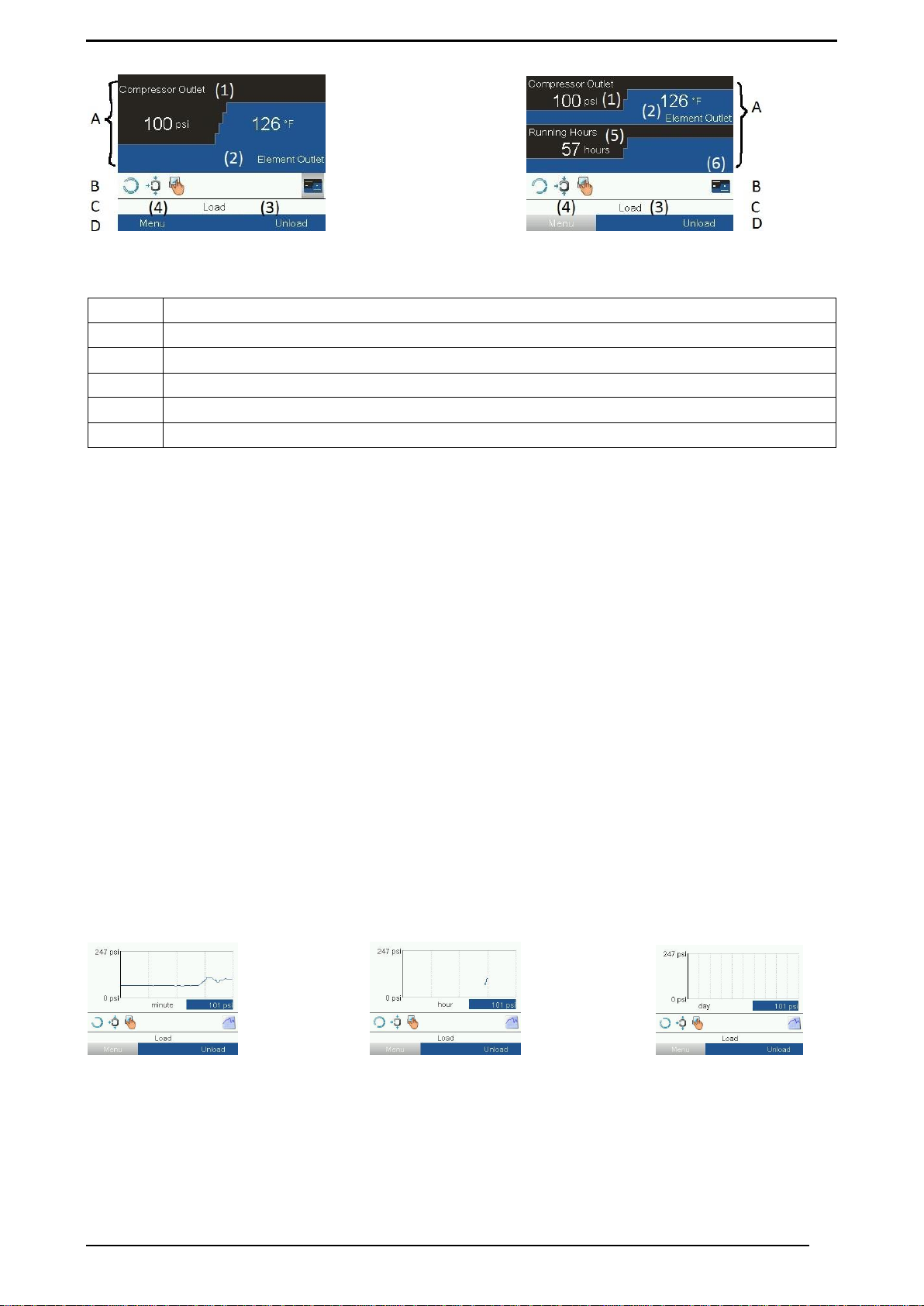

Icons used
Status icons
Name
Icon
Description
Stopped / Running
When the compressor is stopped, the icon stands still. When the compressor is running, the icon
is rotating.
Compressor status
Motor stopped
Running unloaded
Running loaded
Machine control mode
Or
Local start / stop
Remote start / stop
Network control
Automatic restart after
voltage failure
Automatic restart after voltage failure is active
Week timer
Week timer is active
Active protection functions
Emergency stop
Shutdown
Warning
Service
Service required
Main screen display
Value lines display icon
Chart display icon
General icons
No communication / network problem
Not valid

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 17
Input icons
Icon
Description
Icon
Description
Pressure
Digital input
Temperature
Special protection
System icons
Menu icons
Icon
Description
Icon
Description
Inputs
Event history (saved data)
Outputs
Access key / User password
Protections (Warnings, shutdowns)
Network
Counters
Setpoint
Test
Information
Regulation (Settings)
Week Timer
Service
General
Navigation arrows
Main screen
Function
The Main screen is the screen that is shown automatically when the voltage is switched on and one of the keys is pushed. It is switched off
automatically after a few minutes when no keys are pushed.
Typically, 5 different main screen views can be chosen:
Two value lines
Four value lines
Chart (High resolution)
Chart (Medium resolution)
Chart (Low resolution)
Two and four value lines screens
This type of Main screen shows the value of 2 or 4 parameters (see section Inputs menu).
Icon
Description
Icon
Description
Compressor element (LP, HP, ...)
Motor
Dryer
Failure expansion module
Fan
Network problem
Frequency converter
General alarm
Up
Down

ENGLISH
18 - Edition 02/2018 Cod. 9828093052 04 -
Typical Main screen (2 value lines), fixed speed compressors Typical Main screen (4 value lines), fixed speed compressors
Text on figures
(1)
Compressor Outlet
(2)
Element outlet
(3)
Load, ... (text varies upon the compressors actual condition)
(4)
Menu
(5)
Running hours
(6)
Flow (only VSD compressors)
Section A shows information regarding the compressor operation (e.g. the outlet pressure or the temperature at the compressor outlet). On
compressors with a frequency converter, the load degree (flow) is given in % of the maximum flow.
Section B shows Status icons. Following icon types are shown in this field:
Fixed icons
These icons are always shown in the main screen and cannot be selected by the cursor (e.g. Compressor stopped or running, Compressor
status (running, running unloaded or motor stopped).
Optional icons
These icons are only shown if their corresponding function is activated (e.g. week timer, automatic restart after voltage failure, etc.)
Pop up icons
These icons pop up if an abnormal condition occurs (warnings, shutdowns, service, ...)
To call up more information about the icons shown, select the icon concerned using the scroll keys and press the enter key.
Section C is called the Status bar. This bar shows the text that corresponds to the selected icon.
Section D shows the Action buttons. These buttons are used:
To call up or program settings
To reset a motor overload, service message or emergency stop
To have access to all data collected by the regulator
The function of the buttons depends on the displayed menu. The most common functions are “Menu” (To go to the menu),
“Modify” (To modify programmable settings), “Reset” (To reset a timer or message)
To activate an action button, highlight the button by using the Scroll keys and press the Enter key. To go back to the previous menu, press
the Escape key.
Chart views
Instead of viewing values, it is also possible to view a graph of one of the input signals (see section Inputs menu) in function of the time.
High Resolution Medium Resolution Low Resolution
When Chart (High Resolution) is selected, the chart shows the variation of the selected input (in this case the pressure) per minute. Also the
instantaneous value is displayed. The screen shows the last 4 minutes.
The switch button (icon) for selecting other screens is changed into a small Chart and is highlighted (active).
When the Chart (Medium Resolution) is selected, the chart shows the variation of the selected input per hour. The screen shows the last 4
hours.
When the Chart (Low Resolution) is selected, the chart shows the variation of the selected input per day. The screen shows the evolution
over the last 10 days.

ENGLISH
.
Cod. 9828093052 04 - Edition 02/2018 - 19
Selection of a main screen view

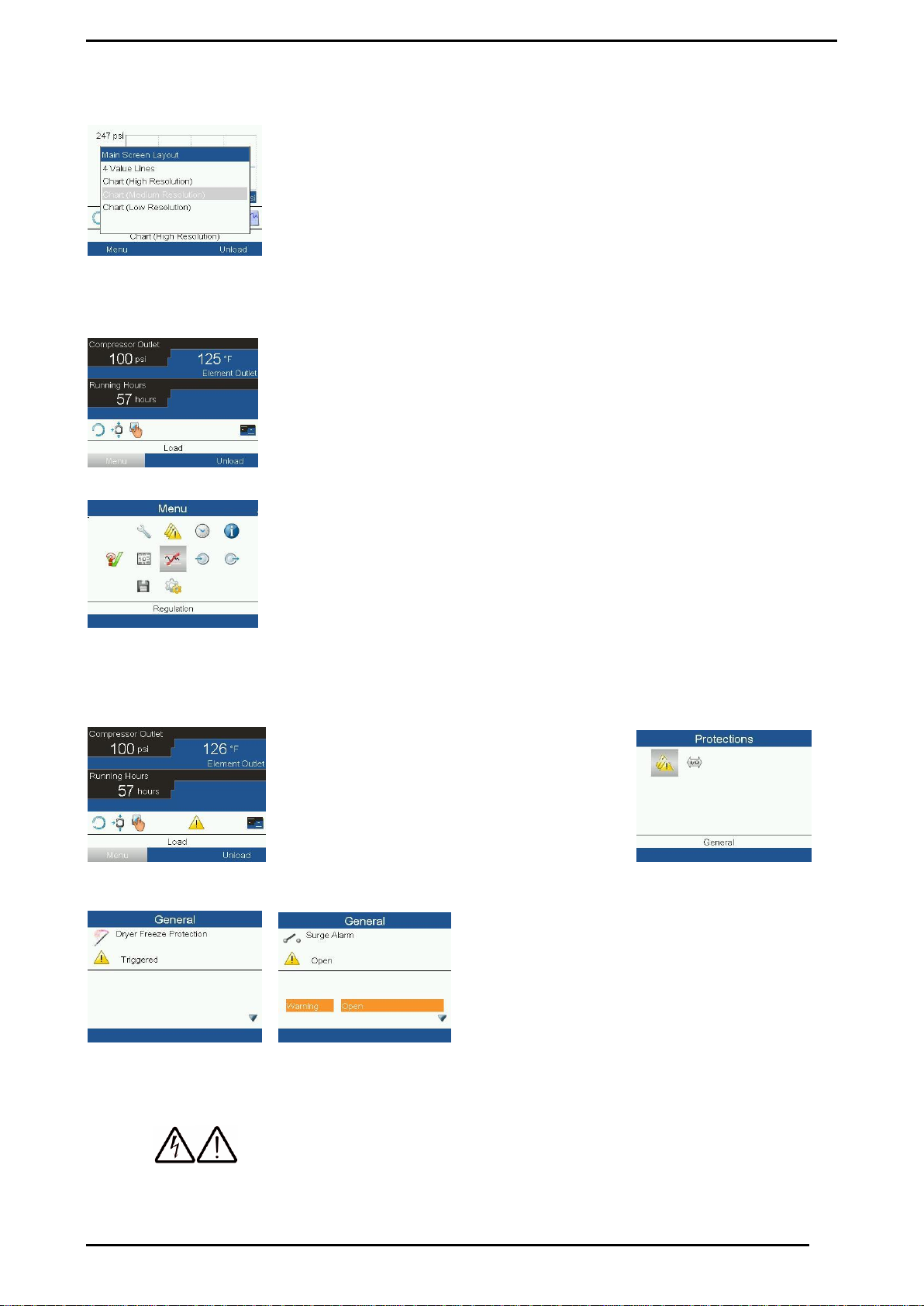

To change between the different screen layouts, select the far right icon in the control icons line (see value lines display icon or chart display
icon in section Used icons) and press the Enter key. A screen similar to the one below opens:
Select the layout required and press the Enter key. See also section Inputs menu.
Calling up menus
Description
When the voltage is switched on, the main screen is shown automatically (see section Main screen):
To go to the Menu screen, highlight the Menu button (4), using the Scroll keys. Press the Enter key to select the menu. Following screen
appears:
The screen shows a number of icons. Each icon indicates a menu item. By default, the Pressure Settings (Regulation) icon is selected. The
status bar shows the name of the menu that corresponds with the selected icon.
Use the Scroll keys to select an icon. Press the Escape key to return to the Main screen.
Shut-down warning visualization
In case of shut-down warning a yellow triangle (1) pops up in the lower side of the display as in the picture below in the left side:
To check which is the warning, highlight the yellow triangle, using the Scroll keys. Press the Enter key and it will appears the Protections
menu as in picture above in the right side. Press Enter key and then in the display will appear the list of the Protection that are active on the
controller. Use Scroll key to check all the protections and the one who is causing the warning will be highlighted as in picture below:
The warning “Surge Alarm” appears when a cartridge of the surge protector device (F99) blown; replace it as soon as possible in order to
avoid damages to the frequency converter. (valid only for cULus cubicles). “Only for compressors VSD”
Stop the compressor pressing the button (11) in the Fig. 17A and wait until the compressor stops.
Open the disconnect switch in the supply line of the compressor.
WARNING: Before carrying out any maintenance the machine must be stopped, cut off the machine from the electrical
mains and from the compressed air distribution circuit, check that the machine is not under pressure.
Inspect the compressor and remedy. The message warning will disappear as soon as the warning condition disappears.

ENGLISH
20 - Edition 02/2018 Cod. 9828093052 04 -
Shut-down visualization
In case of shut-down red icon (1) pops up in the lower side of the display as in the picture below in the left side:
To check which is the shutdown, highlight the red icon, using the Scroll keys. Press the Enter key and it will appears the Protections menu
as in picture above in the right side. Press Enter key and then in the display will appear the list of the Protection that are active on the
controller. Use Scroll key to check all the protections and the one who is causing the shutdown will be highlighted as in picture below:
Take care that the shut-down “Overload motor” appears in case of main motor overload or incorrect phase sequence (detected by phase
sequence relay) or overtemperature detected by temperature switches.
Open the disconnect switch in the supply line of the compressor.
WARNING: Before carrying out any maintenance the machine must be stopped, cut off the machine from the electrical
mains and from the compressed air distribution circuit, check that the machine is not under pressure.
Inspect the compressor and remedy.
After remedying and when the shut-down condition has disappear, switch on the voltage and restart the compressor.
