QUINN 58594 Assembly instructions
Visit our website at: http://www.harborfreight.com
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 21k
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2021 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. ITEM 58594
Important Safety Information
1. Assemble only according to these instructions.
Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and
heavy-duty work gloves during use.
3. Keep work area clean and well lit.
4. Keep bystanders out of the area during use.
5. Do not use when tired or when under
the influence of drugs or medication.
6. Before cutting, make sure the cutting
bed is clean and clear of debris.
7. This product is not a toy. Do not allow
children to play with or near this item.
8. Use as intended only. Do not use
handle extension to increase force.
9. Inspect before every use; do not use
if parts are loose or damaged.
10. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Page 3For technical questions, please call 1-888-866-5797.ITEM 58594
Assembly Instruction
Knob
Fence Guide
Fence
Angle Guide
Knob
1. Place the Fence Guide above the Fence
with the scale markings upward.
2. Secure in place with the Knob.
3. Place Angle Guide over the
hole in Fence Guide.
4. Secure in place with the Knob.
Operating Instructions
• Make several practice cuts on scrap tile
before attempting to make finish cuts.
• Before cutting, make sure the tile is
seated straight on the cutter bed.
• Use a sturdy workbench, or
place the machine on the floor
to increase your leverage.
• Always score from the bottom to
top in a full, continuous motion.
• Score the entire length of the tile.
• Use quick downward pressure
to break the tile.
Page 4 For technical questions, please call 1-888-866-5797. ITEM 58594
Hi Laura, I needed to fix the first
illustration to show the handle
pulled back, and I also made
some adjustments to 1. through 5.
Betsy

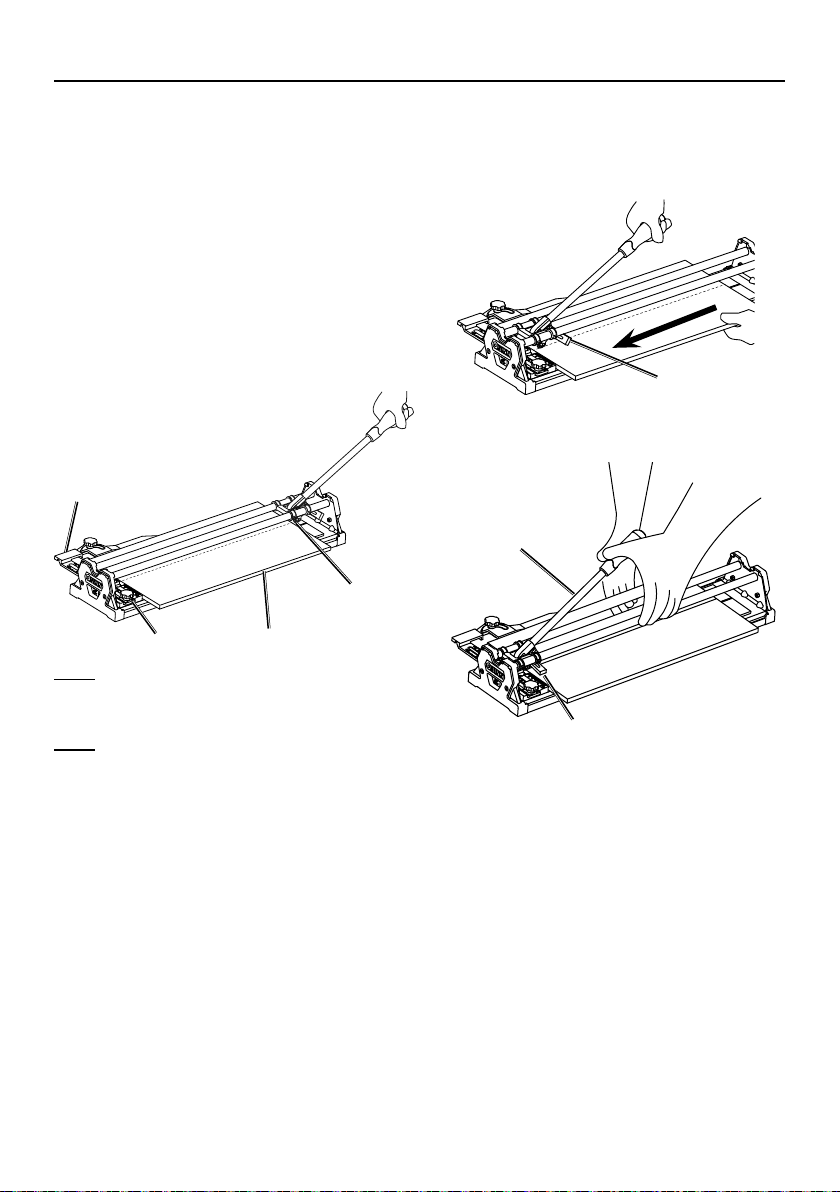

Making a Straight Cut
1. With glazed side up, mark the tile with
a soft carpenter’s pencil, a grease
pencil or a washable marker.
2. Pull the Handle back so the Scoring Wheel
is at the end of the Cutter.
3. Loosen the Knob and slide the
Fence Guide out.
4. Place the tile against the Fence,
with the marked cutting line directly
under the Scoring Wheel.
5. Slide the Fence Guide against the edge
of the tile and tighten the Knob.
Tile
Fence
Guide
Scoring
Wheel
Note: After setting the Fence Guide,
multiple cuts of the same size can be
made without marking the other tiles.
Note: Good results require applying proper
pressure and scoring the tile properly.
This depends largely upon the
operator and requires practice.
6. Place the Scoring Wheel on the end of the tile.
7. With medium pressure, push the Handle along
the full length of the tile, until the Scoring
Wheel rests in the slot on the Fence.
Breaker
8. With the Scoring Wheel resting in the Fence,
press down on the Handle to break tile.
Breaker
Handle
9. Remove tile pieces from the Tile Cutter.
Knob
Page 5For technical questions, please call 1-888-866-5797.ITEM 58594
Making an Angled Cut
1. With glazed side up, mark the tile with
a soft carpenter’s pencil, a grease
pencil or a washable marker.
2. Pull the Handle back so the Scoring
Wheel is at the end of the Cutter.
3. Loosen the Knob and slide
the Fence Guide out.
4. Place the corner of the tile against the
Fence, with the marked cutting line
directly under the Scoring Wheel.
5. Loosen the Knob and set the Angle
Guide against the edge of the tile.
Note: Good results require applying proper
pressure and scoring the tile properly.
This depends largely upon the
operator and requires practice.
6. Place the Scoring Wheel on the end of the tile.
7. With medium pressure, push the Handle along
the full length of the tile, until the Scoring
Wheel rests in the slot on the Fence.
8. With the Scoring Wheel resting in the Fence,
press down on the Handle to break tile.
9. Remove tile pieces from the Tile Cutter.
Page 6 For technical questions, please call 1-888-866-5797. ITEM 58594
Parts List and Assembly Diagram
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER
OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE
BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR
THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE
MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS
REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS,
AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF
HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO,
OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175442017 when ordering parts.
Part Description Quantity
1 Base 1
2 Frame Cover 2
3 M6 x 12mm Screw 4
4 Try Square Arm 1
5 Knob 2
6 Limit Stop Collar 2
7 M8 x 32mm Screw 1
8 Sliding Carriage 1
9 M8 Nut 1
10 M5 Nut 2
11 22 x 6 x 6 Scoring Wheel 1
12 Scoring Wheel Holder 1
13 M5 x 18mm Screw 2
14 Breaker 1
15 Handle 1
16 Guide Bar 2
17 M6 Nut 4
18 EVA Pad 2
19 Anti-Slip Rubber 2
20 M6 x 12mm Screw 2
21 Fence 1
22 Try Square Arm 1
Page 7For technical questions, please call 1-888-866-5797.ITEM 58594
Assembly Diagram
10 11 12 13 14 15
16
17
182122
119
32
4
5
6
7
8
20
9
26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free from
defects in materials and workmanship for the period of 90 days from the date of purchase. This
warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or
accidents, repairs or alterations outside our facilities, criminal activity, improper installation,
normal wear and tear, or to lack of maintenance. We shall in no event be liable for death,
injuries to persons or property, or for incidental, contingent, special or consequential damages
arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to
you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the complaint
must accompany the merchandise. If our inspection verifies the defect, we will either repair or
replace the product at our election or we may elect to refund the purchase price if we cannot
readily and quickly provide you with a replacement. We will return repaired products at our
expense, but if we determine there is no defect, or that the defect resulted from causes not
within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
