User Manual
VK-6082AU
Air Purier
- 02 -
Contents
1. Important safety information............................................................................... 01
2. Product Structure.................................................................................................. 02
3. Before rst use........................................................................................................ 03
4. Using the appliance.............................................................................................. 05
5. Filter Replacement................................................................................................ 07
6. UV-C bulb Replacement...................................................................................... 09
7. Keep Filter Clean................................................................................................... 10
8. Storage................................................................................................................... 10
9. Environment........................................................................................................... 10
10. Troubleshooting..................................................................................................... 11
11. Warranty Terms...................................................................................................... 12
1. Important Safety Information
Read this user manual carefully before you use the appliance and save it for future reference.
• Do not let water or any other liquid or ammable detergent enter the appliance to avoid
electric shock and/or a re hazard.
• Do not clean the appliance with water or any other liquid or a (ammable) detergent to
avoid electric shock and/or a re hazard.
• Check if the voltage indicated on the appliance corresponds to the local mains voltage
before you connect the appliance.
• If the mains cord is damaged, you must have it replaced by distributor, or a service centre
authorized by distributor or similarly qualied persons in order to avoid hazard.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
resonsible for their safety.
Danger
Warning
- 03 -
• This appliance is not a substitute for proper ventilation, regular vacuum cleaning or use of
an extractor hood or fan while cooking.
• If the wall socket used to power the appliance has poor connections, the plug of the
appliance becomes hot. Make sure you plug the appliance into a properly connected
wall socket.
• Always place and use the appliance on a dry, stable, level and horizontal surface.
• Leave at least 40cm free space behind and on both sides of the appliance and leave at
least 40cm free space above the appliance.
• Do not place anything on top of the appliance and do not sit on the appliance.
• Do not place the appliance directly below an air conditioner to prevent condennsation
from dripping onto the appliance.
• Make sure all lters are properly installed before you switch on the appliance.
• Only use the original lters specially intended for this appliance. Do not use any other lters.
• Avoid knockinng against the appliance (the air inlet and outlet in particular) with hard
objects.
• Always lift or move the appliance by the handle at the back of the appliance.
• Do not insert your ngers or objects into the air outlet.
• Do not use the appliance when you have used indoor smoke-type insect repellents or in
places with oily residues, burning incense or chemical fumes.
• Do not use the appliance near gas appliances, heating devices or replaces.
• Always unplug the appliance after use and before you clean it.
• Do not use the appliance in a room with major temperature changes, as this may cause
condensation inside the appliance.
• The appliance is only intended for household use under normal operating conditions.
• Do not use the appliance in wet surroundings or in surroundings with high ambient
temperatures, such as teh bathroom, toilet or kitchen.
Caution
• Children should be supervised to ensure that they do not play with the appliance.
• Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of
the air inlet.
• To reduce the risk of re or electric shock. DO NOT use the appliance with any solid-state
speed control device.
• Skin or eye damage may result from directly viewing the light produced by the lamp in this
apparatus. Always disconnect power before relamping or servicing.
- 04 -
• The appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be
used as a safety device in case of accidents with combustion processes and hazardous
chemicals.
• To prevent is interference, should be kept at least 2 meters distance between the product
and the use of radio waves electrical.

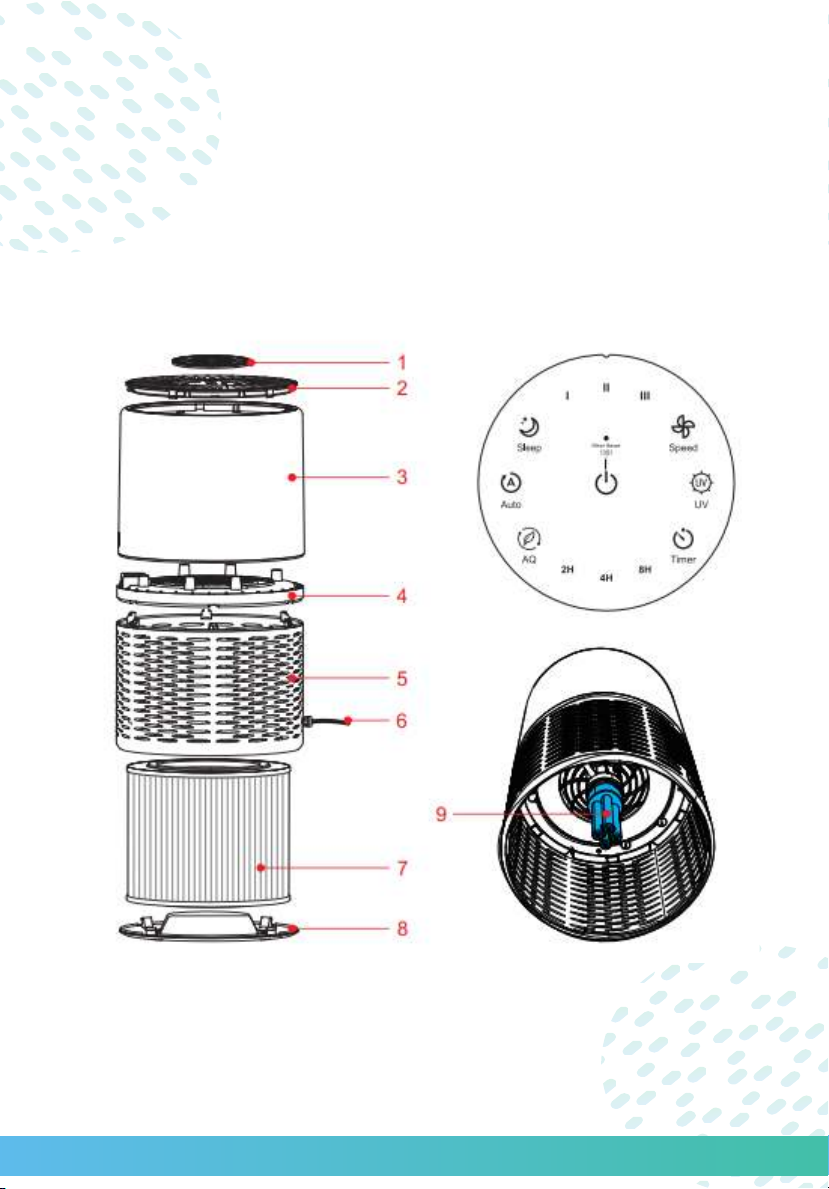

1. Control panel
2. Outlet cover
3. Upper body
4. Decorative ring
5. Lower body
2. Product Structure
Welcome using our company air purier, before using please read this manual carefully to
operate the product correctly.
6. Power cord
7. Combination lter
8. Base cover
9. UV-C bulb
(Model no. xxxx)
- 05 -
3. Before rst use
Placing the lters
The appliance comes with all lters tted inside, but you have to remove the packaging of the
lters before you can use the appliance. Remove all lters, unpack them and place them back
into the appliance as described below.
Note: Make sure your lters purchased from the original manufacturer and put it in the correct
position.
1. Put the appliance upside down on a soft cloth to avoid scratching, to open the base cover,
you need to corresponding the LOCK position, turn the base cover counterclockwise from
LOCK to OPEN positionn, then the lock released.
2. Remove the base cover and take out the combination lters.
3. Remove the packaging material from the lter.
- 06 -
4. Put the lter back into the appliance.
Note: Make sure that the side with the tag is pointing towards you.
5. Twist the lter cover clockwise to the “LOCK” position to secure the lters. The lter cover
should snap shut.
- 07 -
4. Using the appliance
4.1 About the control panel
1. Plug the air purier into a powered electrical outlet.
2. Press the power button to switch on the appiance.
Press button, AQ light turns on and Speed at level 1 (Low)
3. Fan speed adjustment
The fan speed light indicates at which fan speed the appliance is operating. I-III
referes to Low, Medium, High level.
4. Auto mode
At Auto mode, the fan speed will be automatically adjusted according to AQI level
as below:
AQ Color Blue Green Orange Red
Speed mode Sleep I (Low) II (Medium) III (High)
AQ level Very good Good Unhealthy Hazardous
- 08 -
1. Press to turn Sleep Mode on and Sleep indicator turn brightness. All indicators will be
at half brightness, air purier will work in the lowest fan.
2. Sleep, UV, Power and Timer indicators will be at half brightness while sleep mode is on. And
the indicators will be light up while tap all buttons except Timer, UV or Power.
3. AQ light indicator will display the color according to the air quality.
Note: The operation will not work in Standby Mode.
Press button, air quality indicator and all buttons will be off.
Press AQ button again to turn on the air quality indicator.
The UV-C technology kills germs, viruses, and bacterial by penetrating its DNA, resulting in the
microorganism’s death or the inability to reproduce.
Press button to turn the UV-C technology on. The UV-C indicator will glow. Press button
again to turn the UV-C technology off.
When lter indicator lights, it means that you should check the lter if it needs to be cleaned
or replaced.
Note: The lter’s lifetime is based to your house air quality and using time. Using the appliance
in a humid environment will reduce the lifetime of the lter.
The air purier has the setting memory while the users turn it off, including fan speed. It will return
to the last setting while the users turn it on again.
• Press to turn on or off the timer, and to cycle through timmer options (2 hours, 4 hours,
or 8 hours)
• The air purier will automatically power off once the timer is nished. NOTE: Press or
unplugging the air purier will cancel the timer.
5. Sleep mode
6. Light
7. UV-C technology
9. Filter replacement light
10. Memory Function
8. Setting timer
- 09 -
5. Filter Replacement
1. Switch off the appliance and unplug it. (a)
2. Put the appliance upside down on a soft cloth to avoid
scratching, to open the base cover, you need to corresponding the
LOCK position, turn the base cover counterclockwise from LOCK to
OPEN position, then the lock released. (b)
4. Remove the packaging material of the new combination
lter. (d)
3. To remove the base cover and combinationn lter, grab lter tag
and pull it towards you. (c)
5. Put the new lter back into the appliance. (3)
Note: For HEPA lter, make sure that the side with the tag is pointing
towards you.
- 10 -
6. Turn the base cover clockwise from OPEN position to LOCK
position, you will hear a “click” sound, the base cover is fastened. (f)
7. Put the plug in the wall socket and switch on the appliance
again. (g)
8. Reset Fillter’s lifetime.
Even you replace the lters, when you switch on the appliance, the
lter icon still light, you need to reset the lter’s lifetime, so that
the appliance can cycle to calculate the lters’ working time.
Press and hold the button for 3seconds, the lter light turn off,
the reset is nished. (h)
Filter replacement force mode
To force reset the lter’s lifetime:
Suppose you use the appliance under air pollution environment, you can replace the lter
even the lter icon does not light, the lter replacing method is same, please see chapter: Filter
replacement.
At the standby mode, press and hold on button for 3 seconds, the icon light on, press
and hold button 3 seconds again, the lter light turn off, then the reset is nished.
- 11 -
6. Replacing the UV-C bulb
The UV-C bulb is designed to last for approximately 5000 hours of
use. The UV-C indicator on the control panel will ash RED when
you use UV-C exceed 5000 hrs.
NOTE: The air purier will continue to operate without UV-C
function when the UV-C bulb burns out.
CAUTION: Do not operate the air purier without the protective
UV-C bulb cover.
1. Unplug the air purier and remove the lter. (a)
2. Remove the cover to expose the UV-C bulb. (b)
3. Gently push from the side and rotate the UV-C bulb to
remove. (c)
4. Remove and replace the UV-C bulb. Re-install the UV-C
bulb cover, lter and base cover. (d)(e)
5. Put the plug in the wall socket and switch on the appliance
again. (f)
6. Press and hold on the button for 3 seconds, after hearing
the buzzer “Ding”, the UV-C indicator will ash 3 times and
then turn off, the reset is nished. (g)
NOTE: You can replace the UV-C bulb ahead of time and reset
the lifetime, even if the UV-C indicator light does not ash.
WARNING: The UV-C bulb contains mercury (Hg).
WARNING: Skin or eye damage may result from directly viewing
the light produced by the lamp in this apparatus.
CAUTION: Unplug the power cord before servicing or replacing
the UV-C bulb.
- 12 -
7. Keep Filter Clean
8. Keep Filter Clean
9. Environment
In order to keep your purier working with more efciency and life-time, clean the lter (pre-lter
side only) every 2 weeks with the instruction below:

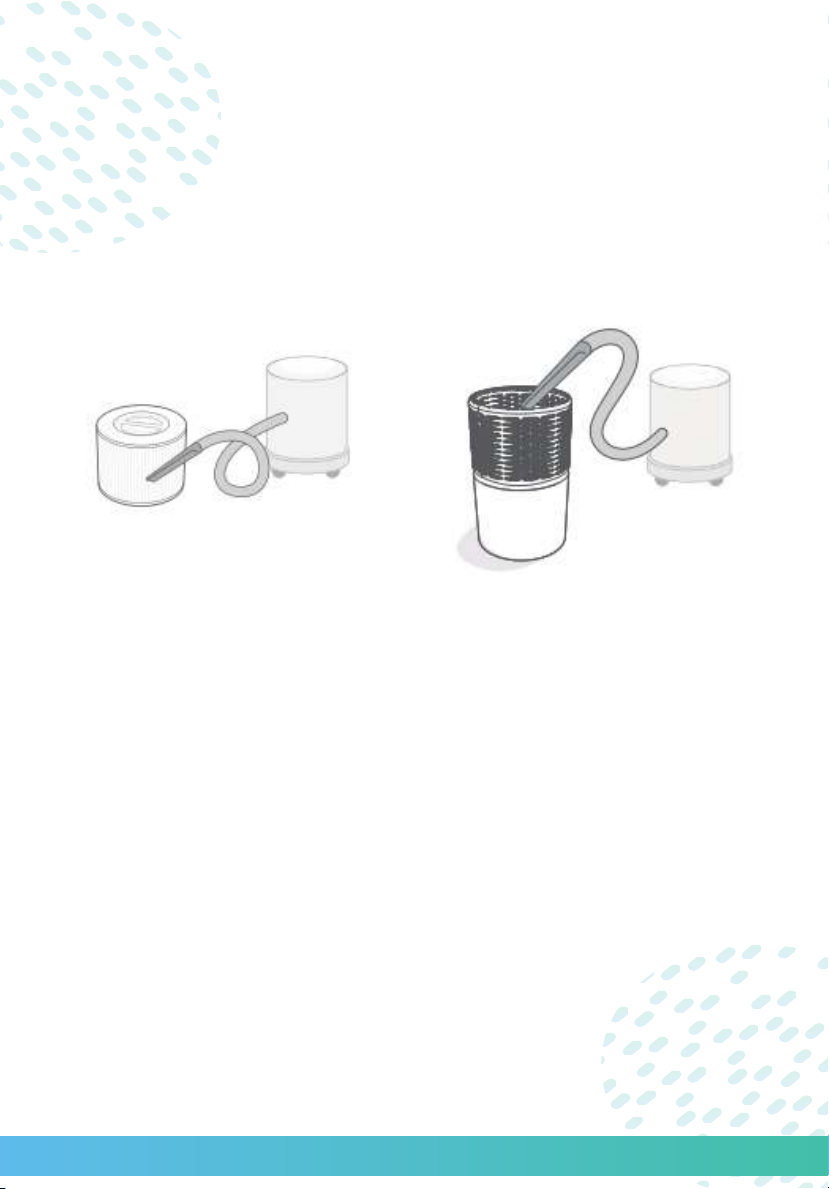

1. Clean out any dust, hair, or furs remain on the pre-lter by using the vacuum hose.
2. Clean out any dust, hair, or furs remain on the bottom cover by using the vacuum hose.
3. DO NOT wash the lter with any water or liquid.
Unplug the power cord, then wipe the machine clean, put the appliance in the packing bag,
then put it in a dry place away.
Do not throw away the appliance with the normal household waste at the end of its life, but
hand it in at an ofcial collection point for recycling. By doing this, you help to preserve the
environment.
- 13 -
10. Troubleshooting
This chapter summarises the most common problems you could encounter with the appliance.
If you are unable to solve problem with the informataion below, contact the Consumer Care
Centre in your country.
Problem Cause Solution
Air purier does not power on.
Unit is not plugged into an electrical
outlet. Connect the plug to a powered electrical outlet.
Outlet is not working properly. Try plugging the air purier into a different outlet.
Power button has not been pressed
after plugging in the air purier. Press “” once to turn on the air purier.
Power cord is damaged. Immediately discontinue use and contact
Customer Support.
Air purier is defective or malfunctioning.
Air purier does not respond to
button controls.
Air purier is not plugged into an outlet. Connect the plug to a powered electrical outlet.
Air purier is defective or malfunctioning. Immediately discontinue use and contact
Customer Support.
Air purier makes an unusual
noise while operating.
Air lters are dirty. Replace the air lters as instructed in the Filter
Replacement section.
Filter does not t properly. Properly place lter(s) as noted in the Before rst
use and Filter Replacement sections.
Foreign object inside the unit.
Immediately discontinue use and contact
Customer Support. DO NOT attempt to open the
air purier.
Signicantly reduced airow.
Filter packaging has not been removed. Remove lter from packaging before use.
Fan speed is low. Press “” to adjust fan speed.
Air lters need to be replaced. Replace the air lters as instructed in the Filter
Replacement section.
Not enough clearance on all sides of
the purier.
Ensure there is at least 38cm (15 inches) of
clearance on all sides of the purier.
Poor air purication quality.
Air lters need to be replaced. Replace the air lters as instructed in the Filter
Replacement section.
Room is too large for the air purier’s
applicable area. Ensure the room is smaller than (280ft2)
Air inlet or outlet is blocked. Remove objects blocking air inlet and outlet.
Filters not properly placed in housing. Properly place lters as noted in the Before rst use
and Filter Replacement sections.
Filter reset button is still
illuminated after replacing the
air lters.
The air purier has been reset incorrectly. See the Filter Replacement section on how to
properly reset the unit.
Air purier turns on, then
suddenly turns off.
Air purier is defective or malfunctioning.
Immediately discontinue use and contact
Customer Support. DO NOT attempt to open the
air purier for self-servicing.
Air purier beeps repeatedly
after being powered on or
plugged in.
Handleiding
VK-6082AU
Luchtreiniger
- 02 -
Inhoud
1. Belangrijke veiligheidsinformatie........................................................................ 01
2. Productopbouw.................................................................................................... 02
3. Voor het eerste gebruik........................................................................................ 03
4. Gebruik van het apparaat................................................................................... 05
5. Filter vervanging.................................................................................................... 07
6. Vervang de UV-C lamp........................................................................................ 09
7. Houd het lter schoon........................................................................................... 10
8. Opslag.................................................................................................................... 10
9. Veel voorkomende problemen & oplossingen.................................................. 10
1. Belangrijke veiligheidsinformatie
Lees deze handleiding zorgvuldig door en bewaar het voor toekomstig gebruik.
• Zorg dat er geen vloeistof in het apparaat terecht komt om elektrische schokken of
vuurgevaar te vermijden
• Maak het apparaat niet schoon met water of ander vloeistof.
• Controleer of de spanning van het apparaat overeenkomt met de netspanning voor
gebruik.
• Als de stroomkabel of stekker beschadigd is, moet je het niet meer gebruiken. Dit om
gevaar te voorkomen.
• Kinderen en mensen met een verstandelijke of lichamelijke beperking dienen het
apparaat te gebruiken onder begeleiding.
• Het is geen speelgoed voor kinderen.
• Blokkeer de in- en uitgaande lucht niet en leg er niks voor.
• Kijk niet direct in de lamp, want hierdoor beschadig je mogelijk je ogen en huid.
Gevaar
Waarschuwing
- 03 -
• Dit apparaat is geen vervanging van een airco, stofzuigsysteem of
afzuigkap.
• Zorg ervoor dat de stekker in een degelijk stopcontact zit. Een slechte connectie
zorgt ervoor dat de stekker heet wordt.
• Plaats het apparaat op een droog, stabiel en horizontaal oppervlak.
• Zorg dat er minimaal 40 centimeter aan alle kanten van de luchtreiniger zit (ook
boven).
• Plaats niks op het apparaat en ga er niet op zitten.
• Plaats het niet onder een airco, aangezien hier mogelijk druppels van af vallen.
• Zorg dat alle lters goed zijn geïnstalleerd, voordat je het aan zet.
• Gebruik slechts de originele lters en gebruik geen lters van een ander merk.
• Vermijd harde stoten tegen het apparaat.
• Stop je vingers niet in het gat waar de lucht uit komt.
• Gebruik het apparaat niet op plekken met olieresten of chemische stoffen.
• Gebruik het apparaat niet in de buurt van gastoestellen, verwarmingsapparaten
of openhaarden.
• Verwijder de stekker uit het stopcontact na gebruik en voor het schoonmaken.
• Gebruik het apparaat niet in een kamer met hoge temperatuurverschillen.
Hierdoor is condensatie in het apparaat mogelijk.
• Het apparaat is slechts bedoeld voor gebruik in huis onder normale
omstandigheden.
• Gebruik het apparaat niet in natte of erg vochtige kamers zoals een badkamer,
toilet of keuken.
• Het apparaat haalt geen koolmonoxide of radon weg.
• Houd het apparaat altijd twee meter vandaan bij elektrische radiogolven.
Opletten
- 04 -
1. Bediening
2. Uitlaatklep
3. Bovenstuk
4. Decoratie ring
5. Onderstuk
2. Productopbouw
6. Stroomkabel
7. Combinatie lter
8. Onderplaat
9. UV-C lamp
- 05 -
3. Voor het eerste gebruik
Plaats de lters
Het apparaat komt met een lter in binnen in. Je moet wel eerst de verpakking van het lter
verwijderen.
Haal het lter eruit, verwijder de verpakking, en plaats het weer terug.
Let op: Zorg ervoor dat je de lters van de verkoper gebruikt, en geen lters van andere merken.
1. Houd het apparaat op de kop en leg het op een zachte ondergrond om krassen te
voorkomen. Om het te openen, draai je de onderplaat tegen de klok in.
2. Verwijder de onderplaat en haal het lter eruit.
3. Verwijder vervolgens het verpakkingsmateriaal.
- 06 -
4. Stop het lter terug in het apparaat.
Let op: Zorg dat de kant met de tag naar jou wijst.
5. Draai de onderplaat met de klok mee om het weer te vergrendelen. Je zou een ‘click’
moeten horen.
Table of contents
Languages:
