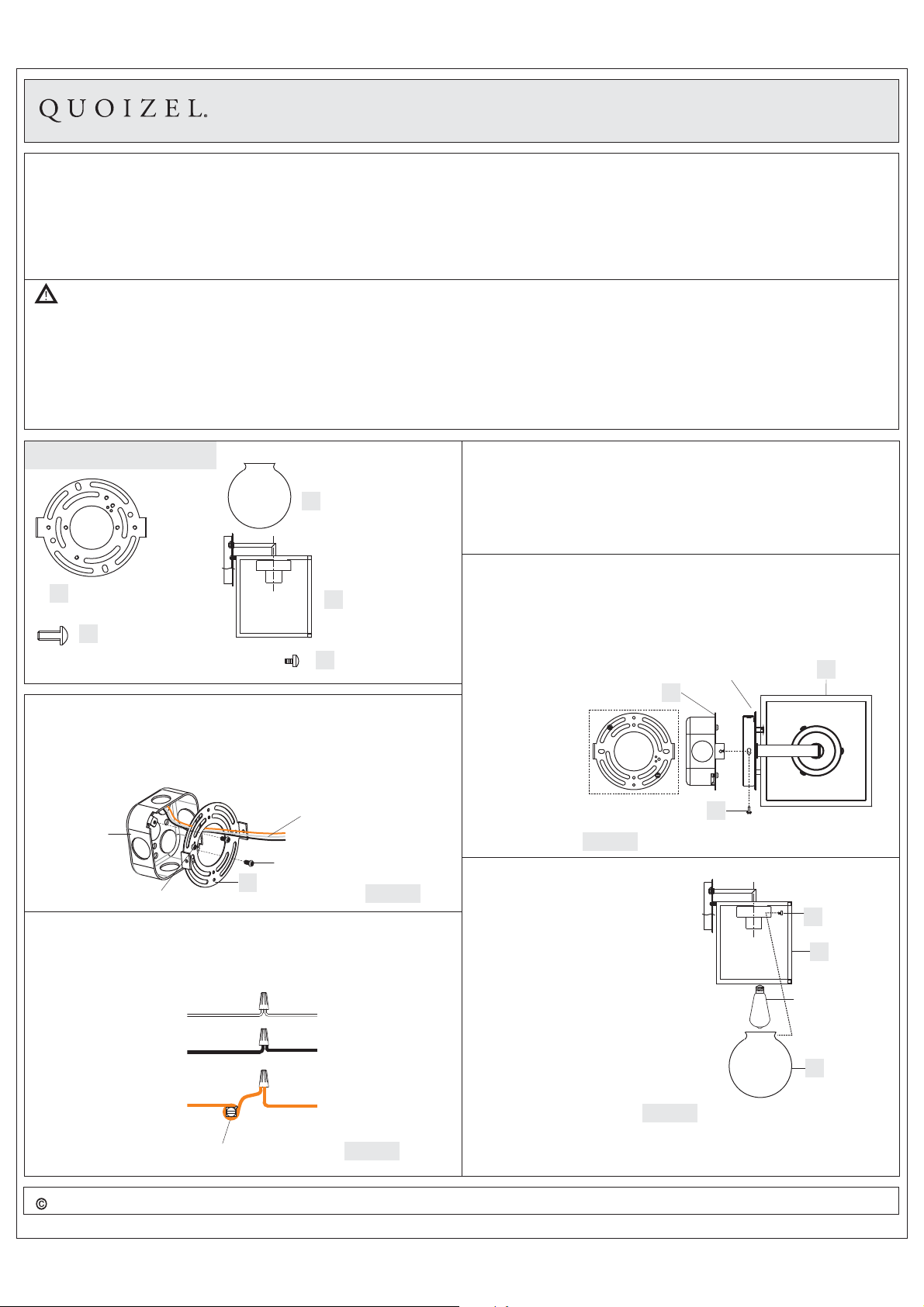

Quoizel MLO8409WT User manual

Package Contents
1of2
For Style MLO8409WT
ACrossbar
x1
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)A19MediumBaseBulb100WMaximum,bulbnotincluded.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactyouroriginalplaceofpurchase.
www.quoizel.com Care+Maintenance
LightSource:
EstimatedAssembly Time:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
Fixture
Body
x1
D
Figure 1
STEP 1 -Install the Crossbar to the junction box
A. Attach the Crossbar (A) to the Outlet Box with the head of the Green
Ground Screw facing you. Secure it with Outlet Box Screws (not
included), tighten until snug.
STEP 2 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
Figure 2
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
Installation Guide #IS-MLO8409WT
2018 QuoizelInc. ReleasedDate:2019-02-19
visit us on-line at www.quoizel.com
GND
Mounting Screw
x2
B
Glass Shade
x1
C
Outlet Box Screws
(not included)
A
Supply Wires
with Ground Wire
Green Ground Screw
Outlet Box
(Step 2 Continued)
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 3
STEP 3 -Install the Fixture Body
A. Place the backplate of the Fixture Body (D)
onto the Crossbar (A) and secure with
Mounting Screws (B). Tighten until snug with
screwdrivers.
Figure 4
STEP 4 -Install Bulb and Glass
Shade
A. Insert the Bulb onto the socket and
push snugly into properly.
B. Thread the Glass Shade (C) onto
the socket and secure with Lock
Screws (E). Hand tighten until
snug.
Your fixture is now assembled and
ready to use. Enjoy!
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Do not touch the bulb with bare hands use a cloth or glove.
Lock Screw
x3
E
Vintage Bulb
(recommended
but not included)
E
D
C
Backplate
B
D
A

MLO8409WT NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
Fixture can
only be
mounted in
the direction
indicated
GND
2of2
2018 QuoizelInc.
visit us on-line at www.quoizel.com
Exterior
Grade Caulk
Backplate
Exterior
Grade
Caulk
STEP 5 -Apply Silicone Sealer
A. Make sure the exterior wall surface and
fixture backplate are free of dirt before
applying caulk. Using exterior grade caulk,
caulk over top of backplate and down both
sides. Do not caulk the bottom of the
fixture backplate to ensure proper
moisture drainage.
Your fixture is now assembled and ready to
use. Enjoy!
Figure 5
FINISH: WESTERN BRONZE
9”
6.25"
12”
6.25”
3”
10”
7.5"
