Quoizel DRS8411EK User manual

Warnings and Cautions
1of3
For Style DRS8411EK
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)A21MediumBaseBulb150WMaximum,MediumBaseVintageBulbisrecommended,bulbnotincluded.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactyouroriginalplaceofpurchase.
www.quoizel.com Care + Maintenance
LightSource:
EstimatedAssembly Time:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
Installation Guide #IS-DRS8411EK
2019 QuoizelInc. ReleasedDate:2019-03-15
visit us on-line at www.quoizel.com
Package Contents
A
Crossbar
Assembly
x1
B
Alternate
Mounting screw
x2
Fixture Body
x1
C
DE
Tab
x4 Glass Panel
x4
STEP 2 Install Bulb-
A. Insert the bulb onto the socket
and screw snugly into place.
Socket
Vintage Bulb
(recommended
but not included)
Figure 2
STEP 3 Install Glass Panels-
A. Place the Glass Panel (D) into the slot
in the bottom edge of the cage. Secure
the Glass Panel (D) by pressing the
Tab (C) onto the top edge of the Glass
Panel (H) and the slot on the top edge
of the cage.
D
C
Slot
Slot
Figure 3
STEP 4 Install Cage and Arm to
Fixture Body
-
A. Place the cage over the bulb, attach
to the fixture hood on the Fixture
Body (E) and secure with previously
removed screws. Hand tighten until
snug with screwdrivers.
B. Place bolts on the bottom end of the
arm to holes on the bottom edge of
the cage and secure with previously
removed lock balls. Hand tighten
until snug.
Figure 4
Bolt
Hole
STEP 1 Remove Arm and Cage-
A. Unlock lock balls in the bottom edge
of the cage and remove the arm from
the Fixture Body (E).
B. Unscrew screws on the top edge of
the cage and remove the cage from
the Fixture Body (E).
Arm
Screw
Cage
Lock Ball
E
Figure 1
Cage
Arm
E
Screw
Cage
Lock Ball

2of3
2019 QuoizelInc. ReleasedDate:2019-03-15
visit us on-line at www.quoizel.com
Figure 6

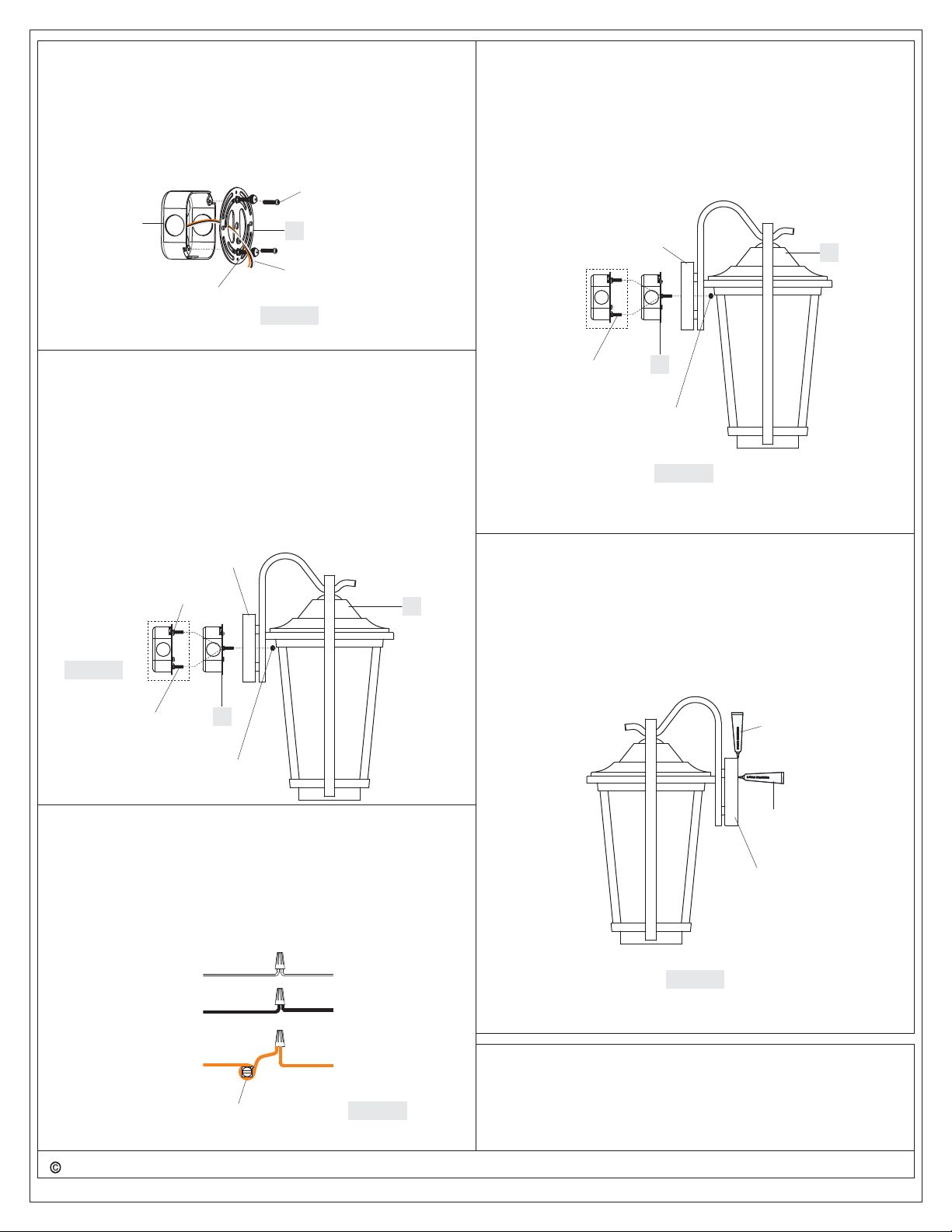

STEP 5 Installing the Crossbar Assembly-
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the outlet box with the head of the
green ground screw facing you. Secure the Crossbar Assembly (A)
with outlet box screws (not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (B) if your
installation requires a shorter mounting screw.
.
Supply Wires
with Ground Wire
Outlet Box Screws
(not included)
Outlet Box A
Mounting Screw
or Alternate Short
Mounting Screw
STEP 6 Test Fit the Backplate to the Crossbar Assembly-
A. Remove the mounting balls from the Crossbar Assembly (A). Place
the backplate and Fixture Body (E) onto the Crossbar Assembly (A)
and secure with mounting balls. Note: The backplate and Fixture
Body (E) should be snug against the wall and held tight with the
mounting balls. If it is not, adjust the length of the mounting screws
or alternate short mounting screws on the Crossbar Assembly (A) by
unscrewing the preassembled hex nut and lock washer and then
screwing the mounting screws or alternate short mounting screws in
or out of the crossbar until the correct length is achieved. Once the
backplate and Fixture Body (E) is secure, remove the mounting ball
and Fixture Body (E).
Mounting Ball
A
Backplate
Hex Nut and
Lock Washer E
Mounting Screw
or Alternate Short
Mounting Screw
STEP 7 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
Figure 5
STEP 8 -Install the Fixture Body
A. Position the backplate and Fixture Body (E) onto the Crossbar
Assembly (A). Place the holes in the backplate over the mounting
screws or alternate short mounting screws. Secure the Fixture Body
by using the mounting balls and hand tighten the mounting balls
until snug.
Mounting Ball
A
Backplate E
Mounting Screw
or Alternate Short
Mounting Screw
Figure 7
STEP 9 -Apply Silicone Sealer
A. Make sure the exterior wall surface and fixture backplate are free
of dirt before applying caulk. Using exterior grade caulk, caulk over
top of backplate and down both sides. Do not caulk the bottom of
the fixture backplate to ensure proper moisture drainage.
Your fixture is now assembled and ready to use. Enjoy!
Exterior
Grade
Caulk
Exterior
Grade Caulk
Backplate
Figure 9
Figure 8
HOW TO REPLACE GLASS PANEL
A. Refer to Step 1 to remove the arm and the cage from the fixture body.
B. Refer to Step 3 to replace the glass panel.
C. Refer to Step 4 to reinstall the cage and the arm to the fixture body.

3of3
2019 QuoizelInc. ReleasedDate:2019-03-15
visit us on-line at www.quoizel.com
DRS8411EK
FINISH: EARTH BLACK
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
Fixture can
only be
mounted in
the direction
indicated
7”
11.25”
11.25”
18.25”
5” Dia.
