Quooker PRO3 User manual

Installation guide PRO3
Read this guide rst before installing

Introduction
The operation of the Quooker PRO3
The Quooker system consists of a vacuum-insulated tank, which is connected to the cold water
supply under the sink and to the Nordic single tap, the Fusion tap or the Flex tap. Both boiling
water and mixer water can be dispensed from the Fusion and Flex tap.
Inside the tank the water is heated electrically to approx. 108°C and is kept at this temperature.
The Quooker PRO3 has a capacity of 3 litres. Before water is dispensed, it is puried by
the HiTAC® water lter.
The Nordic single tap, the Fusion tap and the Flex tap are tted with a childproof push-and-turn
handle, which is clearly recognisable by its textured ring. The Nordic single tap is height adjustable
to guarantee safe use. Both the Nordic single tap, the Fusion tap and the Flex tap
are well insulated.
Despite all the safety features incorporated in the product, anyone using the Quooker system
must keep in mind the risks of using boiling water in general. Incorrect use can lead to injury.
Therefore, always read the manual carefully before use.
Installation, maintenance and warranty
Installing the Quooker requires connections to the mains water supply and the electrical system.
The Quooker is supplied with a handy connection kit (including the required Quooker inlet valve)
for simple installation. For optimally puried Quooker boiling water, we recommend changing the
HiTAC® lter cartridge every 3 - 5 years. If necessary, the tank can be descaled. In areas with hard
water this should be performed more regularly.
You must not connect the Quooker to a reverse osmosis system or to a water softener that
reduces the pH value.
The warranty period is two years, according to our General Terms of Business.

Users
The Quooker tap can be used by children above the age of eight and people with diminished
physical, sensory or intellectual abilities provided they are supervised or have been instructed
on the safe use of the device. Inform people who are unfamiliar with the Quooker system about
safe use and the possible dangers associated with the use of the boiling-water tap. Please note:
incorrect use may result in injury. Prevent children from using the tap as a toy and do not
allow children to clean or maintain the product unsupervised. Keep the plug out of reach
of small children.
The Quooker system is suitable for household use and commercial use such as in sta kitchens
at shops, oces, farms and other business premises and for use by visitors at hotels, motels,
bed & breakfasts and other residential accommodation.
Always follow the installation method described in the manual. Avoid spilling water on the plug.
If defective, the power plug may only be replaced by a qualied technician. Make sure you let
the tank cool o adequately before disconnecting it. The fastest way to do this is as follows: turn
o the Quooker, but leave the plug in the socket. Then open the boiling-water tap and turn it o
once the water runs cold. You can nd a more detailed explanation for disconnecting the tank
in chapter E.
Tips for use and the installation manual can also be found on our website: quooker.uk

Declaration of conformity
Quooker Nederland B.V., Staalstraat 13, 2984 AJ Ridderkerk (The Netherlands) herewith declares,
on our own responsibility, that the product Quooker PRO3 is in accordance with the conditions
of the following directives:
- 2014/35/EU Low Voltage Directive (LVD)
- 2011/65/EU Restriction of Hazardous Substances (RoHS) Directive
- 2014/30/EU Electromagnetic Compatibility Directive (EMCD)
- 2009/125/EC Ecodesign energy-related products Directive
- 2014/68/EU Pressure Equipment Directive
and complies with the following standards:
General product safety household and similar electrical appliances
EN 60335-1:2012 + AC:2014 + A11:2014
EN 60335-2-15:2002 + AC:2005 + A1:2005 + AC:2006 + A2:2008 + A11:2012 + A11:2012/AC:2013
+ EN 60335-2-15:2016
EN 60335-2-21:2003 + A1:2005 + AC:2007 + A2:2008 + AC:2010
Public exposure to electromagnetic elds (EMF)
EN 62233:2008 + AC:2008
Electromagnetic compatibility (EMC)
EN 55014-1:2017 + EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:2015 + EN 55014-2:1997 + AC:1997 + A1:2001 + A2:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
Restriction of hazardous substances
EN 50581:2012
The Netherlands, Ridderkerk, June 2021
Niels Peteri, Director

Technical specications
Tank PRO3
Voltage 230 V
Wattage 1600 W
Capacity 3 litres
Heating-up time* 10 minutes
Standby power consumption 10 W
Tank height 46,7 cm
Total tank height requirement 54,7 cm
Tank diameter 15,3 cm
Min. mains pressure 200 kPa (2 bar)
Max. mains pressure 600 kPa (6 bar)
Max. working pressure 800 kPa (8 bar)
Mounting bracket optional yes
Safety features - maximum temperature fuse
- 800 kPa (8 Bar) overpressure protection,
intergrated into solenoid valve
Water shut-o valve electric
HiTAC® water lter High Temperature Activated Carbon
*These are average values.
Tap Nordic Fusion, Flex
single tap and mixer tap
Tap hole size 32 mm 35 mm
Recomm. temp. mixing water - 60°C
Tap base ring available yes yes

1
Contents of the pack
1. - Nordic single tap, small bre washer, centring ring, metal washer, threaded ring and two screws
- or Fusion tap, hoses, small bre washer, brass xing plate, xing nut, white tap support
(for thin work tops) and two inlet hose screens
- or Flex tap, hoses, small bre washer, metal washer, threaded ring with two screws,
counterweight with boiling water hose, white tap support (for thin work tops),
two inlet hose screens and quick-release tool.
Fusion Flex
Nordic single tap

2
4
3
5
2. PRO3 tank
3. Inlet reducing valve with bre washer
4. Isolation valve with lter and bre washer
5. Inlet couplings and bre washers

Hot
Cold
A
C
D
B1

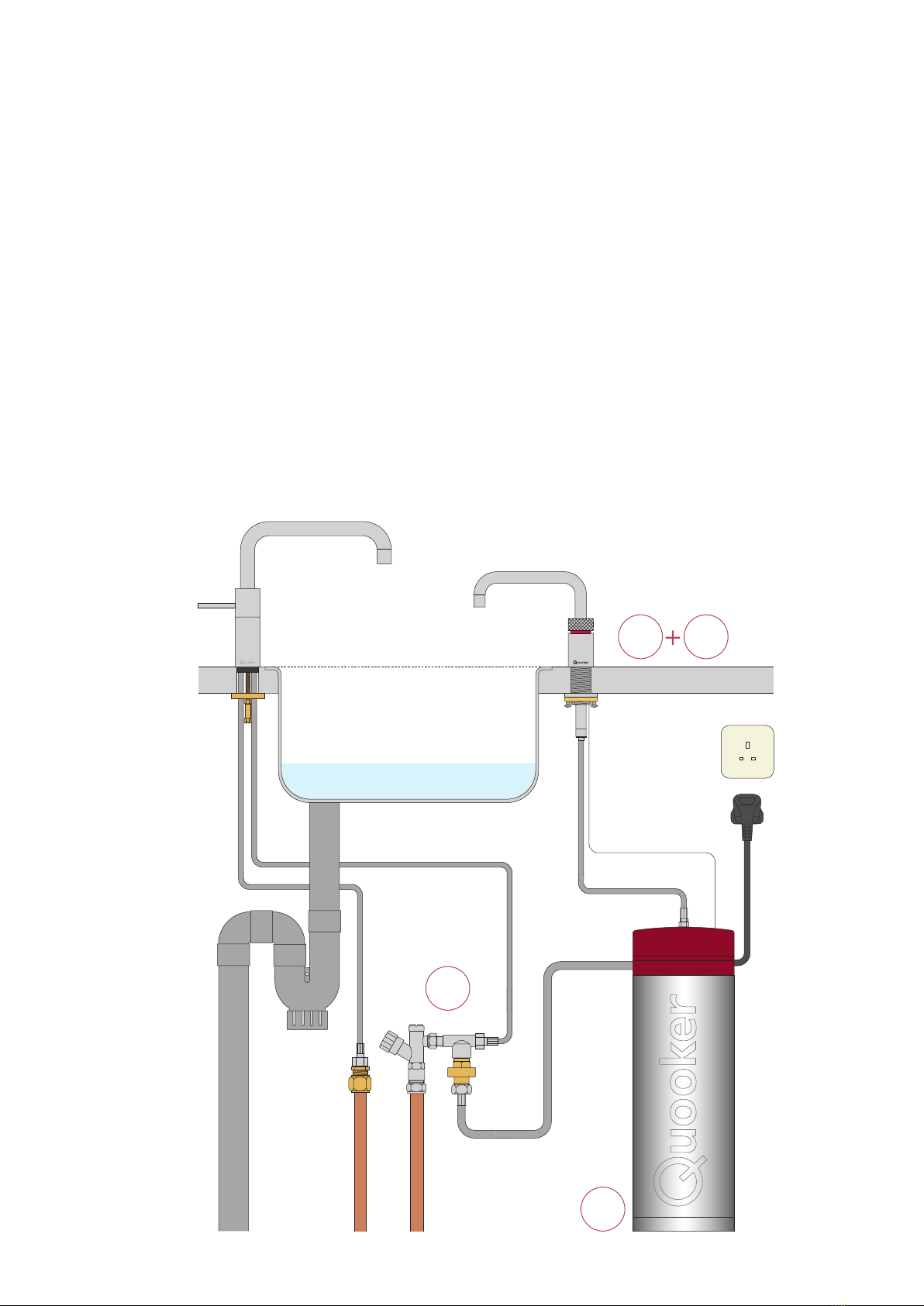

Overview of Nordic single tap installation
It is recommended that you install the Quooker in the following order:
A. Drilling hole
B1. Fitting Nordic single tap
C. Connecting water
D. Connecting tank to tap
E. Disconnecting tank
Note: Bear in mind that the tank, inlet valve and socket must remain easily accessible for servicing.
For an overview of the Fusion tap installation, please refer to the next page and for the Flex tap
to the page after that.

Overview of Fusion tap installation
It is recommended that you install the Quooker in the following order:
A. Drilling hole
B2. Fitting Fusion tap
C. Connecting water
D. Connecting tank to tap
E. Disconnecting tank
Note: Bear in mind that the tank, inlet valve and socket must remain easily accessible for servicing.
For an overview of the Flex tap installation, please refer to the next page.
Hot
Cold
A
C
D
B2

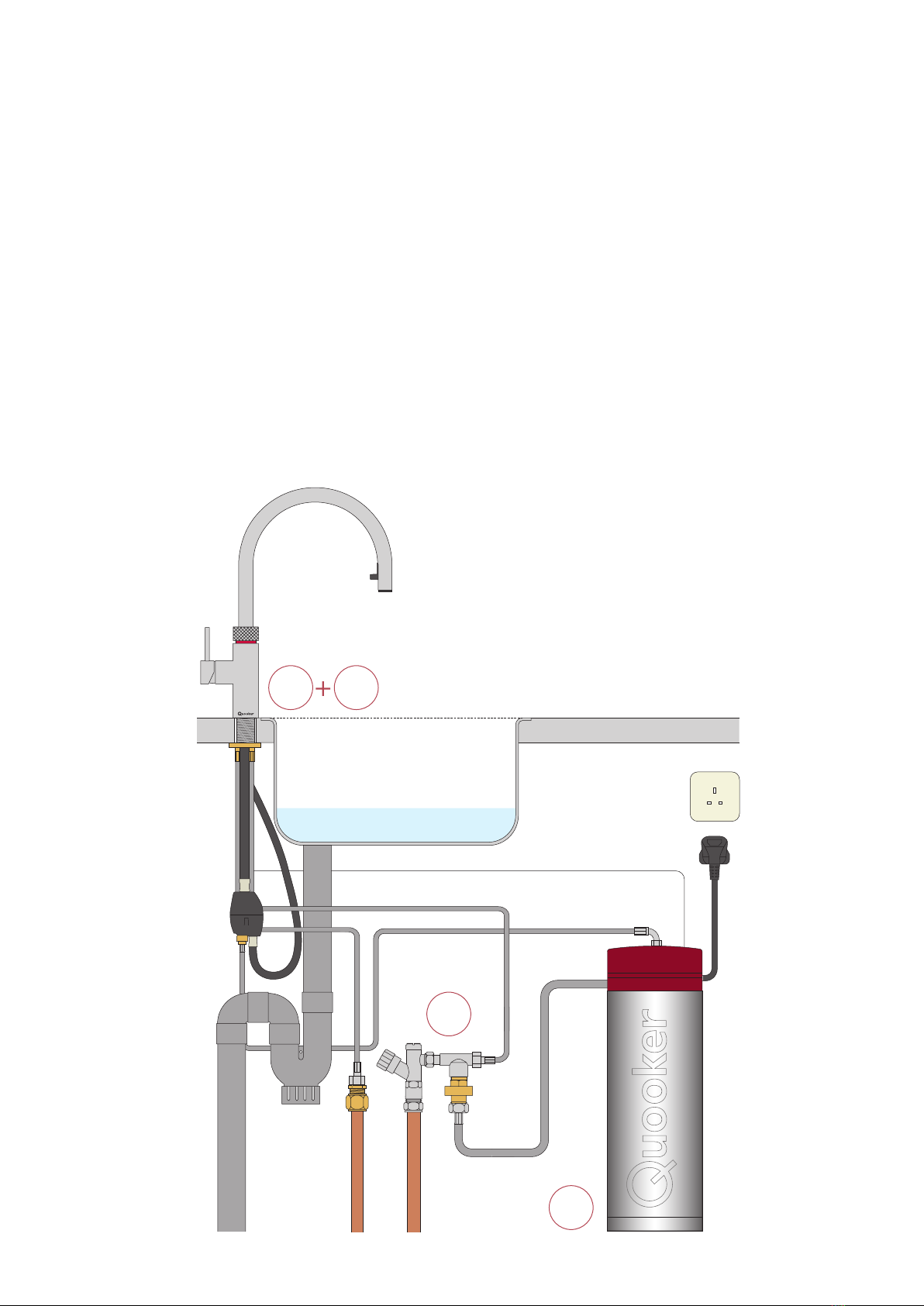

Overview of Flex tap installation
It is recommended that you install the Quooker in the following order:
A. Drilling hole
B3. Fitting Flex tap
C. Connecting water
D. Connecting tank to tap
E. Disconnecting tank
Note: Bear in mind that the tank, inlet valve and socket must remain easily accessible for servicing.
Hot
Cold
C
A
D
B3

1
3
2
A
Dimensions in mm
Max. thickness 60
Ø52
Hole
Ø35
225
±70
Dimensions in mm
Max. thickness 50
Ø50
Hole
Ø32
±70
160
Dimensions in mm
Max. thickness 50
Ø50
Hole Ø35
225
±70
Q
M
QM
1. Select position Nordic single tap
Select a suitable position for the Nordic
single tap based on the type of sink and
position of the mixer tap.
2. Drilling hole for Nordic single tap
Using the correct drill bit, drill a hole of
32 mm through the work top for the Nordic
single tap. Note: For the Nordic mixer tap
please refer to the separate guide. In the
case of a hole of 35 mm or larger, use the
centring ring provided.
3. Drilling hole for Fusion or Flex tap
Select a suitable position for the tap.
Using the correct drill bit, drill a hole of
35 mm through the work top. When doing
this, take into account the range of the
tap’s spout from the centre of the tap hole.
Nordic single tap
Mixer tap
Drilling hole
• Note: The tap hole for the Nordic single tap should be 32 mm in diameter. The Fusion and
Flex tap hole should be 35 mm in diameter.
• The Nordic single tap should ideally be positioned at the corner of the sink to enable use
above the sink or the work top.
• Note: It must be possible to move the spout of the Nordic single tap freely up and down.
When the spout is in its lowest position it projects ca. 25 cm below the work top. Bear this
in mind when tting the inlet valve, sockets and the like.
• Note: The Flex tap counterweight must be able to move freely. When the hose is not withdrawn
it hangs approximately 40 cm below the work surface. Make allowances for this when tting
the inlet valve, power sockets and so forth.

1
3
2
B1
1. Tap through work top
When tting the tap in a 35 mm hole
or larger, rst attach the black plastic
centring ring to the base of the tap to
centre the tap in the hole.
2. Securing the tap
Set the tap to the desired position
and secure it with the metal washer
and threaded ring supplied.
3. Securing tap screws
Tighten the threaded ring and secure
it with the two screws provided.
Fitting Nordic single tap
• Note: The total length of the hose between the single tap and tank is only 70 cm. The tank
must therefore be tted close to the tap. Extension hoses are available in dierent lengths
but are not normally required.
• Note: The small bre washers supplied with the tap rings are not required yet at this point.
One will be used for connecting the tap and tank hose (see section E), the second one
is a spare.

1
3
2
4

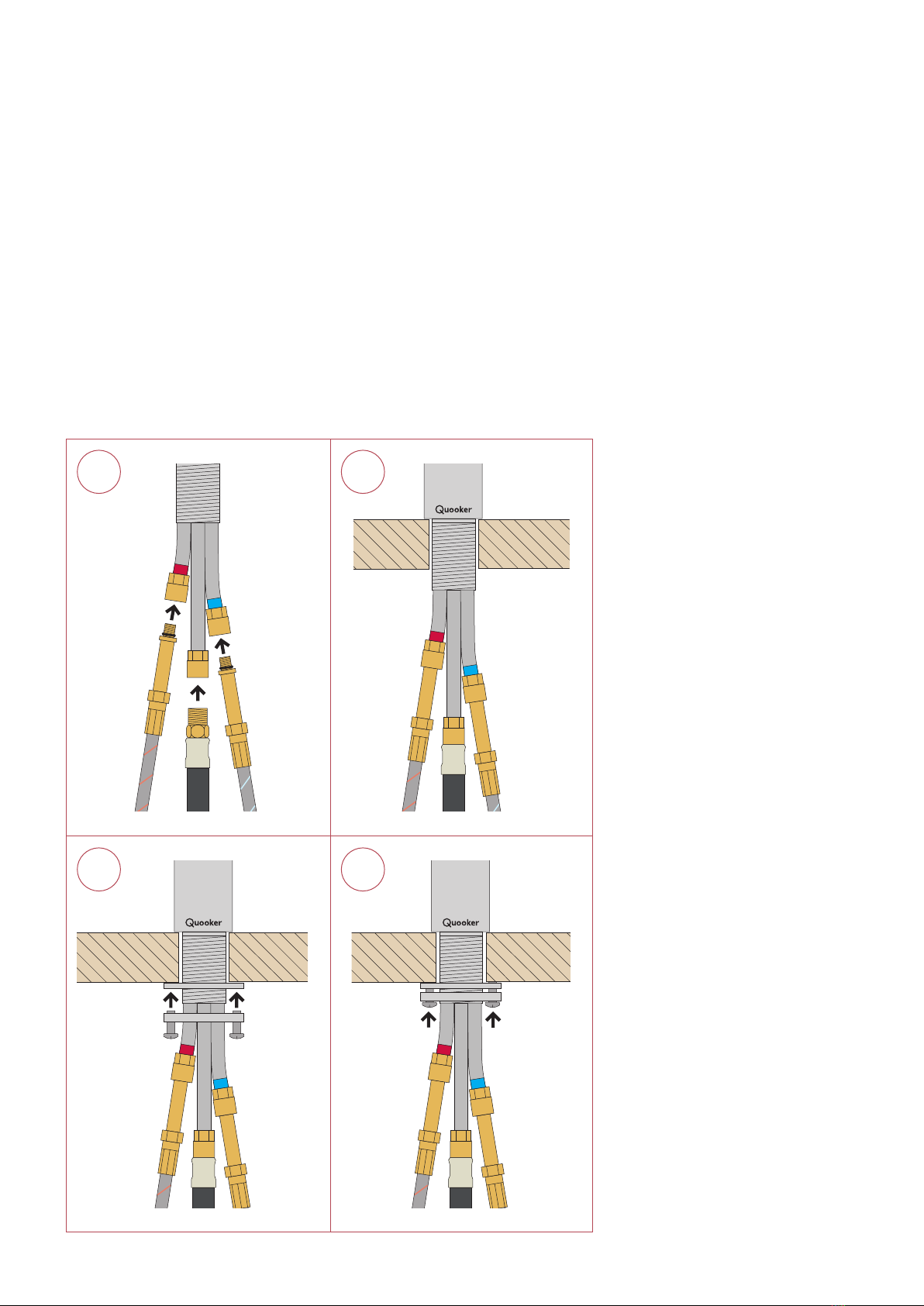

1. Mount the hoses
Mount the hot water and cold water hoses
on the tap.
2. Tap through work top
Push the tap through the hole in the
work top.
3. Securing tap
Position the brass xing plate around the
hoses. Screw the xing nut onto the tap
thread. Adjust the position of the tap to
ensure that the Quooker logo is facing
the user. When the handle is in the cold
position, it will be parallel to the edge of
the work top. Tighten the xing nut with
a pipe wrench, socket wrench or spanner.
4. Fitting to thin work top
When tting to a thin work top, use the
white tap support underneath the brass
xing plate.
Fitting Fusion tap
B2

1
3
2
4
B3
1. Connect hoses
Connect the hot, cold and mixer water
hoses to the tap.
2. Tap through work top
Push the tap through the hole in the
work top.
3. Tighten the brass plate
Place the metal washer and threaded
ring around the hoses. Adjust the position
of the tap to ensure that the Quooker
logo is facing the user and fully tighten
the metal washer.
4. Securing tap screws
Tighten the threaded ring and secure
it with the two screws provided.
Fitting Flex tap
• When installing the tank it is necessary to take into account that the Flex tap counterweight
must be able to move up and down freely. When the hose is not withdrawn it hangs
approximately 40 cm below the work surface.
• Note: When tting the tap to a thin work top use the white tap support before placing
the metal washer and threaded ring around the hoses.

65 5. Attach the coupling
Click the pull-out hose into the
counterweight's quick-release tting
while ensuring that the hose pillar
is fully inserted.
6. Fit the mixer water hose
Click the mixer water hose into the
counterweight's quick-release tting
while ensuring that the hose pillar
is fully inserted.
If necessary
Detach counterweight. Use the quick-
release tool to detach the mixer water
hoses from the counterweight.
Press the quick-release tool at against
the counterweight to hold it still.
This enables the hose to be extracted.

1
3
21. Connect inlet valve
Close the main shut-o valve. Fit the
supplied isolation valve. Connect the inlet
valve to the isolation valve with the bre
washer.
2. Connect cold water hose
Connect the cold water hose with the
hose screen to the inlet valve.
3. Connect hot water hose
Connect the hot water hose with the hose
screen to the mains.
Connecting water
• The Quooker operates under mains water pressure and must always be tted to the water pipe
with the supplied inlet valve.
• The Nordic single tap, the Fusion tap or the Flex tap must be installed according to the locally
applicable regulations.
C
If necessary
If only a G½" connection is present,
use one of the G½" couplings with
the supplied bre washers.
Cold
Hot
Hot

2
4
1
3
1. Connecting tank and tap
Position the tank and connect to the
inlet valve using the washer provided.
Using size 12 and 14 socket spanners,
connect tap hose to tting
at the top of the tank.
2. Electrical connection
Insert the LED cable into the relevant
opening. Connect the tank to an earthed
socket. Do not switch on until the tank is
lled with water.
3. Filling tank
Open tap and isolation valve. Check for
leaks. Rinse Quooker for a few minutes,
until the water is clear. The initial black
colouring is activated carbon from the
lter and completely harmless.
4. Switching on
Switch the tank on.
Connecting tank to tap
• The Quooker tank is supplied with a UK 3 pin plug and requires a standard 13 amp
earthed socket.
• If the mains lead is damaged, it must be replaced by the manufacturer, their agent or
a qualified technician.
• The ‘Q’ on the lid is the on/off switch.

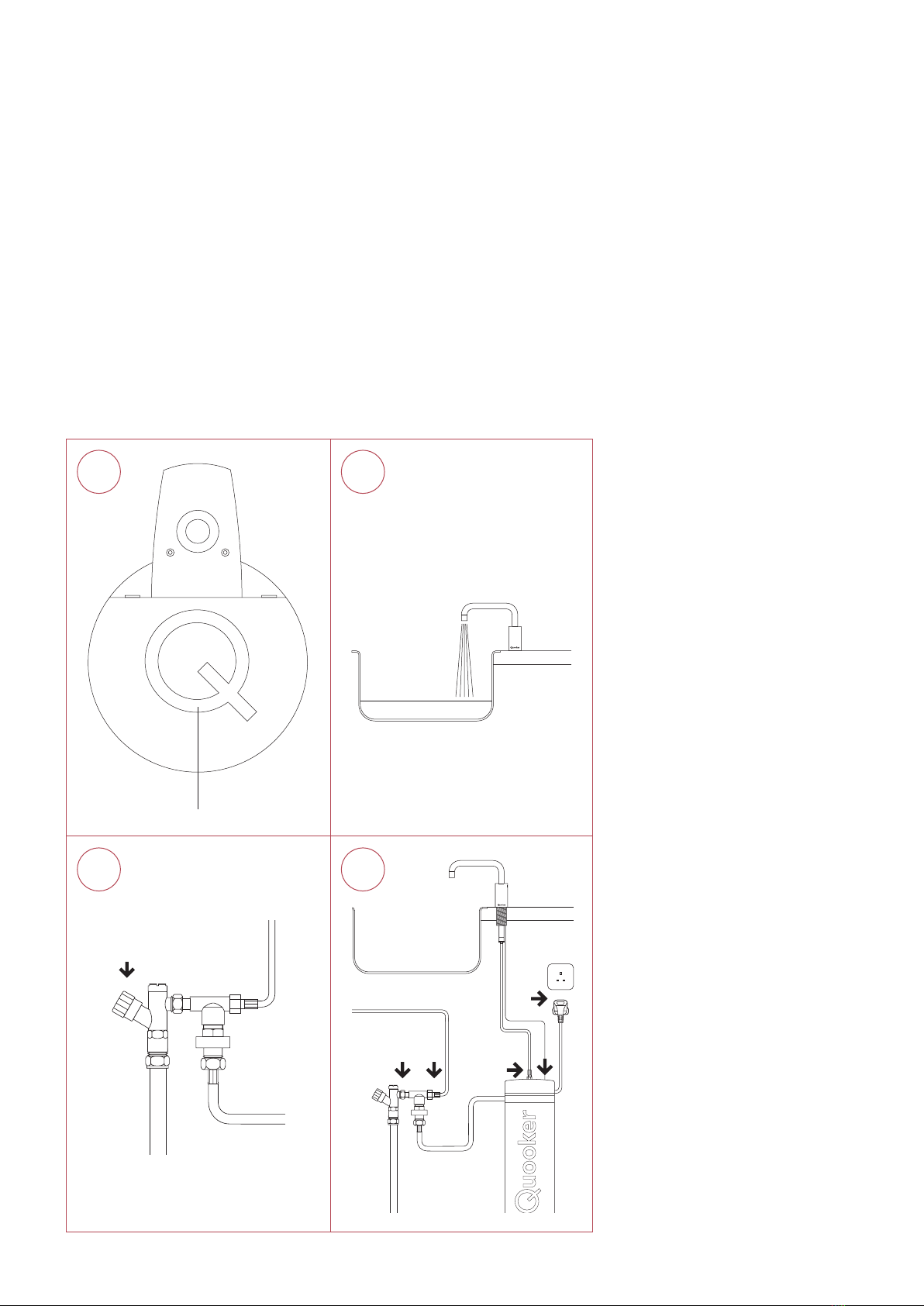

D
On/o ff
12
14

2
4
1
3
1. Switching o
Press the on/o switch at the top of
the tank to switch it o. Do not unplug
the tank from the power socket yet.
2. Draining
Open the boiling-water handle of the tap
and leave the water running until it runs
cold. Then close the tap again. Note:
At rst, the water is very hot.
3. Isolating
Close the main shut-o valve or the
isolation valve for cold water. Check that
the Quooker is depressurized by opening
the Nordic single tap or the boiling-water
handle of the Fusion or Flex tap again.
If it is depressurized, no water should
ow out of it.
4. Disconnecting
Unplug the LED cable from the lid.
Release the hose connections and pull
the plug out of the socket. Remove
the inlet valve and reconnect the cold
water hose to the angle stopcock.
Disconnecting tank
• In case of service.
E
On/o ff

UK | 30.398.03 | V02
Quooker UK Ltd.
Beaumont Buildings
Great Ducie Street
Manchester M3 1PQ
[phone]
[e-mail]
www.quooker.co.uk
