Quooker PRO3 User manual

Installation guide PRO3
Before installing read this guide first

The operation of the Quooker PRO3
The Quooker system consists of a vacuum-insulated tank, which is connected to
the cold water supply under the sink and to the Nordic single tap, the Fusion
tap or the Flex tap. Both boiling water and mixed water can be drawn off from
the Fusion and Flex tap.
Inside the tank the water is heated electrically to approx. 110°C and is kept at
this temperature. The Quooker PRO3 has a capacity of 3 litres. Before the water
leaves the tank it is purified by the iTAC®water filter.
The Nordic single tap, the Fusion tap and the Flex tap are fitted with a child-
proof push-and-turn handle (see ‘Tips for use‘), which is clearly recognisable by
its industrial ribbing. The Nordic single tap is height adjustable
to guarantee safe use. Both the Nordic single tap, the Fusion tap and the Flex
tap are well insulated.
Despite all the safety features incorporated in the product, anyone using the
Quooker system must keep in mind the risks of using boiling water in general.
Incorrect use can lead to injury. Therefore always read the manual carefully
before use.
Installation, maintenance and warranty
Installing the Quooker requires connections to the water supply pipe and the
electrical system. The Quooker is supplied with a handy connection kit
(including the required Quooker inlet valve) for simple installation. For optimally
purified Quooker water, we recommend changing the iTAC®filter cartridge
every 5 years. If necessary, the tank can be descaled. In areas with hard water
this should be performed more regularly.
You must not connect the Quooker to a deionised water device or to a water
softener that reduces the p value.
The warranty period is two years, according to our General Terms of Business.
Introduction

Users
The Quooker tap can be used by children above the age of eight and people
with diminished physical, sensory or intellectual abilities provided they are
supervised or have been instructed on the safe use of the device. Inform people
who are unfamiliar with the Quooker system about safe use and the possible
dangers associated with the use of the boiling-water tap. Please note: incorrect
use may result in injury. Prevent children from using the tap as a toy and do not
allow children to clean or maintain the product unsupervised. Keep the plug out
of reach of small children.
The Quooker system is suitable for household use and commercial use such as
in staff kitchens at shops, offices, farms and other business premises and for
use by visitors at hotels, motels, bed & breakfasts and other residential accom-
modation.
Always follow the installation method described in the manual. Avoid spilling
water on the plug. If defective, the power plug may only be replaced by a
qualified technician. Water may drip from the pressure relief valve. This is
normal. Always leave the grey funnel of the pressure relief valve open.
The pressure relief valve must be serviced regularly to prevent lime scale build-
up and to check that the valve has not blocked up. Make sure you let the tank
cool off adequately before disconnecting it. The fastest way to do this is as
follows: turn off the Quooker, but leave the plug in the socket. Then open the
boiling-water tap and turn it off once the water is cold. You can find a more
detailed explanation for disconnecting the tank in chapter F.
Tips for use and the installation manual can also be found on our website:
www.quooker.ae

Declaration of conformity
Quooker Nederland b.v., Staalstraat 13, 2984 AJ Ridderkerk (The Netherlands)
herewith declares, on our own responsibility, that the products Quooker PRO3
is in accordance with the conditions of the following directives:
- 2006/95/EC Low voltage Directive
- 2004/108/EC Electromagnetic Compatibility Directive
- 2014/68/EU Pressure Equipment Directive
And are in conformity with the following standards:
EN60335-1:2012 + A11:2014
EN60335-2-15:2002 + A1:2005 + A2:2008 + A11:2012
EN62233:2008
EN55014-1:2006 + A1:2009 + A2:2011
EN55014-2:1997 + A1:2001 + A2:2008
EN61000-3-2:2014; EN61000-3-3:2013; EN61000-4-2:2009; EN61000-4-3:2006 +
A1:2008 + A2:2010; EN61000-4-4:2012; EN61000-4-5:2014; EN61000-4-6:2014;
EN61000-4-11:2004
The Netherlands, Ridderkerk, 12/02/2016
Niels Peteri, Director

Technical Specifications
Tank PRO3
Voltage 230 V
Wattage 1600 W
Capacity 3 litres
eating-up time* 10 minutes
Standby power consumption 10 W
Tank height 44 cm
Tank diameter 15 cm
Min. mains pressure 200 kPa (2 bar)
Max. mains pressure 600 kPa (6 bar)
Max. working pressure 800 kPa (8 bar)
Mounting bracket optional yes
Safety features - maximum temperature fuse
- pressure relief valve 800 kPa (8 bar)
Water shut-off valve electric
iTAC®water filter igh Temperature Activated Carbon
*These are average values.
Tap Nordic Fusion, Flex
single tap and mixer tap
Tap hole size 32 mm 35 mm
Recomm. temp. hot water - 60°C
Tap base plate optional yes yes

Nordic single tap
Fusion tap
1

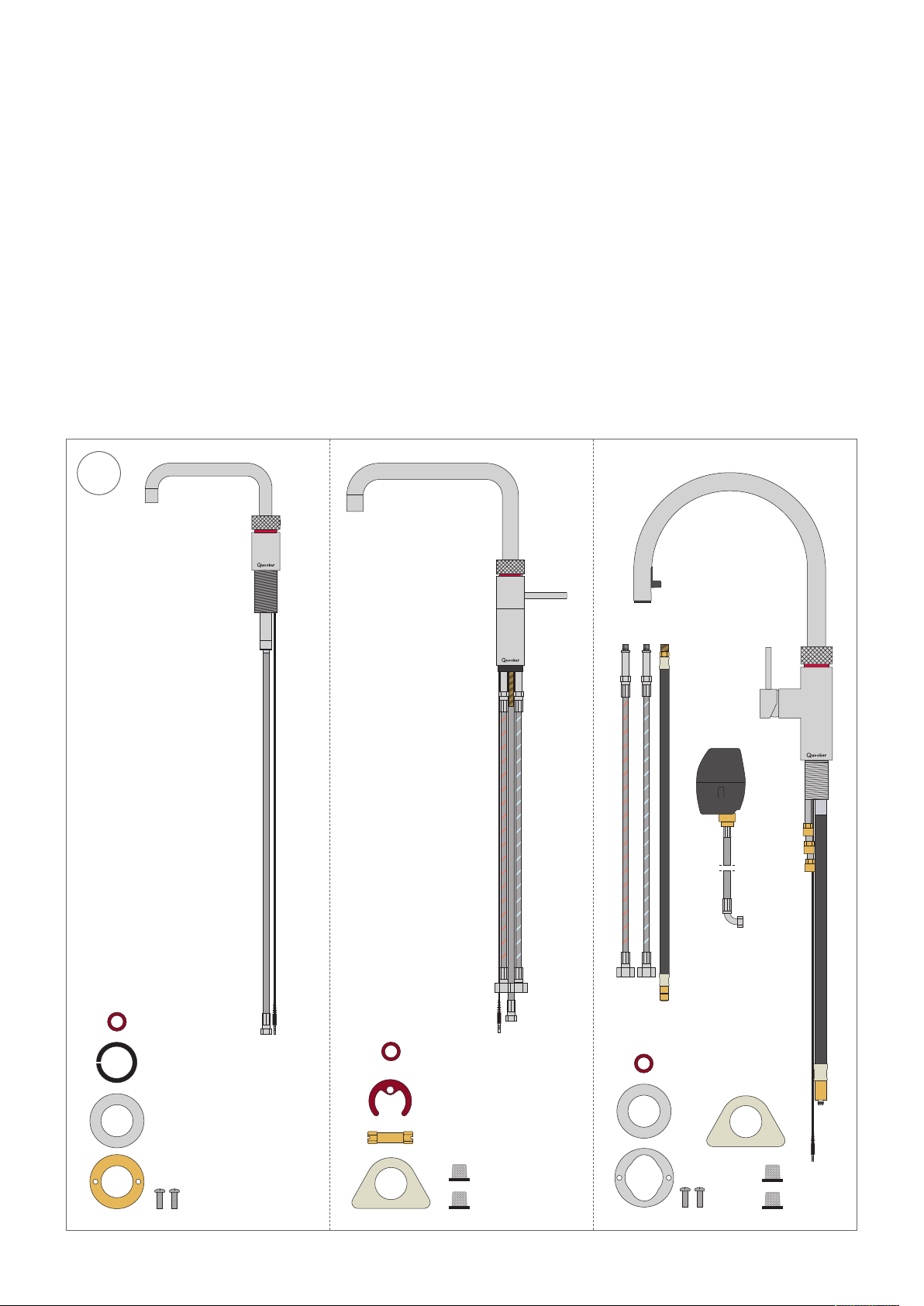

1. Nordic single tap, packing ring, centring ring, steel ring, brass sink nut and
two screws
or Fusion tap, packing ring, brass fixing plate, fixing nut, white tap support
(for thin work tops) and two inlet hose screens
or Flex tap, hoses, fibre washer(s), steel washer, screw ring with two screws,
coupling with boiling water hose, white tap support, two inlet hose screens
and quick-release tool
Contents of the pack
Flex tap

2. PRO3 tank
3. Quooker inlet valve with packing ring
4. Angle stopcock with filter and packing ring
5. Inlet couplings and packing rings
- ‘Tips for use’
23
4 5

It's recommended that you install the Quooker in the following order:
A. Drilling hole
B1. Fitting Nordic single tap
C. Connecting water
D. Connecting tank
NOTE: Please bear in mind that the tank, inlet valve and socket must remain
easily accessible for servicing.
For an overview of the Fusion tap installation please refer to the next page.

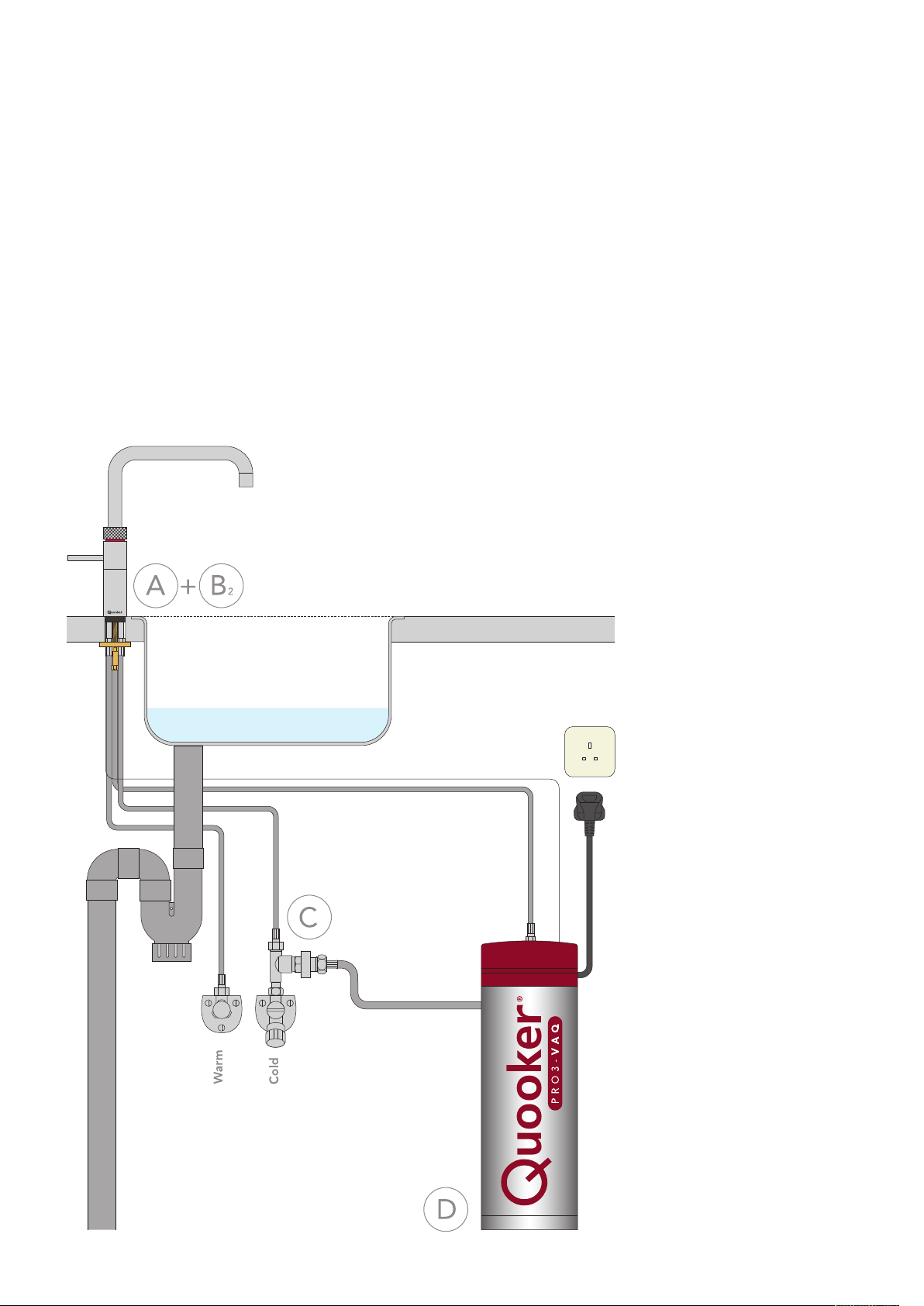

Overview of Nordic tap installation

It's recommended that you install the Quooker in the following order:
A. Drilling hole
B2. Fitting Fusion tap
C. Connecting water
D. Connecting tank
NOTE: Please bear in mind that the tank, inlet valve and socket must remain
easily accessible for servicing.
Overview of Fusion tap installation

It's recommended that you install the Quooker in the following order:
A. Drilling hole
B3. Fitting Flex tap
C. Connecting water
D. Connecting tank
NOTE: Please bear in mind that the tank, inlet valve and socket must remain
easily accessible for servicing.
Overview of Flex tap installation
B3
Cold

Dimensions in mm
Max thickness 60
Hole

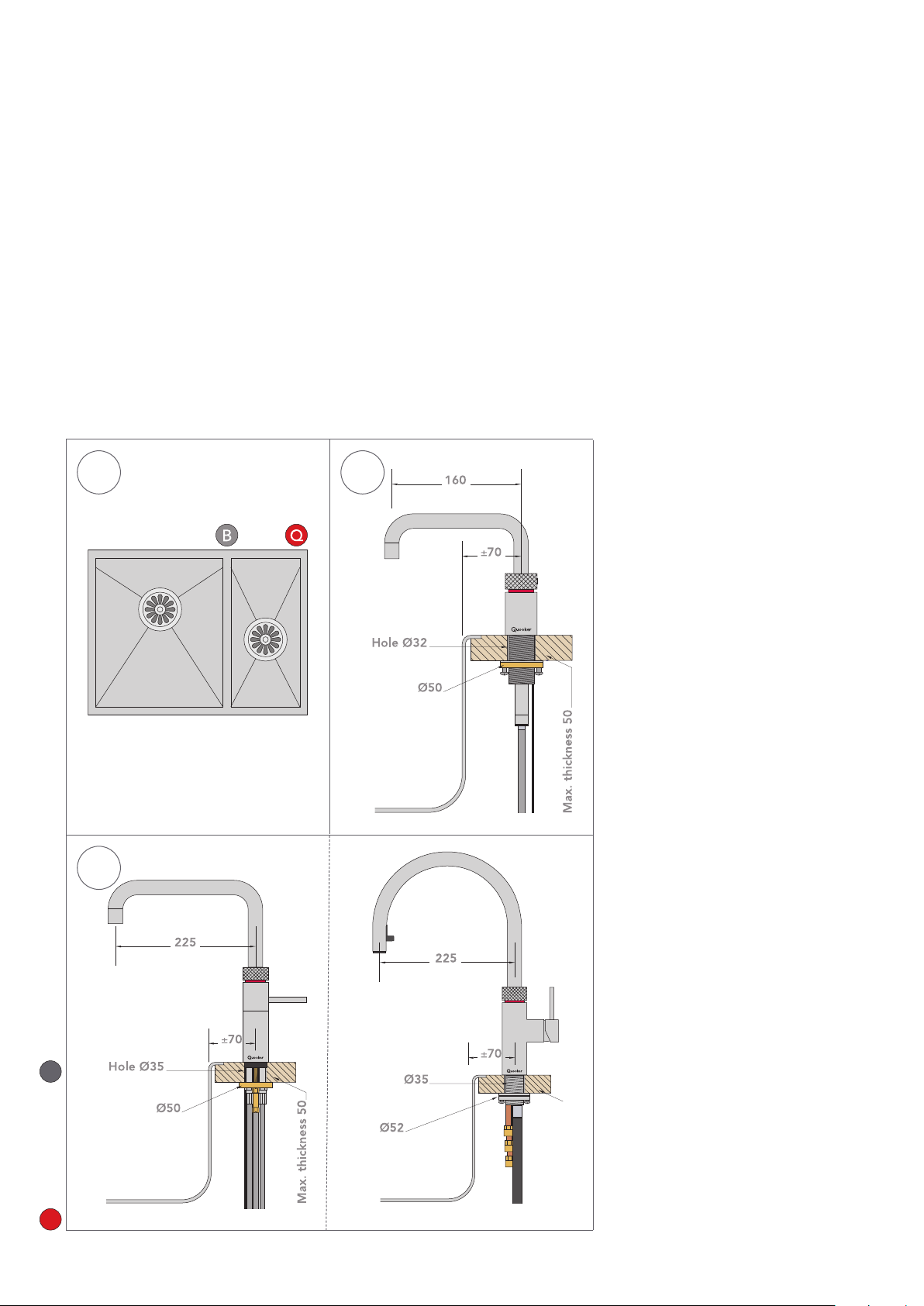

Drilling hole
• The tap hole for the Nordic single tap should be 32 mm in diameter.
The Fusion and Flex tap hole should be 35 mm in diameter.
• The Nordic single tap should ideally be positioned at the corner of the sink to
enable use above the sink or the work top.
• It must be possible to move the spout of the Nordic single tap freely up and
down. When the spout is in its lowest position it projects ca. 25 cm below the
work top. Bear this in mind when fitting the inlet combination, sockets and the
like.
• Note! The Flex tap coupling must be able to move freely. When the hose is not
withdrawn it hangs approximately 40 cm below the work surface top. Make
allowances for this when fitting the inlet combination, power sockets and so forth.
1 2
3
A
1Select position
boiling-water tap
Select a suitable position for the
Nordic single tap based on the type
of sink and position of the mixer tap.
2 Drilling hole for
boiling-watertap
sing the correct drill bit, drill a hole
of 32 mm through the work top for
the Nordic single tap.
NOTE: For the Nordic mixer tap
please refer to the separate guide.
In the case of a hole of 35 mm or
larger, use the centring ring provided.
3Drilling hole for
Fusion or Flex tap
Select a suitable position for the tap.
sing the correct drill bit, drill a hole
of 35 mm through the work top.
In this, take account of the range of
the tap’s spout from the centre of the
tap hole.
Dimensions in mm
Dimensions in mm
Boiling-water tap
QMMixer tap

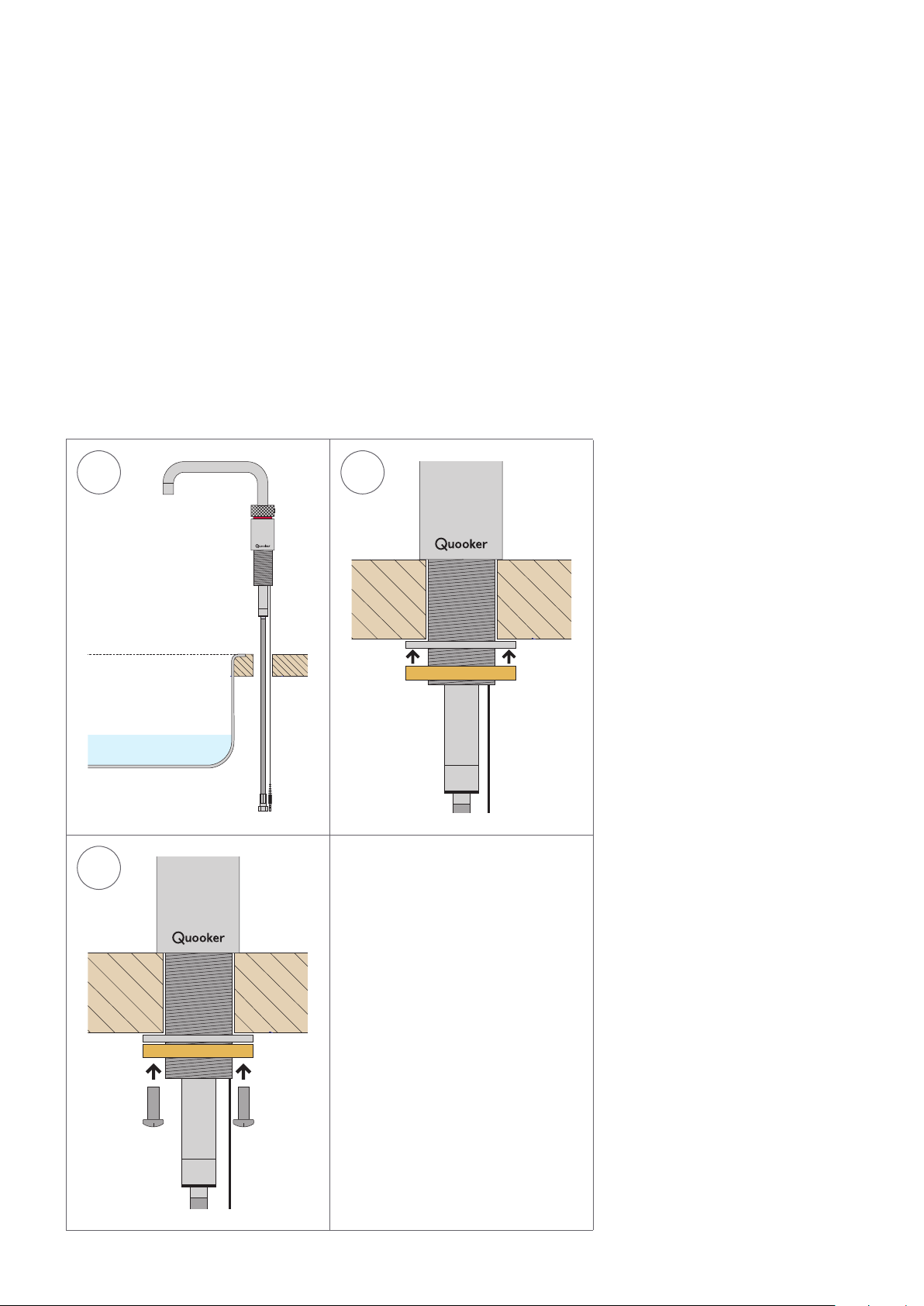

1 Tap through
work top
Push the tap through the hole in the
work top. se the black ring (supplied
with the tap rings) when the tap hole is
bigger then 35 mm to center the tap.
2 Securing the tap
Set the tap to the desired position and
secure it with the metal ring and screw
ring supplied.
3 Securing tap
screws
Tighten the screws in the screw ring.
1 2
Fitting Nordic single tap
• The total length of the hose between the boiling-water tap and tank is only
70 cm. The tank must therefore be fitted close to the tap. Extension hoses
are available in different lengths but are not normally required.
• The small fibre washers supplied with the tap rings are not required yet at
this point. One will be used for connecting the tap and tank hose (see
section E), the second one is a spare.
B1
3

1 Tap through
work top
Push the tap through the hole in the
work top.
2 Securing tap
Position the brass fixing plate around
the hoses. Screw the fixing nut onto
the tap thread. Adjust the position of
the tap to ensure that the Quooker
logo is facing the user. When the
handle is in the cold position, it will
be parallel to the edge of the work
top. Tighten the fixing nut with a pipe
wrench, socket wrench or spanner.
3 Fitting to thin
work top
When fitting to a thin work top, use
the white tap support underneath the
brass fixing plate.
1 2
Fitting Fusion tap
B2
3

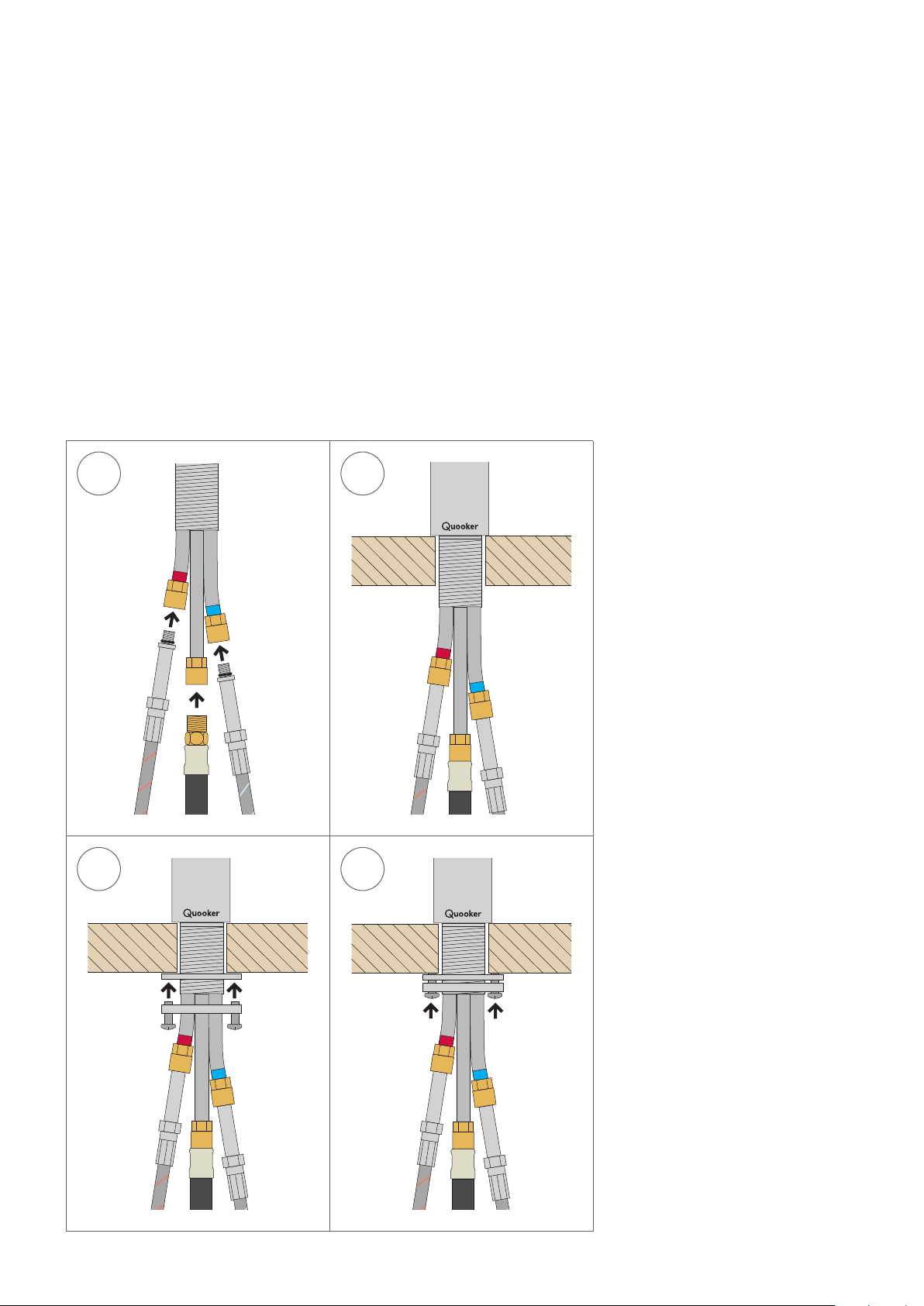

1 Fit hoses
Fit the hot, cold and mixer water hose
to the tap.
2 Tap through
work top
Push the tap through the hole in the
work top.
3 Tighten the
brass plate
Put the tap in the required position
and fully tighten the brass plate.
4 Securing tap
screws
Tighten the screws in the screw ring.
1 2
Fitting Flex tap
• When installing the reservoir it is necessary to take into account that the Flex
tap coupling must be able to move up and down freely.
B3
3 4

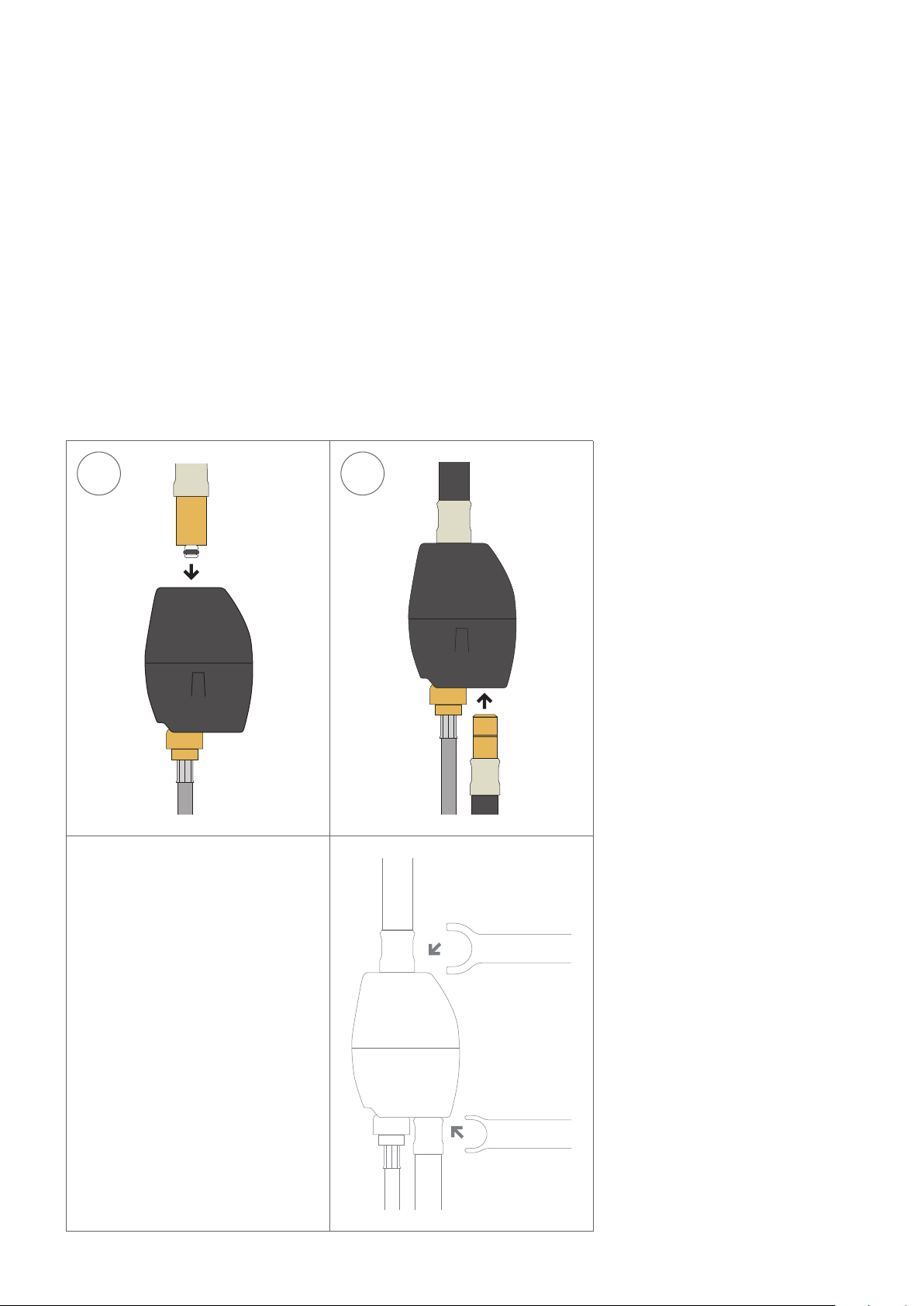

5 Attach the
coupling
Click the pull-out hose into the cou-
pling's quick-release fitting while
ensuring that the hose pillar is fully
inserted.
6 Fit the mixer
water hose
Click the mixer water hose into the
coupling's quick-release fitting while
ensuring that the hose pillar is fully
inserted.
If necessary
Detach coupling. Use the quick-release
tool to detach the mixer water hoses
from the coupling. Press the quick-
release tool flat against the coupling to
hold it still. This enables the hose to be
extracted.
5 6

2
3
Connecting water
• The Quooker operates under mains water pressure and must always be fitted
to the water pipe with the supplied inlet valve.
• The Nordic single tap, the Fusion tap or the Flex tap must be installed
according to the locally applicable regulations.
1 Shut off water
Before installation, shut off the angle
stopcock or water supply to the main
water tap. If necessary, fit supplied
angle stopcock.
2 Connect inlet
valve
Connect the inlet valve to the angle
stopcock with the fibre washer.
3 Connect hot
and cold water
hose
Connect the hot water hose with the
water filter to the angle stopcock.
Connect the cold water hose with the
hose filter to the inlet valve.
1
C
If necessary
If only a G1⁄2"connection is present,
use one of the G1⁄2"couplings with the
supplied packing rings.

Connecting tank to tap
• The Quooker tank is supplied with a UK 3 pin plug and requires a standard
13 amp earthed socket.
• If the mains lead is damaged, it must be replaced by the manufacturer, their
agent or a qualified technician.
• The ‘Q’ on the lid is the on/off switch.
1 Connecting
tank and tap
Position the tank and connect to the
inlet valve using the washer provided.
sing size 10 and 14 socket spanners,
connect tap hose to fitting at the top
of the tank.
2 Electrical
connection
Insert the LED cable into the relevant
opening. Connect the tank to an
earthed socket. Do not switch on until
the tank is filled with water.
3 Filling tank
Open tap and angle stopcock. Check
for leaks. Rinse Quooker for a few
minutes, until the water is clear.
The initial black colouring is activated
carbon from the filter and completely
harmless.
4 Switching on
Switch the tank on. After the Quooker
has heated up, the entire content of
boiling water must be flushed out
once before use.
1 2
3 4
10
14
D

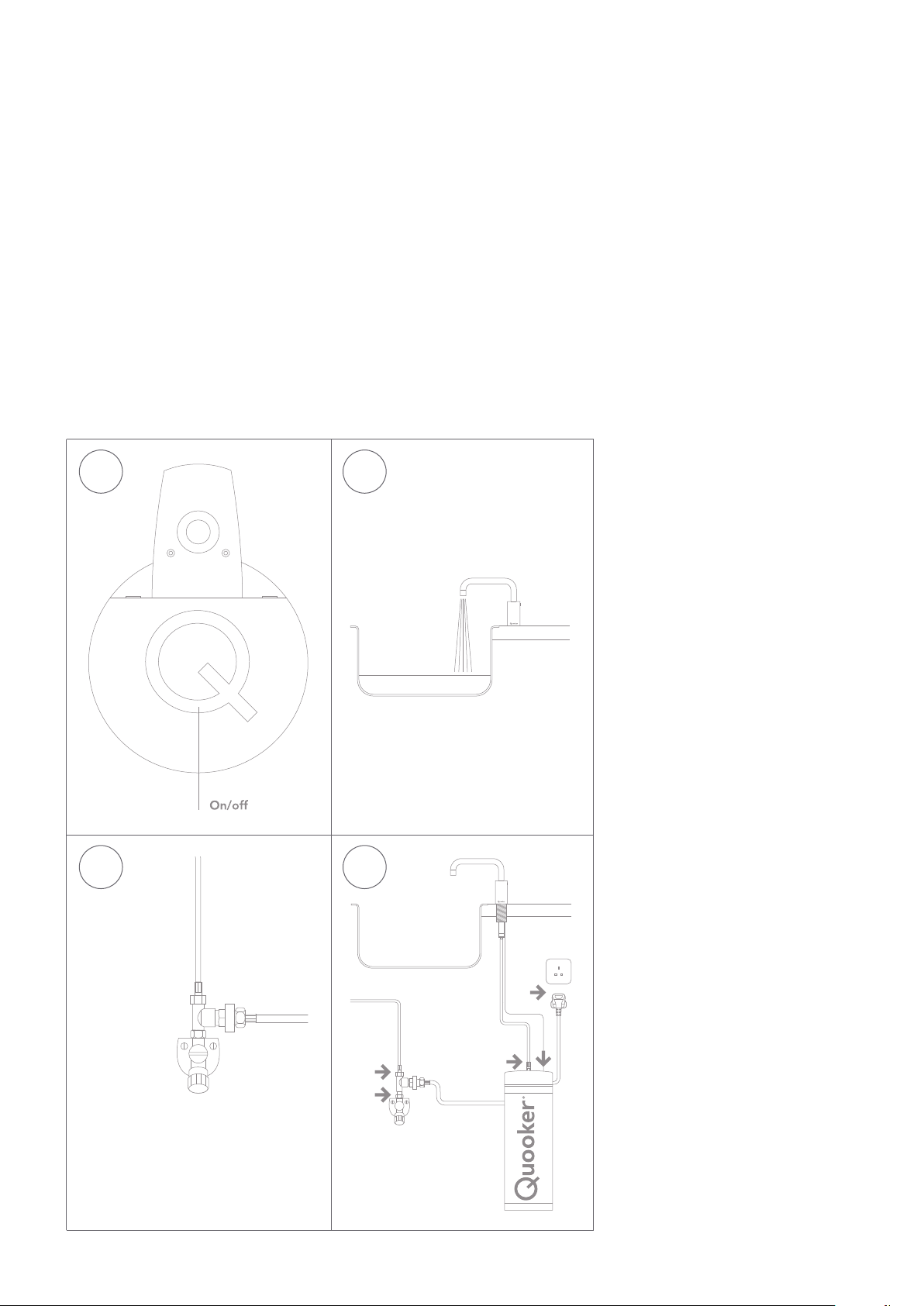

Disconnecting tank
• In case of service
1 Switching off
Switch the Quooker off using the
on/off switch on top of the lid. Leave
the plug in the socket.
2 Draining
Open the boiling-water tap and leave
the water running until it is cold.
3 Isolating
Shut off the main water tap or the
angle stopcock for cold water. Check
that the Quooker has depressurised
by opening the tap again.
4 Disconnecting
nplug LED cable from lid. Release
the hose connections and pull the plug
out of the socket. Remove inlet
combination and reconnect the cold
water hose to the angle stopcock.
1 2
3 4
E

AE | 30.398.09 | V05
Q O O K E R E M I R A T E S L L C Address Al Bateen, C2 Tower (10th floor)
PO Box 113100 Abu Dhabi (UAE) E-mail [e-mail] Internet quooker.ae
www.quooker.ae
